windshield wipers JEEP COMMANDER 2010 1.G Owners Manual

▫Battery Saver Feature — Exterior/Interior
Lights ............................ 110
▫ Lights-On Reminder .................. 110
▫ Turn Signals ........................ 110
▫ Lane Change Assist ....................111
▫ High/Low Beam Switch ................111
▫ Flash-To-Pass ........................111
▫ Headlight Off Delay ...................111
▫ Interior Lights .......................111
▫ Courtesy/Reading Lights ...............111
 Windshield Wipers And Washers .......... 112
▫ Windshield Wiper Operation ............ 113
▫ Windshield Washer Operation ........... 113▫
Mist ............................. 114
▫ Intermittent Wiper System .............. 114
▫ Rain Sensing Wipers — If Equipped ....... 115
 Tilt/Telescoping Steering Column .......... 117
 Adjustable Pedals — If Equipped .......... 117
 Electronic Speed Control — If Equipped ..... 119
▫ To Activate ......................... 120
▫ To Set a Desired Speed ................ 120
▫ To Deactivate ....................... 121
▫ To Resume Speed .................... 121
▫ To Vary The Speed Setting .............. 121
▫ To Accelerate For Passing .............. 121
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

This system performs two functions. With the engine
running and the multifunction lever in the AUTO posi-
tion, the headlights will turn on and off based on the
surrounding light levels.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights it
also has this customer-programmable feature. When
your headlights are in the AUTO position, and the engine
is running, they will automatically turn on when the
wiper system is on. Refer to “Headlamps On with
Wipers” under “Electronic Vehicle Information (EVIC) —
Customer-Programmable Features” in Section 4.
If your vehicle is equipped with a “Rain Sensitive Wiper
System,” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn offapproximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for more information.
NOTE:
When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Instru-
ment Panel and Interior Lights” below for setting the
instrument panel lights to full daytime intensity.
SmartBeam™ — If Equipped
The SmartBeam™ system provides increased forward
lighting at night by automating high beam control
through the use of a digital camera mounted on the
inside rearview mirror. This camera detects vehicle spe-
cific light and automatically switches from high beams to
low beams until the approaching vehicle is out of view.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

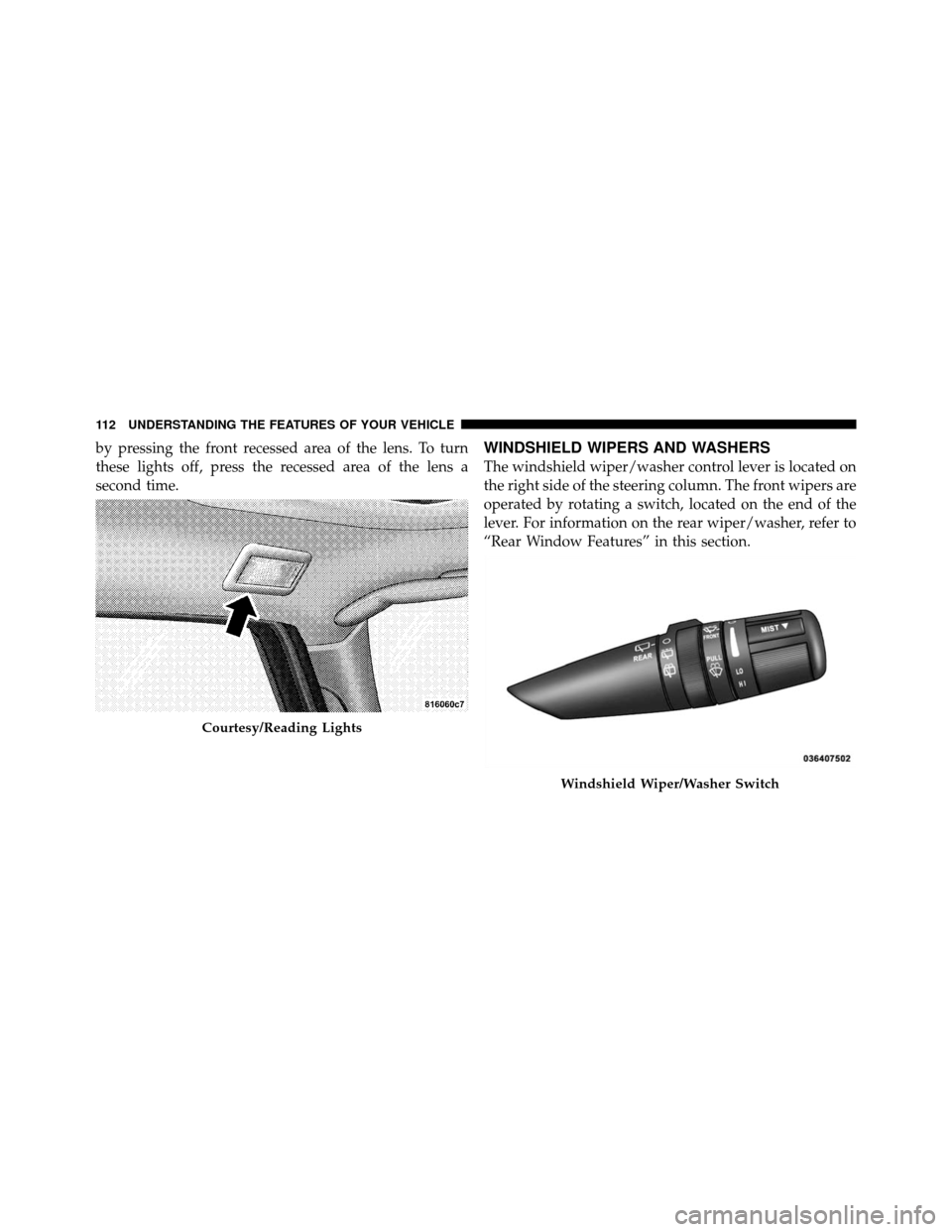

by pressing the front recessed area of the lens. To turn
these lights off, press the recessed area of the lens a
second time.WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the right side of the steering column. The front wipers are
operated by rotating a switch, located on the end of the
lever. For information on the rear wiper/washer, refer to
“Rear Window Features” in this section.
Courtesy/Reading Lights
Windshield Wiper/Washer Switch
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

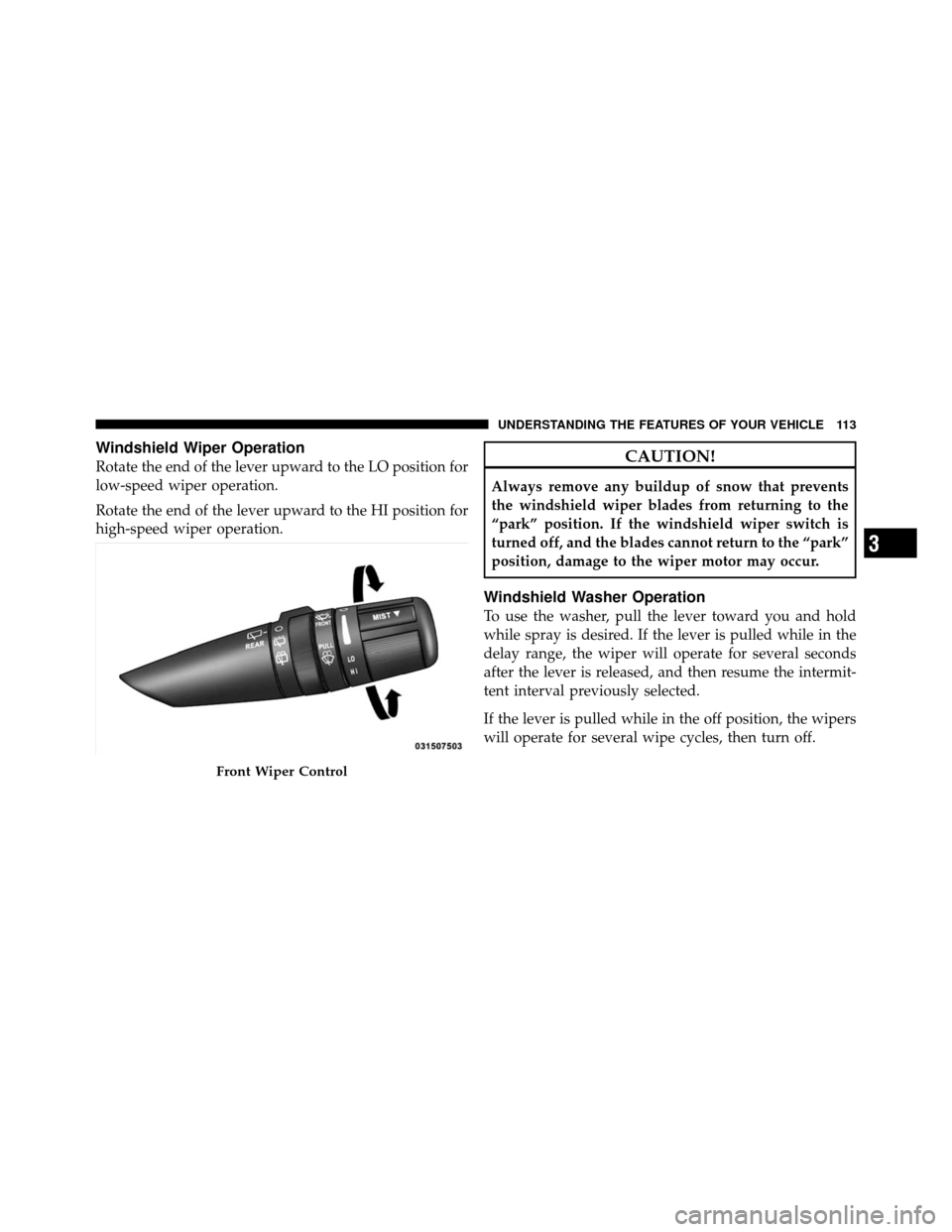

Windshield Wiper Operation
Rotate the end of the lever upward to the LO position for
low-speed wiper operation.
Rotate the end of the lever upward to the HI position for
high-speed wiper operation.CAUTION!
Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
“park” position. If the windshield wiper switch is
turned off, and the blades cannot return to the “park”
position, damage to the wiper motor may occur.
Windshield Washer Operation
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will operate for several seconds
after the lever is released, and then resume the intermit-
tent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for several wipe cycles, then turn off.
Front Wiper Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

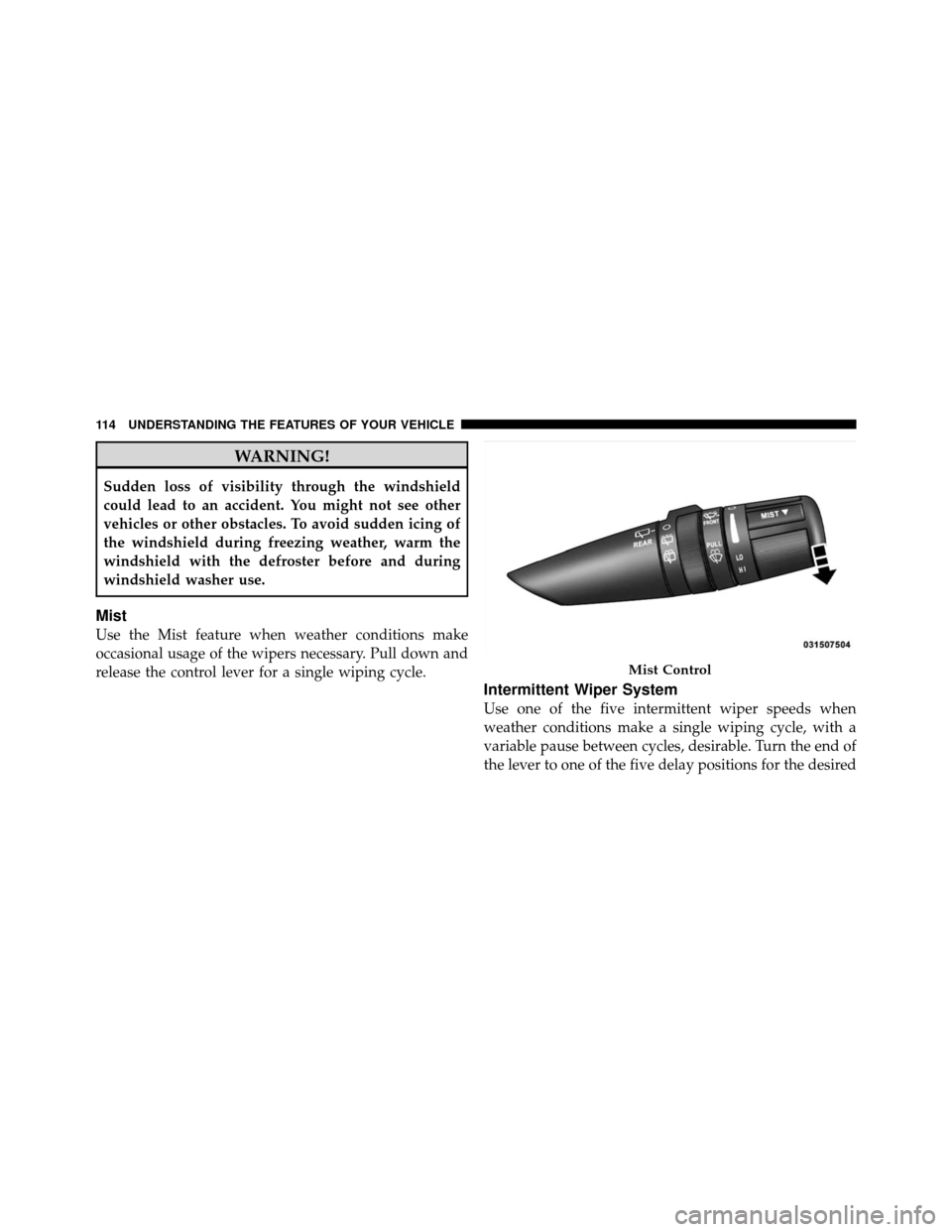

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist
Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Pull down and
release the control lever for a single wiping cycle.
Intermittent Wiper System
Use one of the five intermittent wiper speeds when
weather conditions make a single wiping cycle, with a
variable pause between cycles, desirable. Turn the end of
the lever to one of the five delay positions for the desired
Mist Control
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

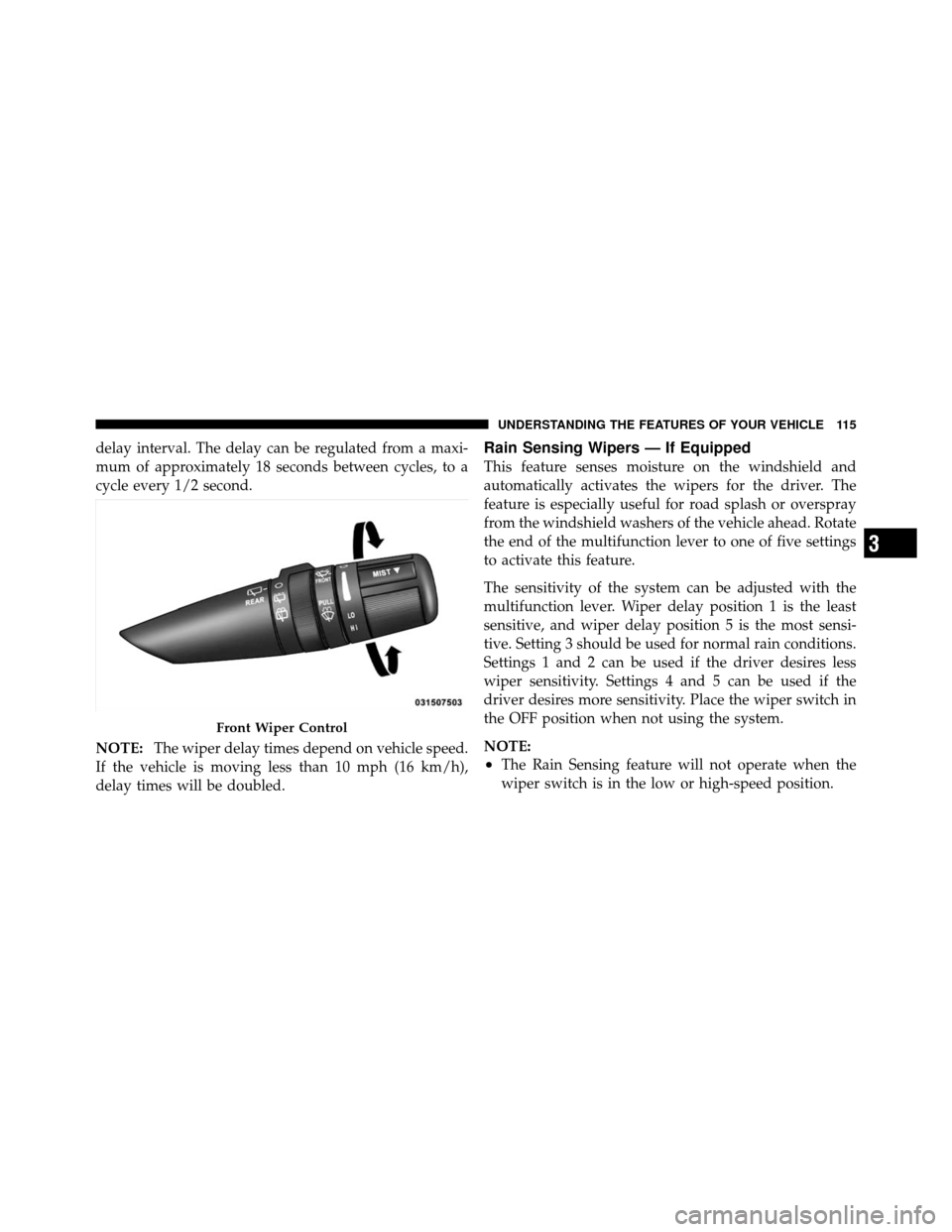

delay interval. The delay can be regulated from a maxi-
mum of approximately 18 seconds between cycles, to a
cycle every 1/2 second.
NOTE:The wiper delay times depend on vehicle speed.
If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of five settings
to activate this feature.
The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position 1 is the least
sensitive, and wiper delay position 5 is the most sensi-
tive. Setting 3 should be used for normal rain conditions.
Settings 1 and 2 can be used if the driver desires less
wiper sensitivity. Settings 4 and 5 can be used if the
driver desires more sensitivity. Place the wiper switch in
the OFF position when not using the system.
NOTE:
•The Rain Sensing feature will not operate when the
wiper switch is in the low or high-speed position.
Front Wiper Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

Auto High Beams (Available with SmartBeam™
Only)
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the FUNCTION
SELECT button until YES (Y) or NO (N) appears. Refer to
“Lights/SmartBeam™ — If Equipped” in Section 3 of
this manual for more information.
Headlamps with Wipers (Available with Automatic
Headlamps Only)
When YES (Y) is selected, and the headlight switch is in
the AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, press and release the FUNCTION SELECT
button until YES (Y) or NO (N) appears.NOTE:
Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in Section 3 of this manual.
Rain Sensing Wipers — If Equipped
When YES (Y) is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the FUNCTION SELECT button until YES (Y) or NO (N)
appears. When NO (N) is selected, the system reverts to
the standard intermittent wiper operation.
Easy Entry/Exit Seat (Available with Memory Seat
Only)
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
FUNCTION SELECT button until YES (Y) or NO (N)
appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to wipe frost or ice from the
windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
On vehicles equipped with a Electronic Vehicle Informa-
tion Center (EVIC), the low washer fluid level will be
indicated. When the sensor detects a low fluid level, the windshield will light on the vehicle graphic outline and
the “WASHER FLUID LOW” message will be displayed.
The fluid reservoir for the windshield washers and the
rear window washer is shared. The fluid reservoir is
located in the engine compartment, be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
370 MAINTAINING YOUR VEHICLE

Voice Recognition System (VR)............... 85
Warning Flasher, Hazard .................. 342
Warning, Roll Over ........................ 5
Warnings and Cautions ..................... 8
Warranty Information ..................... 436
Washers, Windshield ................... 1 12,370
Washing Vehicle ......................... 387
Waxing and Polishing ..................... 387
Wheel and Wheel Trim .................... 389
Wheel and Wheel Trim Care ................ 389
Wheel Mounting ........................ 349 Wind Buffeting
....................... 33,139
Window Fogging ........................ 235
Windows .............................. 30
Power ............................... 30
Windshield Defroster ................76,225,231
Windshield Washers ...................... 112
Fluid ............................... 370
Windshield Wiper Blades .................. 369
Windshield Wipers ....................... 112
Wipers, Intermittent ...................... 114
Wipers, Rain Sensitive .................... 115
