check engine light JEEP COMPASS 2009 1.G User Guide

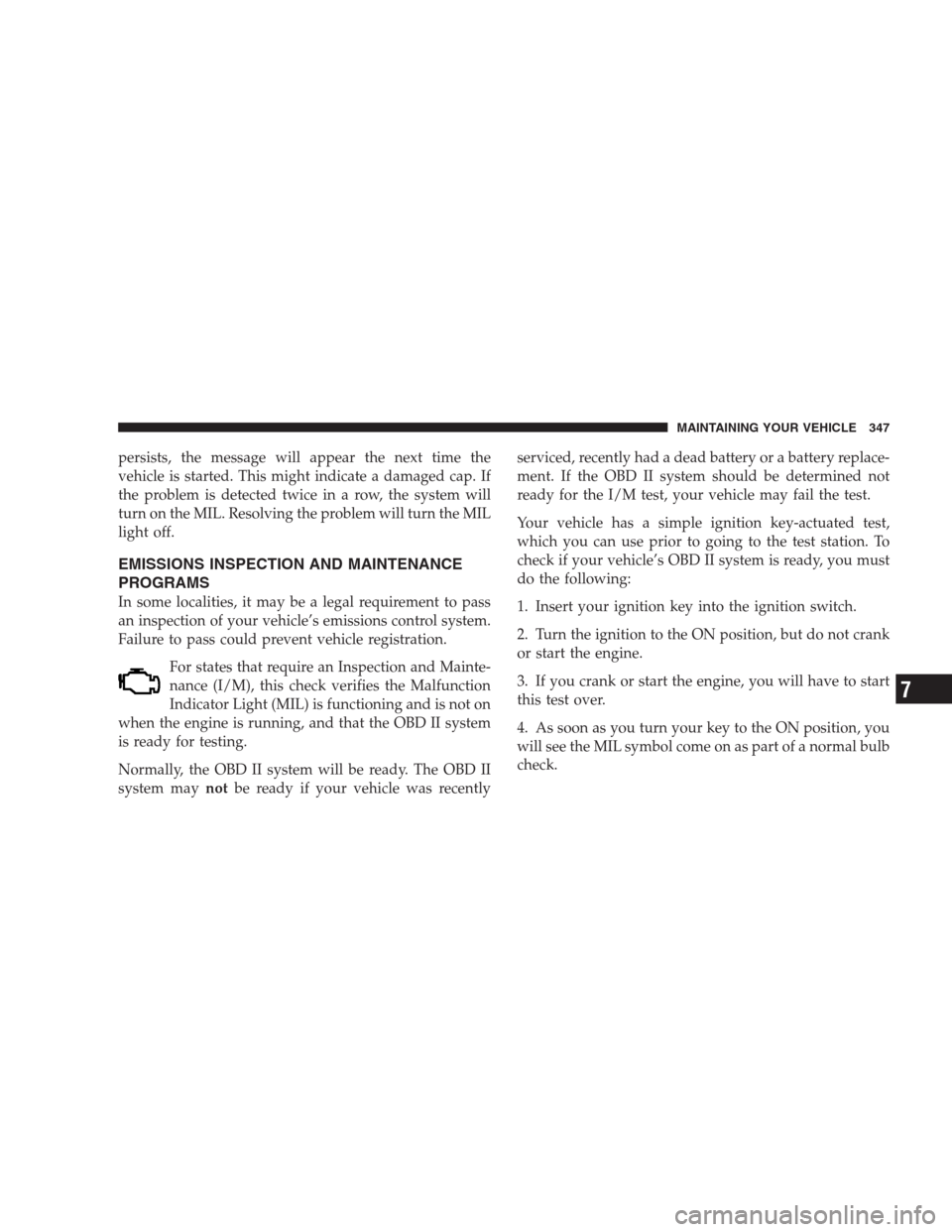

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the MIL. Resolving the problem will turn the MIL
light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recentlyserviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
MAINTAINING YOUR VEHICLE 347
7

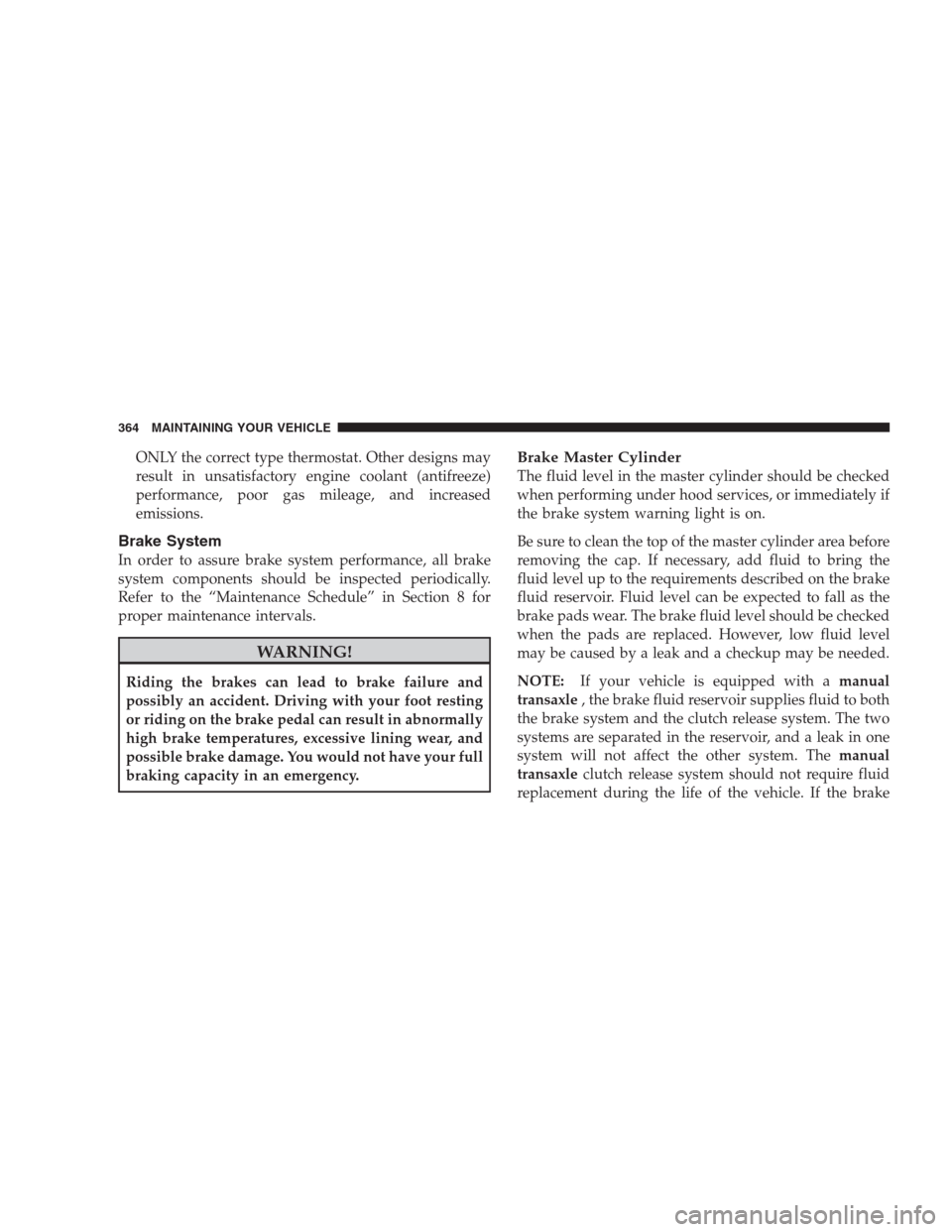

ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine coolant (antifreeze)
performance, poor gas mileage, and increased
emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services, or immediately if
the brake system warning light is on.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. Fluid level can be expected to fall as the
brake pads wear. The brake fluid level should be checked
when the pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
NOTE:If your vehicle is equipped with amanual
transaxle, the brake fluid reservoir supplies fluid to both
the brake system and the clutch release system. The two
systems are separated in the reservoir, and a leak in one
system will not affect the other system. Themanual
transaxleclutch release system should not require fluid
replacement during the life of the vehicle. If the brake
364 MAINTAINING YOUR VEHICLE

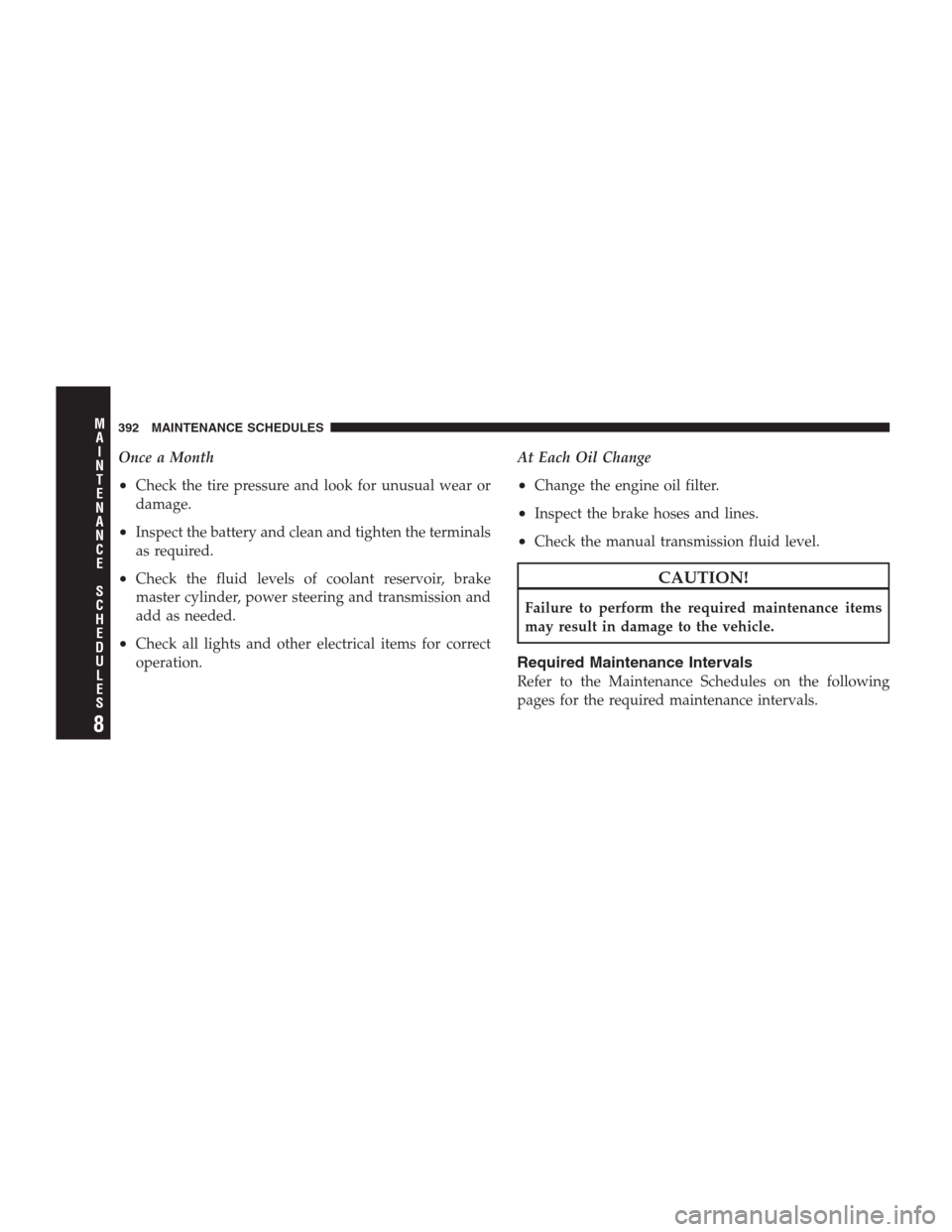

Once a Month
•Check the tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Check the manual transmission fluid level.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
392 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

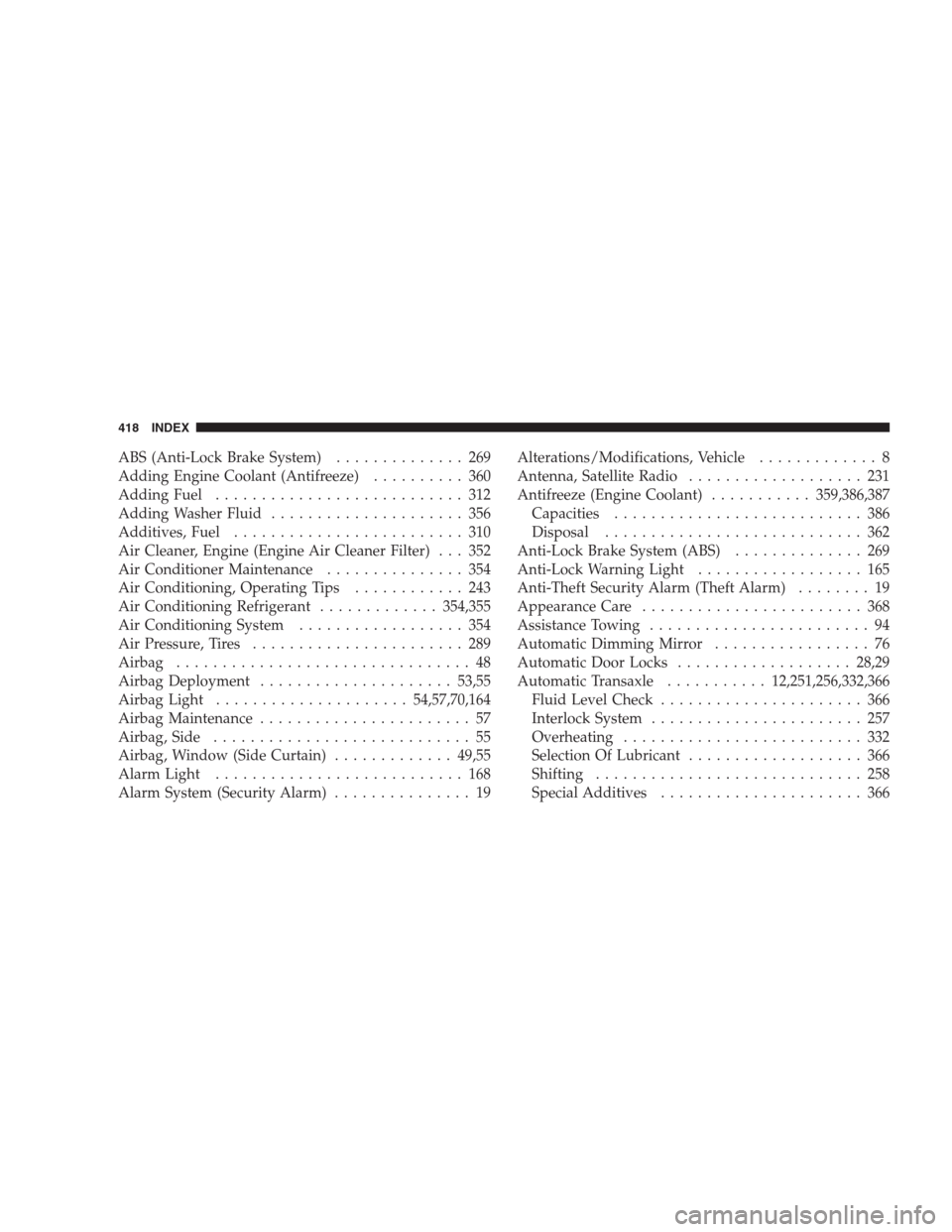

ABS (Anti-Lock Brake System).............. 269
Adding Engine Coolant (Antifreeze).......... 360
Adding Fuel........................... 312
Adding Washer Fluid..................... 356
Additives, Fuel......................... 310
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 352
Air Conditioner Maintenance............... 354
Air Conditioning, Operating Tips............ 243
Air Conditioning Refrigerant.............354,355
Air Conditioning System.................. 354
Air Pressure, Tires....................... 289
Airbag................................ 48
Airbag Deployment.....................53,55
Airbag Light.....................54,57,70,164
Airbag Maintenance....................... 57
Airbag, Side............................ 55
Airbag, Window (Side Curtain).............49,55
Alarm Light........................... 168
Alarm System (Security Alarm)............... 19Alterations/Modifications, Vehicle............. 8
Antenna, Satellite Radio................... 231
Antifreeze (Engine Coolant)...........359,386,387
Capacities........................... 386
Disposal............................ 362
Anti-Lock Brake System (ABS).............. 269
Anti-Lock Warning Light.................. 165
Anti-Theft Security Alarm (Theft Alarm)........ 19
Appearance Care........................ 368
Assistance Towing........................ 94
Automatic Dimming Mirror................. 76
Automatic Door Locks...................28,29
Automatic Transaxle...........12,251,256,332,366
Fluid Level Check...................... 366
Interlock System....................... 257
Overheating.......................... 332
Selection Of Lubricant................... 366
Shifting............................. 258
Special Additives...................... 366
418 INDEX

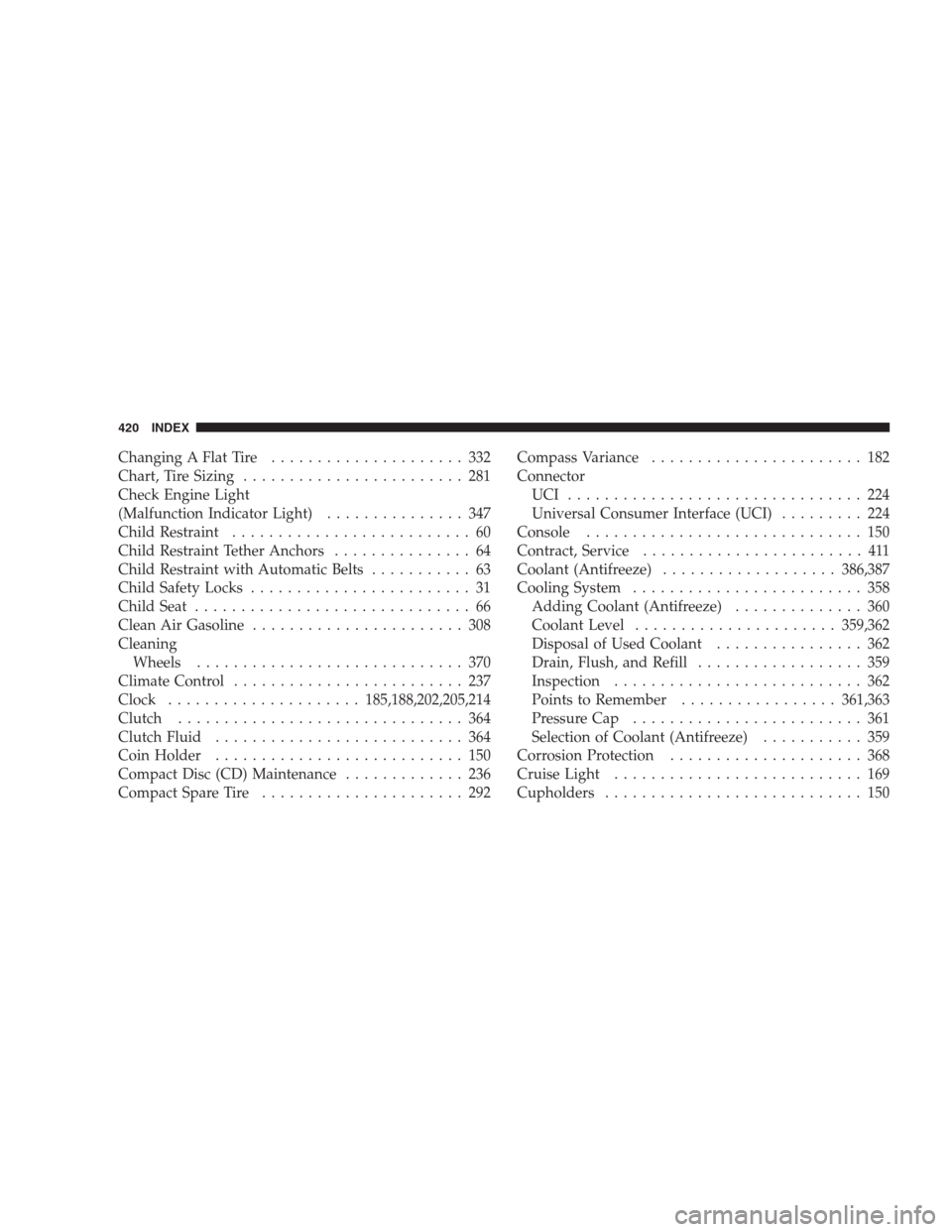

Changing A Flat Tire..................... 332
Chart, Tire Sizing........................ 281
Check Engine Light
(Malfunction Indicator Light)............... 347
Child Restraint.......................... 60
Child Restraint Tether Anchors............... 64
Child Restraint with Automatic Belts........... 63
Child Safety Locks........................ 31
Child Seat.............................. 66
Clean Air Gasoline....................... 308
Cleaning
Wheels............................. 370
Climate Control......................... 237
Clock.....................185,188,202,205,214
Clutch............................... 364
Clutch Fluid........................... 364
Coin Holder........................... 150
Compact Disc (CD) Maintenance............. 236
Compact Spare Tire...................... 292Compass Variance....................... 182
Connector
UCI ................................ 224
Universal Consumer Interface (UCI)......... 224
Console.............................. 150
Contract, Service........................ 411
Coolant (Antifreeze)...................386,387
Cooling System......................... 358
Adding Coolant (Antifreeze).............. 360
Coolant Level......................359,362
Disposal of Used Coolant................ 362
Drain, Flush, and Refill.................. 359
Inspection........................... 362
Points to Remember.................361,363
Pressure Cap......................... 361
Selection of Coolant (Antifreeze)........... 359
Corrosion Protection..................... 368
Cruise Light........................... 169
Cupholders............................ 150
420 INDEX

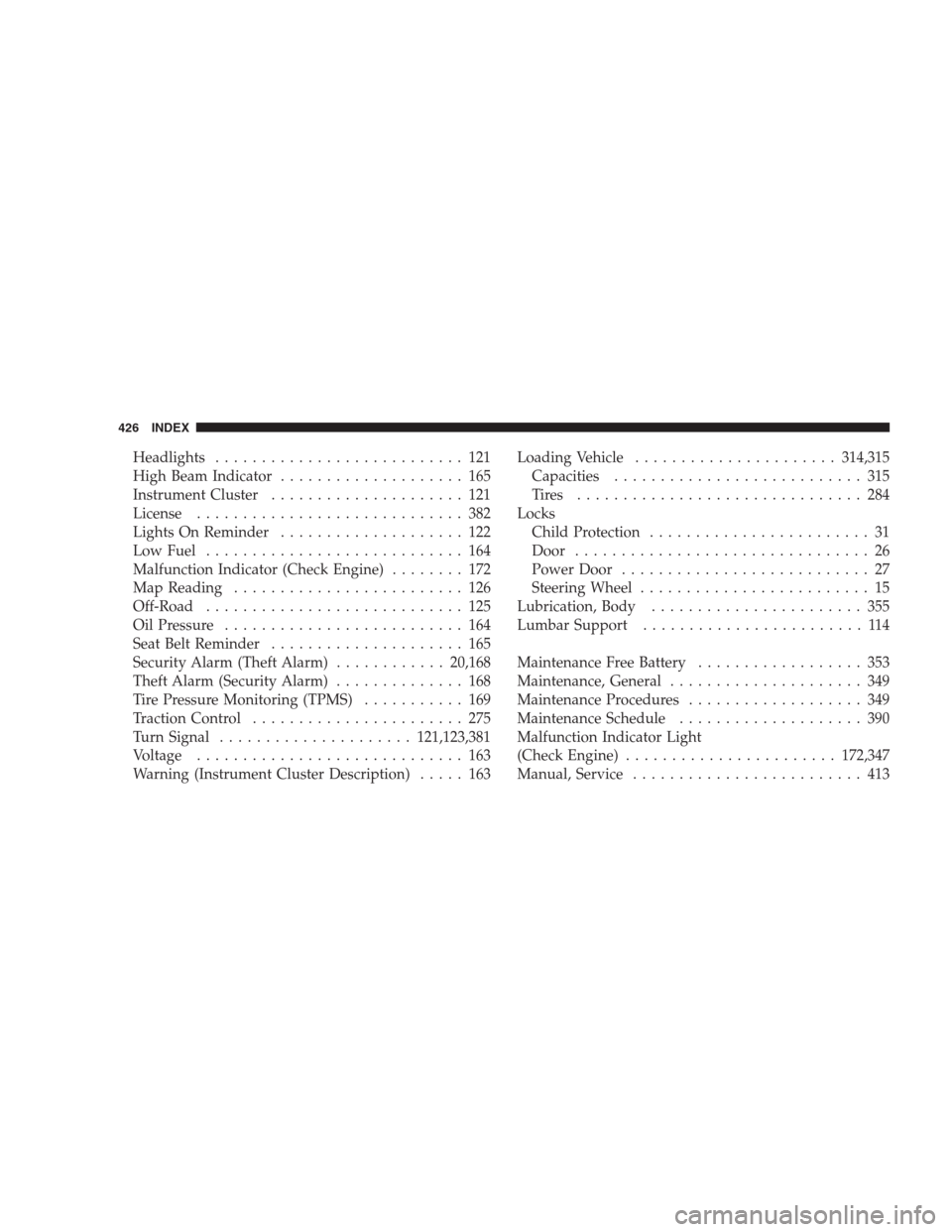

Headlights........................... 121
High Beam Indicator.................... 165
Instrument Cluster..................... 121
License............................. 382
Lights On Reminder.................... 122
Low Fuel............................ 164
Malfunction Indicator (Check Engine)........ 172
Map Reading......................... 126
Off-Road............................ 125
Oil Pressure.......................... 164
Seat Belt Reminder..................... 165
Security Alarm (Theft Alarm)............20,168
Theft Alarm (Security Alarm).............. 168
Tire Pressure Monitoring (TPMS)........... 169
Traction Control....................... 275
Turn Signal.....................121,123,381
Voltage............................. 163
Warning (Instrument Cluster Description)..... 163Loading Vehicle......................314,315
Capacities........................... 315
Tires ............................... 284
Locks
Child Protection........................ 31
Door................................ 26
Power Door........................... 27
Steering Wheel......................... 15
Lubrication, Body....................... 355
Lumbar Support........................ 114
Maintenance Free Battery.................. 353
Maintenance, General..................... 349
Maintenance Procedures................... 349
Maintenance Schedule.................... 390
Malfunction Indicator Light
(Check Engine).......................172,347
Manual, Service......................... 413
426 INDEX

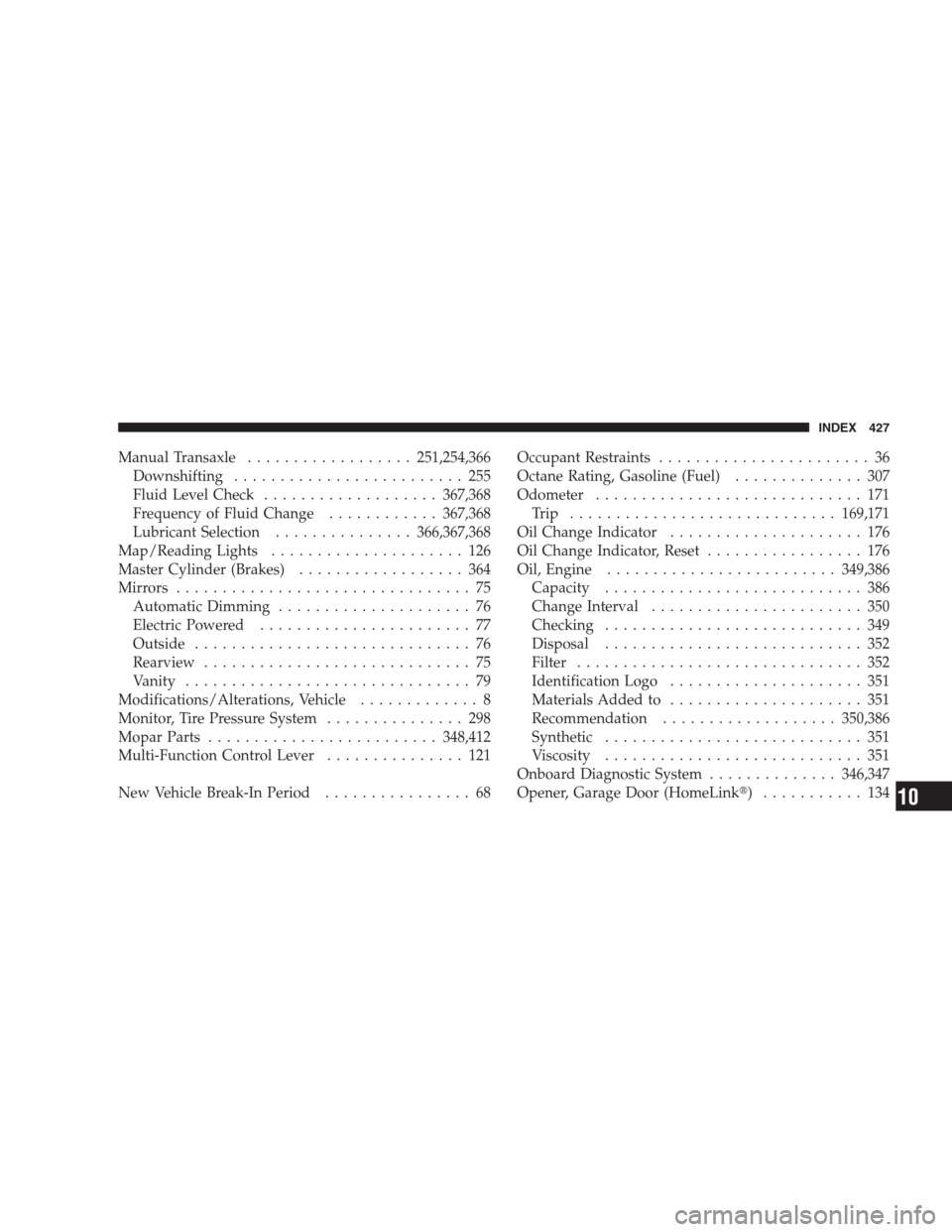

Manual Transaxle..................251,254,366
Downshifting......................... 255
Fluid Level Check...................367,368
Frequency of Fluid Change............367,368
Lubricant Selection...............366,367,368
Map/Reading Lights..................... 126
Master Cylinder (Brakes).................. 364
Mirrors................................ 75
Automatic Dimming..................... 76
Electric Powered....................... 77
Outside.............................. 76
Rearview............................. 75
Vanity............................... 79
Modifications/Alterations, Vehicle............. 8
Monitor, Tire Pressure System............... 298
Mopar Parts.........................348,412
Multi-Function Control Lever............... 121
New Vehicle Break-In Period................ 68Occupant Restraints....................... 36
Octane Rating, Gasoline (Fuel).............. 307
Odometer............................. 171
Trip .............................169,171
Oil Change Indicator..................... 176
Oil Change Indicator, Reset................. 176
Oil, Engine.........................349,386
Capacity............................ 386
Change Interval....................... 350
Checking............................ 349
Disposal............................ 352
Filter............................... 352
Identification Logo..................... 351
Materials Added to..................... 351
Recommendation...................350,386
Synthetic............................ 351
Viscosity............................ 351
Onboard Diagnostic System..............346,347
Opener, Garage Door (HomeLink) ........... 134
INDEX 427
