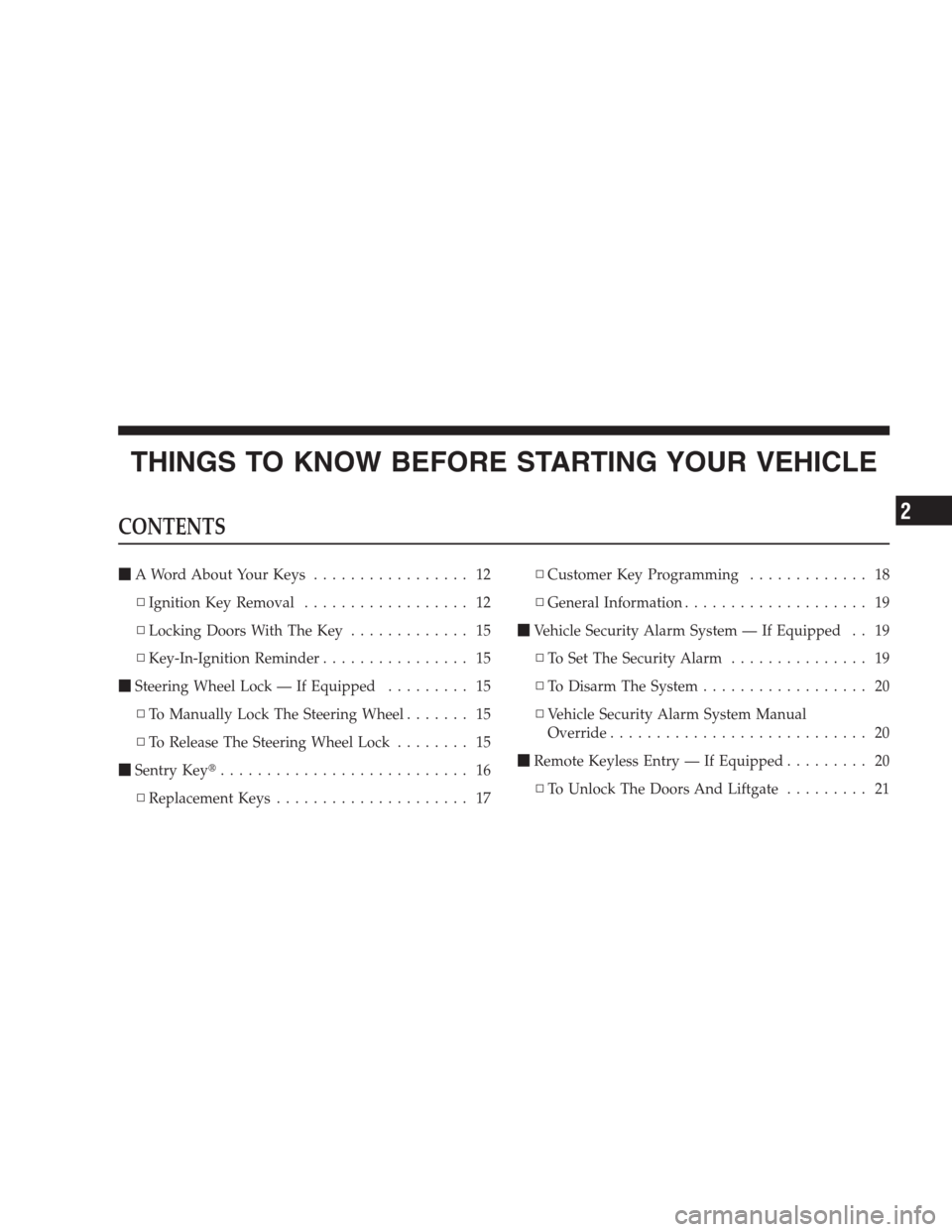

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Locking Doors With The Key............. 15
▫Key-In-Ignition Reminder................ 15
Steering Wheel Lock — If Equipped......... 15
▫To Manually Lock The Steering Wheel....... 15
▫To Release The Steering Wheel Lock........ 15
Sentry Key........................... 16
▫Replacement Keys..................... 17▫Customer Key Programming............. 18
▫General Information.................... 19
Vehicle Security Alarm System — If Equipped . . 19
▫To Set The Security Alarm............... 19
▫To Disarm The System.................. 20
▫Vehicle Security Alarm System Manual
Override............................ 20
Remote Keyless Entry — If Equipped......... 20
▫To Unlock The Doors And Liftgate......... 21
2
Page 12 of 439
▫Remote Key Unlock, Driver Door/All First
Press .............................. 21
▫Illuminated Approach — If Equipped....... 22
▫To Lock The Doors And Liftgate........... 22
▫Sound Horn With Remote Key Lock........ 22
▫Flash Lights With Remote Key Lock/Unlock . . 23
▫Using The Panic Alarm................. 24
▫Programming Additional Transmitters....... 24
▫General Information.................... 24
▫RKE Transmitter Battery Replacement....... 25
Door Locks........................... 26
▫Manual Door Locks.................... 26
▫Power Door Locks..................... 27▫Child-Protection Door Lock System
(Rear Doors) — If Equipped.............. 31
Power Windows — If Equipped............ 32
▫Power Window Switches................ 32
▫Auto Down.......................... 33
▫Window Lockout Switch................ 34
Liftgate.............................. 34
Occupant Restraints..................... 36
▫Lap/Shoulder Belts.................... 37
▫Adjustable Upper Shoulder Belt Anchorage . . . 42
▫Second Row Center Lap/Shoulder Belt
Operating Instructions.................. 42
▫Seat Belt Pretensioners.................. 46
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 439
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.

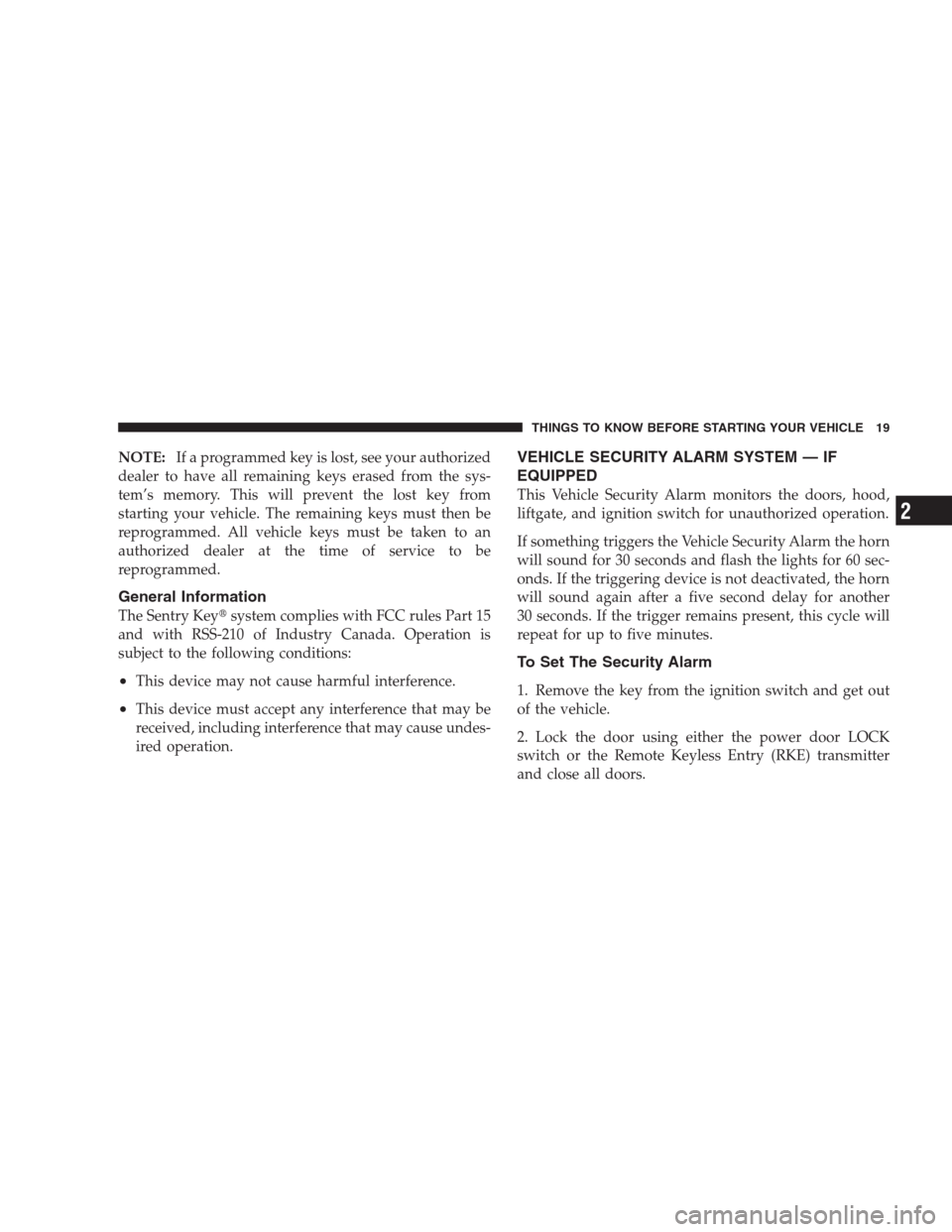

VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
This Vehicle Security Alarm monitors the doors, hood,
liftgate, and ignition switch for unauthorized operation.
If something triggers the Vehicle Security Alarm the horn
will sound for 30 seconds and flash the lights for 60 sec-
onds. If the triggering device is not deactivated, the horn
will sound again after a five second delay for another
30 seconds. If the trigger remains present, this cycle will
repeat for up to five minutes.
To Set The Security Alarm
1. Remove the key from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door LOCK
switch or the Remote Keyless Entry (RKE) transmitter
and close all doors.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
Page 22 of 439
3. The Vehicle Security Light in the instrument cluster
will flash rapidly for approximately 16 seconds. This
shows that the system is arming. During this period, if a
door is opened, the ignition switch is turned ON, or the
power door locks are unlocked in any manner, the
Vehicle Security Alarm will automatically disarm. After
approximately 16 seconds, the Vehicle Security Light will
flash slowly. This shows that the Vehicle Security Alarm
is fully armed.
To Disarm The System
1. Press UNLOCK on the RKE transmitter.
2. Starting the vehicle with a valid Sentry Keywill
disarm the Vehicle Security Alarm. A valid key is one that
is programmed to your vehicle. A valid key will disarm
the Vehicle Security Alarm; an invalid key will allow the
engine to run for two seconds and stop.
Vehicle Security Alarm System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
REMOTE KEYLESS ENTRY — IF EQUIPPED
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
66 ft (20 m) using a handheld Remote Keyless Entry
(RKE) transmitter. The RKE transmitter does not need to
be pointed at the vehicle to activate the system.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 24 of 439
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.

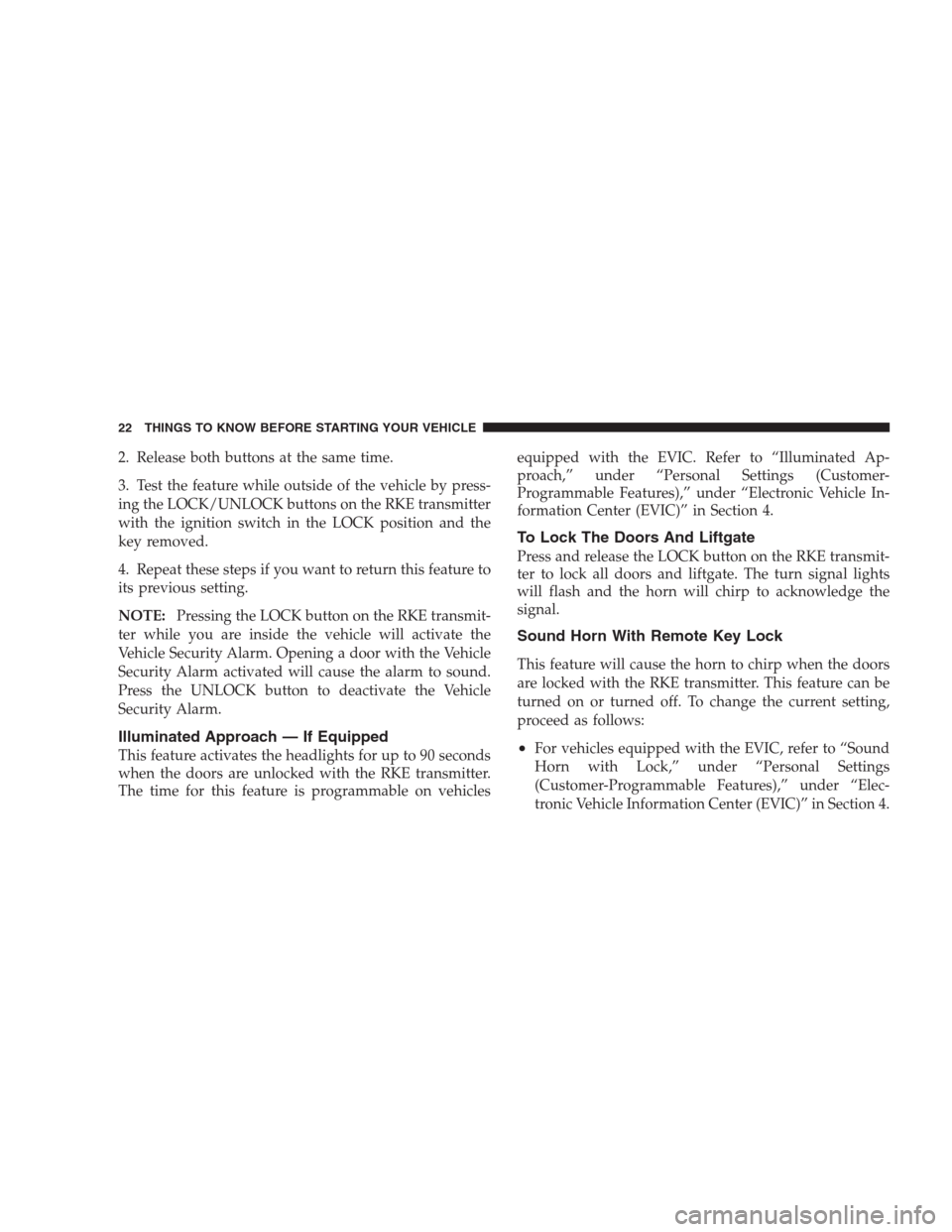

Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehiclesequipped with the EVIC. Refer to “Illuminated Ap-
proach,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.
To Lock The Doors And Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•For vehicles equipped with the EVIC, refer to “Sound
Horn with Lock,” under “Personal Settings
(Customer-Programmable Features),” under “Elec-
tronic Vehicle Information Center (EVIC)” in Section 4.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 25 of 439
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed RKE trans-
mitter for at least 4 seconds, but no longer than 10 sec-
onds. Then, press the PANIC button while still holding
the LOCK button.
2. Release both buttons at the same time.
3.
Test the feature while outside of the vehicle by pressing
the LOCK button on the RKE transmitter with the ignition
switch in the LOCK position and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security Alarm.

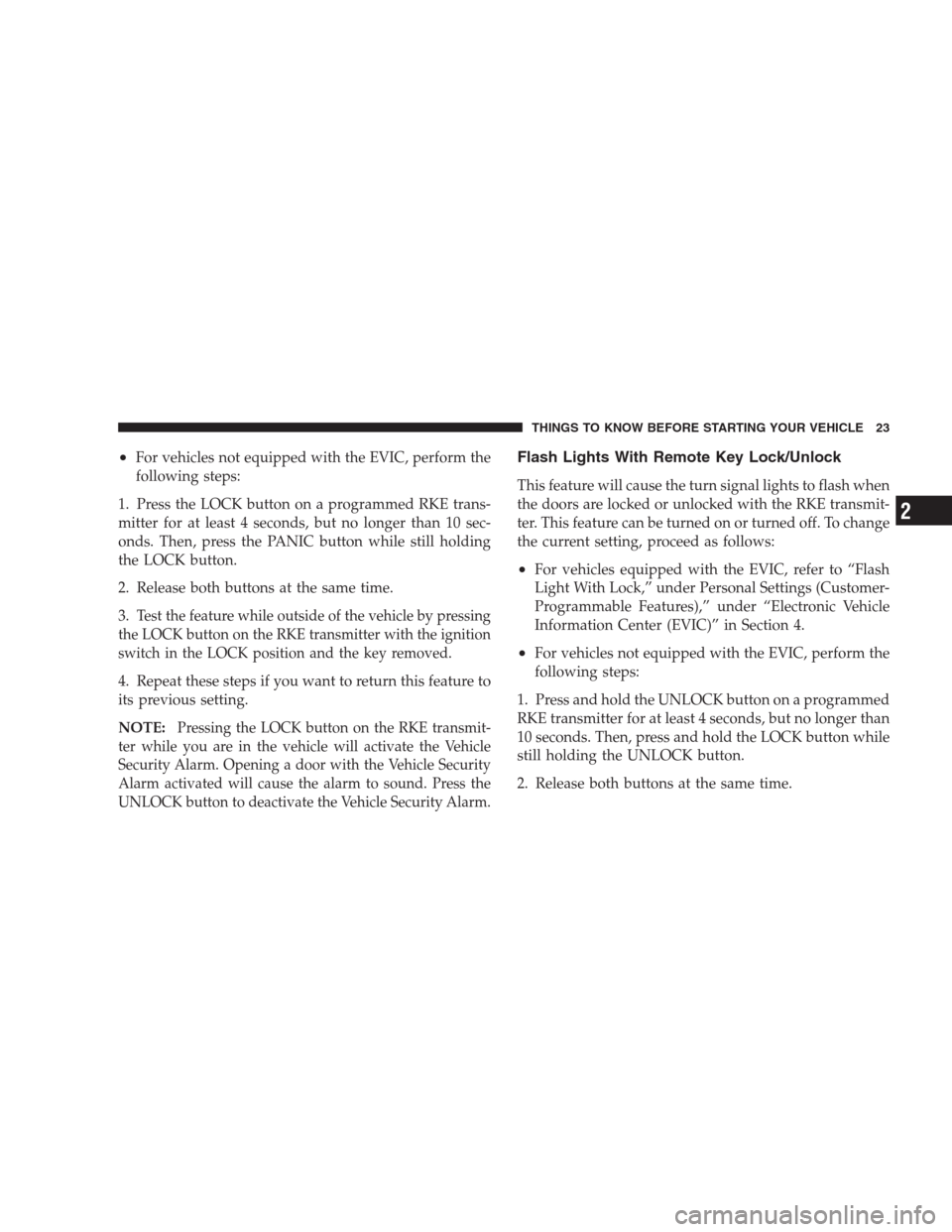

Flash Lights With Remote Key Lock/Unlock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Flash
Light With Lock,” under Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle
Information Center (EVIC)” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press and hold the UNLOCK button on a programmed
RKE transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Page 26 of 439
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security
Alarm.

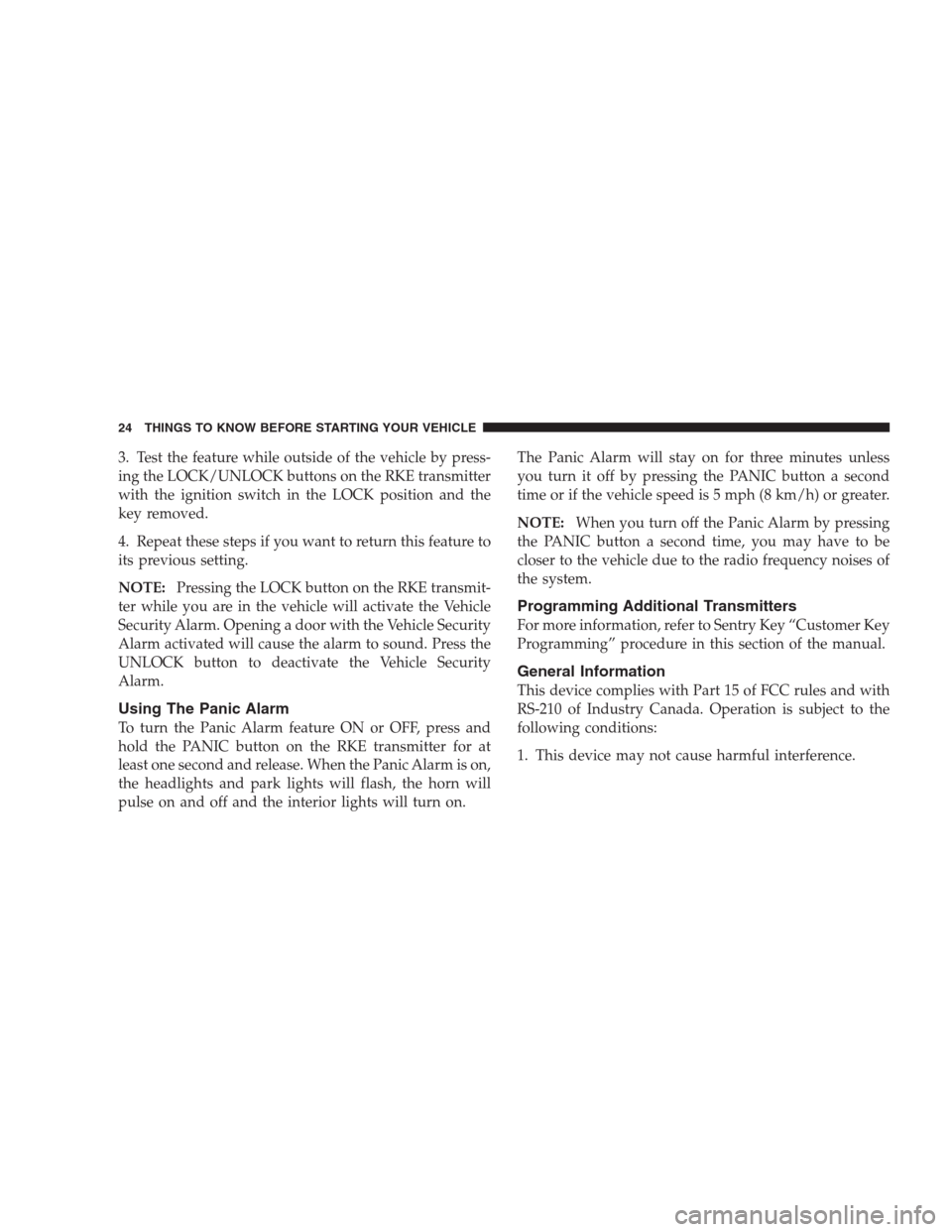

Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off and the interior lights will turn on.The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
Programming Additional Transmitters
For more information, refer to Sentry Key “Customer Key
Programming” procedure in this section of the manual.
General Information
This device complies with Part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 52 of 439

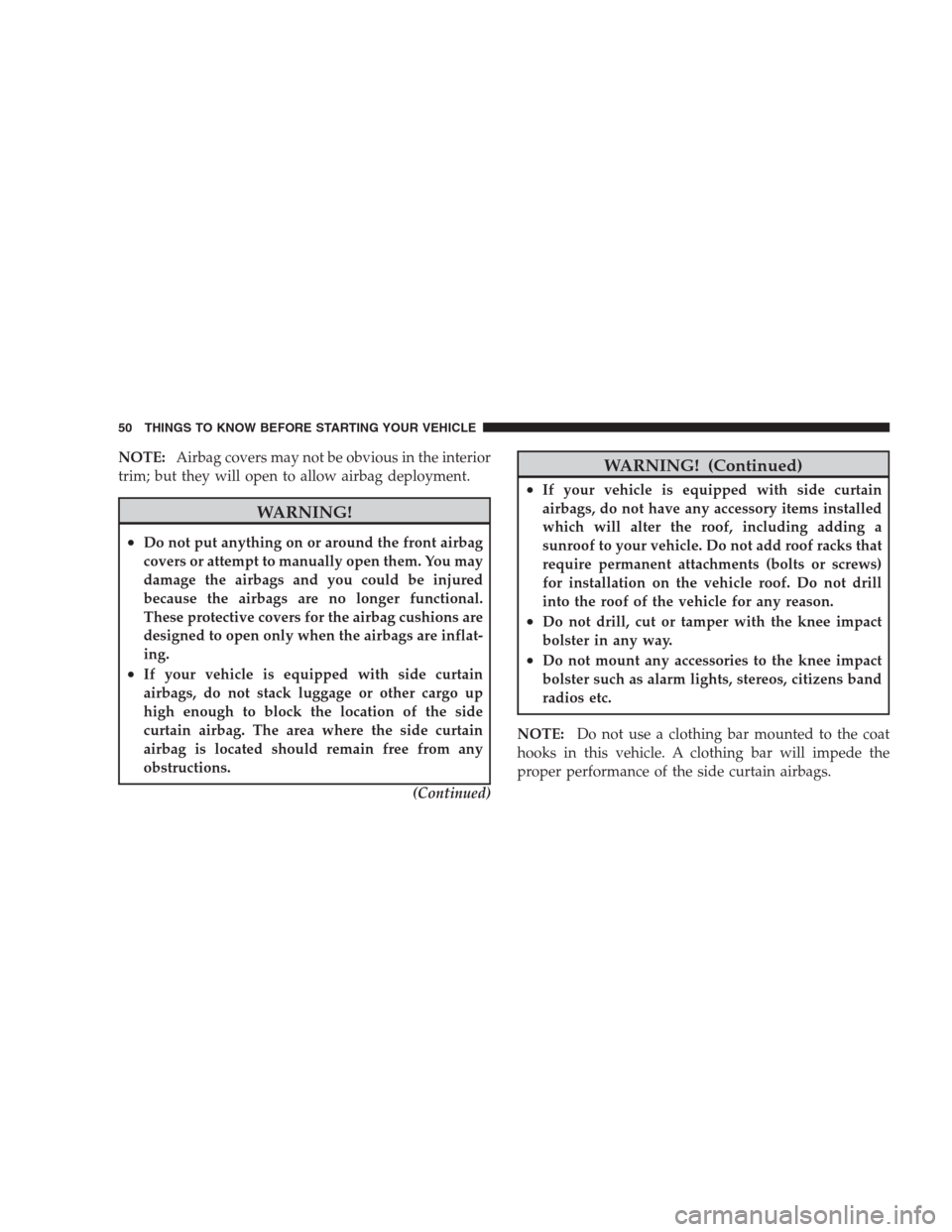

NOTE:Airbag covers may not be obvious in the interior
trim; but they will open to allow airbag deployment.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured
because the airbags are no longer functional.
These protective covers for the airbag cushions are
designed to open only when the airbags are inflat-
ing.
•If your vehicle is equipped with side curtain
airbags, do not stack luggage or other cargo up
high enough to block the location of the side
curtain airbag. The area where the side curtain
airbag is located should remain free from any
obstructions.
(Continued)
WARNING! (Continued)
•If your vehicle is equipped with side curtain
airbags, do not have any accessory items installed
which will alter the roof, including adding a
sunroof to your vehicle. Do not add roof racks that
require permanent attachments (bolts or screws)
for installation on the vehicle roof. Do not drill
into the roof of the vehicle for any reason.
•Do not drill, cut or tamper with the knee impact
bolster in any way.
•Do not mount any accessories to the knee impact
bolster such as alarm lights, stereos, citizens band
radios etc.
NOTE:Do not use a clothing bar mounted to the coat
hooks in this vehicle. A clothing bar will impede the
proper performance of the side curtain airbags.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 136 of 439

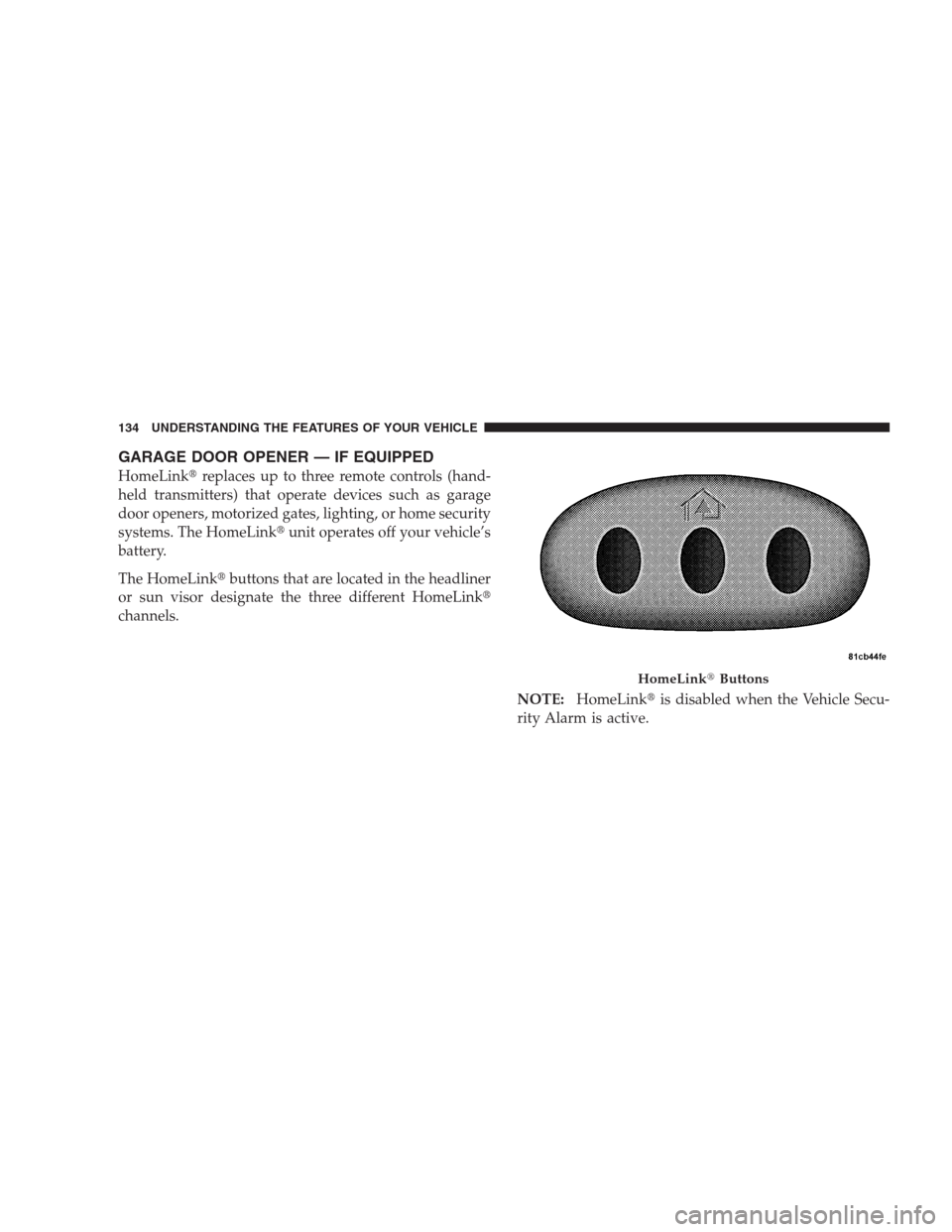

GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinkunit operates off your vehicle’s
battery.
The HomeLinkbuttons that are located in the headliner
or sun visor designate the three different HomeLink
channels.
NOTE:HomeLinkis disabled when the Vehicle Secu-
rity Alarm is active.
HomeLinkButtons
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 141 of 439

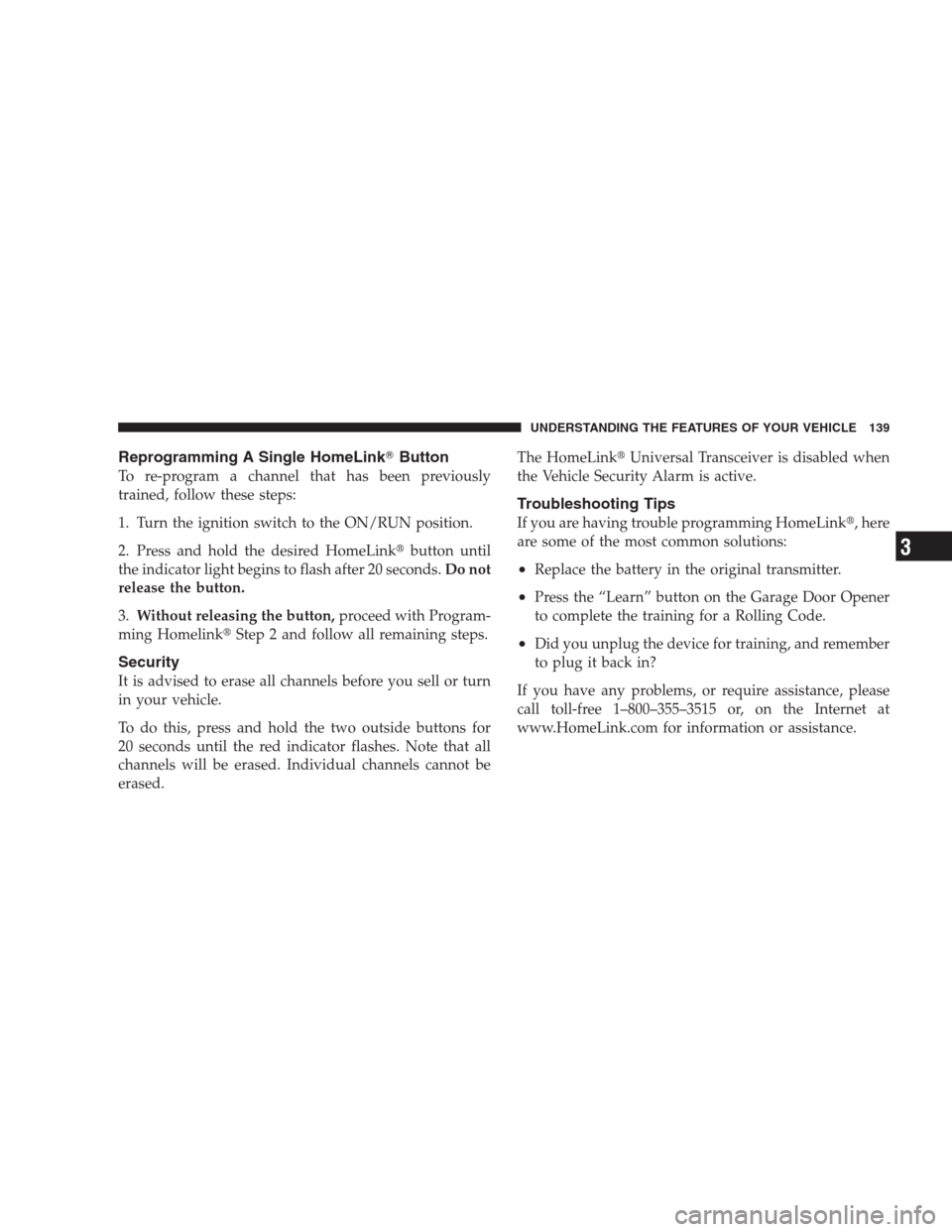

Reprogramming A Single HomeLinkButton
To re-program a channel that has been previously
trained, follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLinkbutton until
the indicator light begins to flash after 20 seconds.Do not
release the button.
3.Without releasing the button,proceed with Program-
ming HomelinkStep 2 and follow all remaining steps.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for
20 seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.The HomeLinkUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the “Learn” button on the Garage Door Opener
to complete the training for a Rolling Code.
•Did you unplug the device for training, and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139
3
