▫Brake System....................... 364
▫Automatic Transaxle (CVT).............. 366
▫Manual Transaxle.................... 366
▫Rear Drive Assembly (RDA) – AWD/4WD
Models Only........................ 367
▫Power Transfer Unit (PTU) – AWD/4WD
Models Only........................ 368
▫Appearance Care And Protection From
Corrosion.......................... 368
Fuses.............................. 374
▫Integrated Power Module (IPM).......... 374
Vehicle Storage....................... 377
Replacement Bulbs..................... 377Bulb Replacement..................... 378
▫Headlamps......................... 378
▫Fog Lights......................... 380
▫Tail Lights, Rear Turn Signals And Backup
Lights — Replacement................. 381
▫License Lights....................... 382
▫Center High-Mounted Stoplight.......... 384
▫Off-Road Light...................... 384
Fluids And Capacities................... 386
Fluids, Lubricants, And Genuine Parts....... 387
▫Engine............................ 387
▫Chassis............................ 388
344 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini-
FuseDescription
28 10 Amp
RedIGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control (If
Equipped)
32 30 Amp
PinkENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCM
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump FeedCavity Cartridge
FuseMini-
FuseDescription
36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
(If Equipped)
37 25 Amp
NaturalDiesel Fuel Heater —
If Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
(Continued)
376 MAINTAINING YOUR VEHICLE

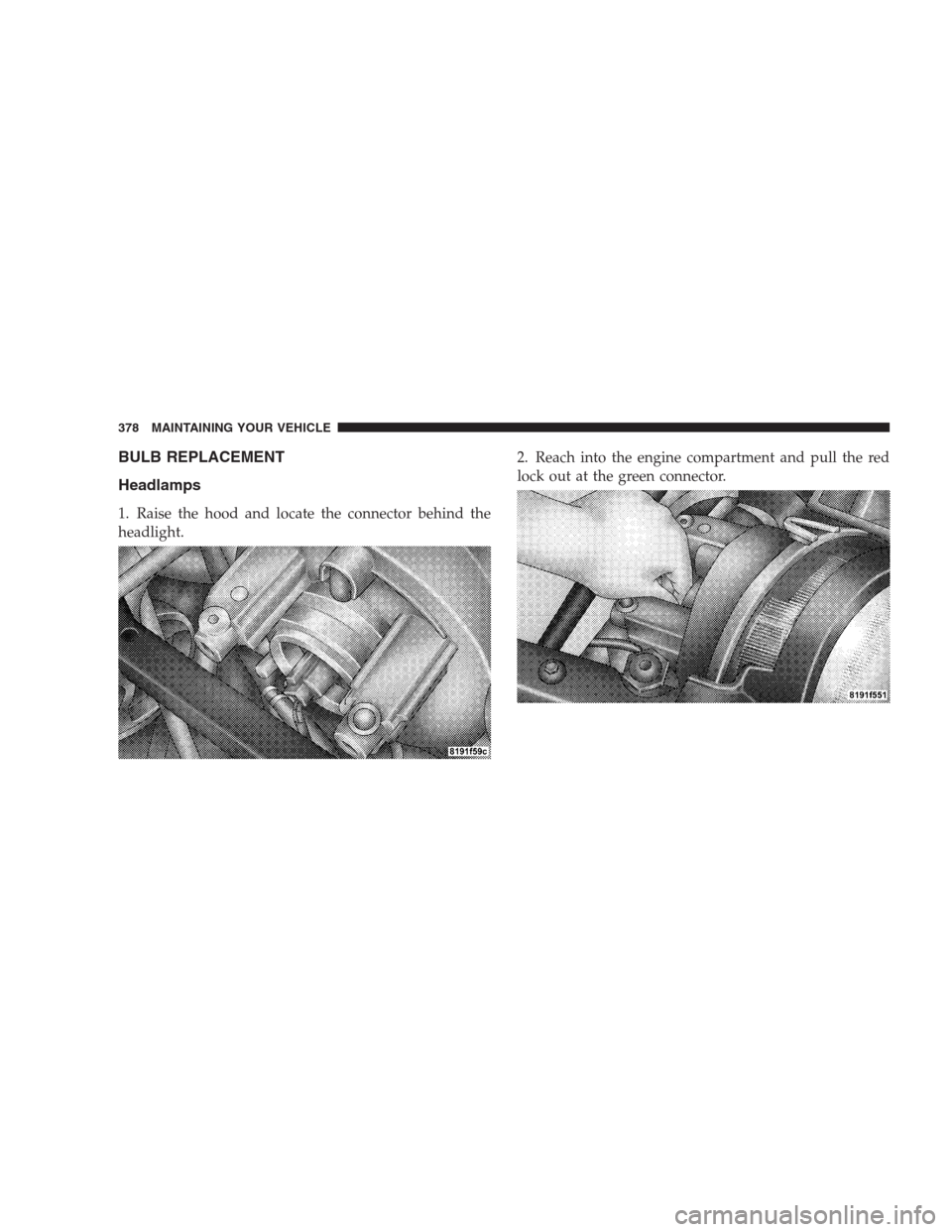

BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlight.2. Reach into the engine compartment and pull the red
lock out at the green connector.
