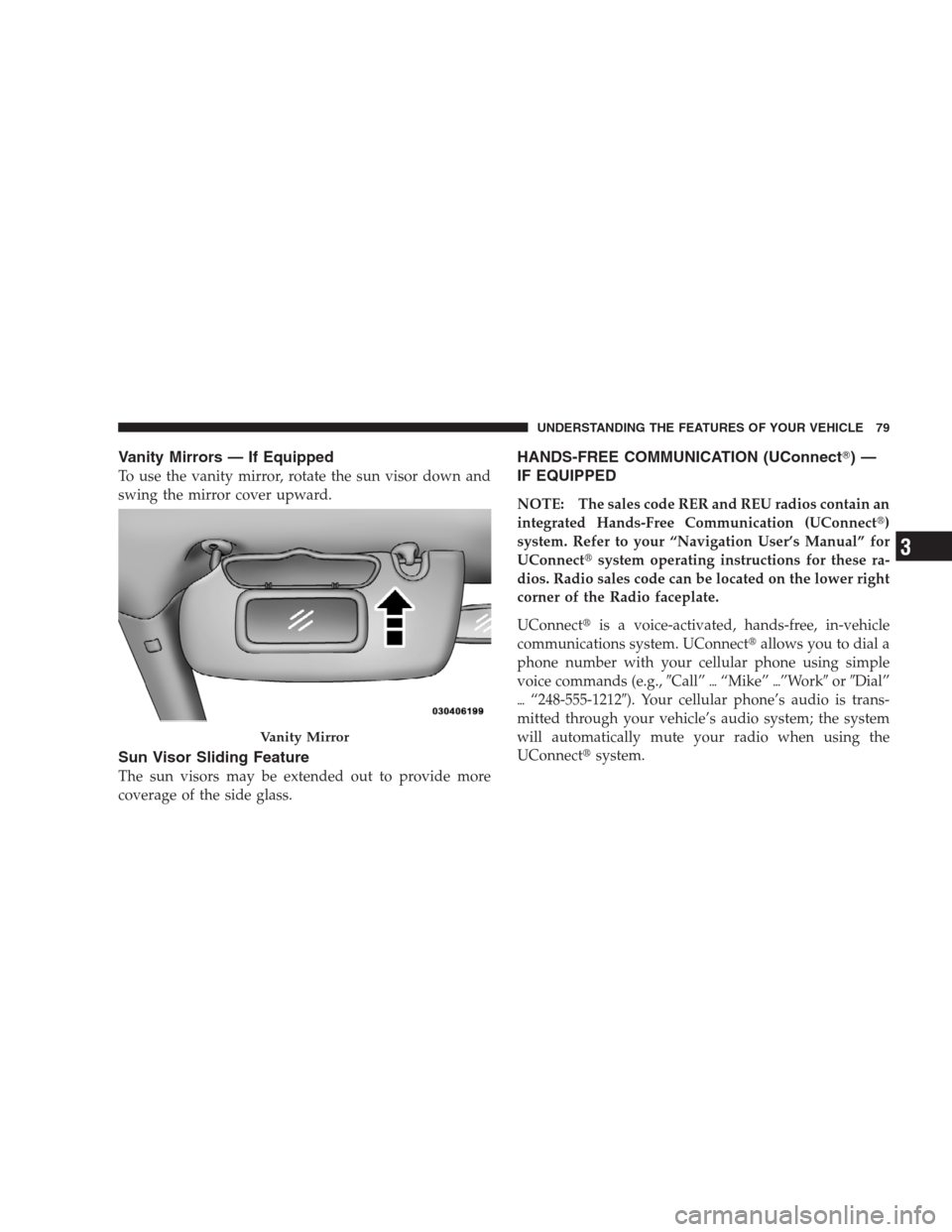

Page 81 of 439
Vanity Mirrors — If Equipped
To use the vanity mirror, rotate the sun visor down and
swing the mirror cover upward.
Sun Visor Sliding Feature
The sun visors may be extended out to provide more
coverage of the side glass.
HANDS-FREE COMMUNICATION (UConnect)—
IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated Hands-Free Communication (UConnect)
system. Refer to your “Navigation User’s Manual” for
UConnectsystem operating instructions for these ra-
dios. Radio sales code can be located on the lower right
corner of the Radio faceplate.
UConnectis a voice-activated, hands-free, in-vehicle
communications system. UConnectallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectsystem.
Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3
Page 184 of 439
Delay Power Off to Accessories Until Exit
When this feature is selected the power window
switches, radio, hands–free system, power sunroof, and
power outlets will remain active for up to 60 minutes
after the ignition switch has been turned OFF. Opening a
vehicle door will cancel this feature. Press and hold the
EVIC button when in this display until “OFF”, “45 sec.”,
“5 min.”, or “10 min.” appears to make your selection.
Illuminated Approach
When this feature is selected the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked using the RKE transmitter. Press and hold the
EVIC button when in this display until “OFF”, “30 sec.”,
“60 sec.”, or “90 sec.” appears to make your selection.
Confirmation of Voice Commands — If Equipped
When ON is selected, all voice commands from the
UConnectsystem are confirmed. Press and hold the
EVIC button when in this display until “ON” or “OFF”
appears to make your selection.
Display English or Metric
The EVIC, odometer and navigation system units can be
changed between English and Metric.
Press and hold the EVIC button when in this display until
“US” or “METRIC” appears to make your selection.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To ensure compass accu-
racy, the compass variance should be properly set accord-
ing to the variance map for the zone where the vehicle
will be driven. When properly set, the compass will
automatically account for this difference.
182 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 203 of 439
Dolby
Manufactured under license from DolbyLaboratories.
Dolbyand the double-D symbol are trademarks of
DolbyLaboratories.
Macrovision
This product incorporates copyright protection technol-
ogy that is protected by U.S. patents and other intellec-
tual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is
intended for home and other limited viewing uses only,
unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
DTS™
DTS™andDTS™ 2.0are trademarks of Digital The-
ater Systems, Inc.AM/FM/CD/DVD MULTIMEDIA SYSTEM RADIO
(RER/REN) – IF EQUIPPED
NOTE:The sales code is located on the lower right side
of the unit’s faceplate.
The REN and RER Multimedia systems contain a radio,
CD/DVD player, USB port, and a 30-gigabyte hard drive
(HDD). Sirius Satellite Radio is optional. The 6.5 in
(16.5 cm) touch screen allows for easy menu selection.
The RER radio also contains a Global Positioning System
(GPS)-based Navigation system.
Refer to your Multimedia system (REN) or Navigation
(RER) user’s manual for detailed operating instructions.
Operating Instructions — Voice Recognition
System (VR) — If Equipped
For the radio, refer to “Voice Recognition System (VR)” in
Section 3.
UNDERSTANDING YOUR INSTRUMENT PANEL 201
4
