Cavity Cartridge
FuseMini-
FuseDescription
13 20 Amp
YellowPwr Run/Acc Outlet
RR/Dome Lamp
14 10 Amp
RedIOD CCN
15 40 Amp
GreenRAD Fan Relay Bat-
tery Feed
16 15 Amp
Lt BlueIGN Run/Acc Dome
Lamp/Sunroof/Rear
Wiper Motor/ACC
Inverter
17 10 Amp
RedIOD Feed Mod-Wcm
18 40 Amp
GreenASD Relay Contact
PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp
2 FeedCavity Cartridge
FuseMini-
FuseDescription
20 15 Amp
Lt BlueIOD Feed Radio
21 10 Amp
RedIOD Feed Intrus
Mod/Siren (If
Equipped)
22 10 Amp
RedIGN RUN Heat/AC/
Compass Sensor
23 15 Amp
Lt BlueENG ASD Relay Feed
3
24 15 Amp
Lt BluePower Sunroof Feed
25 10 Amp
RedHeated Mirror (If
Equipped)
26 15 Amp
Lt BlueENG ASD Relay Feed
2
27 10 Amp
RedIGN RUN Only ORC
Feed
MAINTAINING YOUR VEHICLE 375
7

Cavity Cartridge
FuseMini-
FuseDescription
28 10 Amp
RedIGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control (If
Equipped)
32 30 Amp
PinkENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCM
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump FeedCavity Cartridge
FuseMini-
FuseDescription

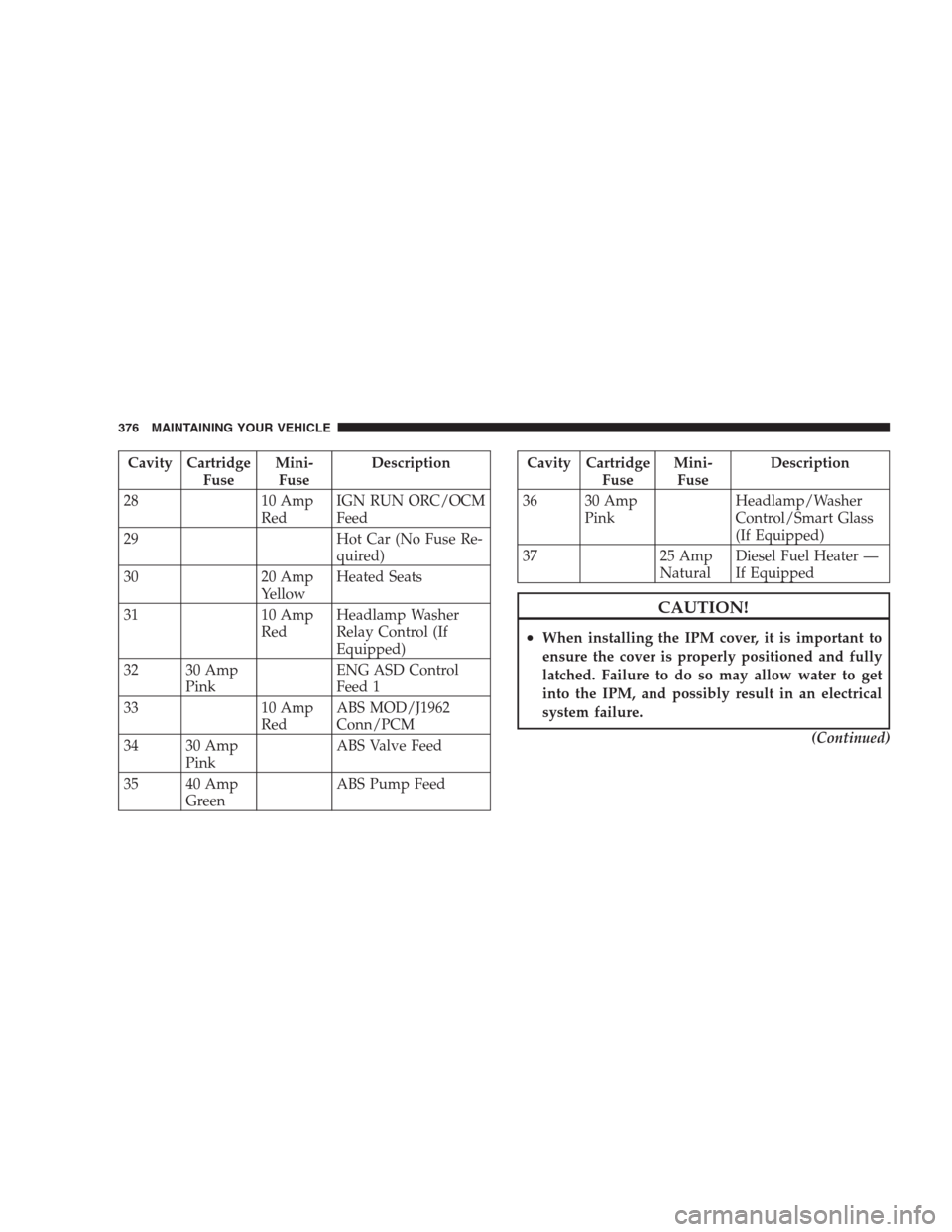

36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
(If Equipped)
37 25 Amp
NaturalDiesel Fuel Heater —
If Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
(Continued)
376 MAINTAINING YOUR VEHICLE
