Page 291 of 474

JEEP COMPASS 2010 1.G Owners Manual CAUTION!
•Always check the depth of the standing water
before driving through it. Never drive through
standing water that is deeper than the bottom of
the tire rims mounted on the vehicle.
•Determ

Page 292 of 474

JEEP COMPASS 2010 1.G Owners Manual WARNING!
•Driving through standing water limits your vehi-
cle’s traction capabilities. Do not exceed 5 mph
(8 km/h) when driving through standing water.
•Driving through standing water limits y

Page 293 of 474

JEEP COMPASS 2010 1.G Owners Manual in tight spaces. The system will provide mechanical
steering capability if power assist is lost.
If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Un

Page 294 of 474

JEEP COMPASS 2010 1.G Owners Manual Power Steering Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent,

Page 295 of 474

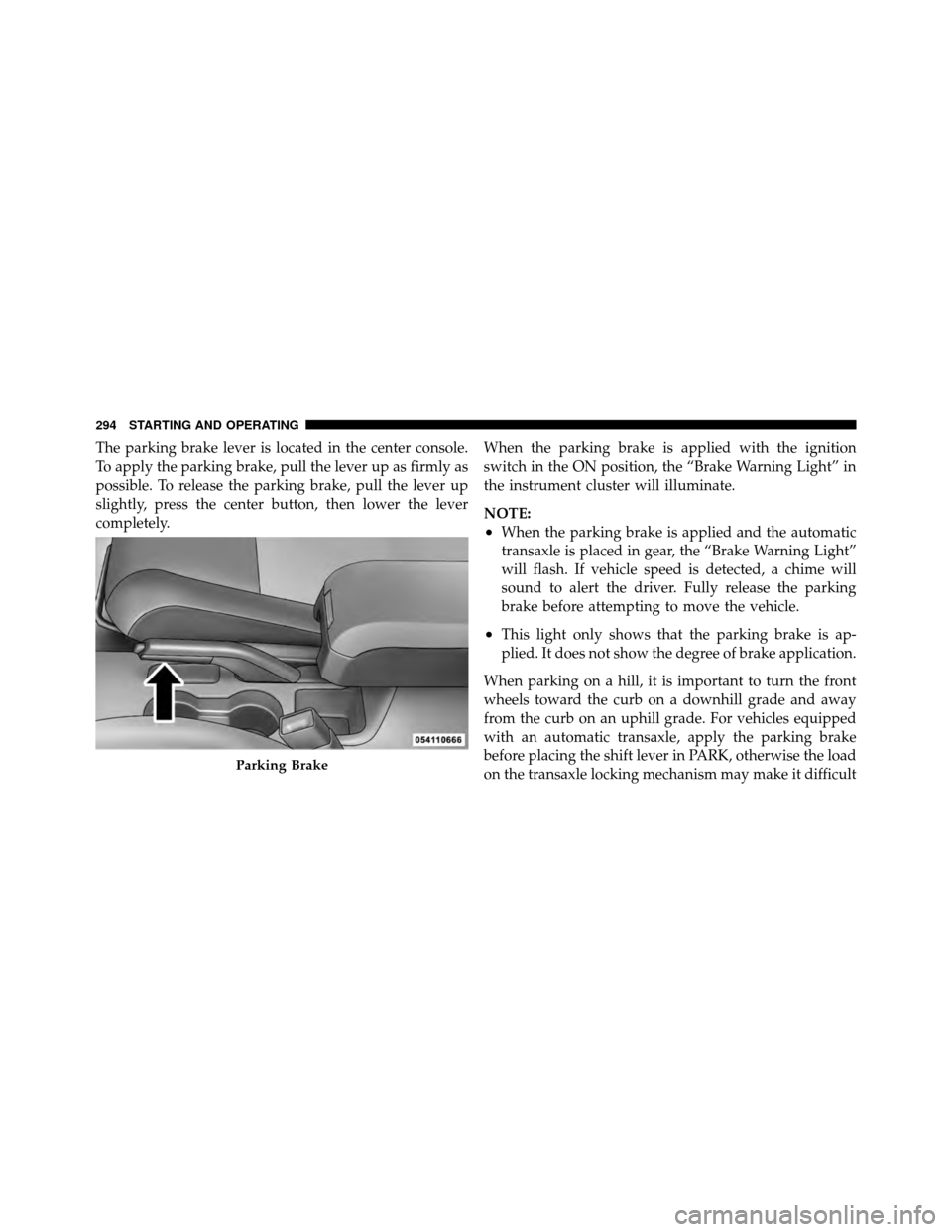

JEEP COMPASS 2010 1.G Owners Manual The parking brake lever is located in the center console.
To apply the parking brake, pull the lever up as firmly as
possible. To release the parking brake, pull the lever up
slightly, press the cente

Page 296 of 474

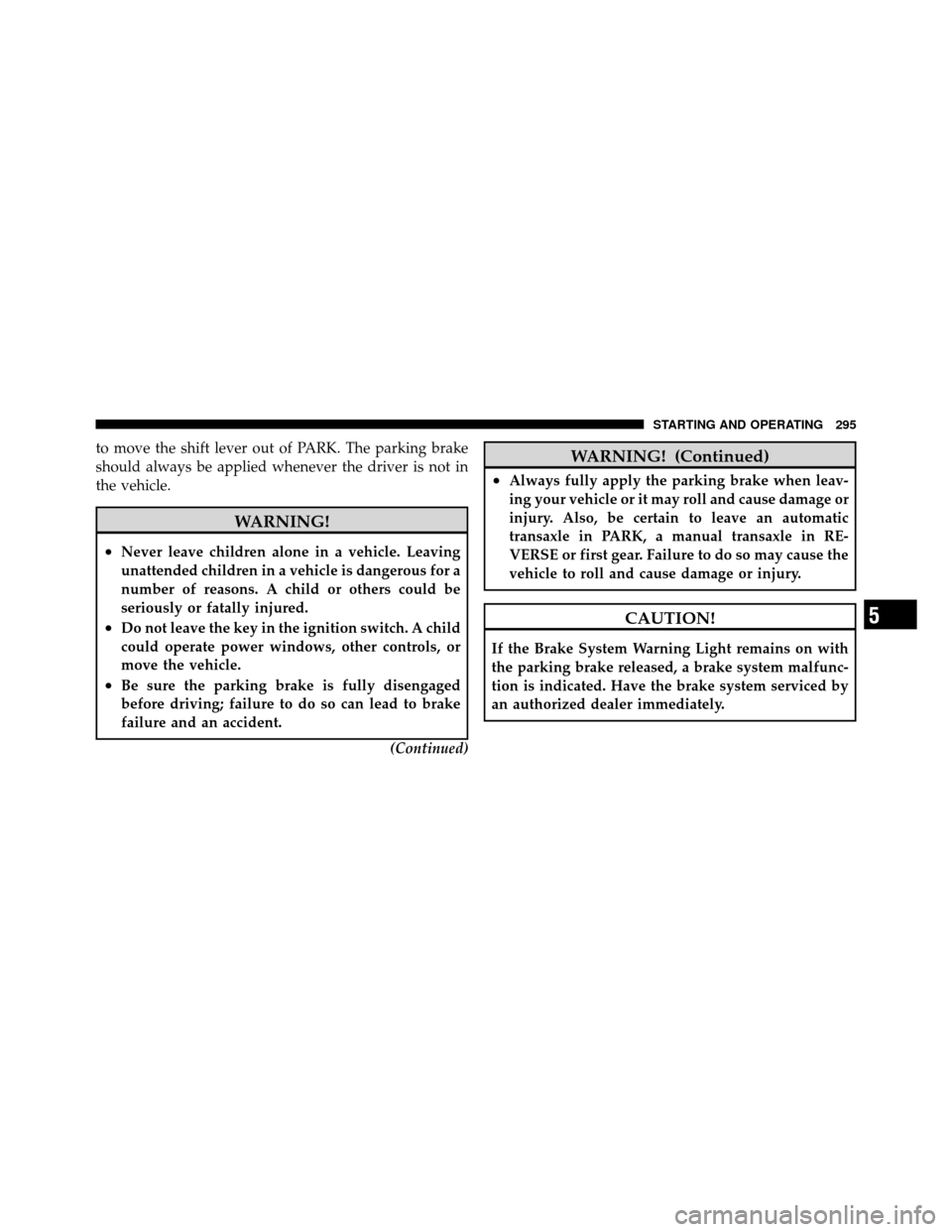

JEEP COMPASS 2010 1.G Owners Manual to move the shift lever out of PARK. The parking brake
should always be applied whenever the driver is not in
the vehicle.
WARNING!
•Never leave children alone in a vehicle. Leaving
unattended child

Page 297 of 474

JEEP COMPASS 2010 1.G Owners Manual BRAKE SYSTEM
Your vehicle is equipped with power assisted brakes as
standard equipment. In the event power assist is lost for
any reason (for example, repeated brake applications
with the engine off),

Page 298 of 474

JEEP COMPASS 2010 1.G Owners Manual Anti-Lock Brake System (ABS)
The ABS provides increased vehicle stability and brake
performance under most braking conditions. The system
automatically “pumps” the brakes during severe braking
con

Page 299 of 474

JEEP COMPASS 2010 1.G Owners Manual required. However, the conventional brake system will
continue to operate normally if the “Brake Warning
Light” is not on.
If the “ABS Warning Light” is on, the brake system
should be serviced

Page 300 of 474

JEEP COMPASS 2010 1.G Owners Manual WARNING!
The Anti-Lock Brake System (ABS) contains sophis-
ticated electronic equipment that may be susceptible
to interference caused by improperly installed or
high output radio transmitting equipme
