clock JEEP COMPASS 2011 1.G User Guide

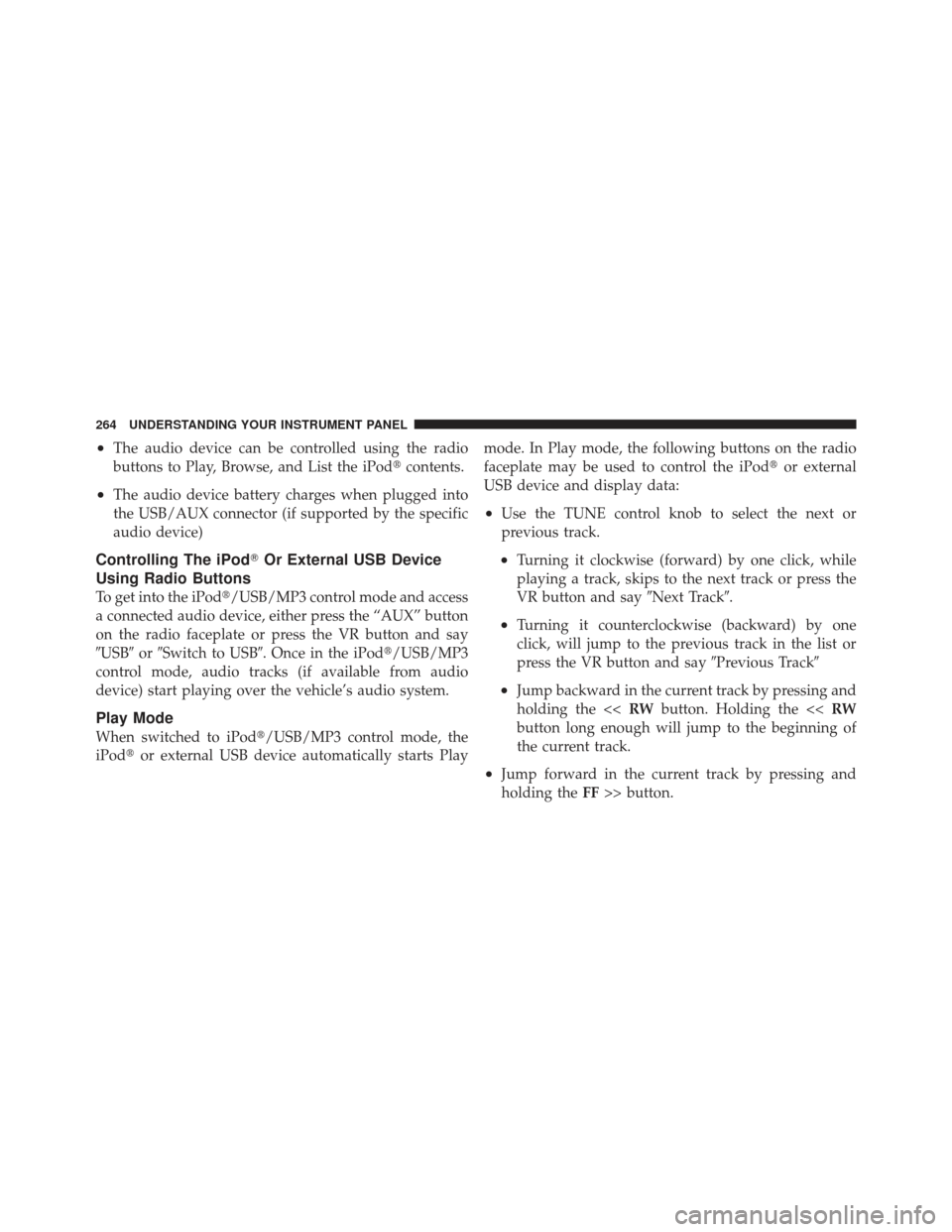

•The audio device can be controlled using the radio
buttons to Play, Browse, and List the iPodcontents.
•The audio device battery charges when plugged into
the USB/AUX connector (if supported by the specific
audio device)
Controlling The iPodOr External USB Device
Using Radio Buttons
To get into the iPod/USB/MP3 control mode and access
a connected audio device, either press the “AUX” button
on the radio faceplate or press the VR button and say
USB orSwitch to USB. Once in the iPod/USB/MP3
control mode, audio tracks (if available from audio
device) start playing over the vehicle’s audio system.
Play Mode
When switched to iPod/USB/MP3 control mode, the
iPod or external USB device automatically starts Play mode. In Play mode, the following buttons on the radio
faceplate may be used to control the iPod
or external
USB device and display data:
•Use the TUNE control knob to select the next or
previous track.
•Turning it clockwise (forward) by one click, while
playing a track, skips to the next track or press the
VR button and say Next Track.
•Turning it counterclockwise (backward) by one
click, will jump to the previous track in the list or
press the VR button and say Previous Track
•Jump backward in the current track by pressing and
holding the < button long enough will jump to the beginning of
the current track.
•Jump forward in the current track by pressing and
holding the FF>> button.
264 UNDERSTANDING YOUR INSTRUMENT PANEL

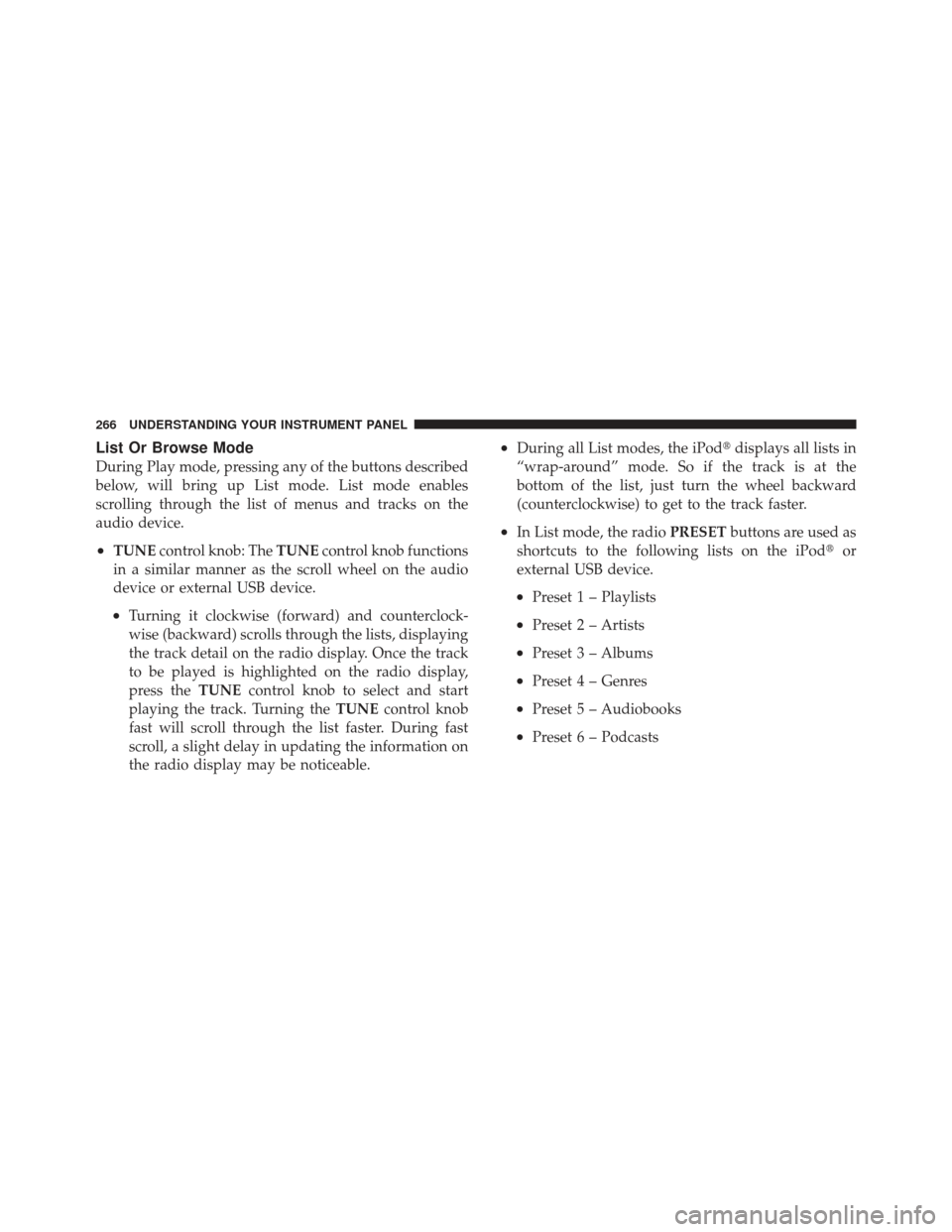

List Or Browse Mode
During Play mode, pressing any of the buttons described
below, will bring up List mode. List mode enables
scrolling through the list of menus and tracks on the
audio device.
•TUNEcontrol knob: The TUNEcontrol knob functions
in a similar manner as the scroll wheel on the audio
device or external USB device.
•Turning it clockwise (forward) and counterclock-
wise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once the track
to be played is highlighted on the radio display,
press the TUNEcontrol knob to select and start
playing the track. Turning the TUNEcontrol knob
fast will scroll through the list faster. During fast
scroll, a slight delay in updating the information on
the radio display may be noticeable.
•During all List modes, the iPod displays all lists in
“wrap-around” mode. So if the track is at the
bottom of the list, just turn the wheel backward
(counterclockwise) to get to the track faster.
•In List mode, the radio PRESETbuttons are used as
shortcuts to the following lists on the iPod or
external USB device.
•Preset 1 – Playlists
•Preset 2 – Artists
•Preset 3 – Albums
•Preset 4 – Genres
•Preset 5 – Audiobooks
•Preset 6 – Podcasts
266 UNDERSTANDING YOUR INSTRUMENT PANEL

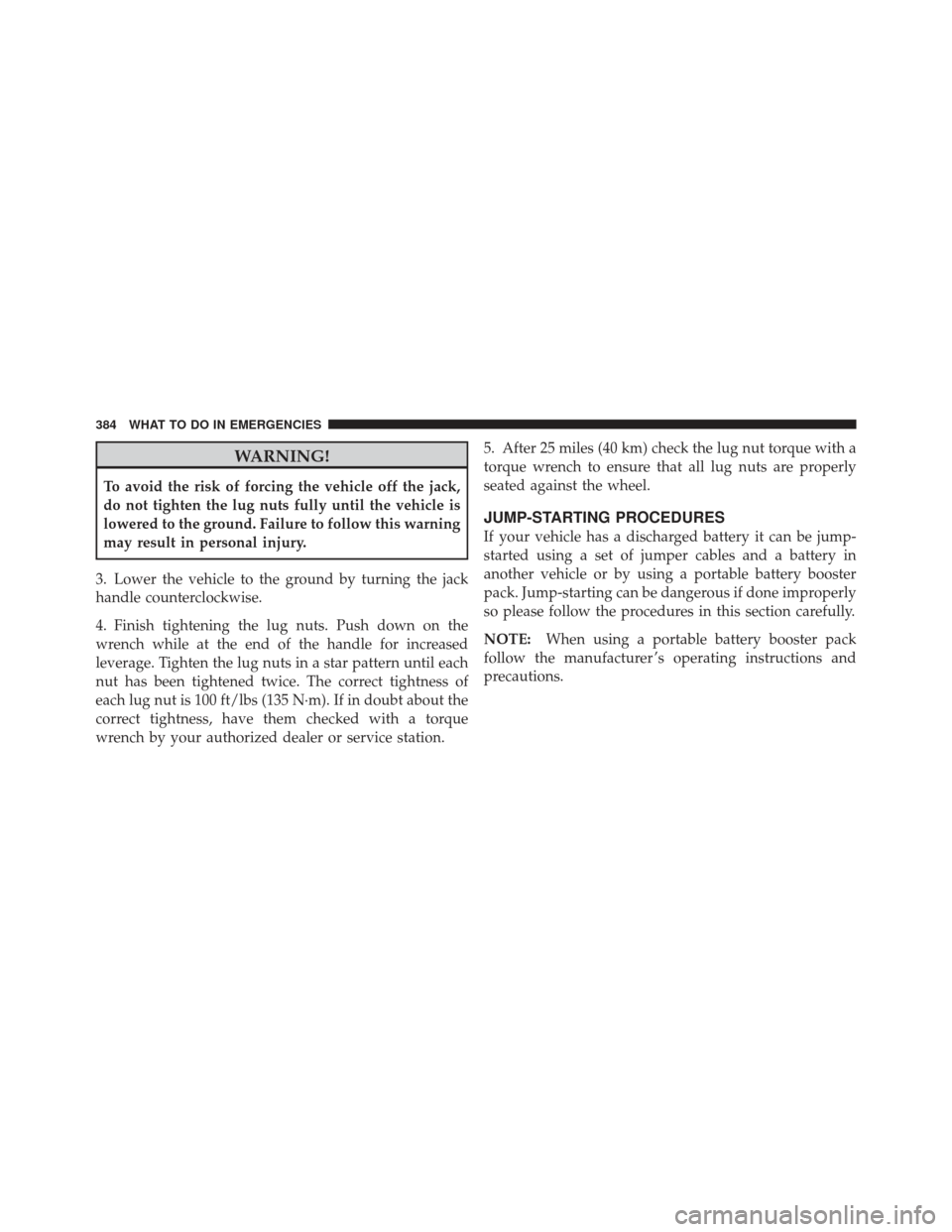

WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle is
lowered to the ground. Failure to follow this warning
may result in personal injury.
3. Lower the vehicle to the ground by turning the jack
handle counterclockwise.
4. Finish tightening the lug nuts. Push down on the
wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until each
nut has been tightened twice. The correct tightness of
each lug nut is 100 ft/lbs (135 N·m). If in doubt about the
correct tightness, have them checked with a torque
wrench by your authorized dealer or service station. 5. After 25 miles (40 km) check the lug nut torque with a
torque wrench to ensure that all lug nuts are properly
seated against the wheel.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
NOTE:
When using a portable battery booster pack
follow the manufacturer ’s operating instructions and
precautions.
384 WHAT TO DO IN EMERGENCIES

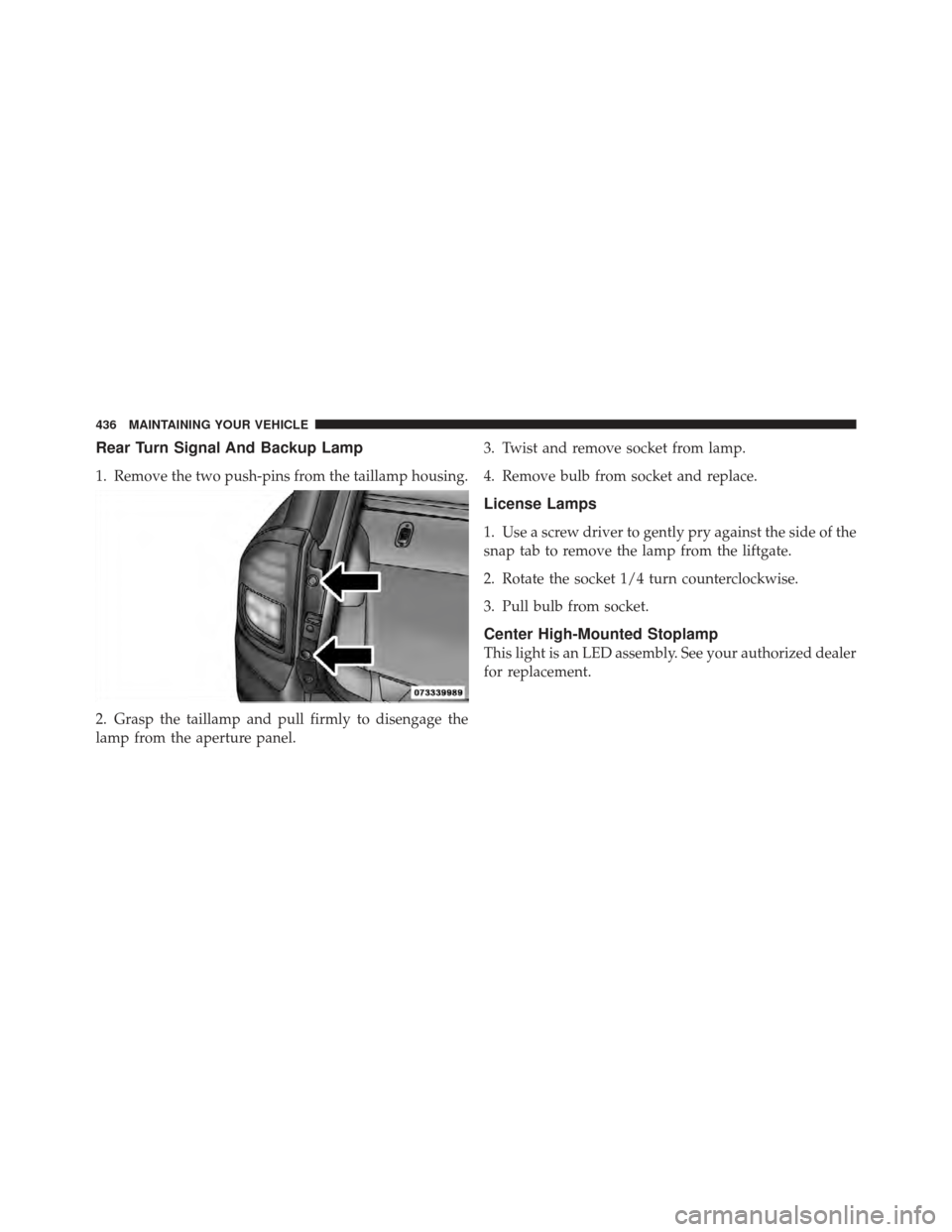

Rear Turn Signal And Backup Lamp
1. Remove the two push-pins from the taillamp housing.
2. Grasp the taillamp and pull firmly to disengage the
lamp from the aperture panel.3. Twist and remove socket from lamp.
4. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
436 MAINTAINING YOUR VEHICLE

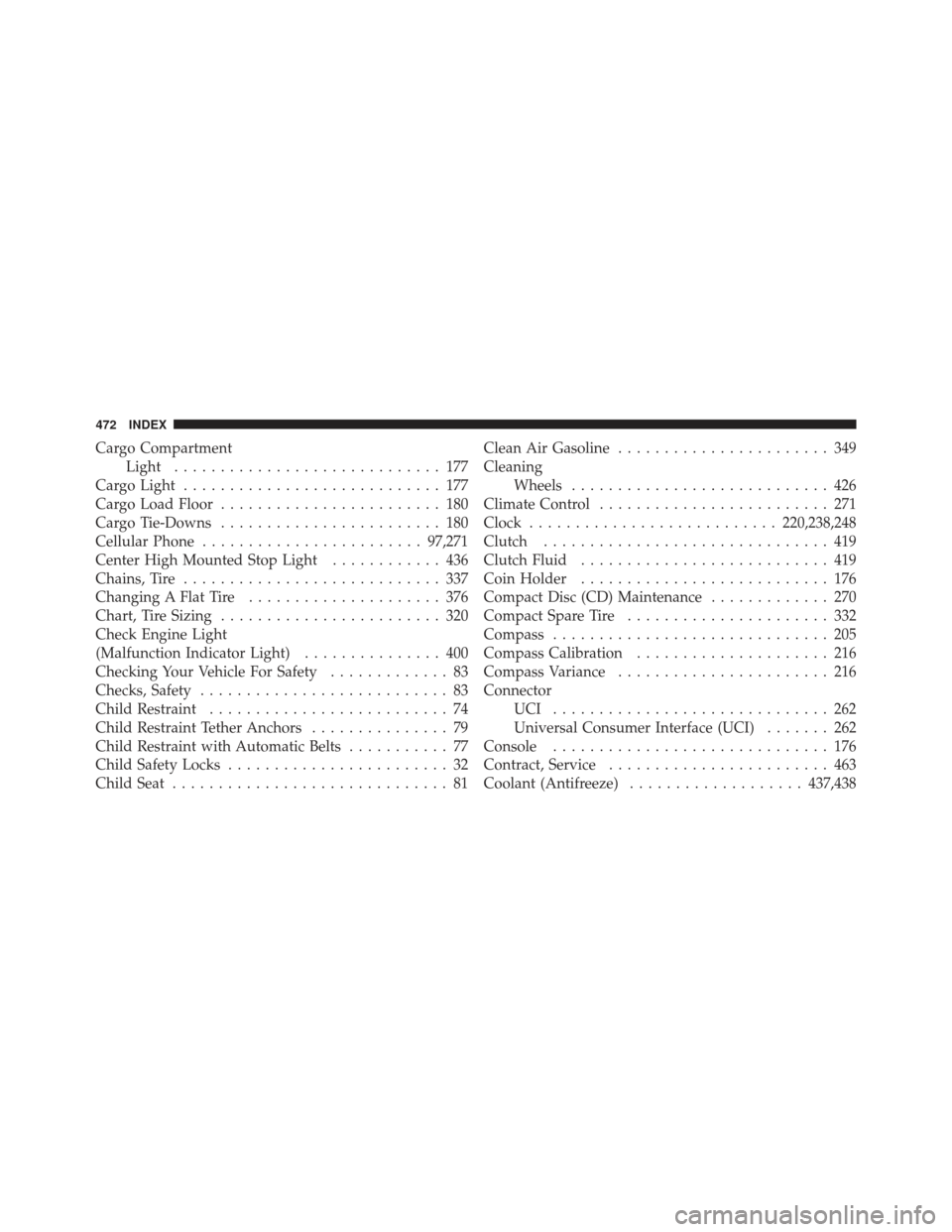

Cargo CompartmentLight ............................. 177
Cargo Light ............................ 177
Cargo Load Floor ........................ 180
Cargo Tie-Downs ........................ 180
Cellular Phone ........................ 97,271
Center High Mounted Stop Light ............ 436
Chains, Tire ............................ 337
Changing A Flat Tire ..................... 376
Chart, Tire Sizing ........................ 320
Check Engine Light
(Malfunction Indicator Light) ............... 400
Checking Your Vehicle For Safety ............. 83
Checks, Safety ........................... 83
Child Restraint .......................... 74
Child Restraint Tether Anchors ............... 79
Child Restraint with Automatic Belts ........... 77
Child Safety Locks ........................ 32
Child Seat .............................. 81 Clean Air Gasoline
....................... 349
Cleaning Wheels ............................ 426
Climate Control ......................... 271
Clock ........................... 220,238,248
Clutch ............................... 419
Clutch Fluid ........................... 419
Coin Holder ........................... 176
Compact Disc (CD) Maintenance ............. 270
Compact Spare Tire ...................... 332
Compass .............................. 205
Compass Calibration ..................... 216
Compass Variance ....................... 216
Connector UCI .............................. 262
Universal Consumer Interface (UCI) ....... 262
Console .............................. 176
Contract, Service ........................ 463
Coolant (Antifreeze) ................... 437,438
472 INDEX

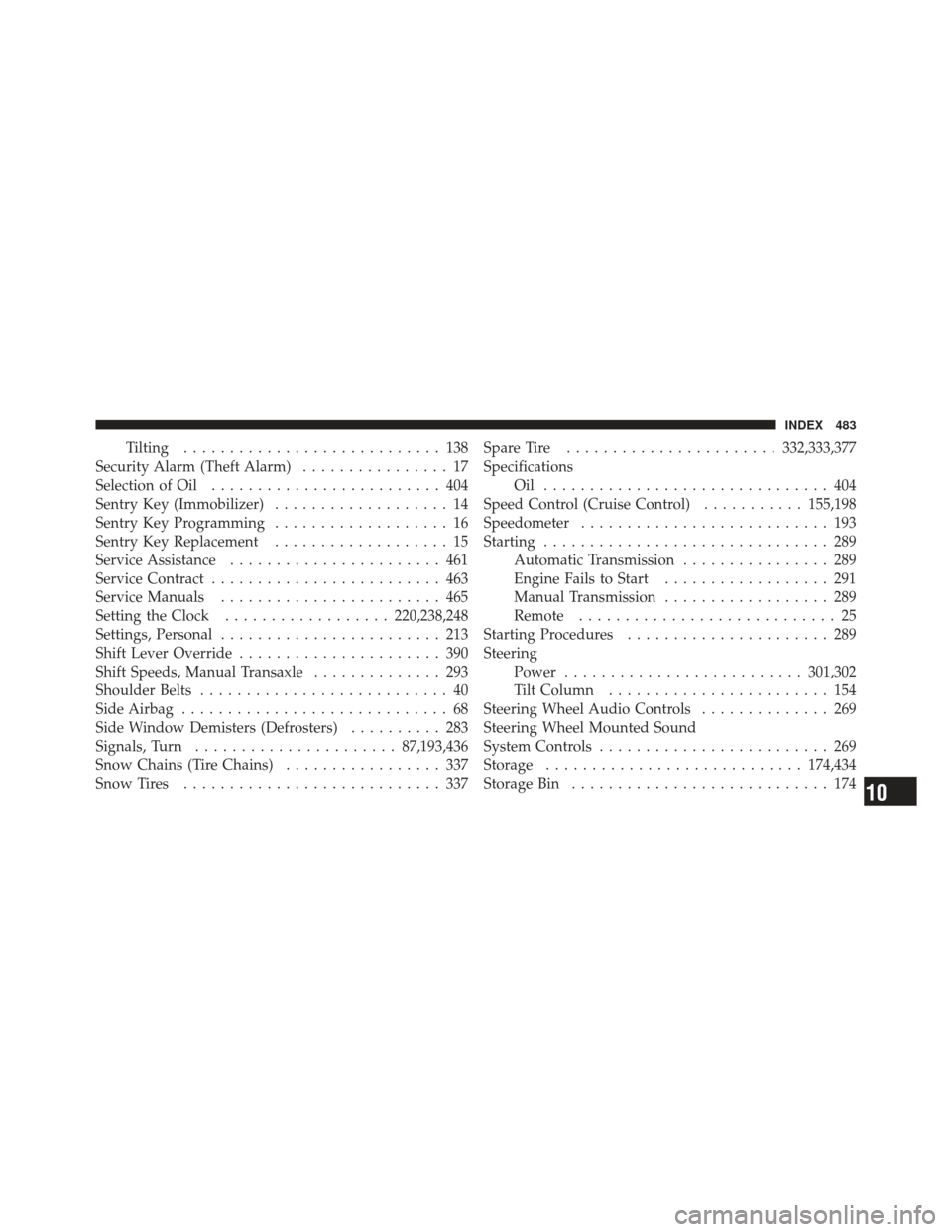

Tilting............................ 138
Security Alarm (Theft Alarm) ................ 17
Selection of Oil ......................... 404
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 461
Service Contract ......................... 463
Service Manuals ........................ 465
Setting the Clock .................. 220,238,248
Settings, Personal ........................ 213
Shift Lever Override ...................... 390
Shift Speeds, Manual Transaxle .............. 293
Shoulder Belts ........................... 40
Side Airbag ............................. 68
Side Window Demisters (Defrosters) .......... 283
Signals, Turn ...................... 87,193,436
Snow Chains (Tire Chains) ................. 337
Snow Tires ............................ 337 Spare Tire
....................... 332,333,377
Specifications Oil ............................... 404
Speed Control (Cruise Control) ...........155,198
Speedometer ........................... 193
Starting ............................... 289
Automatic Transmission ................ 289
Engine Fails to Start .................. 291
Manual Transmission .................. 289
Remote ............................ 25
Starting Procedures ...................... 289
Steering Power .......................... 301,302
Tilt Column ........................ 154
Steering Wheel Audio Controls .............. 269
Steering Wheel Mounted Sound
System Controls ......................... 269
Storage ............................ 174,434
Storage Bin ............................ 174
10
INDEX 483
