To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•change the engine oil and oil filter
•disconnect and reconnect the battery
•drain the fuel tank (see your authorized dealer)
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump, therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. It is even more important to
look for gasoline without MMT in Canada, because MMT
can be used at levels higher than those allowed in the
United States. MMT is prohibited in Federal and Califor-
nia reformulated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.
5
STARTING AND OPERATING 351

Automatic Transmission – If Equipped
The automatic transmission fluid and filter should be
changed if you REGULARLY tow a trailer for more than
45 minutes of continuous operation. Refer to “Mainte-
nance Schedule” for the proper maintenance intervals.
Electronic Speed Control – If Equipped

Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Cooling System
To reduce the potential for engine and transmission
overheating, take the following actions:
City Driving
When stopped for short periods of time, shift the trans-
mission into NEUTRAL but do not increase engine idle
speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
5
STARTING AND OPERATING 369

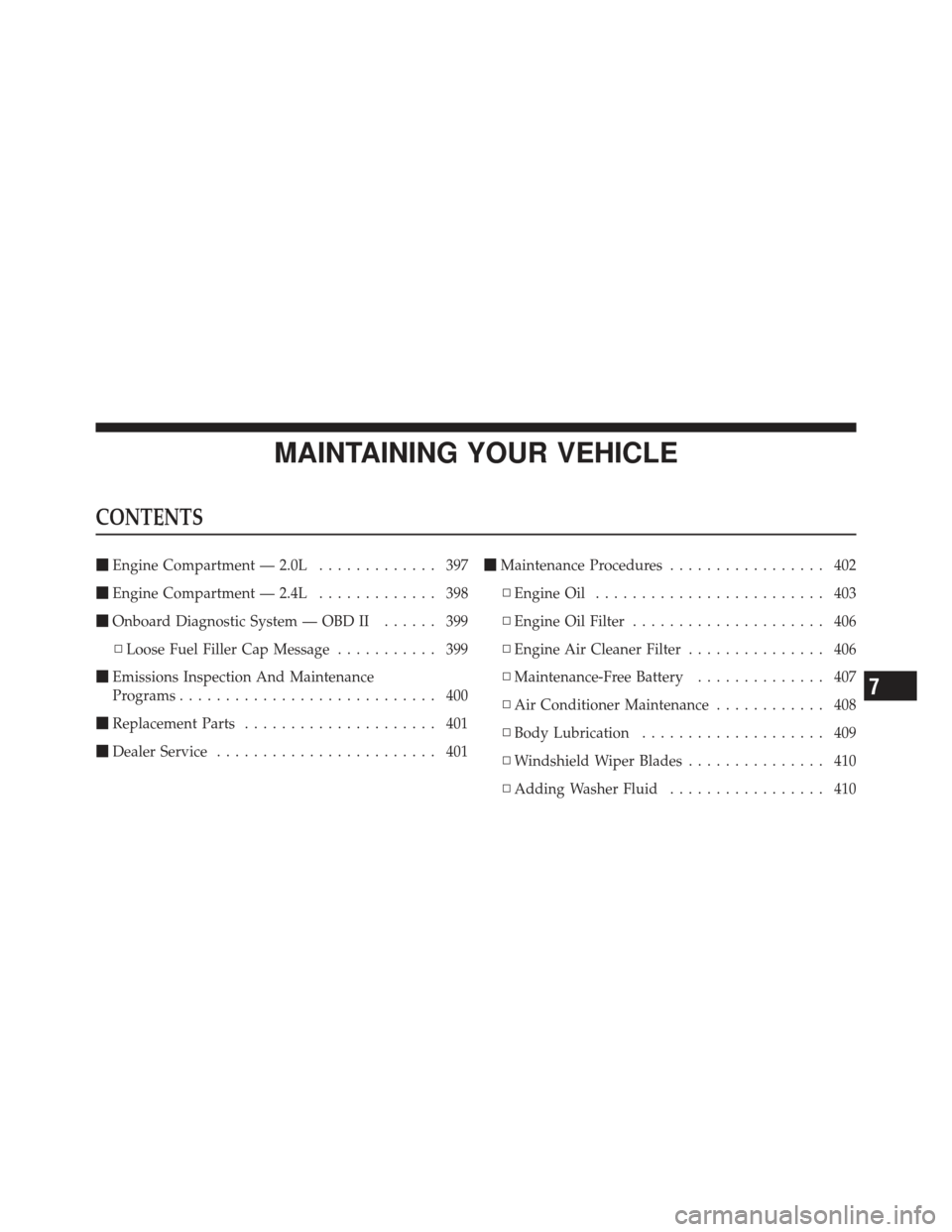

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.0L ............. 397
 Engine Compartment — 2.4L ............. 398
 Onboard Diagnostic System — OBD II ...... 399
▫ Loose Fuel Filler Cap Message ........... 399
 Emissions Inspection And Maintenance
Programs ............................ 400
 Replacement Parts ..................... 401
 Dealer Service ........................ 401
Maintenance Procedures ................. 402
▫ Engine Oil ......................... 403
▫ Engine Oil Filter ..................... 406
▫ Engine Air Cleaner Filter ............... 406
▫ Maintenance-Free Battery .............. 407
▫ Air Conditioner Maintenance ............ 408
▫ Body Lubrication .................... 409
▫ Windshield Wiper Blades ............... 410
▫ Adding Washer Fluid ................. 410
7

CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity (SAE Grade)
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy. Your engine oil filler
cap also states the recommended engine oil viscosity
grade for your engine.
Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added To Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filtersfrom your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service7
MAINTAINING YOUR VEHICLE 405

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 437

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
438 MAINTAINING YOUR VEHICLE

ABS (Anti-Lock Brake System).............. 306
Adding Engine Coolant (Antifreeze) .......... 415
Adding Fuel ........................... 353
Adding Washer Fluid ..................... 410
Additives, Fuel ......................... 351
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 406
Air Conditioner Maintenance ............... 408
Air Conditioning ........................ 271
Air Conditioning Controls ................. 271
Air Conditioning Filter .................... 283
Air Conditioning Refrigerant .............408,409
Air Conditioning System .............271,276,408
Air Conditioning, Operating Tips ............ 284
Air Pressure, Tires ....................... 329
Airbag .............................. 60,69
Airbag Deployment ....................... 70
Airbag Light ................... 67,68,73,85,193
Airbag Maintenance ....................... 72
Airbag, Side ...................... 63,66,68,69Airbag, Window (Side Curtain)
...........64,66,69
Alarm Light ........................... 197
Alarm System (Security Alarm) ............... 17
Alterations/Modifications, Vehicle ............. 8
Antenna, Satellite Radio ................234,259
Anti-Lock Brake System (ABS) .............. 306
Anti-Lock Warning Light .................. 194
Anti-Theft Security Alarm (Theft Alarm) ........ 17
Antifreeze (Engine Coolant) ...........414,437,438
Capacities .......................... 437
Disposal ........................... 417
Appearance Care ........................ 424
Assistance Towing ....................... 111
Automatic Dimming Mirror ................. 94
Automatic Door Locks ..................... 30
Automatic Temperature Control (ATC) ......... 276
Automatic Transaxle ...........12,289,294,375,422
Fluid Level Check .................... 422
Interlock System ..................... 295
470 INDEX

Electronic Roll Mitigation............... 310
Traction Control System ................ 309
Electronic Speed Control (Cruise Control) ...... 155
Electronic Stability Control (ESC) ............. 314
Electronic Vehicle Information Center (EVIC) .... 207
Emergency, In Case of Jacking ............................ 376
Jump Starting ....................... 384
Towing ............................ 391
Emission Control System Maintenance ......... 400
Engine ............................ 397,398
Block Heater ........................ 291
Break-In Recommendations .............. 83
Checking Oil Level ................... 403
Cooling ........................... 413
Exhaust Gas Caution ................84,353
Fuel Requirements .................... 349
Jump Starting ....................... 384
Oil ......................... 403,437,438Oil Change Interval
................... 404
Oil Filler Cap .................. 397,398,405
Oil Filter ........................... 438
Oil Selection ........................ 404
Oil Synthetic ........................ 405
Overheating ........................ 374
Temperature Gauge ................... 198
Enhanced Accident Response Feature .......... 70
Ethanol ............................... 350
Event Data Recorder ...................... 73
Exhaust Gas Caution ................. 36,84,353
Exhaust System ....................... 84,411
Exterior Lights .......................... 87
Filters Air Cleaner ......................... 406
Air Conditioning ..................... 283
Engine Oil ....................... 406,438
474 INDEX

New Vehicle Break-In Period................ 83
Occupant Restraints ................... 37,66,70
Occupant Restraints (Sedan) ...........63,64,66,69
Octane Rating, Gasoline (Fuel) .............. 349
Odometer ............................. 201
Trip ........................... 199,201
Oil Change Indicator ..................... 210
Oil Change Indicator, Reset ................. 210
Oil, Engine ......................... 403,437
Capacity ........................... 437
Change Interval ..................... 404
Checking .......................... 403
Disposal ........................... 405
Filter ............................. 406
Identification Logo ................... 404
Materials Added to ................... 405
Recommendation .................. 404,437Synthetic
.......................... 405
Viscosity ........................... 405
Onboard Diagnostic System ..............399,400
Opener, Garage Door (HomeLink®) ........... 158
Operator Manual (Owner’s Manual) ............ 5
Overdrive ............................. 298
Overheating, Engine ................... 198,374
Owner’s Manual (Operator Manual) .........5,465
Paint Care ............................. 424
Panic Alarm ............................ 23
Parking Brake .......................... 303
Passing Light ........................... 149
Personal Settings ........................ 213
Pets .................................. 83
Phone, Cellular .......................... 97
Phone, Hands-Free (Uconnect™) .............. 97
Placard, Tire and Loading Information ......... 324
