NOTE:
•The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see your autho-
rized dealer.
•In the event of deployment of an Active Head Re-
straint, refer to “Occupant Restraints/Resetting Active
Head Restraints (AHR)” in “Things To Know Before
Starting Your Vehicle” for further information.
WARNING!
•Do not place items over the top of the Active Head
Restraint, such as coats, seat covers or portable
DVD players. These items may interfere with the
operation of the Active Head Restraint in the event
of a collision and could result in serious injury or
death.(Continued)
Active Head Restraint (Tilted)
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

23. Odometer / Trip Odometer Display Area
This display indicates the total distance the vehicle has
been driven.
NOTE:U.S. Federal regulations require that upon trans-
fer of vehicle ownership, the seller certify to the pur-
chaser the correct mileage that the vehicle has been
driven. If your odometer needs to be repaired or serviced,
the repair technician should leave the odometer reading
the same as it was before the repair or service. If s/he
cannot do so, then the odometer must be set at zero, and
a sticker must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero. Vehicle Odometer Messages
When the appropriate conditions exist, the following
odometer messages will display:
door
............................. Door Ajar
gATE ............................. Gate Ajar
gASCAP ....................... Fuel Cap Fault
LoW tirE ..................... LowTirePr essure
CHANgE OIL ............... Oil Change Required
NOTE: If the vehicle is equipped with the optional
Electronic Vehicle Information Center (EVIC) in the in-
strument cluster, all warnings including “Door Ajar”, and
“Gate Ajar” will only be displayed in the EVIC display.
For additional information, refer to “Electronic Vehicle
Information Center — If Equipped”.
gASCAP
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
4
UNDERSTANDING YOUR INSTRUMENT PANEL 201

•Remote Start Aborted — Fuel Low
•Remote Start Aborted — System Fault
•Key In Ignition
•Low Tire
•Low Tire Pressure Display for Premium TPM System
•Service TPM System
Engine Oil Change Indicator System —
If Equipped
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately five
seconds after a single chime has sounded, to indicate the
next scheduled oil change interval. The engine oil changeindicator system is duty-cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Trip Odometer button on the instrument
cluster. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the fol-
lowing procedure.
1. Turn the ignition switch to the ON position.
Do not
start the engine.
2. Fully depress the accelerator pedal, slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
210 UNDERSTANDING YOUR INSTRUMENT PANEL

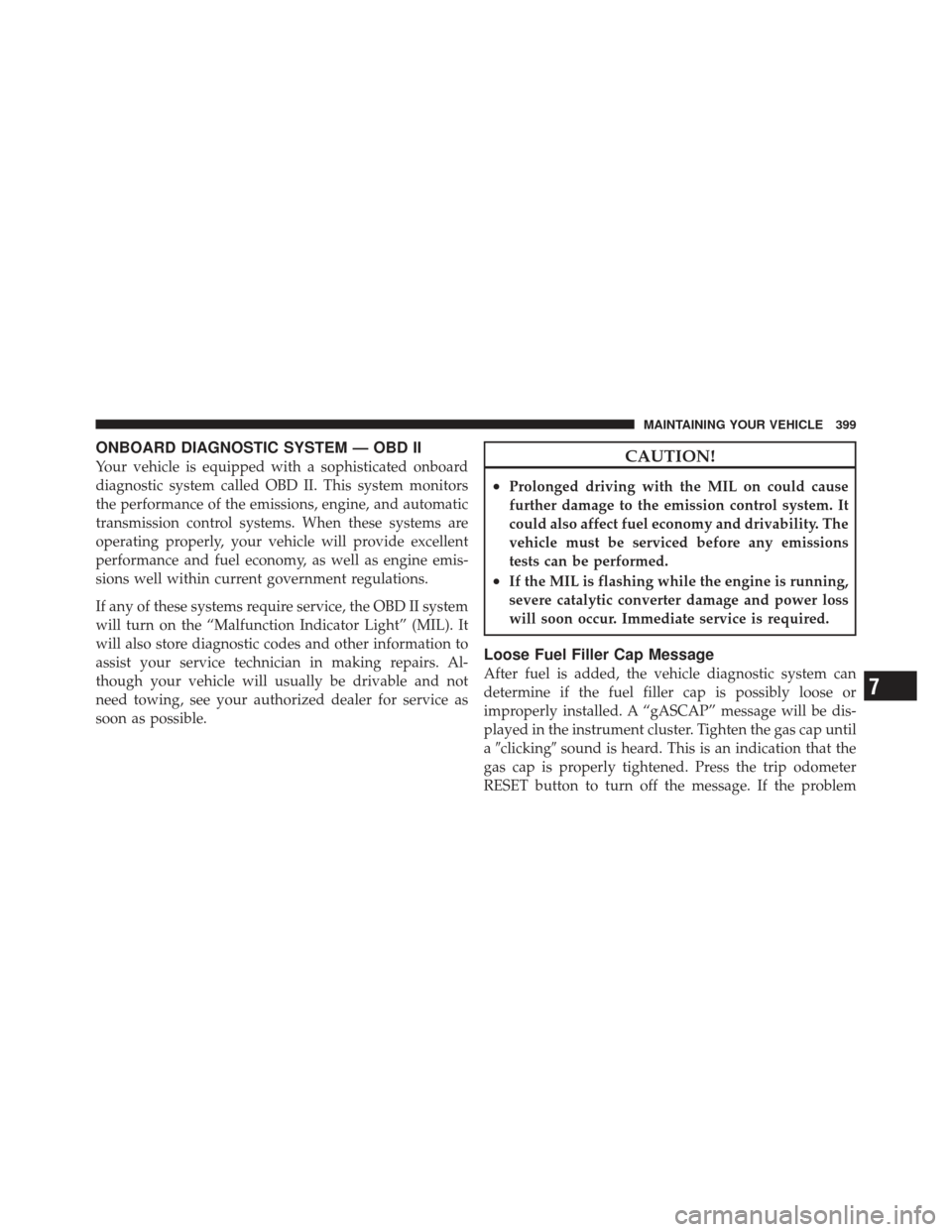

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “gASCAP” message will be dis-
played in the instrument cluster. Tighten the gas cap until
aclicking sound is heard. This is an indication that the
gas cap is properly tightened. Press the trip odometer
RESET button to turn off the message. If the problem
7
MAINTAINING YOUR VEHICLE 399

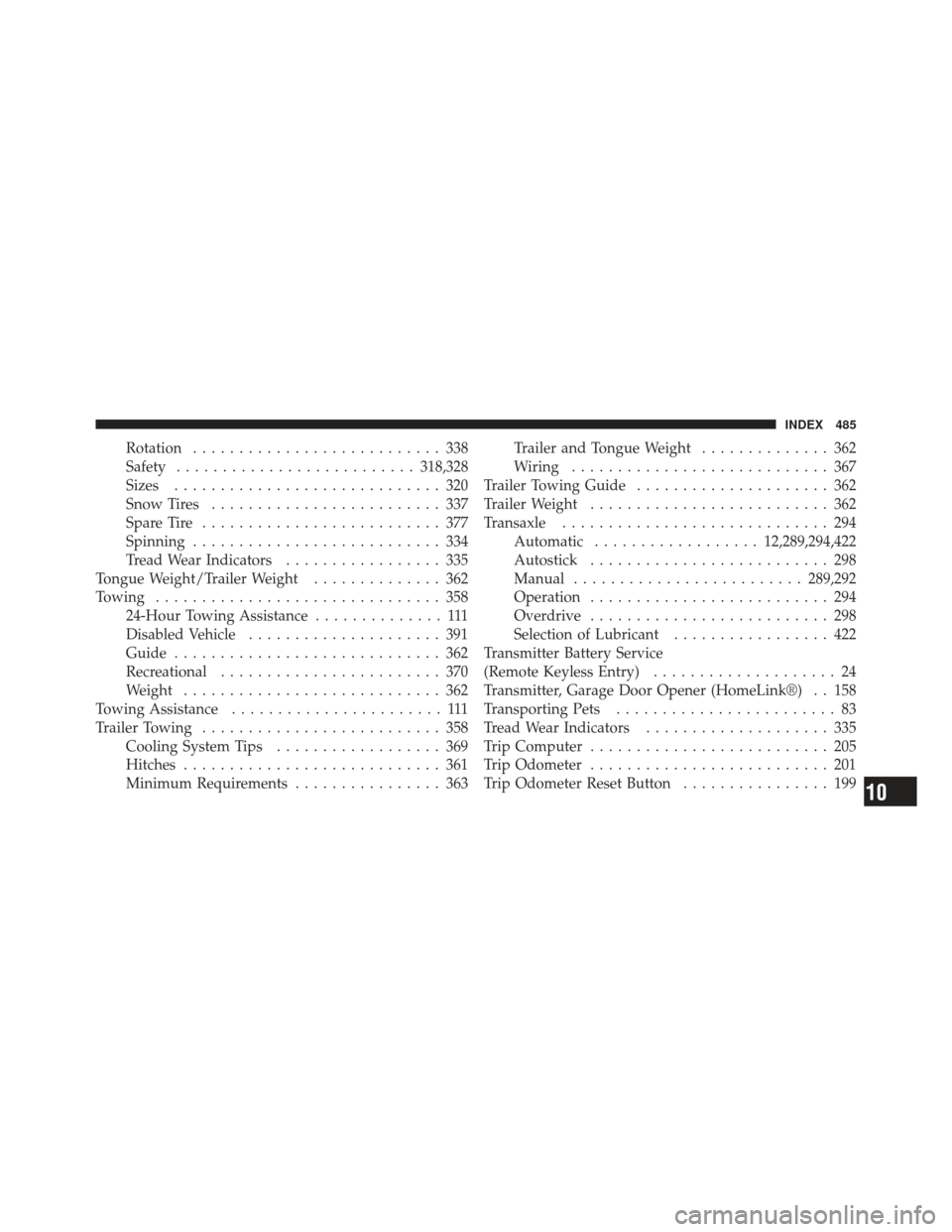

Rotation........................... 338
Safety .......................... 318,328
Sizes ............................. 320
Snow Tires ......................... 337
Spare Tire .......................... 377
Spinning ........................... 334
Tread Wear Indicators ................. 335
Tongue Weight/Trailer Weight .............. 362
Towing ............................... 358
24-Hour Towing Assistance .............. 111
Disabled Vehicle ..................... 391
Guide ............................. 362
Recreational ........................ 370
Weight ............................ 362
Towing Assistance ....................... 111
Trailer Towing .......................... 358
Cooling System Tips .................. 369
Hitches ............................ 361
Minimum Requirements ................ 363 Trailer and Tongue Weight
.............. 362
Wiring ............................ 367
Trailer Towing Guide ..................... 362
Trailer Weight .......................... 362
Transaxle ............................. 294
Automatic .................. 12,289,294,422
Autostick .......................... 298
Manual ......................... 289,292
Operation .......................... 294
Overdrive .......................... 298
Selection of Lubricant ................. 422
Transmitter Battery Service
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener (HomeLink®) . . 158
Transporting Pets ........................ 83
Tread Wear Indicators .................... 335
Trip Computer .......................... 205
Trip Odometer .......................... 201
Trip Odometer Reset Button ................ 199
10
INDEX 485
