JEEP COMPASS 2014 1.G Owners Manual

Cargo Tie-Down Loops
There are four tie-downs (D-rings) installed in the cargo
area for securing cargo.
WARNING!
•Cargo tie-down loops are not safe anchors for a
child seat tether strap. In a sudden stop or collision
a loop could pull loose and allow the child seat to
come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
• The weight and position of cargo and passengers
can change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in
personal injury, follow these guidelines for loading
your vehicle:
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
(Continued)Cargo Area Tie-Downs
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

WARNING!(Continued)
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
• To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.
Fold Down Speakers — If Equipped
When the liftgate is open, the speakers can swing down
off the trim panel to face rearward, for tailgating and
other activities.
Fold Down Speakers
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer is controlled by a rotary switch
located on the center portion of the control lever. The
control lever is located on the right side of the steering
column.Rotate the center portion of the lever upward to
the first detent position for rear wiper operation.
Rear Wiper/Washer Control Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

NOTE:The rear wiper operates in an intermittent mode
only.
Rotate the center portion of the lever past the
first detent to activate the rear washer. The
washer pump and the wiper will continue to
operate as long as the switch is held (for a
maximum of 10 seconds). Upon release, the wiper will
continue to cycle two times before returning to the set
position.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position if power accessory delay is active. Power acces-
sory delay can be cancelled by opening the door, if this
happens the rear wiper will stop at its current position
and will not go to “park”.Rear Window Defroster
The rear window defroster button is located on
the bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster
and the heated outside mirrors (if equipped). An indica-
tor in the button will illuminate when the rear window
defroster is on. The rear window defroster automatically
turns off after approximately 10 minutes. For an addi-
tional five minutes of operation, press the button a
second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

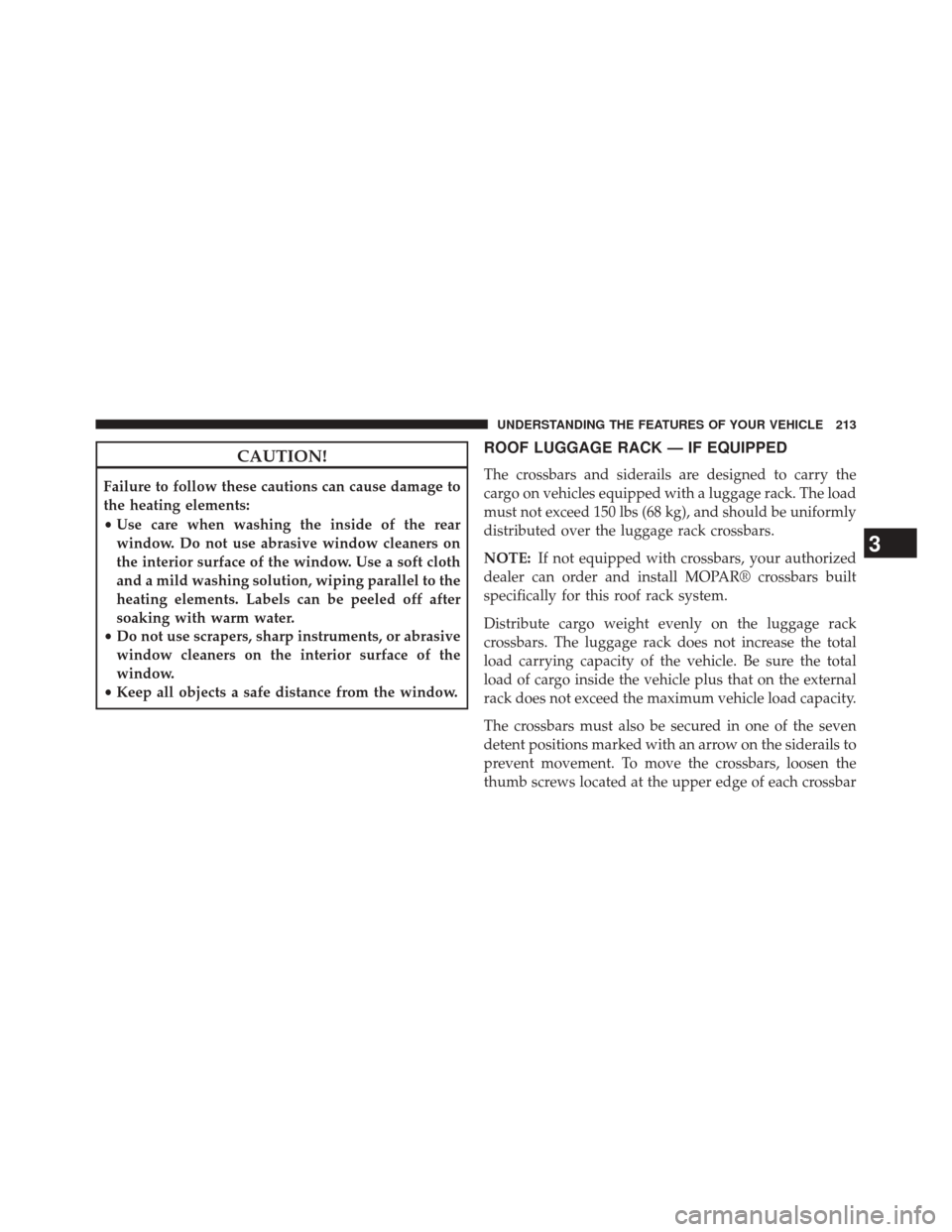

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
cargo on vehicles equipped with a luggage rack. The load
must not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.
NOTE: If not equipped with crossbars, your authorized
dealer can order and install MOPAR® crossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the luggage rack
crossbars. The luggage rack does not increase the total
load carrying capacity of the vehicle. Be sure the total
load of cargo inside the vehicle plus that on the external
rack does not exceed the maximum vehicle load capacity.
The crossbars must also be secured in one of the seven
detent positions marked with an arrow on the siderails to
prevent movement. To move the crossbars, loosen the
thumb screws located at the upper edge of each crossbar
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

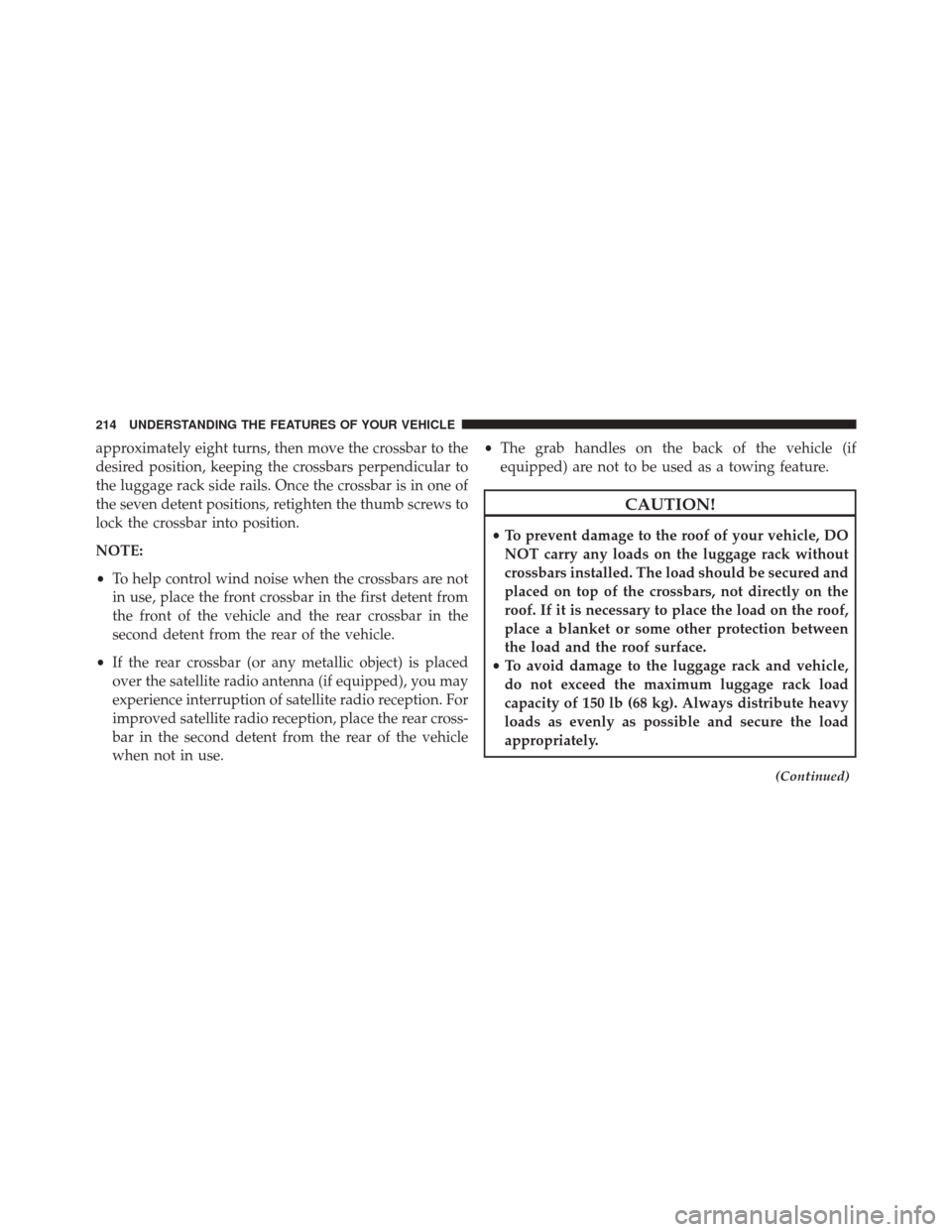

approximately eight turns, then move the crossbar to the
desired position, keeping the crossbars perpendicular to
the luggage rack side rails. Once the crossbar is in one of
the seven detent positions, retighten the thumb screws to
lock the crossbar into position.
NOTE:
•To help control wind noise when the crossbars are not
in use, place the front crossbar in the first detent from
the front of the vehicle and the rear crossbar in the
second detent from the rear of the vehicle.
• If the rear crossbar (or any metallic object) is placed
over the satellite radio antenna (if equipped), you may
experience interruption of satellite radio reception. For
improved satellite radio reception, place the rear cross-
bar in the second detent from the rear of the vehicle
when not in use. •
The grab handles on the back of the vehicle (if
equipped) are not to be used as a towing feature.
CAUTION!
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the luggage rack without
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between
the load and the roof surface.
• To avoid damage to the luggage rack and vehicle,
do not exceed the maximum luggage rack load
capacity of 150 lb (68 kg). Always distribute heavy
loads as evenly as possible and secure the load
appropriately.
(Continued)
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!(Continued)
•Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........220
 INSTRUMENT CLUSTER .................221
 INSTRUMENT CLUSTER DESCRIPTIONS .....222
 MINI-TRIP COMPUTER — IF EQUIPPED .....236
▫ Control Buttons ...................... .236
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED ..................238
▫ Engine Oil Change Indicator System — If
Equipped .......................... .241
▫ EVIC Functions ...................... .242
▫ Compass/Temperature/Audio ............242▫
Average Fuel Economy ..................242
▫ Distance To Empty (DTE) ................243
▫ Tire Pressure Monitor (TPM) ..............243
▫ Elapsed Time ....................... .243
▫ Display Units Of Measure In .............244
▫ Personal Settings (Customer-Programmable
Features) .......................... .244
 Uconnect® 230 – AM/FM STEREO RADIO AND
6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK) ............................. .249
▫ Operating Instructions — Radio Mode .......249
4

▫Operation Instructions — DISC Mode For CD And
MP3/WMA Audio Play, DVD – Video .......258
▫ LIST Button — DISC Mode For MP3/WMA
Play .............................. .263
▫ INFO Button — DISC Mode For MP3/WMA
Play .............................. .263
▫ Uconnect® (Satellite Radio) — If Equipped . . .265
 Uconnect® 730N/430/430N CD/DVD/HDD/NAV
— IF EQUIPPED ...................... .270
▫ Operating Instructions (Voice Command System)
— If Equipped ...................... .270
▫ Operating Instructions (Uconnect® Phone) — If
Equipped .......................... .270
 Uconnect® 130 ....................... .270
▫ Operating Instructions — Radio Mode ......270▫
Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .274
▫ Notes On Playing MP3 Files .............276
▫ Operation Instructions — Auxiliary Mode . . . .279
 Uconnect® 130 WITH SATELLITE RADIO .....280
▫ Operating Instructions — Radio Mode ......280
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .286
▫ Notes On Playing MP3 Files .............288
▫ LIST Button — CD Mode For MP3 Play ......291
▫ INFO Button — CD Mode For MP3 Play .....292
▫ Uconnect® (Satellite Radio) — If Equipped . . .292

iPod®/USB/MP3 CONTROL — IF EQUIPPED . .297
