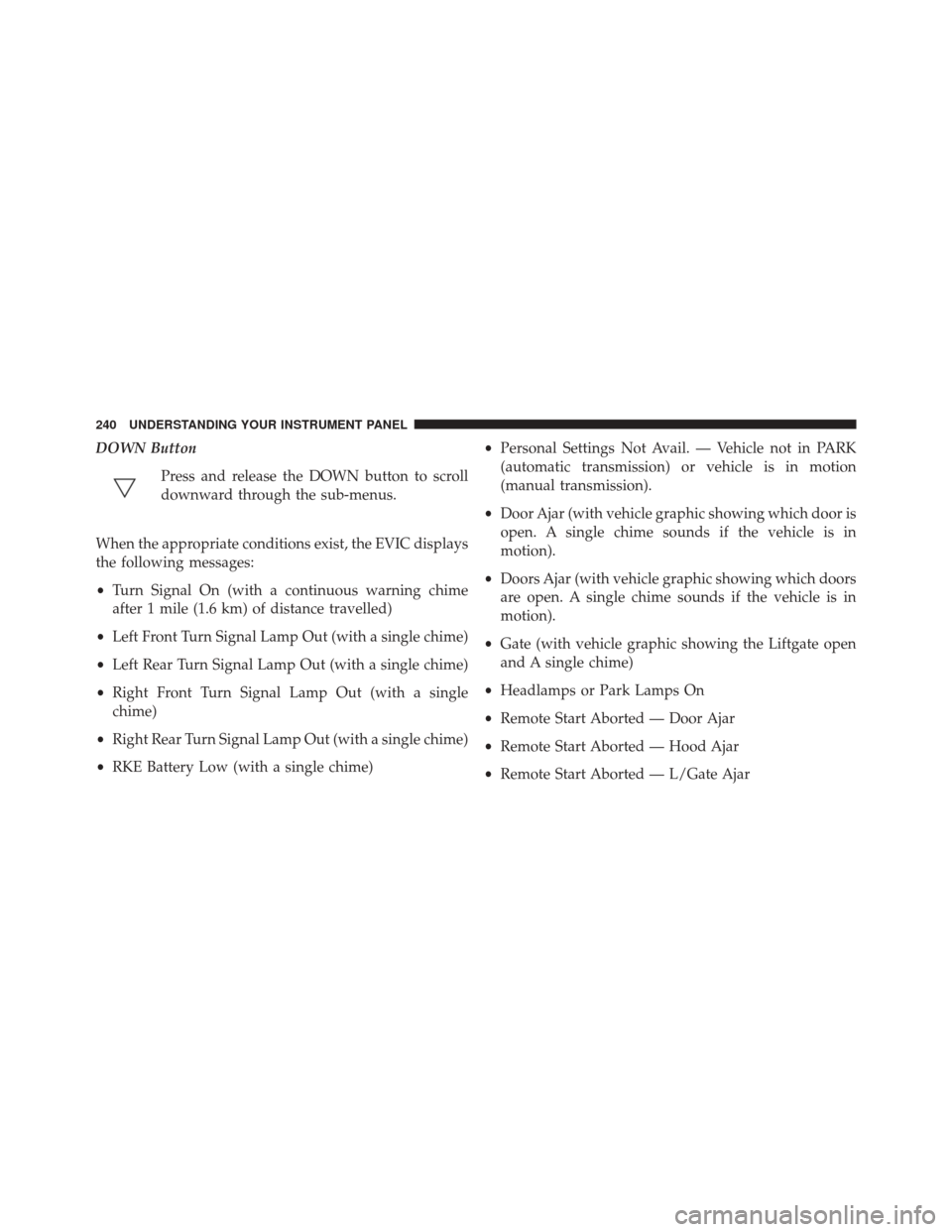

DOWN ButtonPress and release the DOWN button to scroll
downward through the sub-menus.
When the appropriate conditions exist, the EVIC displays
the following messages:
• Turn Signal On (with a continuous warning chime
after 1 mile (1.6 km) of distance travelled)
• Left Front Turn Signal Lamp Out (with a single chime)
• Left Rear Turn Signal Lamp Out (with a single chime)
• Right Front Turn Signal Lamp Out (with a single
chime)
• Right Rear Turn Signal Lamp Out (with a single chime)
• RKE Battery Low (with a single chime) •
Personal Settings Not Avail. — Vehicle not in PARK
(automatic transmission) or vehicle is in motion
(manual transmission).
• Door Ajar (with vehicle graphic showing which door is
open. A single chime sounds if the vehicle is in
motion).
• Doors Ajar (with vehicle graphic showing which doors
are open. A single chime sounds if the vehicle is in
motion).
• Gate (with vehicle graphic showing the Liftgate open
and A single chime)
• Headlamps or Park Lamps On
• Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — L/Gate Ajar
240 UNDERSTANDING YOUR INSTRUMENT PANEL

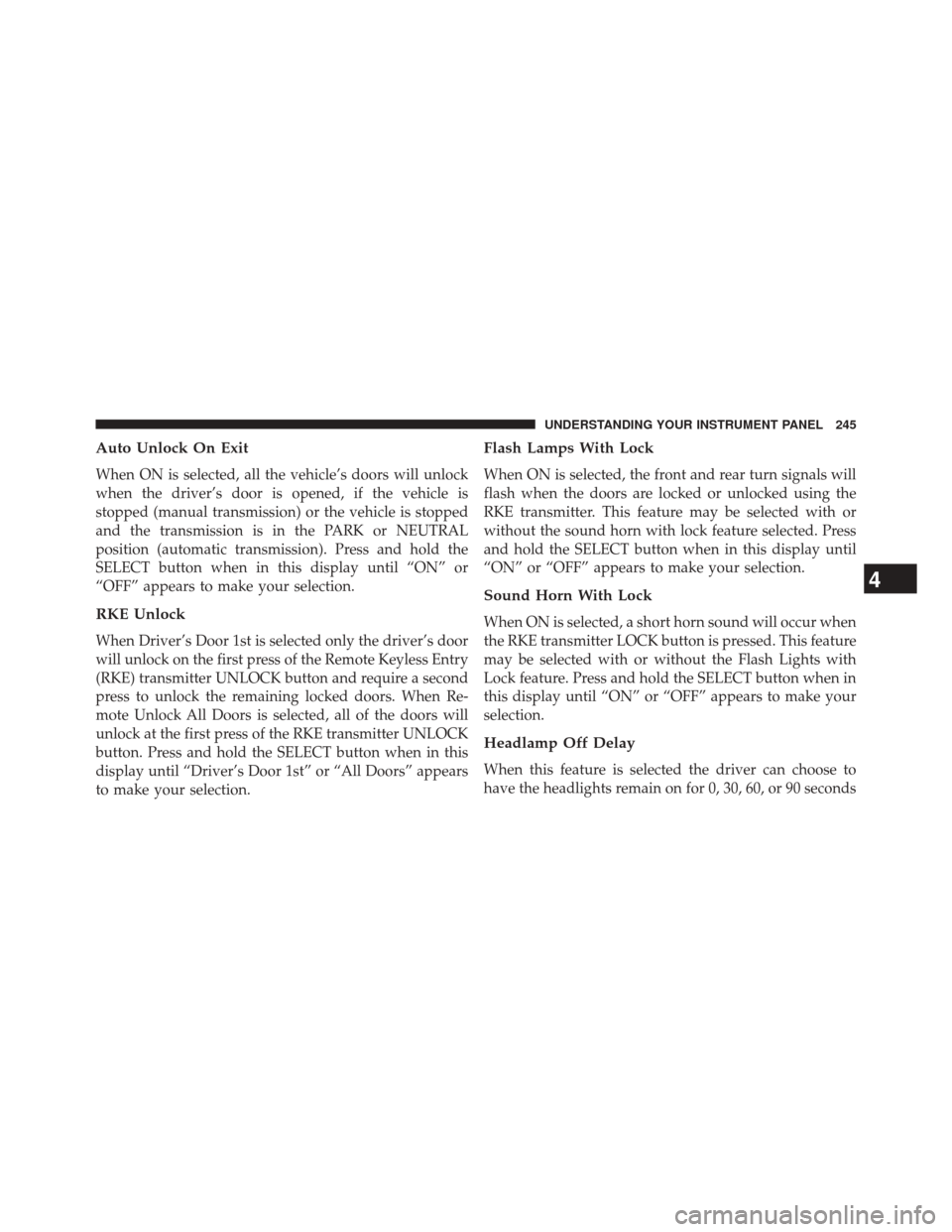

Auto Unlock On Exit
When ON is selected, all the vehicle’s doors will unlock
when the driver’s door is opened, if the vehicle is
stopped (manual transmission) or the vehicle is stopped
and the transmission is in the PARK or NEUTRAL
position (automatic transmission). Press and hold the
SELECT button when in this display until “ON” or
“OFF” appears to make your selection.
RKE Unlock
When Driver’s Door 1st is selected only the driver’s door
will unlock on the first press of the Remote Keyless Entry
(RKE) transmitter UNLOCK button and require a second
press to unlock the remaining locked doors. When Re-
mote Unlock All Doors is selected, all of the doors will
unlock at the first press of the RKE transmitter UNLOCK
button. Press and hold the SELECT button when in this
display until “Driver’s Door 1st” or “All Doors” appears
to make your selection.
Flash Lamps With Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
RKE transmitter. This feature may be selected with or
without the sound horn with lock feature selected. Press
and hold the SELECT button when in this display until
“ON” or “OFF” appears to make your selection.
Sound Horn With Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lights with
Lock feature. Press and hold the SELECT button when in
this display until “ON” or “OFF” appears to make your
selection.
Headlamp Off Delay
When this feature is selected the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
4
UNDERSTANDING YOUR INSTRUMENT PANEL 245

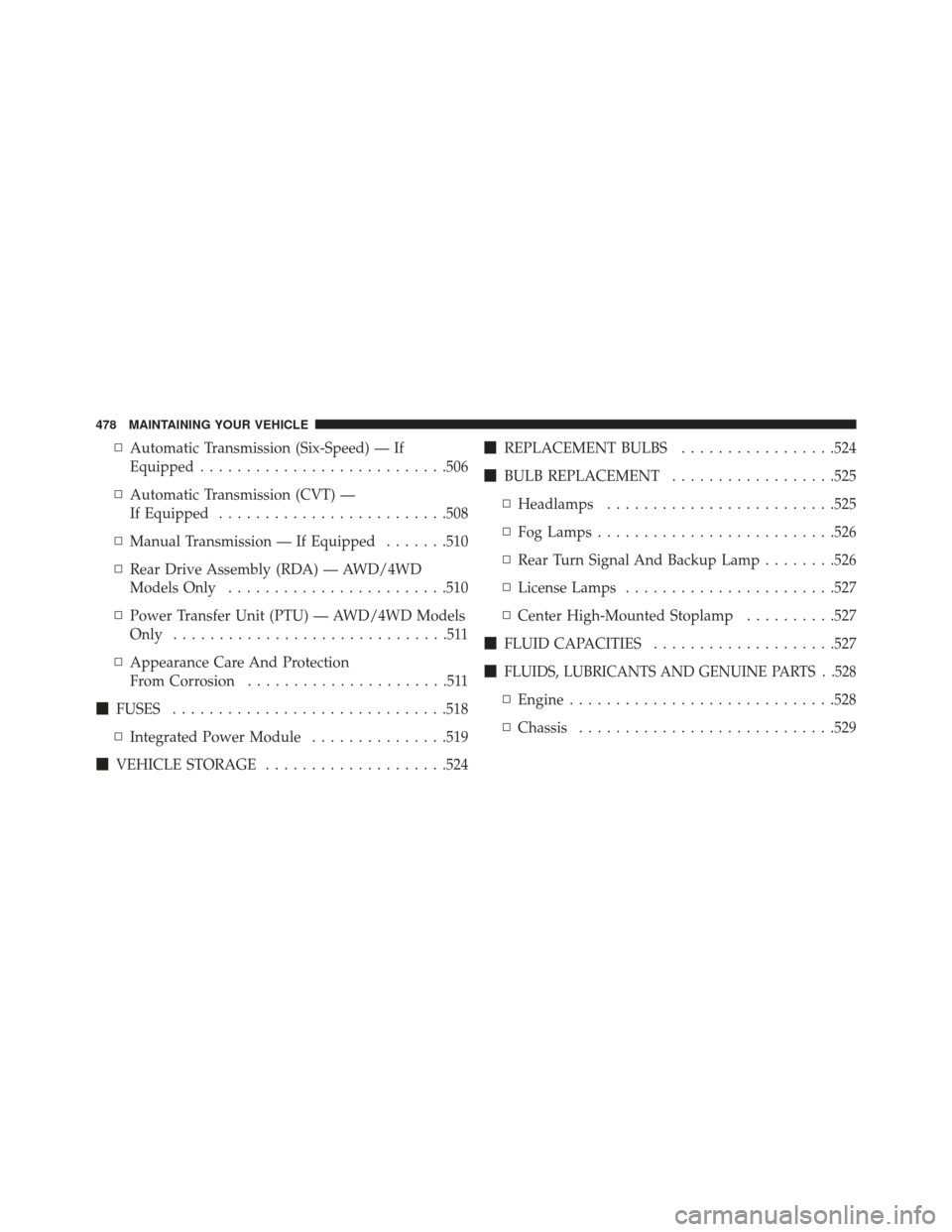

▫Automatic Transmission (Six-Speed) — If
Equipped .......................... .506
▫ Automatic Transmission (CVT) —
If Equipped ........................ .508
▫ Manual Transmission — If Equipped .......510
▫ Rear Drive Assembly (RDA) — AWD/4WD
Models Only ....................... .510
▫ Power Transfer Unit (PTU) — AWD/4WD Models
Only ..............................511
▫ Appearance Care And Protection
From Corrosion ......................511
 FUSES ............................. .518
▫ Integrated Power Module ...............519
 VEHICLE STORAGE ....................524
REPLACEMENT BULBS .................524
 BULB REPLACEMENT ..................525
▫ Headlamps ........................ .525
▫ Fog Lamps ......................... .526
▫ Rear Turn Signal And Backup Lamp ........526
▫ License Lamps ...................... .527
▫ Center High-Mounted Stoplamp ..........527
 FLUID CAPACITIES ....................527

FLUIDS, LUBRICANTS AND GENUINE PARTS . .528
▫ Engine ............................ .528
▫ Chassis ........................... .529
478 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
26 15 Amp Lt BlueAuto Shutdown Relay
27 10 Amp RedAirbag Control Module
28 10 Amp RedAirbag Control Module/
Occupant Classification Mod- ule
29 Hot Car (No Fuse Required)
30 20 Amp YellowHeated Seat – If Equipped
31 10 Amp RedHeadlamp Washer – If
Equipped
32 30 Amp Pink Auto Shutdown Relay
33 10 Amp RedJ1962 Conn/Powertrain Con-
trol Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
522 MAINTAINING YOUR VEHICLE

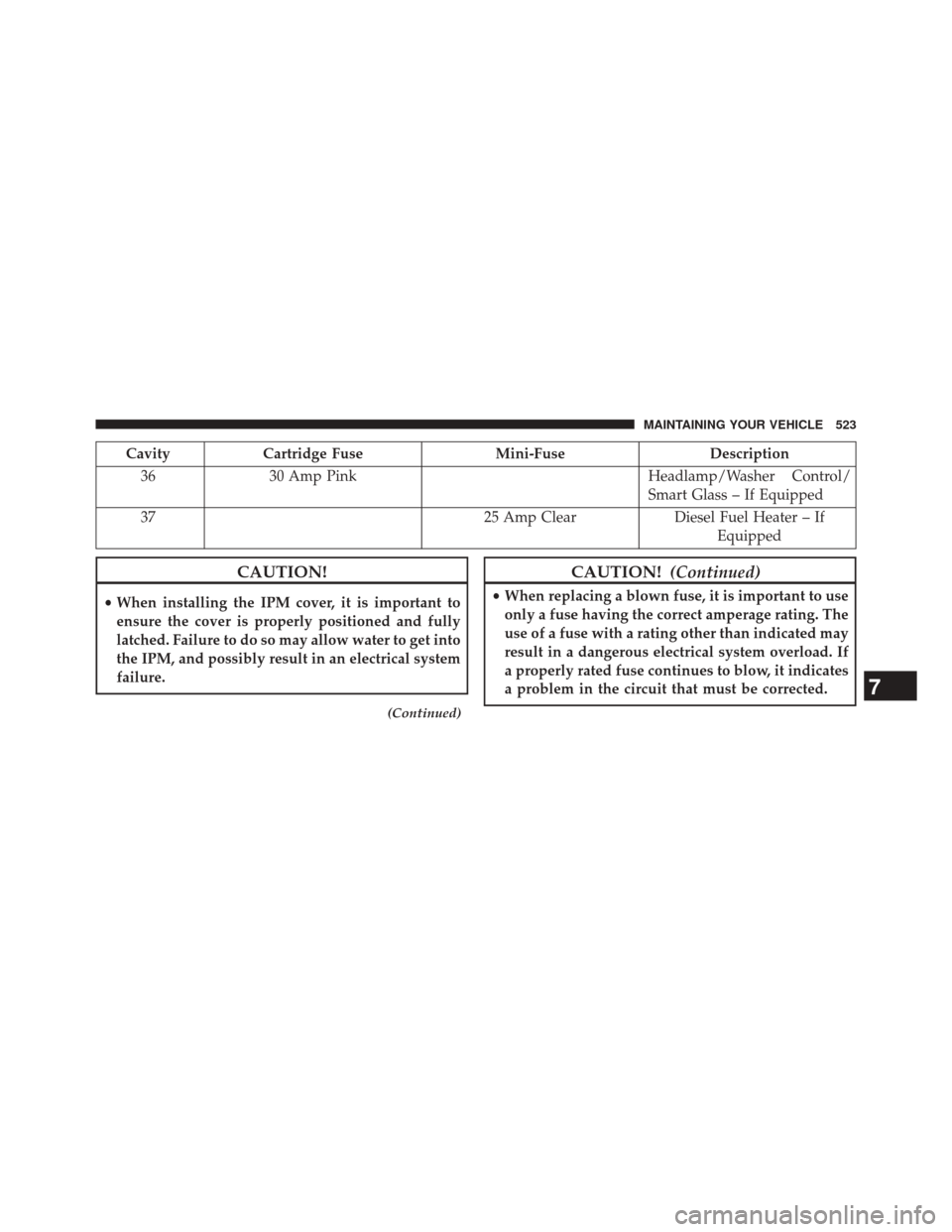

CavityCartridge Fuse Mini-FuseDescription
36 30 Amp Pink Headlamp/Washer Control/
Smart Glass – If Equipped
37 25 Amp ClearDiesel Fuel Heater – If
Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into
the IPM, and possibly result in an electrical system
failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 523

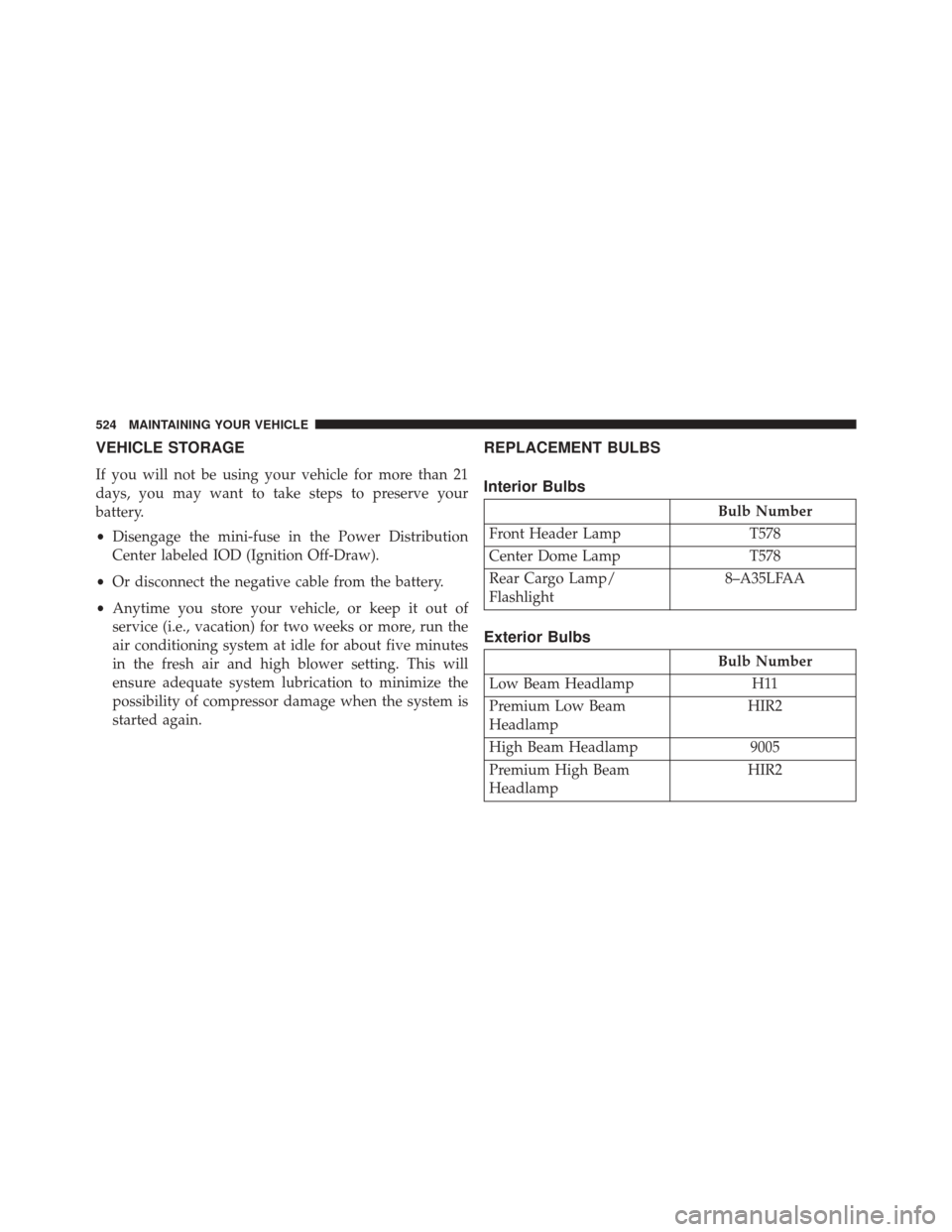

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Header Lamp T578
Center Dome Lamp T578
Rear Cargo Lamp/
Flashlight 8–A35LFAA
Exterior Bulbs
Bulb Number
Low Beam Headlamp H11
Premium Low Beam
Headlamp HIR2
High Beam Headlamp 9005
Premium High Beam
Headlamp HIR2
524 MAINTAINING YOUR VEHICLE

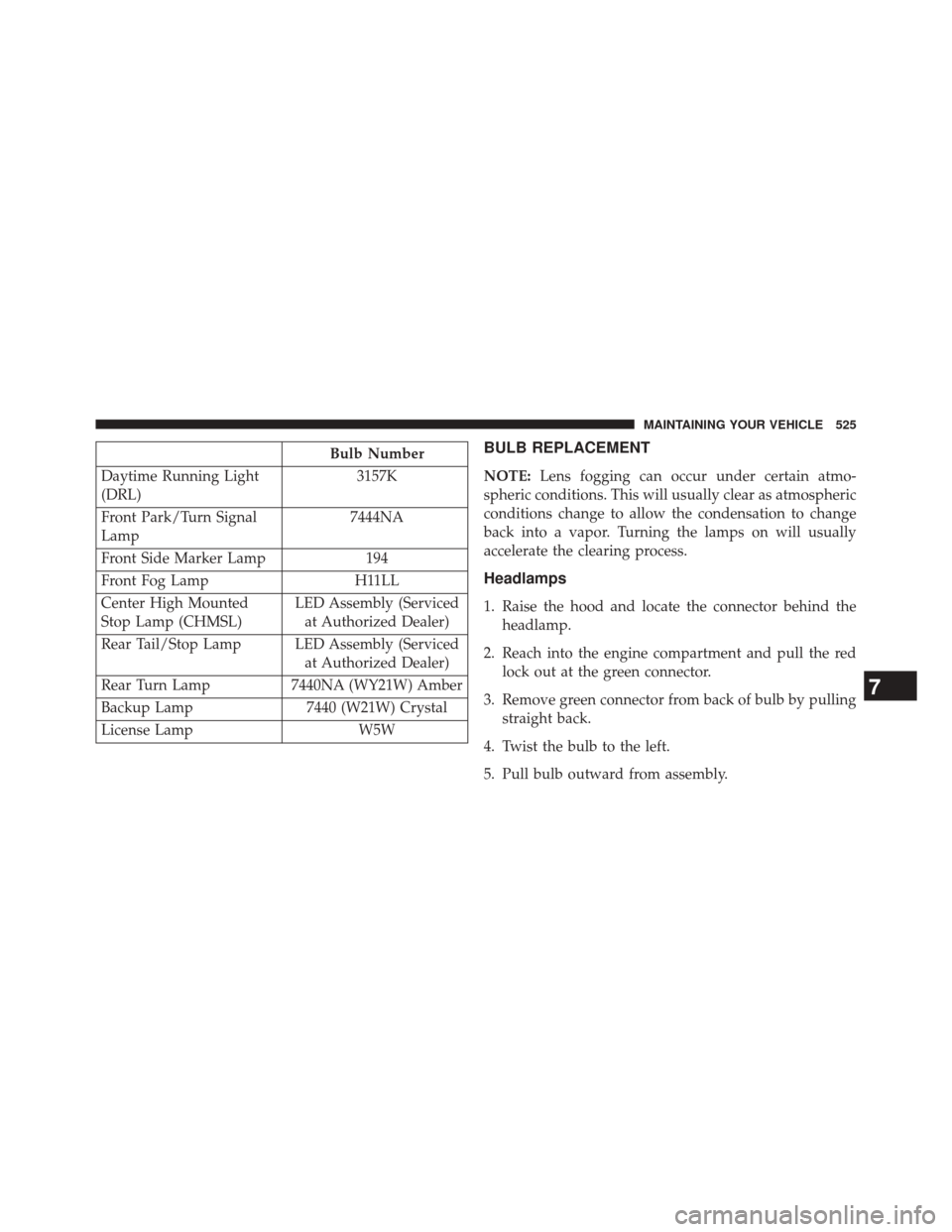

Bulb Number
Daytime Running Light
(DRL) 3157K
Front Park/Turn Signal
Lamp 7444NA
Front Side Marker Lamp 194
Front Fog Lamp H11LL
Center High Mounted
Stop Lamp (CHMSL) LED Assembly (Serviced
at Authorized Dealer)
Rear Tail/Stop Lamp LED Assembly (Serviced at Authorized Dealer)
Rear Turn Lamp 7440NA (WY21W) Amber
Backup Lamp 7440 (W21W) Crystal
License Lamp W5WBULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps
1. Raise the hood and locate the connector behind the headlamp.
2. Reach into the engine compartment and pull the red lock out at the green connector.
3. Remove green connector from back of bulb by pulling straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
7
