POWER OUTLET
The power outlet is located on the instrument panel below the climate control and is
powered when the ignition switch is in the ON/RUN position.
The outlet can operate a conventional cigar lighter unit or power accessories
designed for use with a standard power outlet adapter.
NOTE:
• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will
need to be replaced.
• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Improper use
of the power outlet can cause damage not covered by your new vehicle warranty.
Power Outlet Fuses
1 — Cigar Lighter
2 — Power Outlet
ELECTRONICS
75

FUSES
Integrated Power Module (fuses)
The Integrated Power Module (fuses) is located in the engine compartment near the
air cleaner assembly. This center contains cartridge fuses and mini-fuses.
Cavity Cartridge Fuse Mini-FuseDescription
1 20 Amp Blue Trailer Tow – If Equipped
2 15 Amp Lt
Blue AWD/4WD Control Module – If
Equipped
3 10 Amp Red Rear Center Brake Light Switch
4 10 Amp Red Ignition Switch/Occupant Classifica-
tion Module
5 15 Amp Lt
Blue Battery Feed For Power Tech
6 10 Amp Red Power Mirror/Steering Control Satel-
lite Radio/Hands-Free Phone
7 30 Amp Green Ignition Off Draw
8 30 Amp Green Ignition Off Draw
9 40 Amp Green Power Seats
10 20 Amp Yellow Power Locks/Interior Lighting
11 15 Amp Lt
Blue Power Outlet
12 20 Amp Yellow 115V AC Inverter – If Equipped
13 20 Amp Yellow Cigar Lighter
14 10 Amp RedInstrument Cluster
15 40 Amp Green Radiator Fan
16 15 Amp Lt
Blue Dome Lamp/Sunroof/Rear Wiper
Motor
17 10 Amp Red Wireless Control Module
MAINTAINING YOUR VEHICLE
108

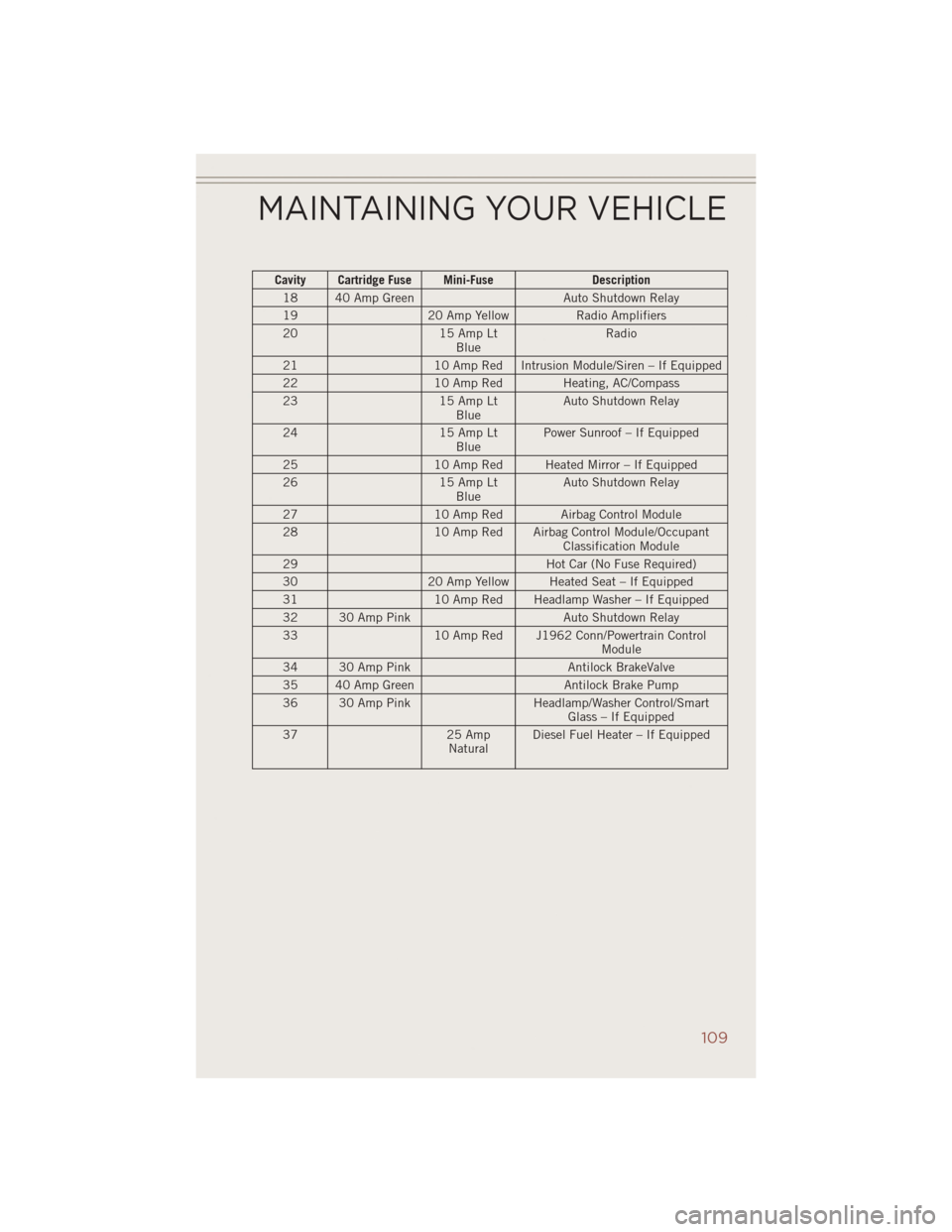

Cavity Cartridge Fuse Mini-FuseDescription
18 40 Amp Green Auto Shutdown Relay
19 20 Amp Yellow Radio Amplifiers
20 15 Amp Lt
Blue Radio
21 10 Amp Red Intrusion Module/Siren – If Equipped
22 10 Amp Red Heating, AC/Compass
23 15 Amp Lt
Blue Auto Shutdown Relay
24 15 Amp Lt
Blue Power Sunroof – If Equipped
25 10 Amp Red Heated Mirror – If Equipped
26 15 Amp Lt
Blue Auto Shutdown Relay
27 10 Amp Red Airbag Control Module
28 10 Amp Red Airbag Control Module/Occupant
Classification Module
29 Hot Car (No Fuse Required)
30 20 Amp Yellow Heated Seat – If Equipped
31 10 Amp Red Headlamp Washer – If Equipped
32 30 Amp Pink Auto Shutdown Relay
33 10 Amp Red J1962 Conn/Powertrain Control
Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
36 30 Amp Pink Headlamp/Washer Control/Smart
Glass – If Equipped
37 25 Amp
Natural Diesel Fuel Heater – If Equipped
MAINTAINING YOUR VEHICLE
109
