jacking points JEEP COMPASS 2015 1.G Owners Manual

NOTE:Refer to “Tires — General Information” in “Start-
ing And Operating” for further information about the
spare tire, it’s use, and operation.
1. Remove the scissors jack and lug wrench from the
spare wheel as an assembly. Turn the jack screw to the
left to loosen the lug wrench and remove the wrench
from the jack assembly.
NOTE:The jack handle attaches to the side of the jack
with two attachment points. When the jack is partially
expanded, the tension between the two attachment
points holds the jack handle in place.
2. Loosen, but do not remove, the wheel nuts by turning
them to the left one turn while the wheel is still on the
ground.
NOTE:There are front and rear jacking locations on each
side of the body. The front locations are outlined by two
triangular cutouts on one of the flanges in the sill flange

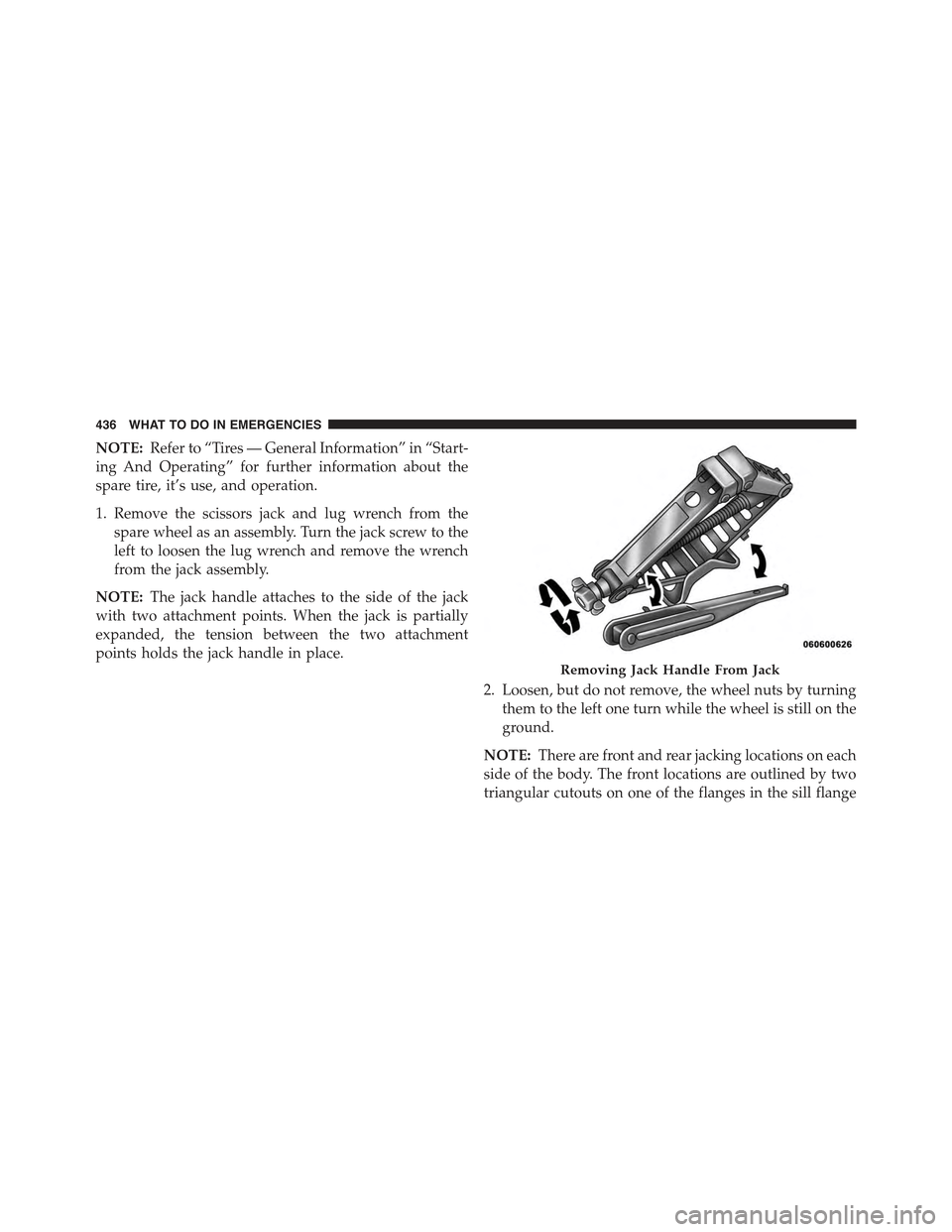

Removing Jack Handle From Jack
436 WHAT TO DO IN EMERGENCIES
