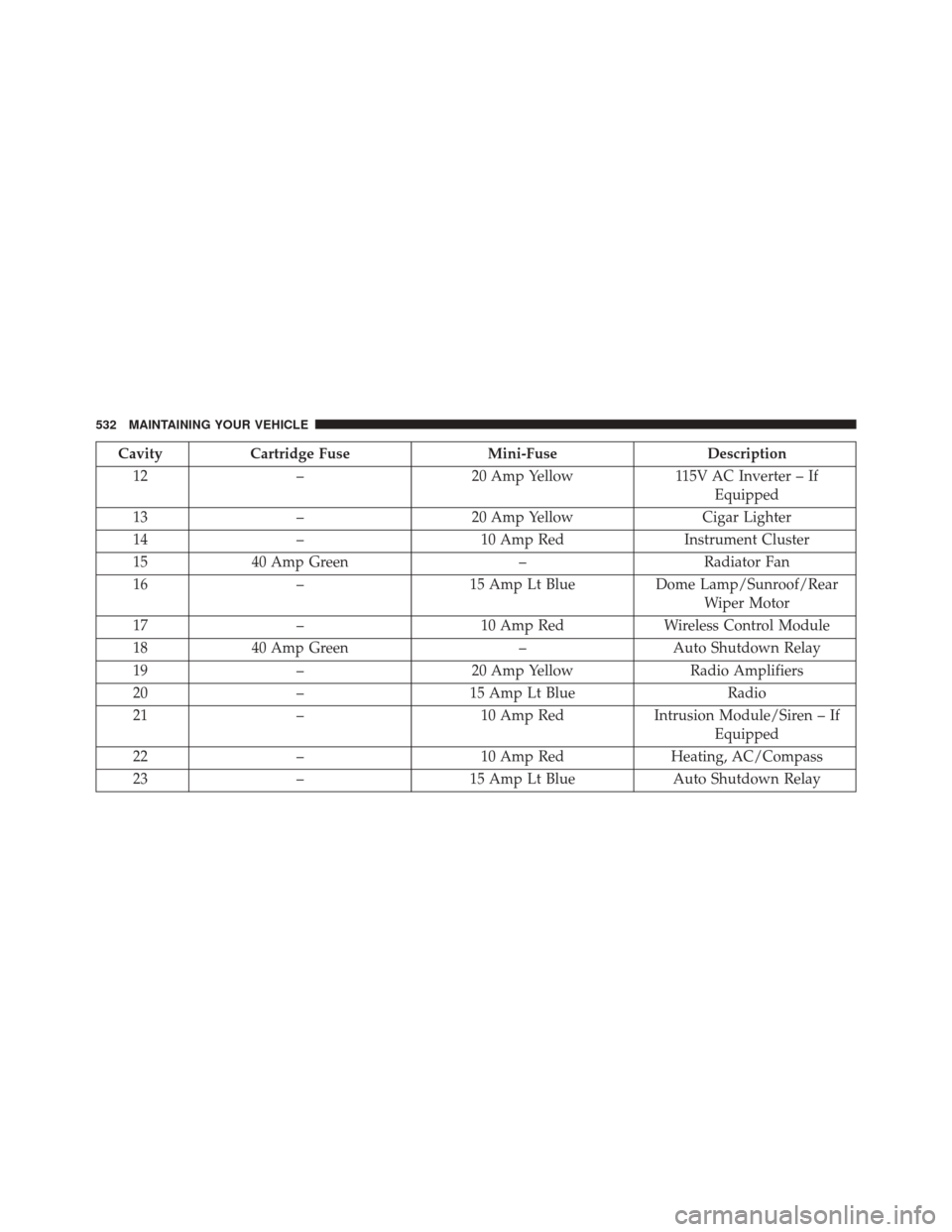

CavityCartridge Fuse Mini-FuseDescription
12 – 20 Amp Yellow 115V AC Inverter – If
Equipped
13 – 20 Amp Yellow Cigar Lighter
14 – 10 Amp Red Instrument Cluster
15 40 Amp Green –Radiator Fan
16 – 15 Amp Lt Blue Dome Lamp/Sunroof/Rear
Wiper Motor
17 – 10 Amp RedWireless Control Module
18 40 Amp Green –Auto Shutdown Relay
19 – 20 Amp Yellow Radio Amplifiers
20 – 15 Amp Lt Blue Radio
21 – 10 Amp RedIntrusion Module/Siren – If
Equipped
22 – 10 Amp Red Heating, AC/Compass
23 – 15 Amp Lt Blue Auto Shutdown Relay
532 MAINTAINING YOUR VEHICLE

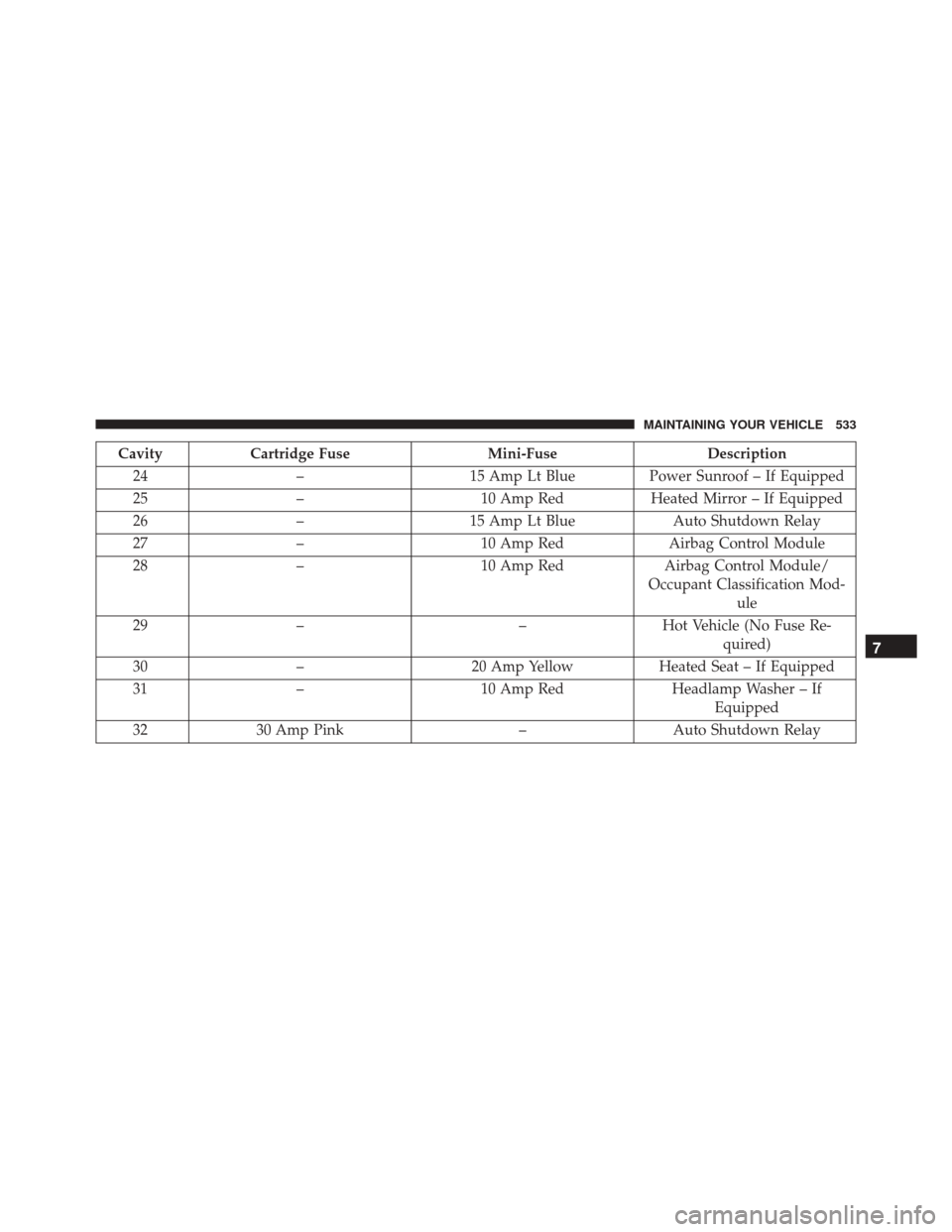

CavityCartridge Fuse Mini-FuseDescription
24 – 15 Amp Lt Blue Power Sunroof – If Equipped
25 – 10 Amp RedHeated Mirror – If Equipped
26 – 15 Amp Lt Blue Auto Shutdown Relay
27 – 10 Amp Red Airbag Control Module
28 – 10 Amp RedAirbag Control Module/
Occupant Classification Mod- ule
29 – –Hot Vehicle (No Fuse Re-
quired)
30 – 20 Amp Yellow Heated Seat – If Equipped
31 – 10 Amp Red Headlamp Washer – If
Equipped
32 30 Amp Pink –Auto Shutdown Relay
7
