mirror JEEP COMPASS 2016 1.G User Guide

10. Lower Storage
11. Climate Controls pg. 38
12. Power Outlet pg. 82
13. Shift Lever pg. 38
14. Switch Panel• Heated Seat Switches pg. 27
• Electronic Stability Control (ESC) OFF pg. 92
• Hazard Switch
15. Ignition Switch (behind steering wheel)
16. Power Mirrors
17. Power Windows
18. Power Door Locks
CONTROLS AT A GLANCE
7

SIX-SPEED AUTOMATIC TRANSMISSION
This electronically-controlled transmission provides a precise shift schedule. The
transmission electronics are self-calibrating; therefore, the first few shifts on a new
vehicle may be somewhat abrupt. This is a normal condition, and precision shifts will
develop within a few hundred miles (kilometers).
The transmission shift lever has only PARK, REVERSE, NEUTRAL, and DRIVE shift
positions. Manual shifts can be made using the AutoStick shift control. Moving the
shift lever to the left or right (-/+) while in the DRIVE position will manually select the
transmission gear, and will display the current gear in the instrument cluster as 1, 2,
3, etc.
Refer to your Owner’s Manual on the DVD for further information.
MANUAL CLIMATE CONTROLS
Air Recirculation
• Use Recirculation for maximum A/C operation.
• For window defogging, turn the Recirculation button off.
• Recirculation is allowed in floor mode and defrost/floor (mix mode).
Heated Mirrors
The exterior mirrors are heated to melt frost or ice. This feature is activated whenever
you turn on the rear window defroster.
Manual Climate Controls
1 — Rotate Blower Control
2 — Push Air Recirculation Button
3 — Rotate Temperature Control4 — Push A/C Button
5 — Rotate Mode Control
6 — Push Rear Window Defroster
OPERATING YOUR VEHICLE
38

AUTOMATIC TEMPERATURE CONTROLS (ATC)
Automatic Operation
• Turn the Mode and Blower Controls to the AUTO position.
• Select the desired temperature by rotating the Temperature Control.
• The system will maintain the set temperature automatically.
Air Conditioning (A/C)
• If the air conditioning button is pushed while in AUTO mode, the indicator lightwill flash three times to indicate the cabin air is being controlled automatically.
Air Recirculation
• Use Recirculation for maximum A/C operation.
• For window defogging, turn the Recirculation button off.
• If the Recirculation button is pushed while in the AUTO mode, the indicator lightmay flash three times to indicate the cabin air is being controlled automatically.
Heated Mirrors
The exterior mirrors are heated to melt frost or ice. This feature is activated whenever
you turn on the rear window defroster.
Automatic Temperature Controls
1 — Rotate Blower Control
2 — Push Air Recirculation Button
3 — Rotate Temperature Control4 — Push A/C Button
5 — Rotate Mode Control
6 — Push Rear Window Defroster
OPERATING YOUR VEHICLE
39

FUSES
WARNING!
• When replacing a blown fuse, always use an appropriate replacement fuse withthe same amp rating as the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown fuse with metal wires or any
other material. Failure to use proper fuses may result in serious personal injury,
fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is off and that all the other
services are switched off and/or disengaged.
• If the replaced fuse blows again, contact an authorized dealer.
• If a general protection fuse for safety systems (air bag system, braking system),
power unit systems (engine system, gearbox system) or steering system blows,
contact an authorized dealer.
Integrated Power Module (IPM)
The Integrated Power Module is located in the engine compartment near the air
cleaner assembly. This center contains cartridge fuses and mini-fuses. A label that
identifies each component may be printed on the inside of the cover. Refer to
“Engine Compartment” in “Maintaining Your Vehicle” for further information.
Cavity Cartridge Fuse Mini-FuseDescription
1 20 Amp Blue –Trailer Tow – If
Equipped
2 –15 Amp Lt Blue AWD/4WD Control
Module – IfEquipped
3 –10 Amp Red Rear Center Brake
Light Switch
4 –10 Amp Red Ignition Switch/Clock
Spring
5 –15 Amp Lt Blue Battery Feed For
Power Tech
6 –10 Amp Red Power Mirror/Steering
Control Satellite
Radio/Hands-Free Phone
7 –30 Amp Green Ignition Off Draw
8 –30 Amp Green Ignition Off Draw
9 40 Amp Green –Power Seats
10 –20 Amp Yellow Power Locks/Interior
Lighting
11 –15 Amp Lt Blue Power Outlet
MAINTAINING YOUR VEHICLE
121

Cavity Cartridge FuseMini-FuseDescription
12 –20 Amp Yellow 115V AC Inverter – If
Equipped
13 –20 Amp Yellow Cigar Lighter
14 –10 Amp Red Instrument Cluster
15 40 Amp Green –Radiator Fan
16 –15 Amp Lt Blue Dome Lamp/Sunroof/
Rear Wiper Motor
17 –10 Amp Red Wireless Control
Module
18 40 Amp Green –Auto Shutdown Relay
19 –20 Amp Yellow Radio Amplifiers
20 –15 Amp Lt Blue Radio
21 –10 Amp Red Intrusion Module/
Siren – If Equipped
22 –10 Amp Red Heating, AC/Compass
23 –15 Amp Lt Blue Auto Shutdown Relay
24 –15 Amp Lt Blue Power Sunroof – If
Equipped
25 –10 Amp Red Heated Mirror – If
Equipped
26 –15 Amp Lt Blue Auto Shutdown Relay
27 –10 Amp Red Airbag Control Mod-
ule
28 –10 Amp Red Airbag Control
Module/Occupant
Classification Module
29 – –Hot Vehicle (No Fuse
Required)
30 –20 Amp Yellow Heated Seat – If
Equipped
31 –10 Amp Red Headlamp Washer –
If Equipped
32 30 Amp Pink –Auto Shutdown Relay
33 –10 Amp Red J1962 Conn/
Powertrain ControlModule
34 30 Amp Pink –Antilock BrakeValve
35 40 Amp Green –Antilock Brake Pump
36 30 Amp Pink –Headlamp/Washer
Control/Smart Glass –
If Equipped
37 –25 Amp Clear Diesel Heater and H2/
MOD power top
MAINTAINING YOUR VEHICLE
122

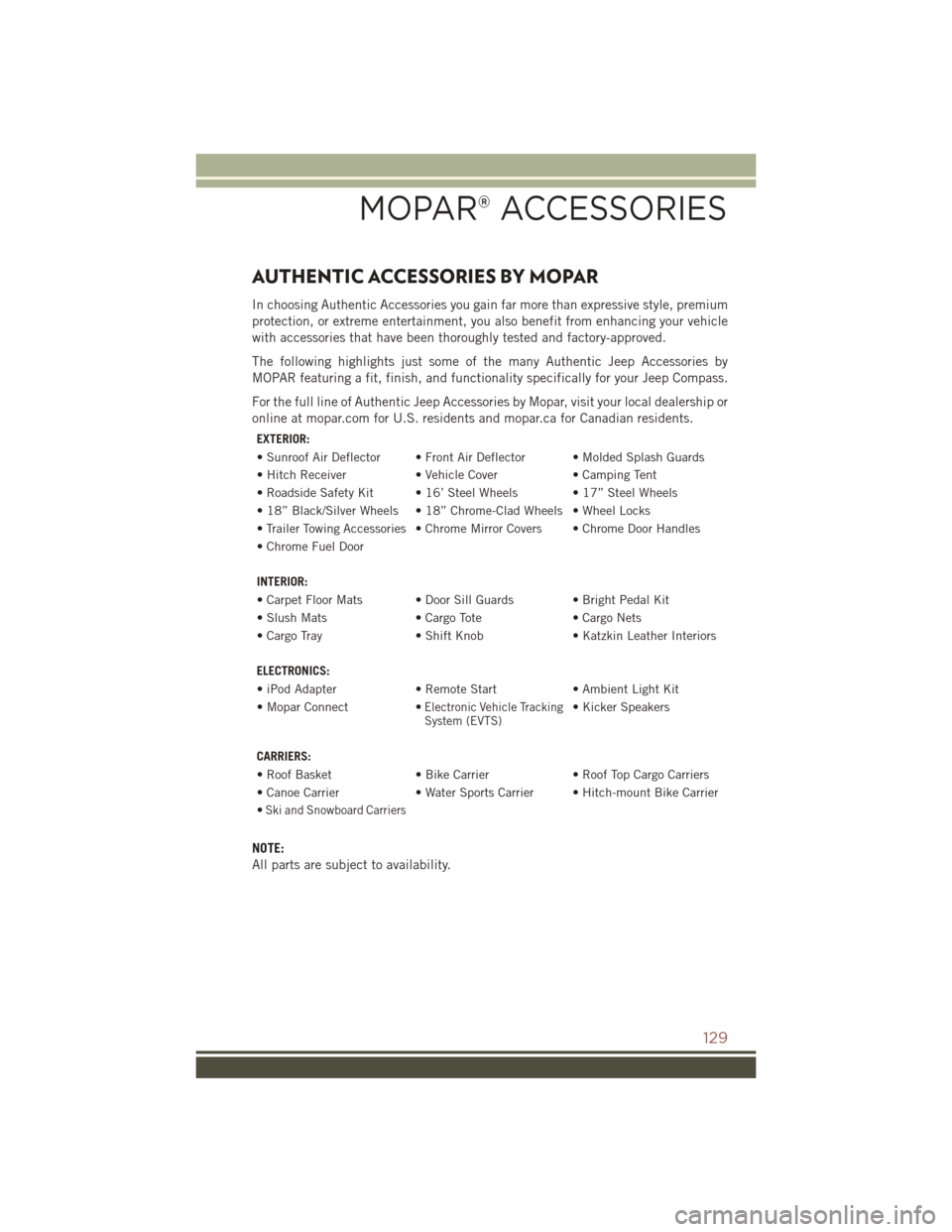

AUTHENTIC ACCESSORIES BY MOPAR
In choosing Authentic Accessories you gain far more than expressive style, premium
protection, or extreme entertainment, you also benefit from enhancing your vehicle
with accessories that have been thoroughly tested and factory-approved.
The following highlights just some of the many Authentic Jeep Accessories by
MOPAR featuring a fit, finish, and functionality specifically for your Jeep Compass.
For the full line of Authentic Jeep Accessories by Mopar, visit your local dealership or
online at mopar.com for U.S. residents and mopar.ca for Canadian residents.
EXTERIOR:
• Sunroof Air Deflector • Front Air Deflector • Molded Splash Guards
• Hitch Receiver • Vehicle Cover • Camping Tent
• Roadside Safety Kit • 16’ Steel Wheels • 17” Steel Wheels
• 18” Black/Silver Wheels • 18” Chrome-Clad Wheels • Wheel Locks
• Trailer Towing Accessories • Chrome Mirror Covers • Chrome Door Handles
• Chrome Fuel Door
INTERIOR:
• Carpet Floor Mats • Door Sill Guards • Bright Pedal Kit
• Slush Mats • Cargo Tote • Cargo Nets
• Cargo Tray • Shift Knob • Katzkin Leather Interiors
ELECTRONICS:
• iPod Adapter • Remote Start • Ambient Light Kit
• Mopar Connect •
Electronic Vehicle TrackingSystem (EVTS)• Kicker Speakers
CARRIERS:
• Roof Basket • Bike Carrier• Roof Top Cargo Carriers
• Canoe Carrier • Water Sports Carrier • Hitch-mount Bike Carrier
•
Ski and Snowboard Carriers
NOTE:
All parts are subject to availability.
MOPAR® ACCESSORIES
129

Four Wheel Drive Operation......83
Freeing A Stuck Vehicle .......107
Fuel Capacity ..............114
Octane Rating ..........114
Tank Capacity ..........114
Fuses..................121
Garage Door Opener (HomeLink) ...........78,80
Gasoline(Fuel) ............114
Gear Select Lever Override ......105
GeneralMaintenance.........116
Glass Cleaning ............116
GPS Navigation (Uconnect GPS) . . .63
Hard Drive (HDD) ............57
Headlights Cleaning .............116
High Beam/Low Beam Select
Switch ...............31
OnWithWipers ..........33
Passing ...............31
Switch ...............30
Head Restraints ............22
Heated Mirrors ...........38,39
Heated Seats ..............27
High Beam Indicator ..........91
High Beam/Low Beam Select (Dimmer) Switch ..........31
HomeLink Operation ..............80
HomeLink (Garage Door Opener).............78,80
Hood Release .............109
Installing A Child Restraint With ALR..................20
Installing Child Restraints Using The LATCH Lower Anchorages .....20
Installing Child Restraints Using The Vehicle Seat Belt ..........20
Instrument Cluster ............8
Indicators ..............8
Instrument Cluster Warning Lights ............8,87,91
Instrument Panel Cover .......116
Instrument Panel Lens Cleaning . .116 Integrated Power Module (Fuses) . .121
Interior And Instrument Lights . . .6, 7
Interior Appearance Care
.......116
Intermittent Wipers (Delay Wipers) . .32
Introduction ...............2
Inverter Outlet (115V) .........81
Inverter, Power .............81
iPod/USB/MP3 Control ........69
Bluetooth Streaming Audio ....75
Jacking Instructions ..........96
Jack Location ..............94
Jack Operation ...........94,96
Jump Starting .............102
KeyFob.................10 Arm The Alarm ...........12
Disarm The Alarm .........12
Lock The Doors ...........10
Panic Alarm ............10
Remote Start ............11
Unlock The Doors .........10
Key Fob Programmable Features . . .76
Lane Change Assist ..........
31
Lap/Shoulder Belts ...........13
Latches Hood ...............109
LATCH (Lower Anchors And Tether For CHildren)...............18
Left Switch Steering Wheel Audio Controls . .68
Liftgate Window Wiper/Washer ....34
LightBulbs ..............126
Lights AirBag ...............17
Cruise ................92
Dimmer Switch,
Headlight ...........30,31
Engine Temperature Warning . . .90
Fog ...............31,92
Four-Wheel Drive Indicator ....92
Headlights .............30
Headlights On With Wipers ....33
Headlight Switch .........30
HighBeam .............31
High Beam Indicator .......91
High Beam/Low Beam Select . .31
INDEX
134
