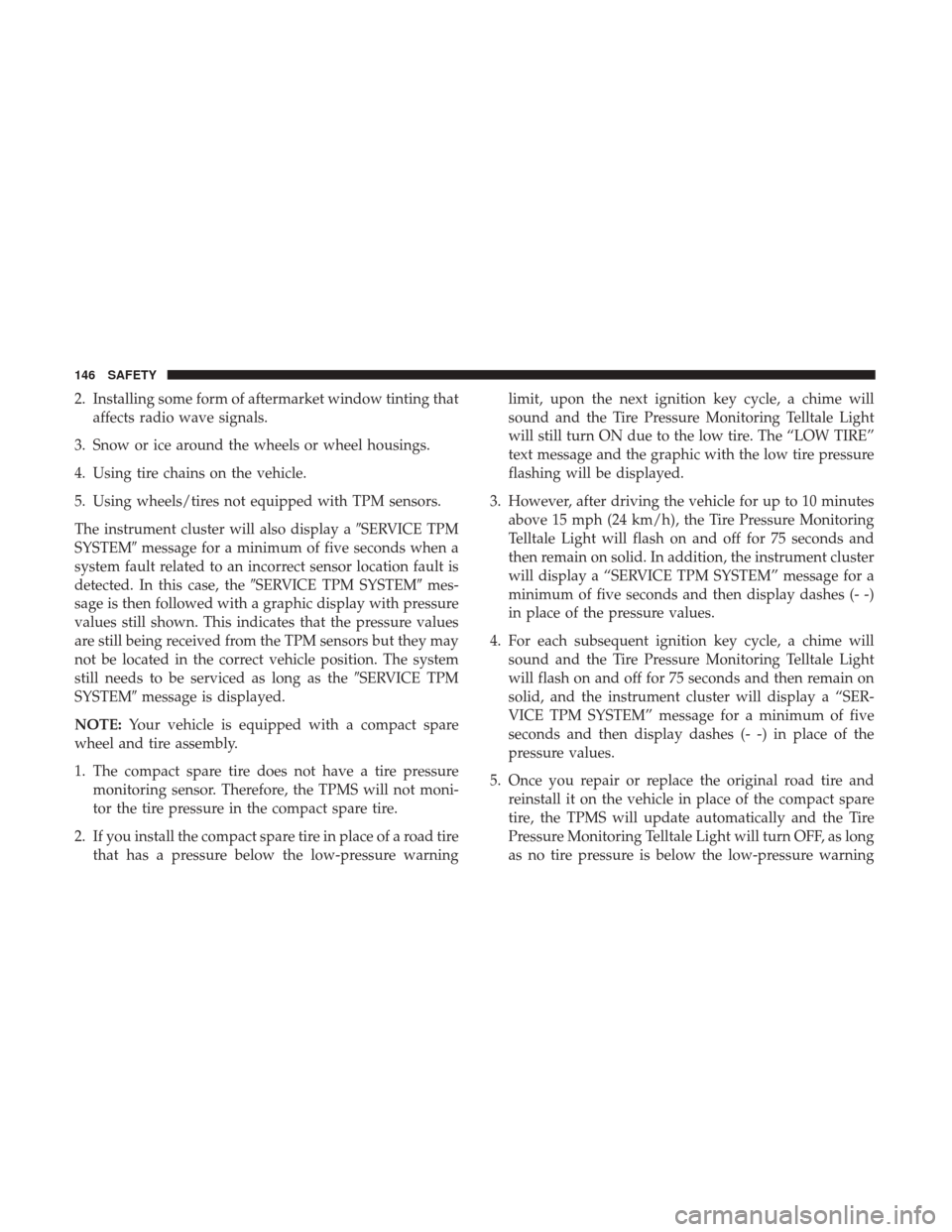

2. Installing some form of aftermarket window tinting thataffects radio wave signals.
3. Snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The instrument cluster will also display a SERVICE TPM
SYSTEM message for a minimum of five seconds when a
system fault related to an incorrect sensor location fault is
detected. In this case, the SERVICE TPM SYSTEM mes-
sage is then followed with a graphic display with pressure
values still shown. This indicates that the pressure values
are still being received from the TPM sensors but they may
not be located in the correct vehicle position. The system
still needs to be serviced as long as the SERVICE TPM
SYSTEM message is displayed.
NOTE: Your vehicle is equipped with a compact spare
wheel and tire assembly.
1. The compact spare tire does not have a tire pressure monitoring sensor. Therefore, the TPMS will not moni-
tor the tire pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road tire that has a pressure below the low-pressure warning limit, upon the next ignition key cycle, a chime will
sound and the Tire Pressure Monitoring Telltale Light
will still turn ON due to the low tire. The “LOW TIRE”
text message and the graphic with the low tire pressure
flashing will be displayed.
3. However, after driving the vehicle for up to 10 minutes above 15 mph (24 km/h), the Tire Pressure Monitoring
Telltale Light will flash on and off for 75 seconds and
then remain on solid. In addition, the instrument cluster
will display a “SERVICE TPM SYSTEM” message for a
minimum of five seconds and then display dashes (- -)
in place of the pressure values.
4. For each subsequent ignition key cycle, a chime will sound and the Tire Pressure Monitoring Telltale Light
will flash on and off for 75 seconds and then remain on
solid, and the instrument cluster will display a “SER-
VICE TPM SYSTEM” message for a minimum of five
seconds and then display dashes (- -) in place of the
pressure values.
5. Once you repair or replace the original road tire and reinstall it on the vehicle in place of the compact spare
tire, the TPMS will update automatically and the Tire
Pressure Monitoring Telltale Light will turn OFF, as long
as no tire pressure is below the low-pressure warning
146 SAFETY

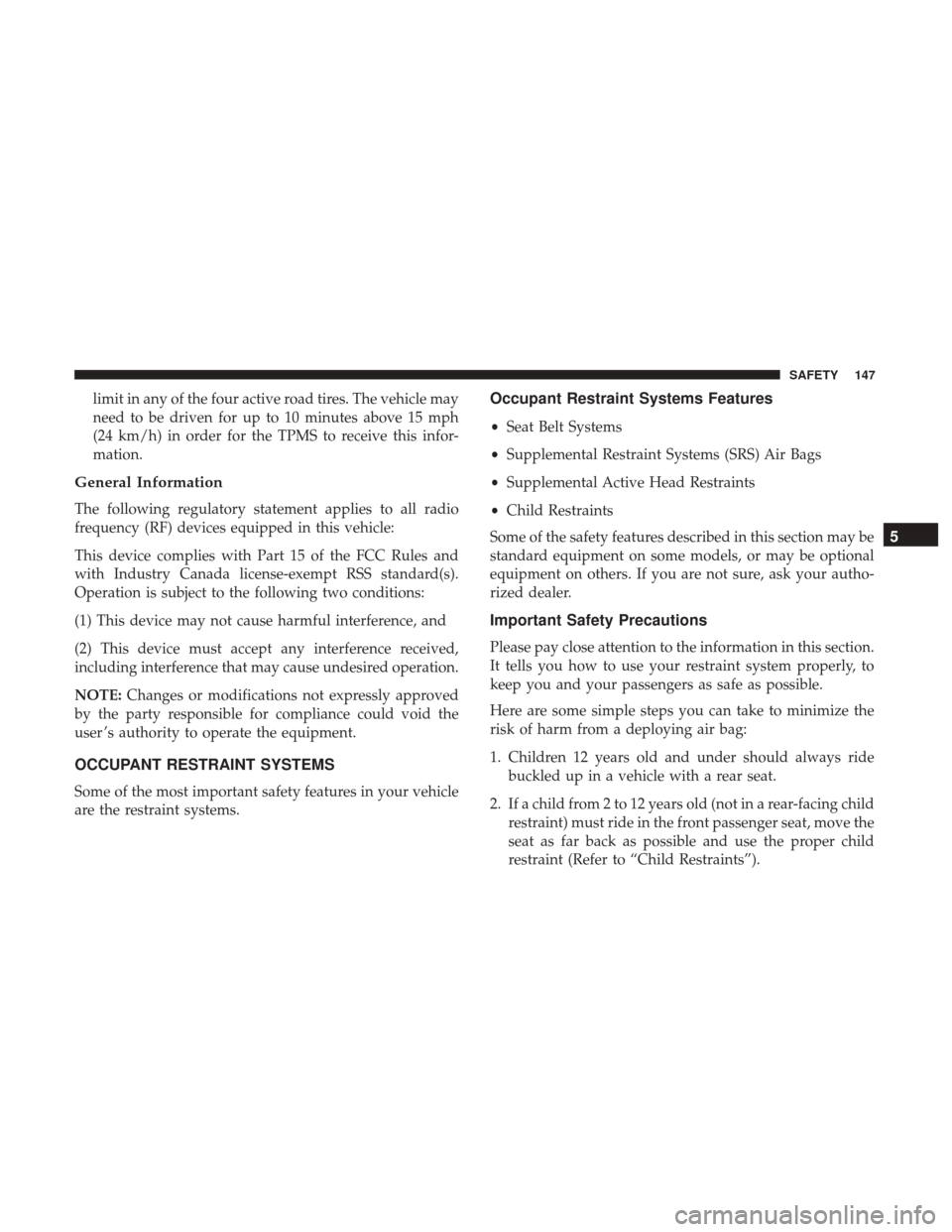

limit in any of the four active road tires. The vehicle may
need to be driven for up to 10 minutes above 15 mph
(24 km/h) in order for the TPMS to receive this infor-
mation.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your vehicle
are the restraint systems.
Occupant Restraint Systems Features
• Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Supplemental Active Head Restraints
• Child Restraints
Some of the safety features described in this section may be
standard equipment on some models, or may be optional
equipment on others. If you are not sure, ask your autho-
rized dealer.
Important Safety Precautions
Please pay close attention to the information in this section.
It tells you how to use your restraint system properly, to
keep you and your passengers as safe as possible.
Here are some simple steps you can take to minimize the
risk of harm from a deploying air bag:
1. Children 12 years old and under should always ride buckled up in a vehicle with a rear seat.
2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat, move the
seat as far back as possible and use the proper child
restraint (Refer to “Child Restraints”).
5
SAFETY 147

Key, Programming..........................24
Key, Replacement ...........................24
Keys ....................................19
Key, Sentry (Immobilizer) ......................23
Lane Change And Turn Signals .................247
Lane Change Assist ..........................49
Lap/Shoulder Belts ........................ .150
Latches ................................. .194
Hood ..................................72
Leaks, Fluid ............................. .194
Life Of Tires ............................. .317
Liftgate (Sedan) .............................74
Liftgate Window Wiper/Washer .................54
Light Bulbs .......................... .194, 245
Lights .................................. .194
AirBag .........................111, 164, 192
Back-Up ...............................247
Brake Assist Warning ..................... .137
Brake Warning ..........................112
Cargo .................................75
Center Mounted Stop ..................... .247
Cruise ............................... .125
Daytime Running .........................47
Dimmer Switch, Headlight ...................47 Exterior
...............................194
Fog................................48, 246
Hazard Warning Flasher ...................245
Headlights ..............................47
Headlights On With Wipers ...............49, 53
Headlight Switch .........................47
High Beam ..............................47
High Beam/Low Beam Select .................47
Instrument Cluster ........................47
Interior ................................50
License ............................... .247
Lights On Reminder .......................49
Low Fuel ............................. .121
Malfunction Indicator (Check Engine) ..........116
Map Reading ............................50
Park ................................. .124
Seat Belt Reminder .......................111
Security Alarm ........................26, 113
Tire Pressure Monitoring (TPMS) .............117
Traction Contr

ol ........................ .137
Turn Signal ....................49, 123, 194, 247
Warning (Instrument Cluster Description) .......123
Loading Vehicle ............................222
Tires................................. .309
Locks ....................................29
418 INDEX

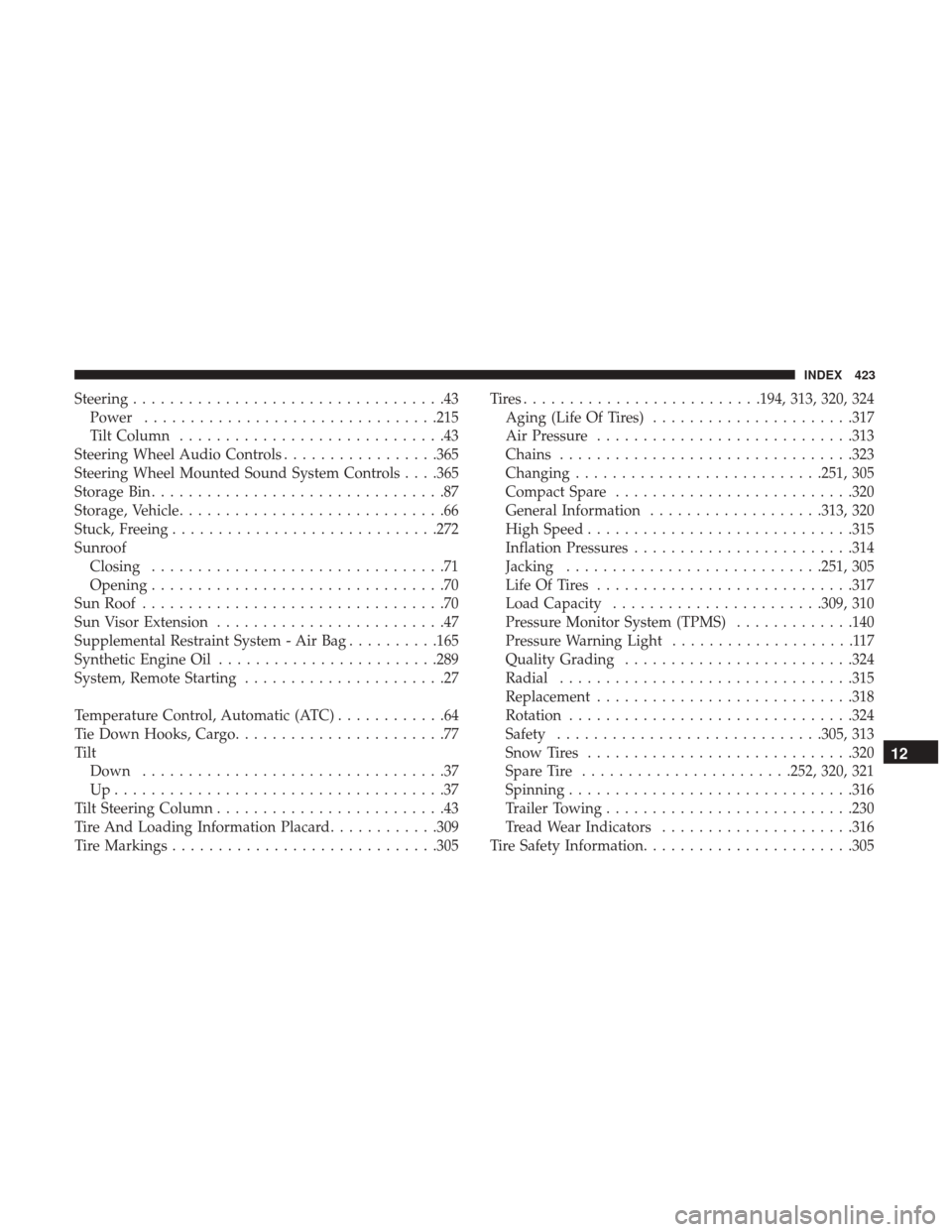

Steering..................................43
Power ............................... .215
Tilt Column .............................43
Steering Wheel Audio Controls .................365
Steering Wheel Mounted Sound System Controls . . . .365
Storage Bin ................................87
Storage, Vehicle .............................66
Stuck, Freeing ............................ .272
Sunroof Closing ................................71
Opening ................................70
Sun Roof .................................70
Sun Visor Extension .........................47
Supplemental Restraint System - Air Bag ..........165
Synthetic Engine Oil ........................289
System, Remote Starting ......................27
Temperature Control, Automatic (ATC) ............64
Tie Down Hooks, Cargo .......................77
Tilt Down .................................37
Up....................................37
Tilt Steering Column .........................43
Tire And Loading Information Placard ............309
Tire Markings ............................ .305Tires.........................
.194, 313, 320, 324
Aging (Life Of Tires) ..................... .317
Air Pressure ............................313
Chains ............................... .323
Changing .......................... .251, 305
Compact Spare ..........................320
General Information ...................313, 320
High Speed ............................ .315
Inflation Pressures ........................314
Jacking ............................251, 305
Life Of Tires ............................317
Load Capacity .......................309, 310
Pressure Monitor System (TPMS) .............140
Pressure Warning Light ....................117
Quality Grading ........................ .324
Radial ............................... .315
Replacement ............................318
Rotation ...............................324
Safety ............................ .305, 313
Snow T

ires............................ .320
Spare Tire .......................252, 320, 321
Spinning ...............................316
Trailer Towing .......................... .230
Tread Wear Indicators .....................316
Tire Safety Information .......................305
12
INDEX 423
