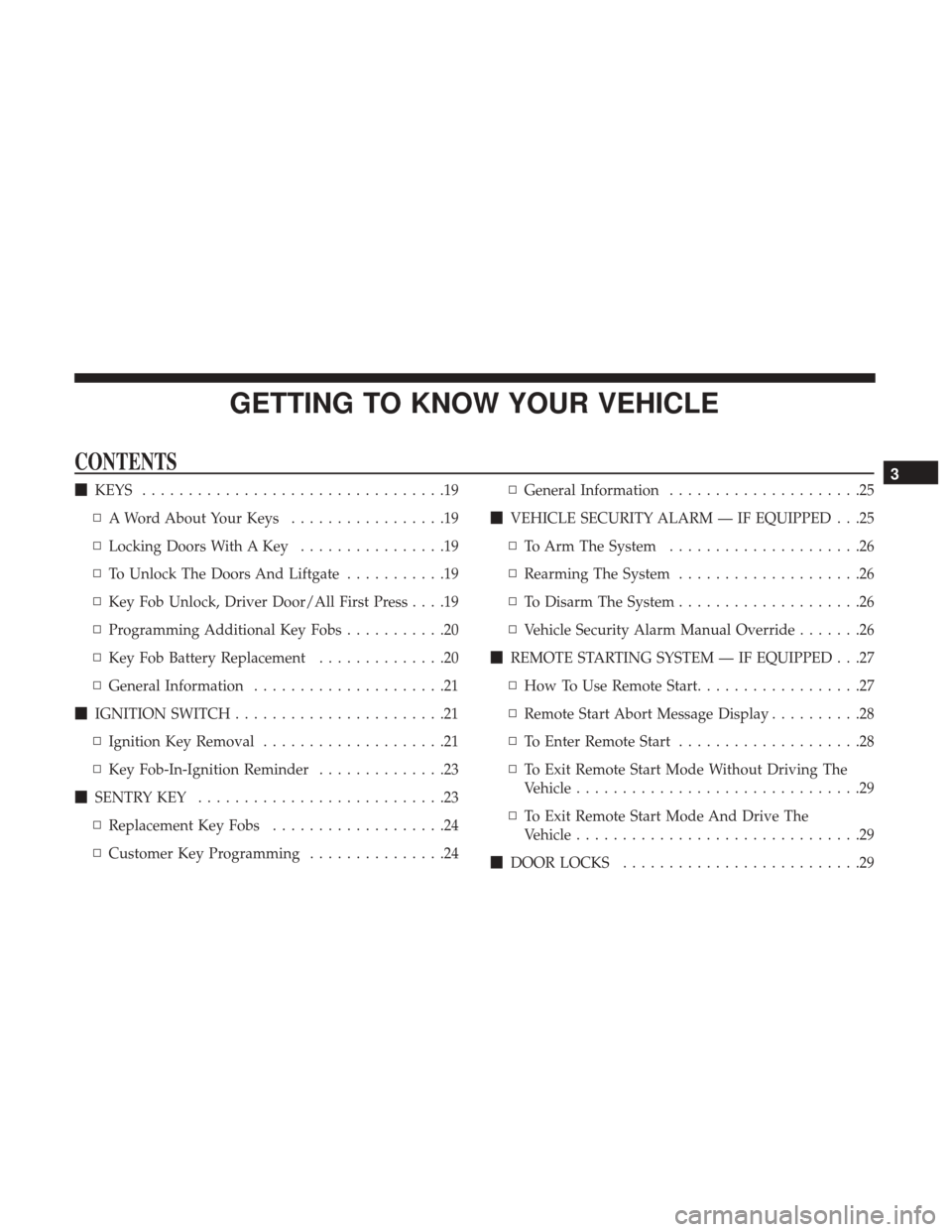

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS .................................19
▫ A Word About Your Keys .................19
▫ Locking Doors With A Key ................19
▫ To Unlock The Doors And Liftgate ...........19
▫ Key Fob Unlock, Driver Door/All First Press ....19
▫ Programming Additional Key Fobs ...........20
▫ Key Fob Battery Replacement ..............20
▫ General Information .....................21
 IGNITION SWITCH .......................21
▫ Ignition Key Removal ....................21
▫ Key Fob-In-Ignition Reminder ..............23
 SENTRY KEY ...........................23
▫ Replacement Key Fobs ...................24
▫ Customer Key Programming ...............24▫
General Information .....................25
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .25
▫ To Arm The System .....................26
▫ Rearming The System ....................26
▫ To Disarm The System ....................26
▫ Vehicle Security Alarm Manual Override .......26
 REMOTE STARTING SYSTEM — IF EQUIPPED . . .27
▫ How To Use Remote Start ..................27
▫ Remote Start Abort Message Display ..........28
▫ To Enter Remote Start ....................28
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................29
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................29
 DOOR LOCKS ..........................293

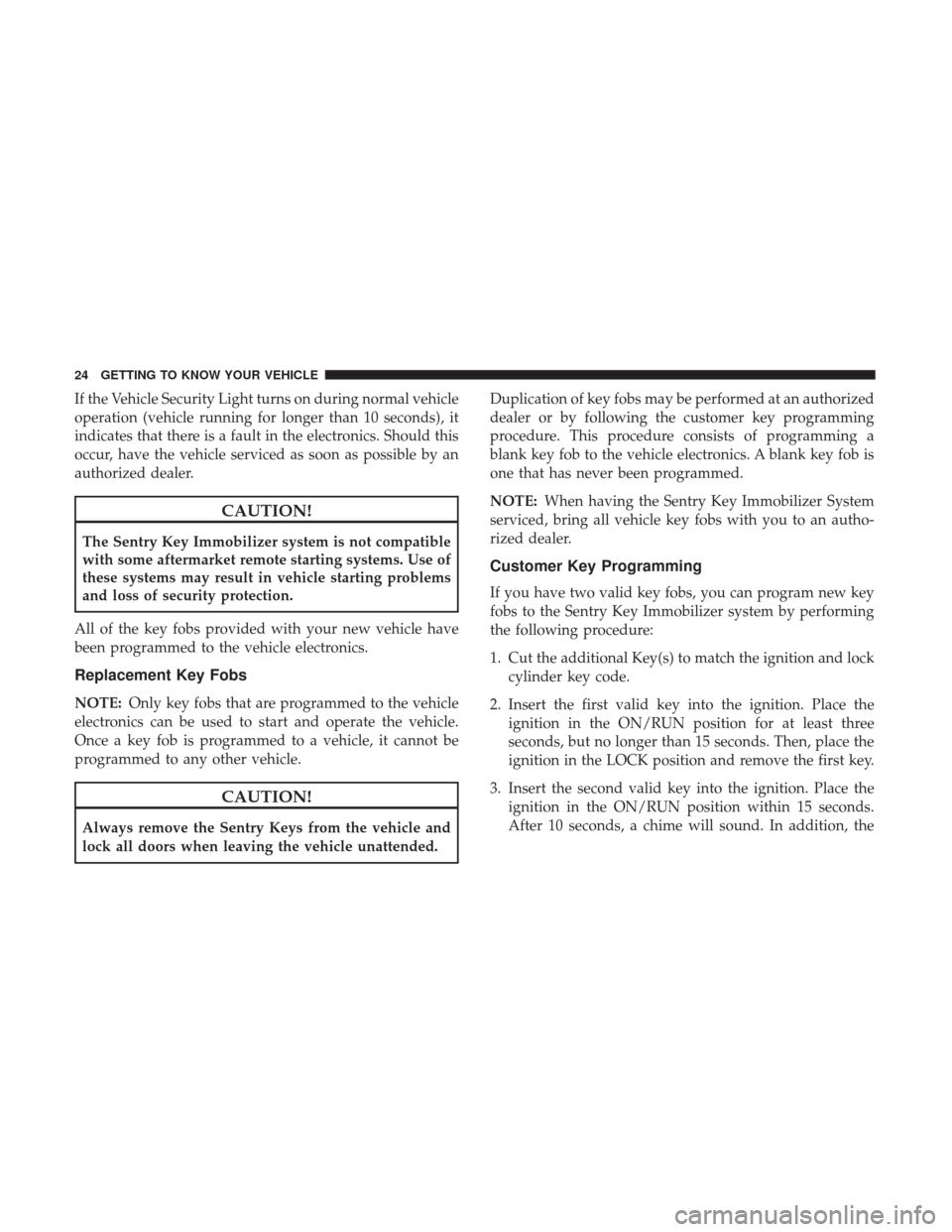

If the Vehicle Security Light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.
CAUTION!
The Sentry Key Immobilizer system is not compatible
with some aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Key Fobs
NOTE: Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended. Duplication of key fobs may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key fob to the vehicle electronics. A blank key fob is
one that has never been programmed.
NOTE:
When having the Sentry Key Immobilizer System
serviced, bring all vehicle key fobs with you to an autho-
rized dealer.
Customer Key Programming
If you have two valid key fobs, you can program new key
fobs to the Sentry Key Immobilizer system by performing
the following procedure:
1. Cut the additional Key(s) to match the ignition and lock cylinder key code.
2. Insert the first valid key into the ignition. Place the ignition in the ON/RUN position for at least three
seconds, but no longer than 15 seconds. Then, place the
ignition in the LOCK position and remove the first key.
3. Insert the second valid key into the ignition. Place the ignition in the ON/RUN position within 15 seconds.
After 10 seconds, a chime will sound. In addition, the
24 GETTING TO KNOW YOUR VEHICLE

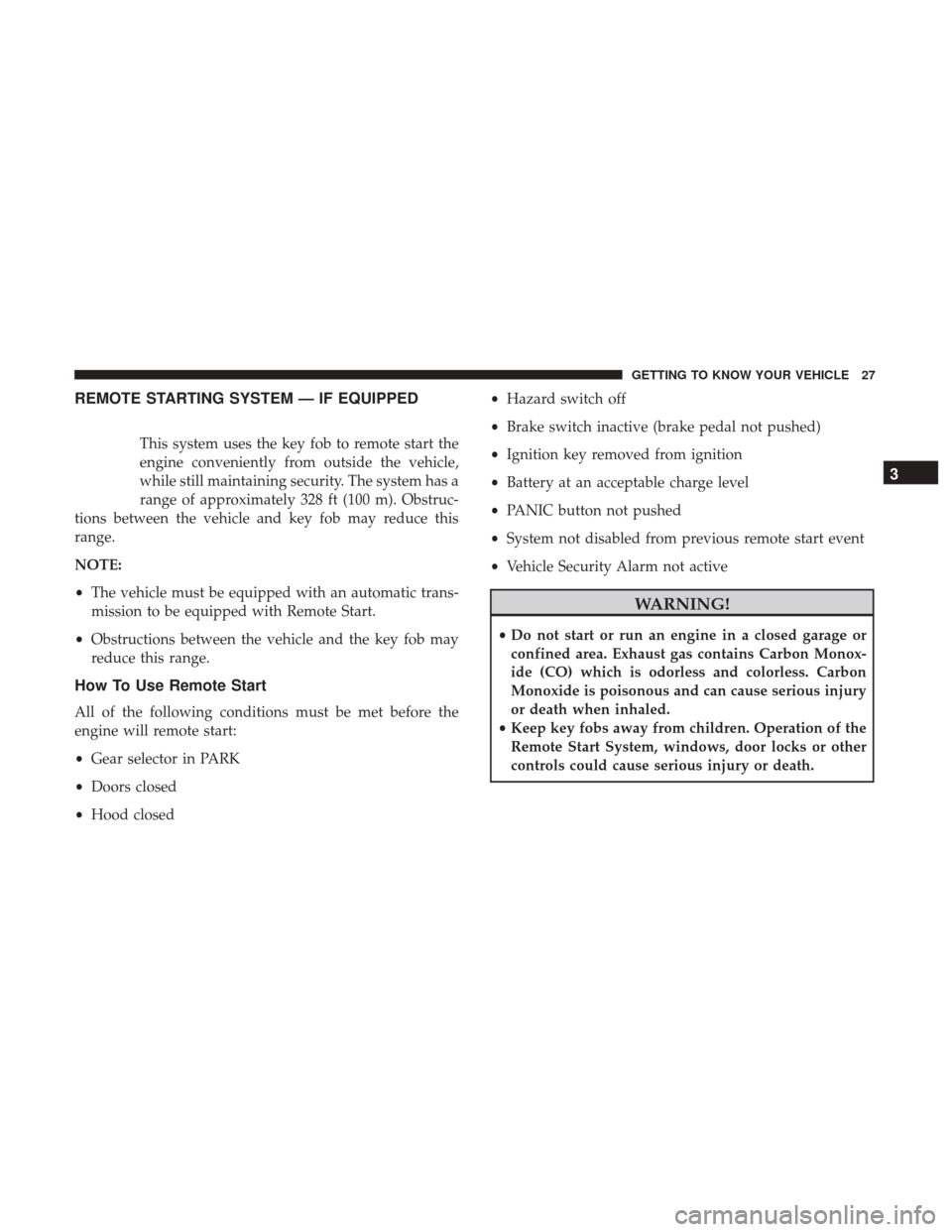

REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the key fob to remote start the
engine conveniently from outside the vehicle,
while still maintaining security. The system has a
range of approximately 328 ft (100 m). Obstruc-
tions between the vehicle and key fob may reduce this
range.
NOTE:
• The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and the key fob may
reduce this range.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Gear selector in PARK
• Doors closed
• Hood closed •
Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Ignition key removed from ignition
• Battery at an acceptable charge level
• PANIC button not pushed
• System not disabled from previous remote start event
• Vehicle Security Alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
3
GETTING TO KNOW YOUR VEHICLE 27

Remote Start Abort Message Display
The following messages will display if the vehicle fails to
remote start or exits remote start prematurely:
•Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — L/Gate Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — System Fault
The message stays active until the ignition is placed in the
ON/RUN position.
To Enter Remote Start
Push and release the Remote Startbutton on the key
fob twice within five seconds. The vehicle doors will
lock, the parking lights will flash, and the horn will
chirp twice (if programmed). Then, the engine will start
and the vehicle will remain in the Remote Start mode for
a 15-minute cycle.
NOTE:
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
• If your power door locks were unlocked, Remote Start
will automatically lock the doors.
• The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion must be placed in the ON/RUN position before you
can repeat the start sequence for a third cycle.
Remote Start will also cancel if any of the following occur:
• The engine stalls or RPM exceeds 2500.
• Any engine warning lamps come on.
• Low Fuel Light turns on.
• The hood is opened.
• The hazard switch is pushed.
• The transmission is moved out of PARK.
• The brake pedal is pushed.
28 GETTING TO KNOW YOUR VEHICLE

To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the Remote Startbutton one time or
allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system will
disable the one time push of the Remote Start
button
for two seconds after receiving a valid Remote Start
request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, push and release the
unlock
button on the key fob to unlock the doors and
disarm the Vehicle Security Alarm (if equipped). Then,
insert the key into the ignition and place the ignition in
the ON/RUN position.
NOTE: The ignition must be placed in the ON/RUN
position in order to drive the vehicle.
DOOR LOCKS
Manual Door Locks
Use the manual door lock knob to lock the doors from
inside the vehicle. If the lock knob is down when the door is closed, the door will lock. Make sure the keys are not
inside the vehicle before closing the door.
WARNING!
•
For personal security and safety in the event of an
collision, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
(Continued)
Manual Door Lock Knob
3
GETTING TO KNOW YOUR VEHICLE 29

MENU ButtonPush and release the MENUbutton to scroll
through the main menus (Fuel Economy, Warn-
ings, Timer, Units, System, Personal Settings) or
to exit submenus.
COMPASS Button
Push and release the compassbutton to display
one of eight compass readings and the outside
temperature or to exit submenus.
RIGHT Arrow Button Push and release the rightarrow button for
access to main menus, submenus, or to select a
personal setting in the setup menu.
DOWN Arrow Button Push and release the downarrow button to scroll
downward through the submenus.
When the appropriate conditions exist, the following mes-
sages display:
• Turn Signal On (with a continuous warning chime after
1 mile (1.6 km) of distance travelled) •
Left Front Turn Signal Lamp Out (with a single chime)
• Left Rear Turn Signal Lamp Out (with a single chime)
• Right Front Turn Signal Lamp Out (with a single chime)
• Right Rear Turn Signal Lamp Out (with a single chime)
• Battery Low (with a single chime)
• Personal Settings Not Avail. — Vehicle is not in PARK
(automatic transmission), or vehicle is in motion
(manual transmission).
• Door Open (with vehicle graphic showing which door is
open. A single chime sounds if the vehicle is in motion).
• Doors Open (with vehicle graphic showing which doors
are open. A single chime sounds if the vehicle is in
motion).
• Gate (with vehicle graphic showing the Liftgate open
and a single chime)
• Headlamps or Park Lamps On
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — L/Gate Open
102 GETTING TO KNOW YOUR INSTRUMENT PANEL

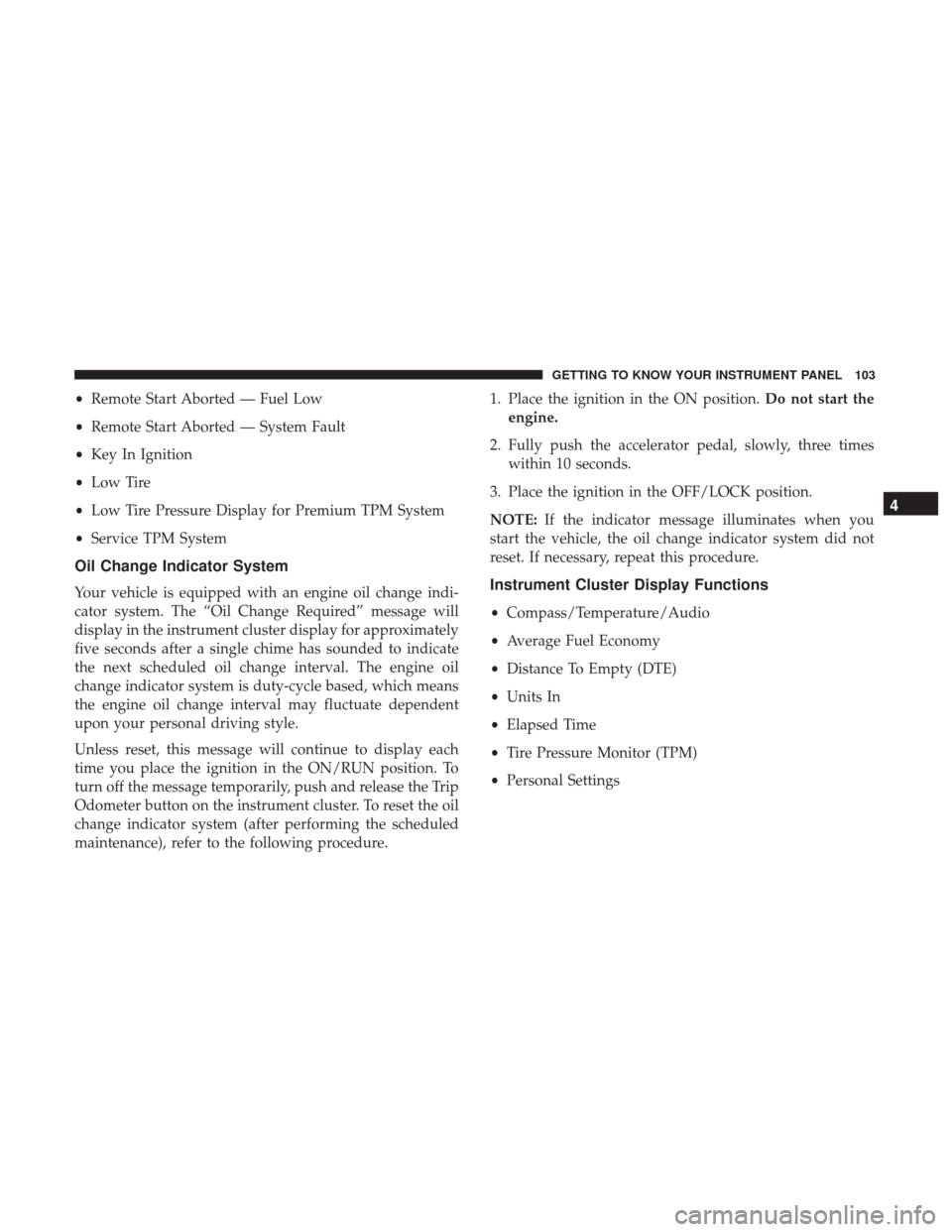

•Remote Start Aborted — Fuel Low
• Remote Start Aborted — System Fault
• Key In Ignition
• Low Tire
• Low Tire Pressure Display for Premium TPM System
• Service TPM System
Oil Change Indicator System
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display for approximately
five seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty-cycle based, which means
the engine oil change interval may fluctuate dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To
turn off the message temporarily, push and release the Trip
Odometer button on the instrument cluster. To reset the oil
change indicator system (after performing the scheduled
maintenance), refer to the following procedure. 1. Place the ignition in the ON position.
Do not start the
engine.
2. Fully push the accelerator pedal, slowly, three times within 10 seconds.
3. Place the ignition in the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.Instrument Cluster Display Functions
• Compass/Temperature/Audio
• Average Fuel Economy
• Distance To Empty (DTE)
• Units In
• Elapsed Time
• Tire Pressure Monitor (TPM)
• Personal Settings
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 103

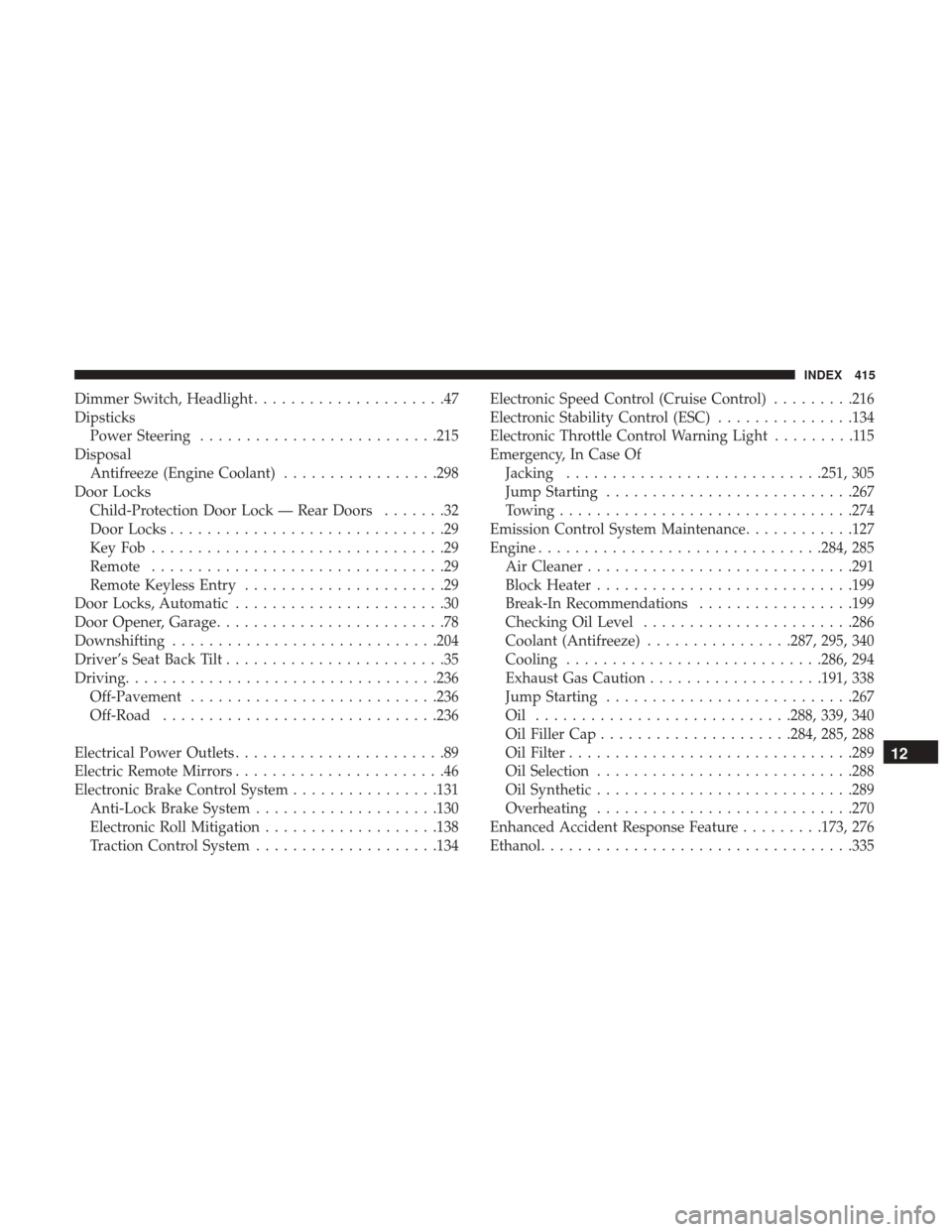

Dimmer Switch, Headlight.....................47
Dipsticks Power Steering ..........................215
Disposal Antifreeze (Engine Coolant) .................298
Door Locks Child-Protection Door Lock — Rear Doors .......32
Door Locks ..............................29
KeyFob................................29
Remote ................................29
Remote Keyless Entry ......................29
Door Locks, Automatic .......................30
Door Opener, Garage .........................78
Downshifting ............................ .204
Driver’s Seat Back Tilt ........................35
Driving ................................. .236
Off-Pavement .......................... .236
Off-Road ............................. .236
Electrical Power Outlets .......................89
Electric Remote Mirrors .......................46
Electronic Brake Control System ................131
Anti-Lock Brake System ....................130
Electronic Roll Mitigation ...................138
Traction Control System ....................134 Electronic Speed Control (Cruise Control)
.........216
Electronic Stability Control (ESC) ...............134
Electronic Throttle Control Warning Light .........115
Emergency, In Case Of Jacking ............................251, 305
Jump Starting .......................... .267
Towing ............................... .274
Emission Control System Maintenance ............127
Engine ...............................284, 285
Air Cleaner ............................ .291
Block Heater ............................199
Break-In Recommendations .................199
Checking Oil Level .......................286
Coolant (Antifreeze) ................287, 295, 340
Cooling ............................286, 294
Exhaust Gas Caution ...................191, 338
Jump Starting .......................... .267
Oil ............................288, 339, 340
Oil
Filler Cap .....................284, 285, 288
Oil Filter ...............................289
Oil Selection ............................288
Oil Synthetic ............................289
Overheating ............................270
Enhanced Accident Response Feature .........173, 276
Ethanol ................................. .335
12

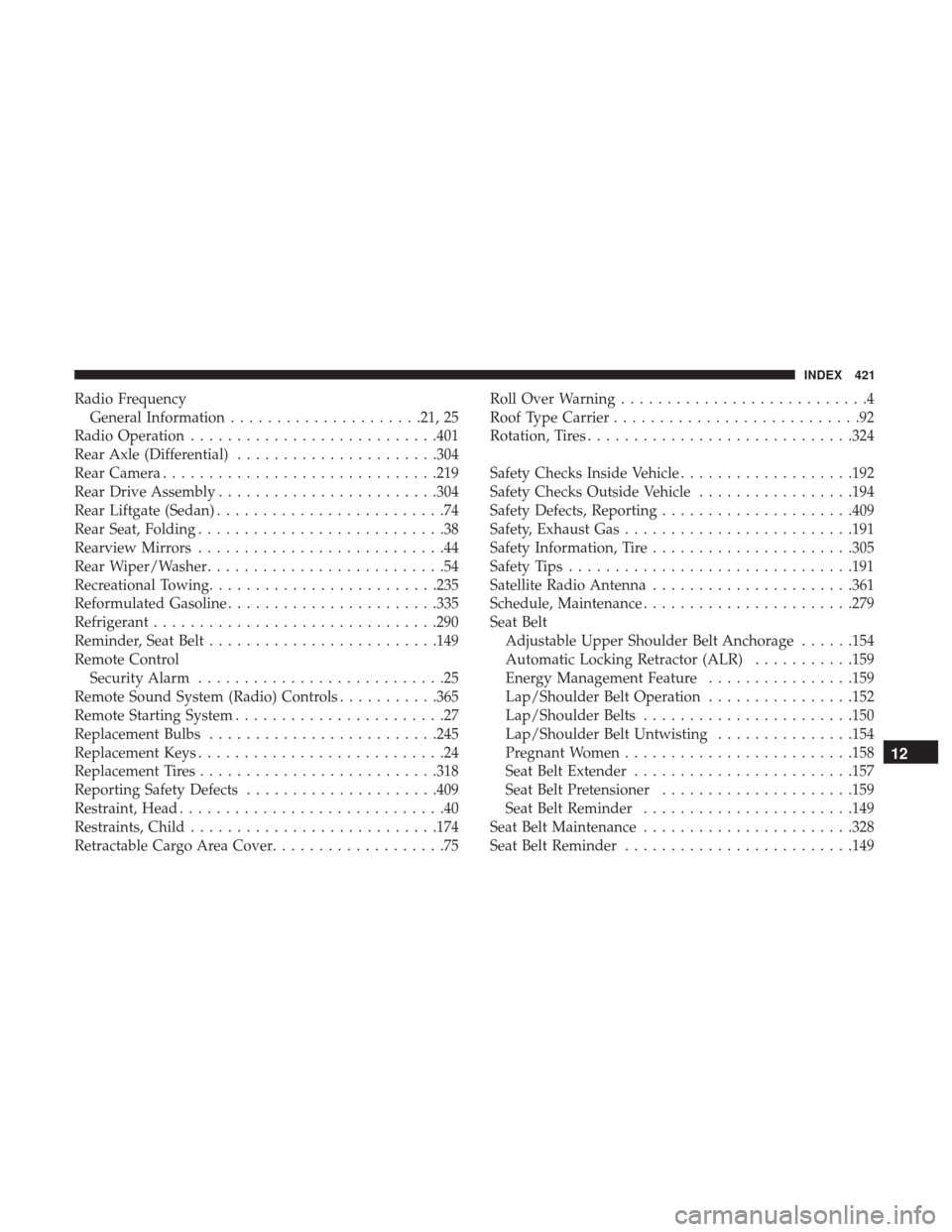

INDEX 415

Radio FrequencyGeneral Information .....................21, 25
Radio Operation .......................... .401
Rear Axle (Differential) ..................... .304
Rear Camera ............................. .219
Rear Drive Assembly ........................304
Rear Liftgate (Sedan) .........................74
Rear Seat, Folding ...........................38
Rearview Mirrors ...........................44
Rear Wiper/Washer ..........................54
Recreational Towing ........................ .235
Reformulated Gasoline .......................335
Refrigerant ...............................290
Reminder, Seat Belt ........................ .149
Remote Control Security Alarm ...........................25
Remote Sound System (Radio) Controls ...........365
Remote Starting System .......................27
Replacement Bulbs ........................ .245
Replacement Keys ...........................24
Replacement Tires ..........................318
Reporting Safety Defects .....................409
Restraint, Head .............................40
Restraints, Child .......................... .174
Retractable Cargo Area Cover ...................75 Roll Over Warning
...........................4
Roof Type Carrier ...........................92
Rotation, Tires ............................ .324
Safety Checks Inside Vehicle ...................192
Safety Checks Outside Vehicle .................194
Safety Defects, Reporting .....................409
Safety, Exhaust Gas ........................ .191
Safety Information, Tire ..................... .305
Safety Tips ...............................191
Satellite Radio Antenna ..................... .361
Schedule, Maintenance .......................279
Seat Belt Adjustable Upper Shoulder Belt Anchorage ......154
Automatic Locking Retractor (ALR) ...........159
Energy Management Feature ................159
Lap/Shoulder Belt Operation...............

.152
Lap/Shoulder Belts .......................150
Lap/Shoulder Belt Untwisting ...............154
Pregnant Women ........................ .158
Seat Belt Extender ........................157
Seat Belt Pretensioner .....................159
Seat Belt Reminder .......................149
Seat Belt Maintenance .......................328
Seat Belt Reminder ........................ .149
12
INDEX 421

Seat Belts............................ .148, 192
Adjustable Shoulder Belt ...................154
Adjustable Upper Shoulder Anchorage .........154
Child Restraint ..........................174
Extender ...............................157
Front Seat .......................148, 150, 152
Inspection ............................. .192
Operating Instructions .....................152
Pregnant Women ........................ .158
Pretensioners .......................... .159
Rear Seat ............................. .150
Reminder ..............................111
Untwisting Procedure .....................154
Seats ................................. .34, 37
Adjustment .......................... .34, 37
Heated .................................37
Lumbar Support ..........................35
Rear Folding .............................38
Seatback Release ..........................35
Tilting .................................35
Security Alarm ..........................25, 113
Selection Of Coolant (Antifreeze) ...............340
Sentry Key (Immobilizer) ......................23
Sentry Key Programming ......................24
Sentry Key Replacement ......................24 Service Assistance
..........................406
Service Contract .......................... .408
Service Manuals .......................... .409
Settings, Personal ..........................105
Setting The Clock .......................345, 353
Shift Lever Override ........................271
Shift Speeds, Manual Transmission ..............203
Shoulder Belts ............................ .150
Signals, Turn .......................123, 194, 247
Snow Chains (Tire Chains) ....................323
Snow Tires ...............................320
Spare Tire ........................ .252, 320, 321
Spark Plugs ............................. .340
Speed Contr

ol
Accel/Decel ............................219
Cancel ............................... .217
Resume ...............................217
Speed Control (Cruise Control) .................216
Starting .................................197
Automatic Transmission ....................197
Cold Weather .......................... .198
Engine Fails To Start ..................... .198
Manual Transmission ..................... .197
Remote ................................27
Starting Procedures ........................ .197
422 INDEX
