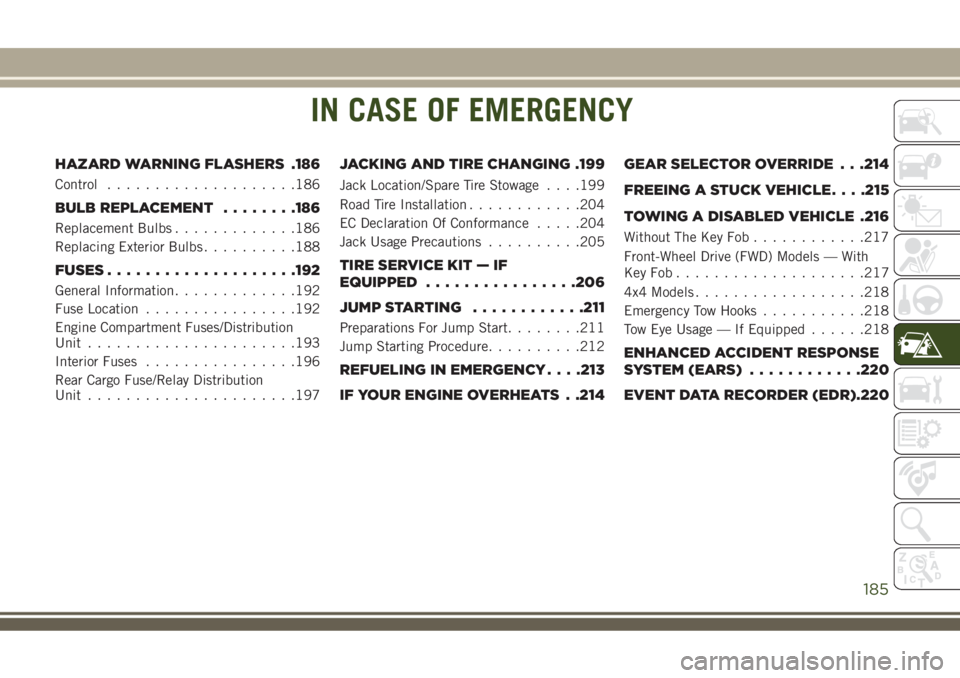

IN CASE OF EMERGENCY
HAZARD WARNING FLASHERS .186
Control....................186
BULB REPLACEMENT........186
Replacement Bulbs.............186
Replacing Exterior Bulbs..........188
FUSES....................192
General Information.............192
Fuse Location................192
Engine Compartment Fuses/Distribution
Unit......................193
Interior Fuses................196
Rear Cargo Fuse/Relay Distribution
Unit......................197
JACKING AND TIRE CHANGING .199
Jack Location/Spare Tire Stowage. . . .199
Road Tire Installation............204
EC Declaration Of Conformance.....204
Jack Usage Precautions..........205
TIRE SERVICE KIT — IF
EQUIPPED................206
JUMP STARTING............211
Preparations For Jump Start........211
Jump Starting Procedure..........212
REFUELING IN EMERGENCY. . . .213
IF YOUR ENGINE OVERHEATS . .214GEAR SELECTOR OVERRIDE . . .214
FREEING A STUCK VEHICLE. . . .215
TOWING A DISABLED VEHICLE .216
Without The Key Fob............217
Front-Wheel Drive (FWD) Models — With
KeyFob....................217
4x4 Models..................218
Emergency Tow Hooks...........218
Tow Eye Usage — If Equipped......218
ENHANCED ACCIDENT RESPONSE
SYSTEM (EARS)............220
EVENT DATA RECORDER (EDR).220
IN CASE OF EMERGENCY
185

Cavity Maxi Fuse Cartridge Fuse Mini Fuse Description
F05 – 40 Amp Tan – PTC Heater
F06 40 Amp Orange – – Starter Relay
F07 40 Amp Orange – –Rear Distribution Unit For
Trailer Tow Usage
F08 – 30 Amp Pink –Supply for F24, F87,
Steering Control
F09 – – 7.5 Amp Brown Control Module Engine
F10 – – 20 Amp Yellow Horn
F11 – –20 Amp Yellow – 1.4L Gas
& Diesel Engines
25 Amp Clear – 2.4 L En-
ginesSupply Secondary Loads
F14 – – 7.5 Amp Brown Diesel Crankcase Heater
F15 40 Amp Orange – –Brake Control Module
Pump
F16 – – 10 Amp RedEngine Control Module
Power, Automatic Transmis-
sion
F17 – – 10 Amp Red Engine Secondary Loads
F18 – – 20 Amp Yellow12V Rear Cargo Outlet Igni-
tion Powered
F19 – – 7.5 Amp BrownAir Conditioner Compressor
and PWM Rad Fan enable
F20 – – 20 Amp Yellow Cigar Lighter
F21 – – 15 Amp Blue Fuel Pump
IN CASE OF EMERGENCY
194

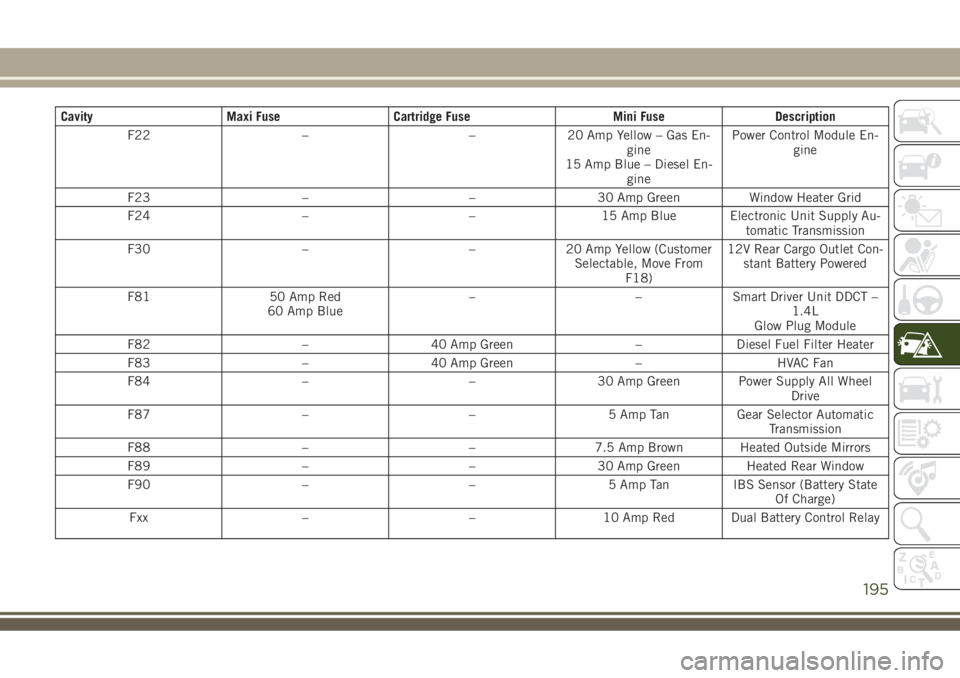

Cavity Maxi Fuse Cartridge Fuse Mini Fuse Description
F22 – – 20 Amp Yellow – Gas En-
gine
15 Amp Blue – Diesel En-
ginePower Control Module En-
gine
F23 – – 30 Amp Green Window Heater Grid
F24 – – 15 Amp Blue Electronic Unit Supply Au-
tomatic Transmission
F30 – – 20 Amp Yellow (Customer
Selectable, Move From
F18)12V Rear Cargo Outlet Con-
stant Battery Powered
F81 50 Amp Red
60 Amp Blue– – Smart Driver Unit DDCT –
1.4L
Glow Plug Module
F82 – 40 Amp Green – Diesel Fuel Filter Heater
F83 – 40 Amp Green – HVAC Fan
F84 – – 30 Amp Green Power Supply All Wheel
Drive
F87 – – 5 Amp Tan Gear Selector Automatic
Transmission
F88 – – 7.5 Amp Brown Heated Outside Mirrors
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan IBS Sensor (Battery State
Of Charge)
Fxx – – 10 Amp Red Dual Battery Control Relay
195

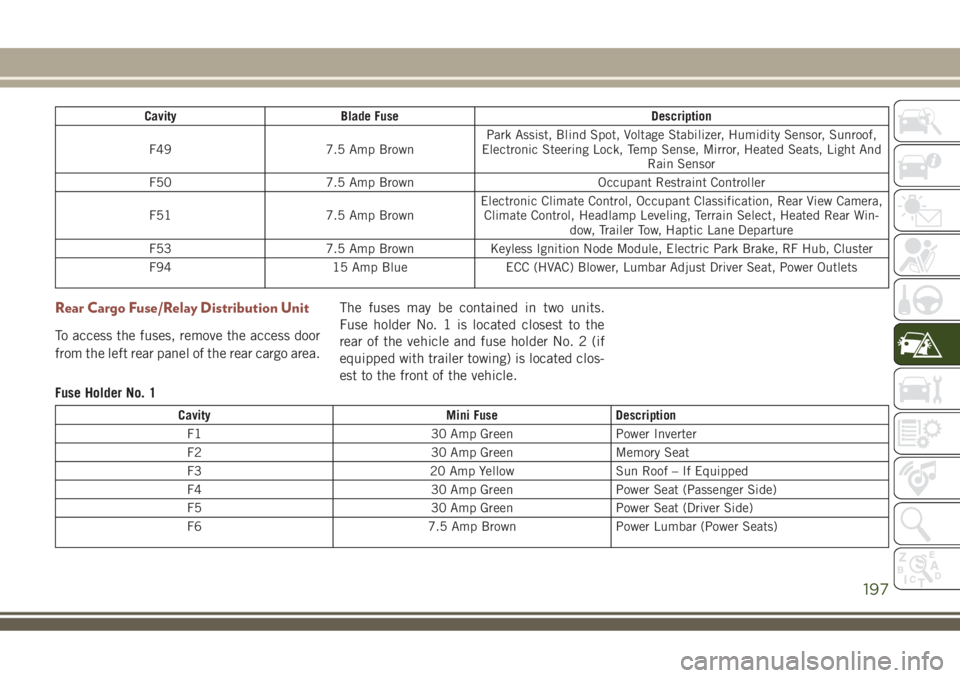

Cavity Blade Fuse Description
F49 7.5 Amp BrownPark Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Sunroof,
Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And
Rain Sensor
F50 7.5 Amp Brown Occupant Restraint Controller
F51 7.5 Amp BrownElectronic Climate Control, Occupant Classification, Rear View Camera,
Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Win-
dow, Trailer Tow, Haptic Lane Departure
F53 7.5 Amp Brown Keyless Ignition Node Module, Electric Park Brake, RF Hub, Cluster
F94 15 Amp Blue ECC (HVAC) Blower, Lumbar Adjust Driver Seat, Power Outlets
Rear Cargo Fuse/Relay Distribution Unit
To access the fuses, remove the access door
from the left rear panel of the rear cargo area.The fuses may be contained in two units.
Fuse holder No. 1 is located closest to the
rear of the vehicle and fuse holder No. 2 (if
equipped with trailer towing) is located clos-
est to the front of the vehicle.
Fuse Holder No. 1
Cavity Mini Fuse Description
F1 30 Amp Green Power Inverter
F2 30 Amp Green Memory Seat
F3 20 Amp Yellow Sun Roof – If Equipped
F4 30 Amp Green Power Seat (Passenger Side)
F5 30 Amp Green Power Seat (Driver Side)
F6 7.5 Amp Brown Power Lumbar (Power Seats)
197

Cavity Mini Fuse Description
F7 15 Amp Blue Heated Steering Wheel / Ventilated Seats
F8 20 Amp Yellow Heated Seats
Fuse Holder No. 2
Cavity Mini Fuse Description
F1 10 Amp Red Controller Exterior Lighting On Trailer
F5 15 Amp Blue Controller Exterior Lighting Lights (Drivers
Side)
F6 15 Amp Blue Controller Exterior Lighting Lights (Passenger
Side)
F7 10 Amp Red TTM Jumper Battery Feed
On the Rear Cargo Fuse/Relay Distribution
Unit bracket, there is a Maxi Fuse holder for
the Power Liftgate and an ATO / Uni Val fuse
holder for the HIFI Audio System.
Cavity Maxi Fuse Description
F01 30 Amp Green Power Liftgate
Cavity ATO / Uni-Val Fuse Description
F02 25 Amp Clear HIFI Audio System
IN CASE OF EMERGENCY
198
