142STARTING AND OPERATING
be overhanging or protruding into the parking
space (e.g., ladders, tailgates, etc. from
surrounding objects/vehicles).
When searching for a parking space, the driver
should drive as parallel or perpendicular
(depending on the type of maneuver) to other
vehicles as possible.
The feature will only indicate the last detected
parking space (example: if passing multiple
available parking spaces, the system will only
indicate the last detected parking space for the
maneuver).
When an available parking space has been found,
and the vehicle is not in position, you will be
instructed to move forward to position the vehicle
for a perpendicular or parallel parking sequence
(depending on the type of maneuver being
performed).

Space Found — Keep Moving Forward
Once the vehicle is in position, you will be
instructed to stop the vehicle’s movement and
remove your hands from the steering wheel. When
the vehicle comes to a standstill (your hands still
removed from the steering wheel), you will be
instructed to place the gear selector into the
REVERSE position.
The system may then instruct the driver to wait for
steering to complete before then instructing to
check surroundings and move backward.

Move Backward Into Parallel Parking Space Move Backward Into Perpendicular Parking Space

The system may instruct several more gear shifts
(DRIVE and REVERSE), with hands off of the
steering wheel, before instructing the driver to
check surroundings and complete the parking
maneuver.
When the vehicle is in the parking position, the
maneuver is complete and the driver will be
instructed to check the vehicle's parking position,
then shift the vehicle into PARK. The message
"Active ParkSense Complete - Check Parking
Position" will be displayed momentarily.

22_MP_OM_EN_USC_t.book Page 142

SERVICING AND MAINTENANCE275
Refrigerant Recovery And Recycling
R-134a — If Equipped
R-134a Air Conditioning Refrigerant is a Hydrofluo -
rocarbon (HFC) that is an ozone-friendly
substance. It is recommended that air conditioning
service be performed by an authorized dealer or
other service facilities using recovery and recycling
equipment.
NOTE:Use only the manufacturer approved A/C system
PAG compressor oil and refrigerants.
Refrigerant Recovery And Recycling
R-1234yf — If Equipped
R-1234yf Air Conditioning Refrigerant is a
Hydrofluoroolefin (HFO) that is endorsed by the
Environmental Protection Agency and is an
ozone-friendly substance with a low
global-warming potential. It is recommended that
air conditioning service be performed by an
authorized dealer using recovery and recycling
equipment.
NOTE:Use only the manufacturer approved A/C system
PAG compressor oil, and refrigerants.
Cabin Air Filter
See an authorized dealer for service.
BODY LUBRICATION
Locks and all body pivot points, including such
items as seat tracks, door hinge pivot points and
rollers, liftgate, tailgate, decklid, sliding doors and
hood hinges, should be lubricated periodically with
a lithium-based grease, such as Mopar® Spray
White Lube to ensure quiet, easy operation and to
protect against rust and wear. Prior to the
application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit;
after lubricating, excess oil and grease should be
removed. Particular attention should also be given
to hood latching components to ensure proper
function. When performing other underhood
services, the hood latch, release mechanism and
safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated
twice a year, preferably in the Autumn and Spring.
Apply a small amount of a high quality lubricant,
such as Mopar® Lock Cylinder Lubricant directly
into the lock cylinder.
WIPER BLADES
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a
sponge or soft cloth and a mild nonabrasive
cleaner. This will remove accumulations of salt,
waxes, or road film, and help reduce streaking and
smearing.
Operation of the wipers on dry glass for long
periods may cause deterioration of the wiper
blades. Always use washer fluid when using the
wipers to remove salt or dirt from a dry windshield
or rear window.
Avoid using the wiper blades to remove frost or ice
from the windshield or rear window. Make sure
that they are not frozen to the glass before turning
them on to avoid damaging the blade. Keep the
wiper blade out of contact with petroleum products
such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depending
on geographical area and frequency of use. If chat -
tering, marks, water lines or wet spots are present,
clean the wiper blades or replace as necessary.8

22_MP_OM_EN_USC_t.book Page 275

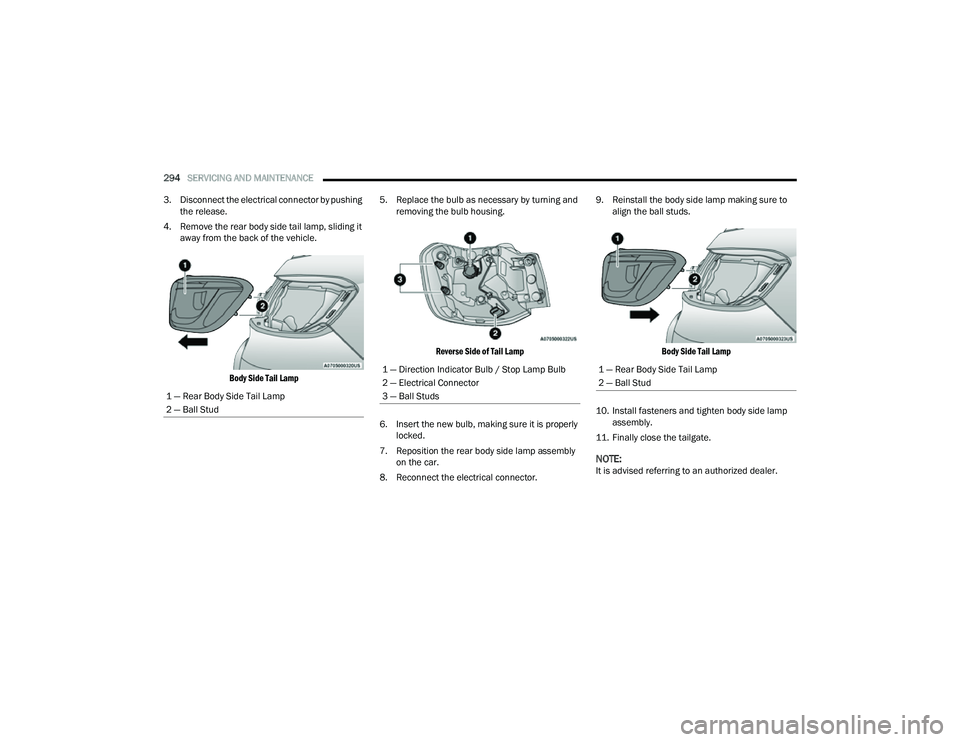

294SERVICING AND MAINTENANCE
3. Disconnect the electrical connector by pushing the release.
4. Remove the rear body side tail lamp, sliding it away from the back of the vehicle.

Body Side Tail Lamp
5. Replace the bulb as necessary by turning and
removing the bulb housing.

Reverse Side of Tail Lamp

6. Insert the new bulb, making sure it is properly locked.
7. Reposition the rear body side lamp assembly on the car.
8. Reconnect the electrical connector. 9. Reinstall the body side lamp making sure to
align the ball studs.

Body Side Tail Lamp

10. Install fasteners and tighten body side lamp assembly.
11. Finally close the tailgate.
NOTE:It is advised referring to an authorized dealer.
1 — Rear Body Side Tail Lamp
2 — Ball Stud
1 — Direction Indicator Bulb / Stop Lamp Bulb
2 — Electrical Connector
3 — Ball Studs1 — Rear Body Side Tail Lamp
2 — Ball Stud

22_MP_OM_EN_USC_t.book Page 294

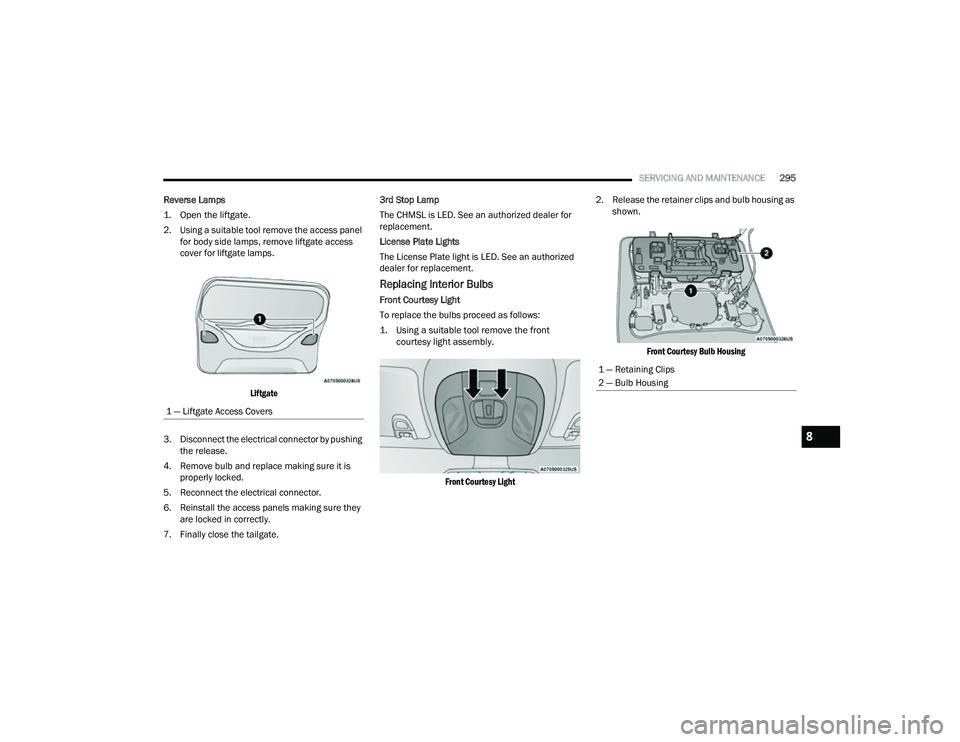

SERVICING AND MAINTENANCE295
Reverse Lamps

1. Open the liftgate.

2. Using a suitable tool remove the access panel for body side lamps, remove liftgate access
cover for liftgate lamps.

Liftgate

3. Disconnect the electrical connector by pushing the release.
4. Remove bulb and replace making sure it is properly locked.
5. Reconnect the electrical connector.
6. Reinstall the access panels making sure they are locked in correctly.
7. Finally close the tailgate. 3rd Stop Lamp
The CHMSL is LED. See an authorized dealer for
replacement.
License Plate Lights
The License Plate light is LED. See an authorized
dealer for replacement.
Replacing Interior Bulbs
Front Courtesy Light
To replace the bulbs proceed as follows:

1. Using a suitable tool remove the front
courtesy light assembly.

Front Courtesy Light
2. Release the retainer clips and bulb housing as
shown.

Front Courtesy Bulb Housing

1 — Liftgate Access Covers
1 — Retaining Clips
2 — Bulb Housing
8
