EXHAUST EMISSION CONTROL SYSTEMS

12793

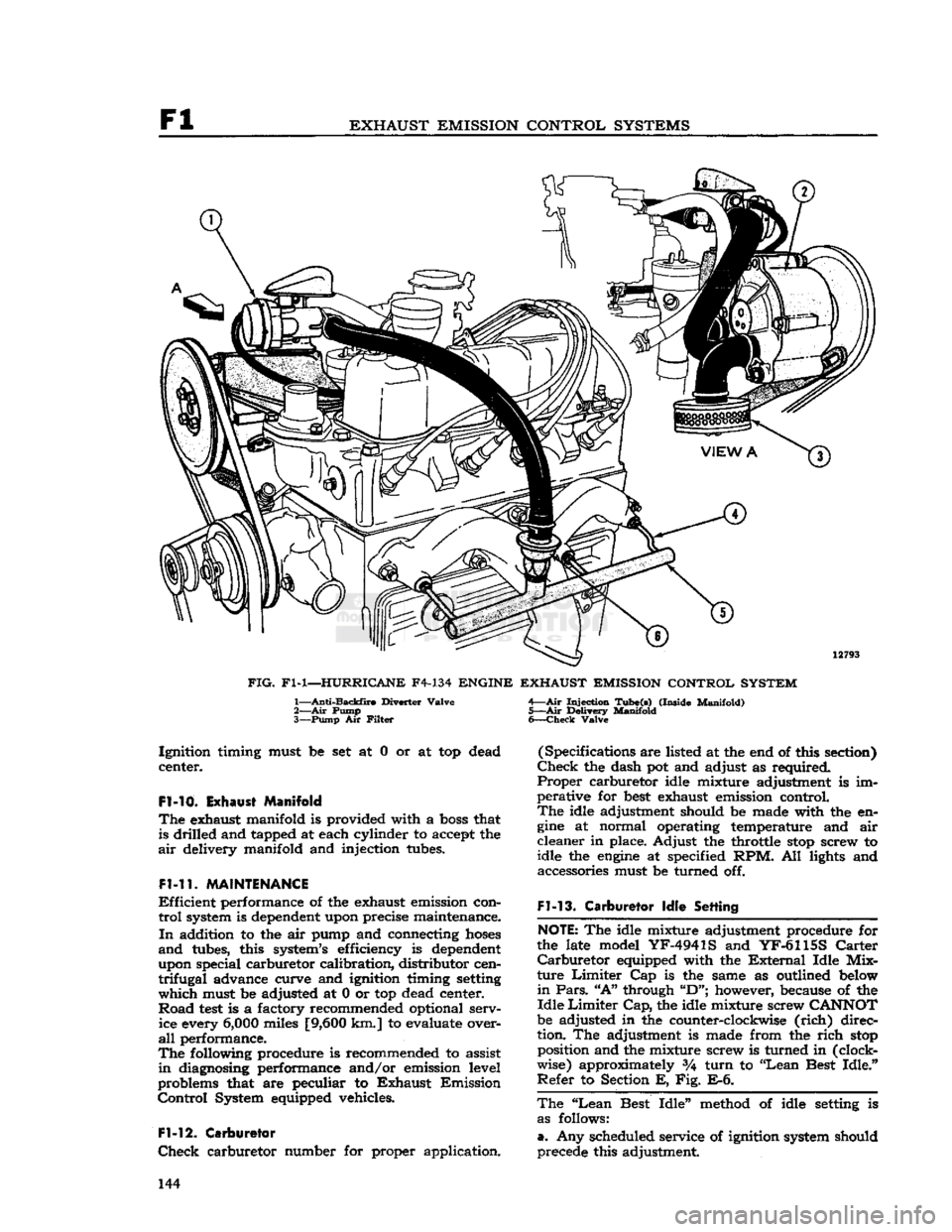

FIG.
Fl-1—HURRICANE
F4-134
ENGINE EXHAUST EMISSION CONTROL SYSTEM
1—
Anti-Backfire
Diverter
Valve

2— Air
Pump

3—
Pump
Air
Filter
Injection
Tube(s)
(Inside
Manifold)

5—Air
Delivery
Manifold
6—
Check
Valve
Ignition
timing must be set at 0 or at top dead
center.

Fl-10.
Exhaust Manifold

The
exhaust manifold is provided with a
boss
that is drilled and tapped at each cylinder to accept the

air
delivery manifold and injection tubes.

Fl-11.
MAINTENANCE

Efficient
performance of the exhaust emission con­
trol
system is dependent upon precise maintenance.
In
addition to the air pump and connecting
hoses

and
tubes, this system's efficiency is dependent
upon special carburetor calibration, distributor cen­

trifugal
advance curve and ignition timing setting

which
must be adjusted at 0 or top dead center.

Road
test
is a factory recommended optional serv­ ice every
6,000
miles
[9,600
km.] to evaluate over­

all
performance.

The
following procedure is recommended to assist
in
diagnosing performance and/or emission level
problems that are peculiar to
Exhaust
Emission

Control
System equipped vehicles.

Fl-12.
Carburetor

Check
carburetor number for proper application. (Specifications are listed at the end of this section)

Check
the dash pot and adjust as required.

Proper
carburetor idle mixture adjustment is im­
perative for
best
exhaust emission control.
The
idle adjustment should be made with the en­
gine
at normal operating temperature and air
cleaner
in place. Adjust the throttle
stop
screw to
idle the
engine
at specified RPM. All lights and accessories must be turned off.

Fl-13.
Carburetor
Idle
Setting
NOTE:
The idle mixture adjustment procedure for
the late model
YF-4941S
and
YF-6115S
Carter
Carburetor
equipped with the
External
Idle
Mix­

ture
Limiter
Cap is the same as outlined below
in
Pars.
"A"
through
"D";
however, because of the

Idle
Limiter
Cap,
the idle mixture screw
CANNOT

be adjusted in the counter-clockwise
(rich)
direc­
tion. The adjustment is made from the
rich
stop
position and the mixture screw is turned in (clock­
wise) approximately %
turn
to "Lean Best
Idle."
Refer
to Section E, Fig. E-6.

The
"Lean
Best
Idle"
method of idle setting is as follows:

a.
Any scheduled service of ignition system should
precede this adjustment. 144

'Jeep'
UNIVERSAL
SERIES SERVICE
MANUAL

Fl

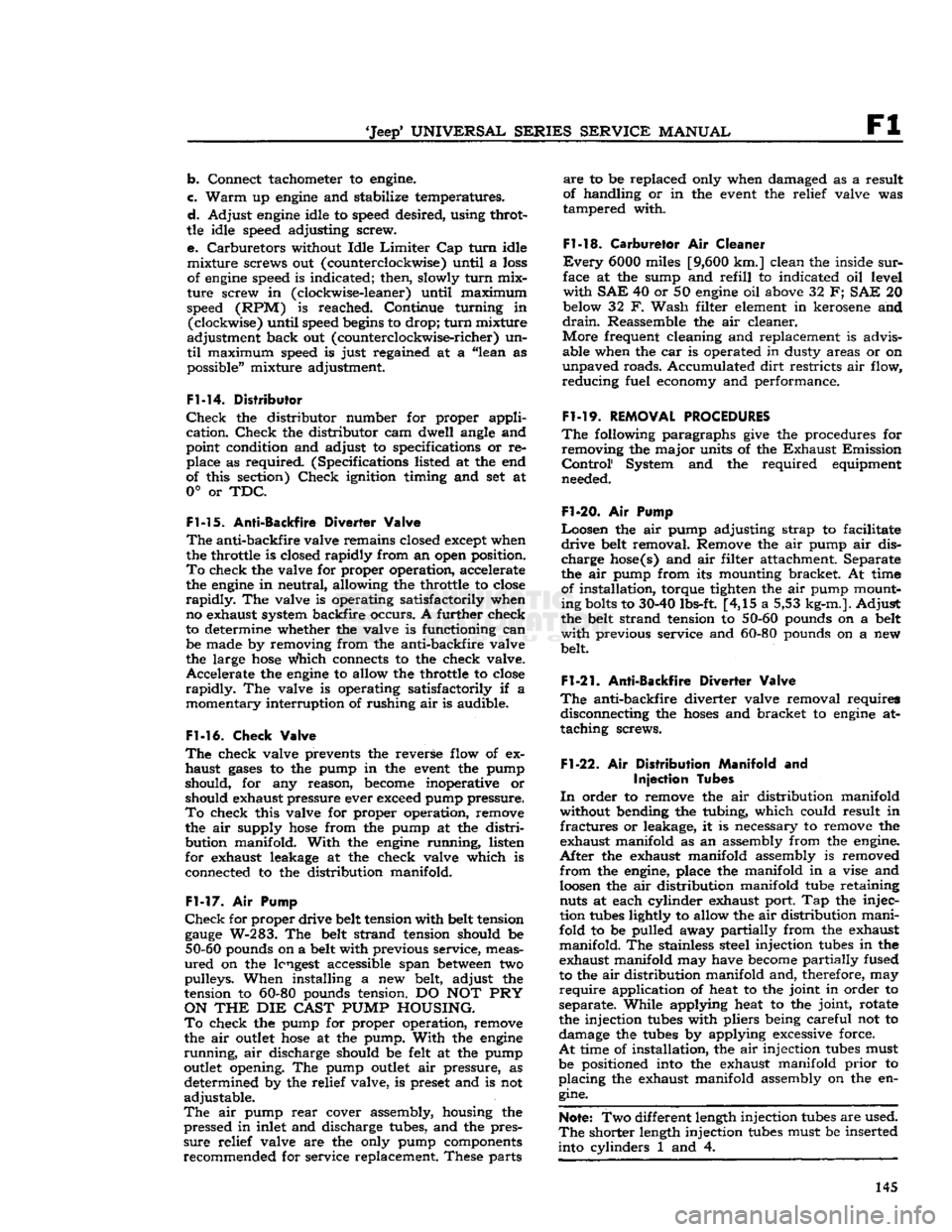

b. Connect tachometer to
engine.

c.
Warm
up
engine
and stabilize temperatures.

d.
Adjust
engine
idle to
speed
desired, using throt­
tle idle
speed
adjusting screw.

e.
Carburetors without Idle
Limiter
Cap turn idle mixture screws out (counterclockwise) until a
loss

of
engine
speed
is indicated; then, slowly turn mix­
ture screw in (clockwise-leaner) until maximum

speed
(RPM) is reached. Continue turning in (clockwise) until
speed
begins
to drop; turn mixture
adjustment back out (counterclockwise-richer) un­

til
maximum
speed
is just regained at a "lean as
possible" mixture adjustment.

Fl-14.
Distributor

Check
the distributor number for proper appli­
cation.
Check
the distributor cam dwell angle and
point condition and adjust to specifications or re­ place as required. (Specifications listed at the end
of this section)
Check
ignition timing and set at

0°
or
TDC.

Fl-15.
Anti-iackfire
Diverter Valve

The
anti-backfire valve remains closed
except
when
the throttle is closed rapidly from an
open
position.

To
check the valve for proper operation, accelerate
the
engine
in neutral, allowing the throttle to
close

rapidly.
The valve is operating satisfactorily when
no exhaust system backfire occurs. A further check
to determine whether the valve is functioning can be made by removing from the anti-backfire valve
the large
hose
Which
connects to the check valve.
Accelerate the
engine
to allow the throttle to
close

rapidly.
The valve is operating satisfactorily if a
momentary interruption of rushing air is audible.

Fl-16.
Check Valve

The
check valve prevents the reverse flow of ex­
haust
gases
to the pump in the
event
the pump
should, for any reason,
become
inoperative or should exhaust pressure ever
exceed
pump pressure.

To
check this valve for proper operation, remove the air supply
hose
from the pump at the
distri­

bution manifold.
With
the
engine
running, listen for exhaust leakage at the check valve which is
connected to the distribution manifold.

Fl-17.
Air
Pump

Check
for proper drive belt tension with belt tension
gauge
W-283. The belt strand tension should be

50-60
pounds on a belt with previous service, meas­

ured
on the
longest
accessible span
between
two pulleys. When installing a new belt, adjust the
tension to
60-80
pounds tension. DO NOT PRY
ON
THE DIE
CAST
PUMP
HOUSING.

To
check the pump for proper operation, remove the air
outlet
hose
at the pump.
With
the
engine

running,
air discharge should be
felt
at the pump

outlet
opening. The pump
outlet
air pressure, as determined by the relief valve, is preset and is not
adjustable.

The
air pump
rear
cover assembly, housing the pressed in inlet and discharge tubes, and the pres­
sure relief valve are the only pump
components

recommended for service replacement. These parts
are
to be replaced only when damaged as a result
of handling or in the
event
the relief valve was
tampered with.

Fl-18.
Carburetor
Air
Cleaner

Every
6000
miles
[9,600
km.] clean the inside
sur­

face at the sump and
refill
to indicated oil level with
SAE
40 or 50
engine
oil
above
32 F; SAE 20

below
32 F. Wash filter
element
in kerosene and

drain.
Reassemble the air cleaner.

More
frequent cleaning and replacement is advis­ able when the car is operated in dusty areas or on
unpaved roads. Accumulated dirt restricts air flow,
reducing fuel
economy
and performance.

Fl-19.
REMOVAL
PROCEDURES

The
following paragraphs
give
the procedures for removing the major units of the Exhaust Emission

Control
System and the required equipment
needed.

Fl-20.
Air
Pump

Loosen
the air pump adjusting strap to facilitate

drive
belt removal. Remove the air pump air dis­
charge hose(s) and air filter attachment. Separate
the air pump from its mounting bracket. At time of installation, torque tighten the air pump mount­ing
bolts
to
30-40
lbs-ft. [4,15 a 5,53 kg-m.]. Adjust
the belt strand tension to
50-60
pounds on a belt
with previous service and
60-80
pounds on a new
belt.

Fl-21.
Anti-Backfire
Diverter Valve

The
anti-backfire diverter valve removal requires disconnecting the
hoses
and bracket to
engine
at­
taching screws.

Fl-22.
Air
Distribution
Manifold
and
Injection Tubes

In
order to remove the air distribution manifold
without bending the tubing, which could result in
fractures
or leakage, it is necessary to remove the
exhaust manifold as an assembly from the
engine.

After
the exhaust manifold assembly is removed
from
the
engine,
place the manifold in a vise and

loosen
the air distribution manifold
tube
retaining nuts at each cylinder exhaust port. Tap the injec­
tion
tubes
lightly to allow the air distribution mani­
fold to be pulled away partially from the exhaust manifold. The stainless steel injection
tubes
in the
exhaust manifold may have
become
partially fused
to the air distribution manifold and, therefore, may
require
application of heat to the joint in order to
separate. While applying heat to the joint, rotate
the injection
tubes
with pliers being careful not to
damage the
tubes
by applying excessive force.

At
time of installation, the air injection
tubes
must
be positioned into the exhaust manifold prior to
placing the exhaust manifold assembly on the en­ gine.

Note:
Two different length injection
tubes
are used.

The
shorter length injection
tubes
must be inserted into cylinders 1 and 4. 145

Fl

EXHAUST
EMISSION CONTROL SYSTEMS The
air distribution manifold should be installed
after the exhaust manifold assembly is torqued
to the cylinder head. The recommended procedure
for exhaust manifold assembly installation is as follows:
Clean
the mating surface of both the
manifold and cylinder head.
Install
the exhaust manifold to the cylinder head using a new gasket.

Tighten
the manifold to cylinder head, attaching
bolts
down evenly.
Finish
torque tightening to 29
to 35 ft. lbs. [3,4 a 4,8 kg-m.].

Fl-23.
REQUIRED
EQUIPMENT

Each
station licensed to perform repair and main­
tenance on the Exhaust Emission Control System
must be equipped with that equipment necessary
for major
engine
tune-up analysis which shall in­ clude at least the following or equivalent.
Ignition Analyzer Oscilloscope
Ammeter
Ohmmeter
Voltmeter Tachometer
2 Vacuum Gages

Pressure
Gage (0-10 psi.)

Cam
Angle Dwell Meter Ignition Timing
Light

Engine
Exhaust Combustion Analyzer Compression Tester

Fl-24.
REPLACEMENT
PARTS

Parts
necessary to repair and/or maintain the

Exhaust
Emission Control System are available through any Jeep
SALES CORPORATION
ware­
house.

Fl-25.
WARRANTY

All
parts of the Exhaust Emission Control System

are
covered by the Manufacturer's Warranty as stated in the Warranty Service and 'Jeep' Quality
Maintenance Plan booklet.

Fl-26.
EXHAUST EMISSION CONTROL
SYSTEM
DIAGNOSIS GUIDE
Pump Noisy

Hoses Touching Other Parts of Engine or Body (Hood).

Note:
The air pump is not completely noiseless.

Under
normal conditions, pump
noise
rises in pitch as
engine
speed
increases. It is also desirable to
allow for normal break-in wear of the pump prior
to replacement for excessive noise.

Pump Seized

Replace
pump.

Leak
In
Hose

Check
for leaks; using
soap
and water — tighten
clamps or replace
hoses.
Pump
Inoperative

Loose Belt — tighten belt — do not pry on housing.

Filter
Plugged — replace.

Exhaust Backfire

Check
for vacuum leaks — correct as necessary.
Check
air filter for excessive
restriction
— replace as necessary.

Check
anti-backfire valve — replace as necessary.

Induction System Backfire

Verify
engine
timing and distributor dwell.

Verify
accelerator pump charge. 146

Fl

EXHAUST
EMISSION
CONTROL
SYSTEMS

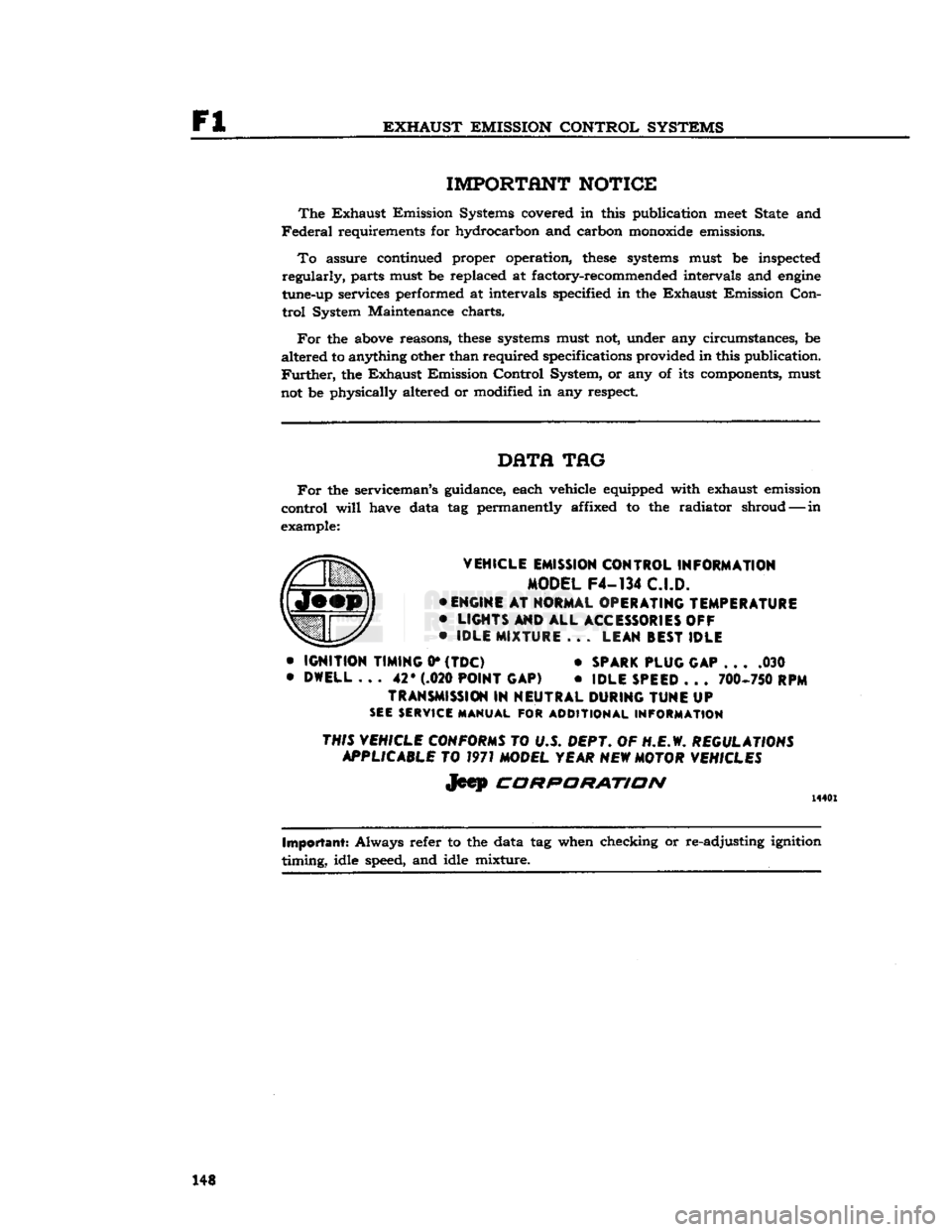

IMPORTANT
NOTICE

The
Exhaust
Emission Systems covered
in
this publication
meet
State and

Federal
requirements for hydrocarbon and carbon
monoxide
emissions.

To
assure continued proper operation,
these
systems
must
be
inspected

regularly,
parts must be replaced
at
factory-recommended intervals and
engine

tune-up services performed at intervals specified in the
Exhaust
Emission
Con­
trol
System Maintenance charts.

For
the
above
reasons,
these
systems
must not, under any circumstances,
be

altered
to anything other than
required
specifications provided in this publication.

Further,
the
Exhaust
Emission
Control
System, or any
of
its components, must
not be physically altered or modified in any respect.

DHTfl
TAG

For
the serviceman's guidance, each vehicle equipped with exhaust emission

control
will
have data
tag
permanently affixed
to the
radiator shroud—-in
example:

VEHICLE
EMISSION
CONTROL
INFORMATION
MODEL
F4-134
C.I.D.

•
ENGINE
AT
NORMAL
OPERATING
TEMPERATURE

•
LIGHTS
AND
ALL
ACCESSORIES OFF

•
IDLE
MIXTURE
. . .
LEAN
BEST
IDLE

•
IGNITION
TIMING
0*
(TDC)
•
SPARK
PLUG
GAP
. . . .030

•
DWELL
...
42* (.020
POINT
GAP)
•
IDLE
SPEED
. . .
700-750 RPM
TRANSMISSION
IN
NEUTRAL
DURING
TUNE
UP

SEE SERVICE MANUAL
FOR
ADDITIONAL INFORMATION
THIS VEHICLE CONFORMS
TO U.S.
DEPT.
OF
H.E.W.
REGULATIONS APPLICABLE
TO
1971 MODEL YEAR NEW MOTOR VEHICLES

Jeep
CORPORATION
14401

Important:
Always refer
to
the data tag when checking or re-adjusting ignition

timing,
idle speed, and idle mixture. 148

'Jeep'
UNIVERSAL SERIES SERVICE
MANUAL

Fl
EXHAUST
EMISSION
CONTROL
SYSTEM

Contents

DAUNTLESS
V-6
ENGINE
SUBJECT
PAR.

GENERAL
.F2-1
HEATED
AIR
SYSTEM.
. F2-2
Testing
Thermo
Air
Cleaner
F2-4
Positive
Crankcase
Ventilation
Valve.
. . .F2-6

Vacuum
Motor Replacement . .F2-8
Air
Cleaner Sensor Replacement F2-9
Replacement Procedures F2-7

AIR
PUMP
.F2-10

AIR
FILTER.
F2-11

AIR
DELIVERY
MANIFOLD.
F2-12

AIR INJECTION TUBES.
F2-13

ANTI-BACKFIRE
VALVE..
.F2-14
ENGINE COMPONENTS
.F2-15
MAINTENANCE
.F2-3
Carburetor
F2-16, F2-17

Distributor
F2-18

Anti-Backfire
Valve . . F2-19
Check
Valve..
F2-20

F2-1.
GENERAL
—V-6
Engine

The
Dauntless V-6
engine
Exhaust
Emission
Con­

trol
System consists of a belt-driven air pump

which
directs compressed air through connecting
hoses
to a steel distribution manifold into stainless steel injection
tubes
in the exhaust port adjacent
to each exhaust valve.
This
air, with its normal
oxygen
content, reacts with the hot but incom­
pletely burned exhaust
gases
and permits further combustion in the exhaust port or manifold.

The
Exhaust
Emission System on V6-225
engines

limits
the hydrocarbon and carbonmonoxide emis­sions from the exhaust system. The system includes

an
engine
designed for low emissions and lean
carburetor
calibration at idle and part throttle.

The
lean carburetion is possible because of the
heated air system that is part of the Emission
System.
See Fig. F2-2.
With
the heated air system
operating, inlet air temperature is around
115°F.
[46°C],
after the first few minutes of operation.

This
makes the use of lean (hot weather)
cali­
bration
possible, and the vehicle
still
responds and

drives
well in cold weather.

The
engine
has a "ported"
spark
advance, with the

vacuum
take-off just above the throttle valve, so that there is no vacuum advance at closed throttle,
but there is vacuum advance as
soon
as the throttle is opened slightly. To reduce emissions at idle and
at lower
engine
speeds, the
engine
timing is such
that the distributor
will
not have centrifugal ad­
vance until about 900 RPM.
F2-2.
HEATED
AIR
SYSTEM

The
heated air system on late model V6 engines,
consists of a manifold heat collector, a heated-air
SUBJECT
PAR.

Air
Pump F2-21
Intake
Manifold F2-22
Carburetor
Air Cleaner F2-5, F2-23

REMOVAL PROCEDURES
F2-24
Air
Pump. F2-25
Anti-Backfire
Valve..
. . .F2-26
Air
Distribution Manifold,

And
Air Injection Tubes F2-27

REQUIRED
EQUIPMENT..
. F2-28
REPLACEMENT
PARTS..
.F2-29

WARRANTY
F2-30
DIAGNOSIS GUIDE
F2-31
MAINTENANCE CHART.
F2-32
GENERAL
SPECIFICATIONS
F2-33

CARBURETOR SPECIFICATIONS.
.... .F2-34

DISTRIBUTOR SPECIFICATIONS
. .F2-35
SPARK PLUG GAP
F2-36
pipe, a adapter elbow and an air cleaner contain­ing temperature control doors operated by vacuum
through a temperature sensor. The heat
stove
is a
sheet
metal cover, shaped to and bolted on with
the right exhaust manifold. Air drawn in along the lower
edge
of the
stove
passes across the mani­
fold surface, picking-up heat. The heated air is
drawn
out from the front of the manifold, through
the heated air pipe and adapter elbow into the
snorkel
of the air cleaner.

The
temperature control air cleaner is designed to mix this heated air with cold air from under the
hood so that carburetor inlet air temperature aver­
ages
about
115°F.
[46°C.].
This
mixing is
done
by two air doors, a cold air door and a hot air door,

which
move
together
so that when the cold air door is closed, the hot air door is open and vice
versa.
Most of the time, both doors
will
be partially
open as required to control the temperature. When
the underhood temperature reaches about 135
°F
[57°C]
the cold air door
will
open wide and the
hot air door
will
close
tight See Fig. F2-3. Ob­ viously, if underhood temperatures rise above
135°F.
[57°C]
the air cleaner
will
no longer be
able to control temperatures and the inlet air tem­

perature
will
rise with underhood temperature.
The
temperature doors are moved by a diaphragm
type vacuum door. When there is no vacuum pres­ ent in the motor, the diaphragm spring forces the
cold air door open and the hot air door closed.

Whenever
the
engine
is running, the amount of
vacuum
present in the vacuum motor depends on
the temperature sensor in the air cleaner which is located in the vacuum line
between
the intake
manifold and the vacuum motor. In the sensor, a 149

'Jeep'
UNIVERSAL
SERIES
SERVICE
MANUAL

F2

14043

FIG.
F2-6—REPLACING VACUUM MOTOR ASSEMBLY

A—Drill
VW
Hole
B—Sensor
Unit
Replacement Position
1—
Motor
3—Sensor
Unit

2—
Spot
Welds
4—Retaining
Strap
•e.
Drill
a
%j
inch [2,78 mm.] hole in snorkel tube

at
point
"A"
as shown in Fig.
F2-6.
f.
Use the motor strap retainer and the
sheet
metal

screw
provided in the motor replacement kit to secure the retainer and motor to the snorkel tube.
g. Make sure the screw
does
not interfere with the
operation of the damper assembly. Shorten screw
if
required.

F2-9.
Replacement
of Air
Cleaner Sensor

a.
Remove two sensor retaining clips by
prying.
See

Fig.
F2-7.

b.
Pull
vacuum
hoses
from sensor.

c.
Note
carefully the installed position of the sensor so that you can install new sensor in same position.

Then
remove sensor.

d.
Install
sensor and gasket assembly in air cleaner

m
same position as noted in
step
c.
This
is to eliminate the possibility of interference with the air

filter
element.
e.
Install
sensor retaining
clip,
meanwhile support­
ing
sensor at B around the outside rim to prevent 14042

FIG.
F2-7—REPLACING SENSOR ASSEMBLY

1—Sensor
Retaining
Clip
damage to the temperature sensing spring. See

Fig.
F2-7.

f.
Reinstall
vacuum hoses.

F2-10.
AIR
PUMP
The
air injection pump is a positive displacement
vane type which is permanently lubricated and
requires
no periodic maintenance.

The
pump contains an integral relief valve which
controls the
air
supplied to the
engine
exhaust ports

during
high speed operation to limit maximum exhaust system temperatures.

F2-11.
AIR
FILTER
The
air injection system draws clean air from the
carburetor
air filter through an inlet hose, into the

air
pump and from the pump through two
outlets
(one for each cylinder head).

F2-12.
AIR
DELIVERY MANIFOLD

The
air delivery manifolds constructed of cold
rolled
steel with a zinc plating, distribute the air

from
the pump to each of the air delivery tubes in

a
uniform manner.

Two
check valves are included to prevent the
reverse
flow of exhaust
gases
to the pump should
the pump drive
fail.
This
reverse flow would dam­
age the air pump and connecting hose.

F2-13.
AIR
INJECTION TUBES
The
air injection tubes of stainless steel are in­ serted into machined
bosses
of the cylinder head.

The
tubes project into the exhaust ports directing
air
into the vicinity of the exhaust valve stem.

F2-14.
ANTI-BACKFIRE VALVE
The
anti-backfire valve is used to provide a "gulp" of air into the
engine
induction system during
rapid

throttle opening and subsequent closure.
During
rapid
throttle closure, the valve
opens
for approxi­
mately one (1) second and bleeds air into the
intake
manifold through a fitting in the carburetor.

Its
function is to bleed an adequate amount of

air
below the carburetor throttle plate to compen­ sate for the
overrich
fuel mixture normally inducted
into the combustion chamber during
rapid
throttle

closure.

Filtered
air from the pump is provided to the
anti-backfire
valve by means of a connecting hose.

An
exhaust system backfire
will
result if the valve

fails
to function properly.

F2-15.
ENGINE COMPONENTS
The
following item varies in design or specifications

from
those
on vehicles not equipped with the Ex­

haust
Emission
Control
System.

F2-16.
Carburetor

Check
carburetor number for proper application. Specifications are listed in this section.

Proper
carburetor idle mixture adjustment is im­ perative for
best
exhaust emission control.

The
idle adjustment should be made with the en­
gine
at normal operating temperature, lights and accessories off and the air cleaner in place.
Adjust
155

'Jeep'
UNIVERSAL
SERIES SERVICE
MANUAL

F2
F2-26.
Anti-Backfire
Valve

The
anti-backfire valve removal requires discon­ necting the
hoses
and bracket to
engine
attaching
screws.

F2-27.
Air Distribution Manifold and
Injection
Tubes

The
air distribution manifolds can be removed
from the cylinder heads without removing the

cylinder
head assemblies. Disconnect the air delivery
hose
from the pump at
the distribution manifold inlet (check valve).
Loosen the distribution manifold
tube
attaching nuts from the cylinder head and carefully work the
distribution manifold away from the cylinder head.

The
air injection
tubes
can be removed from the
cylinder
head with head on the
engine.
Insert
an easy-out through the
boss
opening on the

cylinder
head
into
the injection
tube
and twist
the
tube
out gradually. Some interference to re­ moval may be encountered due to normal carbon
build-up on the tubes. Injection
tubes
removed in
this manner should be replaced.
The
injection
tubes
used are all of the same diam­
eter and length.

F2-28.
REQUIRED EQUIPMENT

Each
station licensed to perform repair and main­ tenance on the Exhaust Emission Control System
must be equipped with that equipment necessary
for major
engine
tune-up analysis which shall in­ clude at least the following or equivalent:
Ignition Analyzer Oscilloscope
Ammeter
Ohmmeter
Voltmeter
Tachometer 2 Vacuum Gauges
Pressure
Gauge (0-10 psi.)

Cam
Angle Dwell Meter
Ignition Timing
Light

Engine
Exhaust Combustion Analyzer Compression Tester

F2-29.
REPLACEMENT PARTS

Parts
necessary to repair and/or maintain the Ex­
haust Emission Control System are available through any Jeep
SALES
CORPORATION
ware­
house.

F2-30.
WARRANTY
All
parts of the Exhaust Emission Control System
are
covered by the Manufacturer's
Warranty
as stated in the
Warranty
Service and 'Jeep' Quality
Maintenance Plan booklet. 157

'Jeep'
UNIVERSAL SERIES SERVICE
MANUAL

F2
F2-35.
EXHAUST EMISSION CONTOL SYSTEM
DISTRIBUTOR SPECIFICATIONS

Distributor:
Make
Delco-Remy Prestolite Prestolite
Model...
1110376
IAT-4501 or IAT-4502 IAT-4502A

Breaker
Point Gap .016"
[0,406
mm.] .016"
[0,406
mm.] .016"
[0,406
mm.]

Breaker
Arm Tension 19 to 23 oz. [538 a 652 gr.] 17 to 22 oz. [482 a 623 gr.] 17 to 22 oz. [482 a 623 gr.]

Cam
Angle. 29° to 31° 29° + 3° 29° ± 3°

Max.
Auto Advance
(Crankshaft
Degrees). 13° to 15° at 1,950 rpm. 16° (& 1800 rpm. 21° @ 1800 rpm.
26°
@
4200
rpm. (Max.) 32° @
4200
rpm. (Max.)

Max.
Vac. Advance
(Distributor
Degrees) 8° 8° 8°
Condenser Capacity. .18 to .23 mfd. .25 to .28 mfd. .25 to .28 mfd.

Timing:
Crankshaft
5°
(BTC)
@ Idle 5°
(BTC)
© Idle 0°
(TDC)
© Idle

Mark
Location Crankshaft Pulley Crankshaft Pulley Crankshaft Pulley

Firing
Order
1-6-5-4-3-2 1-6-5-4-3-2 1-6-5-4-3-2

F2-36.
SPARK PLUG
GAP

Spark
Plug Gap. .035"
[0,889
mm.]

IMPORTANT
NOTICE
The
Exhaust Emission Systems covered in this publication
meet
State and Federal
requirements for hydrocarbon and carbon
monoxide
emissions.

To
assure continued proper operation,
these
systems
must be inspected regularly,
parts must be replaced at factory-recommended intervals and
engine
tune-up services
performed at intervals specified in the Exhaust Emission Control System Maintenance
charts.

For
the
above
reasons,
these
systems
must not, under any circumstances, be altered
to anything other than required specifications provided in this publication.
Further,

the Exhaust Emission Control System, or any of its components, must not be physi­
cally
altered or modified in any respect.

DATA
TAG

For
the serviceman's guidance, each vehicle equipped with exhaust emission control

will
have data tag permanently affixed to the radiator shroud — in example:

VEHICLE EMISSION CONTROL INFORMATION MODEL V6-225 C.I.D.

•
ENGINE
AT
NORMAL OPERATING TEMPERATURE

•
LIGHTS
AND ALL
ACCESSORIES
OFF

•
IDLE MIXTURE
.. .
LEAN BEST IDLE

•
IGNITION TIMING
0*
(TDC)
*
SPARK PLUG
GAP 035
•
DWELL
. . . 30* (.016
POINT
GAP) •
IDLE SPEED
. . .
650- 700
RPM
TRANSMISSION
IN
NEUTRAL DURING TUNE
UP

SEE
SERVICE MANUAL FOR ADDITIONAL INFORMATION

THIS VEHICLE CONFORMS
TO U.S. DEPT. OF H.E.W.
REGULATIONS APPLICABLE
TO
1971
MODEL YEAR
NEW
MOTOR VEHICLES
Jeep
CORPORATION
14400
NOTE:
The
above
tag applies to vehicles equipped with Distributor Model
IAT-4502A.

On
vehicles equipped with Distributor Models
1110376,
IAT-4501 and IAT-4502 the tag is the same

except
that Ignition Timing is 5°
T.D.C.

Always
refer to the data tag when checking or re-adjusting ignition timing, idle speed, and idle mixture.
159

G
COOLING SYSTEM
engine
connections. Insert flushing gun and flush
heater core.
Care
must be taken when applying air
pressure to prevent damage to the heater core.

G-2.
Filling
Cooling System
To
fill
the cooling system, remove the
fill
cap and

fill
the tank to the top. Replace the cap and run
the
engine
at medium speed for approximately one
minute. Remove the cap and recheck the coolant level. Add more coolant if necessary to bring the level back to the top of the tank. If the cooling system is filled when the
engine
is cold, recheck the coolant level after the
engine
has warmed up.
This

will
ensure that the thermostat has opened allow­ ing complete cooling system circulation.

Always
correct any cooling system leaks before installing antifreeze. A corrosion inhibitor should be used in the cooling system to prevent the forma­
tion of rust and scale. A quality brand antifreeze containing a corrosion inhibitor should be used.

When
the antifreeze is drained in the spring, a
corrosion inhibitor should be added with the water.

Note:
Cooling system components for both V6 and

F4
engines
are shown in
Figs.
G-2 and G-3.

G-3. Draining
Cooling System

To
completely
drain
the cooling system, open the

drain
in the
bottom
of the radiator and also a

drain
on the right side of the cylinder block on the
Hurricane
F4 engine. The Dauntless V-6
engine

has two
drain
plugs, one located on each side of the cylinder block. Both plugs must be removed to
completely
drain
the cooling system.
Remove the radiator cap to break any vacuum
that may have developed.

Should
the cooling solution be lost from the system

and
the
engine
become
overheated do not
refill

the system immediately but allow the
engine
to cool or
refill
slowly while the
engine
is running. If
cold solution is poured into the radiator while the

engine
is overheated there is danger of cracking the

cylinder
block and/or cylinder head.
G-4.
Radiator Pressure
Cap

All
radiators are equipped with pressure caps which
reduce evaporation of cooling solution and make the
engines
more efficient by permitting slightly
higher operating temperatures. When operating
properly,
the pressure cap permits pressure build-up

in
the cooling system during periods of severe heat

load.
This
pressure increases the boiling point of the coolant and thus reduces overflow losses. The

effectiveness
of the cap is limited by its opening
pressure and the boiling point of the coolant (see
note
below). The pressure cap employs a spring-
loaded, rubber-faced pressure seal which presses against a seat in the radiator top tank. Spring pres­

sure
determines the opening pressure of the valve.

A
typical pressure cap is shown in Fig. G-5.

Note:
Refer to cooling system specifications (Par.

G-21)
for opening (relief) pressure when the ve­
hicle is equipped with either the
Hurricane
F4
or
Dauntless V-6 engine. If a new cap is required, always install a cap of the same type and pressure
rating
specified. It should never be altered or re­
placed by a plain cap.

A
vacuum release valve (Fig. G-5) is employed to
prevent undesirable vacuum build-up when the system
cools
down. The vacuum release valve is
held against its seat under light spring pressure.

Vacuum
in the system is relieved by the valve
which
opens
at V2 to 1 psi. [0,035 a 0,07 kg-cm2]

vacuum.
A pressure tester can be used to check and
test
the vacuum pressure rate (see Fig. G-6).
Although the mechanism of the pressure cap re­ quires no maintenance, the cap should be inspected
periodically for cleanliness and freedom of opera­ tion. The pressure cap gasket and radiator filler neck seat should also be inspected to be sure they

are
providing a proper seal. If the rubber face of
the valve is defective, a new cap should be installed.
Filler
neck reseating
tools
are commercially
avail­
able to correct minor
defects
at the surface of the seat. Follow instructions of the reseating tool manu­

facturer.

To
remove the radiator pressure cap when the
engine
coolant temperature is high or boiling, place

a
cloth over the pressure cap and
turn
counter­ clockwise about Vi
turn
until the first (pressure release)
stop
is reached. Keep the cap in this posi­
tion until all pressure is released.
Then
push cap
down and
turn
still
further until cap can be re­ moved. To install the pressure cap, place it in posi­
tion and
turn
it clockwise as far as it
will
go.

Caution:
Use extreme care in removing the radiator
pressure cap. In overheated systems, the sudden release of pressure can cause a steam flash and this

flash,
or the
loosened
cap can cause serious personal

injury.

G-5.
RADIATOR

Maintenance of the radiator consists of keeping
the exterior of the radiator core clean, the interior free from rust and scale, and the radiator free from

leaks.
Check
the cooling system fluid level and for
leaks each
2000
miles
[3.200
km.] or every 30
days, whichever occurs first.
This
exterior of the

radiator
core should be cleaned and the radiator inspected for leaks each
6000
miles
[9.600
km.]
of normal service of the vehicle. Cleaning should be performed by blowing out with air stream or water stream directed from the
rear
of the radiator.

Visual
inspection is not sufficient as the accumula­ tion of small particles of foreign material on core
surfaces can restrict cooling without closing the core openings.

Radiator
leakage occasionally results from cor­
rosion perforation of the metal but most leakage results from mechanical failure of soldered joints
when too much strain has been put on the joint.
Fractures
occur most
often
at the joint where the
radiator
inlet and
outlet
pipes are attached to the

tanks.
When the seams break, the entire soldered

joint
is
exposed
and can corrode, but breakage
rather
than corrosion is the
primary
cause of seam
leakage. Examine the radiator carefully for leaks before and after cleaning. Cleaning may uncover points of leakage already existing but plugged with
rust.
White, rusty, or colored leakage stains indicate 164

'Jeep'
UNIVERSAL SERIES SERVICE
MANUAL

H
ELECTRICAL
SYSTEM

Contents

SUBJECT
PAR.

GENERAL
. -H-l Alternator Charging System H-6, 63 Battery. . . .H-2

Electrical
Instruments. H-l 11 Ignition System H-3

Lighting
System H-8, 125

Primary
Circuit.
.. H-4 Secondary
Circuit
H-5
SparkPlugs H-33
Starting System H-7, 88

DISTRIBUTOR
—
HURRICANE
F4
ENGINE
H-9
Coil
H-19 Condenser
.H-l
2
Disassembly.
.........................
.H-16
Distributor Cap H-10 Distributor
Points
H-13
Governor Mechanism H-l4
Inspection H-l
7
Installation and Timing H-18
Removal H-15
Rotor H-ll

DISTRIBUTOR
—
DAUNTLESS
V-6
ENGINE
H-20

Ballast
Resistor. H-32

Centrifugal
Advance H-25
Cleaning and Inspection H-28
Coil
H-31
Condenser H-23
Disassembly. H-27
Distributor Cap H-21 Distributor
Points
H-24
Installation and Timing. . .H-30
Reassembly. H-29
Removal H-2 6
Rotor H-2
2

GENERATOR CHARGING SYSTEM SERVICE
H-34 Generator Armature H-3
7

Generator Assembly. H-40
Generator
Brush
Holders H-39
Generator Disassembly H-36
Generator
Field
Coils.
H-38
Generator Maintenance H-35 Generator -
Current
-
Voltage
Regulator. . .H-41
Generator Regulator Quick Checks...... .H-48
Generator Regulator Test Procedure H-47

ALTERNATOR PRECAUTIONS.
H-64

ALTERNATOR CHARGING SYSTEM.
. .H-63 Alternator On-Vehicle Tests. .H-67
Alternator Output Test. .H-70 Isolation
Diode
Test H-69
Regulator Test .H-71 Removal and Installation of
Voltage
Regulator. H-72
SUBJECT
PAR.
Service
Diagnosis
H-66 Test Equipment H-68
Alternator
Field
Circuit
Test H-73
Brush
Insulation and Continuity Test H-75
Brush
Removal and Inspection H-74
Rotor In-Vehicle Tests H-76

ALTERNATOR BENCH TESTS.
.H-77

ALTERNATOR REMOVAL
H-78 Alternator Disassembly H-80 Alternator Installation. H-87
Assembling Alternator H-86
General
Inspection H-81
Diode
Test H-85

Out-Of-Circuit
Rotor Test. .H-82

Out-Of-Circuit
Stator Leakage Test.. . H-83 Rotor Tests H-79
Stator
Coil
Leakage and Continuity Test. .H-84

STARTING
MOTOR
—
PRESTOLITE.
. .H-92
Armature
.H-l
00 Bench Test H-l04
Bendix
Folo-Thru
Drive H-105

Brush
Holder Inspection. .H-102
Brushes H-98
Commutator H-95, 99
Disassembly H-9 7

Field
Coils H-101
Lubrication
of
Folo-Thru
Drive H-l06
Maintenance Procedure H-93
Overhaul
Procedure H-96
Reassembly of Starting Motor. .
H-l
03
Starter
Solenoid
Switch H-10 7 Starter Ignition Switch. .H-89

Wiring.
. . . H-94

STARTING
MOTOR
—DELCO
H-108
Armature
H-101
Brush
Holder Inspection H-l 15 Brushes
H:lll

Commutator H-112

Field
Coils........
H-114
Locked
Armature Test. . . H-l20

Solenoid
Coils H-l 16
Starting Motor Reassembly H-l 17
Starting Motor Cleaning and Inspection.
.H-l
10
Starting Motor Disassembly .H-109 Starting Motor No-Load Test H-119
Starting Motor Test — General H-l 18 Starter Switch —
Solenoid
Type. H-l21
Starter Ignition Switch. .H-89

ELECTRICAL
INSTRUMENTS
H-122 Testing Instrument Gauges H-l24

LIGHTING
SYSTEM
H-l25 Aiming Head Lamps H-132

Backup
Lamps H-135

(continued
on
next
page)
171
