Contents

SUBJECT
PAR.

Brake
and
Clutch
Pedal Pads T-7

Canvas
Tops T-5
Care
of
Fabric
Tops. : T-6

Front
Seat Adjustment. . . T-8
Passenger Seat Safety
Catch
. .T-9
Windshield
T-2, T-3

Windshield
Glass and Weatherstrip T-4

T-1.
GENERAL
The
body
is of
all
steel construction with mountings
that provide a secure attachment to the frame.

All
major panels are of No. 18
gauge
steel. All
open

edges
of the panels are turned under, reinforced

and
flanged to provide strength. These panels are reinforced with
"U"
sections
and welded. All com­

ponent
panels are seamed and welded
together.
The
body
is insulated from the frame with insulator shims placed
between
the
body
and frame and
held in position by the
body
bolts.

The
instruments and controls, mounted on the
instrument panel are within clear view and easy
to reach.

Note:
A new floor pan cover plate has
been

released on late CJ-5 and CJ-6 models, that is
identified by a stamped oval-shaped bubble or
relief, located to the right of the accelerator treadle.

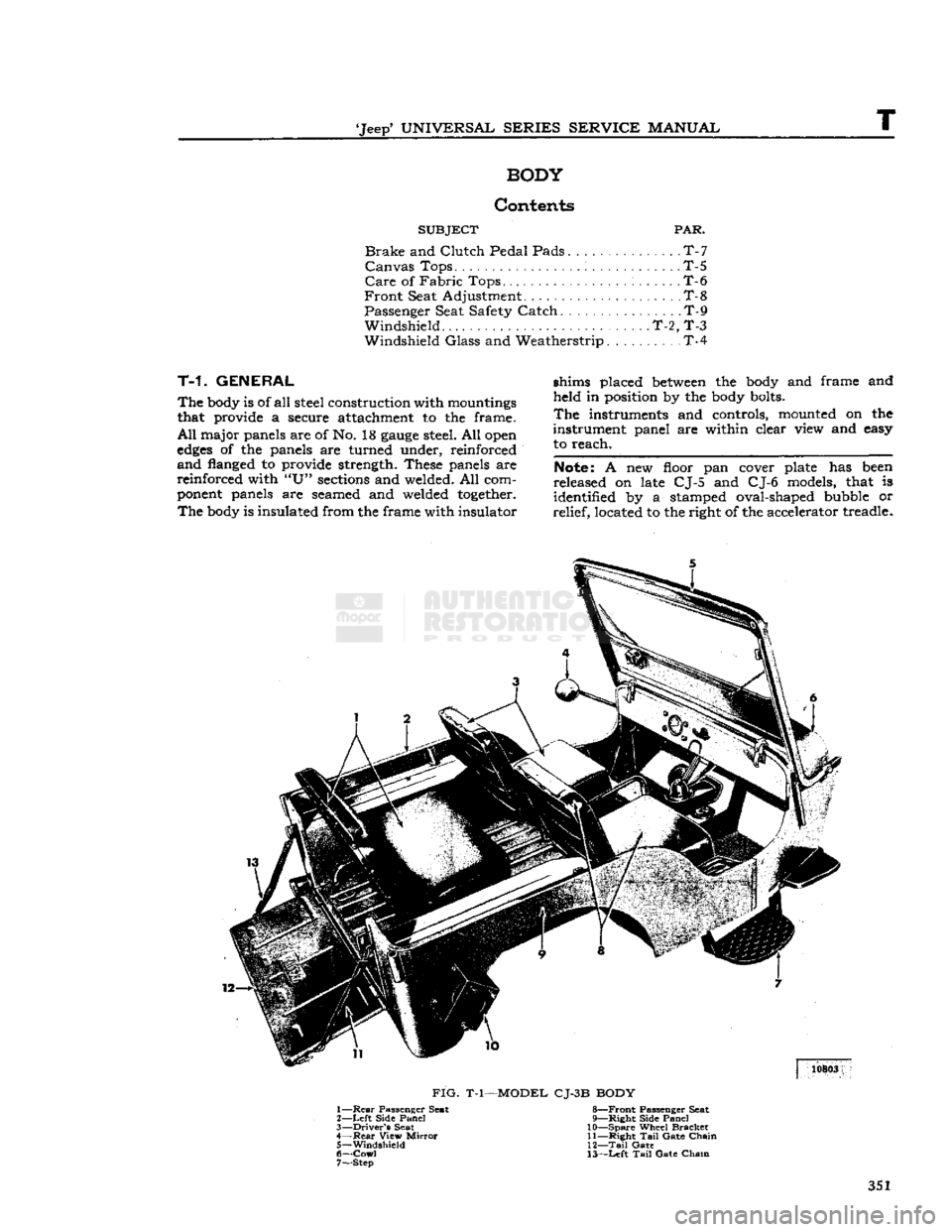

FIG.
T-l—MODEL CJ-3B BODY
1—
Rear
Passenger Seat 8—Front Passenger Seat

2—
Left
Side
Panel
9—Right Side
Panel

3—
Driver's
Seat 10—Spare Wheel
Bracket

4—
Rear
View
Mirror
11—Right
Tail
Gate
Chain

5—
Windshield
12—Tail
Gate

6—
Cowl
13—Left
Tail
Gate
Chain
7— Step
