AUTOMATIC - 44RE (Continued)

AUTOMATIC - 44RE (Continued)

Component Metric Inch
Planetary end play 0.127-1.22
mm0.005-0.048
in.
Input shaft end play 0.56-2.31
mm0.022-0.091
in.
Clutch pack clearance/
Front.1.70-
3.40mm0.067-0.134
in.
Clutch pack clearance/
Rear.0.559-0.914
mm0.022-0.036
in.
Front clutch 5 discs
Rear clutch 4 discs
Overdrive clutch 4 discs
Direct clutch 8 discs
Component Metric Inch
Front clutch thrust washer (reaction shaft
support hub)1.55 mm 0.061 in.
Rear clutch thrust washer (clutch retainer) 1.55 mm 0.061 in.
Intermediate shaft thrust plate (shaft hub pilot) 1.5-1.6 mm 0.060-0.063 in.
Output shaft thrust washer (rear clutch hub) Select fit to set end play
Rear clutch pack snap-ring 1.5 mm 0.060 in.
1.95 mm 0.076 in.
2.45 mm 0.098 in.
Planetary geartrain snap-ring (at front of output shaft) Select fit (three thicknesses avalible)
Overdrive piston thrust plate Thrust plate and
spacer are select fit.
Refer to size charts
and selection
procedures in
Overdrive Unit D&A
procedures Intermiediate shaft spacer
21s - 94 AUTOMATIC - 44REWG
AUTOMATIC - 44RE (Continued)

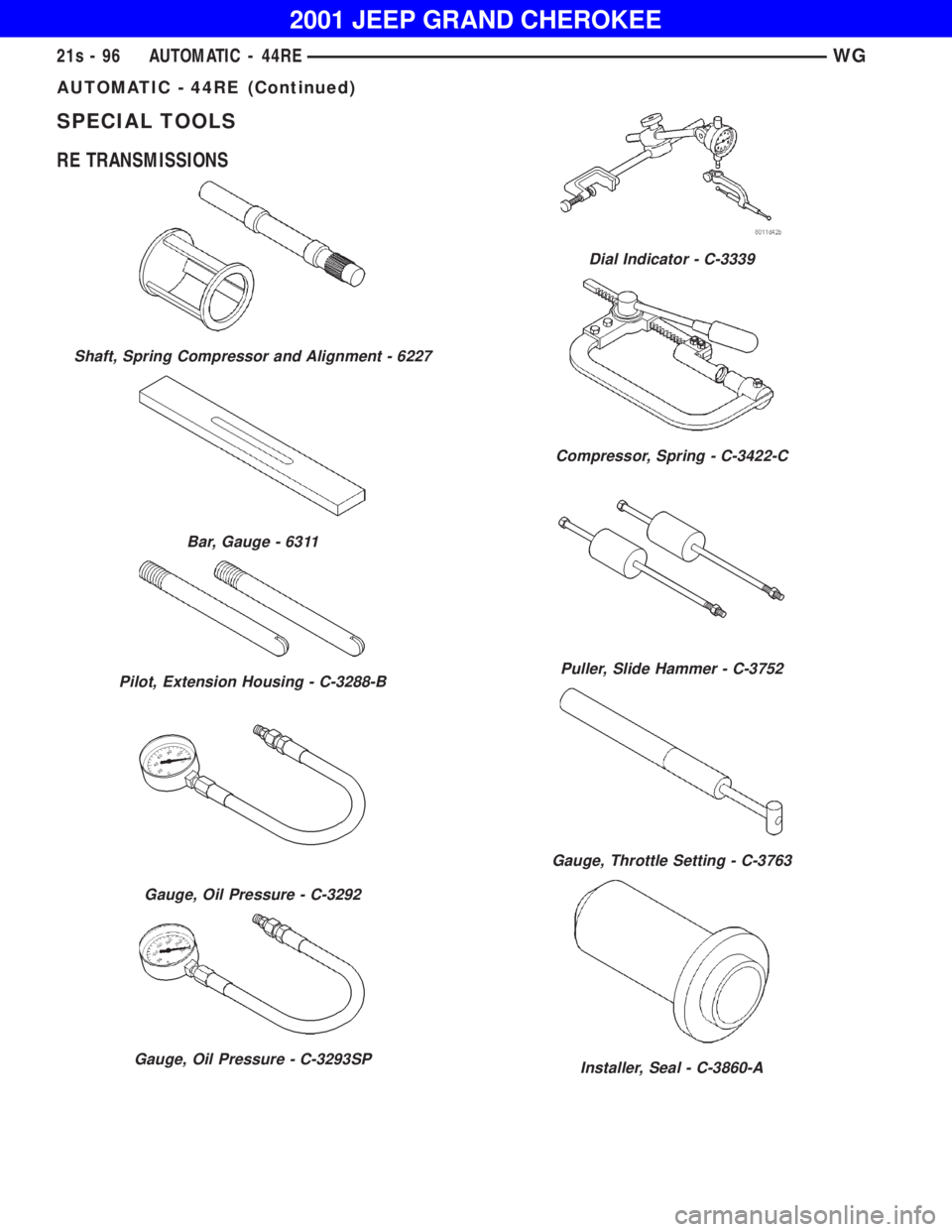

Bar, Gauge - 6311
Pilot, Extension Housing - C-3288-B
Gauge, Oil Pressure - C-3292
Gauge, Oil Pressure - C-3293SP
Dial Indicator - C-3339
Compressor, Spring - C-3422-C
Puller, Slide Hammer - C-3752
Gauge, Throttle Setting - C-3763
Installer, Seal - C-3860-A
21s - 96 AUTOMATIC - 44REWG
AUTOMATIC - 44RE (Continued)

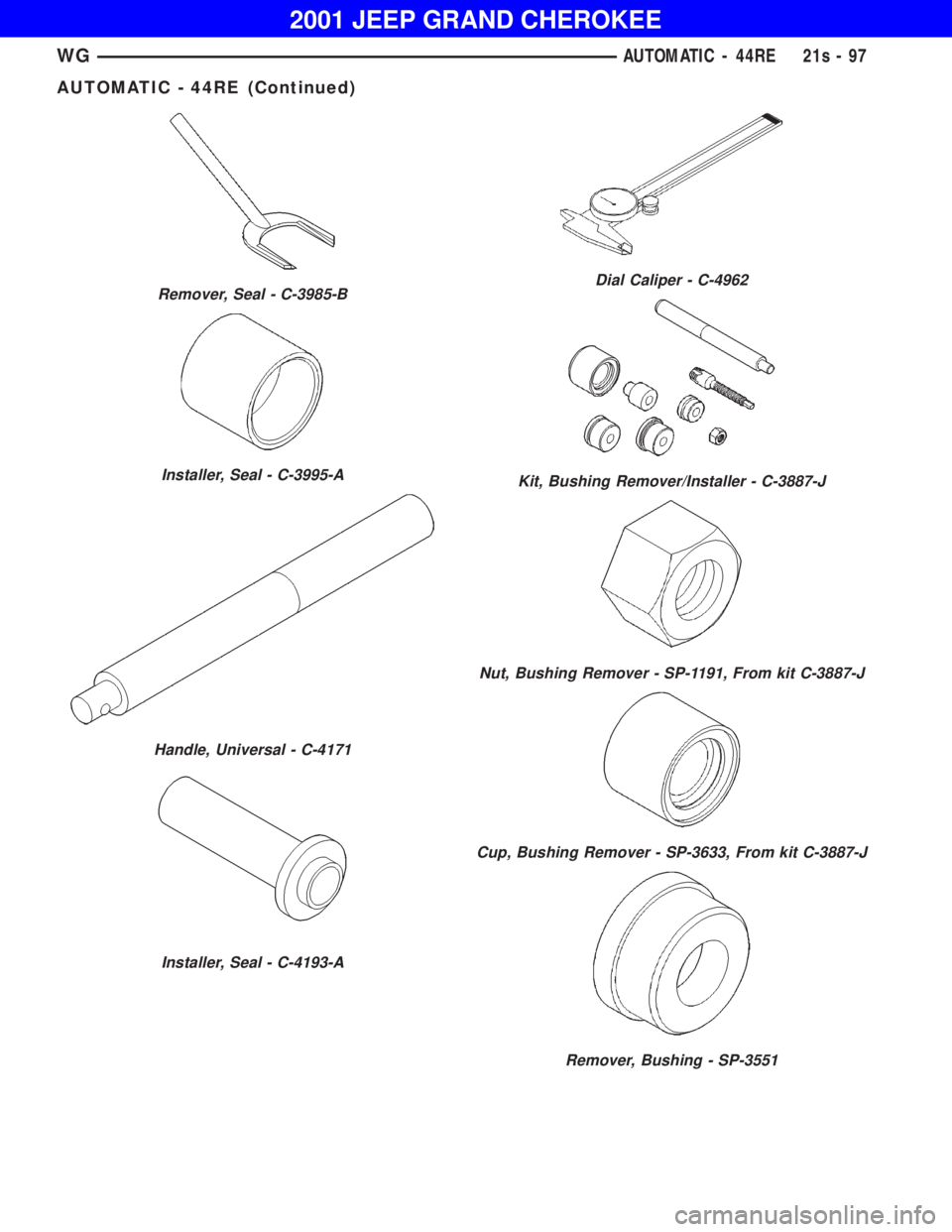

Installer, Seal - C-3995-A
Handle, Universal - C-4171
Installer, Seal - C-4193-A
Dial Caliper - C-4962
Kit, Bushing Remover/Installer - C-3887-J
Nut, Bushing Remover - SP-1191, From kit C-3887-J
Cup, Bushing Remover - SP-3633, From kit C-3887-J
Remover, Bushing - SP-3551
WGAUTOMATIC - 44RE 21s - 97

Remover, Bushing - SP-5324
Installer, Bushing - SP-5325

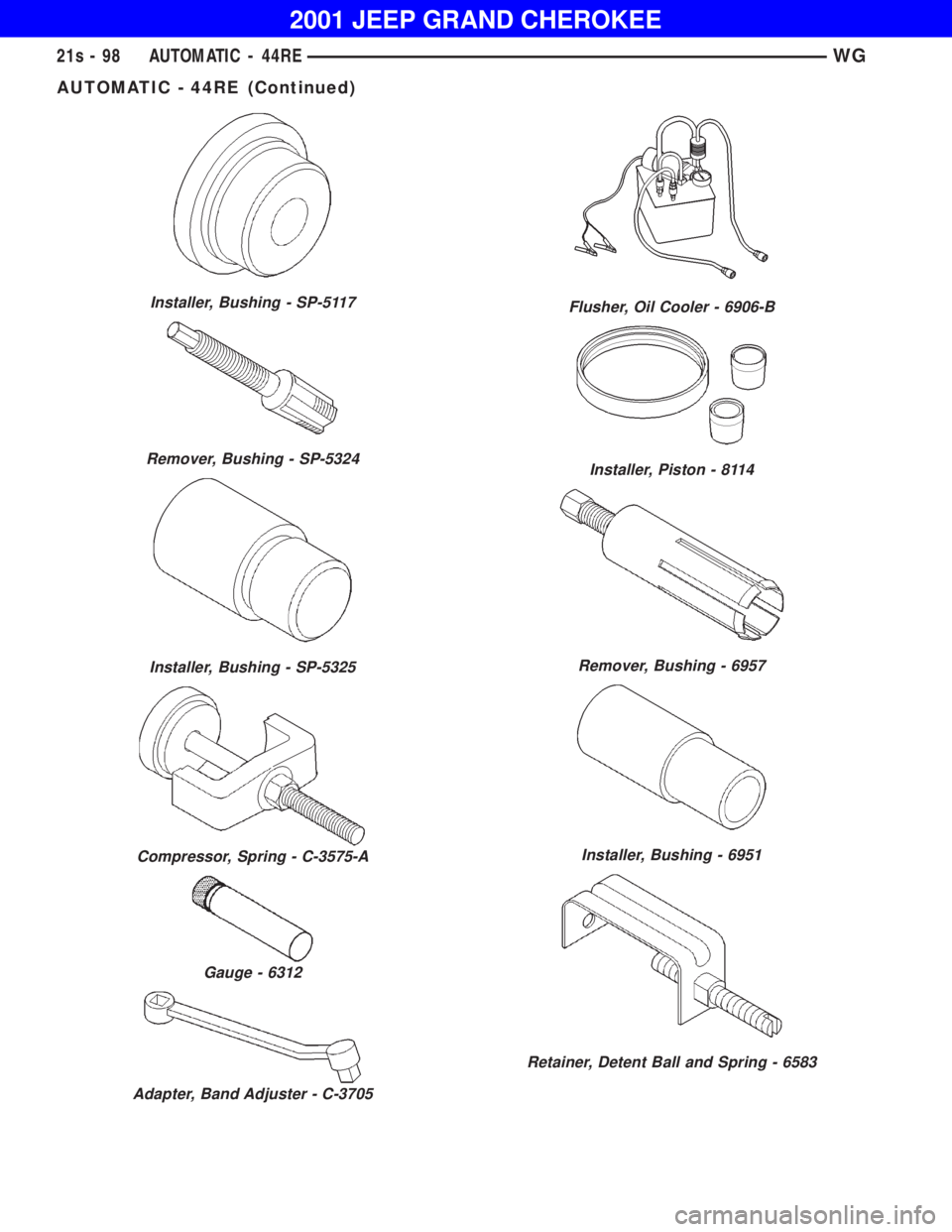

Compressor, Spring - C-3575-A
Gauge - 6312
Adapter, Band Adjuster - C-3705
Flusher, Oil Cooler - 6906-B
Installer, Piston - 8114
Remover, Bushing - 6957
Installer, Bushing - 6951
Retainer, Detent Ball and Spring - 6583
21s - 98 AUTOMATIC - 44REWG
