JEEP GRAND CHEROKEE 2001 Owners Manual

AUTOMATIC-545RFE (Continued)

AUTOMATIC-545RFE (Continued)

AUTOMATIC-545RFE (Continued)

AUTOMATIC-545RFE (Continued)

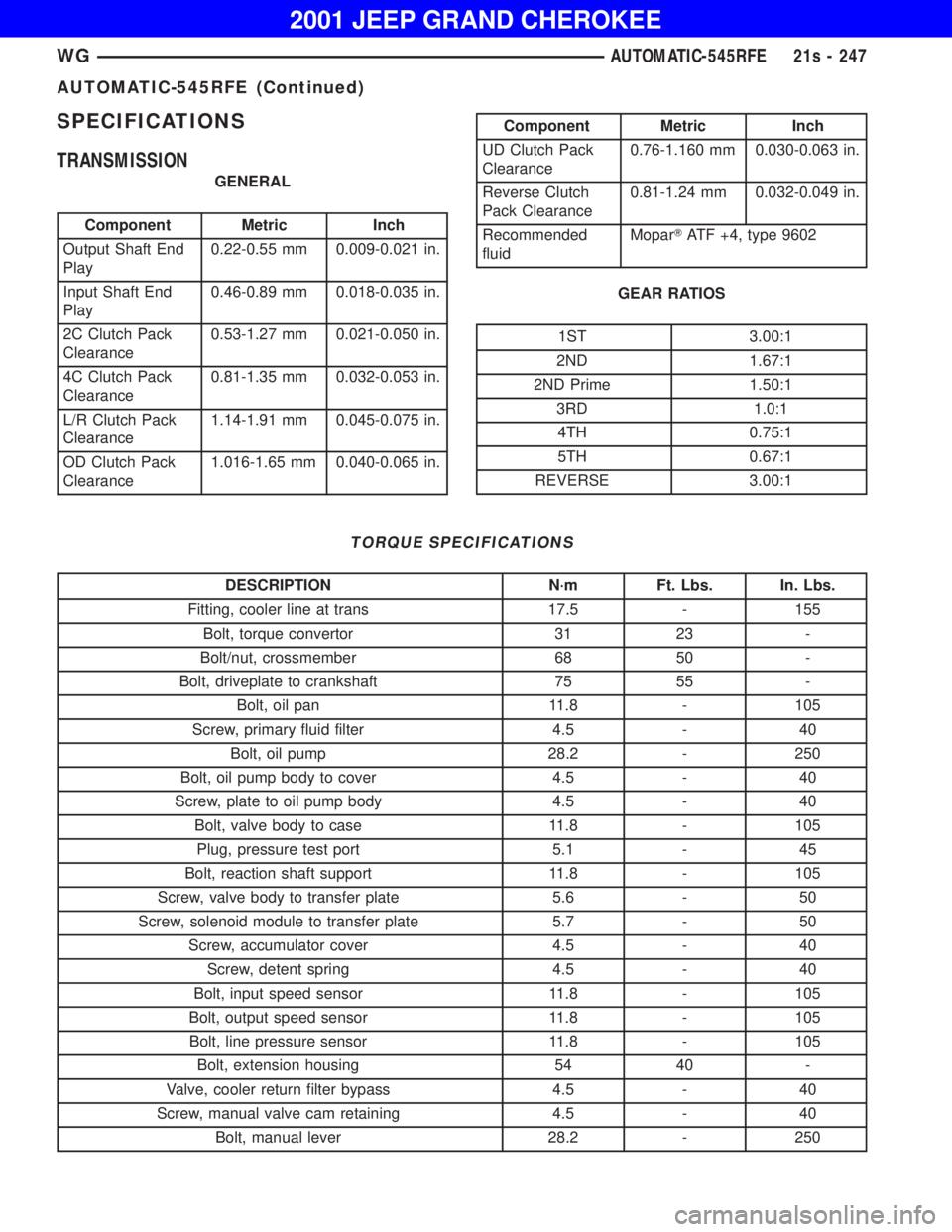

Component Metric Inch
Output Shaft End
Play0.22-0.55 mm 0.009-0.021 in.
Input Shaft End
Play0.46-0.89 mm 0.018-0.035 in.
2C Clutch Pack
Clearance0.53-1.27 mm 0.021-0.050 in.
4C Clutch Pack
Clearance0.81-1.35 mm 0.032-0.053 in.
L/R Clutch Pack
Clearance1.14-1.91 mm 0.045-0.075 in.
OD Clutch Pack
Clearance1.016-1.65 mm 0.040-0.065 in.
