JEEP GRAND CHEROKEE 2008 WK / 3.G SRT Owners Manual

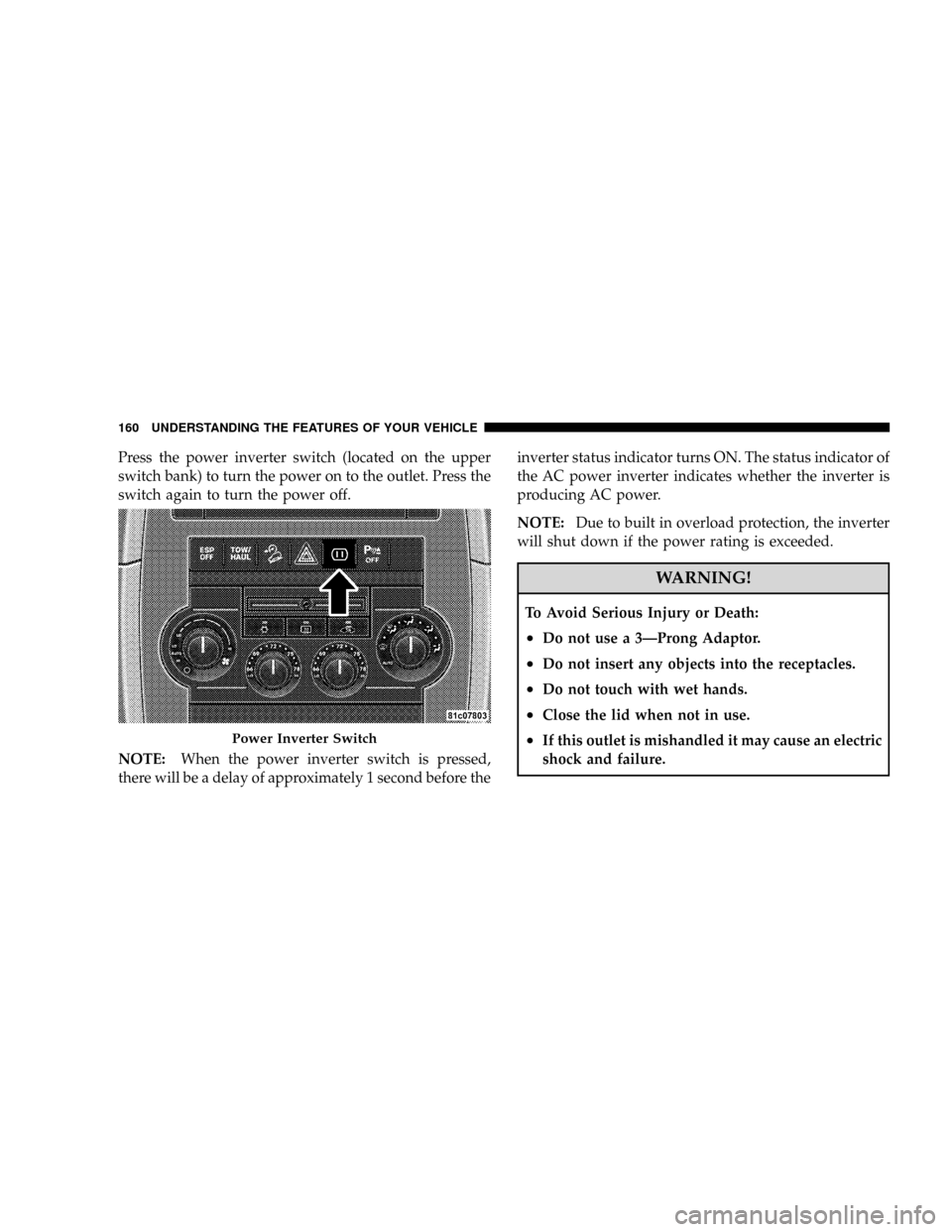

Press the power inverter switch (located on the upper
switch bank) to turn the power on to the outlet. Press the
switch again to turn the power off.
NOTE:When the power inverter switch is pressed,
there will be a delay of approximately 1 second before theinverter status indicator turns ON. The status indicator of
the AC power inverter indicates whether the inverter is
producing AC power.
NOTE:Due to built in overload protection, the inverter
will shut down if the power rating is exceeded.
WARNING!
To Avoid Serious Injury or Death:
²Do not use a 3ÐProng Adaptor.
²Do not insert any objects into the receptacles.
²Do not touch with wet hands.
²Close the lid when not in use.
²If this outlet is mishandled it may cause an electric
shock and failure.Power Inverter Switch
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

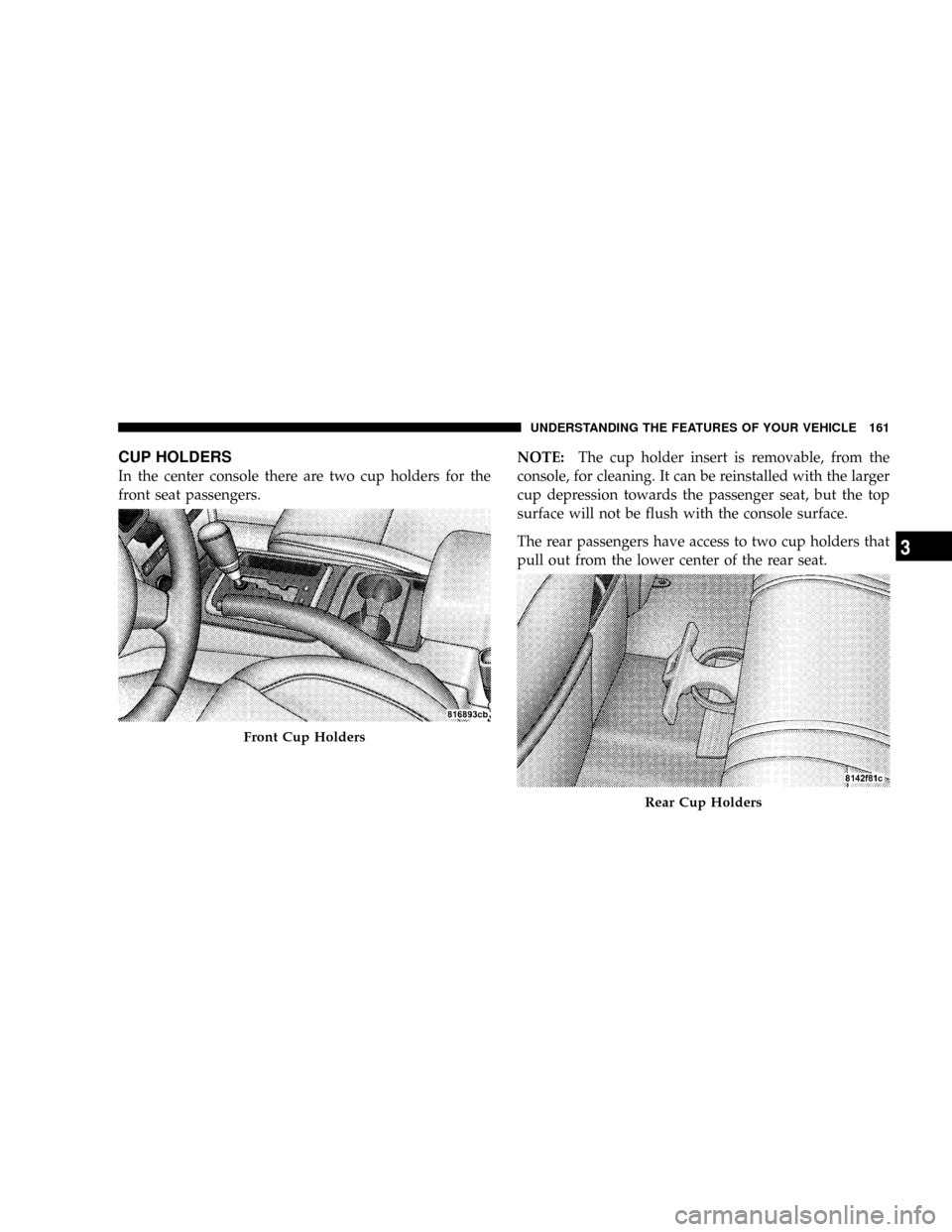

CUP HOLDERS
In the center console there are two cup holders for the
front seat passengers.NOTE:The cup holder insert is removable, from the
console, for cleaning. It can be reinstalled with the larger
cup depression towards the passenger seat, but the top
surface will not be flush with the console surface.
The rear passengers have access to two cup holders that
pull out from the lower center of the rear seat.
Front Cup Holders
Rear Cup Holders
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

CARGO AREA FEATURES
Cargo Light
The cargo area light is activated by opening the liftgate,
opening any door, or by rotating the dimmer control on
the multi-function control lever to the extreme top posi-
tion. If all doors are closed and only the liftgate is open,
pushing on the cargo light lens surface will turn off all
interior lamps. Push on the lens surface a second time to
restore the interior lights to normal operation.
Rear Storage Compartment
The rear storage compartment is located on the driver's
side behind the second row seat.
Rear Storage Compartment
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

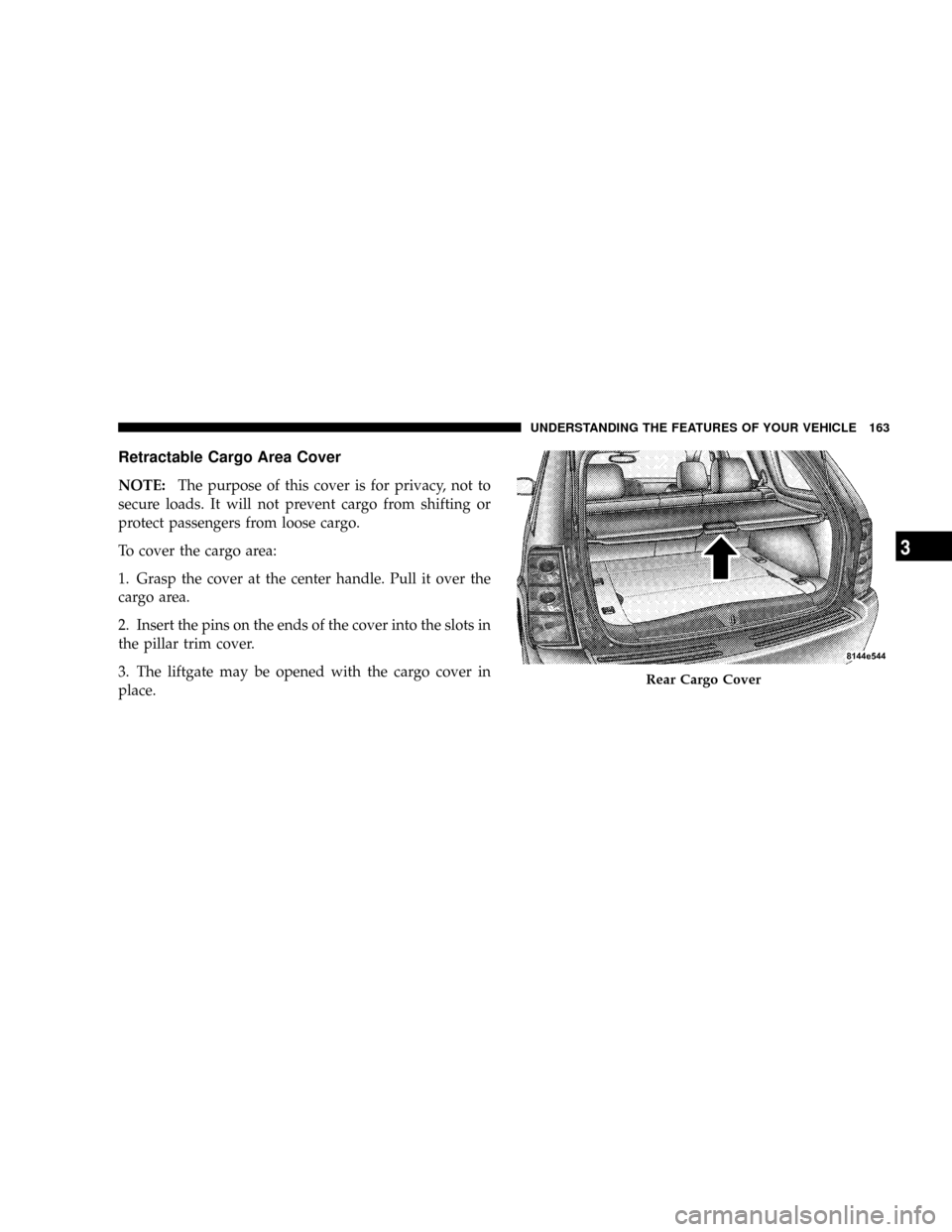

Retractable Cargo Area Cover
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
To cover the cargo area:
1. Grasp the cover at the center handle. Pull it over the
cargo area.
2. Insert the pins on the ends of the cover into the slots in
the pillar trim cover.
3. The liftgate may be opened with the cargo cover in
place.
Rear Cargo Cover
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163
3

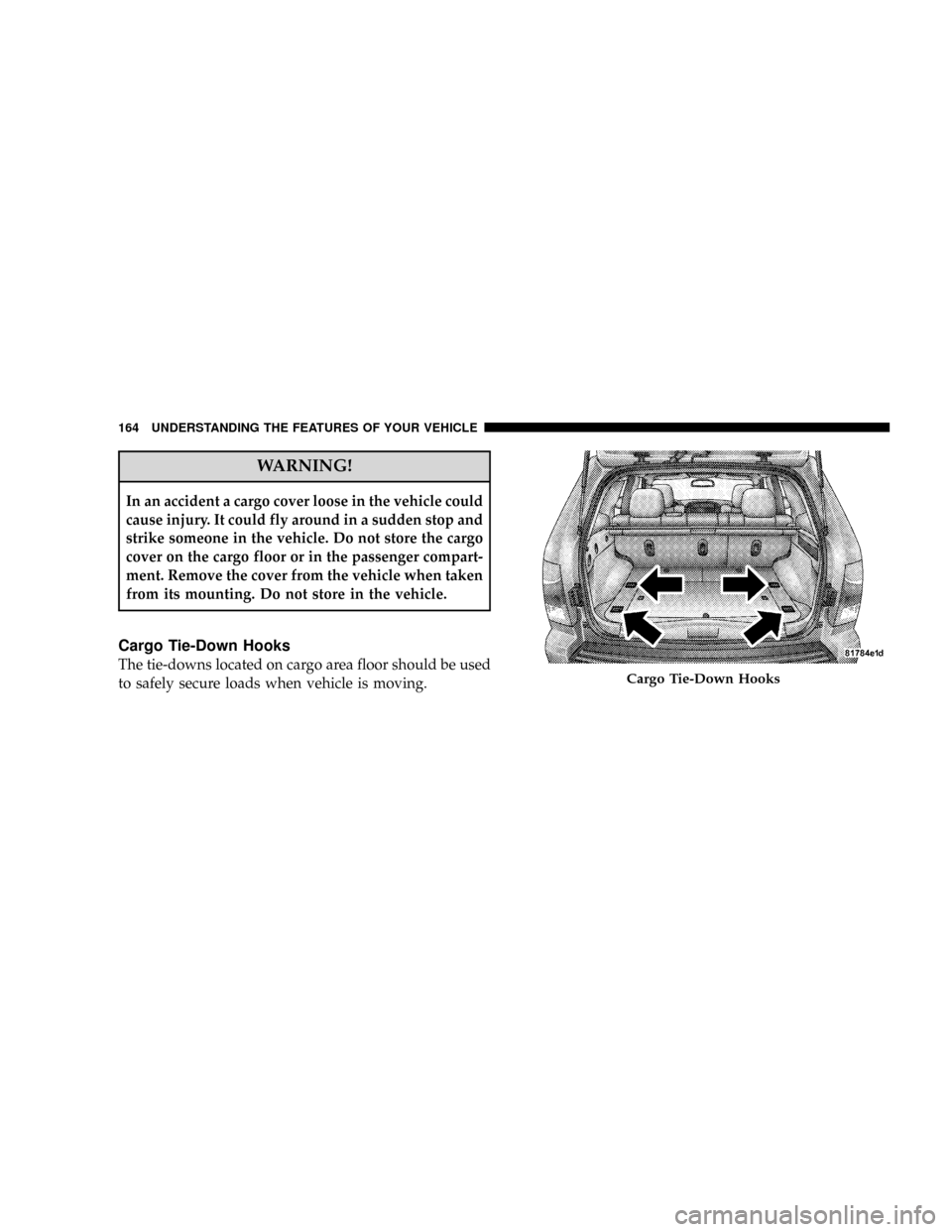

WARNING!
In an accident a cargo cover loose in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store in the vehicle.
Cargo Tie-Down Hooks
The tie-downs located on cargo area floor should be used
to safely secure loads when vehicle is moving.Cargo Tie-Down Hooks
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

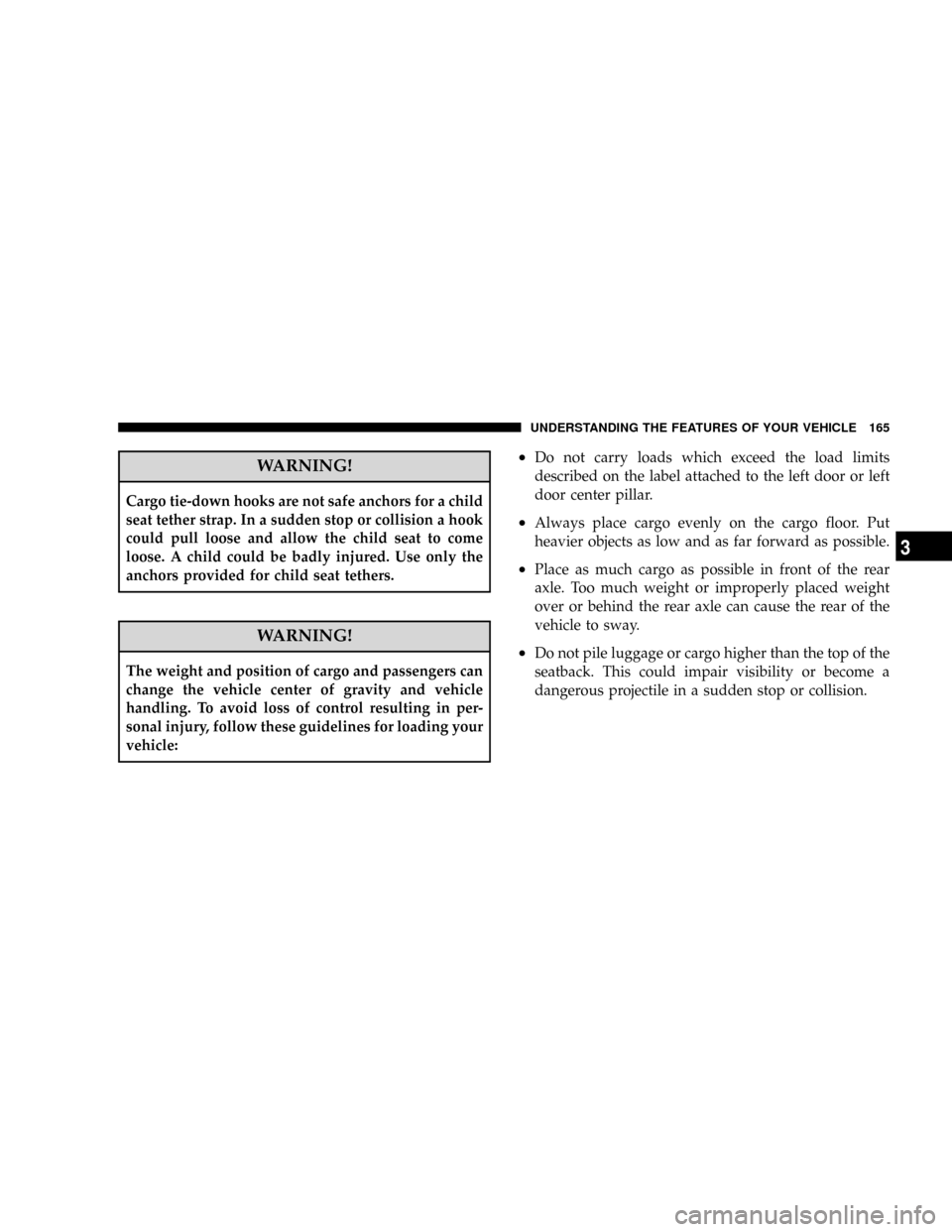

WARNING!
Cargo tie-down hooks are not safe anchors for a child
seat tether strap. In a sudden stop or collision a hook
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
²Do not carry loads which exceed the load limits
described on the label attached to the left door or left
door center pillar.
²Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
²Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.
²Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

WARNING!
To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.
Cargo Load Floor
The panel in the load floor is reversible for added utility.
One side is carpeted and the other side features a plastic
lined tray which holds a variety of items.
The cargo load floor is held by spring loaded latches. In
order to use the cargo load floor, use the following
procedure:
NOTE: The cargo load floor latches should not be
used as cargo tie-downs.
Cargo Load Floor
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

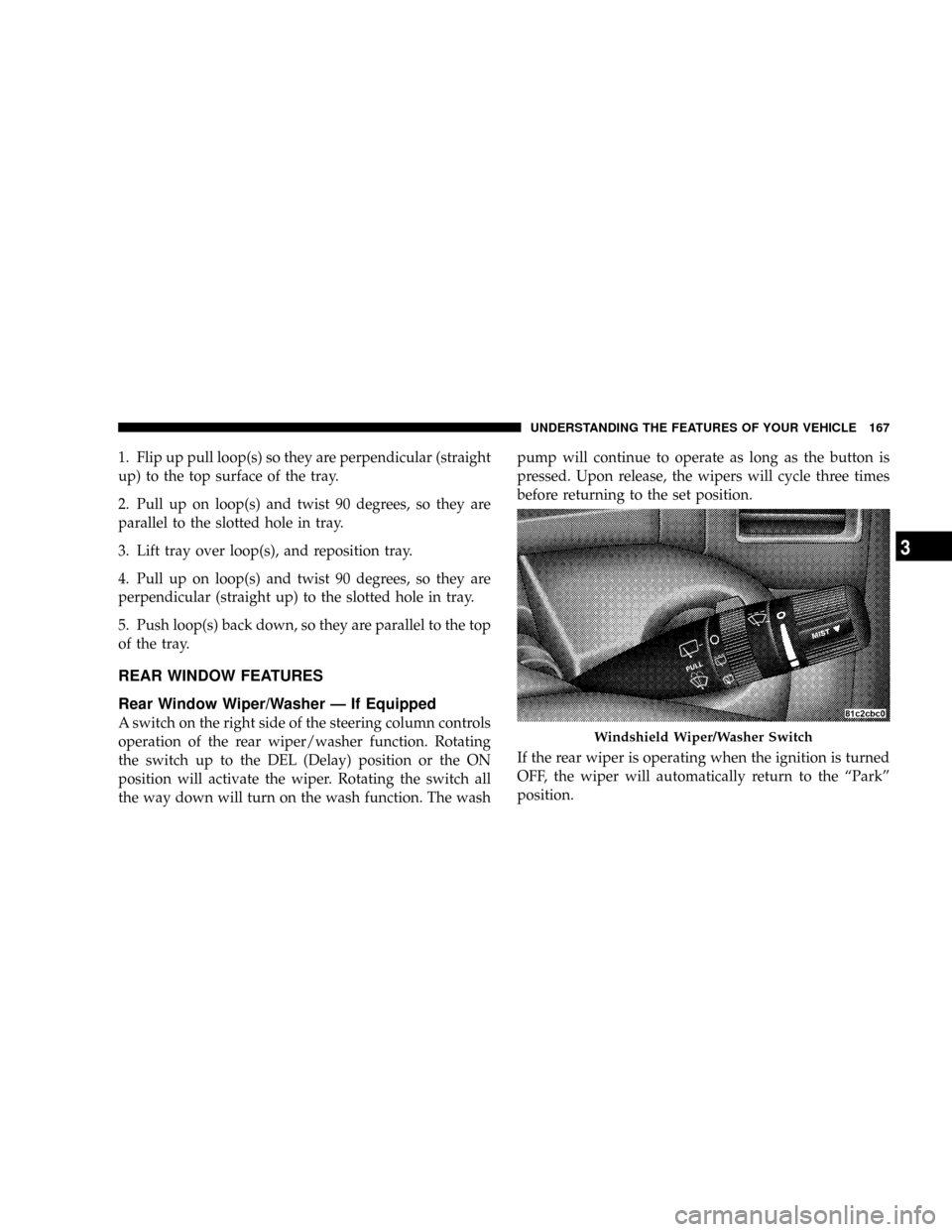

1. Flip up pull loop(s) so they are perpendicular (straight
up) to the top surface of the tray.
2. Pull up on loop(s) and twist 90 degrees, so they are
parallel to the slotted hole in tray.
3. Lift tray over loop(s), and reposition tray.
4. Pull up on loop(s) and twist 90 degrees, so they are
perpendicular (straight up) to the slotted hole in tray.
5. Push loop(s) back down, so they are parallel to the top
of the tray.
REAR WINDOW FEATURES
Rear Window Wiper/Washer Ð If Equipped
A switch on the right side of the steering column controls
operation of the rear wiper/washer function. Rotating
the switch up to the DEL (Delay) position or the ON
position will activate the wiper. Rotating the switch all
the way down will turn on the wash function. The washpump will continue to operate as long as the button is
pressed. Upon release, the wipers will cycle three times
before returning to the set position.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the ªParkº
position.Windshield Wiper/Washer Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167
3

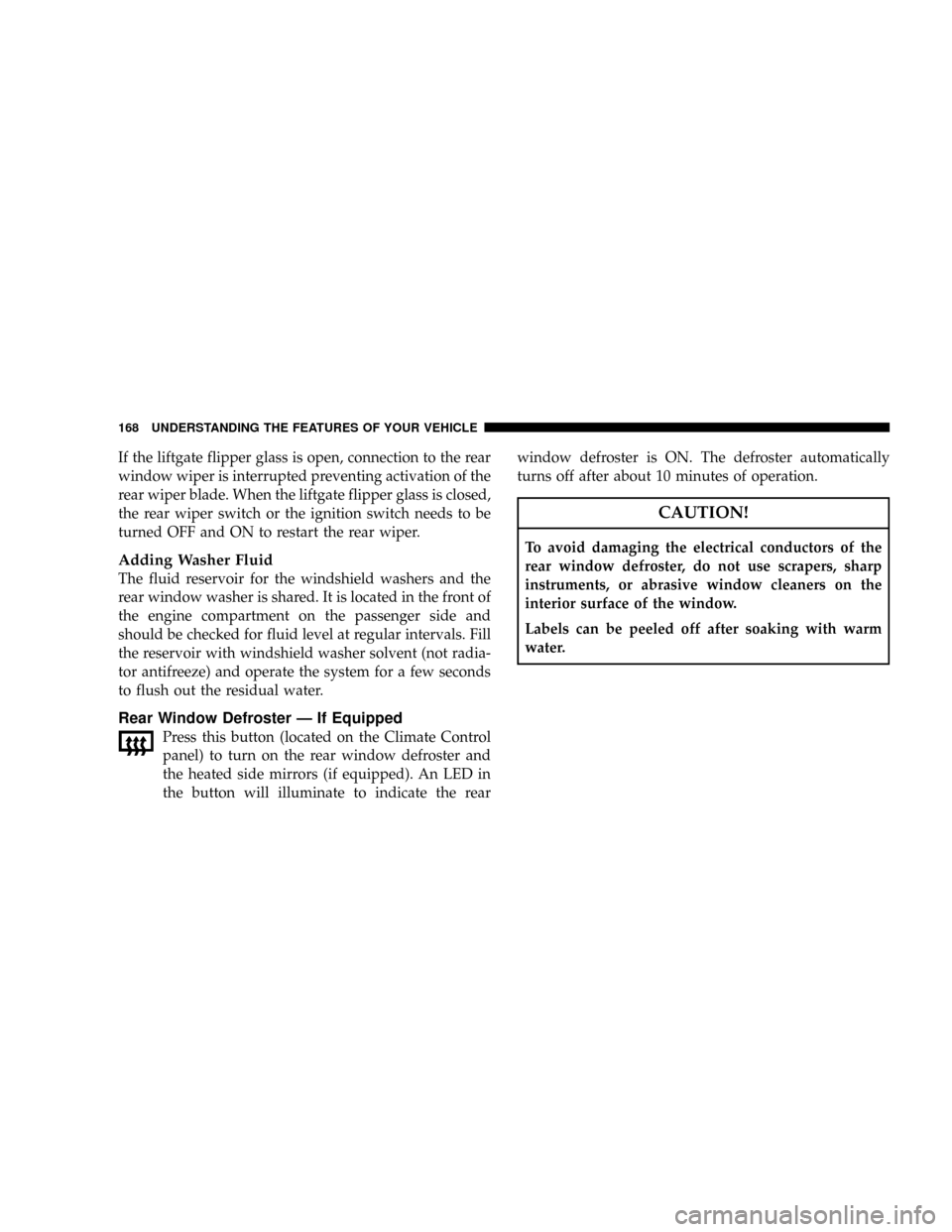

If the liftgate flipper glass is open, connection to the rear
window wiper is interrupted preventing activation of the
rear wiper blade. When the liftgate flipper glass is closed,
the rear wiper switch or the ignition switch needs to be
turned OFF and ON to restart the rear wiper.
Adding Washer Fluid
The fluid reservoir for the windshield washers and the
rear window washer is shared. It is located in the front of
the engine compartment on the passenger side and
should be checked for fluid level at regular intervals. Fill
the reservoir with windshield washer solvent (not radia-
tor antifreeze) and operate the system for a few seconds
to flush out the residual water.
Rear Window Defroster Ð If Equipped
Press this button (located on the Climate Control
panel) to turn on the rear window defroster and
the heated side mirrors (if equipped). An LED in
the button will illuminate to indicate the rearwindow defroster is ON. The defroster automatically
turns off after about 10 minutes of operation.
CAUTION!
To avoid damaging the electrical conductors of the
rear window defroster, do not use scrapers, sharp
instruments, or abrasive window cleaners on the
interior surface of the window.
Labels can be peeled off after soaking with warm
water.
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

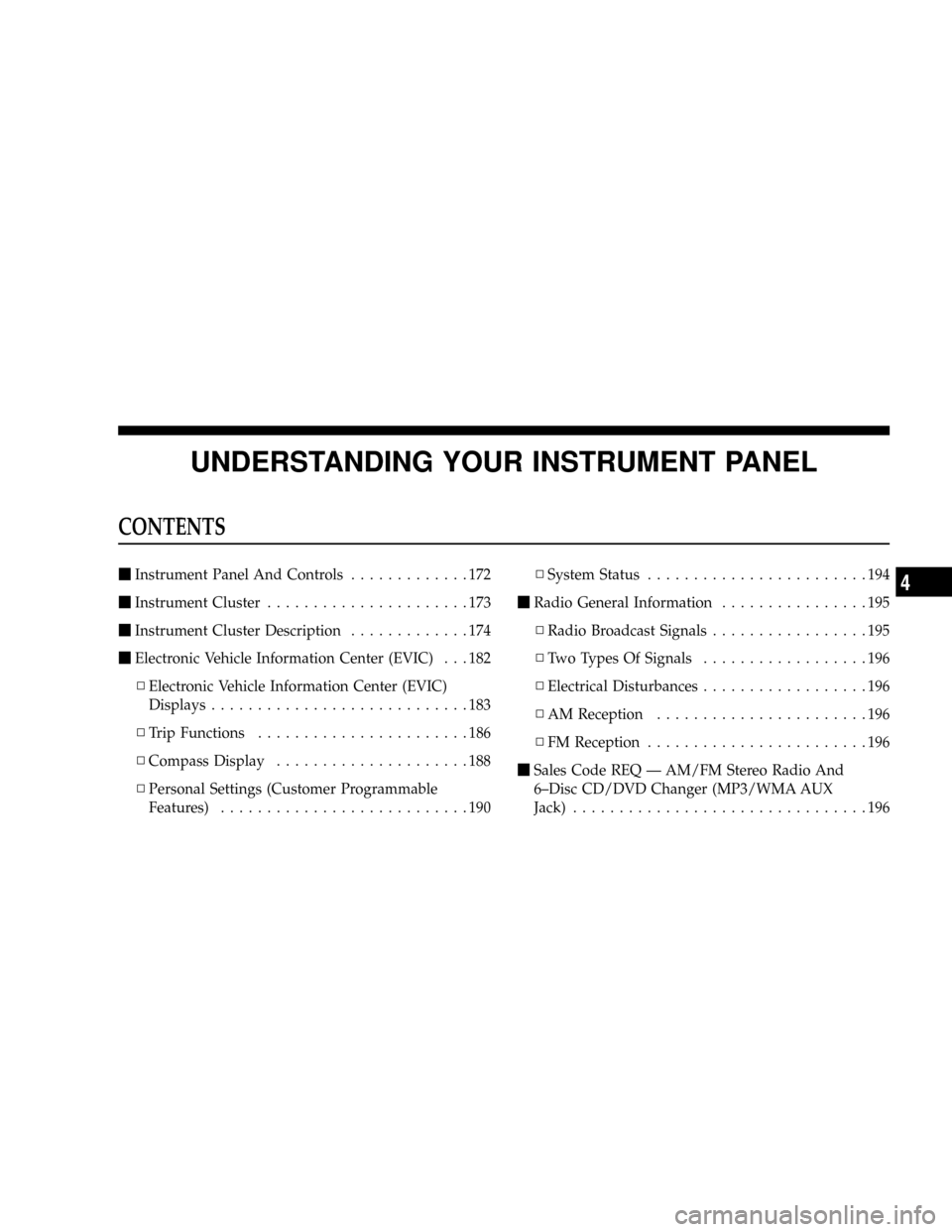

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
mInstrument Panel And Controls.............172
mInstrument Cluster......................173
mInstrument Cluster Description.............174
mElectronic Vehicle Information Center (EVIC) . . . 182
NElectronic Vehicle Information Center (EVIC)
Displays............................183
NTrip Functions.......................186
NCompass Display.....................188
NPersonal Settings (Customer Programmable
Features)...........................190NSystem Status........................194
mRadio General Information................195
NRadio Broadcast Signals.................195
NTwo Types Of Signals..................196
NElectrical Disturbances..................196
NAM Reception.......................196
NFM Reception........................196
mSales Code REQ Ð AM/FM Stereo Radio And
6±Disc CD/DVD Changer (MP3/WMA AUX
Jack)................................1964
