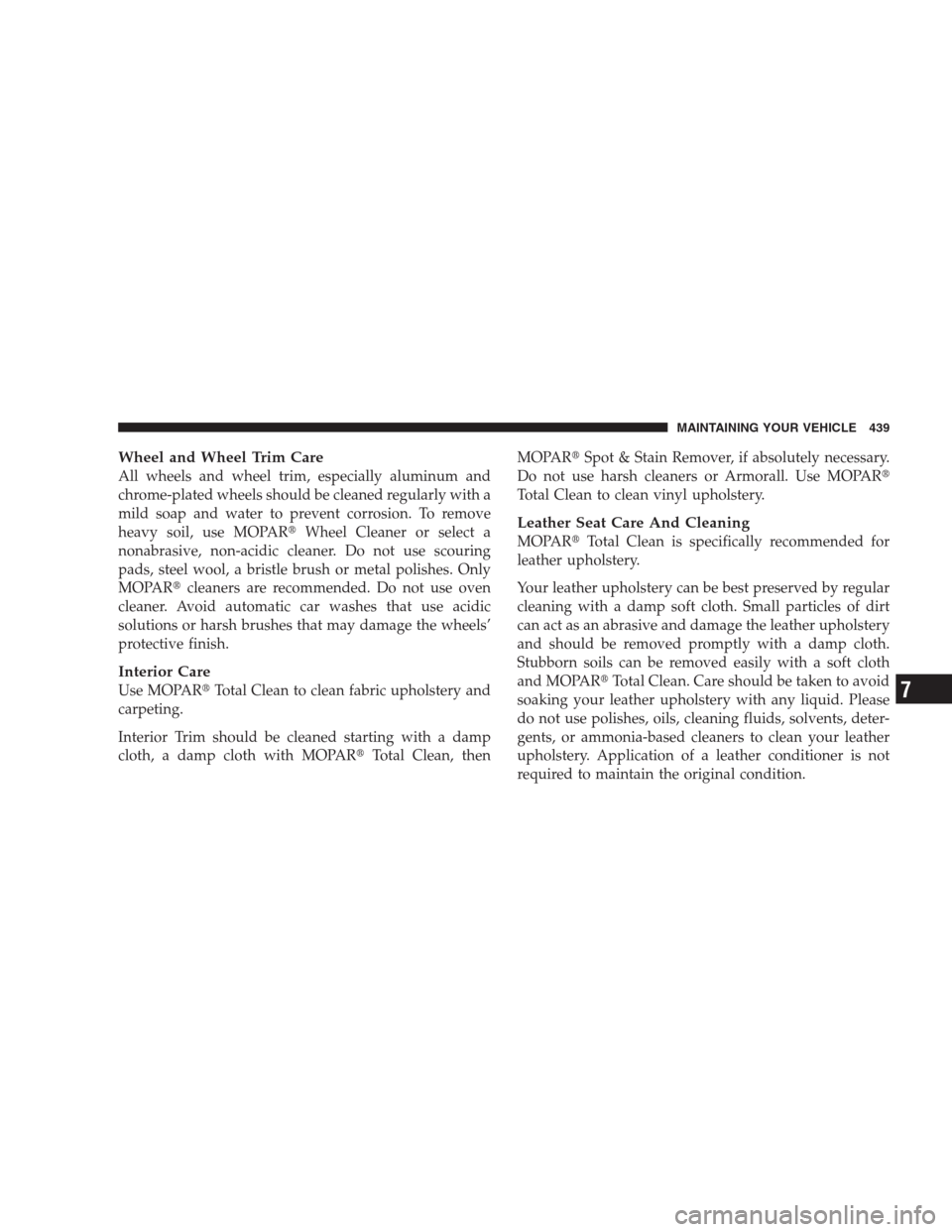

Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with a
mild soap and water to prevent corrosion. To remove
heavy soil, use MOPARWheel Cleaner or select a
nonabrasive, non-acidic cleaner. Do not use scouring
pads, steel wool, a bristle brush or metal polishes. Only
MOPARcleaners are recommended. Do not use oven
cleaner. Avoid automatic car washes that use acidic
solutions or harsh brushes that may damage the wheels’
protective finish.
Interior Care
Use MOPARTotal Clean to clean fabric upholstery and
carpeting.
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPARTotal Clean, thenMOPARSpot & Stain Remover, if absolutely necessary.
Do not use harsh cleaners or Armorall. Use MOPAR
Total Clean to clean vinyl upholstery.
Leather Seat Care And Cleaning
MOPARTotal Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPARTotal Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
MAINTAINING YOUR VEHICLE 439
7

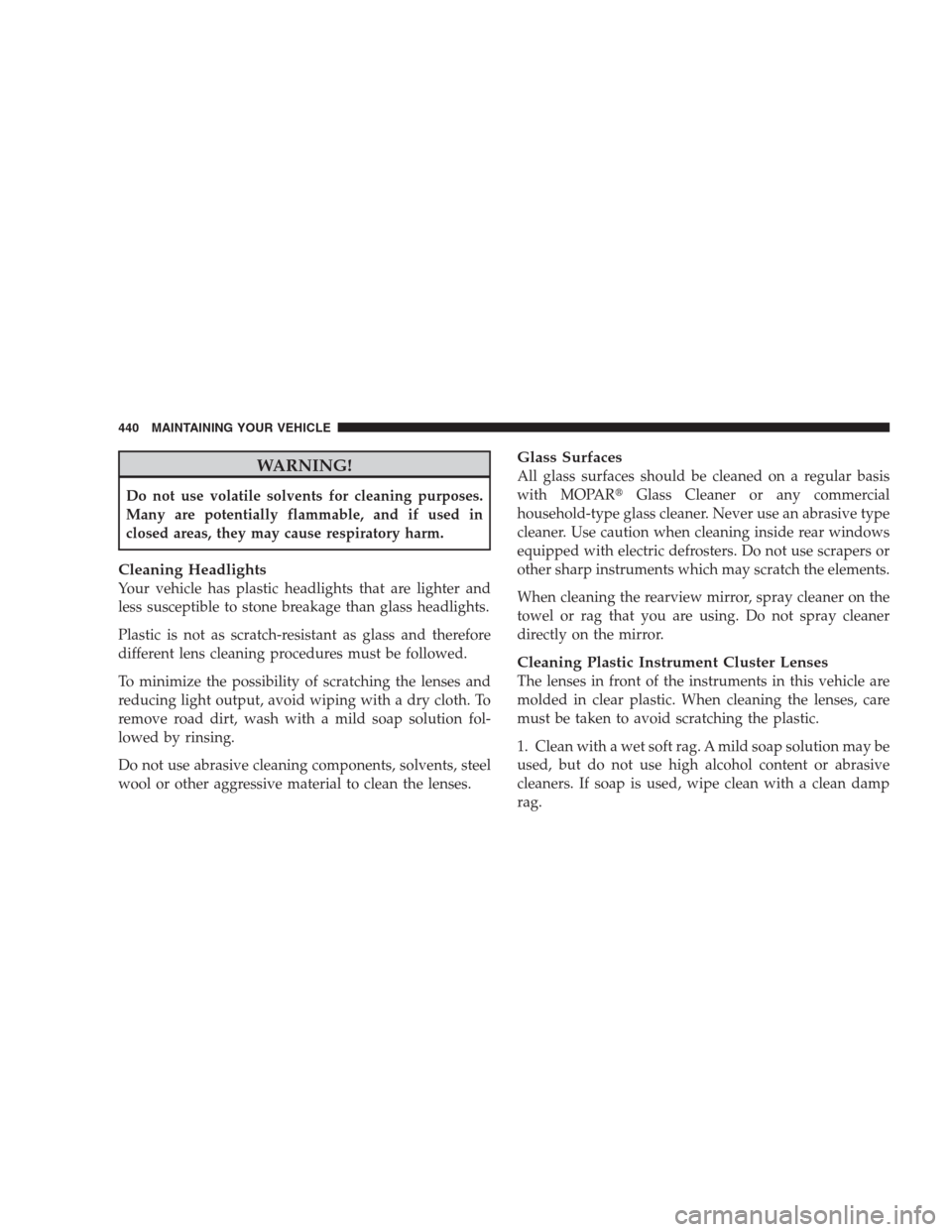

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch-resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
440 MAINTAINING YOUR VEHICLE

2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use MOPARTotal Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.

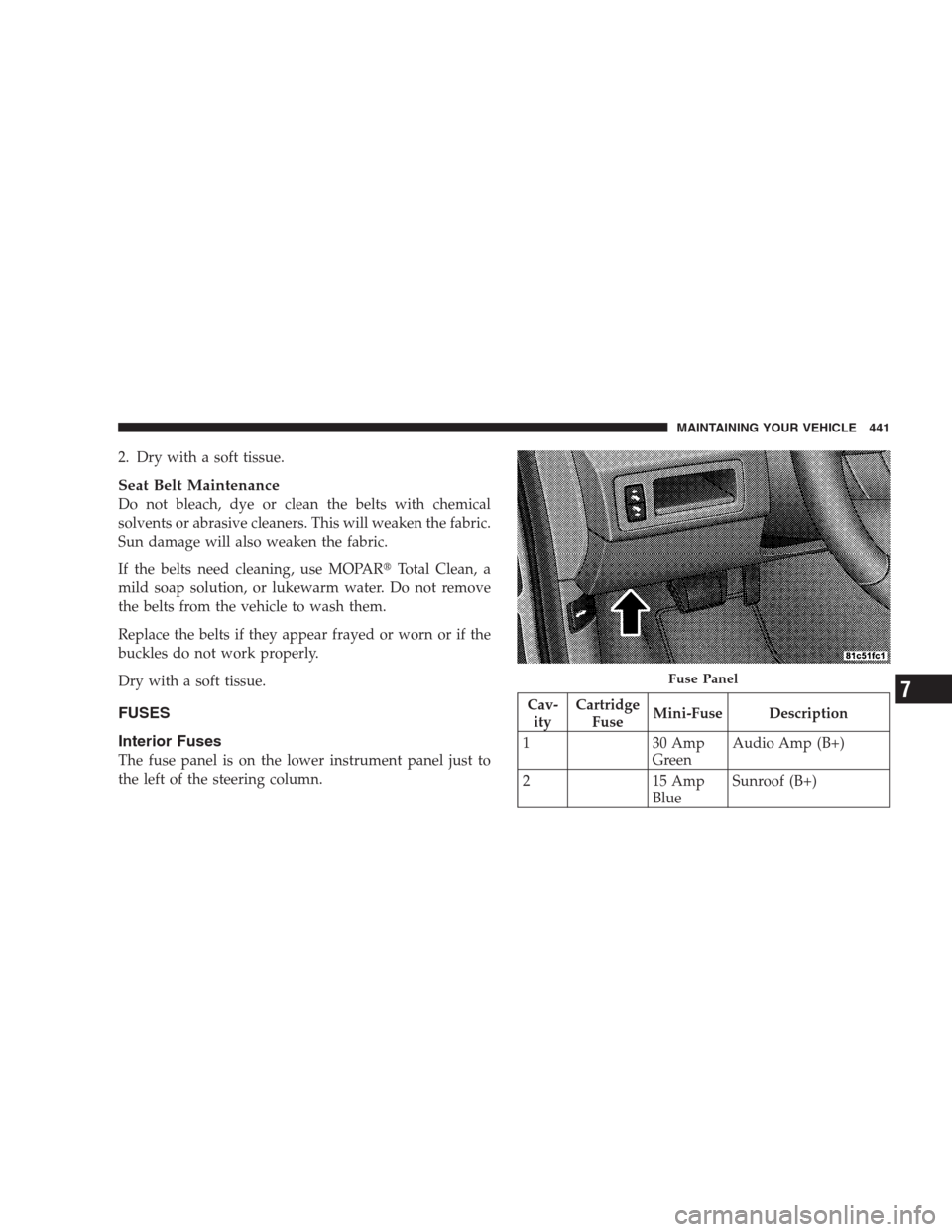

FUSES
Interior Fuses
The fuse panel is on the lower instrument panel just to
the left of the steering column.
Cav-
ityCartridge
FuseMini-Fuse Description
1 30 Amp
GreenAudio Amp (B+)
2 15 Amp
BlueSunroof (B+)
Fuse Panel
MAINTAINING YOUR VEHICLE 441
7

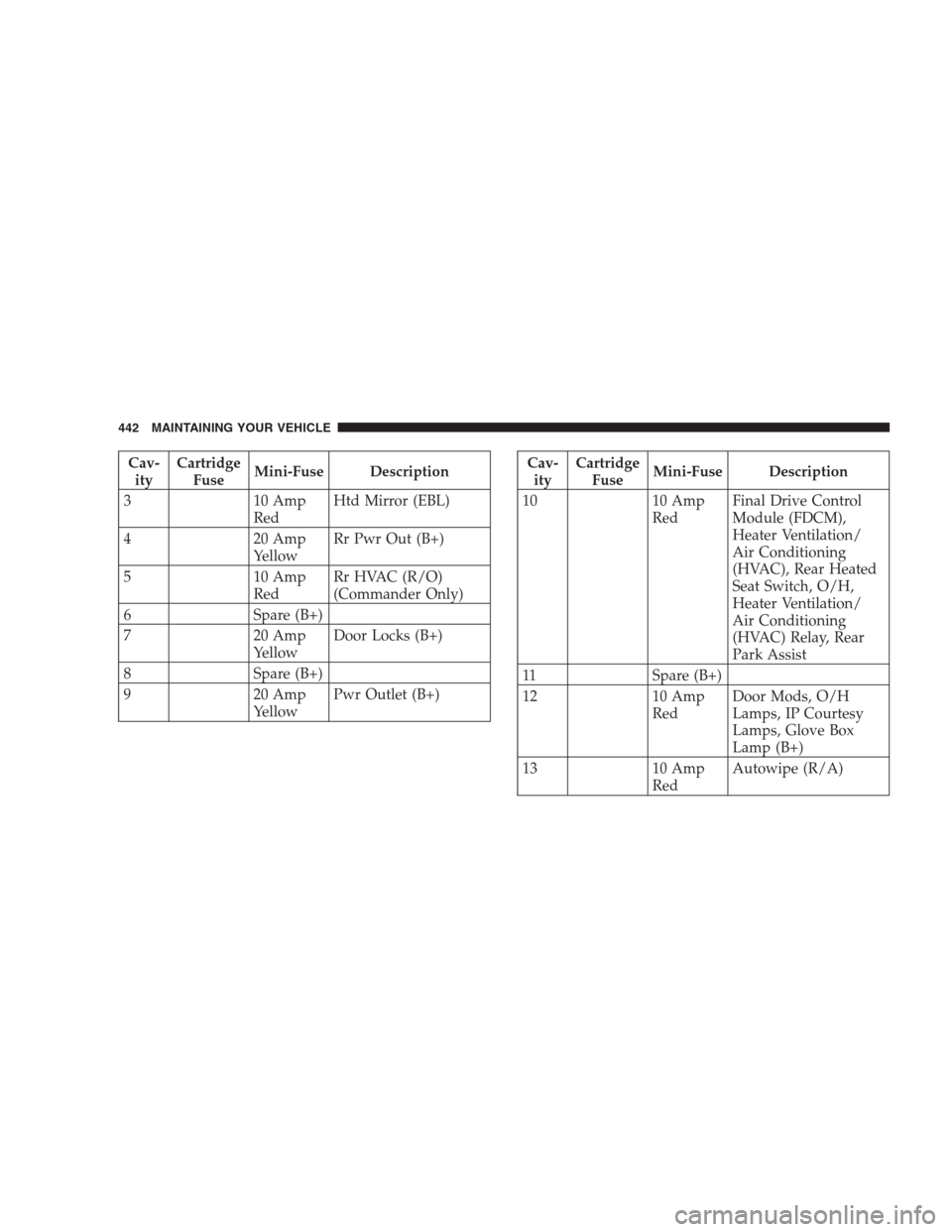

Cav-
ityCartridge
FuseMini-Fuse Description
3 10 Amp
RedHtd Mirror (EBL)
4 20 Amp
YellowRr Pwr Out (B+)
5 10 Amp
RedRr HVAC (R/O)
(Commander Only)
6 Spare (B+)
7 20 Amp
YellowDoor Locks (B+)
8 Spare (B+)
9 20 Amp
YellowPwr Outlet (B+)Cav-
ityCartridge
FuseMini-Fuse Description
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation/
Air Conditioning
(HVAC), Rear Heated
Seat Switch, O/H,
Heater Ventilation/
Air Conditioning
(HVAC) Relay, Rear
Park Assist
11 Spare (B+)
12 10 Amp
RedDoor Mods, O/H
Lamps, IP Courtesy
Lamps, Glove Box
Lamp (B+)
13 10 Amp
RedAutowipe (R/A)
442 MAINTAINING YOUR VEHICLE

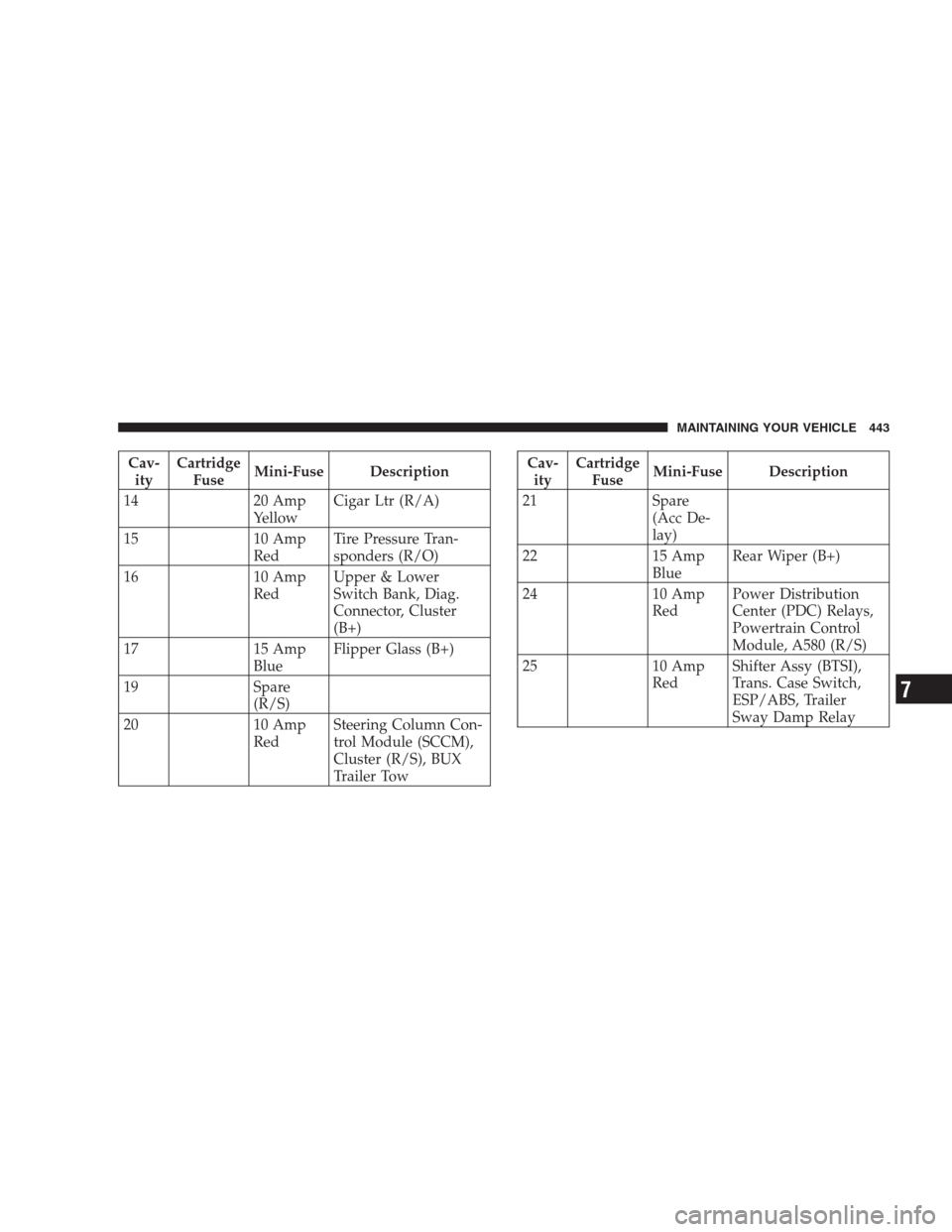

Cav-
ityCartridge
FuseMini-Fuse Description
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare
(R/S)
20 10 Amp
RedSteering Column Con-
trol Module (SCCM),
Cluster (R/S), BUX
Trailer TowCav-
ityCartridge
FuseMini-Fuse Description
21 Spare
(Acc De-
lay)
22 15 Amp
BlueRear Wiper (B+)
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer
Sway Damp Relay
MAINTAINING YOUR VEHICLE 443
7

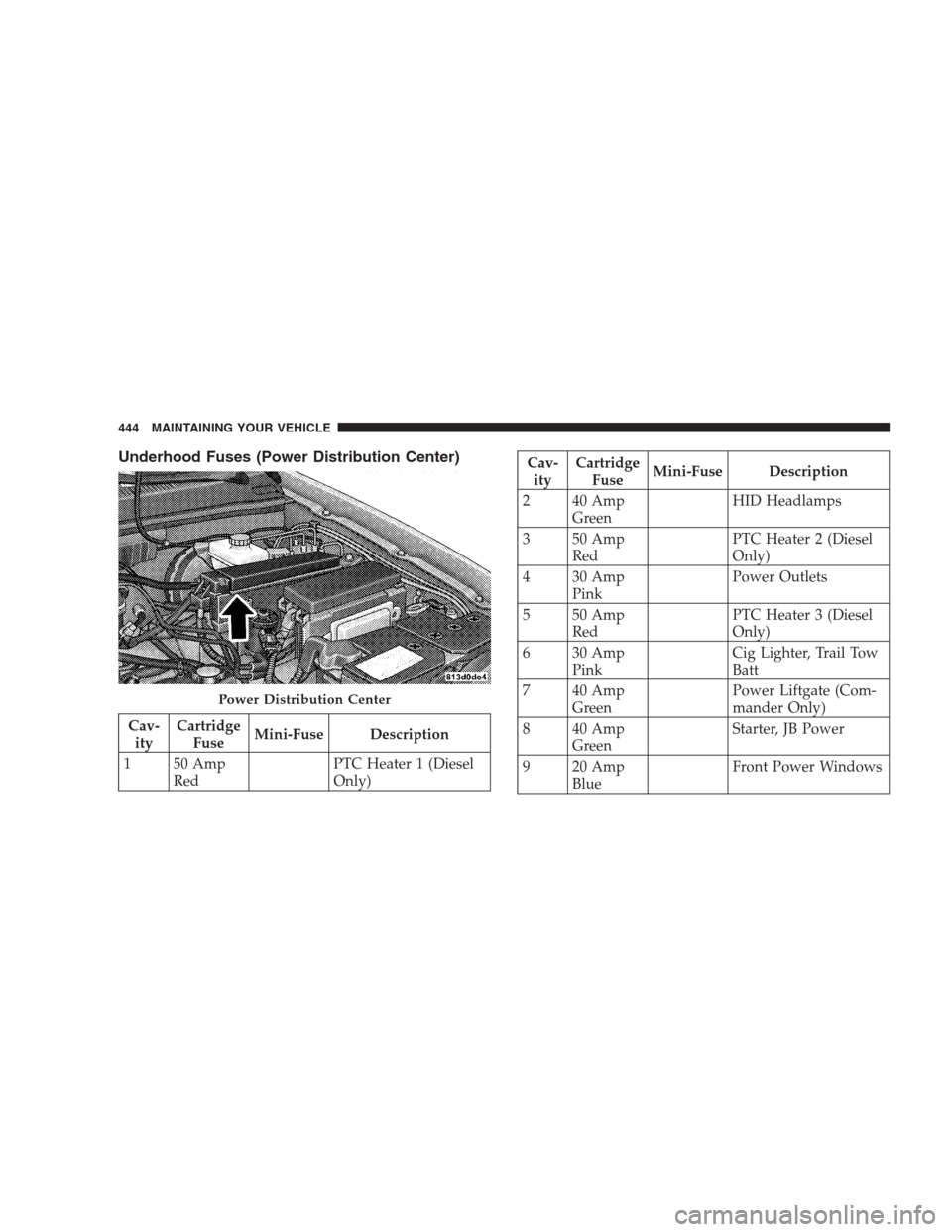

Underhood Fuses (Power Distribution Center)
Cav-
ityCartridge
FuseMini-Fuse Description
1 50 Amp
RedPTC Heater 1 (Diesel
Only)
Cav-
ityCartridge
FuseMini-Fuse Description
2 40 Amp
GreenHID Headlamps
3 50 Amp
RedPTC Heater 2 (Diesel
Only)
4 30 Amp
PinkPower Outlets
5 50 Amp
RedPTC Heater 3 (Diesel
Only)
6 30 Amp
PinkCig Lighter, Trail Tow
Batt
7 40 Amp
GreenPower Liftgate (Com-
mander Only)
8 40 Amp
GreenStarter, JB Power
9 20 Amp
BlueFront Power Windows
Power Distribution Center
444 MAINTAINING YOUR VEHICLE

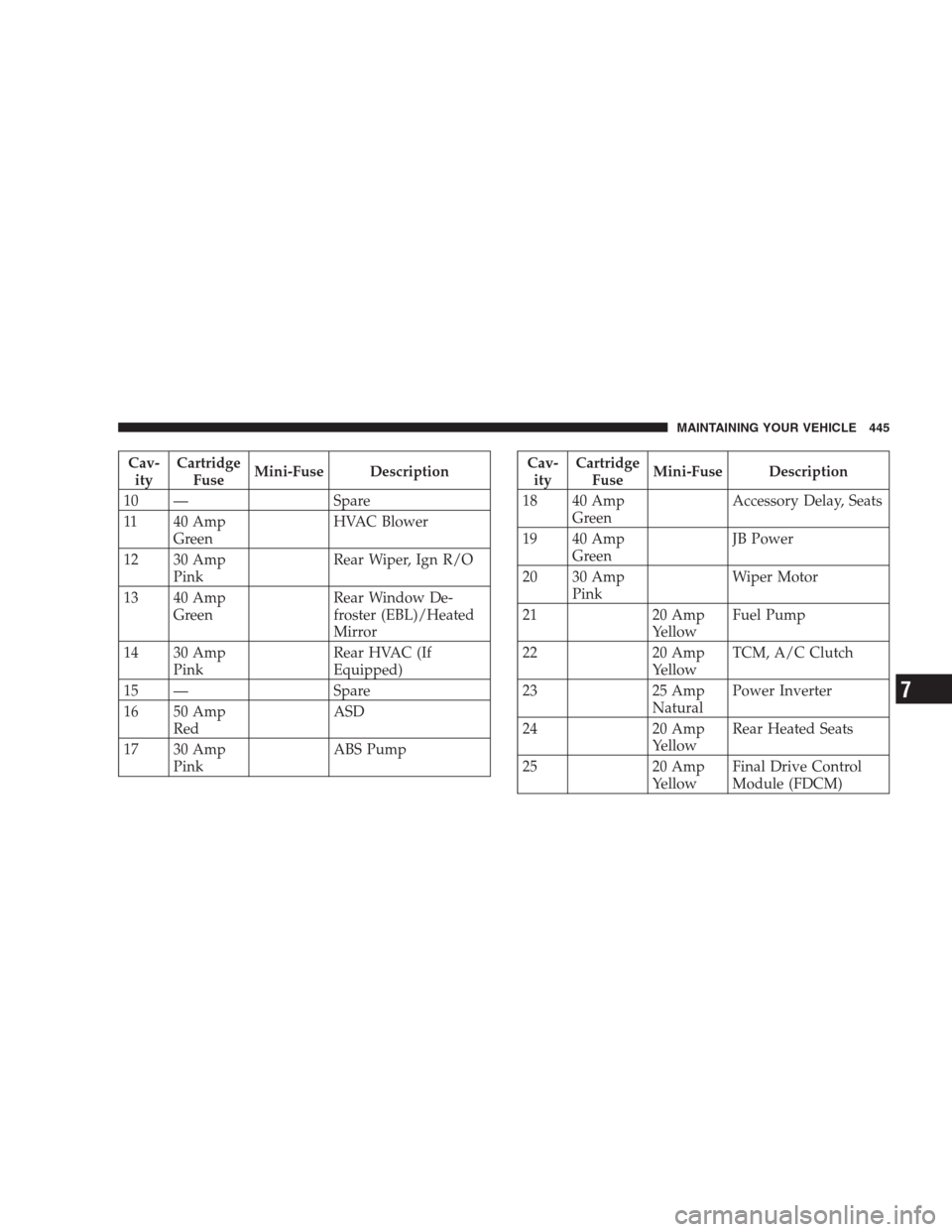

Cav-
ityCartridge
FuseMini-Fuse Description
10 — Spare
11 40 Amp
GreenHVAC Blower
12 30 Amp
PinkRear Wiper, Ign R/O
13 40 Amp
GreenRear Window De-
froster (EBL)/Heated
Mirror
14 30 Amp
PinkRear HVAC (If
Equipped)
15 — Spare
16 50 Amp
RedASD
17 30 Amp
PinkABS PumpCav-
ityCartridge
FuseMini-Fuse Description
18 40 Amp
GreenAccessory Delay, Seats
19 40 Amp
GreenJB Power
20 30 Amp
PinkWiper Motor
21 20 Amp
YellowFuel Pump
22 20 Amp
YellowTCM, A/C Clutch
23 25 Amp
NaturalPower Inverter
24 20 Amp
YellowRear Heated Seats
25 20 Amp
YellowFinal Drive Control
Module (FDCM)
MAINTAINING YOUR VEHICLE 445
7

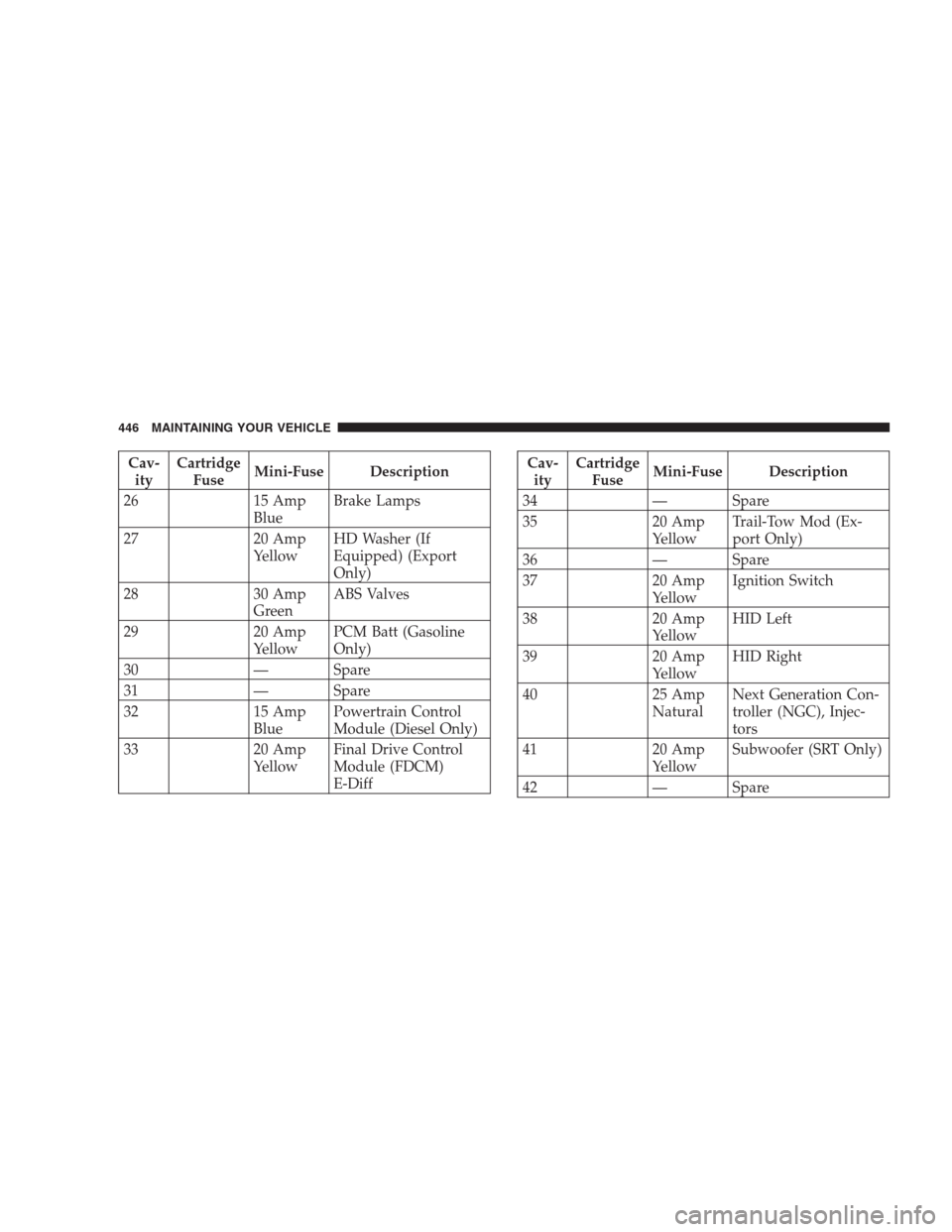

Cav-
ityCartridge
FuseMini-Fuse Description
26 15 Amp
BlueBrake Lamps
27 20 Amp
YellowHD Washer (If
Equipped) (Export
Only)
28 30 Amp
GreenABS Valves
29 20 Amp
YellowPCM Batt (Gasoline
Only)
30 — Spare
31 — Spare
32 15 Amp
BluePowertrain Control
Module (Diesel Only)
33 20 Amp
YellowFinal Drive Control
Module (FDCM)
E-DiffCav-
ityCartridge
FuseMini-Fuse Description
34 — Spare
35 20 Amp
YellowTrail-Tow Mod (Ex-
port Only)
36 — Spare
37 20 Amp
YellowIgnition Switch
38 20 Amp
YellowHID Left
39 20 Amp
YellowHID Right
40 25 Amp
NaturalNext Generation Con-
troller (NGC), Injec-
tors
41 20 Amp
YellowSubwoofer (SRT Only)
42 — Spare
446 MAINTAINING YOUR VEHICLE

Cav-
ityCartridge
FuseMini-Fuse Description
43 25 Amp
NaturalCoils, Actuators
44 — Spare

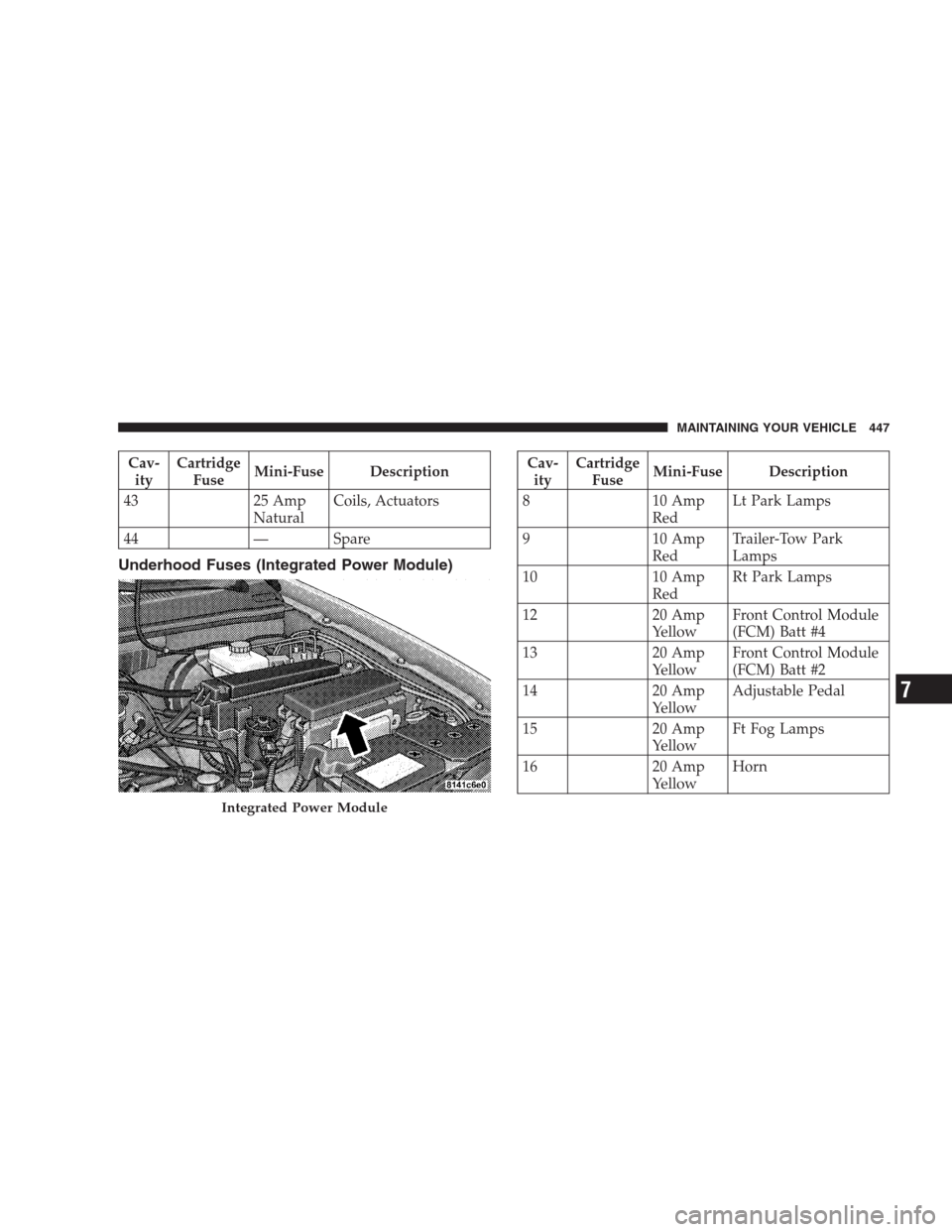

Underhood Fuses (Integrated Power Module)
Cav-
ityCartridge
FuseMini-Fuse Description
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
Integrated Power Module
MAINTAINING YOUR VEHICLE 447
7

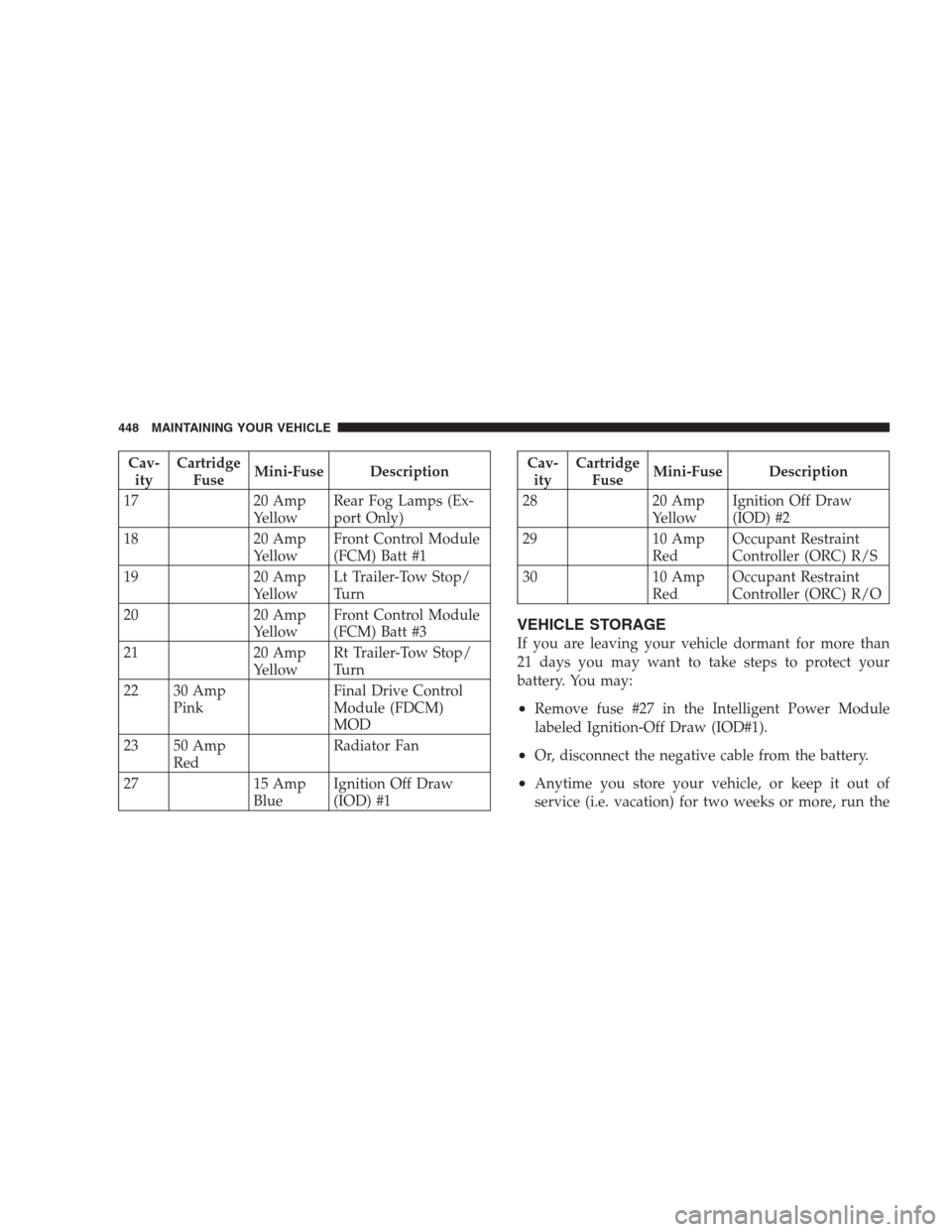

Cav-
ityCartridge
FuseMini-Fuse Description
17 20 Amp
YellowRear Fog Lamps (Ex-
port Only)
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFinal Drive Control
Module (FDCM)
MOD
23 50 Amp
RedRadiator Fan
27 15 Amp
BlueIgnition Off Draw
(IOD) #1Cav-
ityCartridge
FuseMini-Fuse Description
28 20 Amp
YellowIgnition Off Draw
(IOD) #2
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC) R/O
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
