display JEEP GRAND CHEROKEE 2009 WK / 3.G Owners Manual

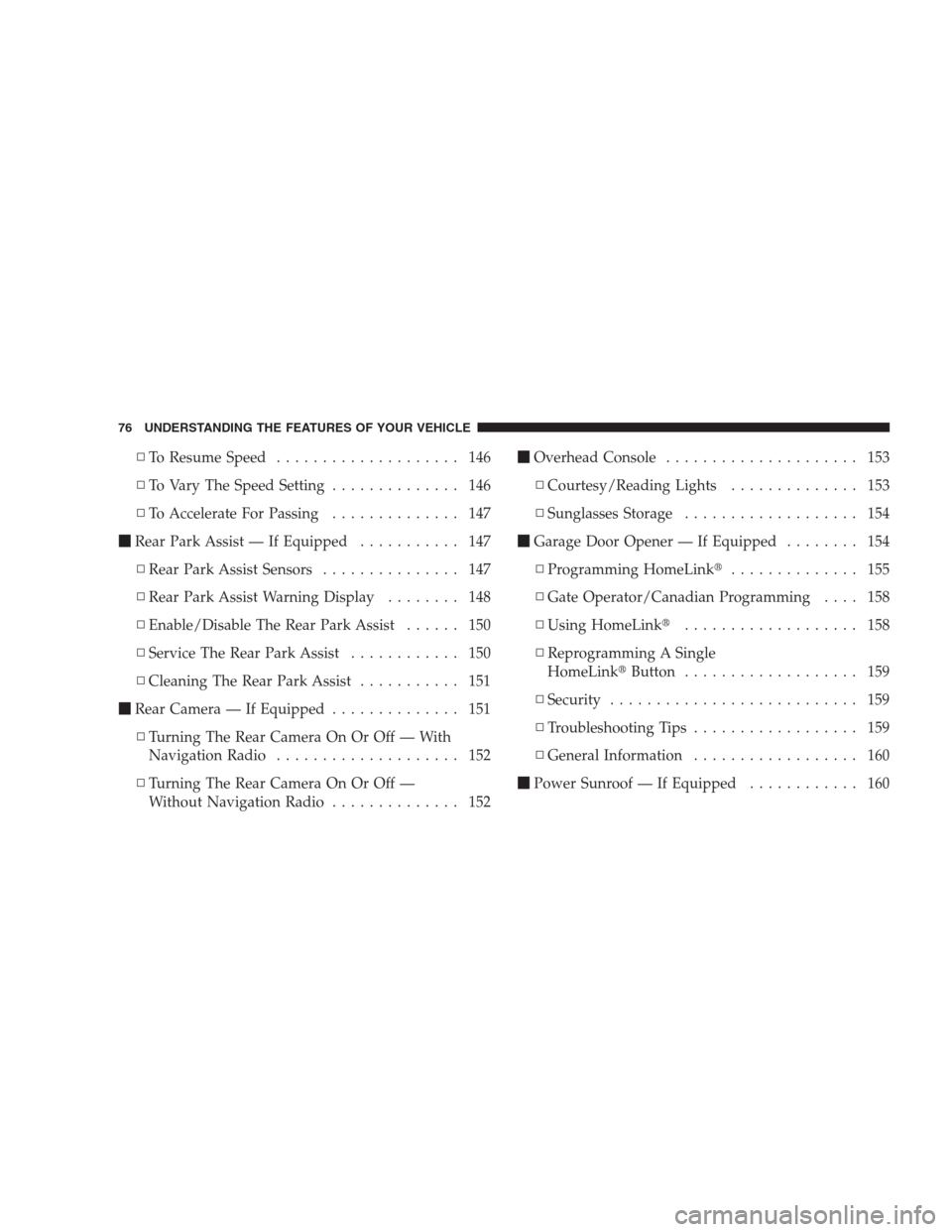

▫To Resume Speed.................... 146
▫To Vary The Speed Setting.............. 146
▫To Accelerate For Passing.............. 147
Rear Park Assist — If Equipped........... 147
▫Rear Park Assist Sensors............... 147
▫Rear Park Assist Warning Display........ 148
▫Enable/Disable The Rear Park Assist...... 150
▫Service The Rear Park Assist............ 150
▫Cleaning The Rear Park Assist........... 151
Rear Camera — If Equipped.............. 151
▫Turning The Rear Camera On Or Off — With
Navigation Radio.................... 152
▫Turning The Rear Camera On Or Off —
Without Navigation Radio.............. 152Overhead Console..................... 153
▫Courtesy/Reading Lights.............. 153
▫Sunglasses Storage................... 154
Garage Door Opener — If Equipped........ 154
▫Programming HomeLink.............. 155
▫Gate Operator/Canadian Programming.... 158
▫Using HomeLink................... 158
▫Reprogramming A Single
HomeLinkButton................... 159
▫Security........................... 159
▫Troubleshooting Tips.................. 159
▫General Information.................. 160
Power Sunroof — If Equipped............ 160
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

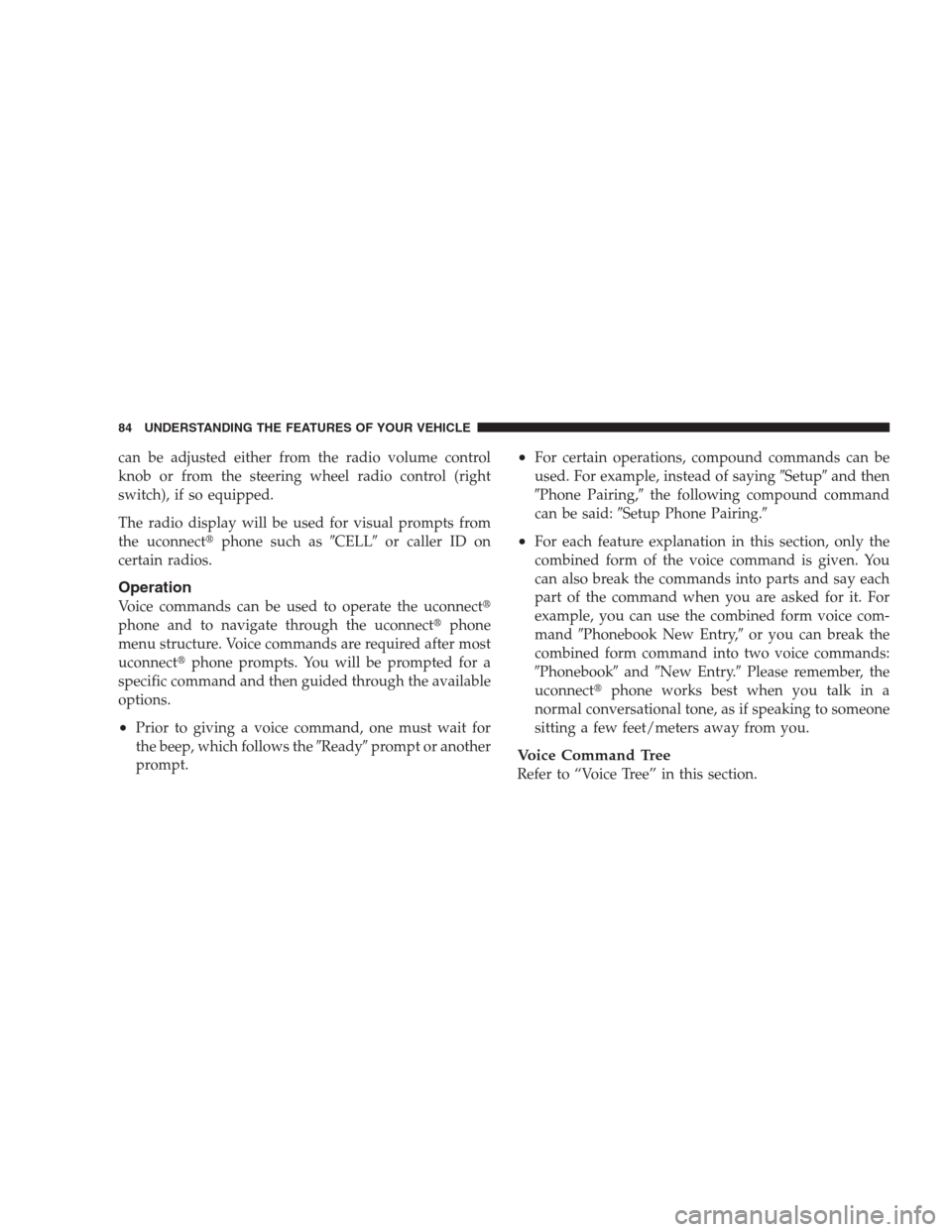

can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the uconnectphone such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the uconnect
phone and to navigate through the uconnectphone
menu structure. Voice commands are required after most
uconnectphone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
uconnectphone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

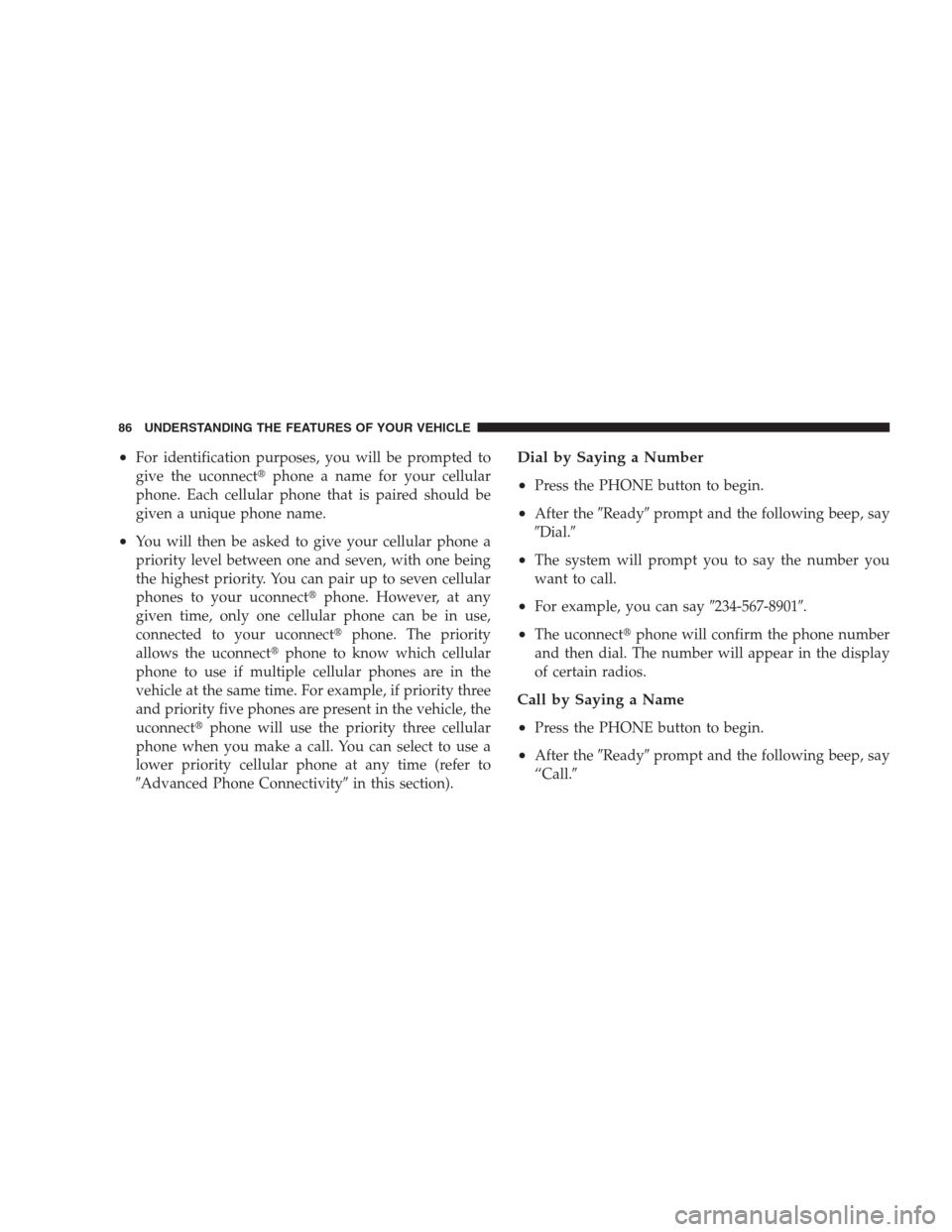

•For identification purposes, you will be prompted to
give the uconnectphone a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnectphone. However, at any
given time, only one cellular phone can be in use,
connected to your uconnectphone. The priority
allows the uconnectphone to know which cellular
phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnectphone will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivityin this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.
•The uconnectphone will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

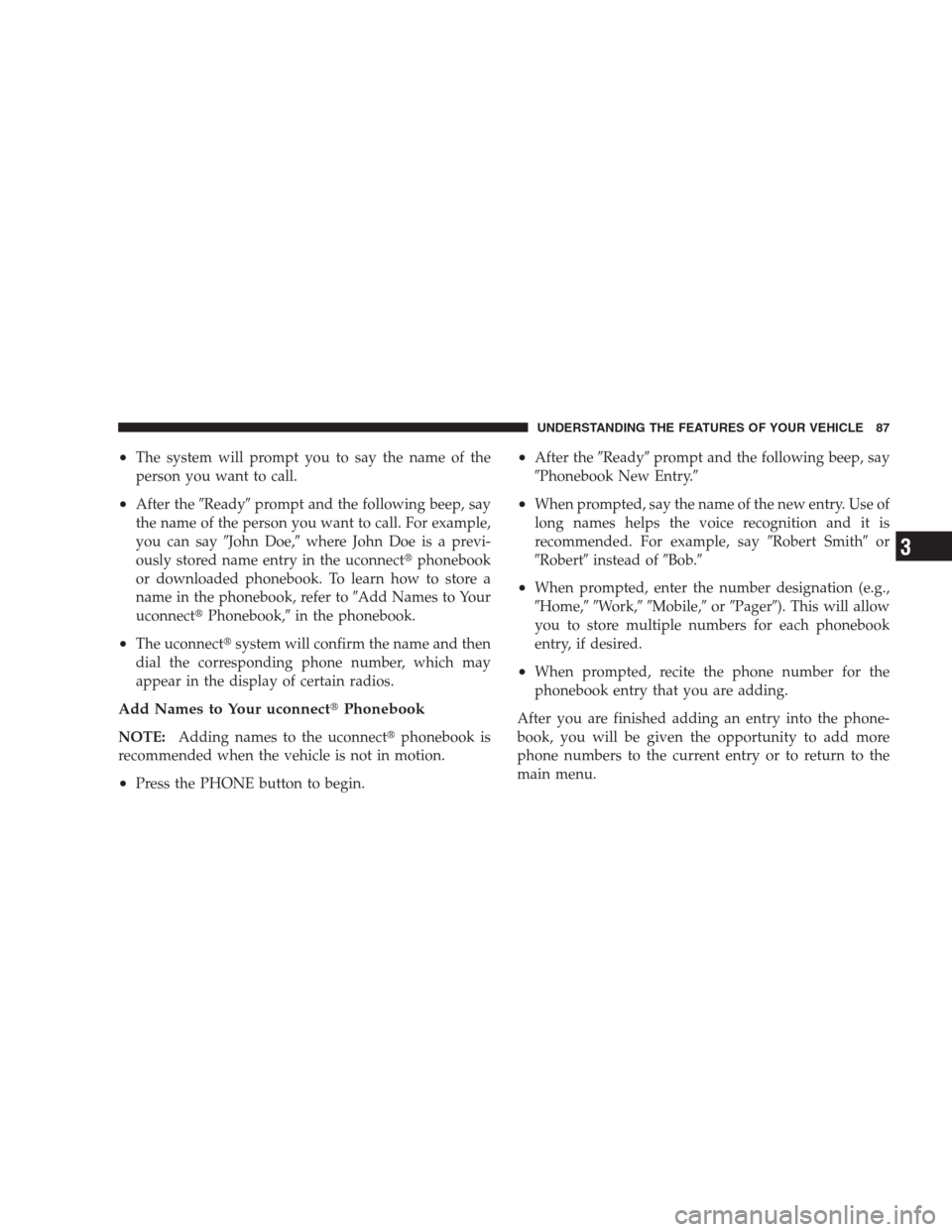

•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the uconnectphonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer toAdd Names to Your
uconnectPhonebook,in the phonebook.
•The uconnectsystem will confirm the name and then
dial the corresponding phone number, which may
appear in the display of certain radios.
Add Names to Your uconnectPhonebook
NOTE:Adding names to the uconnectphonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

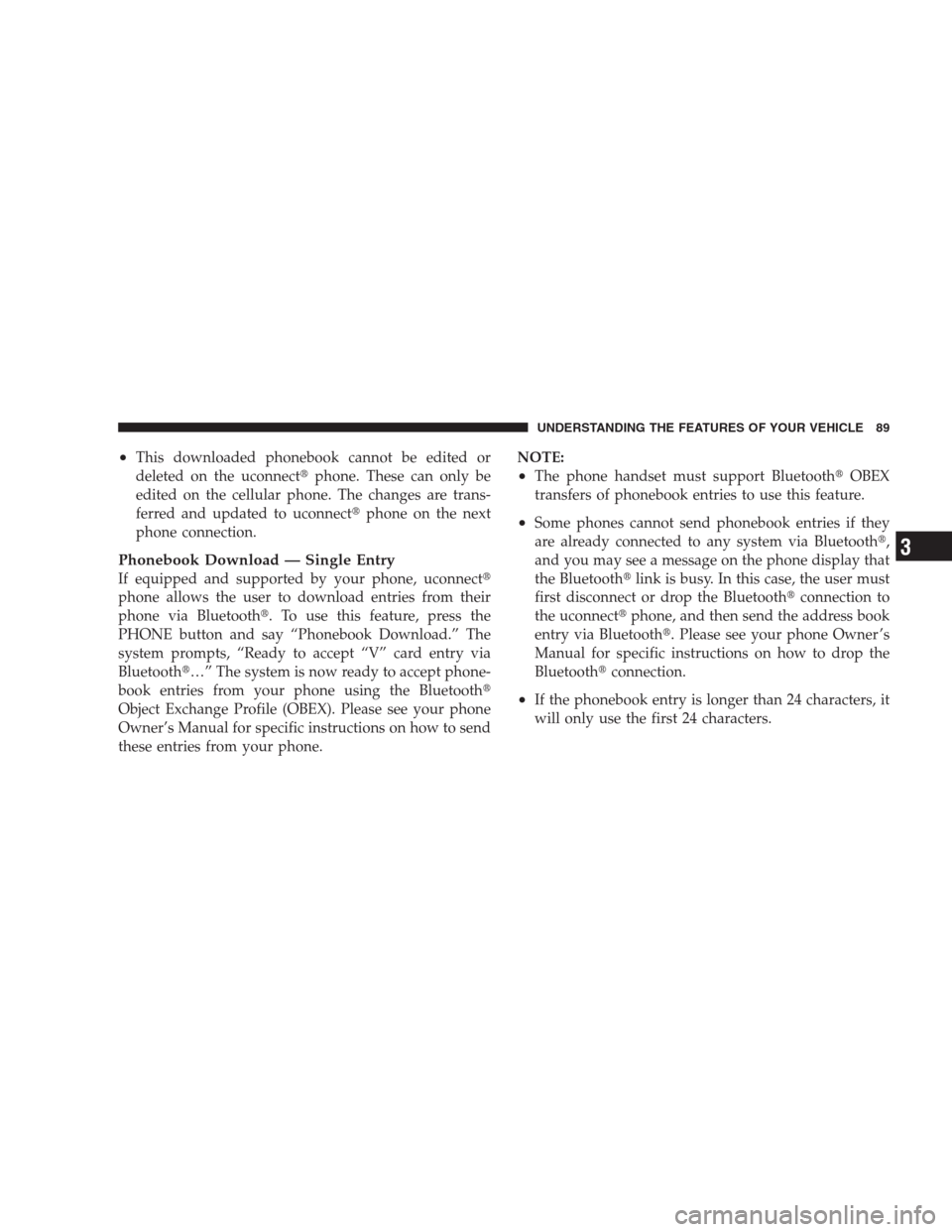

•This downloaded phonebook cannot be edited or
deleted on the uconnectphone. These can only be
edited on the cellular phone. The changes are trans-
ferred and updated to uconnectphone on the next
phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, uconnect
phone allows the user to download entries from their
phone via Bluetooth. To use this feature, press the
PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetoothlink is busy. In this case, the user must
first disconnect or drop the Bluetoothconnection to
the uconnectphone, and then send the address book
entry via Bluetooth. Please see your phone Owner ’s
Manual for specific instructions on how to drop the
Bluetoothconnection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

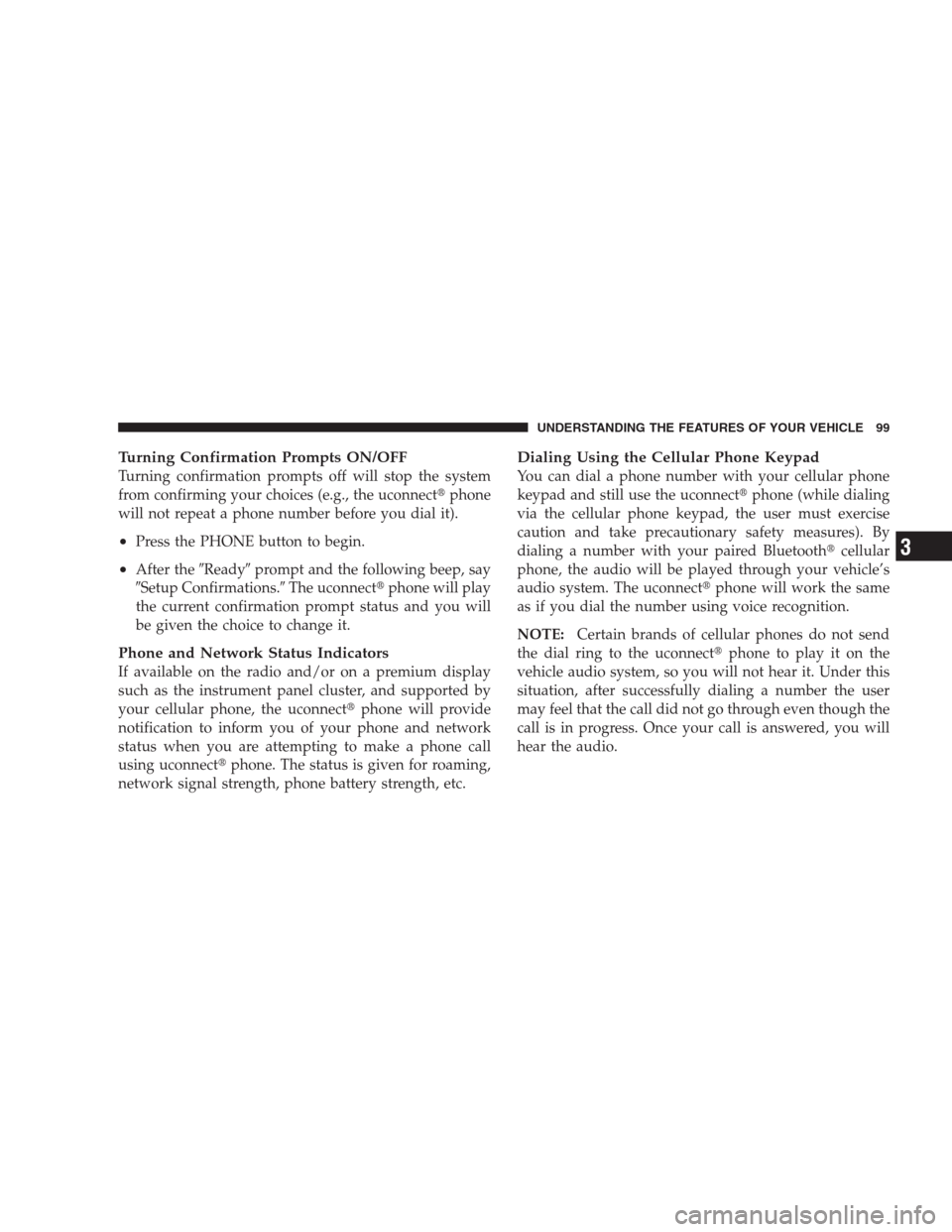

Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the uconnectphone
will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations.The uconnectphone will play
the current confirmation prompt status and you will
be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cellular phone, the uconnectphone will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using uconnectphone. The status is given for roaming,
network signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the uconnectphone (while dialing
via the cellular phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetoothcellular
phone, the audio will be played through your vehicle’s
audio system. The uconnectphone will work the same
as if you dial the number using voice recognition.
NOTE:Certain brands of cellular phones do not send
the dial ring to the uconnectphone to play it on the
vehicle audio system, so you will not hear it. Under this
situation, after successfully dialing a number the user
may feel that the call did not go through even though the
call is in progress. Once your call is answered, you will
hear the audio.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
3

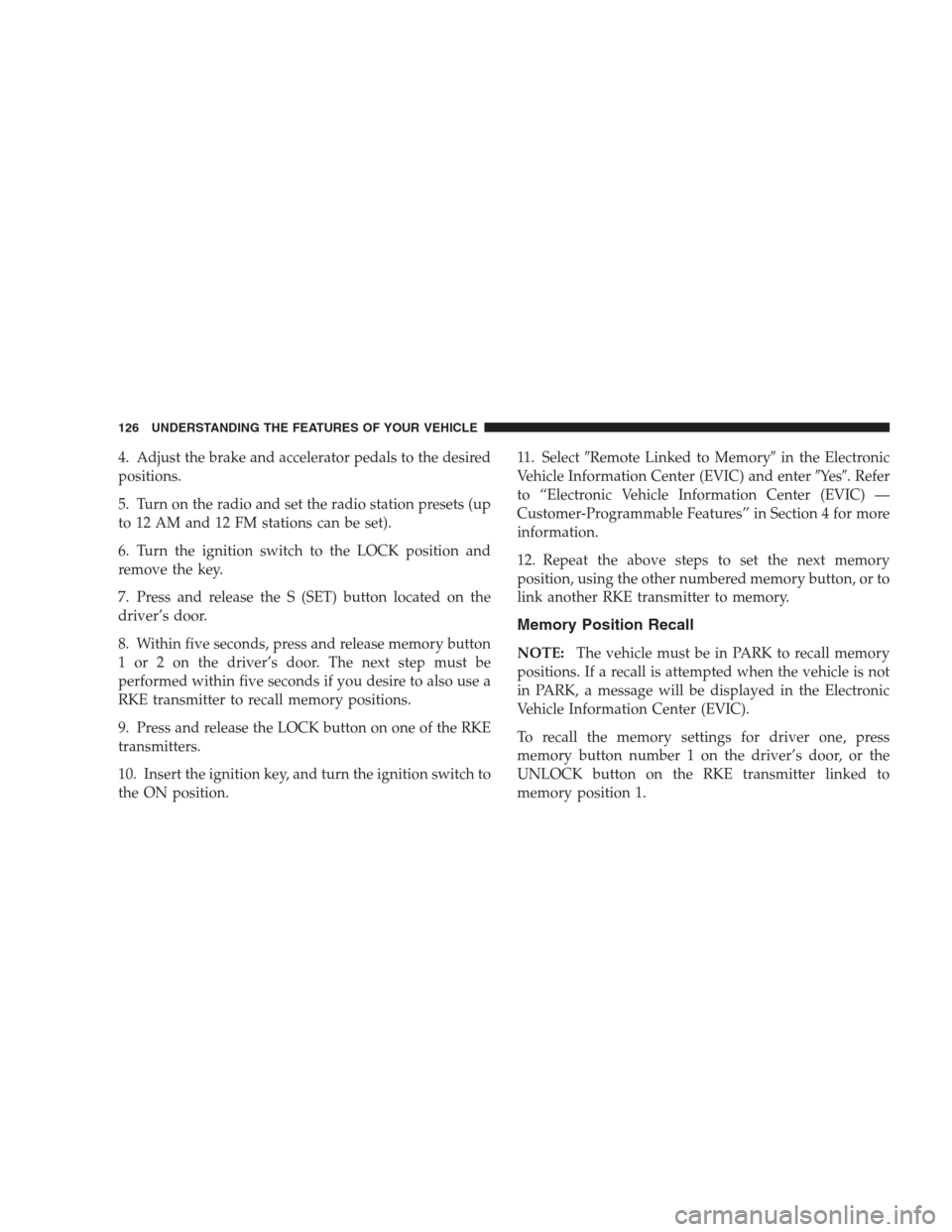

4. Adjust the brake and accelerator pedals to the desired
positions.
5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the LOCK position and
remove the key.
7. Press and release the S (SET) button located on the
driver’s door.
8. Within five seconds, press and release memory button
1 or 2 on the driver’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key, and turn the ignition switch to
the ON position.11. SelectRemote Linked to Memoryin the Electronic
Vehicle Information Center (EVIC) and enterYe s. Refer
to “Electronic Vehicle Information Center (EVIC) —
Customer-Programmable Features” in Section 4 for more
information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE:The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

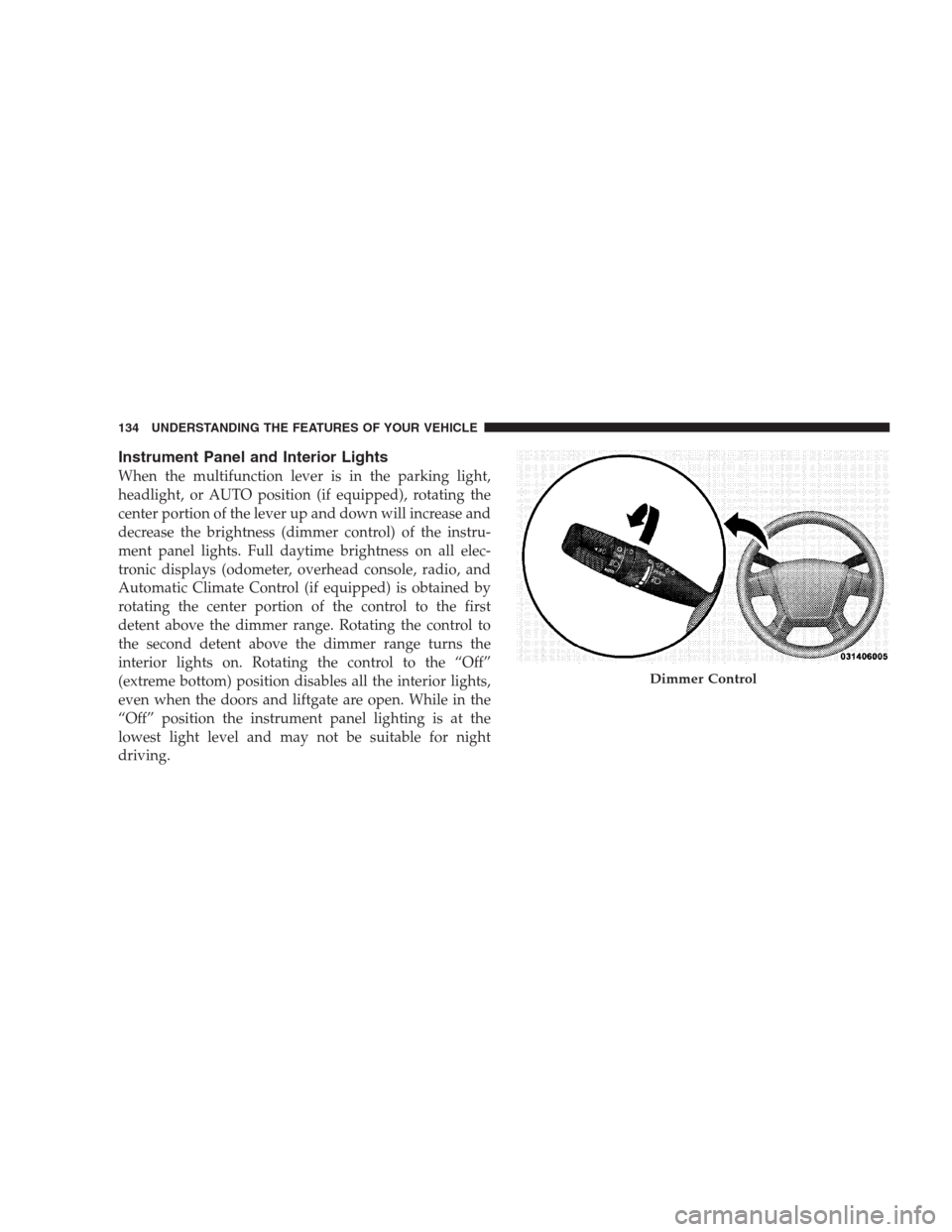

Instrument Panel and Interior Lights
When the multifunction lever is in the parking light,
headlight, or AUTO position (if equipped), rotating the
center portion of the lever up and down will increase and
decrease the brightness (dimmer control) of the instru-
ment panel lights. Full daytime brightness on all elec-
tronic displays (odometer, overhead console, radio, and
Automatic Climate Control (if equipped) is obtained by
rotating the center portion of the control to the first
detent above the dimmer range. Rotating the control to
the second detent above the dimmer range turns the
interior lights on. Rotating the control to the “Off”
(extreme bottom) position disables all the interior lights,
even when the doors and liftgate are open. While in the
“Off” position the instrument panel lighting is at the
lowest light level and may not be suitable for night
driving.
Dimmer Control
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

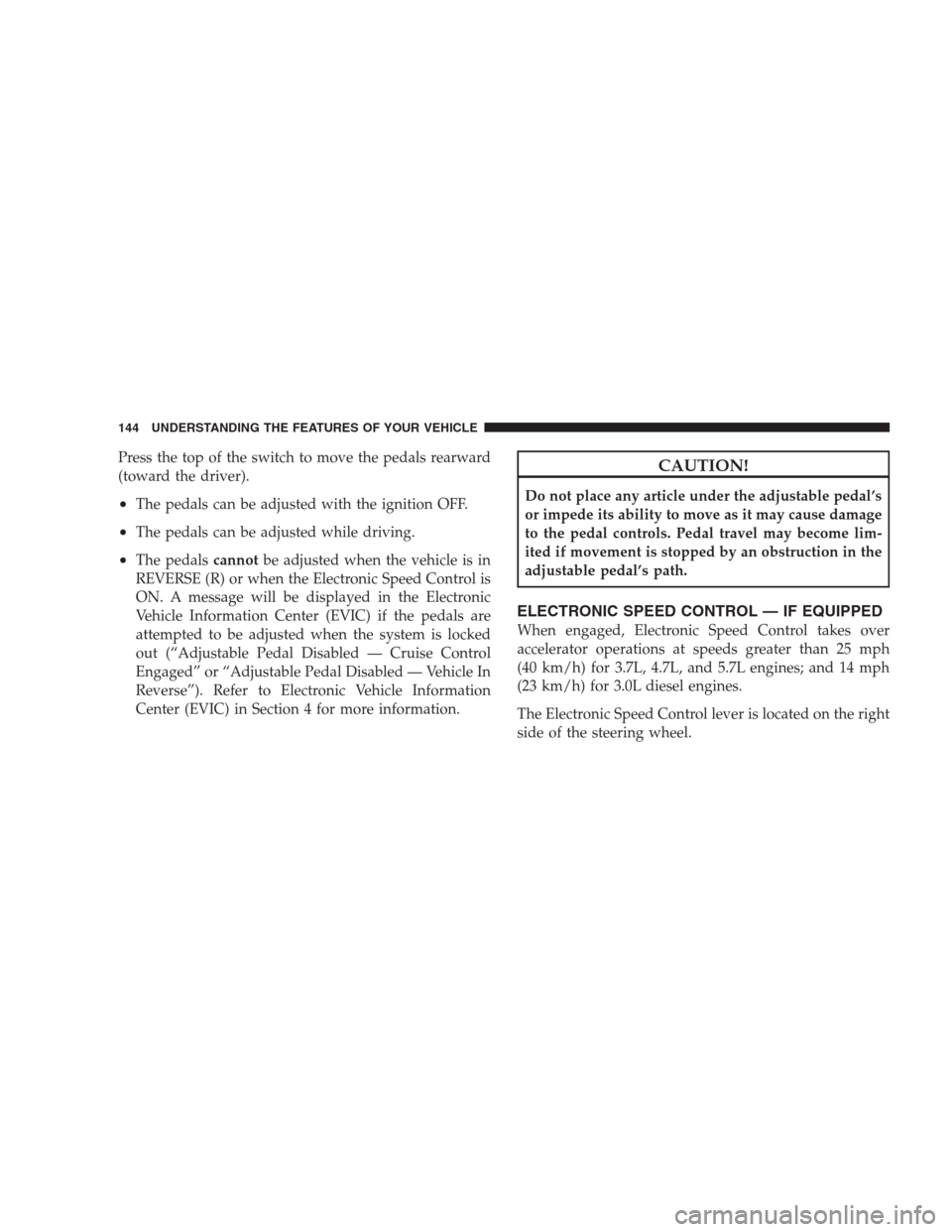

Press the top of the switch to move the pedals rearward
(toward the driver).
•The pedals can be adjusted with the ignition OFF.
•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in
REVERSE (R) or when the Electronic Speed Control is
ON. A message will be displayed in the Electronic
Vehicle Information Center (EVIC) if the pedals are
attempted to be adjusted when the system is locked
out (“Adjustable Pedal Disabled — Cruise Control
Engaged” or “Adjustable Pedal Disabled — Vehicle In
Reverse”). Refer to Electronic Vehicle Information
Center (EVIC) in Section 4 for more information.
CAUTION!
Do not place any article under the adjustable pedal’s
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, Electronic Speed Control takes over
accelerator operations at speeds greater than 25 mph
(40 km/h) for 3.7L, 4.7L, and 5.7L engines; and 14 mph
(23 km/h) for 3.0L diesel engines.
The Electronic Speed Control lever is located on the right
side of the steering wheel.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The sensors can detect obstacles from approximately 12
to 59 in (30 to 150 cm) from the rear fascia in the
horizontal direction, depending on the location and
orientation of the obstacle and the type of obstacle.
Rear Park Assist Warning Display
The Rear Park Assist Warning Display, located in the
headliner near the flipper glass, provides both visible and
audible warnings to indicate the distance between the
rear fascia and the detected obstacle.
When the ignition is turned to the ON position, the
warning display will turn ON all of its LEDs for about
one second. Each side of the warning display has six
yellow and two red LEDs. The vehicle is close to the
obstacle when the red LED is ON.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
