JEEP GRAND CHEROKEE 2010 WK / 3.G Owners Manual

CavityCartridge
Fuse Mini-
Fuse Description
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare
(R/S)
20 10 Amp
RedSteering Column
Control Module
(SCCM), Cluster (R/
S), BUX Trailer TowCavity
Cartridge
Fuse Mini-
Fuse Description
21 Spare
(Acc De-
lay)
22 15 Amp BlueRear Wiper (B+)
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer
Sway Damp Relay
400 MAINTAINING YOUR VEHICLE

Underhood Fuses (Power Distribution Center)
CavityCartridge
Fuse Mini-
Fuse Description
1 50 Amp Red PTC Heater 1 (Diesel
Only)
Cavity
Cartridge
Fuse Mini-
Fuse Description
2 40 Amp Green HID Headlamps
3 50 Amp Red PTC Heater 2 (Diesel
Only)
4 30 Amp Pink Power Outlets
5 50 Amp Red PTC Heater 3 (Diesel
Only)
6 30 Amp Pink Cig Lighter, Trail Tow
Batt
7 40 Amp Green Power Liftgate (Com-
mander Only)
8 40 Amp Green Starter, JB Power
9 20 Amp Blue Front Power Windows
10 — Spare
Power Distribution Center7
MAINTAINING YOUR VEHICLE 401

CavityCartridge
Fuse Mini-
Fuse Description
11 40 Amp Green HVAC Blower
12 30 Amp Pink Rear Wiper, Ign R/O
13 40 Amp Green Rear Window De-
froster (EBL)/Heated
Mirror
14 30 Amp Pink Rear HVAC – If
Equipped
15 — Spare
16 50 Amp Red ASD
17 30 Amp Pink ABS Pump
18 40 Amp Green Accessory Delay, SeatsCavity
Cartridge
Fuse Mini-
Fuse Description
19 40 Amp Green JB Power
20 30 Amp Pink Wiper Motor
21 20 Amp YellowFuel Pump
22 20 Amp
YellowTCM, A/C Clutch
23 25 Amp
NaturalPower Inverter
24 20 Amp
YellowRear Heated Seats
25 20 Amp
YellowFinal Drive Control
Module (FDCM)
26 15 Amp
BlueBrake Lamps
402 MAINTAINING YOUR VEHICLE

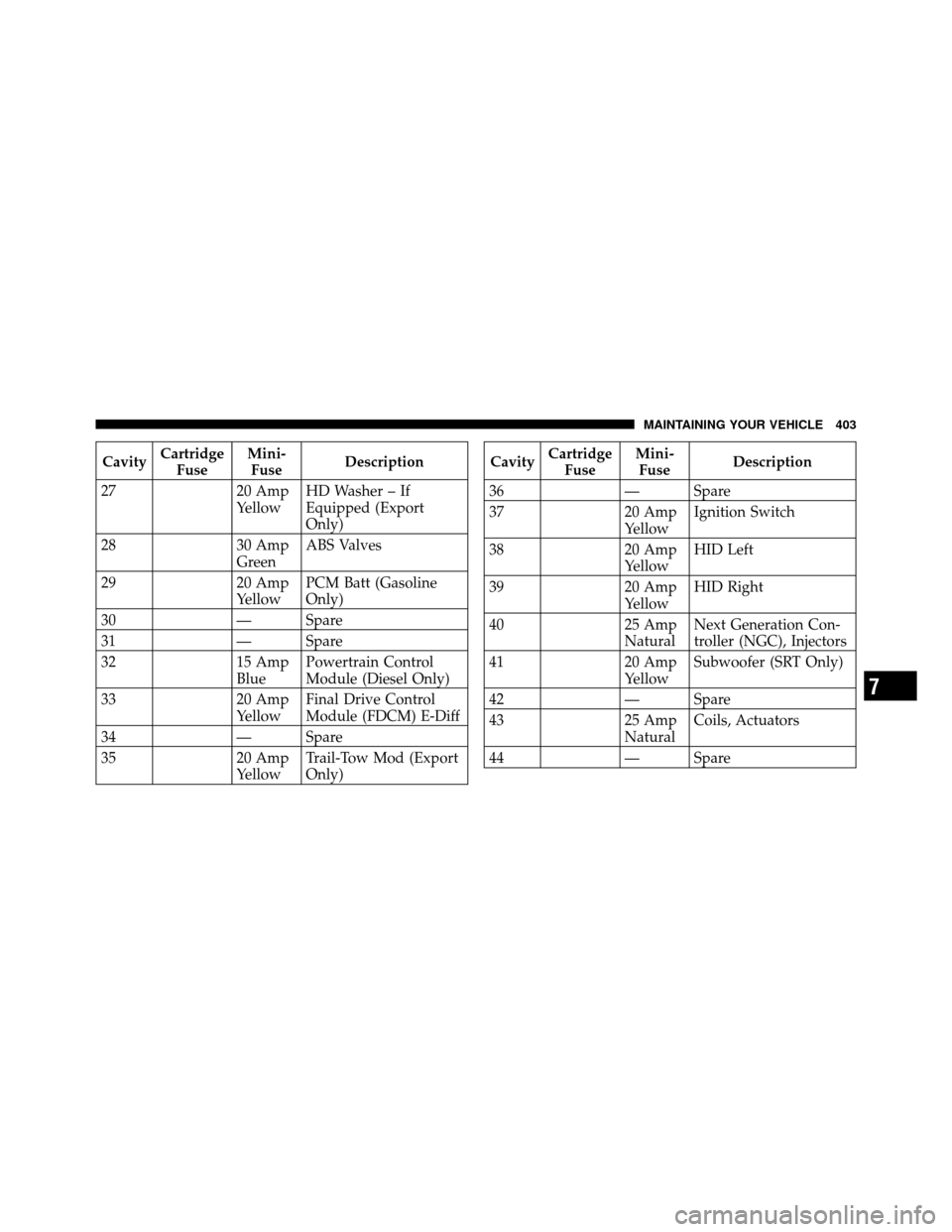

CavityCartridge
Fuse Mini-
Fuse Description
27 20 Amp YellowHD Washer – If
Equipped (Export
Only)
28 30 Amp
GreenABS Valves
29 20 Amp
YellowPCM Batt (Gasoline
Only)
30 — Spare
31 — Spare
32 15 Amp
BluePowertrain Control
Module (Diesel Only)
33 20 Amp
YellowFinal Drive Control
Module (FDCM) E-Diff
34 — Spare
35 20 Amp
YellowTrail-Tow Mod (Export
Only)Cavity
Cartridge
Fuse Mini-
Fuse Description
36 — Spare
37 20 Amp YellowIgnition Switch
38 20 Amp
YellowHID Left
39 20 Amp
YellowHID Right
40 25 Amp
NaturalNext Generation Con-
troller (NGC), Injectors
41 20 Amp
YellowSubwoofer (SRT Only)
42 — Spare
43 25 Amp
NaturalCoils, Actuators
44 — Spare
7
MAINTAINING YOUR VEHICLE 403

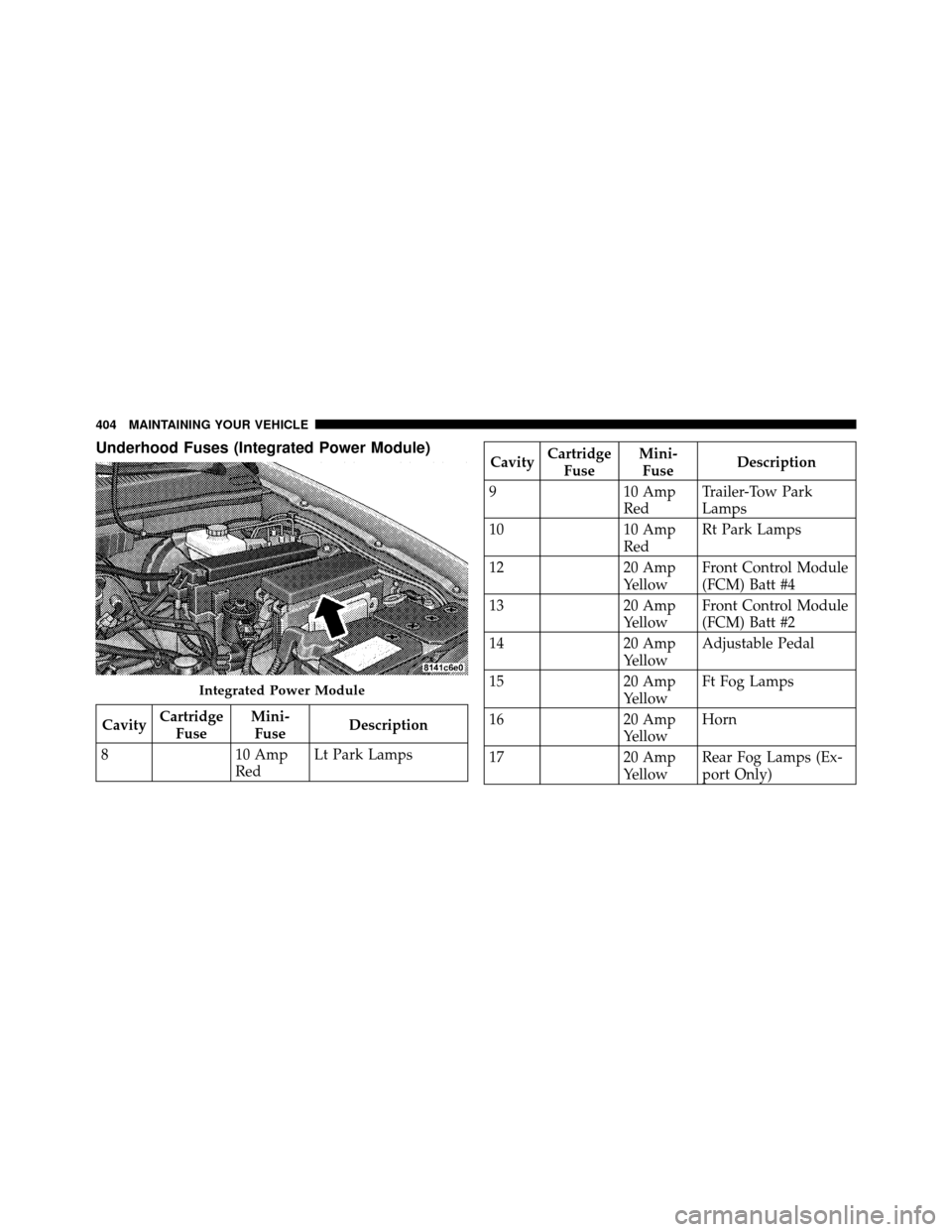

Underhood Fuses (Integrated Power Module)
CavityCartridge
Fuse Mini-
Fuse Description
8 10 Amp
RedLt Park Lamps
Cavity
Cartridge
Fuse Mini-
Fuse Description
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
17 20 Amp
YellowRear Fog Lamps (Ex-
port Only)
Integrated Power Module
404 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp Pink Final Drive Control
Module (FDCM)
MOD
23 50 Amp Red Radiator FanCavity
Cartridge
Fuse Mini-
Fuse Description
27 15 Amp
BlueIgnition Off Draw
(IOD) #1 — Intrusion
Module, Satellite
Video, Steering Con-
trol Module
28 20 Amp
YellowIgnition Off Draw
(IOD) #2 — Radio
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC)
R/O
7
MAINTAINING YOUR VEHICLE 405

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
406 MAINTAINING YOUR VEHICLE

Exterior LightsBulb Type
Backup Lamps ......................... 3157K
Front Park/Turn Lamp ................... 3757A
Front Fog Lamps ........................ 9145
Front Side Marker ...................... W5W
Headlamps (Low Beam) – High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer)
Headlamps (Low Beam) ................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3157K
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
7
MAINTAINING YOUR VEHICLE 407

NOTE:On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Halogen Headlamps — If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
1 — High Beam Bulb3 — Turn Signal Bulb
2 — Low Beam Bulb
408 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.3. Disconnect the electrical connector and replace the
bulb.
1 — High Beam Bulb3 — Turn Signal Bulb
2 — Low Beam Bulb
7
MAINTAINING YOUR VEHICLE 409
