Page 521 of 587

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments which may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use MOPAR Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
7
MAINTAINING YOUR VEHICLE 519
Page 522 of 587

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
FUSES
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment. This center contains cartridge fuses
and mini fuses. A description of each fuse and compo-
nent may be stamped on the inside cover, otherwise the
cavity number of each fuse is stamped on the inside cover
that corresponds to the following chart.
Cavity CartridgeFuseMini
Fuse Description
J01 40 Amp Green Air Suspension
J02 30 Amp Pink Power Liftgate Module
Totally Integrated Power Module
520 MAINTAINING YOUR VEHICLE
Page 523 of 587

Cavity CartridgeFuseMini
Fuse Description
J03 30 Amp Pink Trailer Tow
J04 25 Amp Natural Driver Door Node
J05 25 Amp Natural Passenger Door Node
J06 40 Amp Green Antilock Brakes
Pump/Stability Con-
trol System
J07 30 Amp Pink Antilock Brakes
Valve/Stability Control
System
J08 40 Amp Green Power Seat
J09 30 Amp Pink E-BrakeCavity Cartridge
FuseMini
Fuse Description
J10 30 Amp Pink Headlamp Wash Relay
Contact
J11 30 Amp Pink Drive Train Control
Module
J12 30 Amp Pink Rear Defroster
J13 60 Amp Yellow Main Ignition Off
Draw (IOD)
J14 20 Amp Blue Trailer Tow Lamps/
Park Lamps
J15 40 Amp Green Front Cabin Fan/
Blower
J17 40 Amp Green Starter Motor Solenoid
7
MAINTAINING YOUR VEHICLE 521
Page 524 of 587

Cavity CartridgeFuseMini
Fuse Description
J18 20 Amp Blue Powertrain Control
Module/Powertrain
Control Module Trans-
mission Range
J19 60 Amp Yellow Radiator Fan Motor
HI/Radiator Fan Mo-
tor Low
J20 30 Amp Pink Front Wiper
J21 20 Amp Blue Front/Rear Washer
Control
J22 25 Amp Natural Sunroof Module
M1 15 Amp
Blue Stop LampsCavity Cartridge
FuseMini
Fuse Description
M2 20 Amp YellowElectronic Limit Slip
Differential/Air Sus-
pension
M3 20 Amp YellowLiftgate/Headrest
M5 25 Amp
Natural 115V AC Power In-
verter
M6 20 Amp
Yellow Cigar Lighter
M7 20 Amp
Yellow Power Outlet #2 (Swit-
chable)
M8 20 Amp
Yellow Front Heated Seat &
Steering Wheel
M9 20 Amp
Yellow Rear Heated Seats
M10 15 Amp
Blue Video/Universal Ga-
rage Door Opener
522 MAINTAINING YOUR VEHICLE
Page 525 of 587

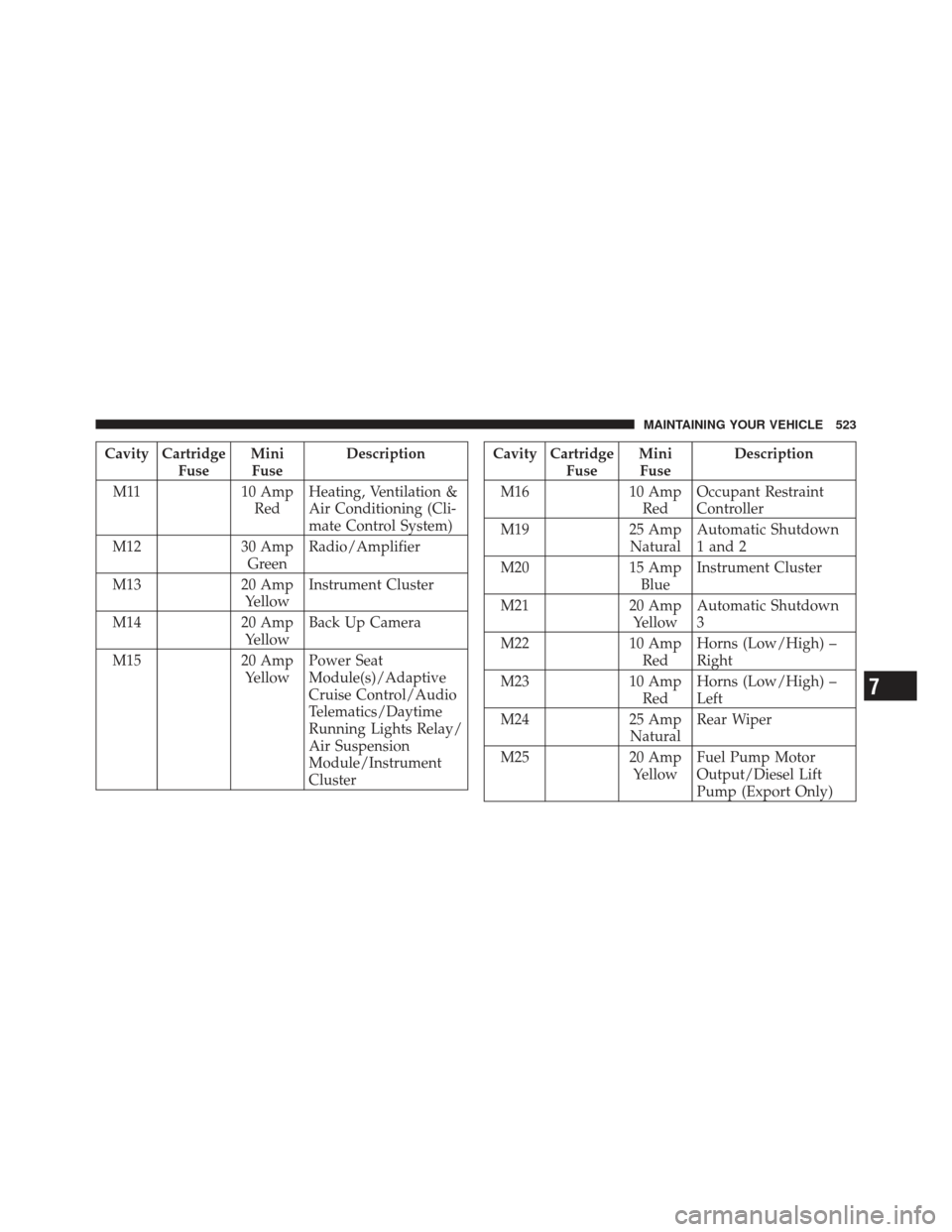

Cavity CartridgeFuseMini
Fuse Description
M11 10 Amp RedHeating, Ventilation &
Air Conditioning (Cli-
mate Control System)
M12 30 Amp GreenRadio/Amplifier
M13 20 Amp YellowInstrument Cluster
M14 20 Amp YellowBack Up Camera
M15 20 Amp YellowPower Seat
Module(s)/Adaptive
Cruise Control/Audio
Telematics/Daytime
Running Lights Relay/
Air Suspension
Module/Instrument
ClusterCavity Cartridge
FuseMini
Fuse Description
M16 10 Amp RedOccupant Restraint
Controller
M19 25 Amp NaturalAutomatic Shutdown
1 and 2
M20 15 Amp BlueInstrument Cluster
M21 20 Amp YellowAutomatic Shutdown
3
M22 10 Amp RedHorns (Low/High) –
Right
M23 10 Amp RedHorns (Low/High) –
Left
M24 25 Amp NaturalRear Wiper
M25 20 Amp YellowFuel Pump Motor
Output/Diesel Lift
Pump (Export Only)
7
MAINTAINING YOUR VEHICLE 523
Page 526 of 587

Cavity CartridgeFuseMini
Fuse Description
M26 10 Amp RedDriver Door Switch
Bank
M27 10 Amp RedIgnition Switch/
Wireless Control
Module/Keyless Entry
Module
M28 15 Amp BluePowertrain Controller/
Transmission Control-
ler
M29 10 Amp RedTire Pressure Monitor
M30 15 Amp BlueJ1962 Diag Connector
M31 20 Amp YellowBackup Lamps
M32 10 Amp RedOccupant Restraint
ControllerCavity Cartridge
FuseMini
Fuse Description
M33 10 Amp RedPowertrain Controller/
Transmission Control-
ler
M34 10 Amp RedPark Assist Module/
Climate Control Sys-
tem Module/Infra Red
Sensor/Compass Mod-
ule
M35 15 Amp BlueLeft Rear Parklamps
M36 20 Amp YellowPower Outlet
M37 10 Amp RedAntilock Brakes/
Stability Control Sys-
tem Module
M38 25 Amp NaturalAll Door Lock &Un-
lock
524 MAINTAINING YOUR VEHICLE
Page 527 of 587

CAUTION!
•When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Totally Integrated Power
Module (TIPM) labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 525
Page 528 of 587

REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74 Exterior Lights
Bulb Type
Aux Aperature Backup Lamps ........7440 (W21W)
Auxiliary Liftgate Tail Lamps .............. W3W
Front Park/Turn Lamp .................... T20
Front Fog Lamps ..................... PSX24W
Front Side Marker ...................... W5W
Headlamps (Low Beam) – High Intensity
Discharge (HID) . . . D1S (Serviced at Authorized Dealer)
Daytime Running Lamp (DRL) .............3157K
Headlamps (Low Beam) ................... H11
Headlamps (High Beam) ..................9005
Liftgate Backup Lamps .............. 921(W16W)
Rear License Lamps ..................... W5W
Rear Turn/Stop/Tail Lamps ................3057
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
526 MAINTAINING YOUR VEHICLE
Page 529 of 587

BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) –
If Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service. NOTE:
On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
7
MAINTAINING YOUR VEHICLE 527
Page 530 of 587

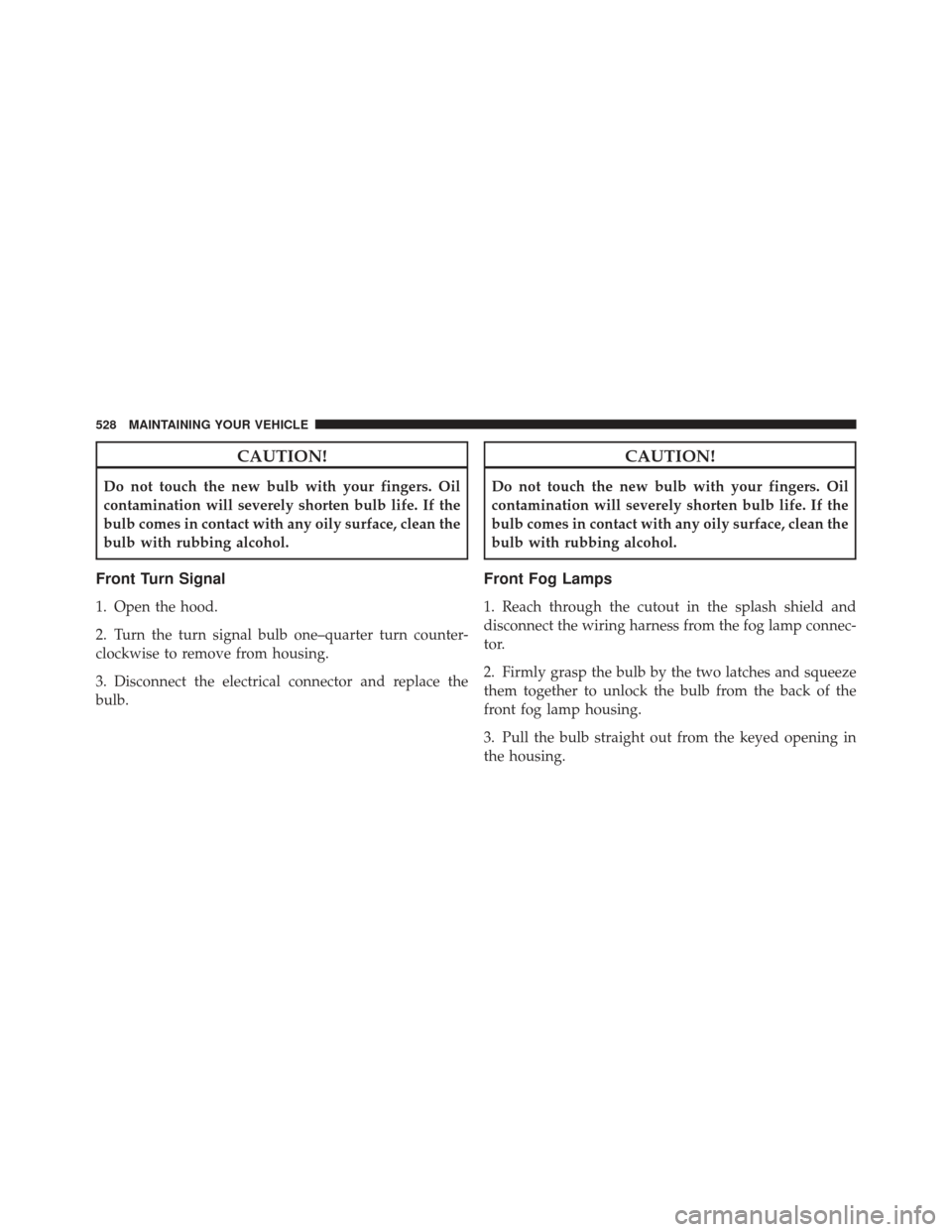

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Fog Lamps
1. Reach through the cutout in the splash shield and
disconnect the wiring harness from the fog lamp connec-
tor.
2. Firmly grasp the bulb by the two latches and squeeze
them together to unlock the bulb from the back of the
front fog lamp housing.
3. Pull the bulb straight out from the keyed opening in
the housing.
