JEEP GRAND CHEROKEE 2012 WK2 / 4.G Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 283
 Instrument Cluster .................... 284
 Instrument Cluster Descriptions ........... 285
 Electronic Vehicle Information Center (EVIC) . . 295
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 297
▫ EVIC White Telltale Lights .............. 304
▫ EVIC Amber Telltale Lights ............. 306
▫ EVIC Red Telltale Lights ............... 307 ▫
Engine Oil Change Indicator System ....... 310
▫ Fuel Economy ...................... 311
▫ Cruise Control ...................... 313
▫ Vehicle Speed ....................... 313
▫ Trip Info .......................... 314
▫ Units ............................. 314
▫ Vehicle Info
(Customer Information Features) ......... 315
▫ TirePSI ........................... 315
4

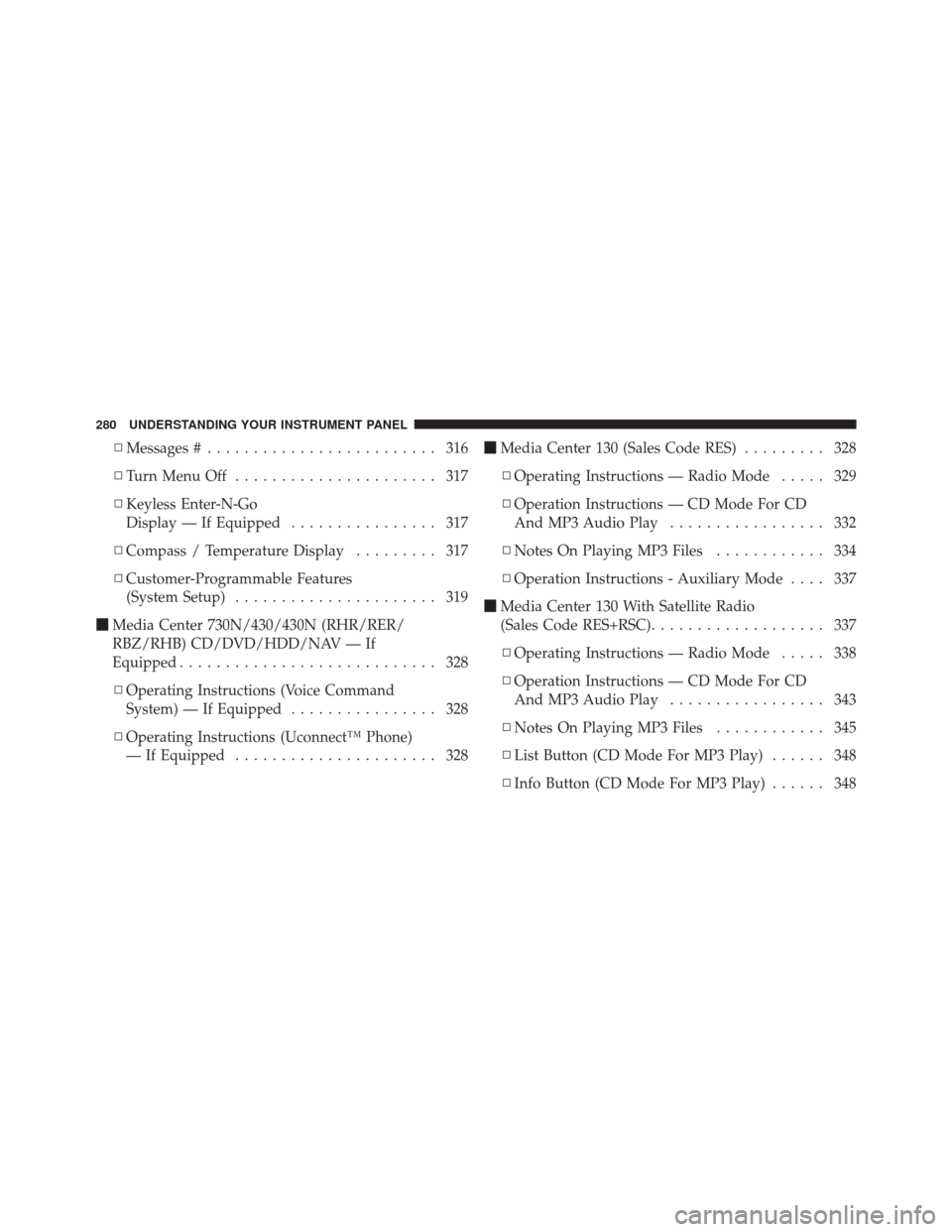

▫Messages # ......................... 316
▫ Turn Menu Off ...................... 317
▫ Keyless Enter-N-Go
Display — If Equipped ................ 317
▫ Compass / Temperature Display ......... 317
▫ Customer-Programmable Features
(System Setup) ...................... 319
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV — If
Equipped ............................ 328
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 328
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 328
Media Center 130 (Sales Code RES) ......... 328
▫ Operating Instructions — Radio Mode ..... 329
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 332
▫ Notes On Playing MP3 Files ............ 334
▫ Operation Instructions - Auxiliary Mode .... 337
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 337
▫ Operating Instructions — Radio Mode ..... 338
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 343
▫ Notes On Playing MP3 Files ............ 345
▫ List Button (CD Mode For MP3 Play) ...... 348
▫ Info Button (CD Mode For MP3 Play) ...... 348
280 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 349
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 353
 iPod/USB/MP3 Control — If Equipped ..... 353
▫ Connecting The iPod Or External USB
Device ............................ 354
▫ Using This Feature ................... 355
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 355
▫ Play Mode ......................... 355
▫ List Or Browse Mode ................. 357
▫ Bluetooth Streaming Audio (BTSA) ........ 359
Uconnect™ Multimedia Video Entertainment
System (VES)™ — If Equipped ............ 360
▫ Getting Started ...................... 360
▫ Single Video Screen ................... 360
▫ Play Video Games .................... 363
▫ Listen To An Audio Source On Channel 2
While A Video Is Playing On Channel 1 .... 366
▫ Important Notes For Single Video Screen
System ............................ 368
▫ Play A DVD Using The
Touch-Screen Radio ................... 368
▫ Remote Control ..................... 370
▫ Remote Control Storage ................ 373
▫ Locking The Remote Control ............ 373
4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

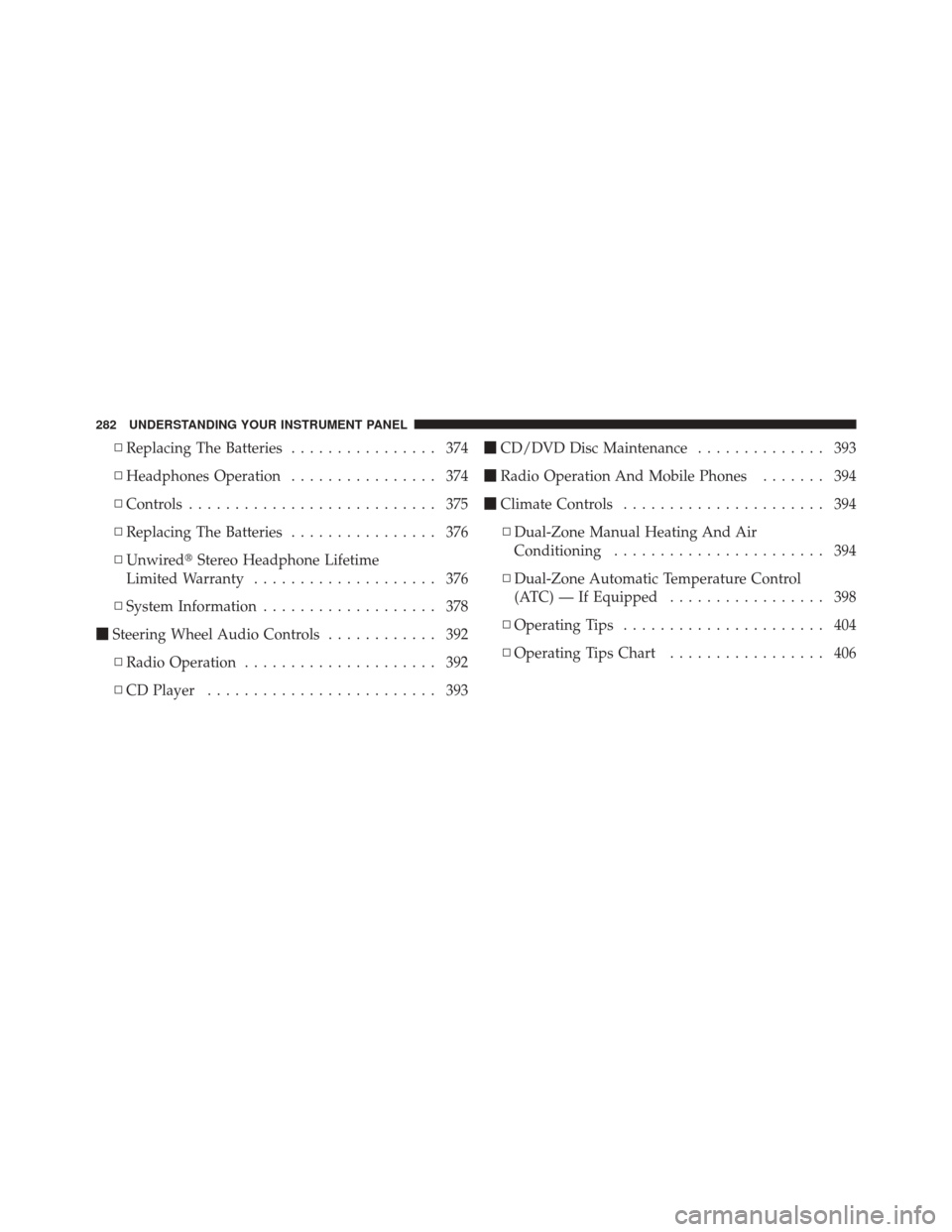

▫Replacing The Batteries ................ 374
▫ Headphones Operation ................ 374
▫ Controls ........................... 375
▫ Replacing The Batteries ................ 376
▫ Unwired Stereo Headphone Lifetime
Limited Warranty .................... 376
▫ System Information ................... 378
 Steering Wheel Audio Controls ............ 392
▫ Radio Operation ..................... 392
▫ CD Player ......................... 393
CD/DVD Disc Maintenance .............. 393
 Radio Operation And Mobile Phones ....... 394
 Climate Controls ...................... 394
▫ Dual-Zone Manual Heating And Air
Conditioning ....................... 394
▫ Dual-Zone Automatic Temperature Control
(ATC) — If Equipped ................. 398
▫ Operating Tips ...................... 404
▫ Operating Tips Chart ................. 406
282 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Lower Switch Bank11 — Hood Release
2 — Instrument Cluster 7 — Hazard Switch12 — Fuel Door Release
3 — Radio 8 — Storage Bin13 — Headlight Switch
4 — Glove Compartment 9 — ESC Button14 — Dimmer Control
5 — Climate Controls 10 — Ignition Switch
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

INSTRUMENT CLUSTER
284 UNDERSTANDING YOUR INSTRUMENT PANEL

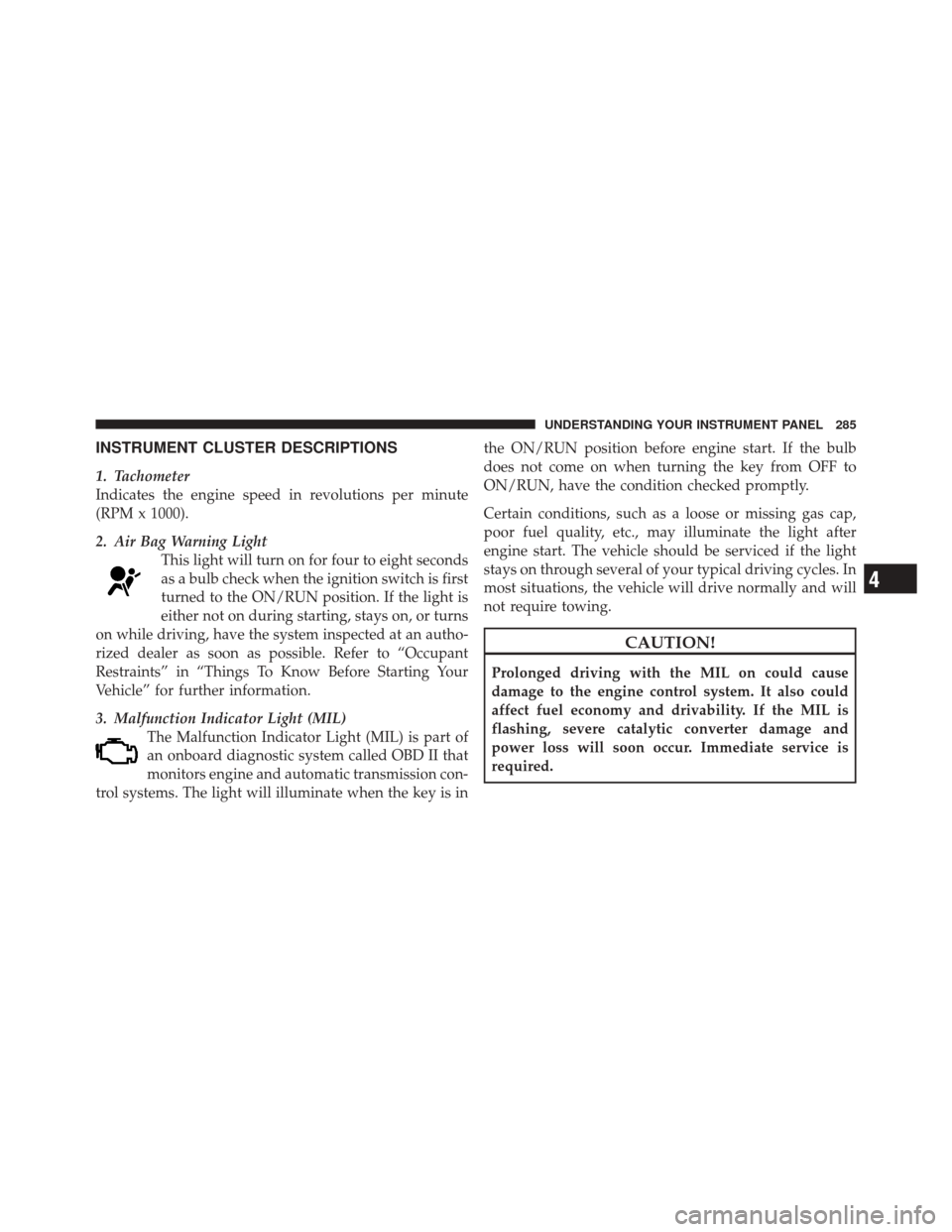

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Air Bag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to the ON/RUN position. If the light is
either not on during starting, stays on, or turns
on while driving, have the system inspected at an autho-
rized dealer as soon as possible. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
3. Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system called OBD II that
monitors engine and automatic transmission con-
trol systems. The light will illuminate when the key is in the ON/RUN position before engine start. If the bulb
does not come on when turning the key from OFF to
ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations, the vehicle will drive normally and will
not require towing.
CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 285

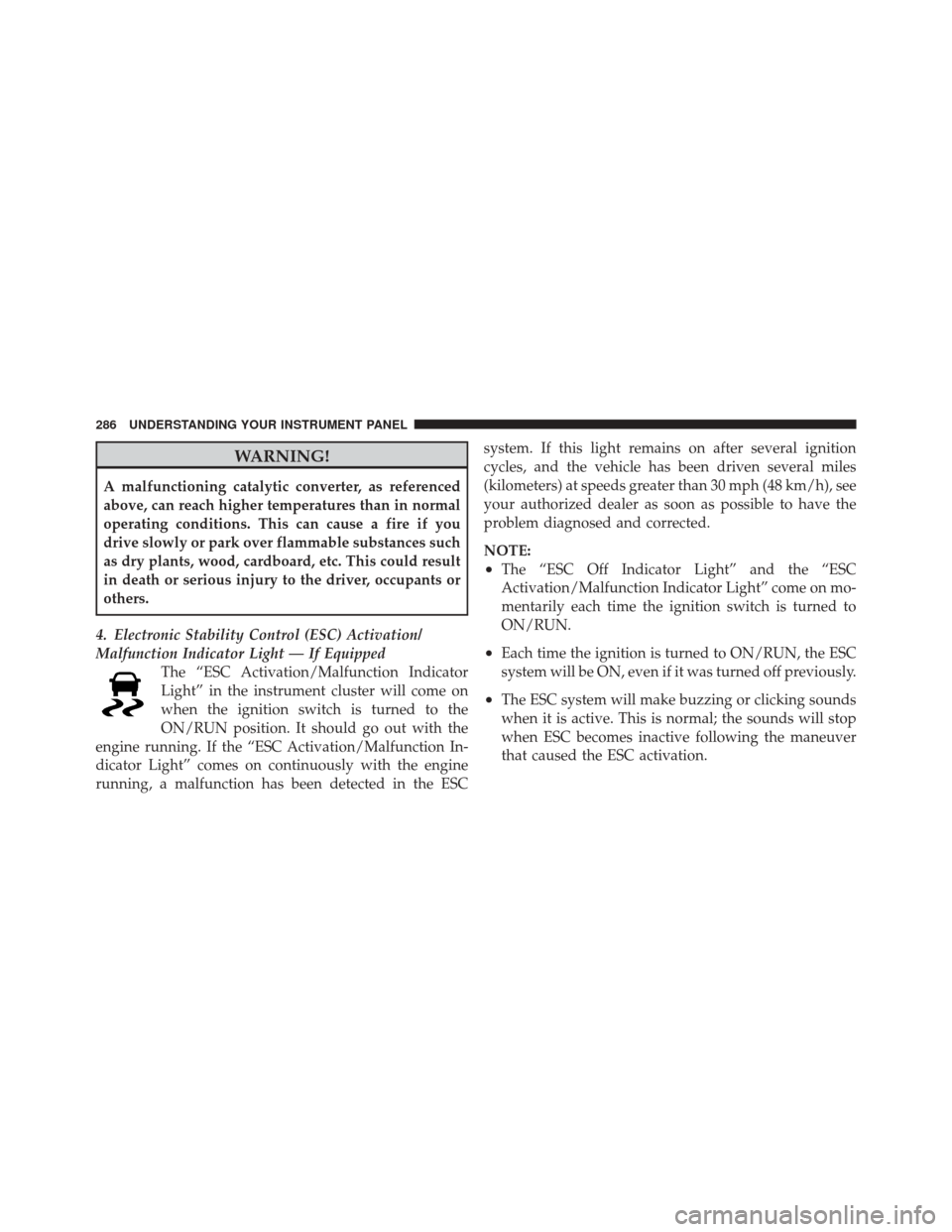

WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants, wood, cardboard, etc. This could result
in death or serious injury to the driver, occupants or
others.
4. Electronic Stability Control (ESC) Activation/
Malfunction Indicator Light — If Equipped The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is turned to the
ON/RUN position. It should go out with the
engine running. If the “ESC Activation/Malfunction In-
dicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles
(kilometers) at speeds greater than 30 mph (48 km/h), see
your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
NOTE:
•The “ESC Off Indicator Light” and the “ESC
Activation/Malfunction Indicator Light” come on mo-
mentarily each time the ignition switch is turned to
ON/RUN.
•Each time the ignition is turned to ON/RUN, the ESC
system will be ON, even if it was turned off previously.
•The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
286 UNDERSTANDING YOUR INSTRUMENT PANEL

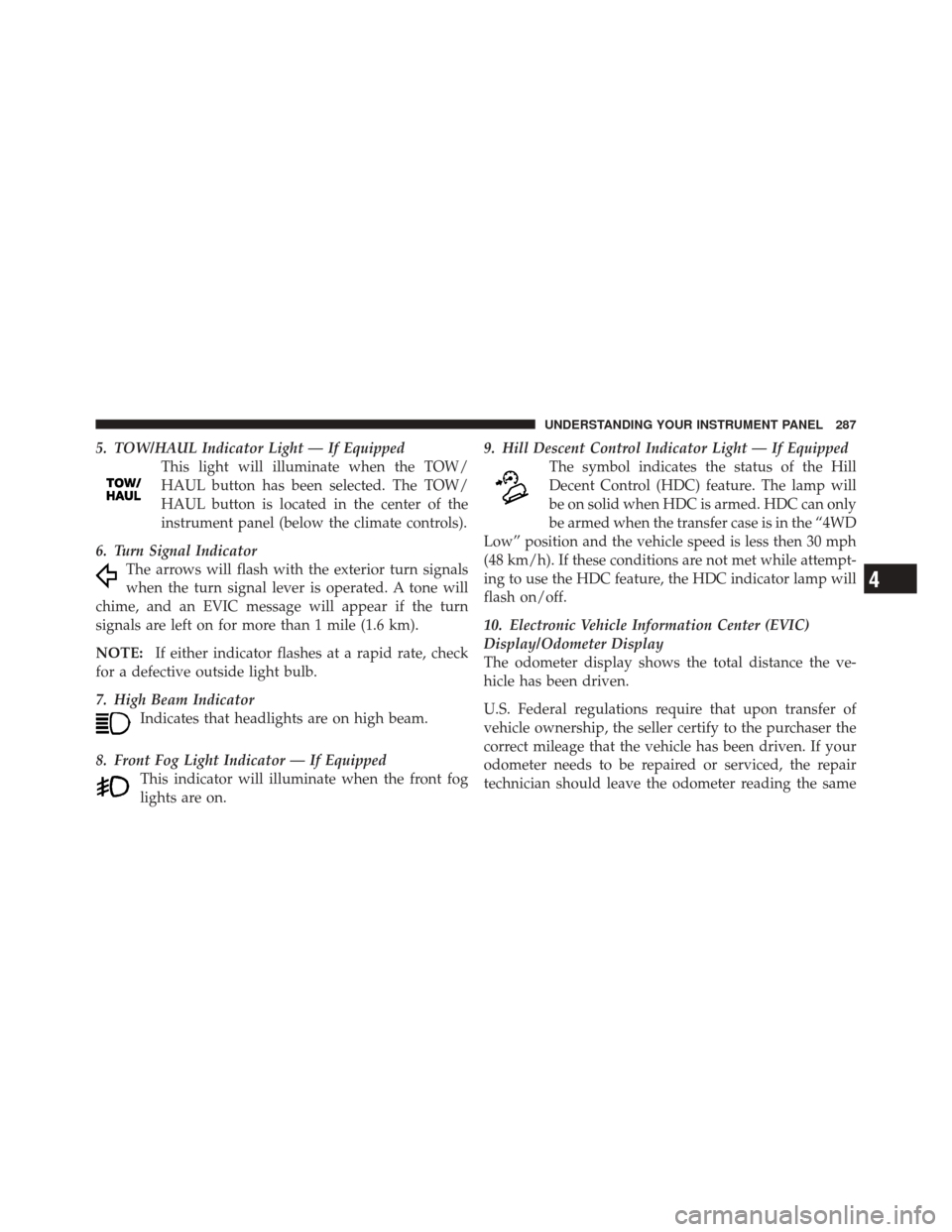

5. TOW/HAUL Indicator Light — If EquippedThis light will illuminate when the TOW/
HAUL button has been selected. The TOW/
HAUL button is located in the center of the
instrument panel (below the climate controls).
6. Turn Signal Indicator The arrows will flash with the exterior turn signals
when the turn signal lever is operated. A tone will
chime, and an EVIC message will appear if the turn
signals are left on for more than 1 mile (1.6 km).
NOTE: If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
7. High Beam Indicator Indicates that headlights are on high beam.
8. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on. 9. Hill Descent Control Indicator Light — If Equipped
The symbol indicates the status of the Hill
Decent Control (HDC) feature. The lamp will
be on solid when HDC is armed. HDC can only
be armed when the transfer case is in the “4WD
Low” position and the vehicle speed is less then 30 mph
(48 km/h). If these conditions are not met while attempt-
ing to use the HDC feature, the HDC indicator lamp will
flash on/off.
10. Electronic Vehicle Information Center (EVIC)
Display/Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair
technician should leave the odometer reading the same
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287

as it was before the repair or service. If s/he cannot do so,
then the odometer must be set at zero, and a sticker must
be placed in the door jamb stating what the mileage was
before the repair or service. It is a good idea for you to
make a record of the odometer reading before the repair/
service, so that you can be sure that it is properly reset, or
that the door jamb sticker is accurate if the odometer
must be reset at zero.
When the appropriate conditions exist, this display
shows the Electronic Vehicle Information Center (EVIC)
messages. Refer to “Electronic Vehicle Information Cen-
ter”.
11. Tire Pressure Monitoring Telltale LightEach tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
