hood open JEEP GRAND CHEROKEE 2012 WK2 / 4.G Owners Manual

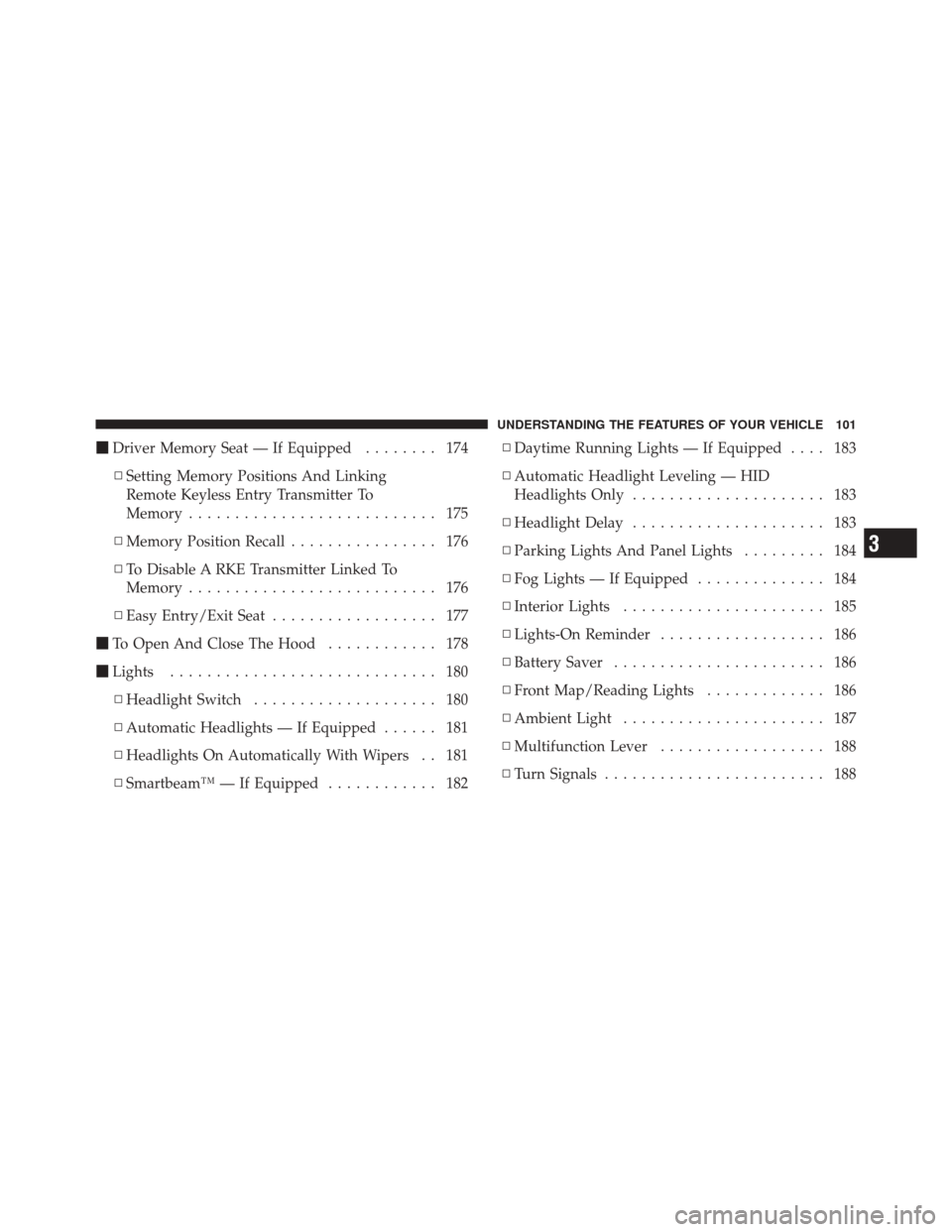

Driver Memory Seat — If Equipped ........ 174
▫ Setting Memory Positions And Linking
Remote Keyless Entry Transmitter To
Memory ........................... 175
▫ Memory Position Recall ................ 176
▫ To Disable A RKE Transmitter Linked To
Memory ........................... 176
▫ Easy Entry/Exit Seat .................. 177
 To Open And Close The Hood ............ 178
 Lights ............................. 180
▫ Headlight Switch .................... 180
▫ Automatic Headlights — If Equipped ...... 181
▫ Headlights On Automatically With Wipers . . 181
▫ Smartbeam™ — If Equipped ............ 182▫
Daytime Running Lights — If Equipped .... 183
▫ Automatic Headlight Leveling — HID
Headlights Only ..................... 183
▫ Headlight Delay ..................... 183
▫ Parking Lights And Panel Lights ......... 184
▫ Fog Lights — If Equipped .............. 184
▫ Interior Lights ...................... 185
▫ Lights-On Reminder .................. 186
▫ Battery Saver ....................... 186
▫ Front Map/Reading Lights ............. 186
▫ Ambient Light ...................... 187
▫ Multifunction Lever .................. 188
▫ Turn Signals ........................ 188
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

driving position when the key is placed into the
ignition, and turned out of the LOCK position toward
the ACC/ON position.
The Easy Entry/Exit feature will be automatically dis-
abled if the seat is already positioned closer than 0.9 in
(23 mm) forward of the rear stop. At this position, there
is no benefit to the driver by moving the seat for Easy
Exit/Entry.
Each stored memory setting will have an associated Easy
Entry/Exit position.
NOTE: The Easy Entry/Exit feature is not enabled
when the vehicle is delivered from the factory. The Easy
Entry/Exit feature is enabled (or later disabled) through
the programmable features in the Electronic Vehicle
Information Center (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the release lever located below the instrument
panel and in front of the driver’s door.
Hood Release
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Reach under the hood, move safety latch to the left
and lift the hood.CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center of
the hood to ensure that both latches engage.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Safety Latch Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

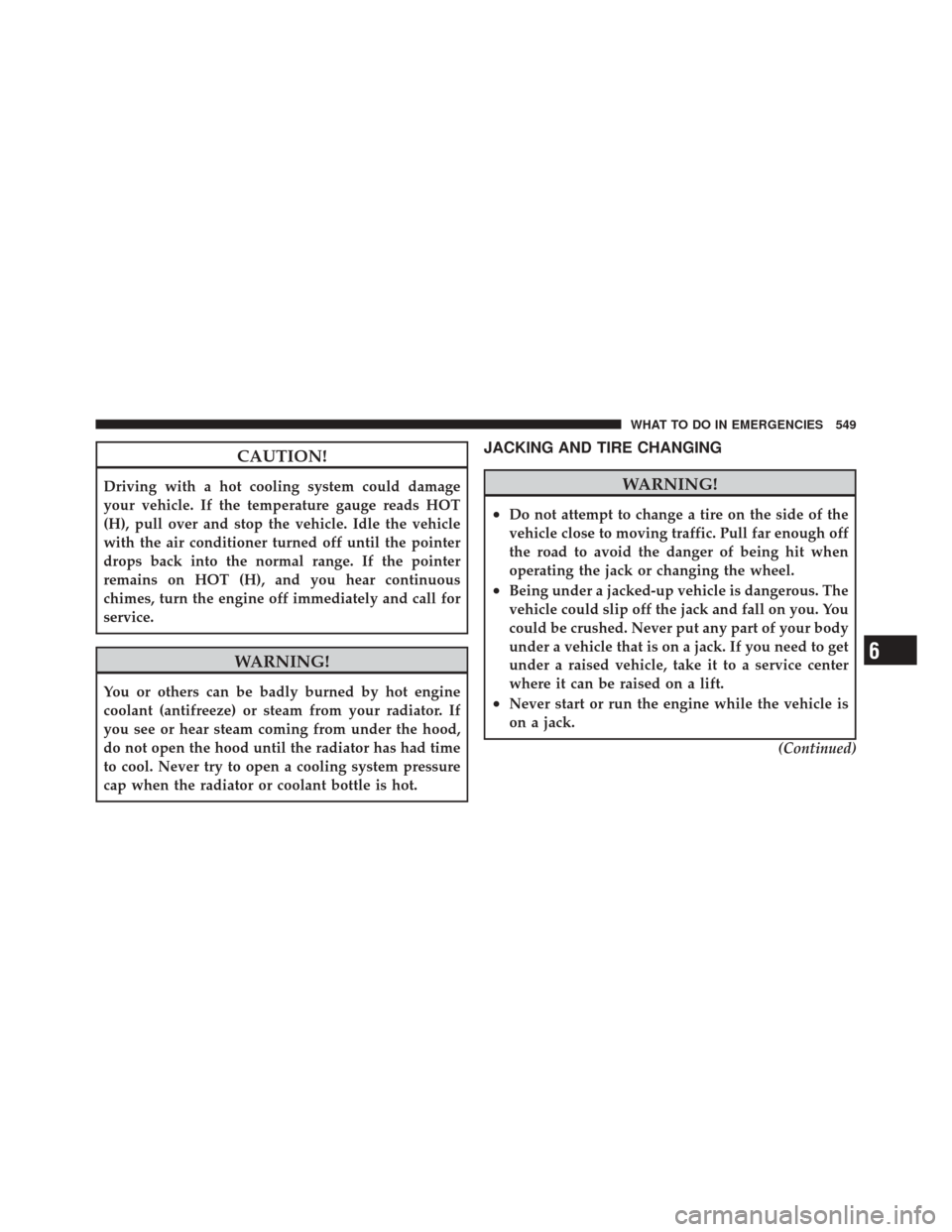

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads HOT
(H), pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on HOT (H), and you hear continuous
chimes, turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
•Never start or run the engine while the vehicle is
on a jack.(Continued)
6
WHAT TO DO IN EMERGENCIES 549

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. Remove the protective cover over the remote positive
(+)
battery post. Pull upward on the cover to remove it.
4. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 561

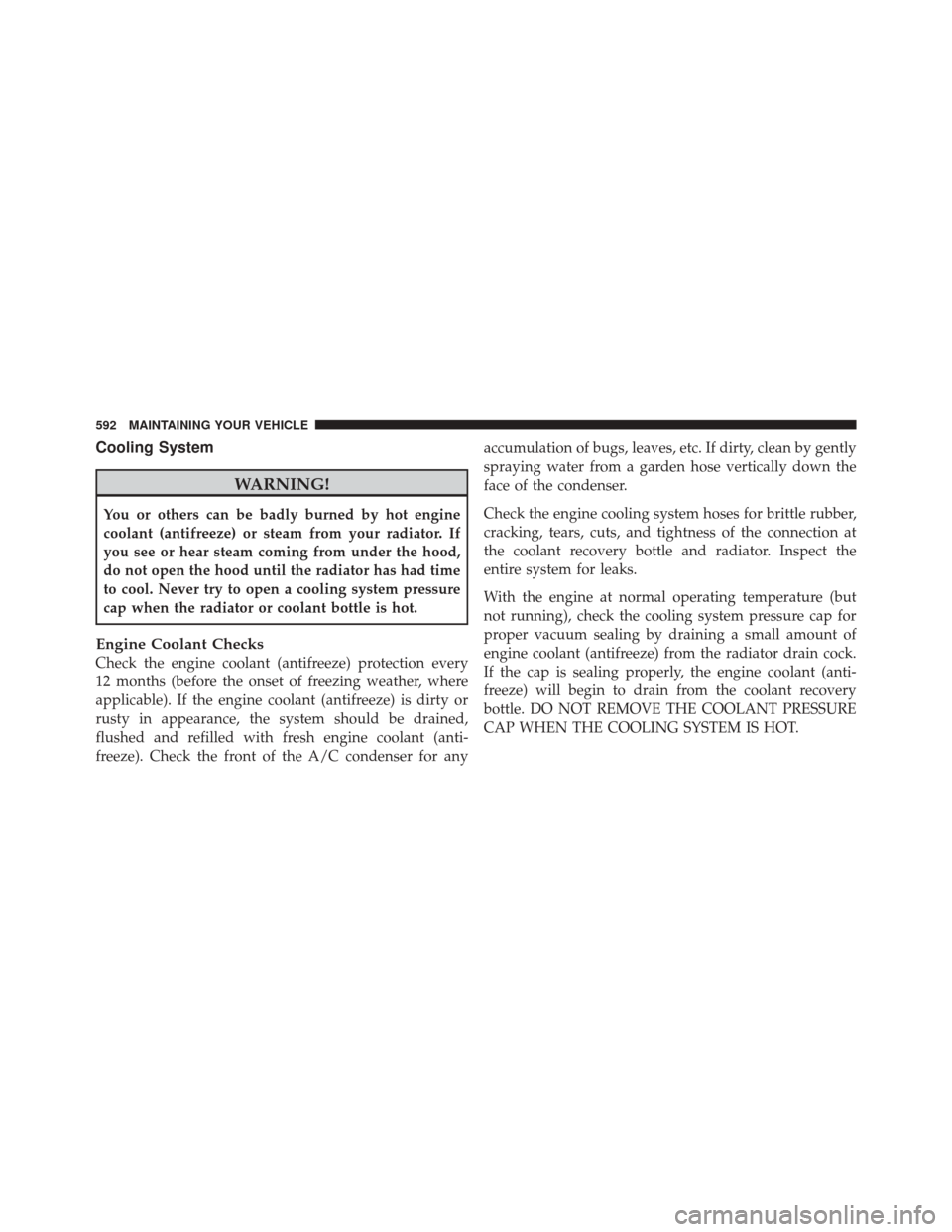

Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
Engine Coolant Checks
Check the engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed and refilled with fresh engine coolant (anti-
freeze). Check the front of the A/C condenser for anyaccumulation of bugs, leaves, etc. If dirty, clean by gently
spraying water from a garden hose vertically down the
face of the condenser.
Check the engine cooling system hoses for brittle rubber,
cracking, tears, cuts, and tightness of the connection at
the coolant recovery bottle and radiator. Inspect the
entire system for leaks.
With the engine at normal operating temperature (but
not running), check the cooling system pressure cap for
proper vacuum sealing by draining a small amount of
engine coolant (antifreeze) from the radiator drain cock.
If the cap is sealing properly, the engine coolant (anti-
freeze) will begin to drain from the coolant recovery
bottle. DO NOT REMOVE THE COOLANT PRESSURE
CAP WHEN THE COOLING SYSTEM IS HOT.
592 MAINTAINING YOUR VEHICLE

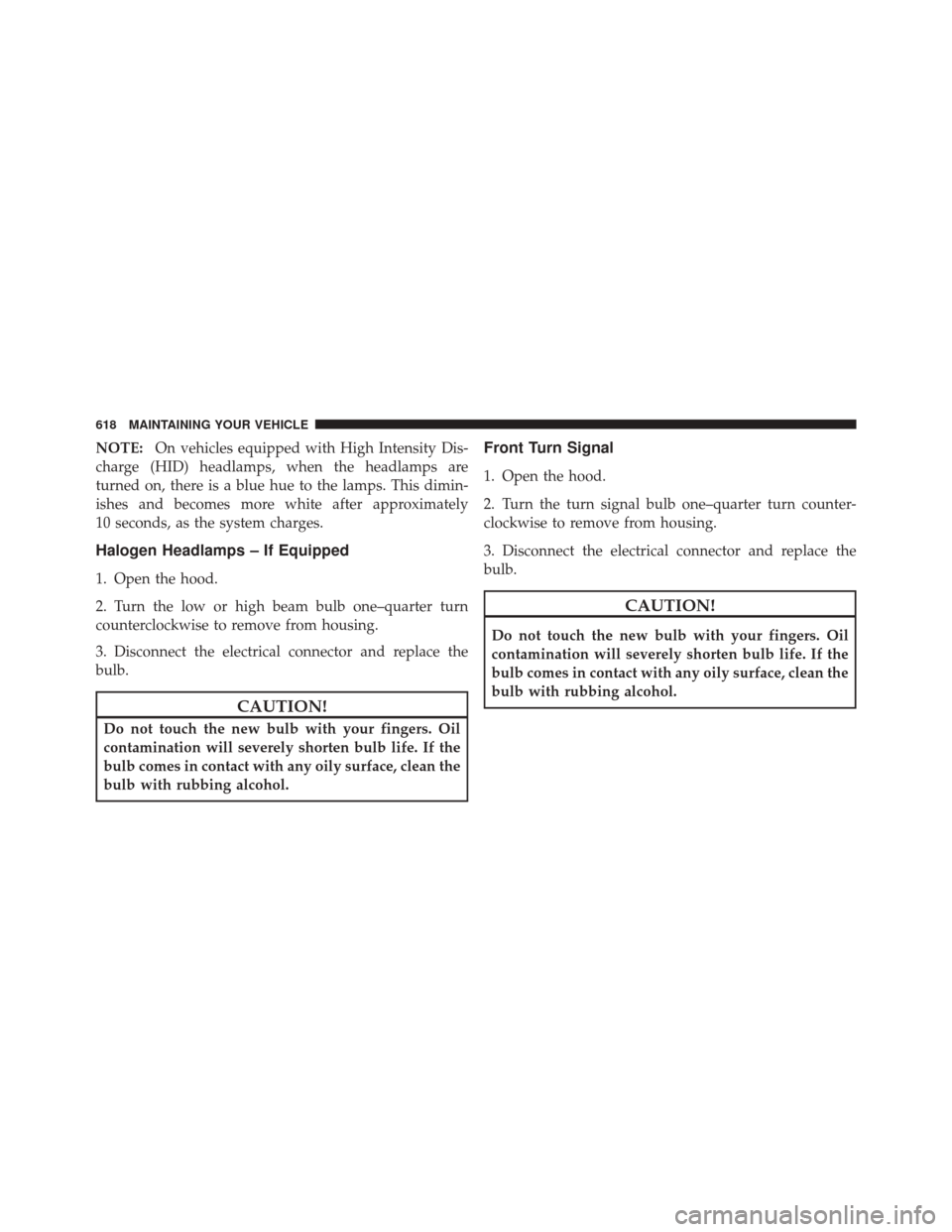

NOTE:On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
618 MAINTAINING YOUR VEHICLE

Gasoline, Clean Air...................... 510
Gasoline, Reformulated ................... 510
Gauges Coolant Temperature .................. 294
Fuel .............................. 293
Speedometer ........................ 292
Tachometer ......................... 285
Gear Ranges ........................ 422,430
Gear Select Lever Override ................. 565
General Information ............20,29,151,222,508
Glass Cleaning .......................... 609
Gross Axle Weight Rating ...............521,524
Gross Vehicle Weight Rating .............521,523
GVWR ............................... 521
Hands-Free Phone (Uconnect™) ............. 121
Hazard Warning Flasher ................... 548
Headlights ............................ 617
Bulb Replacement .................... 618 Cleaning
........................... 608
On With Wipers ..................... 181
Replacing .......................... 618
Heated Mirrors ......................... 111
Heater ............................... 394
Heater, Engine Block ..................... 418
High Beam Indicator ..................... 287
Hill Descent Control ..................... 474
Hill Descent Control Indicator ............... 287
Hill Start Assist ......................... 471
Hitches Trailer Towing ....................... 528
Holder, Cup ........................... 264
HomeLink® (Garage Door Opener) Transmitter . . 242
Hood Release .......................... 178
Ignition ............................... 16
Key ............................. 14,16
Ignition Key Removal ..................... 16
10
INDEX 663
