seat memory JEEP GRAND CHEROKEE 2012 WK2 / 4.G User Guide

Power Lumbar
• Push the switch forward toincrease the lumbar support. Push
the switch rearward to decrease
the lumbar support.
• Pushing upward or downward on the switch will raise and lower the
position of the support.
Memory Seat
• The memory seat feature allowsyou to save two different driver
seating positions (excluding
lumbar position), driver's outside
mirror, tilt/telescoping steering
column position, and radio station
preset settings. The memory seat
buttons are located on the driver's
door panel.
• Adjust all memory profile settings, press the SET button then press 1
or 2 within five seconds.
• To program a Key Fob to the memory position, place the ignition switch in the LOCK position and remove the Key Fob, press and release the
LOCK button on the Key Fob to be programmed within 5 seconds of
pressing button 1 or 2.
• Place the ignition switch in the ON/RUN position, select Remote Linked to Memory in the Electronic Vehicle Information Center (EVIC) and enter
Ye s .
• Press 1 or 2 to recall the saved positions, or press UNLOCK on the programmed Key Fob.
• Refer to the Owner's Manual on the DVD for further details.
GETTING STARTED
21

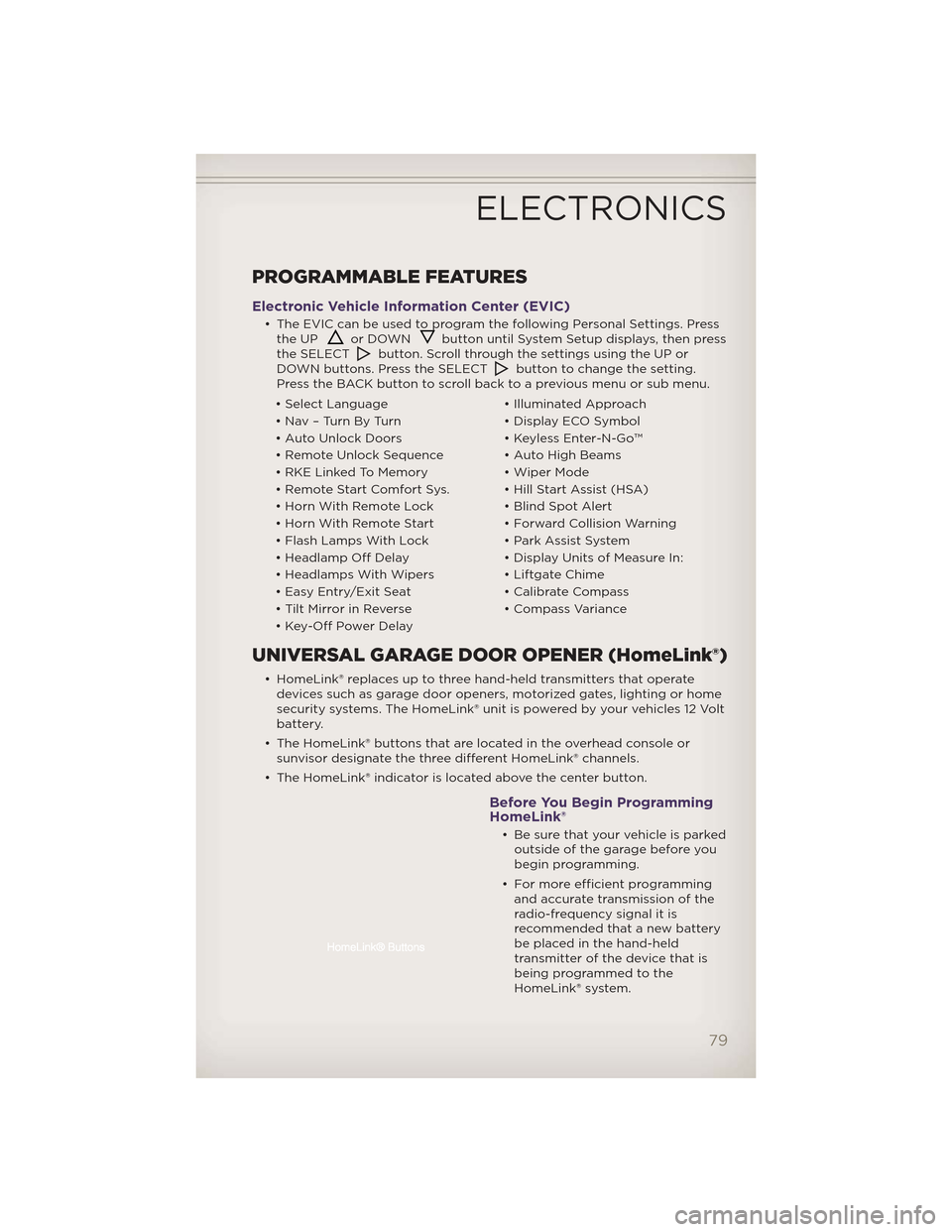

PROGRAMMABLE FEATURES
Electronic Vehicle Information Center (EVIC)
• The EVIC can be used to program the following Personal Settings. Pressthe UPor DOWNbutton until System Setup displays, then press
the SELECTbutton. Scroll through the settings using the UP or
DOWN buttons. Press the SELECTbutton to change the setting.
Press the BACK button to scroll back to a previous menu or sub menu.
• Select Language • Illuminated Approach
• Nav – Turn By Turn • Display ECO Symbol
• Auto Unlock Doors • Keyless Enter-N-Go™
• Remote Unlock Sequence • Auto High Beams
• RKE Linked To Memory • Wiper Mode
• Remote Start Comfort Sys. • Hill Start Assist (HSA)
• Horn With Remote Lock • Blind Spot Alert
• Horn With Remote Start • Forward Collision Warning
• Flash Lamps With Lock • Park Assist System
• Headlamp Off Delay • Display Units of Measure In:
• Headlamps With Wipers • Liftgate Chime
• Easy Entry/Exit Seat • Calibrate Compass
• Tilt Mirror in Reverse • Compass Variance
• Key-Off Power Delay
UNIVERSAL GARAGE DOOR OPENER (HomeLink®)
• HomeLink® replaces up to three hand-held transmitters that operate devices such as garage door openers, motorized gates, lighting or home
security systems. The HomeLink® unit is powered by your vehicles 12 Volt
battery.
• The HomeLink® buttons that are located in the overhead console or sunvisor designate the three different HomeLink® channels.
• The HomeLink® indicator is located above the center button.
Before You Begin Programming
HomeLink®
• Be sure that your vehicle is parked outside of the garage before you
begin programming.
• For more efficient programming and accurate transmission of the
radio-frequency signal it is
recommended that a new battery
be placed in the hand-held
transmitter of the device that is
being programmed to the
HomeLink® system.
ELECTRONICS
79

Flexible Fuel Vehicles.......120
Flipper Glass, Liftgate .......37
Fluid Capacities ...........119
Fluids ..................119
FogLights ...............28
Folding Front Passenger Seat . . 22
FoldingRearSeat ..........23
Four Wheel Drive ..........84
Shifting ...............85
Four Wheel Drive Operation . . . 84 Shifting into Transfer Case
Neutral (N) .............85
Shifting out of Transfer Case
Neutral (N) .............85
FrontHeatedSeats .........24
Fuel Filler Cap (Gas Cap) ......100
Filler Door (Gas Cap) ......114
Filler Door Emergency
Release ...............115
Specifications ........119,120
Fuses .................126
Garage Door Opener
(HomeLink®) .............79
Gas Cap (Fuel Filler Cap) . . . . 100
Headlights ...............28
Automatic..............28
Dimmer Switch ..........28
High Beam .............30
High Beam/Low Beam Select
Switch ................30
HeatedMirrors ..........35,36
HeatedSeats .............24
Heated Steering Wheel ......25
High Beam/Low Beam Select
(Dimmer) Switch ..........30
HillDescentControl.........88
HillStartAssist ............88
HomeLink® (Garage Door
Opener) Transmitter ........79
Hood Release ............114
Instrument Cluster ..........8
Indicators ...............9 Instrument Cluster Warning
Lights ................8,97
Integrated Power Module
(Fuses)
................127
Intermittent Wipers
(DelayWipers) ............29
Introduction . . . . . . . . . . . . . . 3
Inverter Outlet (115V) . . . . . . . . 82
Inverter,Power ............82
iPod®/USB/MP3 Control . . . . . . 70 Bluetooth Streaming Audio . . 76
Jack Location . . . . . . . . . . . . 103
Jack Operation . . . . . . . . 102,104
Jacking Instructions . . . . . . . . 104
Jump Starting . . . . . . . . . . . . 108
KeyFob.................10
KeylessEnter-N-Go™ ........13 Lock/Unlock . . . . . . . . . . . . 13
Starting/Stopping . . . . .....15
Lane Change Assist . . . . . . . . . 29
LATCH (Lower Anchors and
Tether for CHildren) . . . . . . . . . 18
Liftgate .................37
Liftgate Flipper Glass . . . . . . . . 37
Liftgate,Power ..........10,37
LightBulbs ..............131
Lights Warning (Instrument Cluster
Description) .............8
Maintenance Record . . . . . 123,125
Maintenance Schedule ....121,124
Malfunction Indicator Light
(Check Engine) . . . . . . . . . . . 99
Media Center Radio . . . . . . . 44,46
Memory Seat . . . . . . . . . . . . . 21
Mirrors Automatic Dimming . . . . . . . 30
Heated ..............35,36
MOPAR® Accessories . . . . . . . 134
Navigation.............54,63
New Vehicle Break-In Period . . . 27
INDEX
136

Oil Change Indicator . . . . . . . 100
Oil Change Indicator, Reset . . . 100
OilPressureLight ..........99
Oil, EngineCapacity ..............119
Outlet Power ................82
Overheating, Engine ........101
PanicAlarm ..............10
Park Sense System, Rear . . . . . 36
Phone (Pairing) ...........72
Phone (Uconnect) ..........71
Placard, Tire and Loading
Information..............129
Power Glass Sunroof ...........38
Inverter ...............82
LiftGate ...............10
Outlet (Auxiliary Electrical
Outlet) ................82
Seats .................20
Steering ............119,120
Tilt/Telescoping Steering
Column ...............26
Preparation for Jacking . . . . . . 104
Programmable Electronic
Features ..............79,95
Quadra-Lift ..............86
Quadra-Trac .............84
Radio Operation .........48,57
Rain Sensitive Wiper System . . . 29
Rear Camera .............36
RearCrossPath ...........37
RearHeatedSeats .........24
Rear Park Sense System ......36
RearSeat,Folding ..........23
Recreational Towing ........90
Shifting into Transfer Case
Neutral (N) .............90
Remote Starting System . .....12
Removal, Start/Stop Button . . 10,14
Replacement Bulbs .........131
Reporting Safety Defects . . . . . 133
Restraints,Child ...........18 RollOverWarning ..........4
SeatBelts ...............16
Seats ..................20
Adjustment . . . . . ........22
Folding Front Passenger . . . . 22
Heated ................24
Lumbar Support . . . . . .....21
Memory . . . . . . . . . . . . . . . 21
Power ................20
RearFolding ............23
Ventilated . . . . . . . . . . . . . . 24
Seek Button . . . . . . . . . . . . 45,47
Selec-Terrain .............86
Setting the Clock . . . . 44,46,49,57
Shift Lever Override . . . . . . . . . 111
Short Message Service (SMS) . . 75
Signals,Turn .............29
SIRIUS Travel Link . . . . . . . . . . 69
SmartBeams . . . . . . . . . . . . . 28
Spare Tire . . . . . . . . . . ....103
Spark Plugs . . . . . . . . ......119
Speed Control Accel/Decel ............30
Cancel ................30
Distance Setting (ACC Only) . . 31
Mode Setting (ACC Only) . . . . 31
Resume ...............32
Speed Control (Cruise
Control) ................30
Start/Stop Button Removal . . 10,14
Starting Remote . . . .............12
Steering TiltColumn .............26
Wheel, Heated . . . . . . . . . . . 25
Steering Wheel Audio
Controls ................70
Store Radio Presets . . . . . . . 45,47
SunRoof ................38
Supplemental Restraint System -
Airbag ..................17
Temperature Control,
Automatic(ATC)...........35
Temperature Gauge, Engine
Coolant ................101
TextMessaging ............75
INDEX
137

FREQUENTLY ASKED QUESTIONS
GETTING STARTED
• How do I install my LATCH Equipped Child Seat? pg. 18
• How do I program my Front Seat Memory? pg. 21
OPERATING YOUR VEHICLE
• How does the Electronic Range Select (ERS) operate? pg. 34
ELECTRONICS
• Which radio is in my vehicle? pg. 44, 46, 48, 57
• How do I activate the Audio Jack? pg. 45, 48, 51, 60
• How do I set the clock on my radio? pg. 44, 46, 49, 57
• How do I use the Navigation feature? pg. 54, 63
• How do I pair my cell phone via Bluetooth® with the UConnect™Hands-Free Voice Activation System? pg. 71
• How do I use my iPod®? pg. 70
• How do I use my USB port to listen to audio through my touch-screen radio? pg. 70
• What does the ECO message mean on the EVIC display? pg. 78
• How do I configure my Universal Garage Door Opener (HomeLink)? pg. 79
OFF-ROAD CAPABILITIES
• How do I shift into different four-wheel drive selections? pg. 84
UTILITY
• How do I know how much I can tow with my Jeep Grand Cherokee?pg. 89
SRT8
• How do I operate the paddle shifters? pg. 93
WHAT TO DO IN EMERGENCIES
• What do I do if my TPMS warning light is blinking? pg. 97
• How do I change a flat tire? pg. 102
• How do I Jump-Start my vehicle? pg. 108
MAINTAINING YOUR VEHICLE
• Where is my Fuse Block located? pg. 126
• What type of oil do I use? pg. 119
• How often should I change my engine’s oil? pg. 121
• What should my tire pressure be set at? pg. 129
FAQ (How To?)
139
