JEEP GRAND CHEROKEE 2014 WK2 / 4.G Owners Manual

Recreational Towing – Two-Wheel Drive Models
DO NOT flat tow this vehicle. Damage to the drivetrain
will result.
Recreational towing (for two-wheel drive models) is
allowed ONLY if the rear wheels are OFF the ground.
This may be accomplished using a tow dolly or vehicle
trailer. If using a tow dolly, follow this procedure:
1. Properly secure the dolly to the tow vehicle, followingthe dolly manufacturer’s instructions.
2. Drive the rear wheels onto the tow dolly.
3. Firmly apply the parking brake. Shift the transmission into PARK.
4. Turn the ignition switch to the OFF position.
5. Properly secure the rear wheels to the dolly, following the dolly manufacturer ’s instructions. 6. Install a suitable clamping device, designed for tow-
ing, to secure the front wheels in the straight position.
CAUTION!
Towing with the rear wheels on the ground will
cause severe transmission damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.
Recreational Towing — Quadra–Trac II® /
Quadra–Drive® II Four-Wheel Drive Models
The transfer case must be shifted into NEUTRAL (N) and
the transmission must be in PARK for recreational tow-
ing. The NEUTRAL (N) selection button is adjacent to the
transfer case selector switch. Shifts into and out of
transfer case NEUTRAL (N) can take place with the
selector switch in any mode position.
5
STARTING AND OPERATING 529

CAUTION!
•DO NOT dolly tow any 4WD vehicle. Internal
damage to the transmission or transfer case will
occur if a dolly is used when recreational towing.
• Tow only in a forward direction. Towing this ve-
hicle backwards can cause severe damage to the
transfer case.
• The transmission must be in PARK for recreational
towing.
• Before recreational towing, perform the procedure
outlined under “Shifting into NEUTRAL (N)” to be
certain that the transfer case is fully in NEUTRAL
(N). Otherwise, internal damage will result.
• Failure to follow these procedures can cause severe
transmission and/or transfer case damage. Damage
from improper towing is not covered under the
New Vehicle Limited Warranty.
(Continued)
CAUTION! (Continued)
•Do not use a bumper-mounted clamp-on tow bar
on your vehicle. The bumper face bar will be
damaged.
Shifting Into NEUTRAL (N)
WARNING!
You or others could be injured or killed if you leave
the vehicle unattended with the transfer case in the
NEUTRAL (N) position without first fully engaging
the parking brake. The transfer case NEUTRAL (N)
position disengages both the front and rear drive-
shafts from the powertrain and will allow the vehicle
to move, even if the transmission is in PARK. The
parking brake should always be applied when the
driver is not in the vehicle.
530 STARTING AND OPERATING

Use the following procedure to prepare your vehicle for
recreational towing.
CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL (N) before
recreational towing to prevent damage to internal
parts.
1. Bring the vehicle to a complete stop, with the engine running.
2. Press and hold the brake pedal.
3. Shift the transmission into NEUTRAL.
4. If vehicle is equipped with Quadra-Lift™ air suspen- sion, ensure the vehicle is set to Normal Ride Height. 5. Using a ballpoint pen or similar object, press and hold
the recessed transfer case “N” button (located by the
selector switch) for four seconds. The light behind the
N symbol will blink, indicating shift in progress. The
light will stop blinking (stay on solid) when the shift to
“N” is complete. A “FOUR WHEEL DRIVE SYSTEM
IN NEUTRAL” message will display on the EVIC
(Electronic Vehicle Information Center). Refer to “Elec-
tronic Vehicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further informa-
tion.
5
STARTING AND OPERATING 531

6. After the shift is completed and the “N” light stays on,release the “N” button.
7. Shift the transmission into REVERSE.
8. Release the brake pedal for five seconds and ensure that there is no vehicle movement. 9. Shift the transmission back into “N”
10. With the transmission and transfer case in “N”, press
and hold the ENGINE START/STOP button until the
engine turns off. Turning the engine off will auto-
matically place the transmission in PARK.
11. Press the ENGINE STOP/START button again (with- out pressing the brake pedal), if needed, to turn the
ignition switch to the OFF position.
12. Firmly apply the parking brake.
13. Attach the vehicle to the tow vehicle using a suitable tow bar.
14. Release the parking brake.
NEUTRAL (N) Switch
532 STARTING AND OPERATING

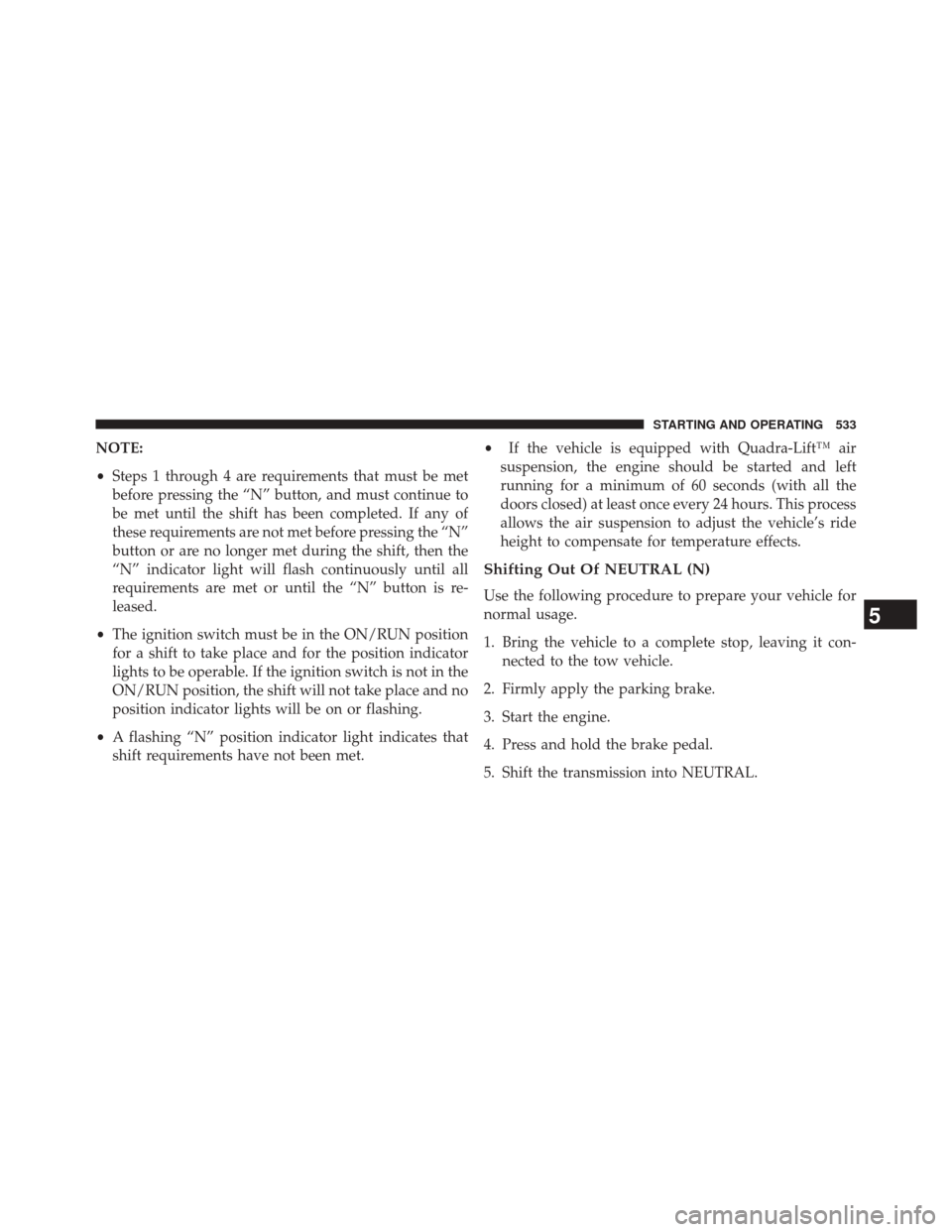

NOTE:
•Steps 1 through 4 are requirements that must be met
before pressing the “N” button, and must continue to
be met until the shift has been completed. If any of
these requirements are not met before pressing the “N”
button or are no longer met during the shift, then the
“N” indicator light will flash continuously until all
requirements are met or until the “N” button is re-
leased.
• The ignition switch must be in the ON/RUN position
for a shift to take place and for the position indicator
lights to be operable. If the ignition switch is not in the
ON/RUN position, the shift will not take place and no
position indicator lights will be on or flashing.
• A flashing “N” position indicator light indicates that
shift requirements have not been met. •
If the vehicle is equipped with Quadra-Lift™ air
suspension, the engine should be started and left
running for a minimum of 60 seconds (with all the
doors closed) at least once every 24 hours. This process
allows the air suspension to adjust the vehicle’s ride
height to compensate for temperature effects.
Shifting Out Of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con- nected to the tow vehicle.
2. Firmly apply the parking brake.
3. Start the engine.
4. Press and hold the brake pedal.
5. Shift the transmission into NEUTRAL.
5
STARTING AND OPERATING 533

6. Using a ballpoint pen or similar object, press and holdthe recessed transfer case “N” button (located by the
selector switch) for one second. 7. When the “N” indicator light turns off, release the “N”
button. After the “N” button has been released, the
transfer case will shift to the position indicated by the
selector switch.
8. Shift the transmission into PARK. Turn the engine OFF.
9. Release the brake pedal.
10. Disconnect vehicle from the tow vehicle.
11. Start the engine.
12. Press and hold the brake pedal.
13. Release the parking brake.
14. Shift the transmission into DRIVE, release the brake pedal, and check that the vehicle operates normally.
NEUTRAL (N) Switch
534 STARTING AND OPERATING

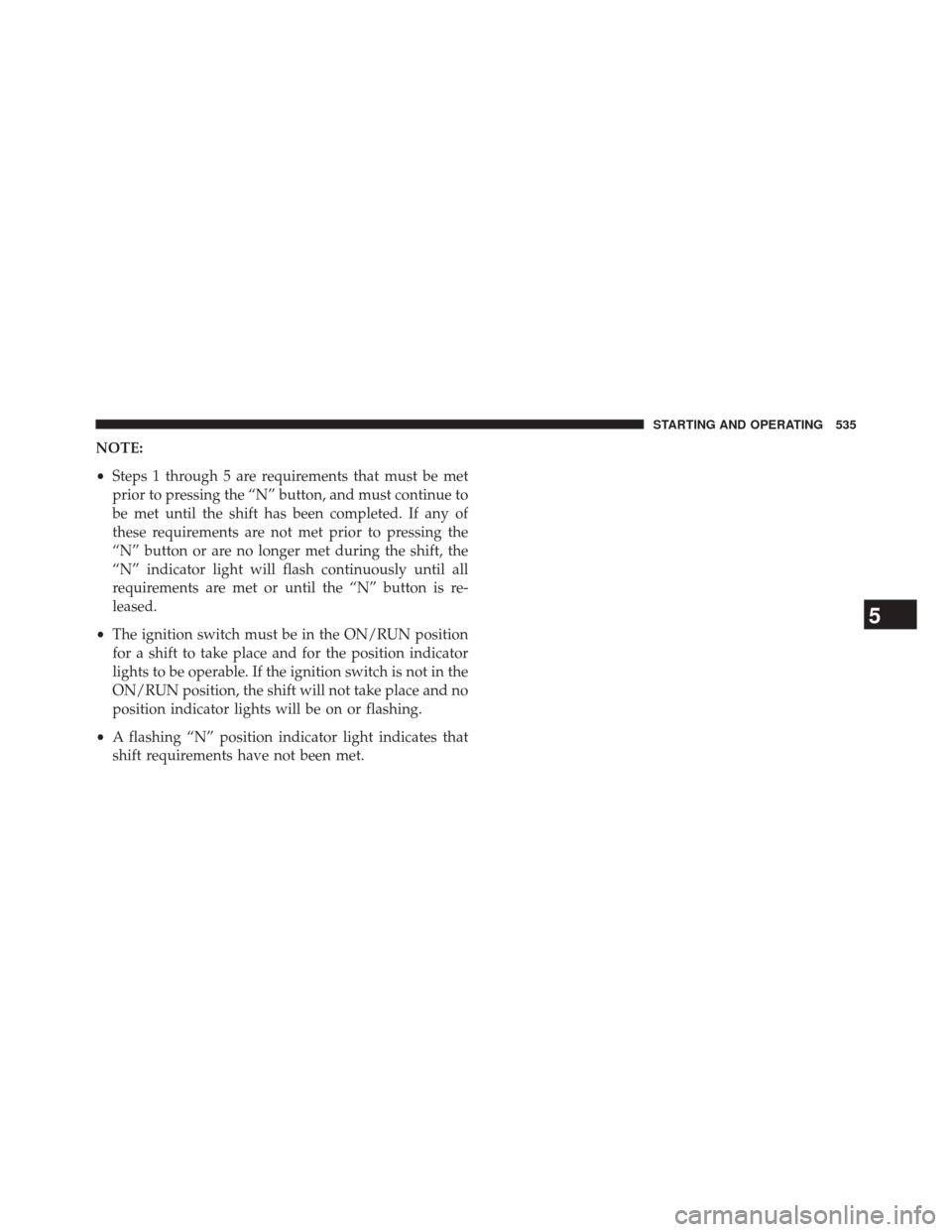

NOTE:
•Steps 1 through 5 are requirements that must be met
prior to pressing the “N” button, and must continue to
be met until the shift has been completed. If any of
these requirements are not met prior to pressing the
“N” button or are no longer met during the shift, the
“N” indicator light will flash continuously until all
requirements are met or until the “N” button is re-
leased.
• The ignition switch must be in the ON/RUN position
for a shift to take place and for the position indicator
lights to be operable. If the ignition switch is not in the
ON/RUN position, the shift will not take place and no
position indicator lights will be on or flashing.
• A flashing “N” position indicator light indicates that
shift requirements have not been met.
5
STARTING AND OPERATING 535

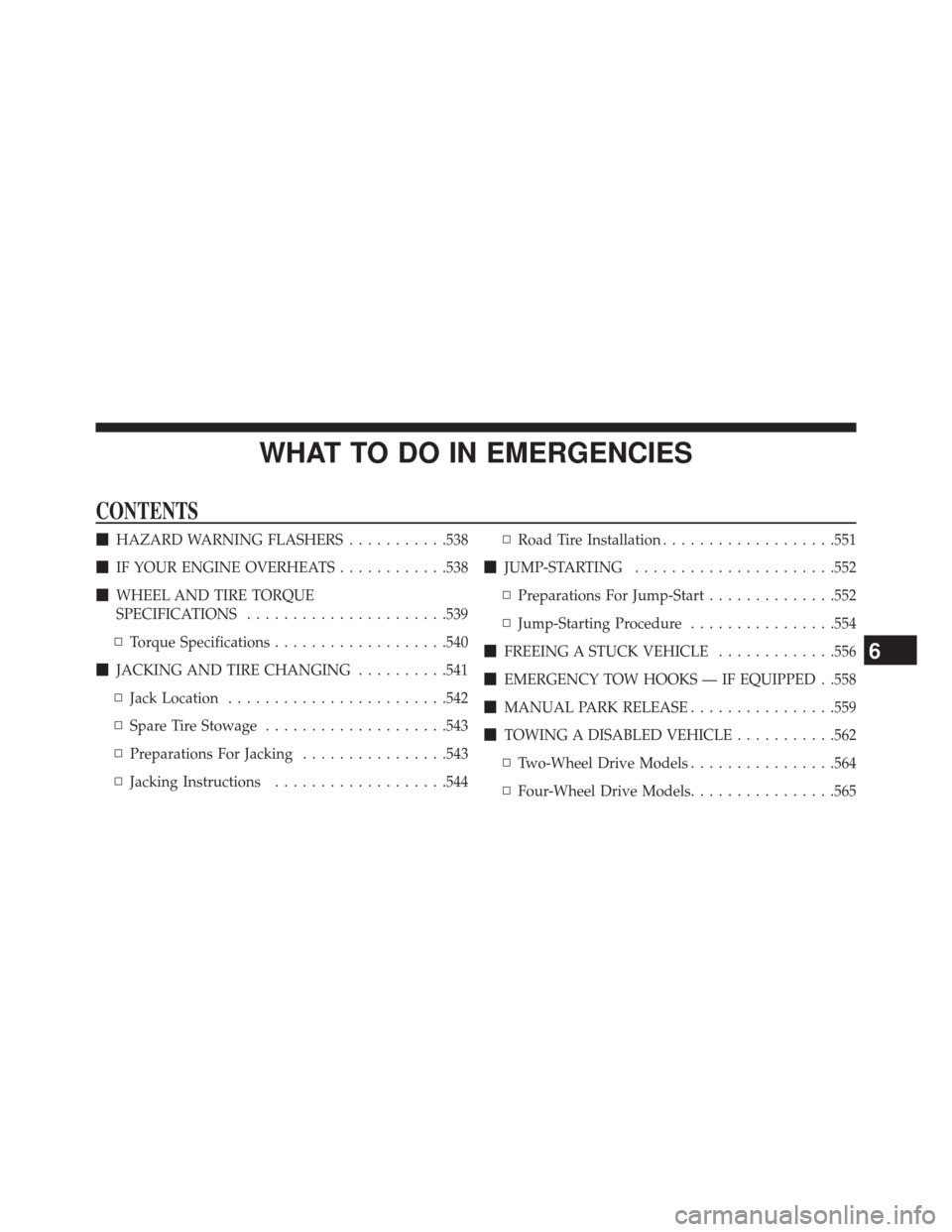

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ...........538
 IF YOUR ENGINE OVERHEATS ............538
 WHEEL AND TIRE TORQUE
SPECIFICATIONS ..................... .539
▫ Torque Specifications ...................540
 JACKING AND TIRE CHANGING ..........541
▫ Jack Location ....................... .542
▫ Spare Tire Stowage ....................543
▫ Preparations For Jacking ................543
▫ Jacking Instructions ...................544 ▫
Road Tire Installation ...................551
 JUMP-STARTING ..................... .552
▫ Preparations For Jump-Start ..............552
▫ Jump-Starting Procedure ................554
 FREEING A STUCK VEHICLE .............556
 EMERGENCY TOW HOOKS — IF EQUIPPED . .558
 MANUAL PARK RELEASE ................559
 TOWING A DISABLED VEHICLE ...........562
▫ Two-Wheel Drive Models ................564
▫ Four-Wheel Drive Models ................565
6

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
switch bank just above the climate controls.Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use, the Hazard Warning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase the engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
538 WHAT TO DO IN EMERGENCIES
