JEEP GRAND CHEROKEE 2014 WK2 / 4.G SRT User Guide

NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
Right Front Body VIN Location
1
INTRODUCTION 9

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

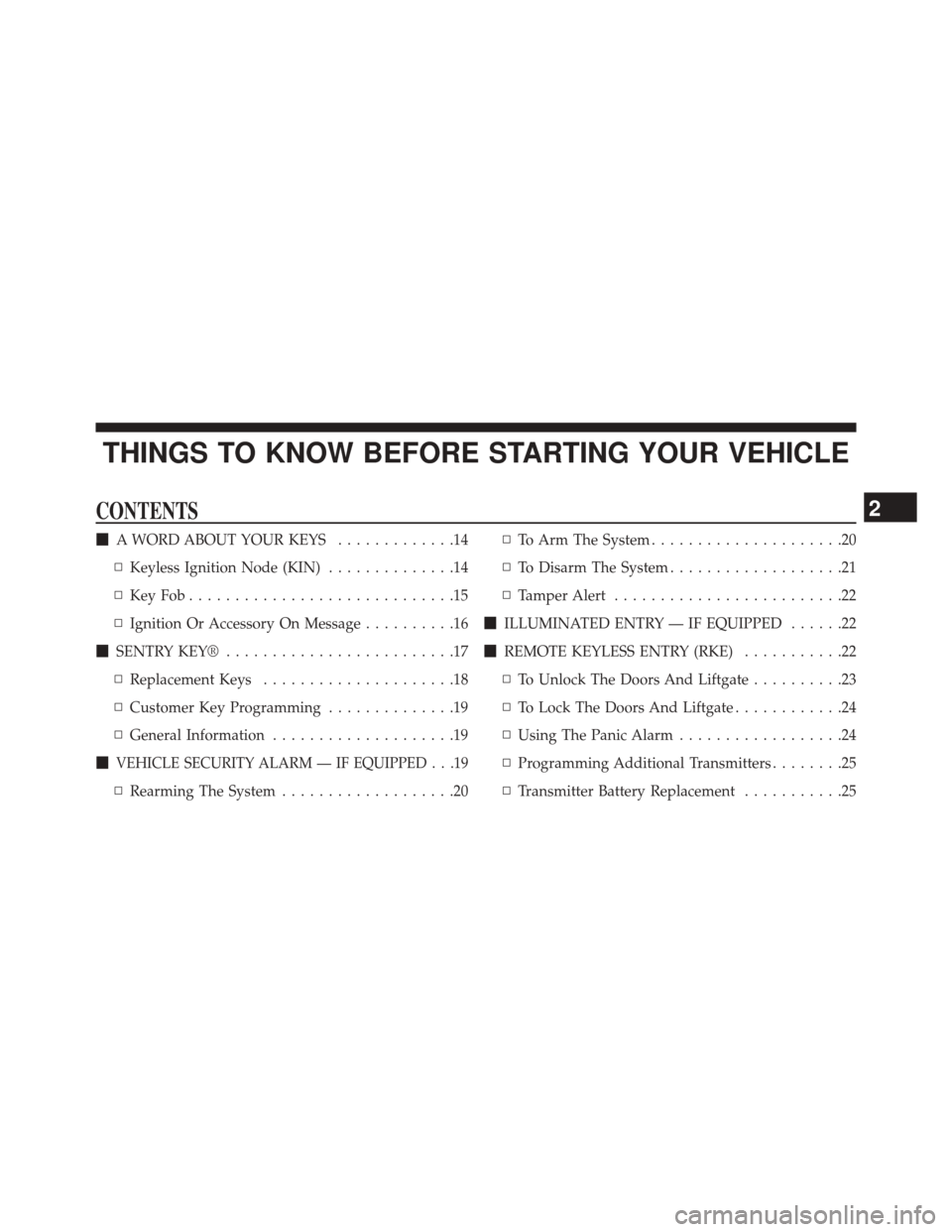

CONTENTS
A WORD ABOUT YOUR KEYS .............14
▫ Keyless Ignition Node (KIN) ..............14
▫ KeyFob.............................15
▫ Ignition Or Accessory On Message ..........16
 SENTRY KEY® .........................17
▫ Replacement Keys .....................18
▫ Customer Key Programming ..............19
▫ General Information ....................19

VEHICLE SECURITY ALARM — IF EQUIPPED . . .19
▫ Rearming The System ...................20 ▫
To Arm The System .....................20
▫ To Disarm The System ...................21
▫ Tamper Alert .........................22
 ILLUMINATED ENTRY — IF EQUIPPED ......22
 REMOTE KEYLESS ENTRY (RKE) ...........22
▫ To Unlock The Doors And Liftgate ..........23
▫ To Lock The Doors And Liftgate ............24
▫ Using The Panic Alarm ..................24
▫ Programming Additional Transmitters ........25
▫ Transmitter Battery Replacement ...........25
2

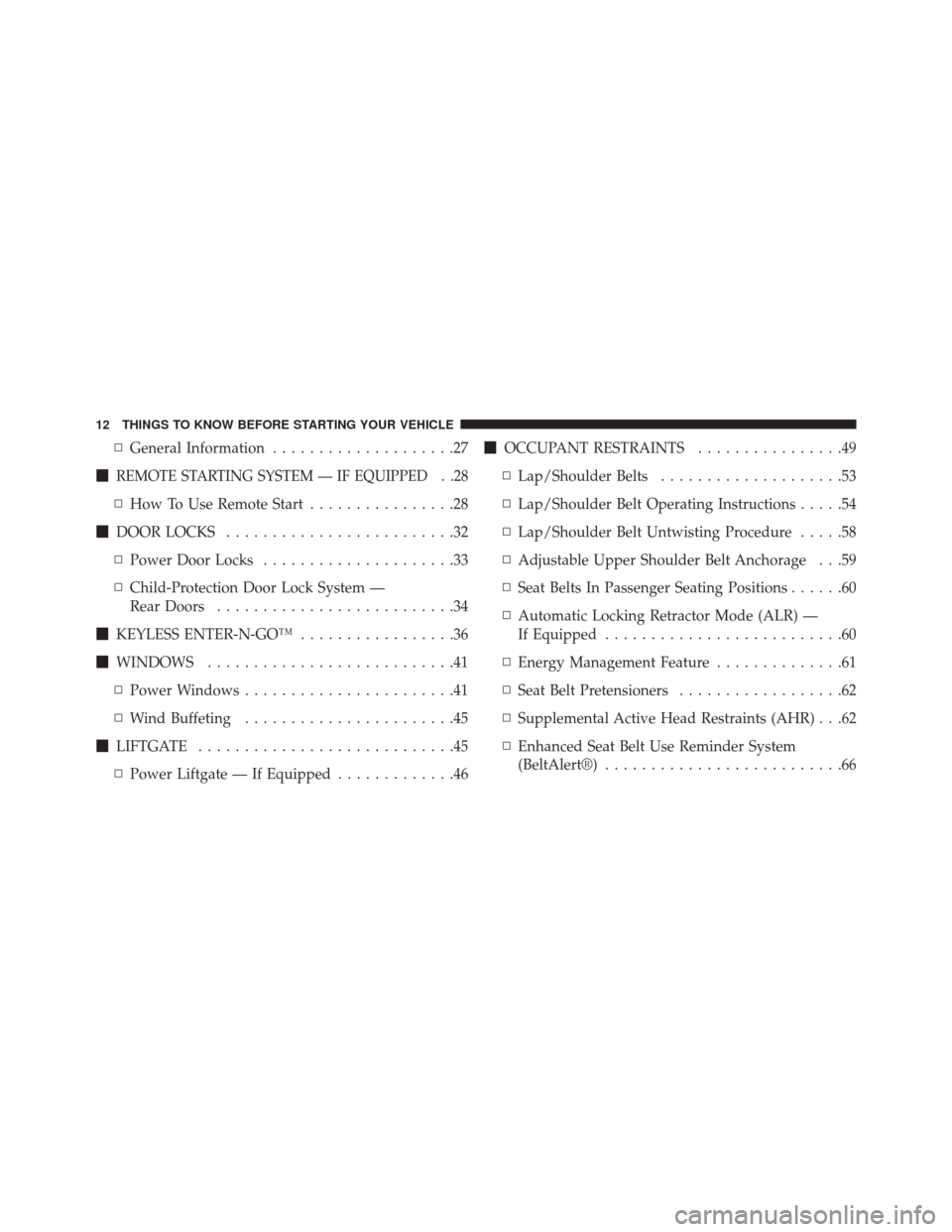

▫General Information ....................27

REMOTE STARTING SYSTEM — IF EQUIPPED . .28
▫ How To Use Remote Start ................28
 DOOR LOCKS .........................32
▫ Power Door Locks .....................33
▫ Child-Protection Door Lock System —
Rear Doors ..........................34
 KEYLESS ENTER-N-GO™ .................36
 WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................45
 LIFTGATE ............................45
▫ Power Liftgate — If Equipped .............46
OCCUPANT RESTRAINTS ................49
▫ Lap/Shoulder Belts ....................53
▫ Lap/Shoulder Belt Operating Instructions .....54
▫ Lap/Shoulder Belt Untwisting Procedure .....58
▫ Adjustable Upper Shoulder Belt Anchorage . . .59
▫ Seat Belts In Passenger Seating Positions ......60
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ..........................60
▫ Energy Management Feature ..............61
▫ Seat Belt Pretensioners ..................62
▫ Supplemental Active Head Restraints (AHR) . . .62
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................66
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Seat Belt Lock Out ......................67
▫ Seat Belts And Pregnant Women ...........67
▫ Seat Belt Extender .....................68
▫ Supplemental Restraint System (SRS) —
Air Bags ............................68
▫ Advanced Front Air Bag Features ...........71
▫ Air Bag Deployment Sensors And Controls ....76
▫ Event Data Recorder (EDR) ...............84
▫ Child Restraints .......................85
ENGINE BREAK-IN RECOMMENDATIONS . . .111
 SAFETY TIPS .........................112
▫ Transporting Passengers .................112
▫ Exhaust Gas .........................112
▫ Safety Checks You Should Make Inside The
Vehicle .............................113
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................116
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Ignition Node (KIN).
Keyless Enter-N-Go™ Feature
This vehicle is equipped with the Keyless Enter-N-Go™
feature, (refer toKeyless Enter-N-Go™ inThings To
Know Before Starting Your Vehicle for further informa-
tion).
Keyless Ignition Node (KIN)
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in the passenger
compartment. The Keyless Ignition Node (KIN) has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.
NOTE:
In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.The emergency key is also for locking the glove box.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
Keyless Ignition Node (KIN)
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE: With the Uconnect® system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
WARNING!
• When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
(Continued)
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, cycle the ignition
OFF and lock all doors when leaving the vehicle
unattended.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked. The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Ignition Node
(KIN) and a RF receiver to prevent unauthorized vehicle
operation. Therefore, only Key Fobs that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid Key Fob is used to start and operate the
vehicle. The system will shut the engine off in two
seconds if an invalid Key Fob is used to start the engine.
NOTE:
A Key Fob that has not been programmed is also
considered an invalid key.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Key Fob to try to start the engine. Either of these
conditions will result in the engine being shut off after
two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
• For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
