JEEP GRAND CHEROKEE 2014 WK2 / 4.G SRT Owners Manual

NOTE:If three consecutive sunroof close attempts result
in Pinch Protect reversals, the fourth close attempt will be
a Manual Close movement with Pinch Protect disabled.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Ignition OFF Operation
The power sunroof switches can be programmed to
remain active for up to approximately ten minutes after
the ignition switch has been turned OFF. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Customer-
Programmable Features (System Setup)” in “Under-
standing Your Instrument Panel” for further information.
NOTE: Opening either front door will cancel this fea-
ture.
Sunroof Fully Closed
Press the switch forward and release to ensure that the
sunroof is fully closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269

ELECTRICAL POWER OUTLETS
Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” are powered when
the ignition is in the ON or ACC position, while the
outlets labeled with a “battery” are connected directly to
the battery and powered at all times.
NOTE:
•
All accessories connected to the “battery” powered out-
lets should be removed or turned off when the vehicle is
not in use to protect the battery against discharge.
• To ensure proper cigar lighter operation, a MOPAR®
knob and element must be used.
CAUTION!
Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.
The front power outlet is located inside the storage area
on the center stack of the instrument panel. Push inward
on the storage lid to open the compartment and gain
access to this power outlet.
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.
Front Power Outlet
Center Console Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271

The rear power outlet is located in the right rear cargo
area.NOTE:
The rear power outlet can be switched to “bat-
tery” powered all the time by switching the power outlet
right rear quarter panel fuse in the fuse panel.
Rear Power Outlet
Power Outlet Right Rear Quarter Panel Fuse
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Outlet Fuse Locations
1 — F104 Fuse 20 A Yellow Power Outlet Console Bin
2 — F90–F91 Fuse 20 A Yellow Power Outlet Right Rear Quarter
Panel
3 — F93 Fuse 20 A Yellow Cigar Lighter Instrument Panel
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273

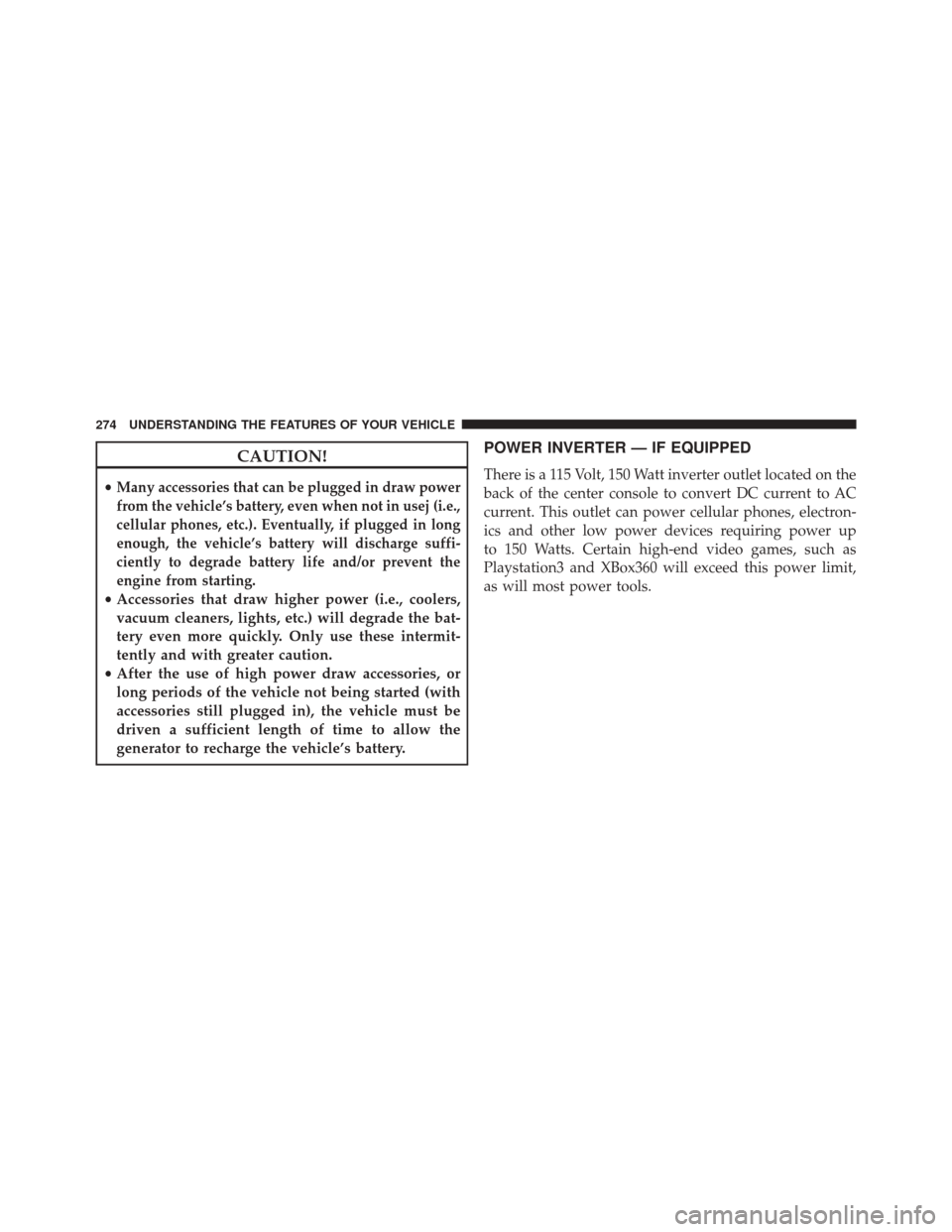

CAUTION!
•Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in usej (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge suffi-
ciently to degrade battery life and/or prevent the
engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up
to 150 Watts. Certain high-end video games, such as
Playstation3 and XBox360 will exceed this power limit,
as will most power tools.
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Oncethe electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the inverter.
WARNING!
To avoid serious injury or death:
•
Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275

CUPHOLDERS
There are two cupholders for the front seat passengers
located in the center console.There are two cupholders for the rear seat passengers
located in the fold-down center armrest.
Front Cupholders
Rear Cupholders
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel.To open the glove compartment, pull outward on the
latch and lower the glove compartment door.
Glove Compartment
Opened Glove Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277

Door Storage
Large storage areas are built into the door panels for easy
access.
Console Features
The center console contains both an upper and a lower
storage area.
Door Panel StorageStorage Compartment
