hood release JEEP GRAND CHEROKEE 2014 WK2 / 4.G SRT Owners Manual

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the release lever located below the instrumentpanel and in front of the driver’s door. 2. Reach under the hood, move safety latch to the left
and lift the hood.
Hood Release
Safety Latch Location
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Lower Switch Bank 11 — Hood Release
2 — Instrument Cluster 7 — Hazard Switch 12 — Fuel Door Release
3 — Radio 8 — Storage Bin (SD Card, AUX, USB Media Hub) 13 — Headlight Switch
4 — Glove Compartment 9 — ESC Button 14 — Dimmer Control
5 — Climate Controls 10 — Ignition Switch
294 UNDERSTANDING YOUR INSTRUMENT PANEL

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as MOPAR® Spray White Lube to assure quiet, easy
operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depending
on geographical area and frequency of use. Poor perfor-
mance of blades may be present with chattering, marks,
water lines or wet spots. If any of these conditions are
present, clean the wiper blades or replace as necessary.
524 MAINTAINING YOUR VEHICLE

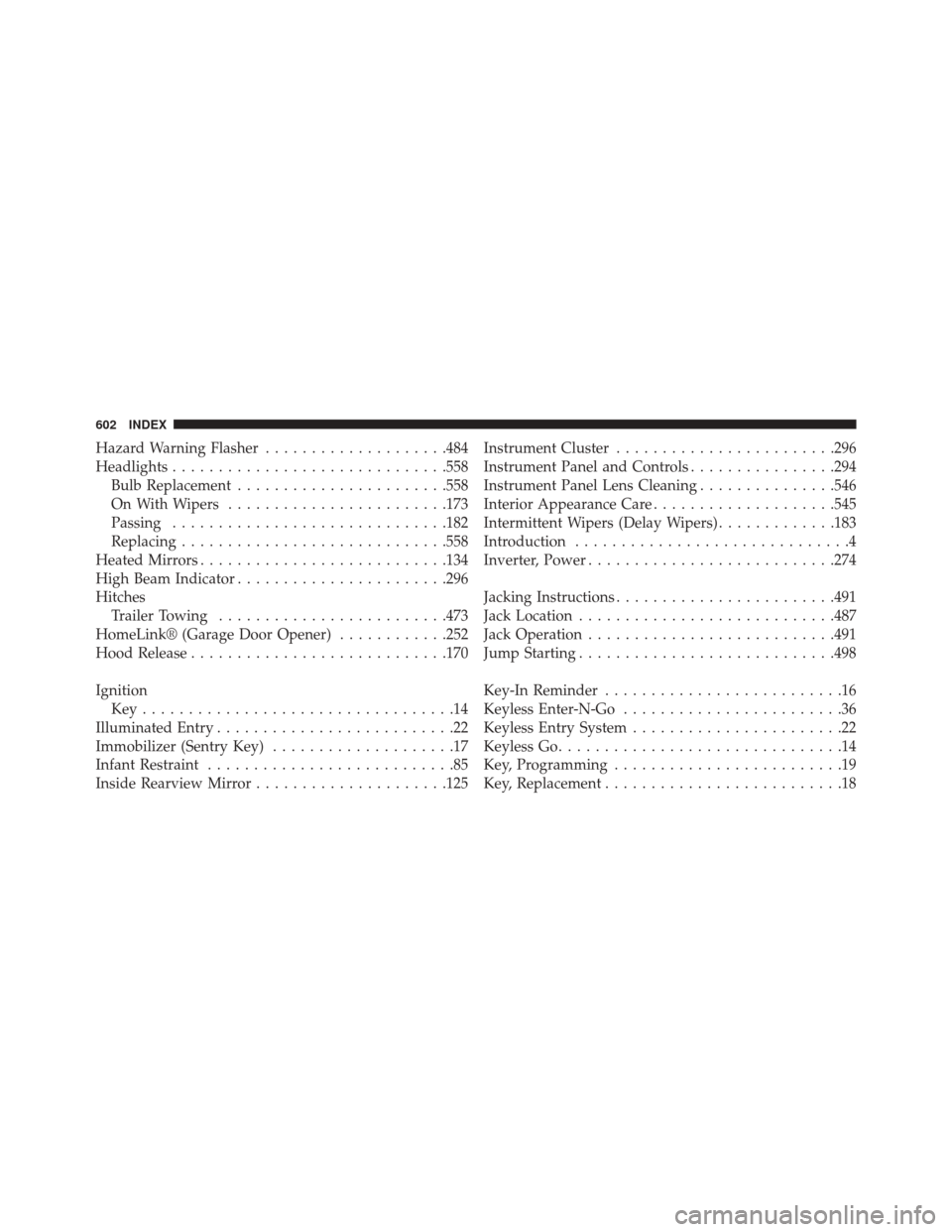

Hazard Warning Flasher....................484
Headlights ............................. .558
Bulb Replacement ...................... .558
On With Wipers ....................... .173
Passing ............................. .182
Replacing ............................ .558
Heated Mirrors .......................... .134
High Beam Indicator ...................... .296
Hitches Trailer Towing ........................ .473
HomeLink® (Garage Door Opener) ............252
Hood Release ........................... .170
Ignition Key..................................14
Illuminated Entry ..........................22
Immobilizer (Sentry Key) ....................17
Infant Restraint ...........................85
Inside Rearview Mirror .....................125 Instrument Cluster
....................... .296
Instrument Panel and Controls ................294
Instrument Panel Lens Cleaning ...............546
Interior Appearance Care ....................545
Intermittent Wipers (Delay Wipers) .............183
Introduction ..............................4
Inverter, Power .......................... .274
Jacking Instructions ....................... .491
Jack Location ........................... .487
Jack Operation .......................... .491
Jump Starting ........................... .498
Key-In Reminder ..........................16
Keyless Enter-N-Go ........................36
Keyless Entry System .......................22
Keyless Go ...............................14
Key, Programming .........................19
Key, Replacement ..........................18
602 INDEX
