Page 271 of 717

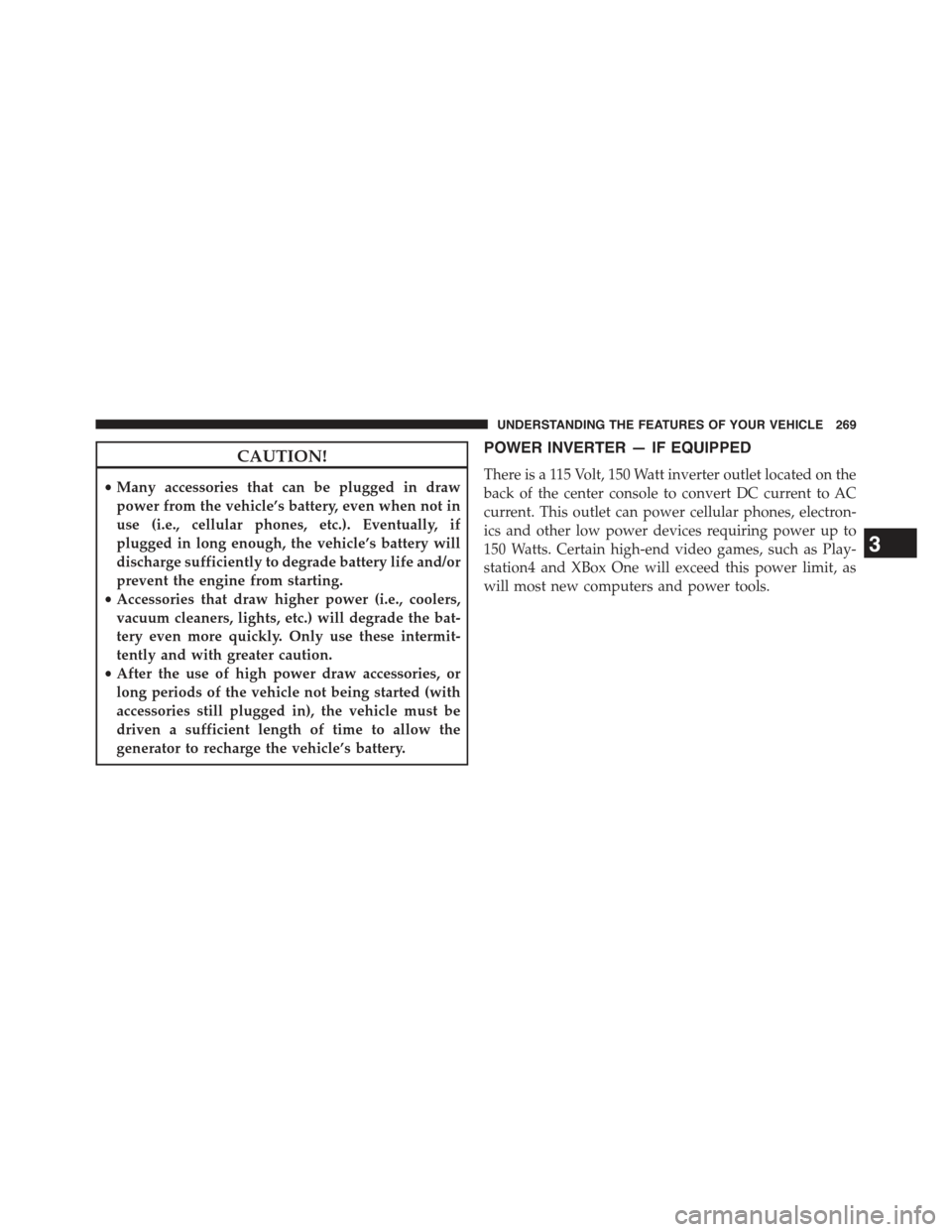

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
150 Watts. Certain high-end video games, such as Play-
station4 and XBox One will exceed this power limit, as
will most new computers and power tools.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269
Page 272 of 717

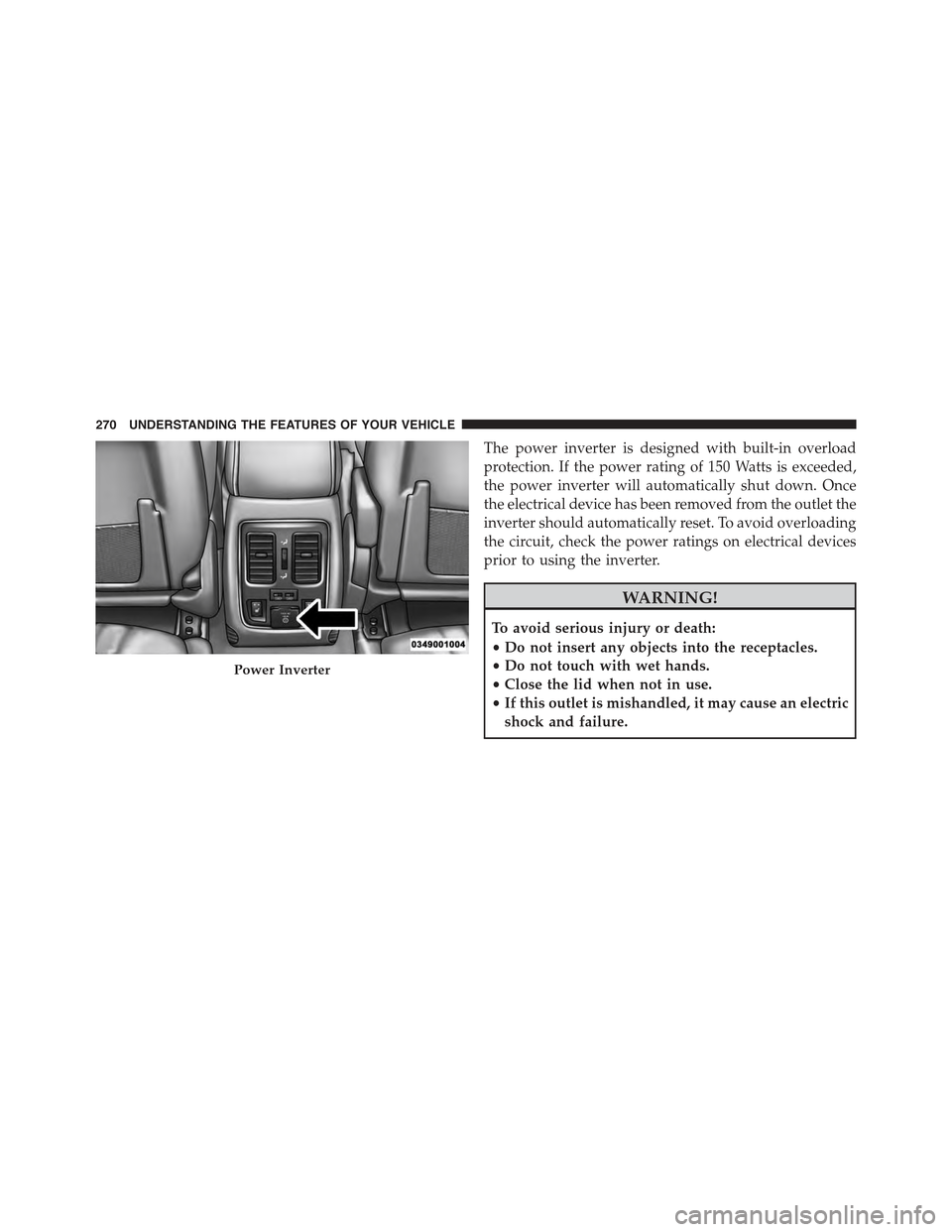

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the inverter.
WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 273 of 717

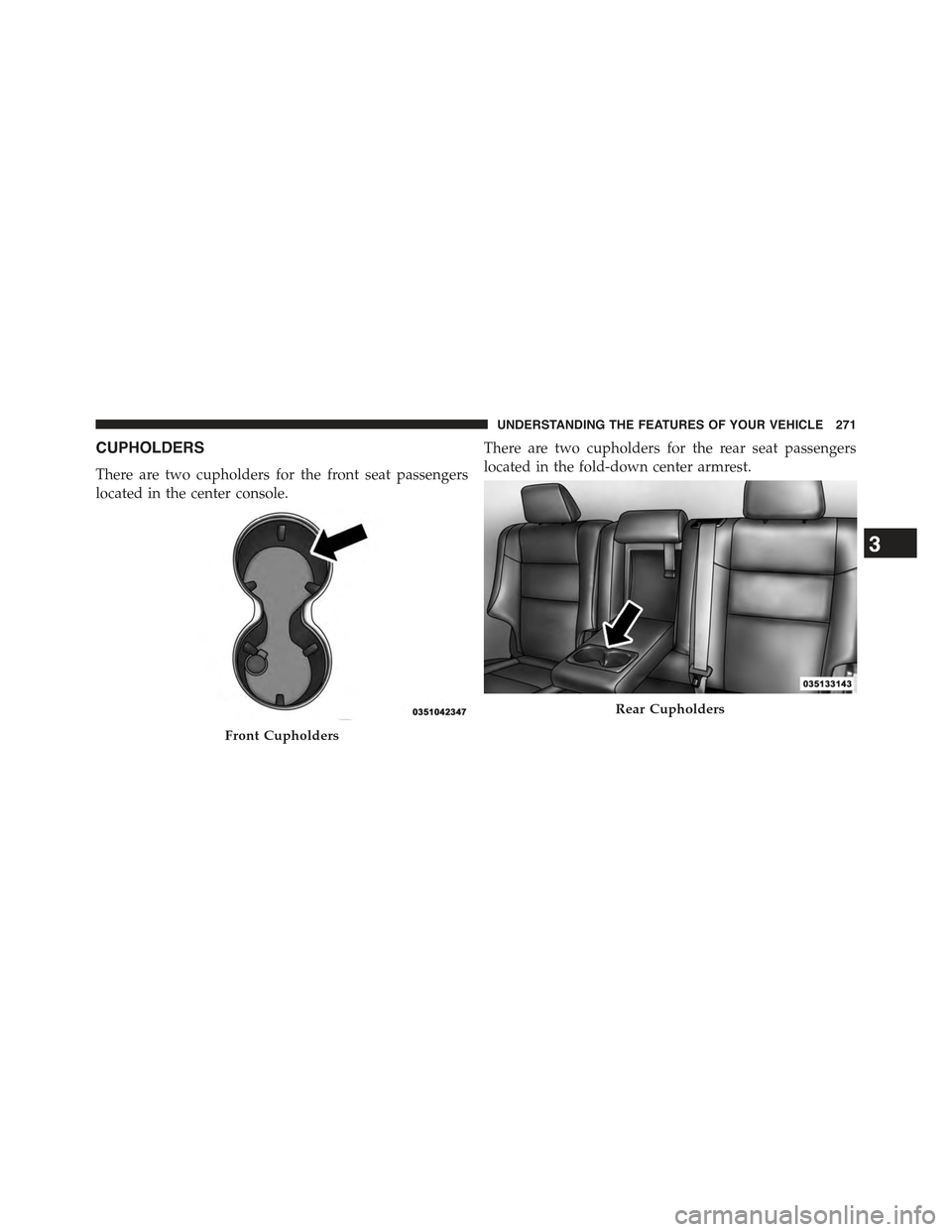

CUPHOLDERS
There are two cupholders for the front seat passengers
located in the center console.
There are two cupholders for the rear seat passengers
located in the fold-down center armrest.
Front Cupholders
Rear Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271
Page 274 of 717

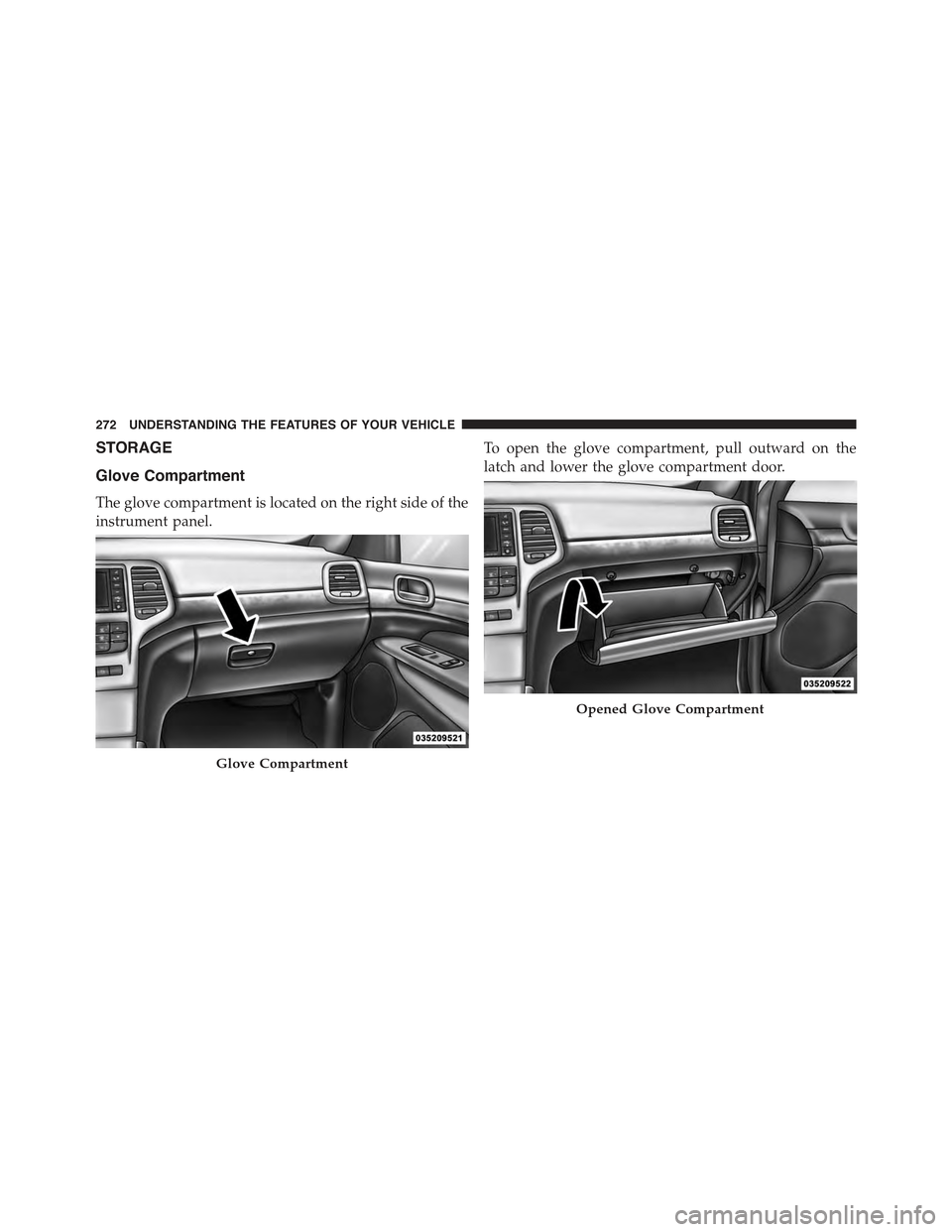

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel.
To open the glove compartment, pull outward on the
latch and lower the glove compartment door.
Glove Compartment
Opened Glove Compartment
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 275 of 717

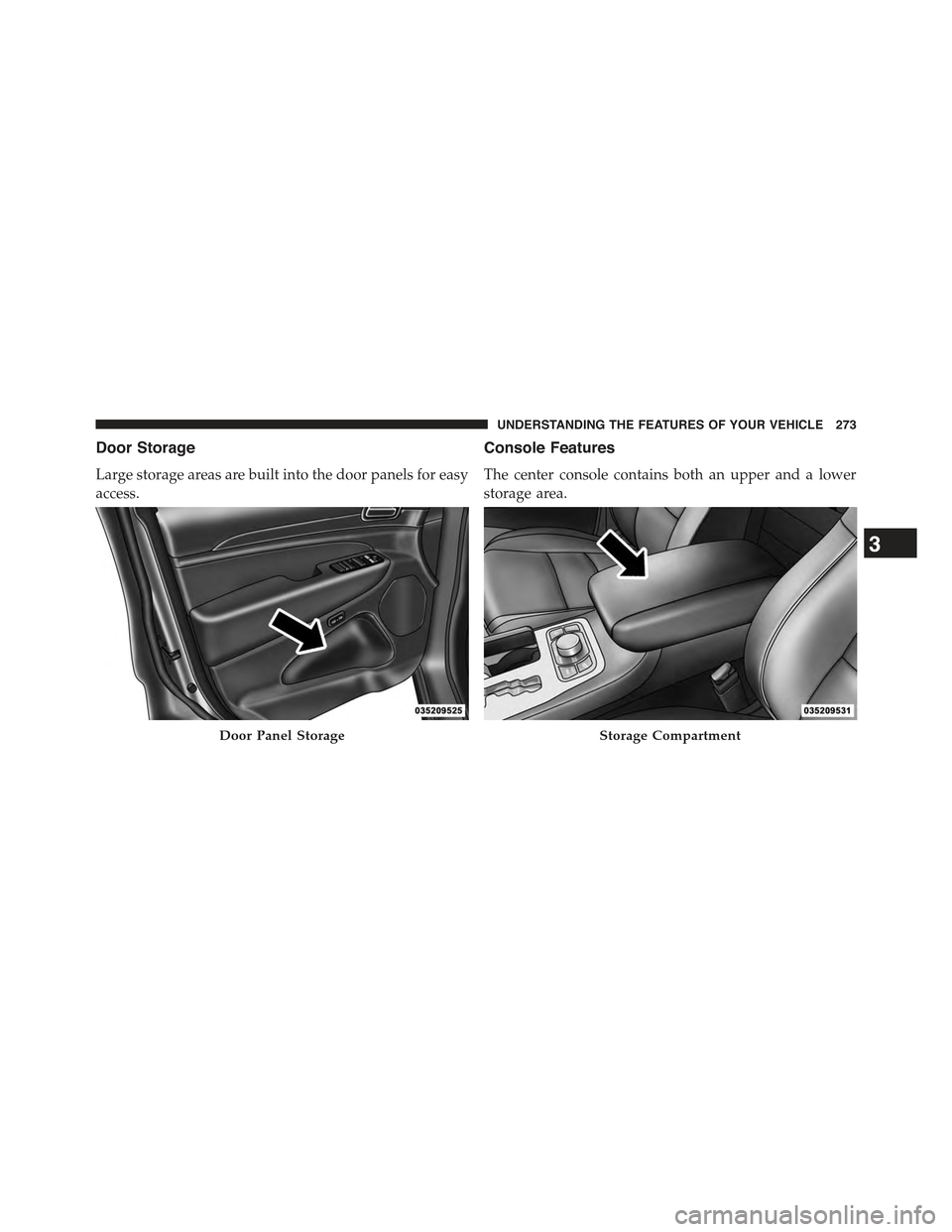

Door Storage
Large storage areas are built into the door panels for easy
access.
Console Features
The center console contains both an upper and a lower
storage area.
Door Panel StorageStorage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273
Page 276 of 717

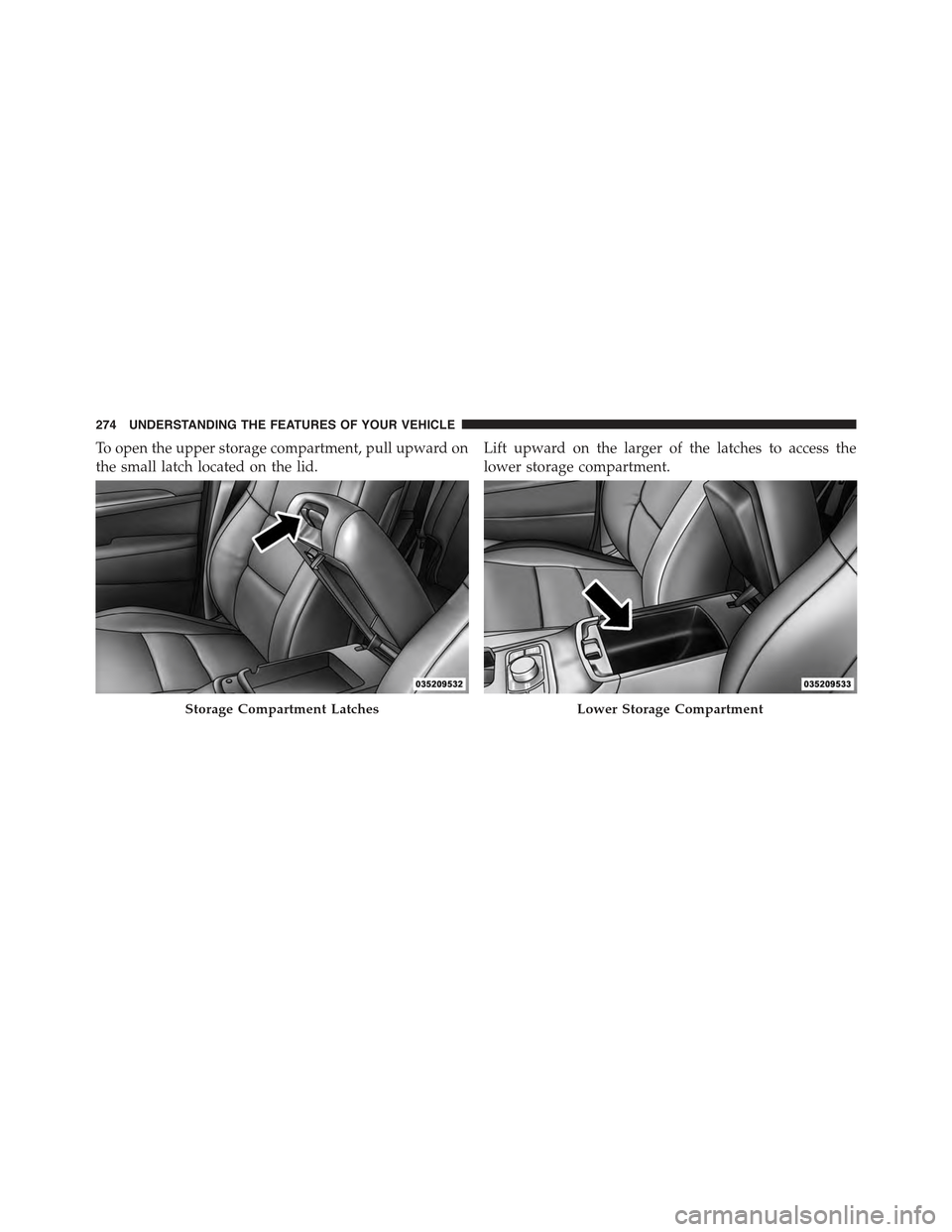

To open the upper storage compartment, pull upward on
the small latch located on the lid.
Lift upward on the larger of the latches to access the
lower storage compartment.
Storage Compartment LatchesLower Storage Compartment
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 277 of 717

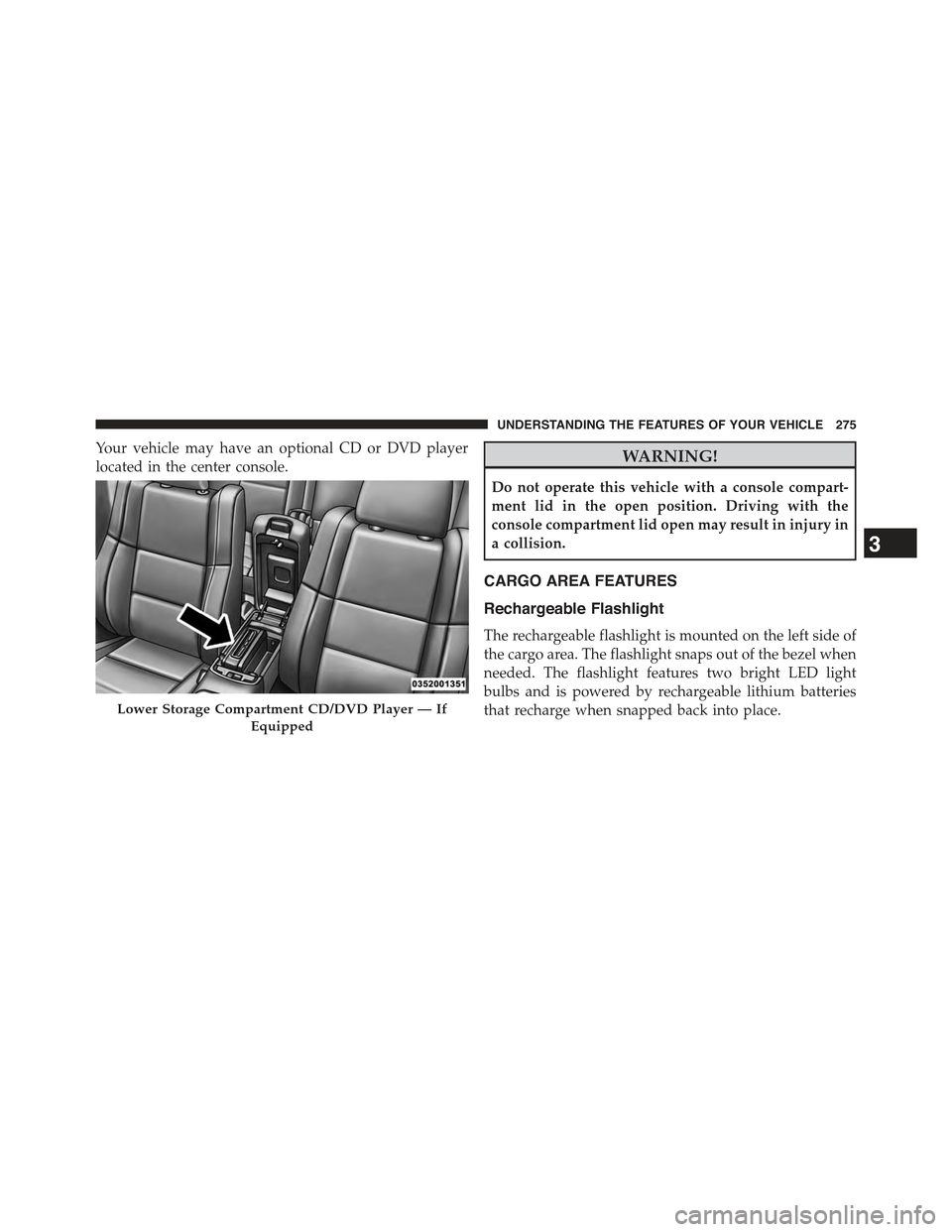

Your vehicle may have an optional CD or DVD player
located in the center console.WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the left side of
the cargo area. The flashlight snaps out of the bezel when
needed. The flashlight features two bright LED light
bulbs and is powered by rechargeable lithium batteries
that recharge when snapped back into place.Lower Storage Compartment CD/DVD Player — If
Equipped
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275
Page 278 of 717

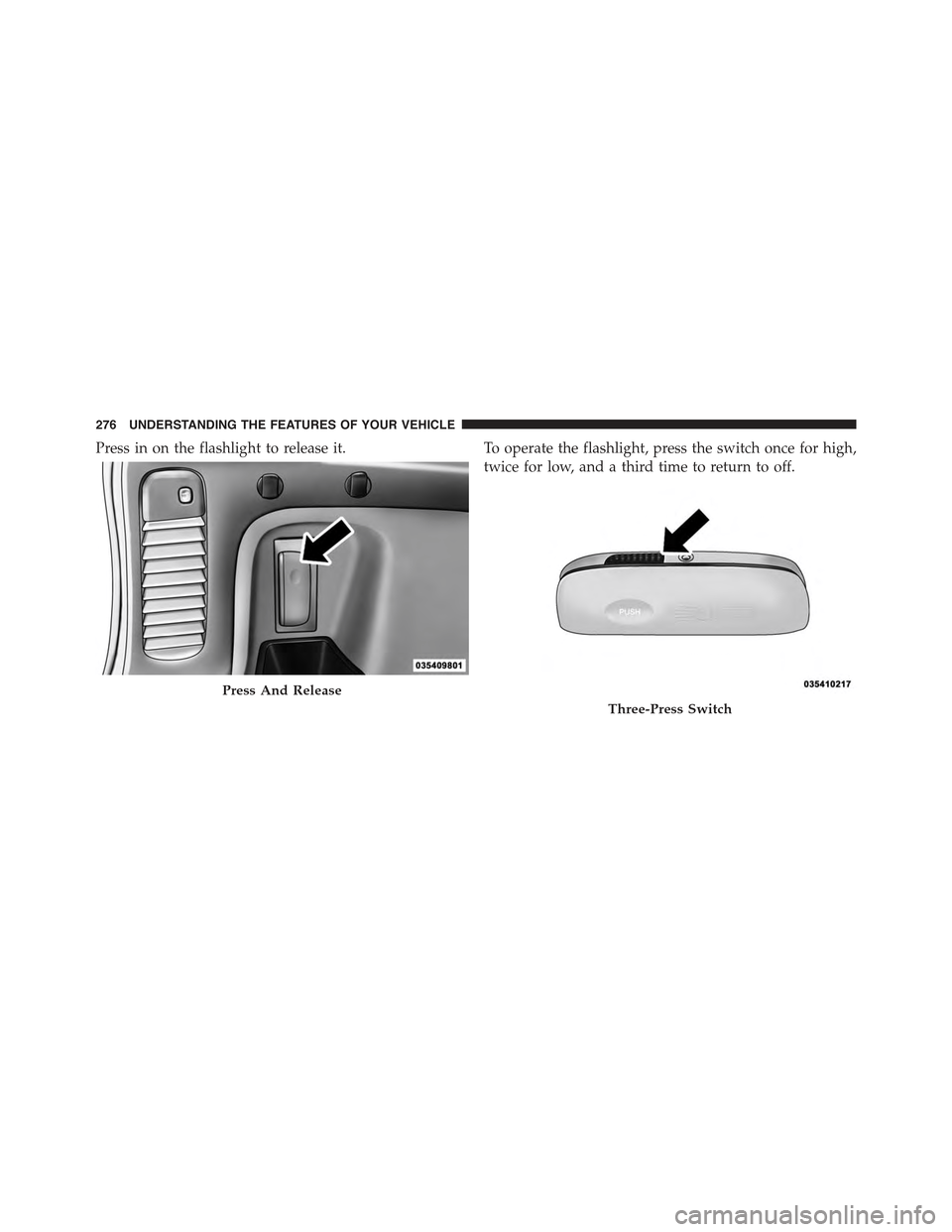

Press in on the flashlight to release it.To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.
Press And Release
Three-Press Switch
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 279 of 717

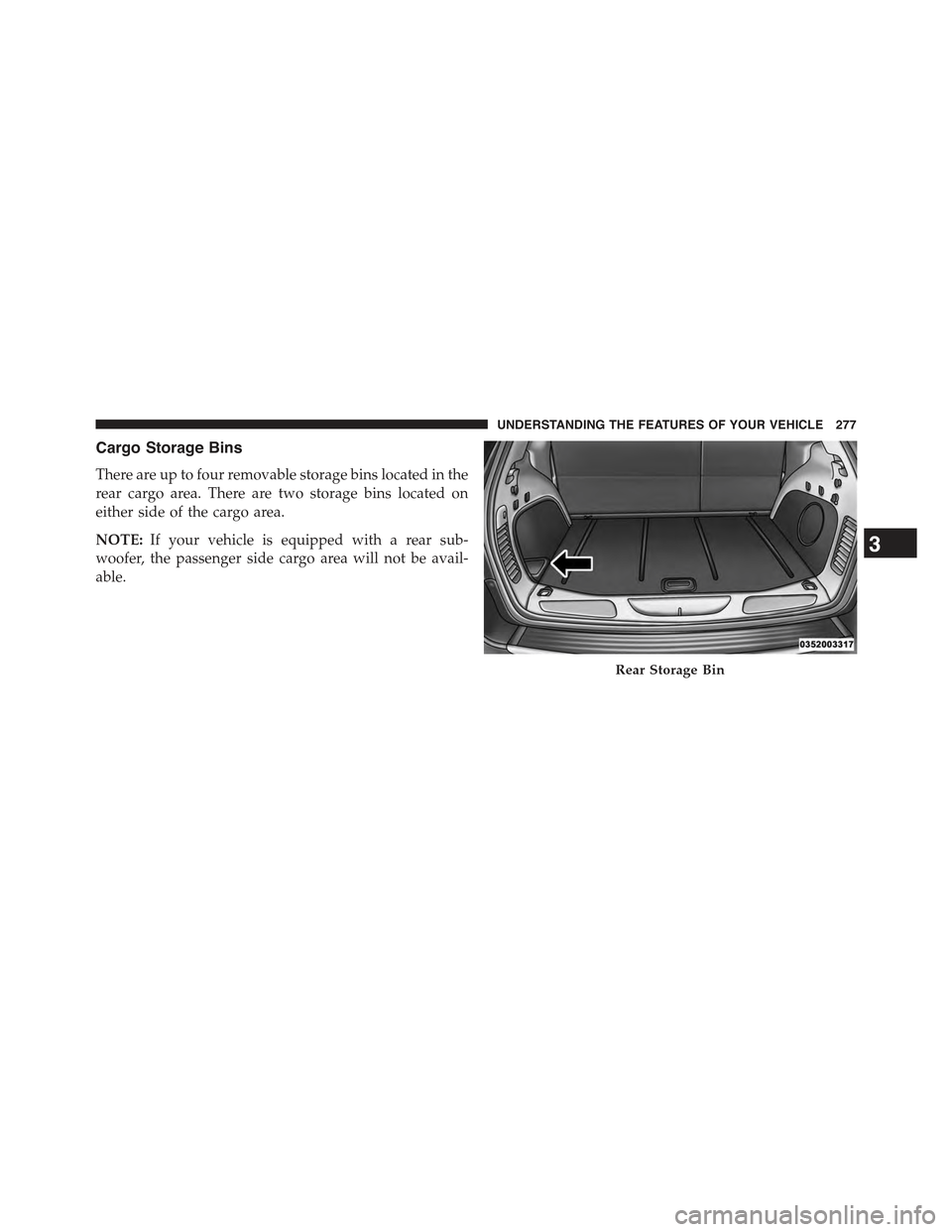

Cargo Storage Bins
There are up to four removable storage bins located in the
rear cargo area. There are two storage bins located on
either side of the cargo area.
NOTE:If your vehicle is equipped with a rear sub-
woofer, the passenger side cargo area will not be avail-
able.
Rear Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277
Page 280 of 717

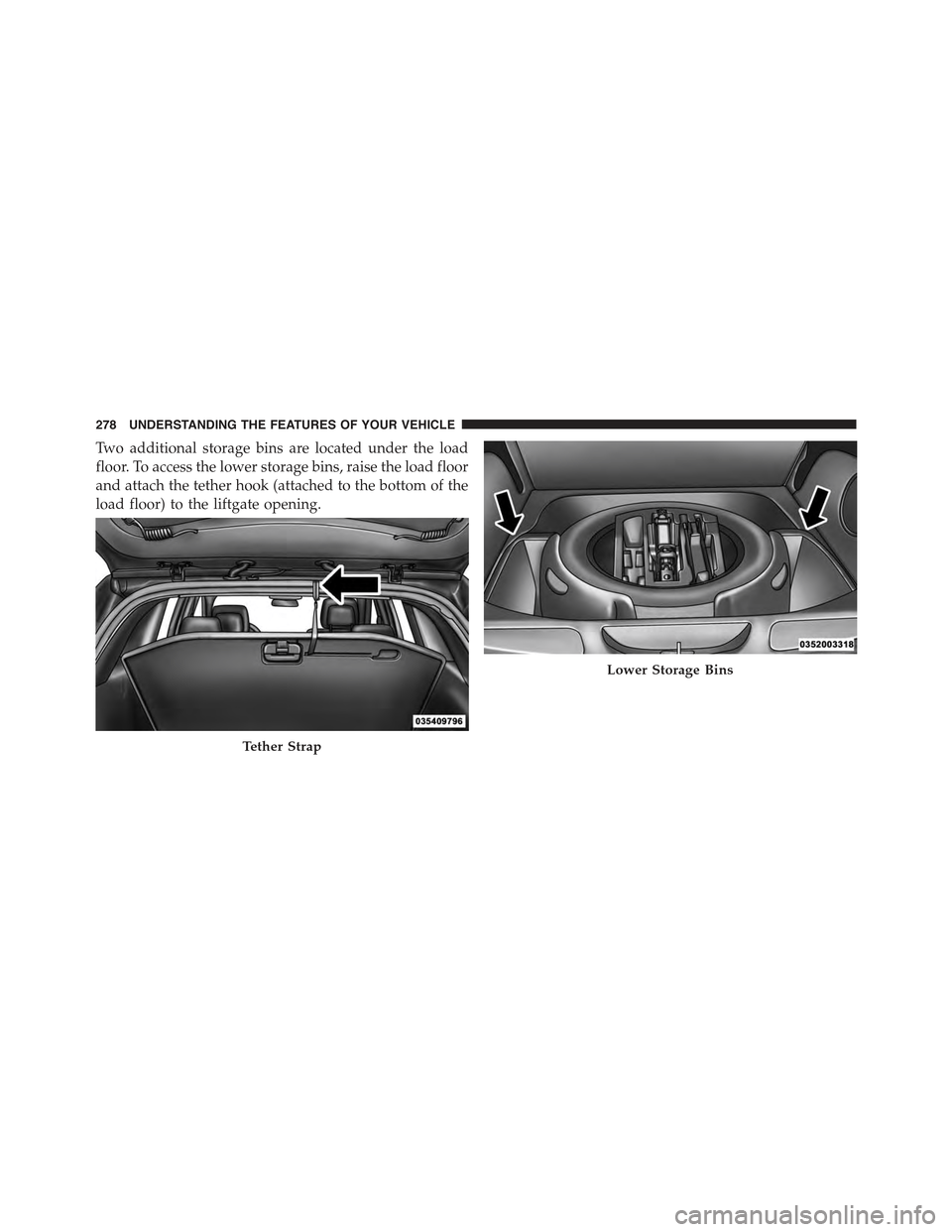

Two additional storage bins are located under the load
floor. To access the lower storage bins, raise the load floor
and attach the tether hook (attached to the bottom of the
load floor) to the liftgate opening.
Tether Strap
Lower Storage Bins
278 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
