JEEP GRAND CHEROKEE 2015 WK2 / 4.G SRT Owners Manual

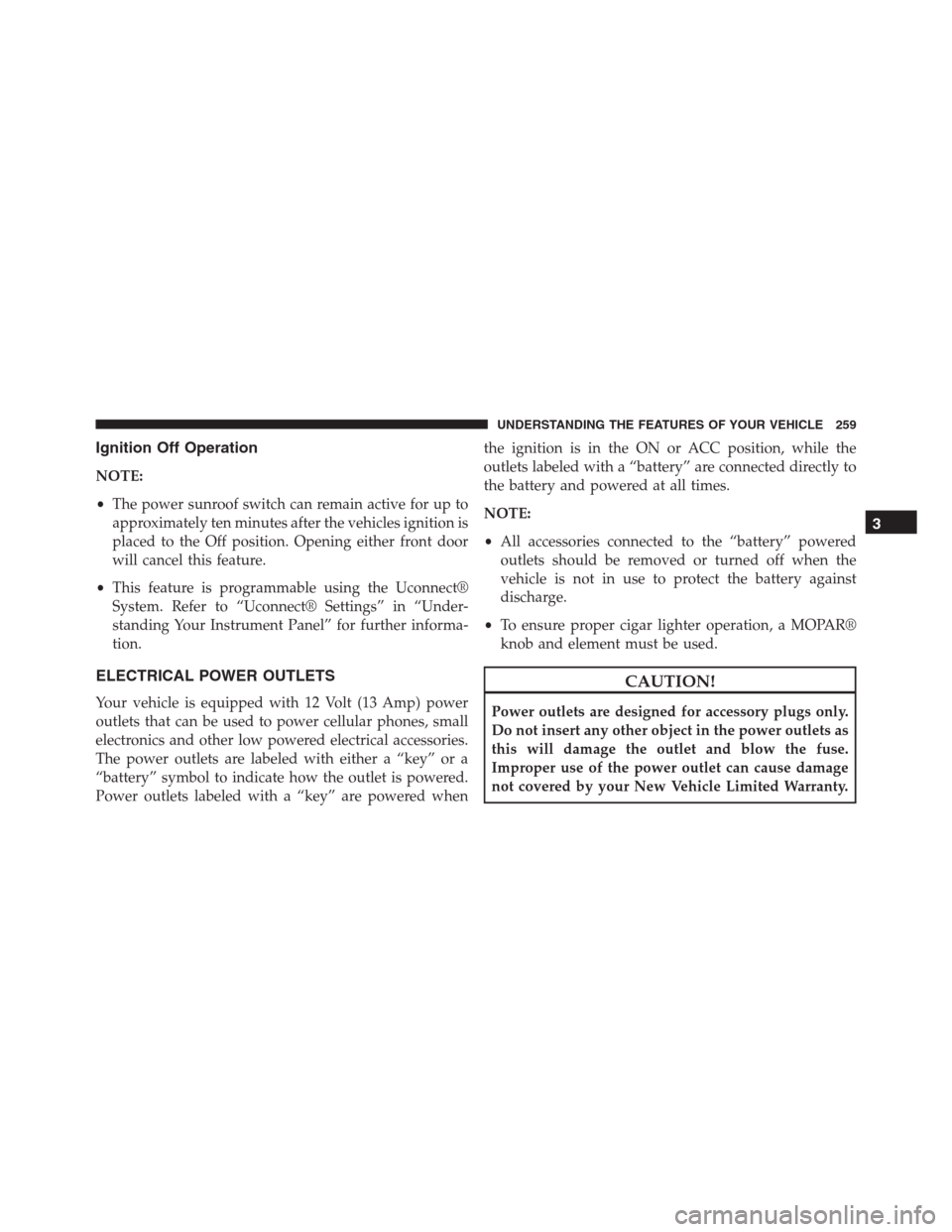

Ignition Off Operation
NOTE:
•The power sunroof switch can remain active for up to
approximately ten minutes after the vehicles ignition is
placed to the Off position. Opening either front door
will cancel this feature.
•This feature is programmable using the Uconnect®
System. Refer to “Uconnect® Settings” in “Under-
standing Your Instrument Panel” for further informa-
tion.
ELECTRICAL POWER OUTLETS
Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
Power outlets labeled with a “key” are powered whenthe ignition is in the ON or ACC position, while the
outlets labeled with a “battery” are connected directly to
the battery and powered at all times.
NOTE:
•All accessories connected to the “battery” powered
outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.
•To ensure proper cigar lighter operation, a MOPAR®
knob and element must be used.
CAUTION!
Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlets as
this will damage the outlet and blow the fuse.
Improper use of the power outlet can cause damage
not covered by your New Vehicle Limited Warranty.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

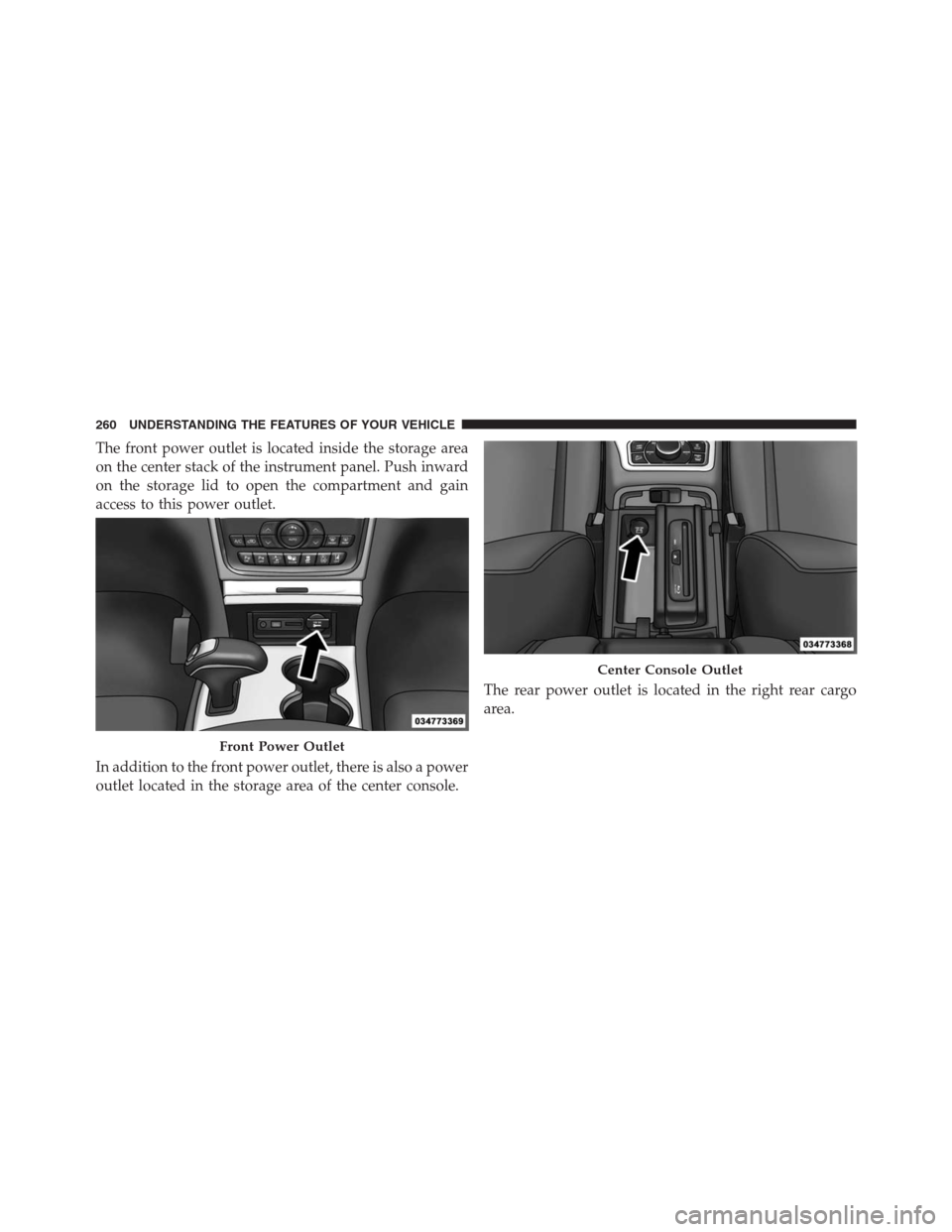

The front power outlet is located inside the storage area
on the center stack of the instrument panel. Push inward
on the storage lid to open the compartment and gain
access to this power outlet.
In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.The rear power outlet is located in the right rear cargo
area.
Front Power Outlet
Center Console Outlet
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The rear power outlet can be switched from
switched “ignition” only to constant “battery” powered
all the time. See your local authorized dealer for details.
Rear Power OutletPower Outlet Right Rear Quarter Panel Fuse
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.

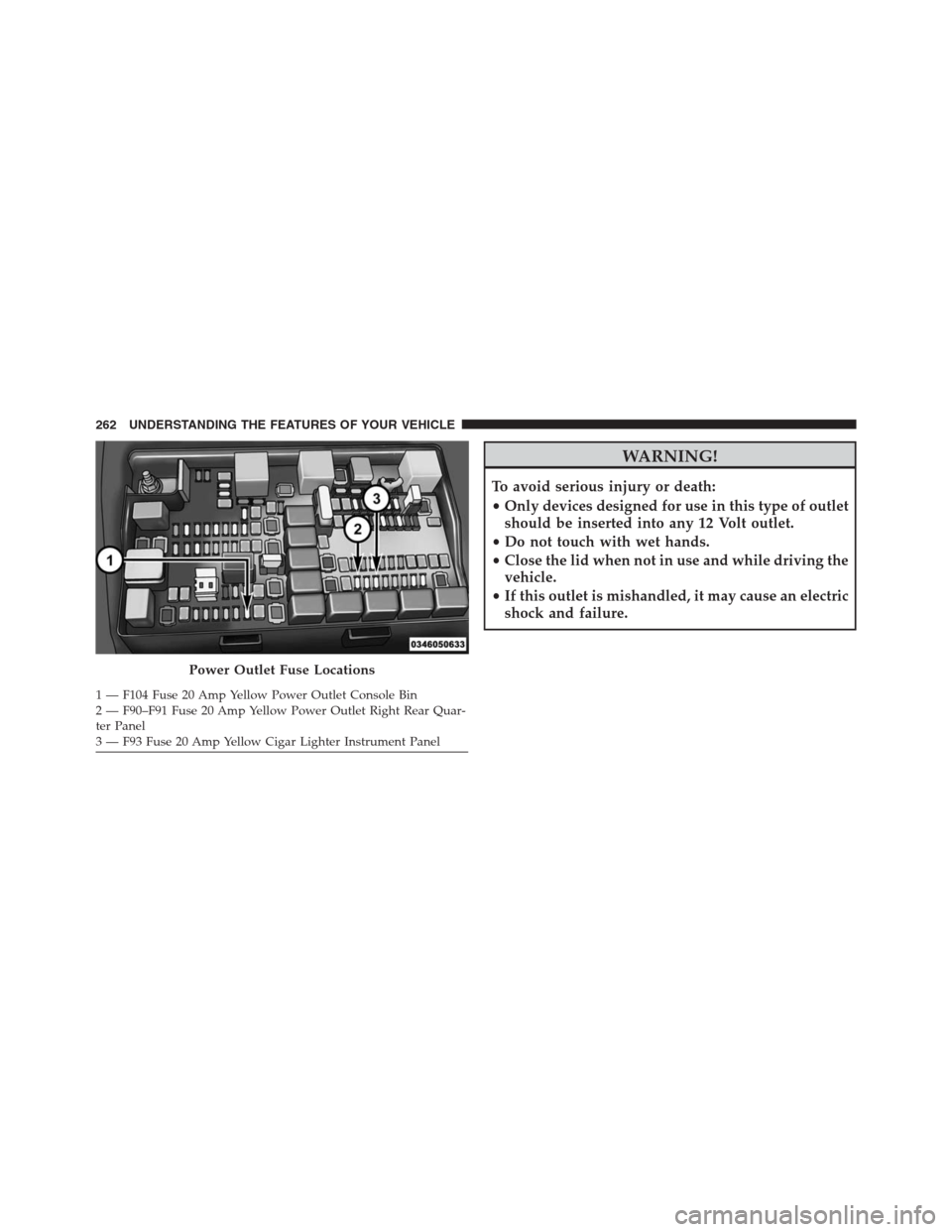

Power Outlet Fuse Locations
1 — F104 Fuse 20 Amp Yellow Power Outlet Console Bin
2 — F90–F91 Fuse 20 Amp Yellow Power Outlet Right Rear Quar-
ter Panel
3 — F93 Fuse 20 Amp Yellow Cigar Lighter Instrument Panel 262 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

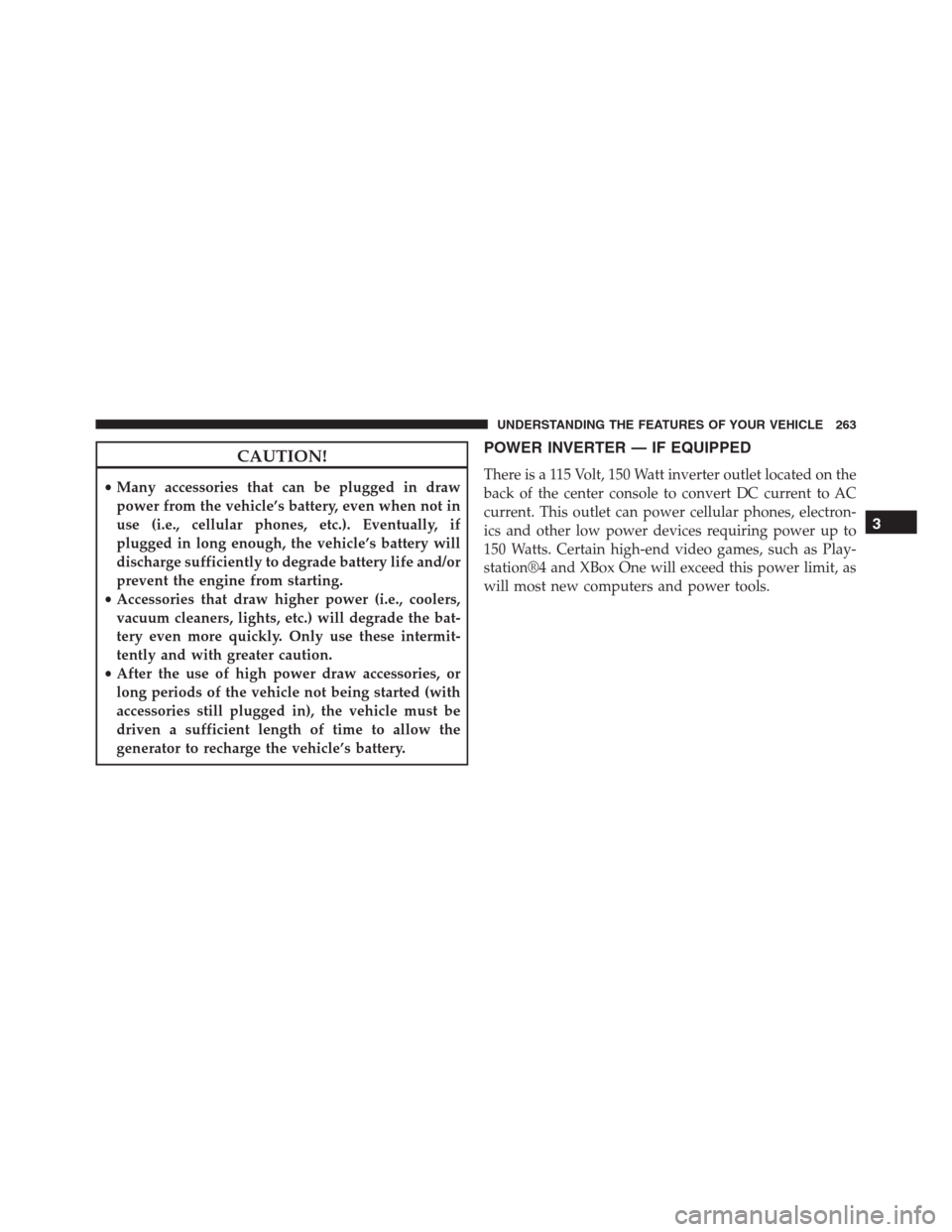

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
150 Watts. Certain high-end video games, such as Play-
station®4 and XBox One will exceed this power limit, as
will most new computers and power tools.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overloadingthe circuit, check the power ratings on electrical devices
prior to using the inverter.
WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

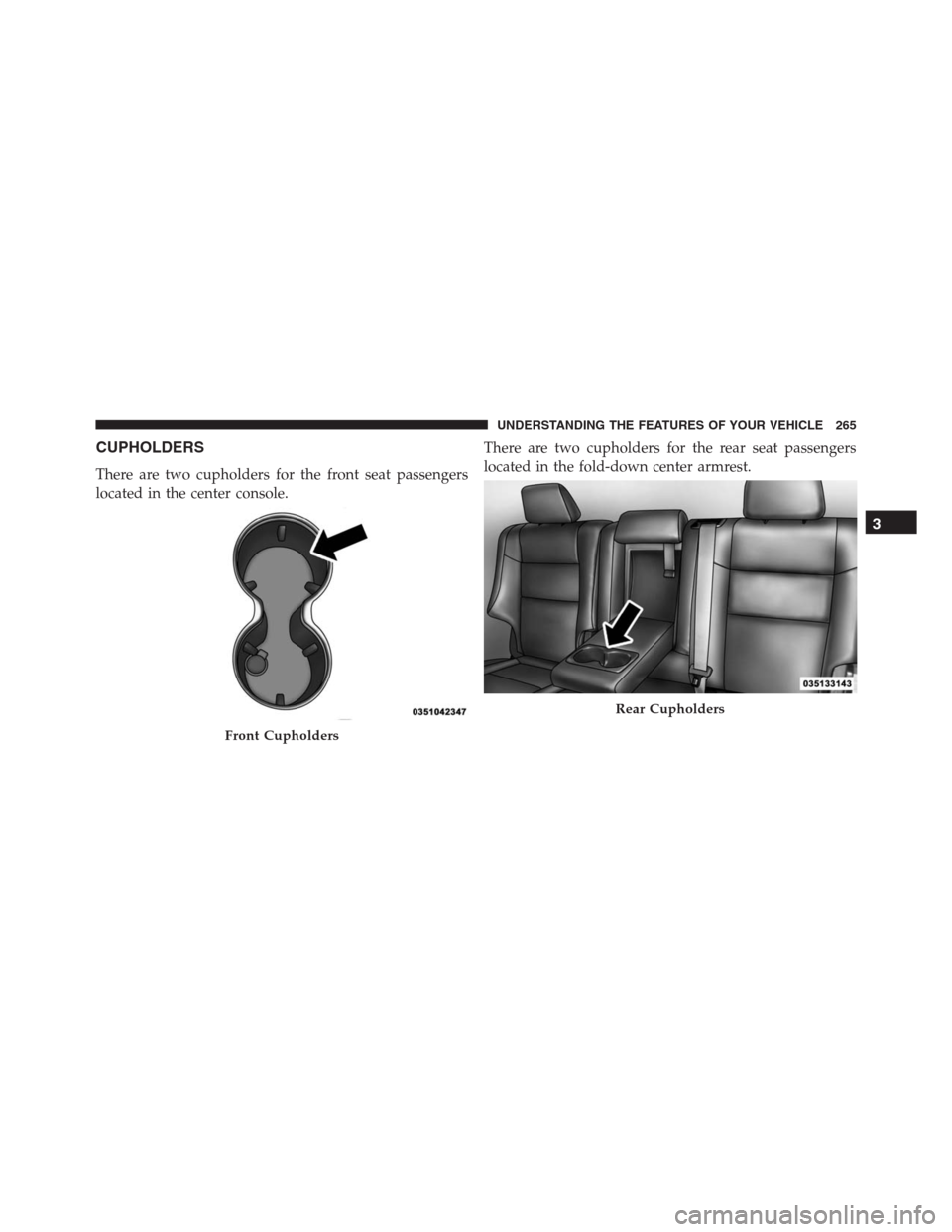

CUPHOLDERS
There are two cupholders for the front seat passengers
located in the center console.There are two cupholders for the rear seat passengers
located in the fold-down center armrest.
Front Cupholders
Rear Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

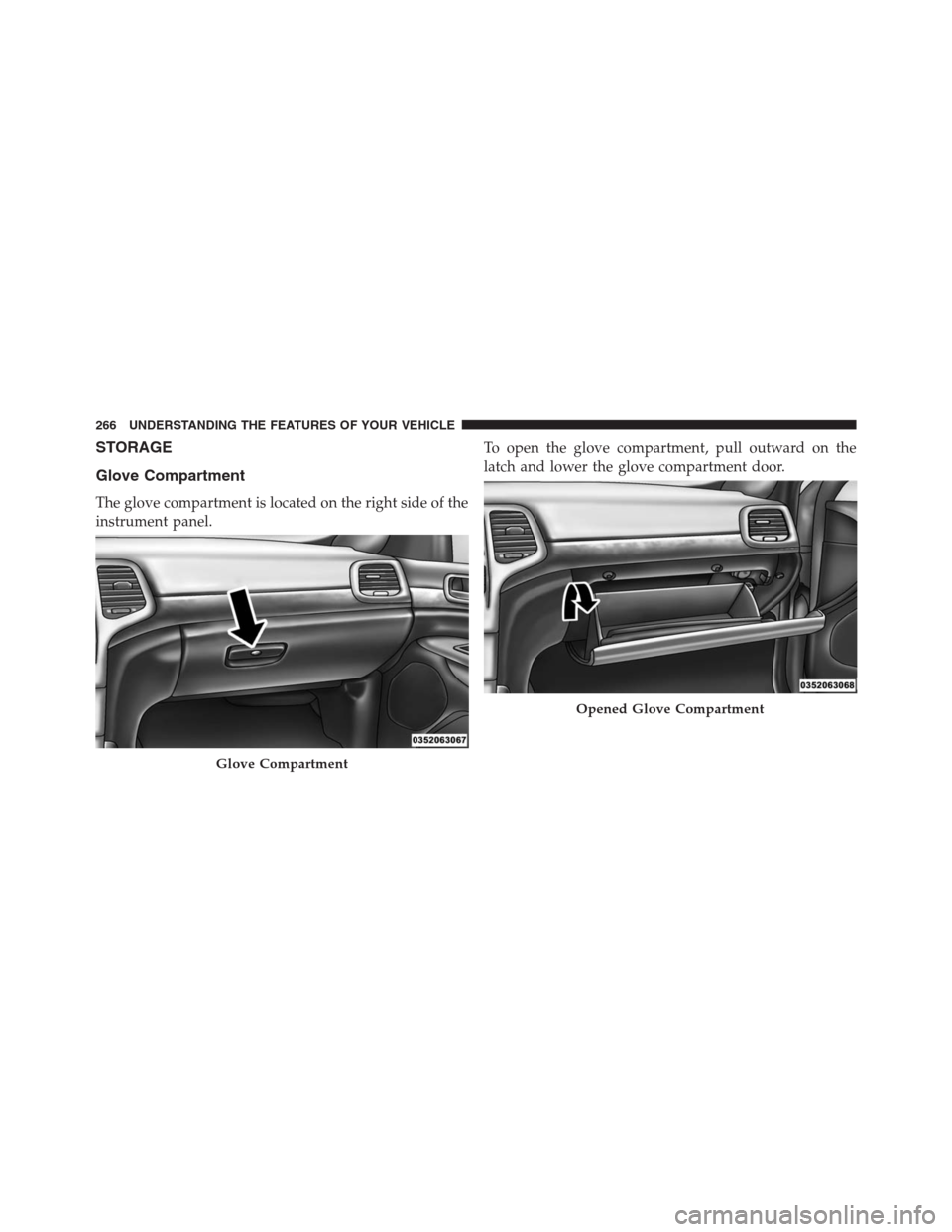

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel.To open the glove compartment, pull outward on the
latch and lower the glove compartment door.
Glove Compartment
Opened Glove Compartment
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

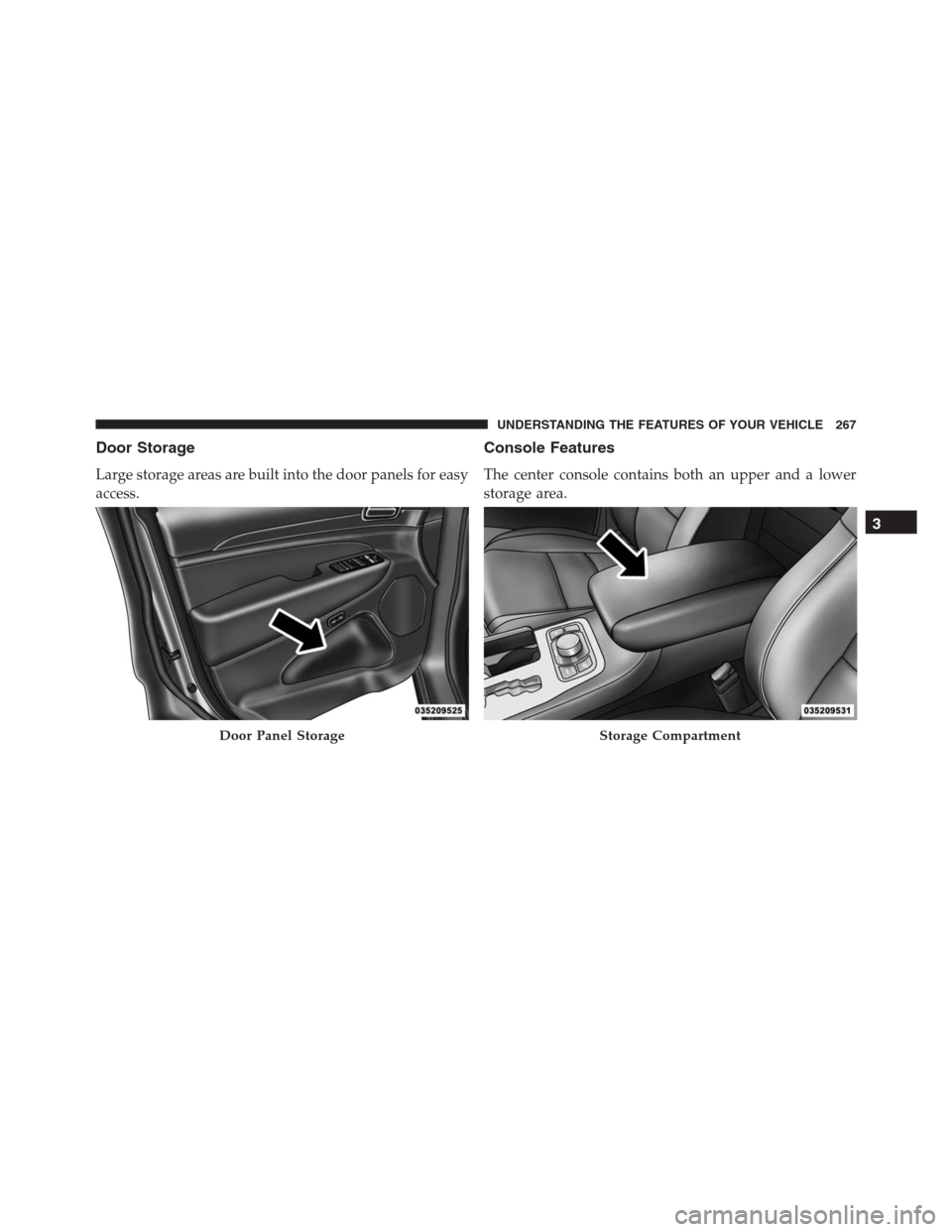

Door Storage
Large storage areas are built into the door panels for easy
access.
Console Features
The center console contains both an upper and a lower
storage area.
Door Panel StorageStorage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

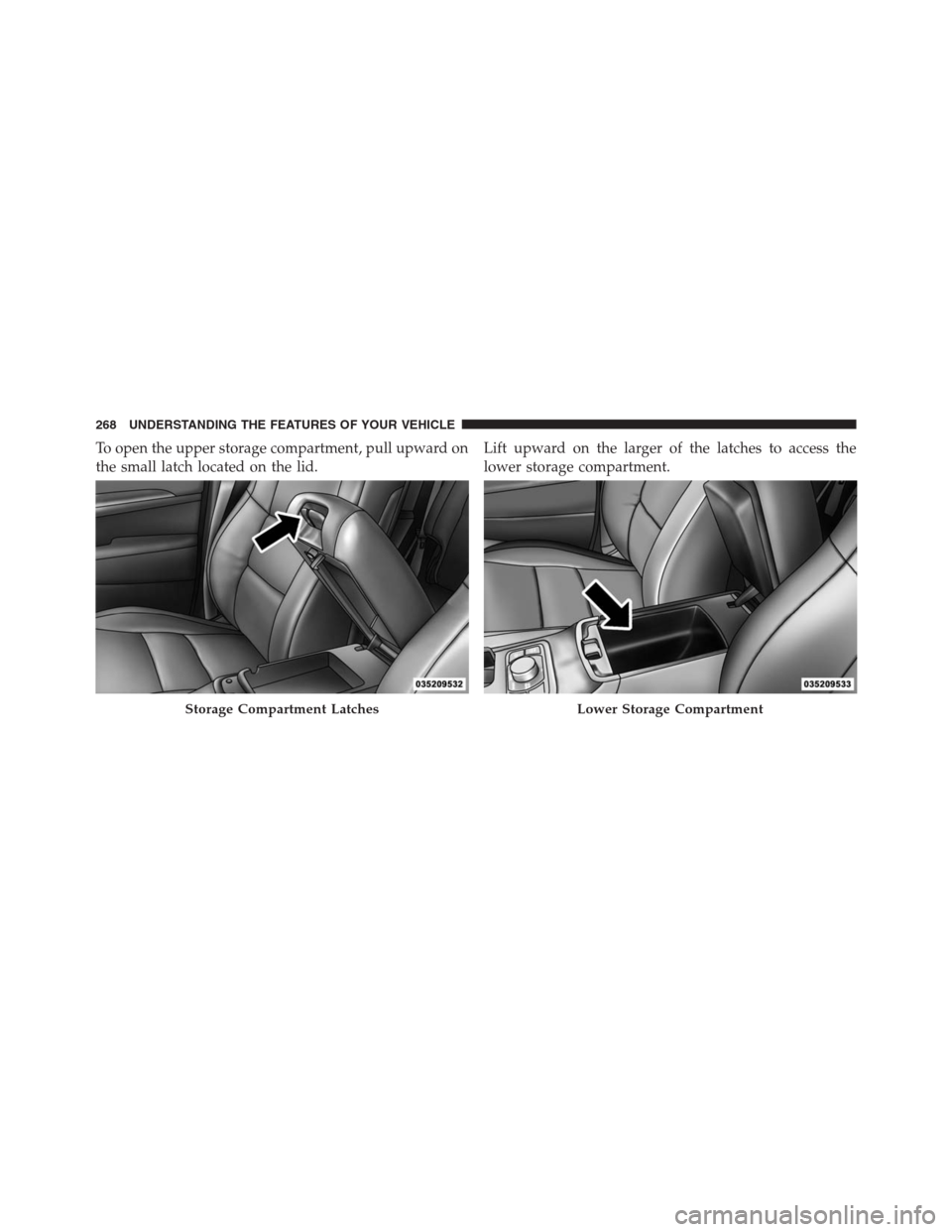

To open the upper storage compartment, pull upward on
the small latch located on the lid.Lift upward on the larger of the latches to access the
lower storage compartment.
Storage Compartment LatchesLower Storage Compartment
