JEEP GRAND CHEROKEE 2016 WK2 / 4.G Owners Manual

To open the glove compartment, pull outward on the
latch and lower the glove compartment door.Door Storage
Large storage areas are built into the door panels for easy
access.
Opened Glove Compartment
Door Panel Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

Console Features
The center console contains both an upper and a lower
storage area.To open the upper storage compartment, pull upward on
the small latch located on the lid.
Storage Compartment
Storage Compartment Latches
280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Lift upward on the larger of the latches to access the
lower storage compartment.Your vehicle may have an optional CD or DVD player
located in the center console.
Lower Storage CompartmentLower Storage Compartment CD/DVD Player —
If Equipped
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the left side of
the cargo area. The flashlight snaps out of the bezel when
needed. The flashlight features two bright LED light
bulbs and is powered by rechargeable lithium batteries
that recharge when snapped back into place.Push in on the flashlight to release it.
To operate the flashlight, push the switch once for high,
twice for low, and a third time to return to off.
Push And Release
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Cargo Storage Bins
There are up to four removable storage bins located in the
rear cargo area. There are two storage bins located on
either side of the cargo area.NOTE:
If your vehicle is equipped with a rear subwoofer,
the passenger side cargo area will not be available.
Three-Push Switch
Rear Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

Two additional storage bins are located under the load
floor. To access the lower storage bins, raise the load floor
and attach the tether hook (attached to the bottom of the
load floor) to the liftgate opening.
Retractable Cargo Area Cover — If Equipped
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
Tether Strap
Lower Storage Bins
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To cover the cargo area:
1. Grasp the cover at the center handle. Pull it over thecargo area.
2. Insert the pins on the ends of the cover into the slots in the pillar trim cover.
3. The liftgate may be opened with the cargo cover in place.
WARNING!
In a collision, a loose cargo cover in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
(Continued)
Rear Cargo Cover
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

WARNING!(Continued)
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store it in the vehicle.
Rear Cargo Tie-Downs
The rear cargo tie-downs, located on the cargo area floor,
should be used to safely secure loads when the vehicle is
moving.
WARNING!
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
(Continued)
Rear Cargo Tie-Downs
286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
only, not for passengers, who should sit in seats
and use seat belts.
• Cargo tie-down hooks are not safe anchors for a
child seat tether strap. In a sudden stop or accident,
a hook could pull loose and allow the child seat to
come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.

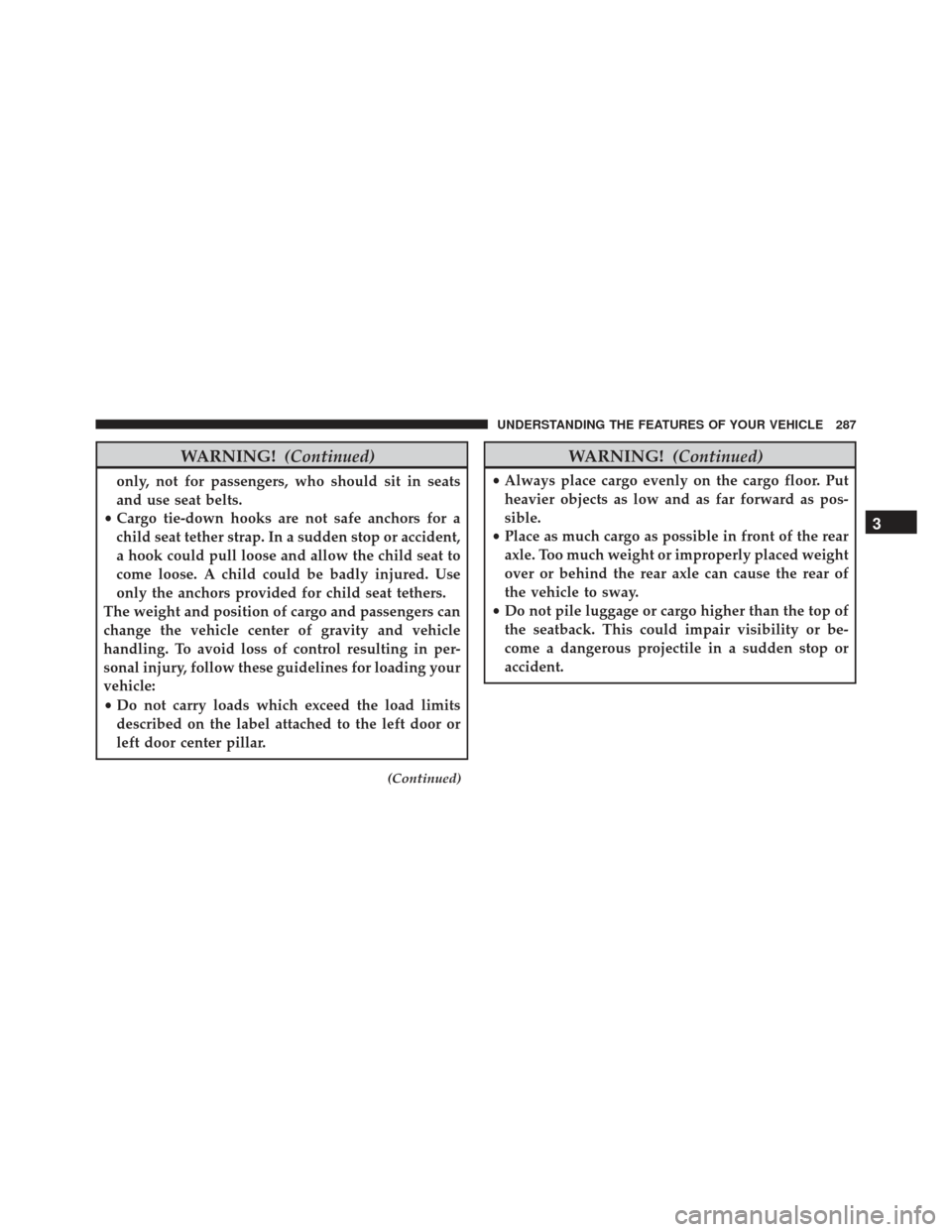

The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
• Do not carry loads which exceed the load limits
described on the label attached to the left door or
left door center pillar.
(Continued)
WARNING! (Continued)
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
accident.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer controls are located on the mul-
tifunction lever on the left side of the steering column.
The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper operation.
Rotating the center portion upward once more
will activate the washer pump which will con-
tinue to operate as long as the switch is held. Upon
release of the switch, the wipers will resume the continu-
ous rear wiper operation. When this rotary control is in
the OFF position, rotating it downward will activate the
rear washer pump which will continue to operate as long
as the switch is held. Once the switch is released it will
return to the OFF position and the wipers will cycle
several times before returning to the parked position.
NOTE: As a protective measure, the pump will stop if the
switch is held for more than 20 seconds. Once the switch
is released the pump will resume normal operation.
Rear Wiper/Washer Control
288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
