Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Auto-
matic Transmission Fluid or equivalent.
Failure to use the correct fluid may affect
the function or performance of your trans-
mission.
Transfer Case – Single-Speed
(Quadra-Trac I) We recommend you use Automatic Trans-
mission Fluid 3353.
Transfer Case – Two-Speed (Quadra-Trac II) We recommend you use MOPAR ATF+4 Automatic Transmission Fluid.
Axle Differential (Front) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
Axle Differential (Rear) – With Electronic
Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85 with
friction modifier additive.
Axle Differential (Rear) – Without Elec-
tronic Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
Brake Master Cylinder We recommend you use MOPAR DOT 3
Brake Fluid, SAE J1703 should be used. If
DOT 3, SAE J1703 brake fluid is not avail-
able, then DOT 4 is acceptable.
SRT FLUID CAPACITIES
U.S. Metric
Fuel (Approximate) 25 Gallons 94.0 Liters
Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certi-
fied) 7 Quarts 6.6 Liters
Cooling System*
6.4 Liter Engine (MOPAR Antifreeze/Engine Cool-
ant 10 Year/150,000 Mile Formula that meets the
requirements of FCA Material Standard
MS.90032. 16 Quarts 15.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE
228

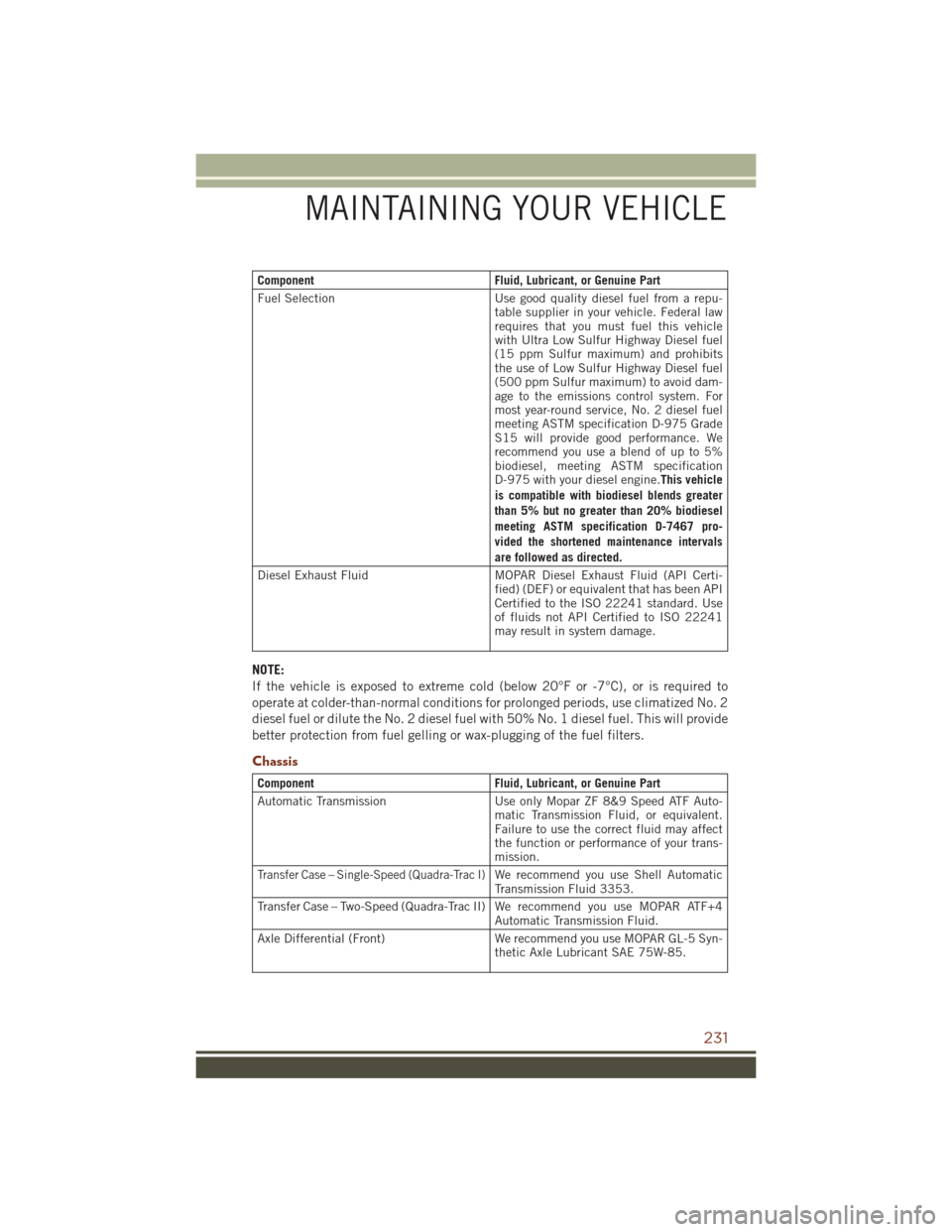

ComponentFluid, Lubricant, or Genuine Part
Fuel Selection Use good quality diesel fuel from a repu-
table supplier in your vehicle. Federal law
requires that you must fuel this vehicle
with Ultra Low Sulfur Highway Diesel fuel
(15 ppm Sulfur maximum) and prohibits
the use of Low Sulfur Highway Diesel fuel
(500 ppm Sulfur maximum) to avoid dam-
age to the emissions control system. For
most year-round service, No. 2 diesel fuel
meeting ASTM specification D-975 Grade
S15 will provide good performance. We
recommend you use a blend of up to 5%
biodiesel, meeting ASTM specification
D-975 with your diesel engine.This vehicle
is compatible with biodiesel blends greater
than 5% but no greater than 20% biodiesel
meeting ASTM specification D-7467 pro-
vided the shortened maintenance intervals
are followed as directed.
Diesel Exhaust Fluid MOPAR Diesel Exhaust Fluid (API Certi-
fied) (DEF) or equivalent that has been API
Certified to the ISO 22241 standard. Use
of fluids not API Certified to ISO 22241
may result in system damage.
NOTE:
If the vehicle is exposed to extreme cold (below 20°F or -7°C), or is required to
operate at colder-than-normal conditions for prolonged periods, use climatized No. 2
diesel fuel or dilute the No. 2 diesel fuel with 50% No. 1 diesel fuel. This will provide
better protection from fuel gelling or wax-plugging of the fuel filters.
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission Use only Mopar ZF 8&9 Speed ATF Auto-
matic Transmission Fluid, or equivalent.
Failure to use the correct fluid may affect
the function or performance of your trans-
mission.
Transfer Case – Single-Speed (Quadra-Trac I)We recommend you use Shell Automatic
Transmission Fluid 3353.
Transfer Case – Two-Speed (Quadra-Trac II) We recommend you use MOPAR ATF+4 Automatic Transmission Fluid.
Axle Differential (Front) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
MAINTAINING YOUR VEHICLE
231

ComponentFluid, Lubricant, or Genuine Part
Axle Differential (Rear) – With Electronic
Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85 with
friction modifier additive.
Axle Differential (Rear) – Without Elec-
tronic Limited-Slip Differential (ELSD) We recommend you use MOPAR GL-5 Syn-
thetic Axle Lubricant SAE 75W-85.
Brake Master Cylinder We recommend you use MOPAR DOT 3
Brake Fluid, SAE J1703 should be used. If
DOT 3, SAE J1703 brake fluid is not avail-
able, then DOT 4 is acceptable.
MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to
“Maintenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or
applicable supplement on the DVD for further details.
MAINTENANCE SCHEDULE — GASOLINE ENGINE
Your vehicle is equipped with an automatic oil change indicator system. The oil
change indicator system will remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change indicator message will
illuminate. This means that service is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or cold ambient temperatures,
and E85 fuel usage will influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the change oil message to
illuminate as early as 3,500 miles (5,600 km) since last reset. Have your vehicle
serviced as soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator message after completing
the scheduled oil change.
NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles
(16,000 km), twelve months or 350 hours of engine run time, whichever comes first.
The 350 hours of engine run or idle time is generally only a concern for fleet
customers.
MAINTAINING YOUR VEHICLE
232

FUSES
Power Distribution Center
The Power Distribution Center is located in the engine compartment near the battery.
This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped on the inside cover,
otherwise the cavity number of each fuse is stamped on the inside cover that
corresponds to the following chart.
Cavity Cartridge Fuse Micro FuseDescription
F03 60 Amp Yellow – Radiator Fan
F05 40 Amp Green – Compressor for Air Suspension - If Equipped
F06 40 Amp Green – Anti-lock Brakes/Electronic Sta- bility Control Pump
F07 30 Amp Pink – Starter Solenoid
F09 30 Amp Pink – Diesel Fuel Heater (Diesel en- gine only) / Brake Vacuum Pump
F10 40 Amp Green – Body Controller / Exterior Light- ing #2
F11 30 Amp Pink – Trailer Tow Electric Brake - If Equipped
F12 40 Amp Green – Body Controller #3 / Power
Locks
F13 40 Amp Green – Blower Motor Front
F14 40 Amp Green – Body Controller #4 / Exterior
Lighting #1
F17 30 Amp Pink – Headlamp Washer- If Equipped
F19 20 Amp Blue – Headrest Solenoid- If Equipped
F20 30 Amp Pink – Passenger Door Module
F22 20 Amp Blue – Engine Control Module
F23 30 Amp Pink – Interior Lights #1
F24 30 Amp Pink – Driver Door Module
F25 30 Amp Pink – Front Wipers
F26 30 Amp Pink – Anti-lock Brakes/Stability Con- trol Module/Valves
F28 20 Amp Blue – Trailer Tow Backup Lights - If Equipped
F29 20 Amp Blue – Trailer Tow Parking Lights - If Equipped
F30 30 Amp Pink – Trailer Tow Receptacle - If
Equipped
F32 30 Amp Pink – Drive Train Control Module
F34 30 Amp Pink – Slip Differential Control
