lights JEEP GRAND CHEROKEE 2017 WK2 / 4.G Owners Manual

FRONT VIEW
Front View
1 — Hood/Engine Compartment
2 — Windshield
3 — Headlights4 — Wheels/Tires
5 — Exterior Mirrors
6 — Doors
10 GRAPHICAL TABLE OF CONTENTS

REAR VIEW
Rear View
1 — Rear Lights
2 — Rear Windshield Wiper
3 — Liftgate
2
GRAPHICAL TABLE OF CONTENTS 11

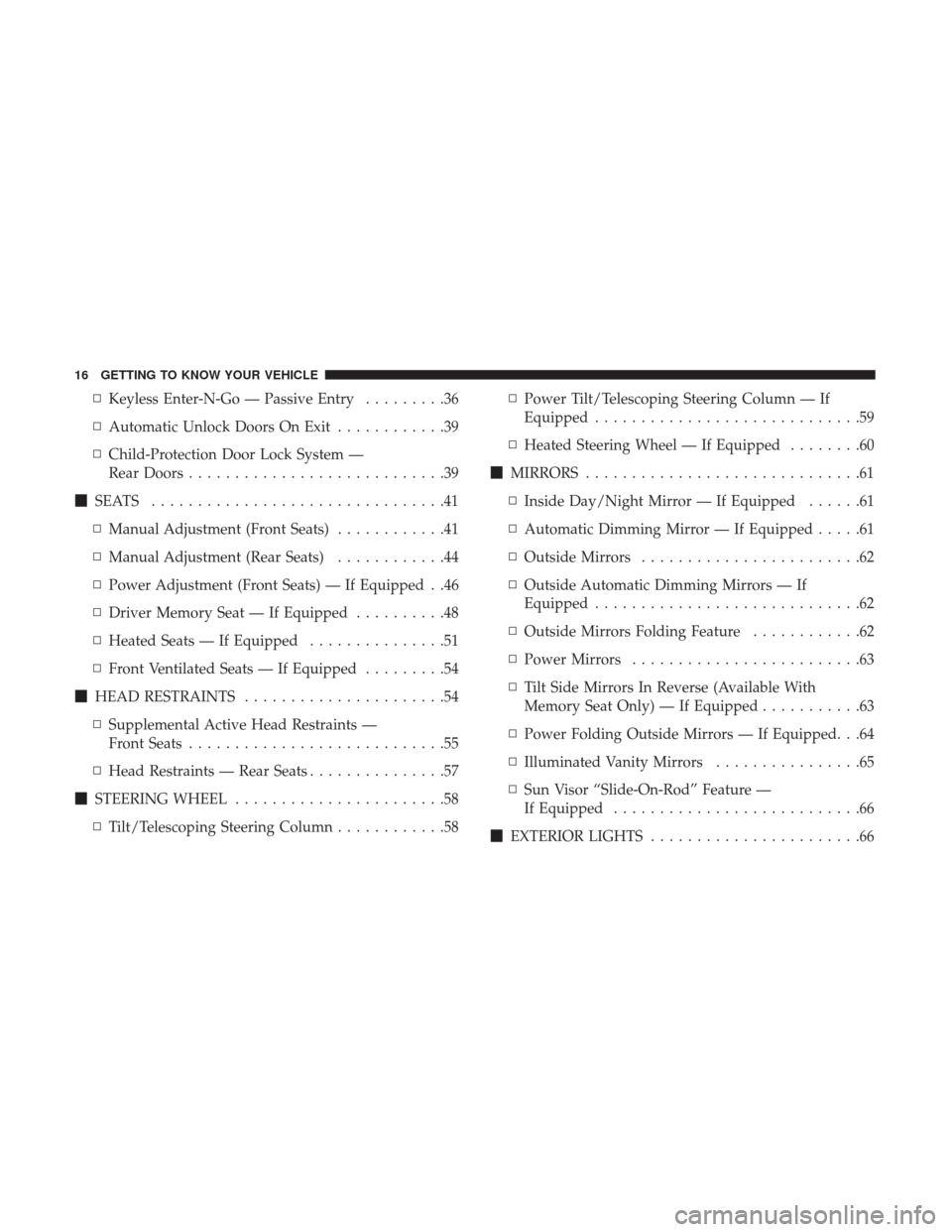

▫Keyless Enter-N-Go — Passive Entry .........36
▫ Automatic Unlock Doors On Exit ............39
▫ Child-Protection Door Lock System —
Rear Doors ............................39
 SEATS ................................41
▫ Manual Adjustment (Front Seats) ............41
▫ Manual Adjustment (Rear Seats) ............44
▫ Power Adjustment (Front Seats) — If Equipped . .46
▫ Driver Memory Seat — If Equipped ..........48
▫ Heated Seats — If Equipped ...............51
▫ Front Ventilated Seats — If Equipped .........54
 HEAD RESTRAINTS ......................54
▫ Supplemental Active Head Restraints —
Front Seats ............................55
▫ Head Restraints — Rear Seats ...............57
 STEERING WHEEL .......................58
▫ Tilt/Telescoping Steering Column ............58▫
Power Tilt/Telescoping Steering Column — If
Equipped .............................59
▫ Heated Steering Wheel — If Equipped ........60
 MIRRORS ..............................61
▫ Inside Day/Night Mirror — If Equipped ......61
▫ Automatic Dimming Mirror — If Equipped .....61
▫ Outside Mirrors ........................62
▫ Outside Automatic Dimming Mirrors — If
Equipped .............................62
▫ Outside Mirrors Folding Feature ............62
▫ Power Mirrors .........................63
▫ Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped ...........63
▫ Power Folding Outside Mirrors — If Equipped. . .64
▫ Illuminated Vanity Mirrors ................65
▫ Sun Visor “Slide-On-Rod” Feature —
If Equipped ...........................66
 EXTERIOR LIGHTS .......................66
16 GETTING TO KNOW YOUR VEHICLE

▫Headlight Switch .......................66
▫ Automatic Headlights — If Equipped .........67
▫ Automatic Headlight Leveling — HID Headlights
Only .................................67
▫ Parking Lights And Panel Lights .............67
▫ Headlights On Automatically With Wipers .....67
▫ Headlight Delay ........................68
▫ Lights-On Reminder ......................68
▫ Daytime Running Lights — If Equipped .......68
▫ Fog Lights — If Equipped .................69
▫ Multifunction Lever .....................69
▫ Turn Signals ...........................69
▫ Lane Change Assist — If Equipped ..........70
▫ High/Low Beam Switch ...................70
▫ Flash-To-Pass ..........................70
▫ Automatic High Beam — If Equipped ........70
▫ Battery Saver ...........................71
INTERIOR LIGHTS ........................71
▫ Courtesy Lights .........................72
 WINDSHIELD WIPERS AND WASHERS ........74
▫ Windshield Wiper Operation ................75
▫ Intermittent Wiper System .................75
▫ Windshield Washer Operation ...............76
▫ Mist .................................77
▫ Rain Sensing Wipers — If Equipped ..........77
▫ Rear Window Wiper/Washer ...............78
 HEADLIGHT WASHERS — IF EQUIPPED ......79
 CLIMATE CONTROLS .....................80
▫ Overview .............................80
▫ Automatic Temperature Control (ATC) — If
Equipped .............................87
▫ Operating Tips .........................88
 WINDOWS .............................90
▫ Power Window Controls ..................90
3
GETTING TO KNOW YOUR VEHICLE 17

To Unlock The Doors And Liftgate
Push the interior door unlock button on the door panel.
Push and release the unlock button on the key fob once to
unlock the driver’s door or twice within five seconds to
unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will be activated.1st Push Of Key Fob Unlock Button
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob. To change the current setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.
NOTE:
If the vehicle is equipped with Passive Entry, refer
to “Keyless Enter-N-Go — Passive Entry” located in
“Doors” in “Getting To Know Your Vehicle” for further
information.
To Lock The Doors And Liftgate
Push and release the lock button on the key fob to lock all
doors and liftgate.
The turn signal lights will flash and the horn will chirp to
acknowledge the signal. Refer to “Uconnect Settings”
located in “Multimedia” for further programmable infor-
mation.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” located in “Doors”
in “Getting To Know Your Vehicle” for further information.Key Fob With Emergency Key
3
GETTING TO KNOW YOUR VEHICLE 21

the vehicle security alarm. If someone enters the vehicle
through the liftgate and opens any door, the alarm will
sound.
• When the vehicle security alarm is armed, the interior
power door lock switches will not unlock the doors.
The vehicle security alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previously
described arming sequences has occurred, the vehicle
security alarm will arm regardless of whether you are in
the vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
vehicle security alarm.
If the vehicle security alarm is armed and the battery
becomes disconnected, the vehicle security alarm will
remain armed when the battery is reconnected; the exterior
lights will flash, and the horn will sound. If this occurs,
disarm the vehicle security alarm.
Security System Manual Override
The vehicle security alarm will not arm if you lock the
doors using the manual door lock plunger.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights will blink three times when you disarm the
Vehicle Security Alarm. Check the vehicle for tampering.
DOORS
Manual Door Locks
The power door locks can be manually locked from inside
the vehicle by using the door lock knob. To lock each door,
push the door lock knob on each door trim panel down-
ward. To unlock the front doors, pull the inside door
handle to the first detent. To unlock the rear doors, pull the
door lock knob on the door trim panel upward. If the lock
knob is down when the door is closed, the door will lock.
Therefore, make sure the key fob is not inside the vehicle
before closing the door.
NOTE: Manually locking the vehicle will not arm the
Vehicle Security Alarm.
34 GETTING TO KNOW YOUR VEHICLE

Rear Heated Seats — If Equipped
On some models, the two rear outboard seats may be
equipped with heated seats. There are two heated seat
switches that allow the rear passengers to operate the seats
independently. The heated seat switches for each heater are
located on the rear of the center console.You can choose from HI, LO or OFF heat settings. Amber
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for OFF.
Push the switch once to select HI-level heating.
Push the switch a second time to select LO-level
heating. Push the switch a third time to shut the
heating elements OFF.
When the HI-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 60
minutes of continuous operation. At that time, the number
of indicator lights changes from two to one, indicating the
change. The LO-level setting will turn OFF automatically
after approximately 45 minutes.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
(Continued)
Rear Heated Seat Switches
3
GETTING TO KNOW YOUR VEHICLE 53

Sun Visor “Slide-On-Rod” Feature — If Equipped
The sun visor “Slide-On-Rod” feature allows for additional
flexibility in positioning the sun visor to block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the center clip.
3. Pivot the sun visor toward the side window.
4. Extend the sun visor blade for additional sun blockage.
NOTE:The sun visor blade can also be extended while the
sun visor is against the windshield for additional sun
blockage through the front of the vehicle.
EXTERIOR LIGHTS
Headlight Switch
The headlight switch is located on the left side of the
instrument panel, next to the steering wheel. The headlight
switch controls the operation of the headlights, parking
lights, instrument panel lights, cargo lights and fog lights
(if equipped). To turn on the headlights, rotate the headlight
switch clockwise. When the headlight switch is
on, the parking lights, taillights, license plate
light and instrument panel lights are also turned
on. To turn off the headlights, rotate the headlight switch
back to the O (off) position.
Headlight Switch
66 GETTING TO KNOW YOUR VEHICLE

NOTE:
•Your vehicle is equipped with plastic headlight and fog
light (if equipped) lenses that are lighter and less sus-
ceptible to stone breakage than glass lights. Plastic is not
as scratch resistant as glass and therefore different lens
cleaning procedures must be followed.
• To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution
followed by rinsing.
CAUTION!
Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.
Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch to the A (AUTO) position.
When the system is on, the Headlight Delay feature is also
on. This means the headlights will stay on for up to 90
seconds after you turn the ignition switch to the OFF position. To turn the automatic headlights off, turn the
headlight switch out of the AUTO position.
NOTE:
The engine must be running before the headlights
will turn on in the Automatic Mode.
Automatic Headlight Leveling — HID Headlights Only
This feature prevents the headlights from interfering with
the vision of oncoming drivers. Headlight leveling auto-
matically adjusts the height of the headlight beam in
reaction to changes in vehicle pitch.
Parking Lights And Panel Lights
To turn on the parking lights and instrument panel
lights, rotate the headlight switch clockwise. To turn
off the parking lights, rotate the headlight switch back to
the O (off) position.
Headlights On Automatically With Wipers
If your vehicle is equipped with Automatic Headlights, it
also has this customer-programmable feature. When your
headlights are in the automatic mode and the engine is
running, they will automatically turn on when the wiper
system is on. This feature is programmable through the
Uconnect system screen. Refer to “Uconnect Settings” in
“Multimedia” for further information.
3
GETTING TO KNOW YOUR VEHICLE 67

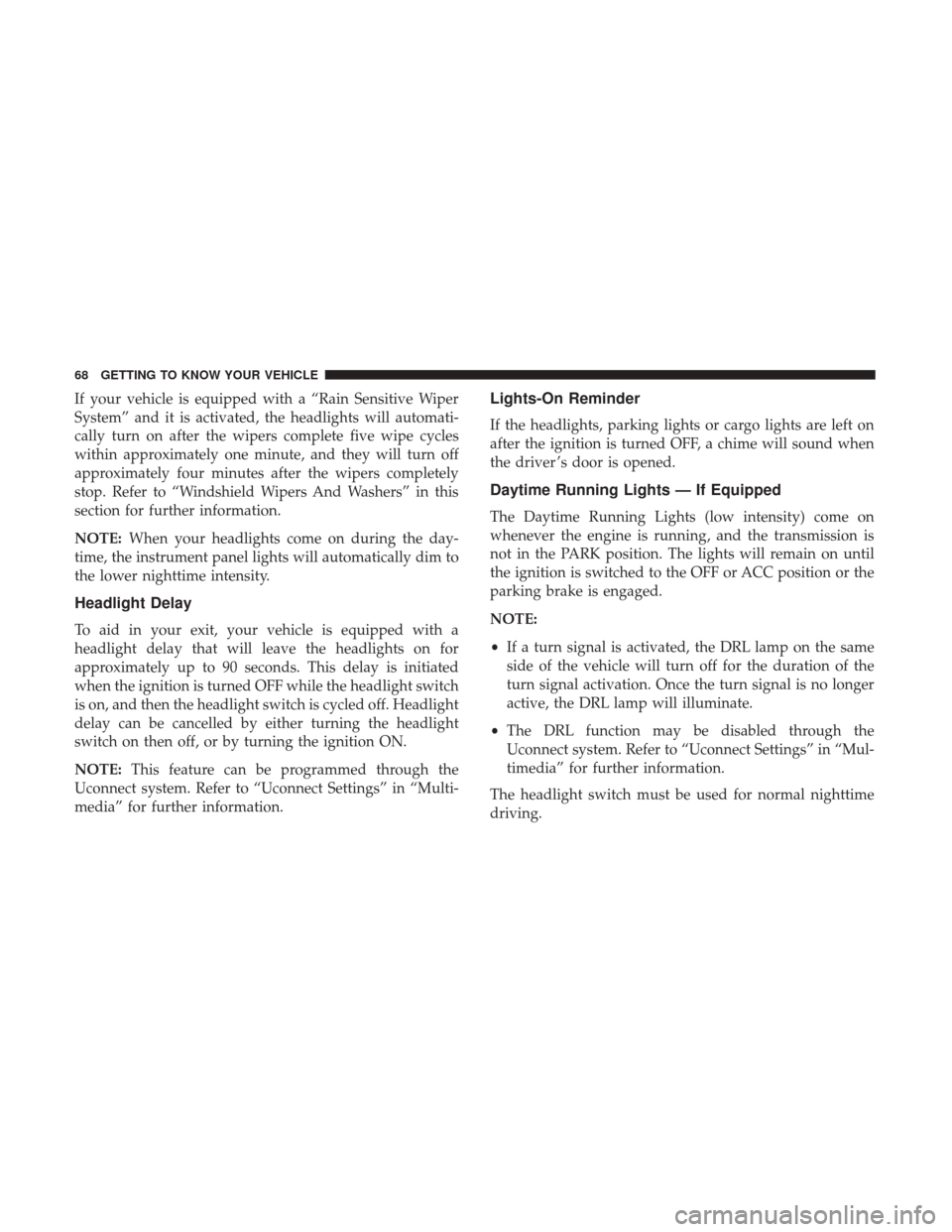

If your vehicle is equipped with a “Rain Sensitive Wiper
System” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn off
approximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers And Washers” in this
section for further information.
NOTE:When your headlights come on during the day-
time, the instrument panel lights will automatically dim to
the lower nighttime intensity.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for
approximately up to 90 seconds. This delay is initiated
when the ignition is turned OFF while the headlight switch
is on, and then the headlight switch is cycled off. Headlight
delay can be cancelled by either turning the headlight
switch on then off, or by turning the ignition ON.
NOTE: This feature can be programmed through the
Uconnect system. Refer to “Uconnect Settings” in “Multi-
media” for further information.
Lights-On Reminder
If the headlights, parking lights or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver ’s door is opened.
Daytime Running Lights — If Equipped
The Daytime Running Lights (low intensity) come on
whenever the engine is running, and the transmission is
not in the PARK position. The lights will remain on until
the ignition is switched to the OFF or ACC position or the
parking brake is engaged.
NOTE:
• If a turn signal is activated, the DRL lamp on the same
side of the vehicle will turn off for the duration of the
turn signal activation. Once the turn signal is no longer
active, the DRL lamp will illuminate.
• The DRL function may be disabled through the
Uconnect system. Refer to “Uconnect Settings” in “Mul-
timedia” for further information.
The headlight switch must be used for normal nighttime
driving.
68 GETTING TO KNOW YOUR VEHICLE
