JEEP GRAND CHEROKEE 2017 WK2 / 4.G SRT Owner's Guide

The Shift Light RPM Set-Up allows you to set the shift light to
illuminate for gears 1, 2, 3, 4, and 5-8. Pressing and releasing the
up/down arrow buttons above and below each listed gear, the RPM
values will change in increments of 250 RPM. The Shift Light setup
screen may only be accessed if the feature is enabled, press the “Reset
to factory default” button on the touchscreen to change back to factory
settings, or press the “Shift Light Off” button on the touchscreen to
turn the system off completely.Valet Mode
To enter Valet Mode press the “Valet” button on the touchscreen and a
popup screen will ask you if you would like to enter Valet Mode, after
selecting “Yes” you will be asked to enter a four digit PIN code. The
PIN code is not predetermined, so you are free to select any four digit
numeric combination that will be easy to remember.
Valet Mode Activation
UNDERSTANDING YOUR INSTRUMENT PANEL
29

While in Valet Mode the following vehicle configurations are set and
locked to prevent unauthorized modification:
• All-Wheel Drive is set to 50/50.
• Transmission locks out access to first gear and up-shifts earlier thannormal.
• Stability Control, Steering, and Suspension are set to their STREET settings.
• Steering wheel paddle shifters are disabled.
• The Drive Mode interface is not available. Pushing the SRT button on Selec-Track switch will display the unlock keypad.
• The ESC Off button is disabled.
• The Launch Control button is disabled.
• Engine limited to a lowest power output state.
To exit Valet Mode you must enter the same four digit PIN that was used
to enter the mode. The unlock keypad can be accessed by either
pushing the SRT button on Selec-Track switch, or pressing the “Valet”
button on the touchscreen.
Valet Mode Deactivation
UNDERSTANDING YOUR INSTRUMENT PANEL
30

The Valet Mode Deactivation key pad will then prompt you for your four
digit PIN code, enter your PIN code and press the “OK” button on the
touchscreen. Your vehicle will return to the default state.
NOTE:If your four digit PIN is lost or forgotten, the vehicle will exit Valet
Mode after a battery disconnect for approximately five minutes. Recon-
nect the battery and cycle the ignition to the RUN position, the vehicle
will be in Auto Mode.
ECO Mode
Push the ECO button on the center stack of the instrument panel to
enter ECO mode. ECO mode modifies the vehicle’s engine and trans-
mission settings to provide improved fuel economy at a trade-off with
acceleration performance. Increased engine exhaust noise and/or vi-
Valet Mode Deactivation PIN
Eco Mode
UNDERSTANDING YOUR INSTRUMENT PANEL
31

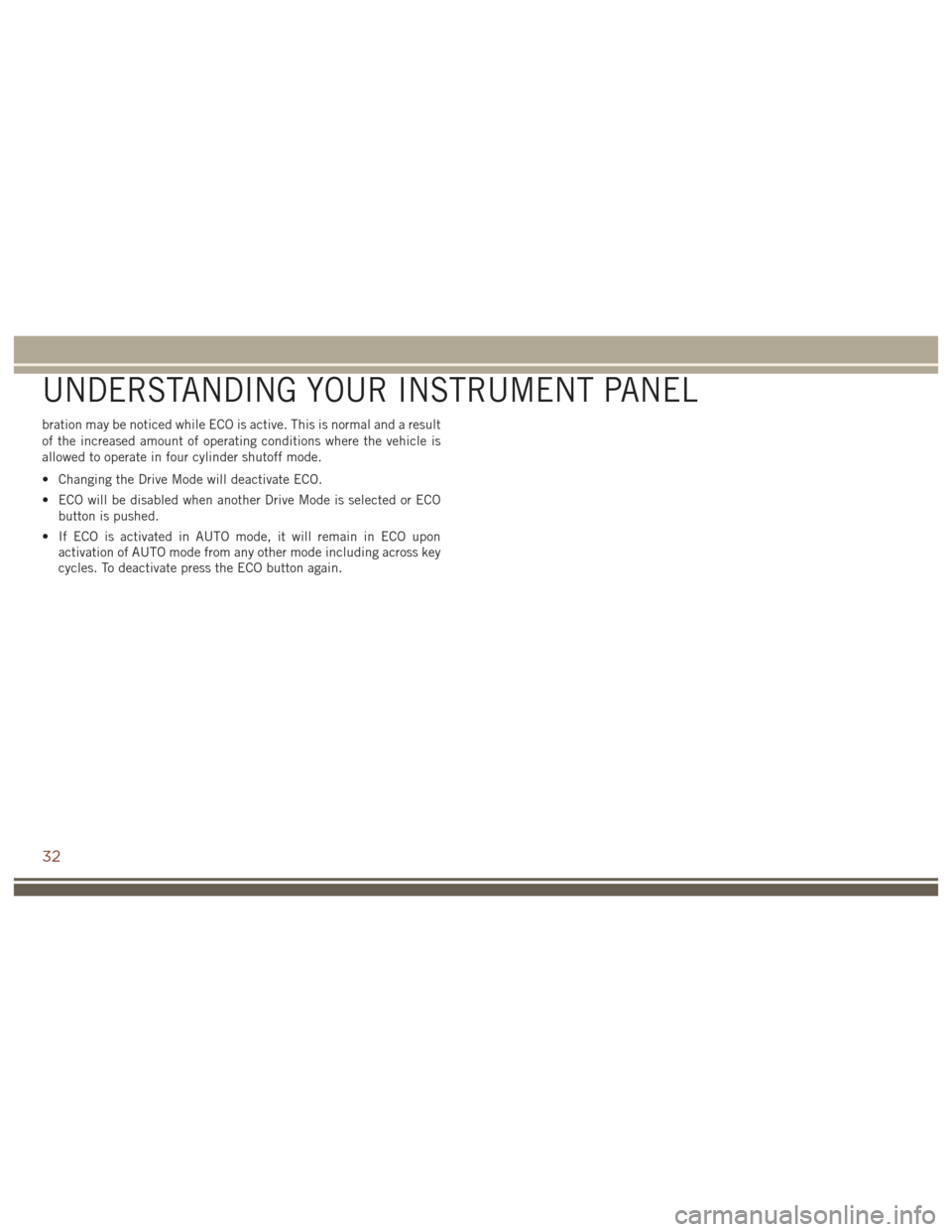

bration may be noticed while ECO is active. This is normal and a result
of the increased amount of operating conditions where the vehicle is
allowed to operate in four cylinder shutoff mode.
• Changing the Drive Mode will deactivate ECO.
• ECO will be disabled when another Drive Mode is selected or ECObutton is pushed.
• If ECO is activated in AUTO mode, it will remain in ECO upon activation of AUTO mode from any other mode including across key
cycles. To deactivate press the ECO button again.
UNDERSTANDING YOUR INSTRUMENT PANEL
32

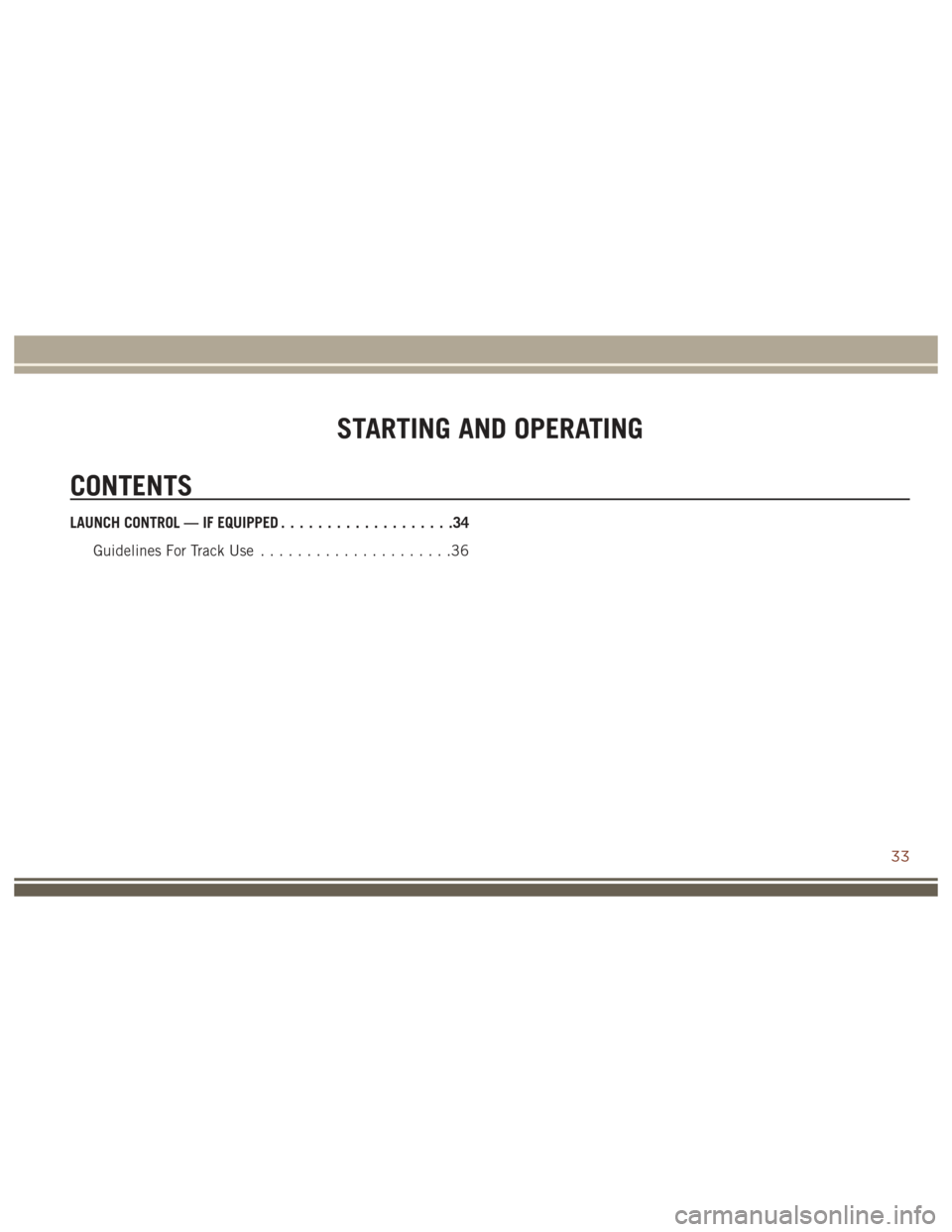

STARTING AND OPERATING
CONTENTS
LAUNCH CONTROL — IF EQUIPPED ...................34
Guidelines For Track Use .....................36
33

LAUNCH CONTROL — IF EQUIPPED
This vehicle is equipped with a Launch Control system that is designed
to allow the driver to achieve maximum vehicle acceleration in a
straight line. Launch Control is a form of traction control that manages
tire slip while launching the vehicle. This feature is intended for use
during race events on a closed course where consistent quarter mile
and zero to sixty times are desired. The system is not intended to
compensate for lack of driver experience or familiarity with the race
track. Use of this feature in low traction (cold, wet, gravel, etc.)
conditions may results in excess wheel slip outside this systems control
resulting in an aborted launch.
Preconditions:
• Launch Control should not be used on public roads. Always checktrack conditions and the surrounding area.
• Launch Control is not available within the first 500 miles (805 km) of engine break-in.
• Launch Control should only be used when the engine and transmis- sion are at operating temperature.
•
Launch Control is intended to be used on dry, paved road surfaces only.
CAUTION!
Use on slippery or loose surfaces may cause damage to vehicle
components and is not recommended. Launch Control is only available when the following procedure is
followed:
NOTE:
Pushing the SRT button on the Select-Track switch or pressing
the “Apps” button on the touchscreen are the two options to access
launch control features. Please refer to “SRT Drive Modes” in “Multi-
media” for further information.
1. Press the “Race Options” button on the touchscreen or push the LAUNCH button on the Select-Track switch.
2. Press the “Launch RPM Set-Up” button on the touchscreen. This screen will allow you to adjust your launch RPM’s for optimum
launch/traction.
3. Press the “Activate Launch Control” button on the touchscreen, follow instructions in the instrument cluster display.
• Make sure the vehicle is not moving.
• Put vehicle in first gear.
• Steering wheel must be pointing straight.
• Vehicle must be on level ground.
• Apply Brake Pressure.
• While holding the brake, rapidly apply the accelerator pedal to wide open throttle. The engine speed will hold at the RPM that
was set in the “Launch RPM Set-up” screen.
STARTING AND OPERATING
34

NOTE:Messages will appear in the instrument cluster display to inform
the driver if one or more of the above conditions have not been met. 4. When the above conditions have been met, the instrument cluster
display will read “Release Brake”.
5. Keep the vehicle pointed straight.
Launch control will be active until the vehicle reaches 62 mph
(100 km/h), at which point the Electronic Stability Control (ESC)
system will return to its current ESC mode.
Launch control will abort before launch completion, display “Launch
Aborted” in the cluster under any the following conditions:
• The accelerator pedal is released during launch.
• The ESC system detects that the vehicle is no longer moving in a straight line.
• The “ESC OFF” button is pressed to change the system to another mode.
NOTE: After launch control has been aborted, ESC will return to its
current ESC mode.
CAUTION!
Do not attempt to shift when the drive wheels are spinning and do
not have traction. Damage to the transmission may occur.
Example Brake Pedal Pressure
STARTING AND OPERATING
35

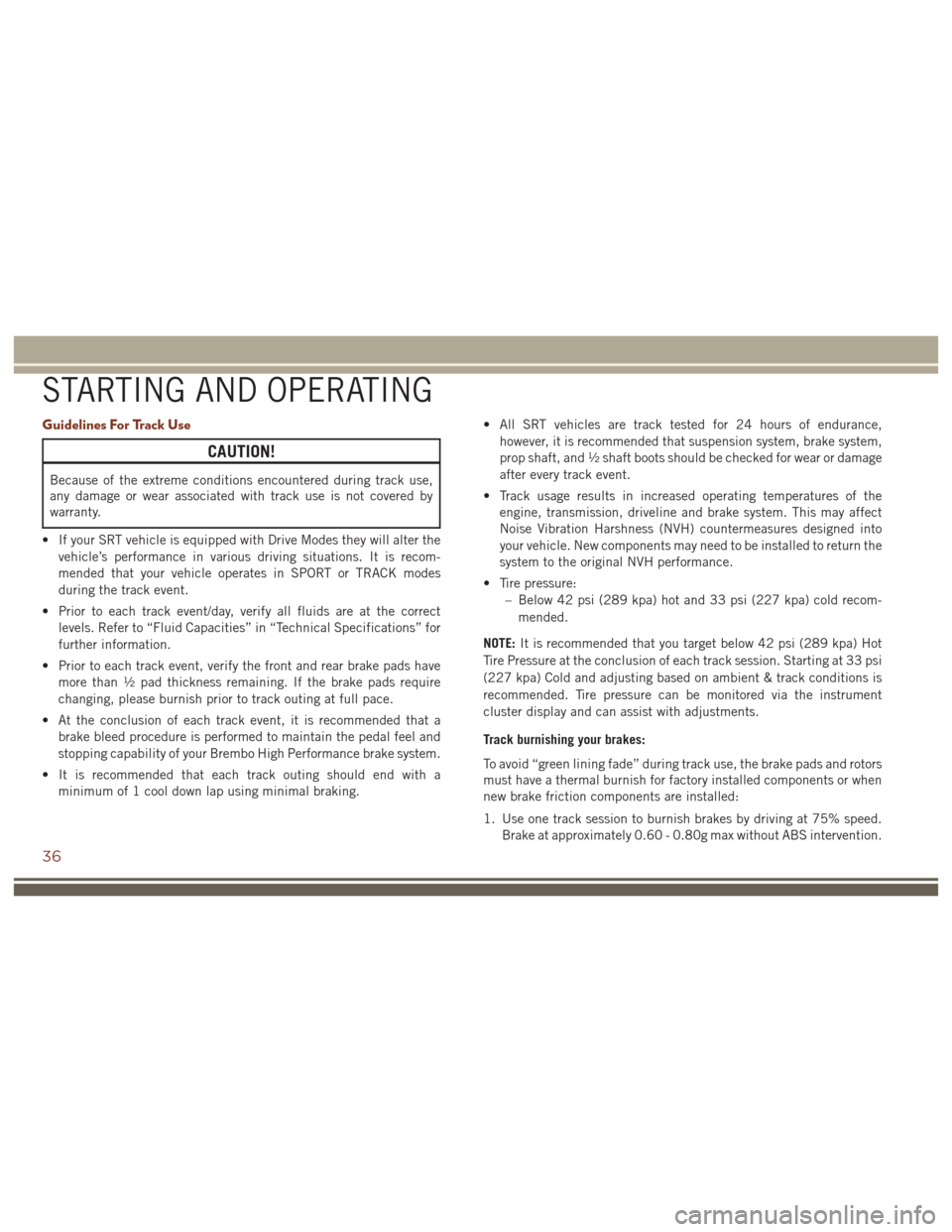

Guidelines For Track Use
CAUTION!
Because of the extreme conditions encountered during track use,
any damage or wear associated with track use is not covered by
warranty.
• If your SRT vehicle is equipped with Drive Modes they will alter the vehicle’s performance in various driving situations. It is recom-
mended that your vehicle operates in SPORT or TRACK modes
during the track event.
• Prior to each track event/day, verify all fluids are at the correct levels. Refer to “Fluid Capacities” in “Technical Specifications” for
further information.
• Prior to each track event, verify the front and rear brake pads have more than ½ pad thickness remaining. If the brake pads require
changing, please burnish prior to track outing at full pace.
• At the conclusion of each track event, it is recommended that a brake bleed procedure is performed to maintain the pedal feel and
stopping capability of your Brembo High Performance brake system.
• It is recommended that each track outing should end with a minimum of 1 cool down lap using minimal braking. • All SRT vehicles are track tested for 24 hours of endurance,
however, it is recommended that suspension system, brake system,
prop shaft, and ½ shaft boots should be checked for wear or damage
after every track event.
• Track usage results in increased operating temperatures of the engine, transmission, driveline and brake system. This may affect
Noise Vibration Harshness (NVH) countermeasures designed into
your vehicle. New components may need to be installed to return the
system to the original NVH performance.
• Tire pressure: – Below 42 psi (289 kpa) hot and 33 psi (227 kpa) cold recom-
mended.
NOTE: It is recommended that you target below 42 psi (289 kpa) Hot
Tire Pressure at the conclusion of each track session. Starting at 33 psi
(227 kpa) Cold and adjusting based on ambient & track conditions is
recommended. Tire pressure can be monitored via the instrument
cluster display and can assist with adjustments.
Track burnishing your brakes:
To avoid “green lining fade” during track use, the brake pads and rotors
must have a thermal burnish for factory installed components or when
new brake friction components are installed:
1. Use one track session to burnish brakes by driving at 75% speed. Brake at approximately 0.60 - 0.80g max without ABS intervention.
STARTING AND OPERATING
36

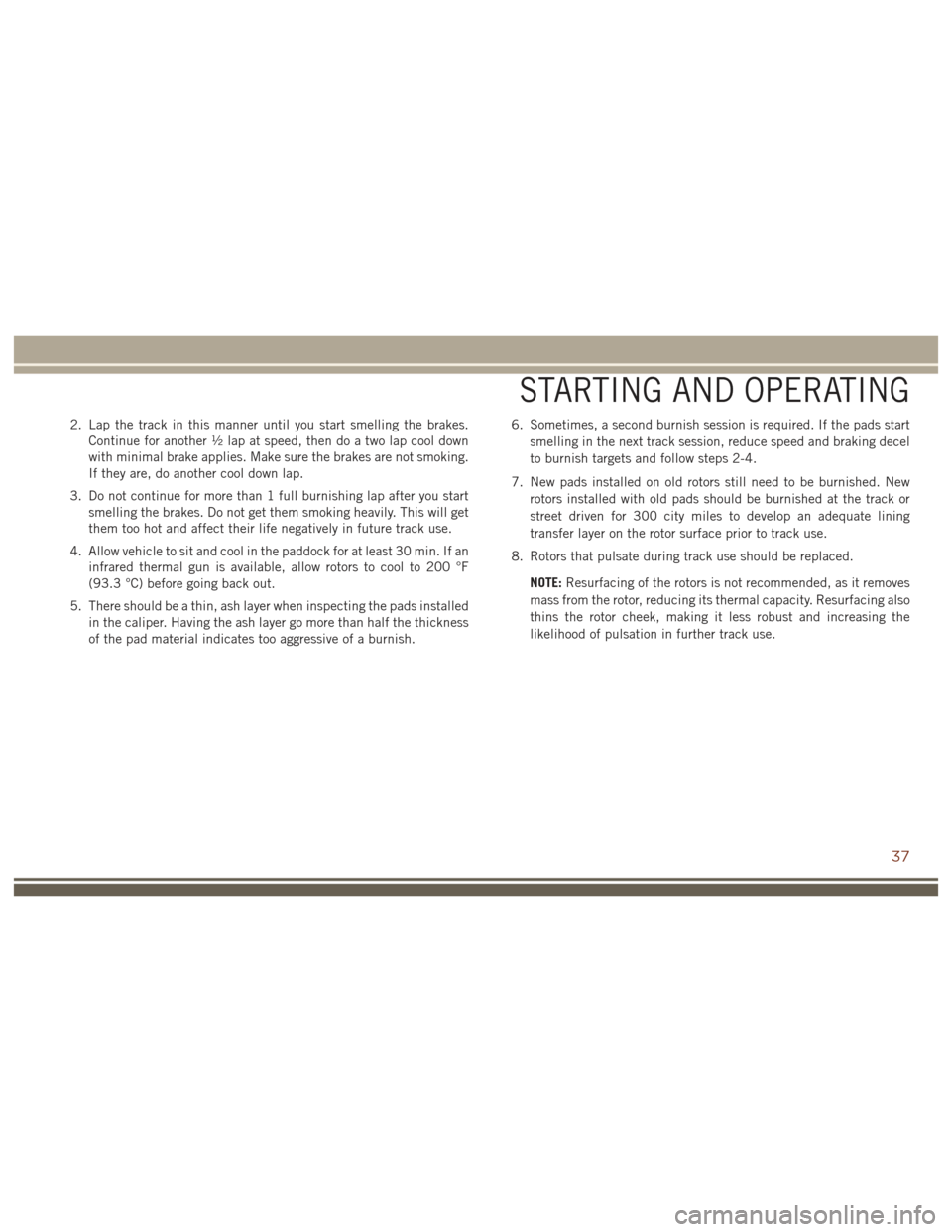

2. Lap the track in this manner until you start smelling the brakes.Continue for another ½ lap at speed, then do a two lap cool down
with minimal brake applies. Make sure the brakes are not smoking.
If they are, do another cool down lap.
3. Do not continue for more than 1 full burnishing lap after you start smelling the brakes. Do not get them smoking heavily. This will get
them too hot and affect their life negatively in future track use.
4. Allow vehicle to sit and cool in the paddock for at least 30 min. If an infrared thermal gun is available, allow rotors to cool to 200 °F
(93.3 °C) before going back out.
5. There should be a thin, ash layer when inspecting the pads installed in the caliper. Having the ash layer go more than half the thickness
of the pad material indicates too aggressive of a burnish. 6. Sometimes, a second burnish session is required. If the pads start
smelling in the next track session, reduce speed and braking decel
to burnish targets and follow steps 2-4.
7. New pads installed on old rotors still need to be burnished. New rotors installed with old pads should be burnished at the track or
street driven for 300 city miles to develop an adequate lining
transfer layer on the rotor surface prior to track use.
8. Rotors that pulsate during track use should be replaced.
NOTE: Resurfacing of the rotors is not recommended, as it removes
mass from the rotor, reducing its thermal capacity. Resurfacing also
thins the rotor cheek, making it less robust and increasing the
likelihood of pulsation in further track use.
STARTING AND OPERATING
37
