WARNING!
Do not use a chain for freeing a stuck
vehicle. Chains may break, causing serious
injury or death.

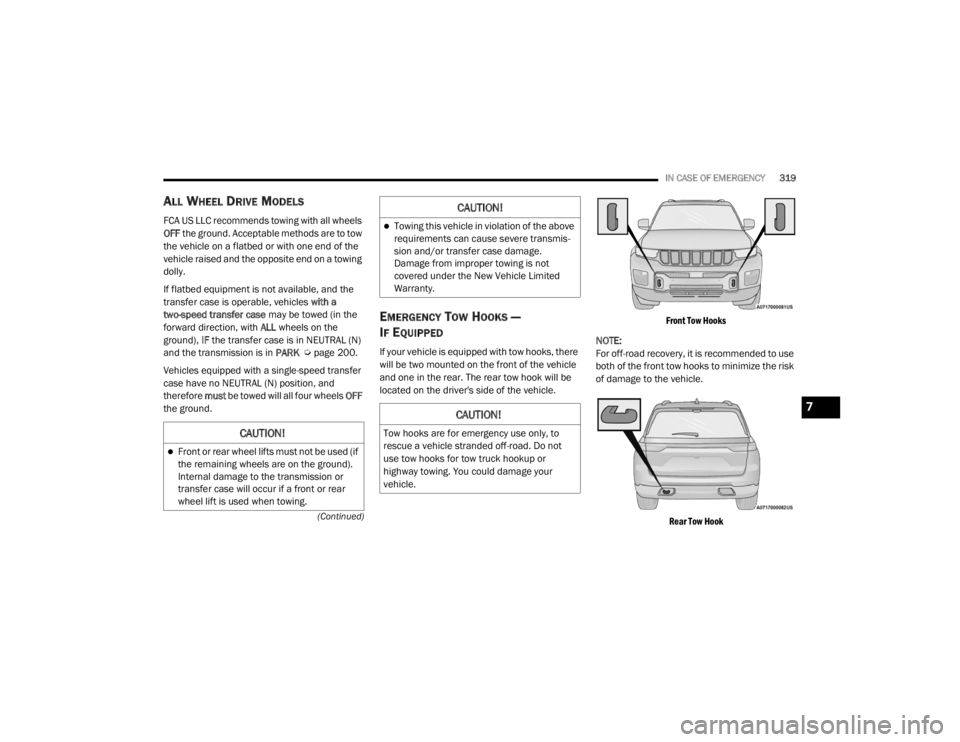

Stand clear of vehicles when pulling with
tow hooks. Tow straps may become disen-
gaged, causing serious injury.
CAUTION!

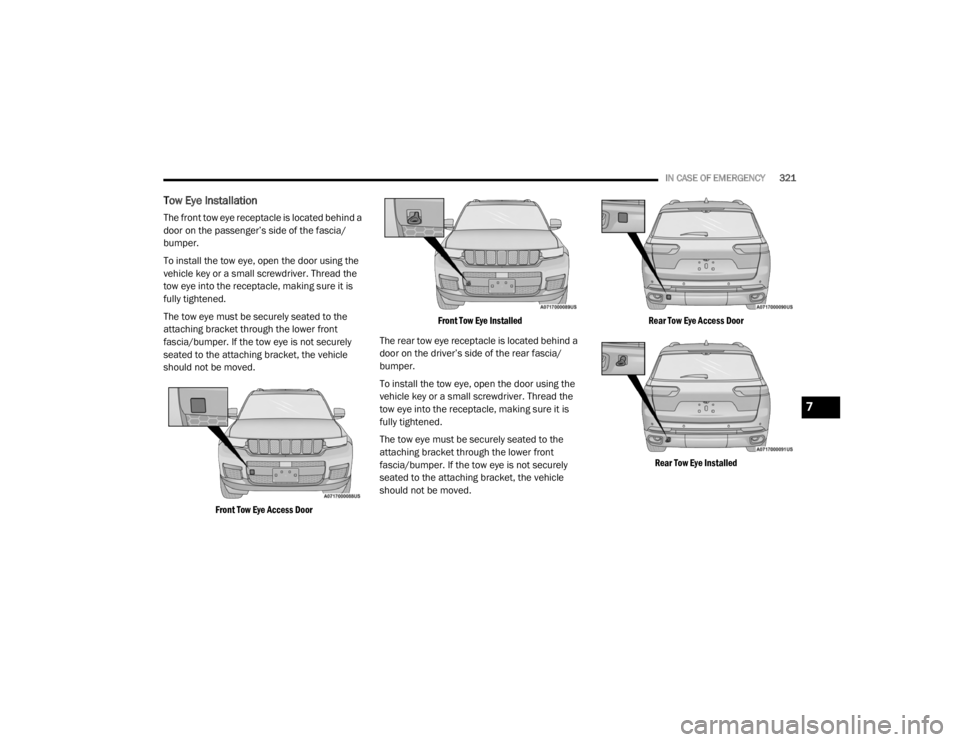

The tow eye must only be used for roadside
emergencies. Use with an appropriate
device in accordance with highway code (a
rigid bar or ropeyf W R P D Q H X Y H U W K H Y H K L F O H L Q
preparation for transport via a tow truck.
The tow eye must not be used to move the
vehicle off the road or where there are
obstacles.
Do not use the tow eyes for tow truck
hookup or highway towing.
Do not use the tow eye to free a stuck
vehicle Ú page 316.
Damage to your vehicle may occur if these
guidelines are not followed Ú page 317.
WARNING!
Stand clear of vehicles when pulling with tow
eyes.
Do not use a chain with a tow eye. Chains
may break, causing serious injury or death.
Do not use a tow strap with a tow eye. Tow
straps may break or become disengaged,
causing serious injury or death.
Failure to follow proper tow eye usage may
cause components to break resulting in
serious injury or death.
SERVICING AND MAINTENANCE
SC \b \fED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate. This
means that service is required for your vehicle.
Operating conditions such as frequent
short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required”
message is displayed. Have your vehicle
serviced as soon as possible, within the next
500 miles (805 kmyf .An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change. NOTE:
Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 kmyf
12 months or 350 hours of engine run time,
whichever comes first. The 350 hours of engine
run or idle time is generally only a concern for
fleet customers.
Once A Month Or Before A Long Trip:
Check engine oil level
Check windshield washer fluid level
Check the tire inflation pressures and look
for unusual wear or damage
Check the fluid levels of the coolant reservoir,
brake master cylinder and fill as needed.
Check function of all interior and exterior
lights
MAINTENANCE PLAN
Refer to the Maintenance Plan for the required
maintenance intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Rotate the tires. Rotate at the first sign of
irregular wear, even if it occurs before the
oil indicator system turns on.
Inspect battery and clean and tighten termi -
nals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums,
hoses and parking brake.
Inspect engine cooling system protection
and hoses.
Inspect exhaust system.
Inspect engine air cleaner filter if using in
dusty or off-road conditions. Replace
engine air cleaner filter, as necessary.
8
21_WL_OM_EN_USC_t.book Page 323
7 K H V S D U N S O X J F K D Q J H L Q W H U Y D O L V E D V H G R Q P L O H D J H I R U G R P H V W L F D Q G N L O R P H W H U V I R U L Q W H U Q D W L R Q D O P D U N H W \ H D U O \ L Q W H U Y D O V G R Q R W D S S O \
0 L O H D J H R U W L P H S D V V H G Z K L F K H Y H U F R P H V I L U V W \f
2 U < H D U V
2 U . L O R P H W H U V
: $ 5 1 , 1 *
You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This
could cause an accident.
8
21_WL_OM_EN_USC_t.book Page 325
: $ 5 1 , 1 *
& R P P H U F L D O O \ D Y D L O D E O H Z L Q G V K L H O G Z D V K H U
V R O Y H Q W V D U H I O D P P D E O H 7 K H \ F R X O G L J Q L W H D Q G
E X U Q \ R X & D U H P X V W E H H [ H U F L V H G Z K H Q I L O O L Q J
R U Z R U N L Q J D U R X Q G W K H Z D V K H U V R O X W L R Q
: $ 5 1 , 1 *
Battery fluid is a corrosive acid solution and
can burn or even blind you. Do not allow
battery fluid to contact your eyes, skin, or
clothing. Do not lean over a battery when
attaching clamps. If acid splashes in eyes
or on skin, flush the area immediately with
large amounts of water. Refer to Jump
Starting Procedure Úpage 312.
