SEATS
TABLE OF CONTENTS
page page
HEADREST
REMOVAL............................164
INSTALLATION........................164
HEADREST SLEEVE
REMOVAL............................164
INSTALLATION........................164
SEAT - FRONT
REMOVAL............................165
INSTALLATION........................165
SEAT BACK - FRONT
REMOVAL............................166
INSTALLATION........................166
SEAT BACK RECLINER - FRONT
REMOVAL............................166
INSTALLATION........................166
SEAT BACK COVER - FRONT
REMOVAL............................166
INSTALLATION........................167
SEAT BACK CUSHION - FRONT
REMOVAL............................167
INSTALLATION........................167
SEAT CUSHION - FRONT
REMOVAL............................167
INSTALLATION........................167
SEAT CUSHION COVER - FRONT
REMOVAL............................167
INSTALLATION........................167
SEAT CUSHION SIDE SHIELDS
REMOVAL............................167
INSTALLATION........................167MANUAL SEAT RISER
REMOVAL............................167
INSTALLATION........................168
SEAT TRACK
REMOVAL............................168
INSTALLATION........................168
SEAT - REAR
REMOVAL............................168
INSTALLATION........................168
SEAT BACK - REAR
REMOVAL............................168
INSTALLATION........................168
SEAT BACK COVER - REAR
REMOVAL............................169
INSTALLATION........................169
SEAT BACK CUSHION - REAR
REMOVAL............................170
INSTALLATION........................170
FOLDING REAR SEAT BACK LATCH / LOCK
REMOVAL............................170
INSTALLATION........................170
REAR SEAT BACK LATCH STRIKER
REMOVAL............................170
INSTALLATION........................171
SEAT BACK FRAME - REAR
REMOVAL............................171
INSTALLATION........................171
SEAT CUSHION - REAR
REMOVAL............................171
INSTALLATION........................171
HEADREST
REMOVAL
(1) Depress head restraint release button and lift
head restraint to full up position.
(2) Using a small flat blade, depress tab on right
side head restraint release button and using your
hand, simultaneously press tab on left side head
restraint release button and pull head restraint up to
separate from seat back.
INSTALLATION
(1) Position head restraint in seat back, press tab
on left side head restraint release button and push
down head restraint to secure.
HEADREST SLEEVE
REMOVAL
(1) Remove the headrest. (Refer to 23 - BODY/
SEATS/HEADREST - REMOVAL)
(2) Remove the headrest sleeve cover.
(3) Rotate head restraint sleeve 1/4 turn counter-
clockwise to release retaining tab.
(4) Pull sleeve from seat back frame.
INSTALLATION
(1) Position sleeve in seat back frame.
(2) Rotate head restraint sleeve 1/4 turn clockwise
to engage retaining tab.
(3) Install the headrest sleeve cover.
(4) Install the headrest. (Refer to 23 - BODY/
SEATS/HEADREST - INSTALLATION)
23 - 164 SEATSKJ
Page 1631 of 1803
(4) Slide the seat to the forward position and
install the rear bolt and nut.
(5) Tighten the fasteners to 43 N´m (32 ft. lbs.).
(6) Install the seat belt anchor and bolt. (Refer to
8 - ELECTRICAL/RESTRAINTS/SEAT BELT &
RETRACTOR - INSTALLATION)
SEAT BACK - FRONT
REMOVAL
(1) Remove the seat. (Refer to 23 - BODY/SEATS/
SEAT - FRONT - REMOVAL)
(2) Remove the seat cushion side shields. (Refer to
23 - BODY/SEATS/SEAT CUSHION SIDE SHIELDS
- REMOVAL)
(3) Disconnect the lock out cable from both reclin-
ers. (Fig. 2)
(4) Remove the bolts and remove the seat back.
INSTALLATION
(1) Install the seat back and install the bolts.
(2) Tighten the bolts to 28 N´m (21 ft. lbs.).
(3) Connect the lock out cable to both recliners.
(4) Install the belt buckle. (Refer to 8 - ELECTRI-
CAL/RESTRAINTS/SEAT BELT BUCKLE - INSTAL-
LATION)
(5) Install the side shields. (Refer to 23 - BODY/
SEATS/SEAT CUSHION SIDE SHIELDS - INSTAL-
LATION)
(6) Install the seat. (Refer to 23 - BODY/SEATS/
SEAT - FRONT - INSTALLATION)
SEAT BACK RECLINER -
FRONT
REMOVAL
(1) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - REMOVAL)
(2) Position the seat back cover out of the way and
remove the bolts. (Fig. 3)
(3) Remove the recliners from the seat back frame.
INSTALLATION
(1) Install the recliners onto the seat back.
(2) Position the seat back cover aside and install
the recliner bolts.
(3) Tighten the bolts to 28 N´m (21 ft. lbs.).
(4) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - INSTALLATION)
SEAT BACK COVER - FRONT
REMOVAL
(1) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - REMOVAL)
(2) Remove the head rest and remove the trim
caps. (Refer to 23 - BODY/SEATS/HEADREST -
REMOVAL)
(3) Disconnect the j-straps.
(4) Remove the two lower hog rings.
(5) Partially remove the seat back cover and
remove the two upper hog rings.
(6) Remove the seat back cover.
Fig. 2 SEAT BACK RECLINER
1 - LOCK OUT CABLE
2 - BOLTS
3 - RECLINER
4 - SEAT BACK
Fig. 3 SEAT BACK RECLINER
1 - SEAT BACK RECLINER
2 - BOLTS
3 - SEAT BACK
23 - 166 SEATSKJ
SEAT - FRONT (Continued)
Page 1632 of 1803
INSTALLATION
(1) Partially install the seat back cover and
replace the two top hog rings.
(2) Pull cover down and replace the two lower hog
rings.
(3) Connect the j-straps.
(4) Install trim caps and the head rest. (Refer to
23 - BODY/SEATS/HEADREST - INSTALLATION)
(5) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - INSTALLATION)
SEAT BACK CUSHION - FRONT
REMOVAL
(1) Remove the seat back cover. (Refer to 23 -
BODY/SEATS/SEAT BACK COVER - FRONT -
REMOVAL)
(2) Separate the cushion from the seat back frame.
INSTALLATION
(1) Position the cushion onto the seat back frame.
(2) Install the seat back cover. (Refer to 23 -
BODY/SEATS/SEAT BACK COVER - FRONT -
INSTALLATION)
SEAT CUSHION - FRONT
REMOVAL
(1) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - REMOVAL)
(2) Remove the two outer front track bolts and
remove the track.
INSTALLATION
(1) Install the seat cushion onto the seat track
assembly and install the front two bolts.
(2) Tighten the bolts to 28 N´m (21 ft. lbs.).
(3) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - FRONT - INSTALLATION)
SEAT CUSHION COVER -
FRONT
REMOVAL
(1) Remove the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - FRONT - REMOVAL)
(2) Disconnect the j-straps.
(3) Remove the hog rings and remove the cushion
cover.
INSTALLATION
(1) Position the seat cushion cover and install new
hog rings.
(2) Connect the j-straps.
(3) Install the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - FRONT - INSTALLA-
TION)
SEAT CUSHION SIDE SHIELDS
REMOVAL
(1) Remove the screw and remove the recliner han-
dle.
(2) Remove the screws and remove the seat side
shields.
INSTALLATION
(1) Install the shields and install the screws.
(2) Install the recliner handle and install the
screw.
MANUAL SEAT RISER
REMOVAL
(1) Remove the seat. (Refer to 23 - BODY/SEATS/
SEAT - FRONT - REMOVAL)
(2) Remove the bolts and remove the rivet from
the release handle. (Fig. 4)
(3) Remove the riser.
Fig. 4 FRONT SEAT RISER
1 - BOLTS (3)
2 - SEAT CUSHION
3 - SEAT TRACK
4 - SEAT RISER
KJSEATS 23 - 167
SEAT BACK COVER - FRONT (Continued)
Page 1634 of 1803
(2) Install the seat back hinge bolt and tighten to
8 N´m (71 in. lbs.).
(3) Position the seat back hinge covers and fully
seat the clips.
(4) Connect the seat halves and install the center
seat back hinge bolts.
(5) Tighten the bolts to 28 N´m (21 ft. lbs.).
(6) Install the front seat cushion hinge bolt and
tighten to 28 N´m (21 ft. lbs.).
(7) Install the seat assembly. (Refer to 23 - BODY/
SEATS/SEAT - REAR - INSTALLATION)
SEAT BACK COVER - REAR
REMOVAL
(1) Remove the rear seat back. (Refer to 23 -
BODY/SEATS/SEAT BACK - REAR - REMOVAL)
(2) Remove the screws and remove the center seat
belt guide.
(3) Remove the screws and push pin fasteners and
remove the latch handle bezel.
(4) Remove the head rest and remove the guide
covers. (Refer to 23 - BODY/SEATS/HEADREST -
REMOVAL)
(5) Remove the screws and remove the grocery
hooks.
(6) Remove the push pin fasteners and remove the
seat back panel.
(7) Disconnect the j-straps.
(8) Remove the seat back cover.
INSTALLATION
(1) Install the seat back cover and connect the
j-straps.
(2) Install the seat back panel and install the push
pin fasteners.
(3) Install the grocery hooks and install the
screws.
(4) Install the head rest guide covers and install
the head rest. (Refer to 23 - BODY/SEATS/HEAD-
REST - INSTALLATION)
(5) Install the latch handle bezel and install the
screws and push pin fasteners.
(6) Install the center seat belt guide and screws.
(7) Install the rear seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - REAR - INSTALLATION)
Fig. 6 CENTER CUSHION HINGE
1 - SEAT CUSHION
2 - BOLT
Fig. 7 CENTER SEAT BACK HINGE
1 - SEAT CUSHION
2 - BOLTS
3 - SEAT BACK HINGE
4 - SEAT CUSHION
Fig. 8 SEAT BACK HINGE
1 - SEAT BACK
2 - BOLT
3 - SEAT BACK HINGE
KJSEATS 23 - 169
SEAT BACK - REAR (Continued)
Page 1751 of 1803
HEAD GASKET - DIAGNOSIS AND
TESTING, CYLINDER...............9-19,9-30
HEADLAMP BULB - INSTALLATION.......8L-32
HEADLAMP BULB - REMOVAL..........8L-31
HEADLAMP HIGH BEAM RELAY -
DESCRIPTION.......................8L-33
HEADLAMP HIGH BEAM RELAY -
DIAGNOSIS AND TESTING.............8L-34
HEADLAMP HIGH BEAM RELAY -
INSTALLATION.......................8L-35
HEADLAMP HIGH BEAM RELAY -
OPERATION.........................8L-33
HEADLAMP HIGH BEAM RELAY -
REMOVAL..........................8L-34
HEADLAMP LEVELING MOTOR -
DESCRIPTION.......................8L-35
HEADLAMP LEVELING MOTOR -
INSTALLATION.......................8L-36
HEADLAMP LEVELING MOTOR -
OPERATION.........................8L-36
HEADLAMP LEVELING MOTOR -
REMOVAL..........................8L-36
HEADLAMP LEVELING SWITCH -
DESCRIPTION.......................8L-37
HEADLAMP LEVELING SWITCH -
DIAGNOSIS AND TESTING.............8L-37
HEADLAMP LEVELING SWITCH -
INSTALLATION.......................8L-38
HEADLAMP LEVELING SWITCH -
OPERATION.........................8L-37
HEADLAMP LEVELING SWITCH -
REMOVAL..........................8L-38
HEADLAMP LOW BEAM RELAY -
DESCRIPTION.......................8L-39
HEADLAMP LOW BEAM RELAY -
DIAGNOSIS AND TESTING.............8L-40
HEADLAMP LOW BEAM RELAY -
INSTALLATION.......................8L-41
HEADLAMP LOW BEAM RELAY -
OPERATION.........................8L-39
HEADLAMP LOW BEAM RELAY -
REMOVAL..........................8L-40
HEADLAMP UNIT - ADJUSTMENT........8L-42
HEADLAMP UNIT - INSTALLATION.......8L-42
HEADLAMP UNIT - REMOVAL...........8L-41
HEADLINER - INSTALLATION..........23-159
HEADLINER - REMOVAL..............23-159
HEADREST - INSTALLATION...........23-164
HEADREST - REMOVAL...............23-164
HEADREST SLEEVE - INSTALLATION....23-164
HEADREST SLEEVE - REMOVAL........23-164
HEAT SHIELDS - DESCRIPTION..........11-4
HEAT STAKING - STANDARD
PROCEDURE.........................23-3
HEATED MIRRORS - DESCRIPTION.......8G-1
HEATED MIRRORS - DIAGNOSIS AND
TESTING............................8G-1
HEATED MIRRORS - OPERATION.........8G-1
HEATED SEAT ELEMENT - DESCRIPTION . . 8G-13
HEATED SEAT ELEMENT - DIAGNOSIS
AND TESTING.......................8G-13
HEATED SEAT ELEMENT - OPERATION....8G-13
HEATED SEAT MODULE - DESCRIPTION . . . 8E-21
HEATED SEAT MODULE - DIAGNOSIS
AND TESTING.......................8E-22
HEATED SEAT MODULE - INSTALLATION . . 8E-24
HEATED SEAT MODULE - OPERATION....8E-21
HEATED SEAT MODULE - REMOVAL......8E-24
HEATED SEAT SENSOR - DIAGNOSIS
AND TESTING.......................8G-14
HEATED SEAT SWITCH - DIAGNOSIS
AND TESTING
..................8G-12,8G-14
HEATED SEAT SYSTEM - DESCRIPTION
. . . 8G-10
HEATED SEAT SYSTEM - DIAGNOSIS
AND TESTING
.......................8G-11
HEATED SEAT SYSTEM - OPERATION
....8G-10
HEATER AND AIR CONDITIONER -
DESCRIPTION
........................24-1
HEATER AND AIR CONDITIONER -
OPERATION
..........................24-2
HEATER CONTROL - DESCRIPTION, A/C
. . . 24-16
HEATER CONTROL - INSTALLATION, A/C
. . 24-17
HEATER CONTROL - REMOVAL, A/C
......24-17
HEATER CORE - DESCRIPTION
..........24-52
HEATER CORE - INSTALLATION
.........24-53
HEATER CORE - OPERATION
............24-52
HEATER CORE - REMOVAL
.............24-52HEATER PERFORMANCE - DIAGNOSIS
AND TESTING........................24-6
HEATER SWITCH - DESCRIPTION,
DRIVER SEAT.......................8G-11
HEATER SWITCH - DESCRIPTION,
PASSENGER SEAT....................8G-14
HEATER SWITCH - INSTALLATION,
DRIVER SEAT.......................8G-13
HEATER SWITCH - INSTALLATION,
PASSENGER SEAT....................8G-15
HEATER SWITCH - OPERATION, DRIVER
SEAT ..............................8G-12
HEATER SWITCH - OPERATION,
PASSENGER SEAT....................8G-14
HEATER SWITCH - REMOVAL, DRIVER
SEAT ..............................8G-13
HEATER SWITCH - REMOVAL,
PASSENGER SEAT....................8G-15
HEATER-A/C CONTROL ILLUMINATION
BULB - INSTALLATION................8L-78
HEATER-A/C CONTROL ILLUMINATION
BULB - REMOVAL....................8L-78
HEATING GRID REPAIR - STANDARD
PROCEDURE, REAR GLASS.............8G-4
HEIGHT MEASUREMENT - STANDARD
PROCEDURE..........................2-4
HIGH AND LOW LIMITS - DESCRIPTION . . 25-20
HIGH BEAM INDICATOR - DESCRIPTION . . 8J-22
HIGH BEAM INDICATOR - OPERATION....8J-22
HIGH BEAM RELAY - DESCRIPTION,
HEADLAMP.........................8L-33
HIGH BEAM RELAY - DIAGNOSIS AND
TESTING, HEADLAMP...................8L-34
HIGH BEAM RELAY - INSTALLATION,
HEADLAMP.........................8L-35
HIGH BEAM RELAY - OPERATION,
HEADLAMP.........................8L-33
HIGH BEAM RELAY - REMOVAL,
HEADLAMP.........................8L-34
HIGH MOUNTED STOP LAMP BULB -
INSTALLATION, CENTER...............8L-19
HIGH MOUNTED STOP LAMP BULB -
REMOVAL, CENTER...................8L-18
HIGH MOUNTED STOP LAMP UNIT -
INSTALLATION, CENTER...............8L-19
HIGH MOUNTED STOP LAMP UNIT -
REMOVAL, CENTER...................8L-19
HIGH PRESSURE RELIEF VALVE -
DESCRIPTION.......................24-42
HIGH PRESSURE RELIEF VALVE -
OPERATION.........................24-42
HIGH PRESSURE SWITCH -
DESCRIPTION, A/C...................24-17
HIGH PRESSURE SWITCH - DIAGNOSIS
AND TESTING, A/C...................24-18
HIGH PRESSURE SWITCH -
INSTALLATION, A/C...................24-18
HIGH PRESSURE SWITCH - OPERATION,
A/C................................24-18
HIGH PRESSURE SWITCH - REMOVAL,
A/C................................24-18
HIGH/LOW RELAY - DESCRIPTION,
WIPER.............................8R-23
HIGH/LOW RELAY - DIAGNOSIS AND
TESTING, WIPER.....................8R-24
HIGH/LOW RELAY - INSTALLATION,
WIPER.............................8R-24
HIGH/LOW RELAY - OPERATION, WIPER . . 8R-23
HIGH/LOW RELAY - REMOVAL, WIPER . . . 8R-24
HINGE - INSTALLATION . . 23-119,23-123,23-131,
23-137
HINGE - REMOVAL......23-119,23-123,23-131,
23-137
HITCH - INSTALLATION, TRAILER.........13-9
HITCH - REMOVAL, TRAILER............13-9
HOISTING RECOMMENDATIONS -
STANDARD PROCEDURE.................0-4
HOLDDOWN - DESCRIPTION, BATTERY . . . 8F-17
HOLDDOWN - INSTALLATION, BATTERY . . . 8F-17
HOLDDOWN - OPERATION, BATTERY.....8F-17
HOLDDOWN - REMOVAL, BATTERY......8F-17
HOLDING CLUTCHES - DESCRIPTION
....21-131
HOLDING CLUTCHES - OPERATION
.....21-132
HOLE REPAIR - DESCRIPTION,
THREADED
........................Intro.-4
HONING - STANDARD PROCEDURE,
CYLINDER BORE
......................9-39
HOOD - INSTALLATION
...............23-119HOOD - REMOVAL...................23-119
HOOD AJAR SWITCH - DESCRIPTION....8Q-11
HOOD AJAR SWITCH - DIAGNOSIS AND
TESTING...........................8Q-12
HOOD AJAR SWITCH - INSTALLATION....8Q-12
HOOD AJAR SWITCH - OPERATION......8Q-12
HOOD AJAR SWITCH - REMOVAL.......8Q-12
HOOD AJAR SWITCH BRACKET -
INSTALLATION......................8Q-13
HOOD AJAR SWITCH BRACKET -
REMOVAL..........................8Q-13
HOOD AJAR SWITCH STRIKER -
INSTALLATION......................8Q-14
HOOD AJAR SWITCH STRIKER -
REMOVAL..........................8Q-13
HOOK - INSTALLATION, FRONT TOW......13-8
HOOK - INSTALLATION, REAR TOW.......13-8
HOOK - REMOVAL, FRONT TOW..........13-8
HOOK - REMOVAL, REAR TOW...........13-8
HORN - DIAGNOSIS AND TESTING.......8H-2
HORN - INSTALLATION.................8H-3
HORN - REMOVAL....................8H-3
HORN RELAY - DIAGNOSIS AND
TESTING............................8H-3
HORN RELAY - INSTALLATION...........8H-3
HORN RELAY - REMOVAL..............8H-3
HORN SWITCH - DESCRIPTION..........8H-4
HORN SWITCH - DIAGNOSIS AND
TESTING..............................8H-4
HORN SYSTEM - DESCRIPTION..........8H-1
HORN SYSTEM - DIAGNOSIS AND
TESTING............................8H-1
HORN SYSTEM - OPERATION............8H-1
HOSE - INSTALLATION, FRONT BRAKE.....5-10
HOSE - INSTALLATION, PRESSURE......19-21
HOSE - INSTALLATION, REAR BRAKE......5-10
HOSE - REMOVAL, FRONT...............5-9
HOSE - REMOVAL, PRESSURE..........19-21
HOSE - REMOVAL, REAR BRAKE..........5-9
HOSE CLAMPS - DESCRIPTION...........7-2
HOSE CLAMPS - OPERATION.............7-3
HOSE (GEAR TO THE COOLER) -
INSTALLATION, RETURN...............19-22
HOSE (GEAR TO THE COOLER) -
REMOVAL, RETURN..................19-21
HOSE (RESERVOIR TO THE COOLER) -
INSTALLATION, RETURN...............19-22
HOSE (RESERVOIR TO THE COOLER) -
REMOVAL, RETURN..................19-21
HOSES - DIAGNOSIS AND TESTING,
BRAKE LINE..........................5-8
HOSES/LINES/TUBES PRECAUTIONS -
CAUTION, REFRIGERANT
..............24-40
HOSES/TUBES - DESCRIPTION, FRONT
WASHER
...........................8R-10
HOSES/TUBES - DESCRIPTION, REAR
WASHER
...........................8R-35
HOSES/TUBES - OPERATION, FRONT
WASHER
...........................8R-10
HOSES/TUBES - OPERATION, REAR
WASHER
...........................8R-36
HOUSING - ASSEMBLY, HVAC
...........24-34
HOUSING - DISASSEMBLY, HVAC
........24-34
HOUSING - INSTALLATION, HVAC
........24-34
HOUSING - REMOVAL, HVAC
...........24-33
HOUSING BUSHING - NV3550 -
INSTALLATION, EXTENSION
............21-74
HOUSING BUSHING - NV3550 -
REMOVAL, EXTENSION
................21-73
HOUSING FLUID LEAK - DIAGNOSIS AND
TESTING, CONVERTER
................21-80
HOUSING SEAL - INSTALLATION,
ADAPTER
..........................21-124
HOUSING SEAL - NV1500 -
INSTALLATION, EXTENSION
............21-32
HOUSING SEAL - NV1500 - REMOVAL,
EXTENSION
.........................21-32
HOUSING SEAL - NV3550 -
INSTALLATION, EXTENSION
............21-74
HOUSING SEAL - NV3550 - REMOVAL,
EXTENSION
.........................21-74
HOUSING SEAL - REMOVAL, ADAPTER
. . 21-124
HOW TO USE WIRING DIAGRAMS -
DESCRIPTION
.....................8W-01-1
HUB / BEARING - INSTALLATION
..........2-9
HUB / BEARING - REMOVAL
..............2-9
12 INDEXKJ
Description Group-Page Description Group-Page Description Group-Page
Page 1763 of 1803
SENSOR - INSTALLATION, OXYGEN......14-43
SENSOR - INSTALLATION, POSITION....21-210,
21-247
SENSOR - INSTALLATION, REAR WHEEL
SPEED..............................5-35
SENSOR - INSTALLATION, THROTTLE
POSITION..........................14-48
SENSOR - OPERATION, AMBIENT TEMP . . . 8M-9
SENSOR - OPERATION, BATTERY
TEMPERATURE......................8F-24
SENSOR - OPERATION, CRANKSHAFT
POSITION..........................14-31
SENSOR - OPERATION, ENGINE
COOLANT TEMPERATURE...............7-20
SENSOR - OPERATION, FRONT IMPACT . . . 8O-21
SENSOR - OPERATION, FUEL LEVEL
SENDING UNIT.......................14-9
SENSOR - OPERATION, INPUT SPEED . . . 21-143
SENSOR - OPERATION, INTAKE AIR
TEMPERATURE......................14-36
SENSOR - OPERATION, KNOCK..........8I-11
SENSOR - OPERATION, LINE PRESSURE
(LP)..............................21-144
SENSOR - OPERATION, MAP...........14-38
SENSOR - OPERATION, OUTPUT SPEED . . 21-152
SENSOR - OPERATION, OXYGEN........14-40
SENSOR - OPERATION, POSITION......21-209,
21-247
SENSOR - OPERATION, THROTTLE
POSITION..........................14-47
SENSOR - OPERATION, TRANSMISSION
RANGE............................21-168
SENSOR - OPERATION, TRANSMISSION
TEMPERATURE.....................21-170
SENSOR - REMOVAL, BATTERY
TEMPERATURE......................8F-24
SENSOR - REMOVAL, CRANKSHAFT
POSITION..........................14-31
SENSOR - REMOVAL, ENGINE COOLANT
TEMPERATURE.......................7-20
SENSOR - REMOVAL, FRONT IMPACT....8O-22
SENSOR - REMOVAL, FRONT WHEEL
SPEED..............................5-34
SENSOR - REMOVAL, FUEL LEVEL
SENDING UNIT.......................14-9
SENSOR - REMOVAL, INPUT SPEED.....21-143
SENSOR - REMOVAL, INTAKE AIR
TEMPERATURE......................14-37
SENSOR - REMOVAL, KNOCK...........8I-12
SENSOR - REMOVAL, LINE PRESSURE
(LP)..............................21-144
SENSOR - REMOVAL, MAP.............14-39
SENSOR - REMOVAL, OUTPUT SPEED . . . 21-152
SENSOR - REMOVAL, OXYGEN..........14-41
SENSOR - REMOVAL, POSITION . . 21-210,21-247
SENSOR - REMOVAL, REAR WHEEL
SPEED..............................5-35
SENSOR - REMOVAL, THROTTLE
POSITION..........................14-47
SENSOR CIRCUIT - DIAGNOSIS AND
TESTING, AMBIENT TEMPERATURE.......8M-9
SENSOR RETURN - DESCRIPTION.......8E-14
SENSOR/SWITCH - DESCRIPTION, OIL
PRESSURE..........................9-65
SENSOR/SWITCH - INSTALLATION, OIL
PRESSURE
..........................9-65
SENSOR/SWITCH - OPERATION, OIL
PRESSURE
..........................9-65
SENSOR/SWITCH - REMOVAL, OIL
PRESSURE
..........................9-65
SENTRY KEY IMMOBILIZER MODULE -
DESCRIPTION
.......................8E-15
SENTRY KEY IMMOBILIZER MODULE -
INSTALLATION
.......................8E-18
SENTRY KEY IMMOBILIZER MODULE -
OPERATION
.........................8E-16
SENTRY KEY IMMOBILIZER MODULE -
REMOVAL
..........................8E-17
SENTRY KEY TRANSPONDER
PROGRAMMING - STANDARD
PROCEDURE
.........................8Q-8
SERPENTINE DRIVE BELT - DIAGNOSIS
AND TESTING
........................7-15
SERVO - DESCRIPTION
.................8P-4
SERVO - INSTALLATION
................8P-5
SERVO - OPERATION
..................8P-4
SERVO - REMOVAL
....................8P-4SETTING TRANSMITTER CODES -
STANDARD PROCEDURE...............8M-9
SEVERAL LOADS - STANDARD
PROCEDURE, TESTING FOR A SHORT
TO GROUND ON FUSES POWERING . . . 8W-01-9
SHAFT - CAUTION, HALF................3-10
SHAFT - DIAGNOSIS AND TESTING,
HALF...............................3-10
SHAFT - DIAGNOSIS AND TESTING,
PROPELLER...........................3-1
SHAFT - FRONT - INSTALLATION,
PROPELLER...........................3-6
SHAFT - FRONT - REMOVAL,
PROPELLER...........................3-6
SHAFT - INSTALLATION, BALANCE........9-74
SHAFT - INSTALLATION, HALF...........3-11
SHAFT - INSTALLATION, IDLER..........9-77
SHAFT - INSTALLATION, INTERMEDIATE . . 19-11
SHAFT - REAR - INSTALLATION,
PROPELLER...........................3-7
SHAFT - REAR - REMOVAL, PROPELLER....3-7
SHAFT - REMOVAL, BALANCE...........9-74
SHAFT - REMOVAL, HALF...............3-10
SHAFT - REMOVAL, IDLER..............9-77
SHAFT - REMOVAL, INTERMEDIATE......19-11
SHAFT ANGLE - STANDARD
PROCEDURES, PROPELLER..............3-3
SHAFT SEAL - INSTALLATION, FRONT
OUTPUT.....................21-208,21-246
SHAFT SEAL - INSTALLATION, REAR
OUTPUT............................21-212
SHAFT SEAL - REMOVAL, FRONT
OUTPUT.....................21-208,21-246
SHAFT SEAL - REMOVAL, REAR OUTPUT . 21-210
SHAFT SEALS - INSTALLATION, AXLE....3-102,
3-38
SHAFT SEALS - REMOVAL, AXLE....3-101,3-37
SHAFT, SPECIFICATIONS - HALF..........3-11
SHAFT, SPECIFICATIONS - PROPELLER.....3-6
SHAFTS - INSTALLATION, AXLE . 3-101,3-37,3-65
SHAFTS - REMOVAL, AXLE.....3-101,3-37,3-65
SHIELD - INSTALLATION, FRONT
WHEELHOUSE SPLASH...............23-143
SHIELD - INSTALLATION, REAR
WHEELHOUSE SPLASH...............23-144
SHIELD - REMOVAL, FRONT
WHEELHOUSE SPLASH...............23-143
SHIELD - REMOVAL, REAR
WHEELHOUSE SPLASH...............23-144
SHIELDS - DESCRIPTION, HEAT..........11-4
SHIELDS - INSTALLATION, SEAT
CUSHION SIDE.....................23-167
SHIELDS - REMOVAL, SEAT CUSHION
SIDE.............................23-167
SHIFT BEZEL - INSTALLATION.........23-158
SHIFT BEZEL - REMOVAL.............23-158
SHIFT BOOT - INSTALLATION, 4WD
FLOOR............................23-156
SHIFT BOOT - REMOVAL, 4WD FLOOR . . . 23-156
SHIFT INTERLOCK SYSTEM -
DESCRIPTION, BRAKE TRANSMISSION . . 21-124
SHIFT INTERLOCK SYSTEM - DIAGNOSIS
AND TESTING, BRAKE TRANSMISSION . . 21-125
SHIFT INTERLOCK SYSTEM -
OPERATION, BRAKE TRANSMISSION....21-125
SHIFT LEVER - INSTALLATION . . . 21-214,21-249
SHIFT LEVER - REMOVAL.......21-213,21-248
SHIFT MECHANISM - DESCRIPTION.....21-160
SHIFT MECHANISM - INSTALLATION....21-160
SHIFT MECHANISM - OPERATION
......21-160
SHIFT MECHANISM - REMOVAL
........21-160
SHOCK - INSTALLATION
................2-18
SHOCK - REMOVAL
....................2-18
SHOES - INSTALLATION, DRUM BRAKE
....5-11
SHOES - REMOVAL, DRUM BRAKE
.......5-11
SHORT TO GROUND - STANDARD
PROCEDURE, TESTING FOR A
........8W-01-9
SHORT TO GROUND ON FUSES
POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A
...........................8W-01-9
SIDE - INSTALLATION, LEFT
.........2-12,2-15
SIDE - INSTALLATION, RIGHT
........2-12,2-15
SIDE - REMOVAL, LEFT
.............2-11,2-15
SIDE - REMOVAL, RIGHT
...........2-11,2-14
SIDE BEZEL - INSTALLATION,
INSTRUMENT PANEL PASSENGER
......23-154SIDE BEZEL - REMOVAL, INSTRUMENT
PANEL PASSENGER..................23-154
SIDE BEZELS - INSTALLATION,
INSTRUMENT PANEL DRIVER..........23-154
SIDE BEZELS - REMOVAL, INSTRUMENT
PANEL DRIVER.....................23-153
SIDE CURTAIN AIRBAG - DESCRIPTION . . . 8O-38
SIDE CURTAIN AIRBAG - INSTALLATION . . 8O-41
SIDE CURTAIN AIRBAG - OPERATION....8O-39
SIDE CURTAIN AIRBAG - REMOVAL......8O-40
SIDE IMPACT AIRBAG CONTROL
MODULE - DESCRIPTION..............8O-43
SIDE IMPACT AIRBAG CONTROL
MODULE - INSTALLATION.............8O-45
SIDE IMPACT AIRBAG CONTROL
MODULE - OPERATION................8O-43
SIDE IMPACT AIRBAG CONTROL
MODULE - REMOVAL.................8O-44
SIDE MOLDINGS - INSTALLATION, BODY . 23-140
SIDE MOLDINGS - REMOVAL, BODY....23-140
SIDE RAIL WEATHERSTRIP/RETAINER -
INSTALLATION......................23-186
SIDE RAIL WEATHERSTRIP/RETAINER -
REMOVAL.........................23-186
SIDE SHIELDS - INSTALLATION, SEAT
CUSHION..........................23-167
SIDE SHIELDS - REMOVAL, SEAT
CUSHION..........................23-167
SIDE VIEW MIRROR - INSTALLATION....23-145
SIDE VIEW MIRROR - REMOVAL.......23-145
SIDEVIEW MIRROR - REMOVAL..........8N-13
SIGNAL INDICATOR - DESCRIPTION,
TURN..............................8J-34
SIGNAL INDICATOR - OPERATION, TURN . . 8J-34
SILL SCUFF PLATE - INSTALLATION,
DOOR............................23-157
SILL SCUFF PLATE - REMOVAL, DOOR . . . 23-157
SINGLE CARDAN UNIVERSAL JOINTS -
ASSEMBLY...........................3-9
SINGLE CARDAN UNIVERSAL JOINTS -
DISASSEMBLY.........................3-8
SIREN - DESCRIPTION................8Q-16
SIREN - INSTALLATION...............8Q-17
SIREN - OPERATION..................8Q-17
SIREN - REMOVAL...................8Q-17
SKID PLATE - INSTALLATION, FRONT......13-6
SKID PLATE - INSTALLATION, FUEL
TANK ...............................13-9
SKID PLATE - INSTALLATION, TRANSFER
CASE...............................13-7
SKID PLATE - REMOVAL, FRONT.........13-6
SKID PLATE - REMOVAL, FUEL TANK......13-9
SKID PLATE - REMOVAL, TRANSFER
CASE...............................13-7
SKIS INDICATOR - DESCRIPTION........8J-31
SKIS INDICATOR - OPERATION..........8J-31
SKIS INITIALIZATION - STANDARD
PROCEDURE.........................8Q-8
SLEEVE - INSTALLATION, HEADREST....23-164
SLEEVE - REMOVAL, HEADREST.......23-164
SOLENOID - DESCRIPTION, EVAP/PURGE . 25-27
SOLENOID - INSTALLATION, EVAP/
PURGE.............................25-27
SOLENOID - OPERATION, EVAP/PURGE . . . 25-27
SOLENOID - REMOVAL, EVAP/PURGE.....25-27
SOLENOID SWITCH VALVE -
DESCRIPTION......................21-161
SOLENOID SWITCH VALVE - OPERATION . 21-161
SOLENOIDS - DESCRIPTION...........21-161
SOLENOIDS - OPERATION.............21-162
SOLENOID/TRS ASSEMBLY -
DESCRIPTION, TRANSMISSION........21-169
SOLENOID/TRS ASSEMBLY -
INSTALLATION, TRANSMISSION........21-170
SOLENOID/TRS ASSEMBLY -
OPERATION, TRANSMISSION..........21-169
SOLENOID/TRS ASSEMBLY - REMOVAL,
TRANSMISSION.....................21-170
SPACER - INSTALLATION, COLLAPSIBLE . . . 3-70
SPACER - REMOVAL, COLLAPSIBLE.......3-70
SPARE TIRE - INSTALLATION............22-9
SPARE TIRE - REMOVAL
................22-8
SPARE TIRE &TEMPORARY -
DESCRIPTION
........................22-6
SPARK PLUG - CLEANING SPARK
PLUGS
.............................8I-15
SPARK PLUG - DESCRIPTION
...........8I-12
SPARK PLUG - INSTALLATION
...........8I-15
24 INDEXKJ
Description Group-Page Description Group-Page Description Group-Page
Page 1785 of 1803
JEEP LIBERTY 2002
23.35
60.0011.35

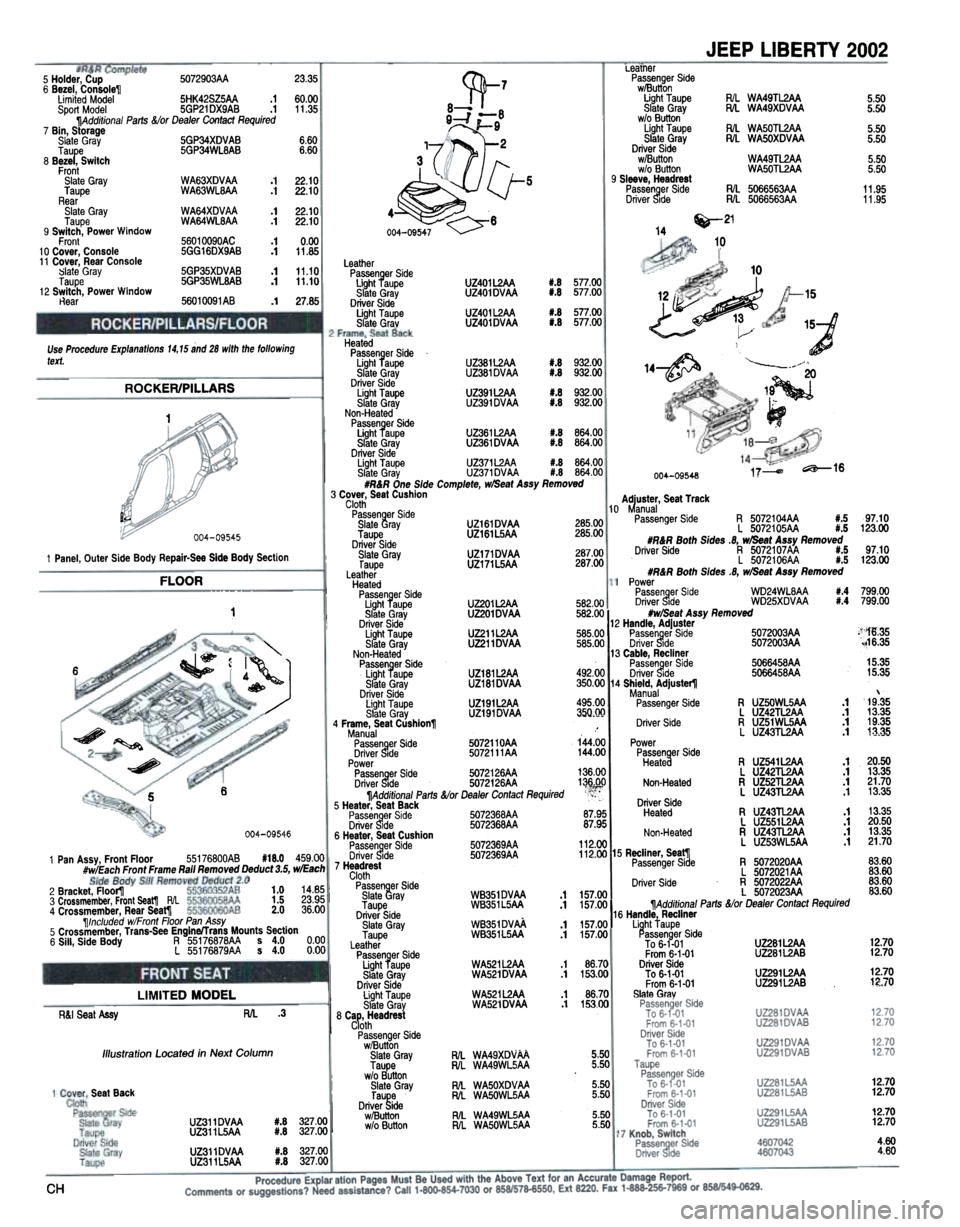

LeamerPassenger Sidew/ButtonLight Taupe AiL WA49TL2AASlate Gray AiL WA49XDVAAwiG ButtonLight Taupe AiL WA50TL2AASlate Gray AiL WA50XDVAADriver Sidew/Button WA49TL2AAwiG Button WA50Tl2AA9 Sleeve. HeadrestPassenger Side AiL 5066563AADriver Side AiL 5O66563AA
~21
10
5.505.50
5.505.50
5.505.50
11.9511.95
5 Holder, Cup 5072903AA6 Bezel, ConsolellLimited Model 5HK42SZ5AA.1Sport Model 5GP21 DX9AB .1lIAdditional Parts &lor Dealer Contact Required7 Bin, StorageSlate Gray 5GP34XDVABTaupe 5GP34WL8AB8 Bezel, SwitchFrontSlate Gray WA63XDVAATaupe WA63WL8AARearSlate Gray WA64XDVAATaupe WA64WL8AA9 Switch, Power WindowFront 56010090AC10 Cover, Console 5GG16DX9AB11 Cover, Rear Console::ilate Gray 5GP35XDVABTaupe 5GP35WL8AB.12 Switch, Power Window~ear 56010091AB_.
6.606.60
1 22.10I 22.10
1 22.101 22.10
1 0.001 11.85
1 11.101 11.10!-, 27.85f-5
14
, 10
~A
14~
LeatherPassenger SideLight TaupeSlate GrayDriver SideLight TaupeSlate Gray
UZ401 L2AAUZ401DVAA
UZ401L2AAUZ401DVAA
#.8 577.00#.8 577.00
#.8 577.00#.8 577.00
15
1':J
20
1~
.,-'i
Use Procedure Explanations 14,15 and 28 with the fol/owingtext.
Heated ---
Passenger SideUgh! Taupe UZ381L2AA 1.8 932.00Slate Gray UZ381DVAA #.8 932.00Driver SideUgh! Taupe UZ391L2AA #.8 932.00Slate Gray UZ391DVAA #.8 932.001Non-HeatedPassenger SideUght Taupe UZ361 L2AA 1.8 864.00Slate Gray UZ361DVAA 1.8 864.00Driver SideUght Taupe UZ371L2AA #.8 864.00Slate Gray UZ371DVAA 1.8 864.00#R&R One Side Complete, wISest Assy Removed3 Cover, Seat CushionClothPassenger SideISlate Gray UZ161DVAA Tau~ UZ161L5AA
Driver SideSlate Gray UZ171DVAAraupe UZ171L5AALeatherHeatedPassenger SideUgh! Taupe UZ201L2AASlate Gray UZ201DVAADriver SideUght Taupe UZ211 L2AASlate Gray UZ211DVAANon-HeatedPassenger SideUghtTaupe UZ181L2AASlate Gray UZ181DVAADriver SideLight Taupe UZ191L2AASlate Gray UZ191DVAA 4 Frame, Seat Cushionll
ManualPassenger Side 5072110AADriver Side 5072111AAPowerPassenger Side 5O72126AADriver Side 5072126AA1]Additional Palts &Jar Dealer Contact Required ~5 Heater, Seat Back .c
Passenger Side 5072368AADriver Side 5072368AA6 Heater, Seat CushionPassenger Side 5072369AAIDriver Side 5072369AA7 HeadrestClothPassen er SideSlate ~ray WB351DVAATaupe WB351L5AADriver SideSlate Gray WB351DVA.A.Taupe WB351L5AALeatherPassenger SideUght Taupe WA521L2AASlate Gray WA521DVAADriver SideLight Taupe WA521L2AASlate Gray WA521DVAA.. ..8 Cap, HeadrestClothPassenger Sidew/ButtonSlate GrayTaupeIwlo ButtonSlate Gray\raupe Driver Side
w/Buttonwlo Button
ROCKER/PILLARS
1
17--
g~285.00285.00
287.00287.00
004-09545
1 Panel, Outer Side Body Repair-See Side Body Section
FLOOR
1
16.3516.35
15.3515.35
""
~~6492.00350.00
495.003SQOO19.3513.3519.3513~~.,
~
),
144.00 I144.00
136.00136.00
20.5013.3521.70
13.35
13.3520.5013.3521.70
83.6083.6083.6083.60
65
87.9587.95
112.0011200
004-09546
1 Pan Assy, Front Floor 55176800AB #18.0 459.00#W/Each Front Frame Rail Removed Deduct 3.5, w/EachSide Body Si// Removed Deduct 2.02 Bracket, Floor1] 55360352AB 1.0 14.853 Crossmember, Front Seal1l R/L 55360058AA 1.5 23.954 Crossmember, Rear Seat1] 55360060AB 2.0 36.001]lncluded w/Front Floor Pan Assy5 Crossmember, Trans-See Englne/Trans Mounts Section6 Sill, Side Body R 55176878AA s 4.0 0.00L 55176879AA s 4.0 0.0012.7012.70
12.7012~0
.1 86.70.1 153.00
.1 86.701 15300LIMITED MODEL
R&I Seat AssyR/L.3
Illustration Located in Next Column5.505.50
5.505.50
5.505.50
AIL WA49XDVAAAIL WA49WL5AA
AIL WA50XDVAAAIL WASOWL5AA
AIL WA49WL5AAAIL WA50WL5AA
Seat Back
#.8 327.00#.8 327.00
#.8 327.00#.8 327.00
UZ311DVAAUZ311L5AA
UZ311DVAAUZ311L5AA
12.7012.70
12.7012.70
4.604.60
CH
3'(
~004-09547
SJt79-1 -S
2[;'
~C
~6
1.)
004-09548 "'i'-16
Adjuster, Seat Track10 ManualPassenger Side R 5072104AA #.5 97.10L 5072105AA #.5 123.00#R&R Both Sides .8, wISest Assy RemovedDriver Side R SO72107M #.5 97.10L 5072106AA #.5 t23.00#R&R Both Sides .8, wISest Assy RemovedI PowerPassenger Side WD24WL8AA #.4 799.00582.00 Driver Side WD25XDVAA #.4 799.00582.00I#WlSeat Assy Removed12 Handle, AdJuster585.00 Passenger Side 5072003AA ;,...;,---585.00 Dnver Side 5072003AA .;113 Cable, Recliner C
Passenger Side 5066458AADriver Side 5066458AA114 Shield, Adjuste~Manual ,Passenger Side R UZSOWL5AA .1L UZ42TL2AA .1Driver Side R UZ51WL5AA .1L UZ43TL2AA .1 ,---PowerPassenger SideHeatec R UZ541L2AA .1L UZ42TL2AA .1Non-Heated R UZ52TL2AA .1L UZ43TL2AA .1Driver SideHeated R UZ43TL2AA .1L UZ551L2AA .1Non-Heated R UZ43TL2AA .1L UZ53WL5AA .1,15 Recliner, Seat11; Passenger Side R 5072020AAL 5072021AADriver Side R SO72022AA.1 157.00 L 5072023AA.1 157.00IllAdditional Parts &/or Dealer Contact Required16 HandletRecliner.1 157.00 Light aupe.1 157.00 Passenger SideTo 6-1-01 UZ281L2AAFrom 6-1-01 UZ281L2ABDriver SideTo 6-1-01 UZ291L2AAFrom 6-1-01 UZ291L2AB -'./Slate Grav
