JEEP LIBERTY 2005 KJ / 1.G Owners Manual

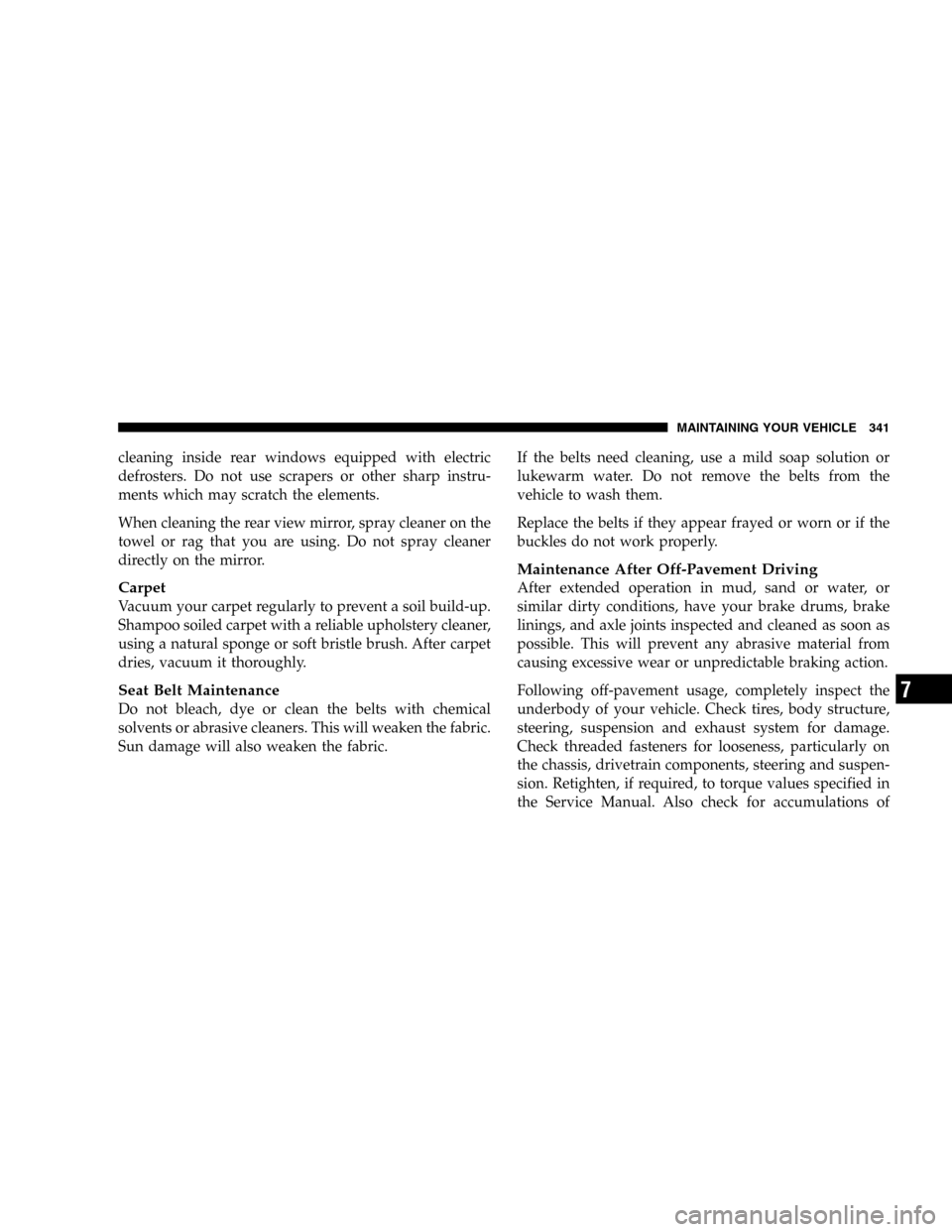

cleaning inside rear windows equipped with electric
defrosters. Do not use scrapers or other sharp instru-
ments which may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Carpet
Vacuum your carpet regularly to prevent a soil build-up.
Shampoo soiled carpet with a reliable upholstery cleaner,
using a natural sponge or soft bristle brush. After carpet
dries, vacuum it thoroughly.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the
vehicle to wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Maintenance After Off-Pavement Driving
After extended operation in mud, sand or water, or
similar dirty conditions, have your brake drums, brake
linings, and axle joints inspected and cleaned as soon as
possible. This will prevent any abrasive material from
causing excessive wear or unpredictable braking action.
Following off-pavement usage, completely inspect the
underbody of your vehicle. Check tires, body structure,
steering, suspension and exhaust system for damage.
Check threaded fasteners for looseness, particularly on
the chassis, drivetrain components, steering and suspen-
sion. Retighten, if required, to torque values specified in
the Service Manual. Also check for accumulations of
MAINTAINING YOUR VEHICLE 341
7

vegetation or brush that could become a fire hazard, or
conceal damage to fuel lines, brake hoses, axle pinion
seals, and propeller shafts.
CAUTION!
Under frequent heavy-duty driving conditions,
change all lubricants and lubricate body compo-
nents, all driveline joints and steering linkage more
often than in normal service to prevent excessive
wear.

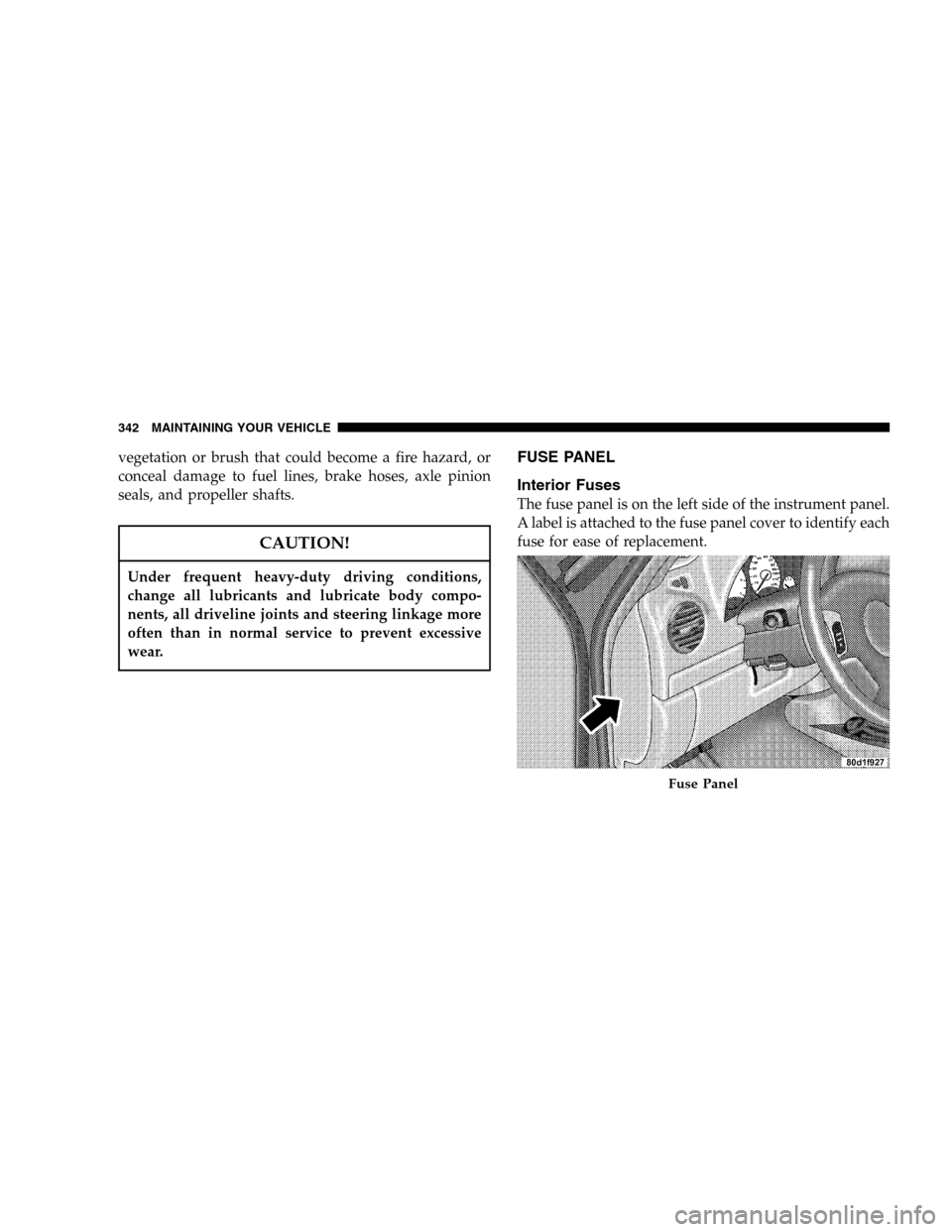

FUSE PANEL
Interior Fuses
The fuse panel is on the left side of the instrument panel.
A label is attached to the fuse panel cover to identify each
fuse for ease of replacement.
Fuse Panel
342 MAINTAINING YOUR VEHICLE

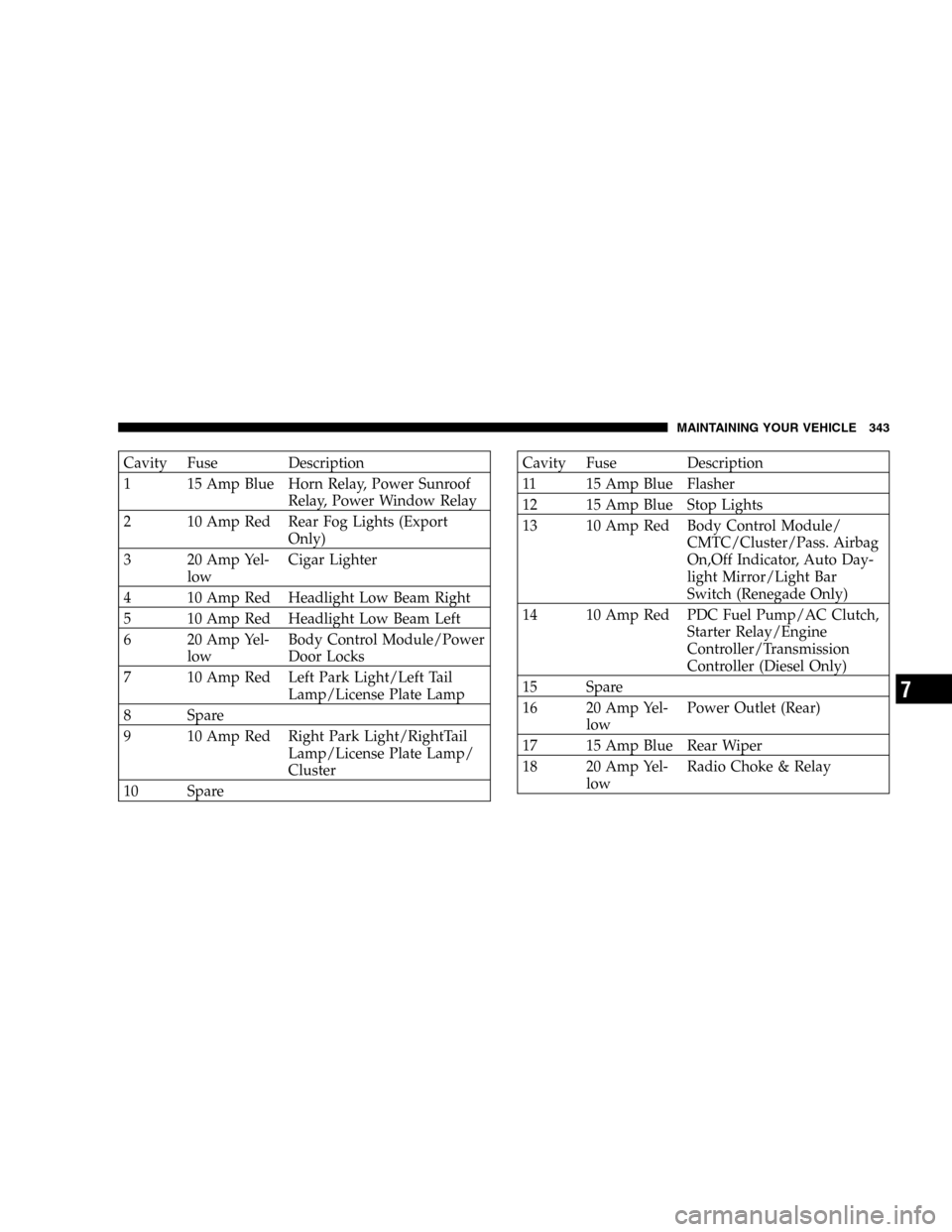

Cavity Fuse Description
1 15 Amp Blue Horn Relay, Power Sunroof
Relay, Power Window Relay
2 10 Amp Red Rear Fog Lights (Export
Only)
3 20 Amp Yel-
lowCigar Lighter
4 10 Amp Red Headlight Low Beam Right
5 10 Amp Red Headlight Low Beam Left
6 20 Amp Yel-
lowBody Control Module/Power
Door Locks
7 10 Amp Red Left Park Light/Left Tail
Lamp/License Plate Lamp
8 Spare
9 10 Amp Red Right Park Light/RightTail
Lamp/License Plate Lamp/
Cluster
10 SpareCavity Fuse Description
11 15 Amp Blue Flasher
12 15 Amp Blue Stop Lights
13 10 Amp Red Body Control Module/
CMTC/Cluster/Pass. Airbag
On,Off Indicator, Auto Day-
light Mirror/Light Bar
Switch (Renegade Only)
14 10 Amp Red PDC Fuel Pump/AC Clutch,
Starter Relay/Engine
Controller/Transmission
Controller (Diesel Only)
15 Spare
16 20 Amp Yel-
lowPower Outlet (Rear)
17 15 Amp Blue Rear Wiper
18 20 Amp Yel-
lowRadio Choke & Relay
MAINTAINING YOUR VEHICLE 343
7

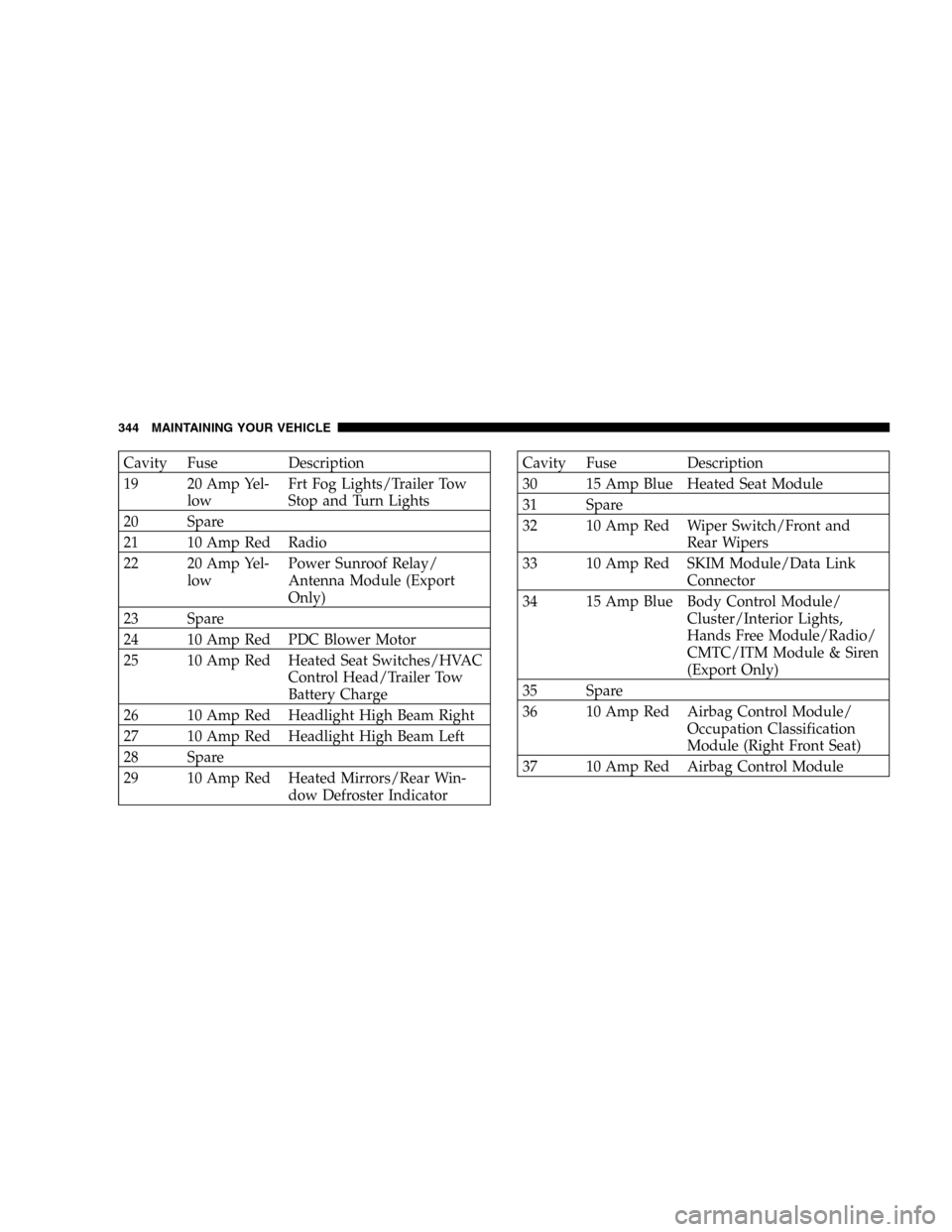

Cavity Fuse Description
19 20 Amp Yel-
lowFrt Fog Lights/Trailer Tow
Stop and Turn Lights
20 Spare
21 10 Amp Red Radio
22 20 Amp Yel-
lowPower Sunroof Relay/
Antenna Module (Export
Only)
23 Spare
24 10 Amp Red PDC Blower Motor
25 10 Amp Red Heated Seat Switches/HVAC
Control Head/Trailer Tow
Battery Charge
26 10 Amp Red Headlight High Beam Right
27 10 Amp Red Headlight High Beam Left
28 Spare
29 10 Amp Red Heated Mirrors/Rear Win-
dow Defroster IndicatorCavity Fuse Description
30 15 Amp Blue Heated Seat Module
31 Spare
32 10 Amp Red Wiper Switch/Front and
Rear Wipers
33 10 Amp Red SKIM Module/Data Link
Connector
34 15 Amp Blue Body Control Module/
Cluster/Interior Lights,
Hands Free Module/Radio/
CMTC/ITM Module & Siren
(Export Only)
35 Spare
36 10 Amp Red Airbag Control Module/
Occupation Classification
Module (Right Front Seat)
37 10 Amp Red Airbag Control Module
344 MAINTAINING YOUR VEHICLE

Cavity Fuse Description
38 10 Amp Red ABS Controller/Shifter As-
sembly
39 10 Amp Red Hazard Flasher (Turn
Signals)/Backup Lamp
Switch (Manual Transmission
Only)/Transmission Range
Switch (Automatic Transmis-
sion Only)

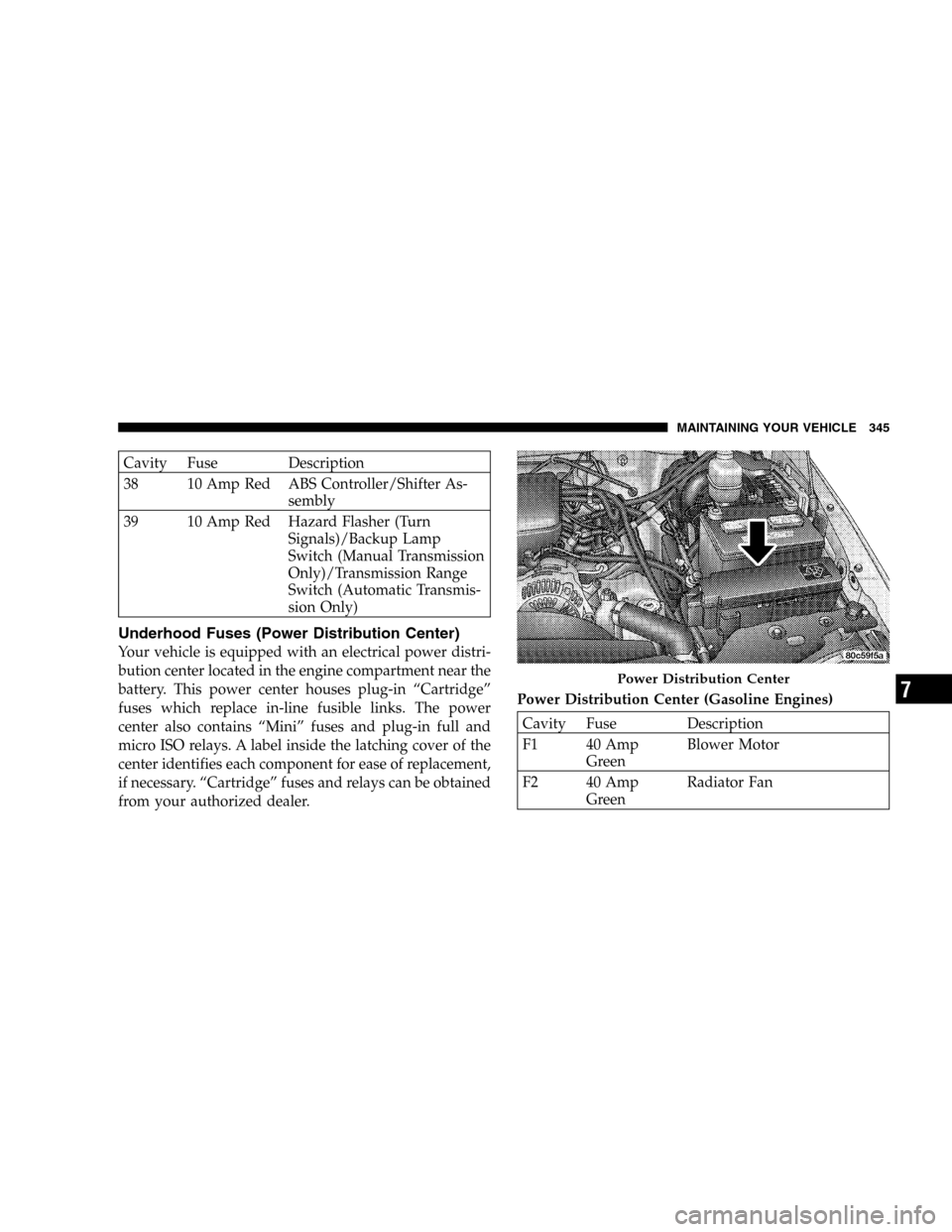

Underhood Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the engine compartment near the
battery. This power center houses plug-in “Cartridge”
fuses which replace in-line fusible links. The power
center also contains “Mini” fuses and plug-in full and
micro ISO relays. A label inside the latching cover of the
center identifies each component for ease of replacement,
if necessary. “Cartridge” fuses and relays can be obtained
from your authorized dealer.Power Distribution Center (Gasoline Engines)
Cavity Fuse Description
F1 40 Amp
GreenBlower Motor
F2 40 Amp
GreenRadiator Fan
Power Distribution Center
MAINTAINING YOUR VEHICLE 345
7

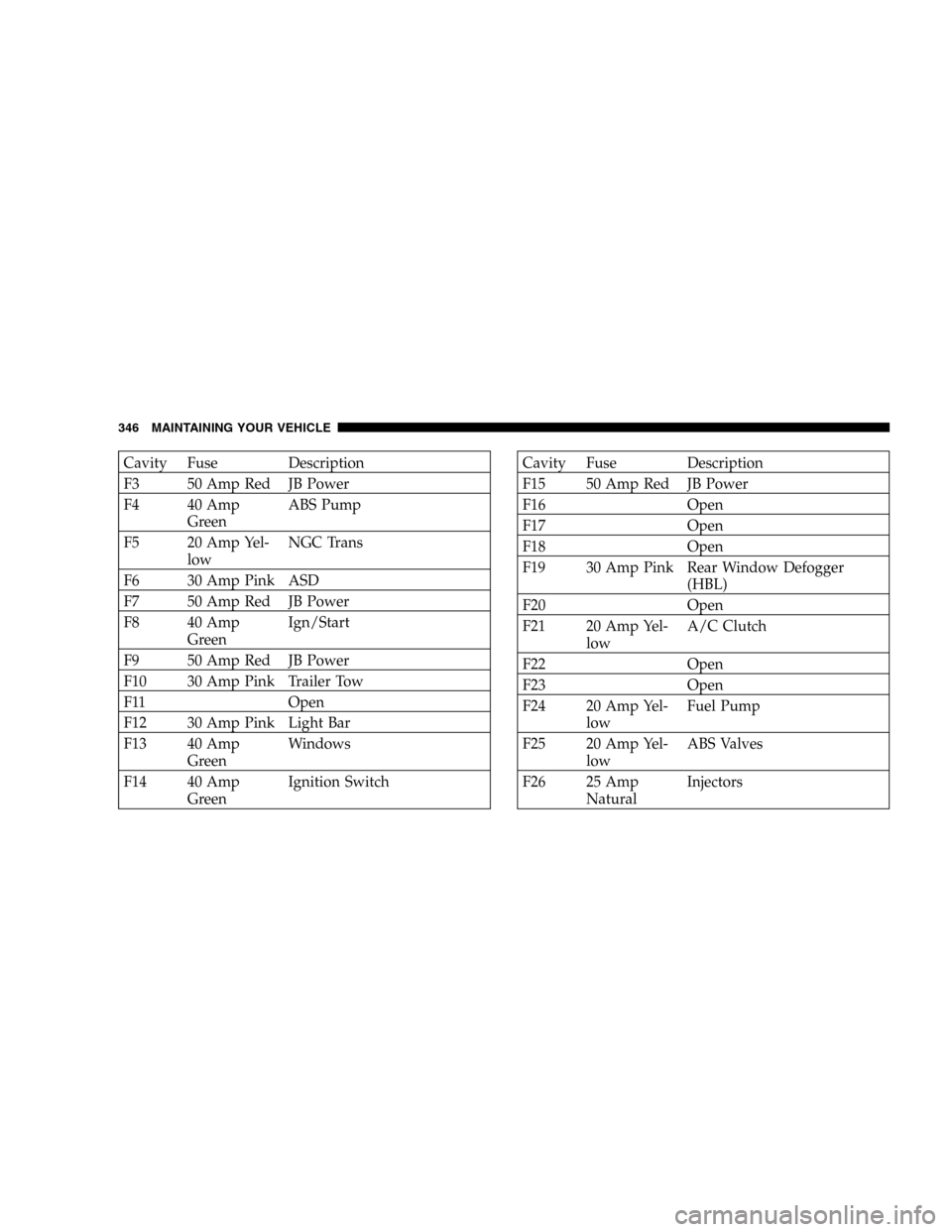

Cavity Fuse Description
F3 50 Amp Red JB Power
F4 40 Amp
GreenABS Pump
F5 20 Amp Yel-
lowNGC Trans
F6 30 Amp Pink ASD
F7 50 Amp Red JB Power
F8 40 Amp
GreenIgn/Start
F9 50 Amp Red JB Power
F10 30 Amp Pink Trailer Tow
F11 Open
F12 30 Amp Pink Light Bar
F13 40 Amp
GreenWindows
F14 40 Amp
GreenIgnition SwitchCavity Fuse Description
F15 50 Amp Red JB Power
F16 Open
F17 Open
F18 Open
F19 30 Amp Pink Rear Window Defogger
(HBL)
F20 Open
F21 20 Amp Yel-
lowA/C Clutch
F22 Open
F23 Open
F24 20 Amp Yel-
lowFuel Pump
F25 20 Amp Yel-
lowABS Valves
F26 25 Amp
NaturalInjectors
346 MAINTAINING YOUR VEHICLE

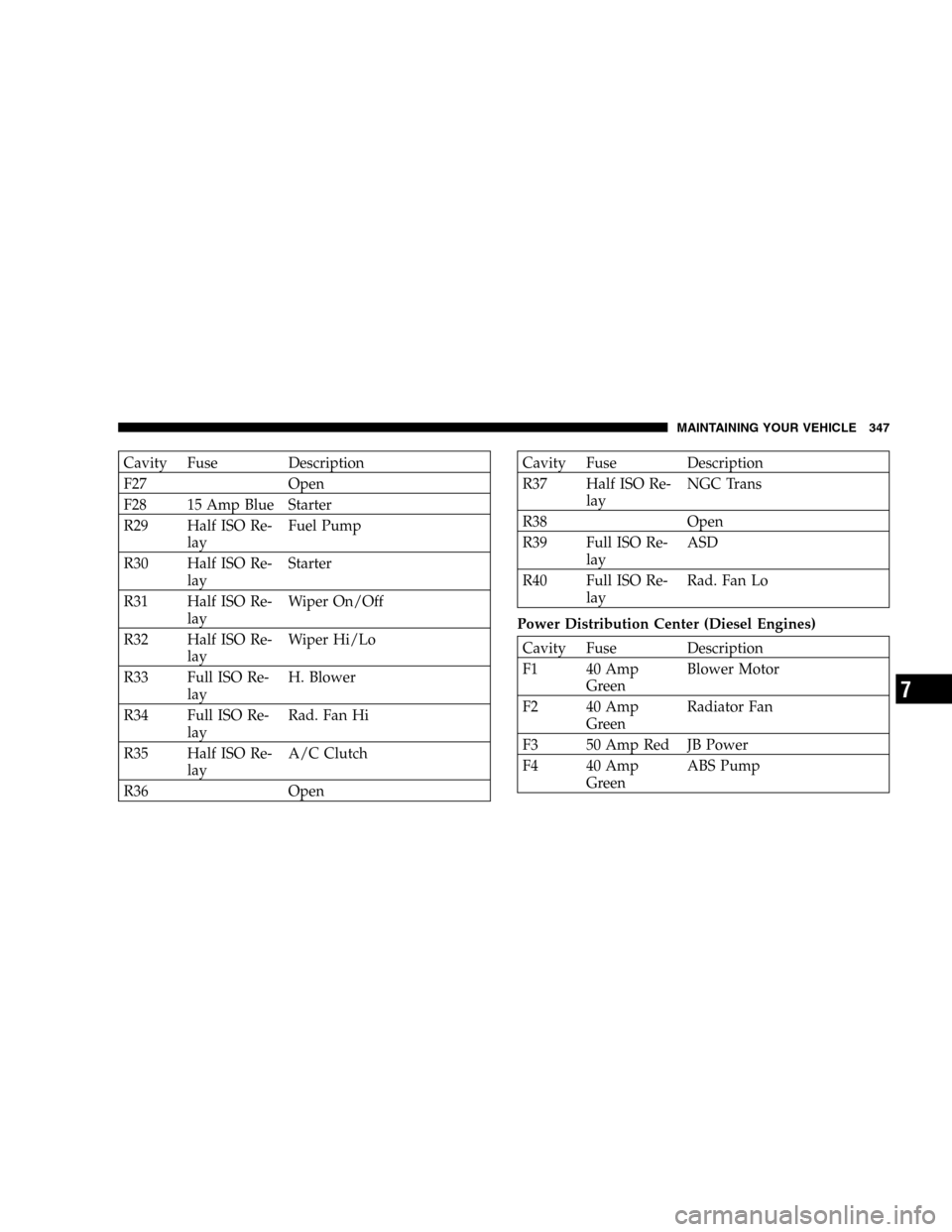

Cavity Fuse Description
F27 Open
F28 15 Amp Blue Starter
R29 Half ISO Re-
layFuel Pump
R30 Half ISO Re-
layStarter
R31 Half ISO Re-
layWiper On/Off
R32 Half ISO Re-
layWiper Hi/Lo
R33 Full ISO Re-
layH. Blower
R34 Full ISO Re-
layRad. Fan Hi
R35 Half ISO Re-
layA/C Clutch
R36 OpenCavity Fuse Description
R37 Half ISO Re-
layNGC Trans
R38 Open
R39 Full ISO Re-
layASD
R40 Full ISO Re-
layRad. Fan Lo
Power Distribution Center (Diesel Engines)
Cavity Fuse Description
F1 40 Amp
GreenBlower Motor
F2 40 Amp
GreenRadiator Fan
F3 50 Amp Red JB Power
F4 40 Amp
GreenABS Pump
MAINTAINING YOUR VEHICLE 347
7

Cavity Fuse Description
F5 Open
F6 30 Amp Pink ASD
F7 50 Amp Red JB Power
F8 40 Amp
GreenIgn/Start
F9 50 Amp Red JB Power
F10 30 Amp Pink Trailer Tow
F11 20 Amp Yel-
lowFuel Heater
F12 30 Amp Pink Light Bar
F13 40 Amp
GreenWindows
F14 40 Amp
GreenIgnition Switch
F15 50 Amp Red JB Power
F16 15 Amp Blue ASD Feed
F17 OpenCavity Fuse Description
F18 Open
F19 30 Amp Pink Rear Window Defogger
(HBL)
F20 Open
F21 20 Amp Yel-
lowA/C Clutch
F22 Open
F23 Open
F24 Open
F25 20 Amp Yel-
lowABS Valves
F26 25 Amp
NaturalInjectors
F27 Open
F28 15 Amp Blue Starter
R29 Half ISO Re-
layFuel Heater
348 MAINTAINING YOUR VEHICLE

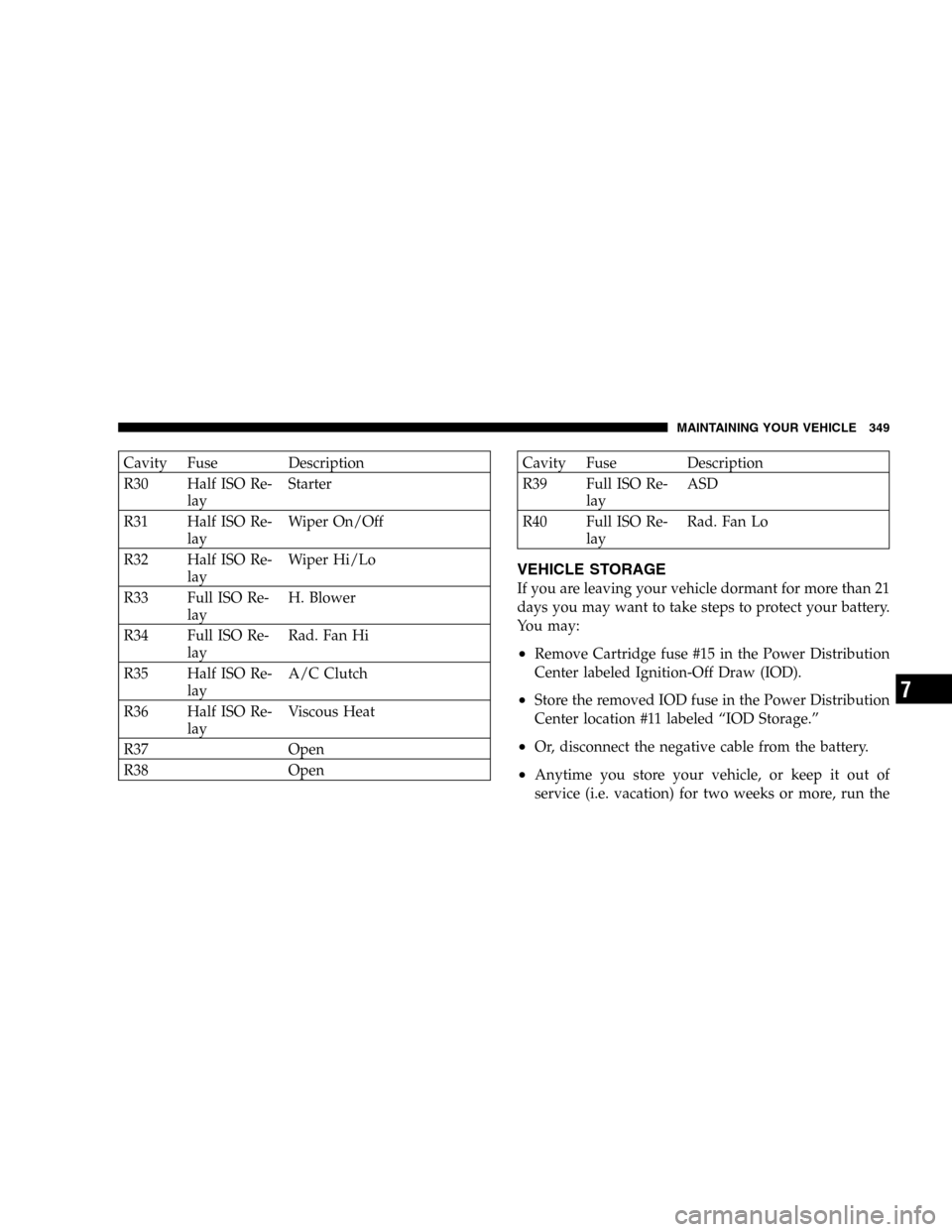

Cavity Fuse Description
R30 Half ISO Re-
layStarter
R31 Half ISO Re-
layWiper On/Off
R32 Half ISO Re-
layWiper Hi/Lo
R33 Full ISO Re-
layH. Blower
R34 Full ISO Re-
layRad. Fan Hi
R35 Half ISO Re-
layA/C Clutch
R36 Half ISO Re-
layViscous Heat
R37 Open
R38 OpenCavity Fuse Description
R39 Full ISO Re-
layASD
R40 Full ISO Re-
layRad. Fan Lo
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Remove Cartridge fuse #15 in the Power Distribution
Center labeled Ignition-Off Draw (IOD).
•Store the removed IOD fuse in the Power Distribution
Center location #11 labeled “IOD Storage.”
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
MAINTAINING YOUR VEHICLE 349
7

air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

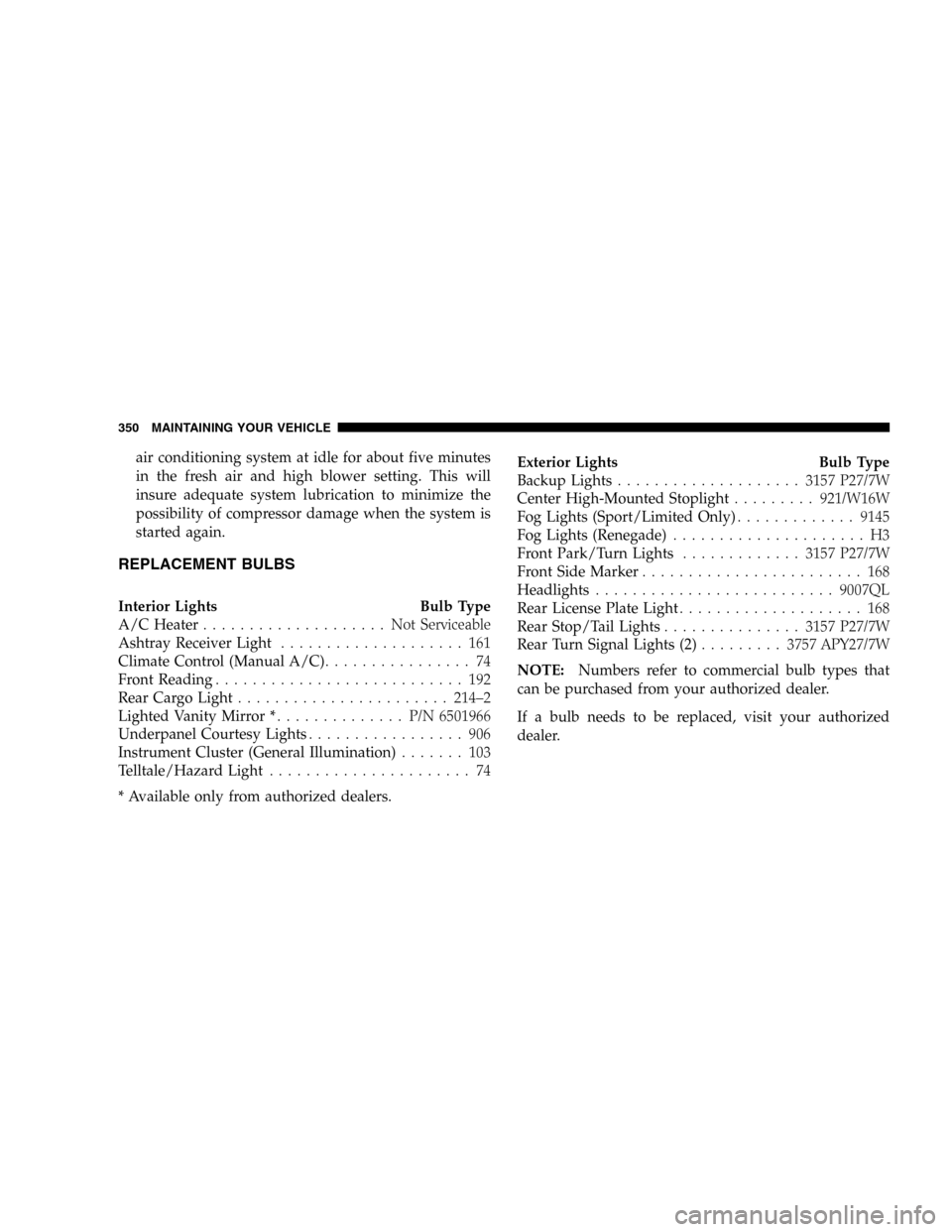

REPLACEMENT BULBS
Interior Lights Bulb Type
A/C Heater.................... NotServiceable
Ashtray Receiver Light.................... 161
Climate Control (Manual A/C)................ 74
Front Reading........................... 192
Rear Cargo Light.......................214–2
Lighted Vanity Mirror *.............. P/N6501966
Underpanel Courtesy Lights................. 906
Instrument Cluster (General Illumination)....... 103
Telltale/Hazard Light...................... 74
* Available only from authorized dealers.Exterior Lights Bulb Type
Backup Lights....................3157 P27/7W
Center High-Mounted Stoplight.........921/W16W
Fog Lights (Sport/Limited Only).............9145
Fog Lights (Renegade)..................... H3
Front Park/Turn Lights.............3157 P27/7W
Front Side Marker........................ 168
Headlights..........................9007QL
Rear License Plate Light.................... 168
Rear Stop/Tail Lights...............3157 P27/7W
Rear Turn Signal Lights (2).........3757 APY27/7W
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer.
