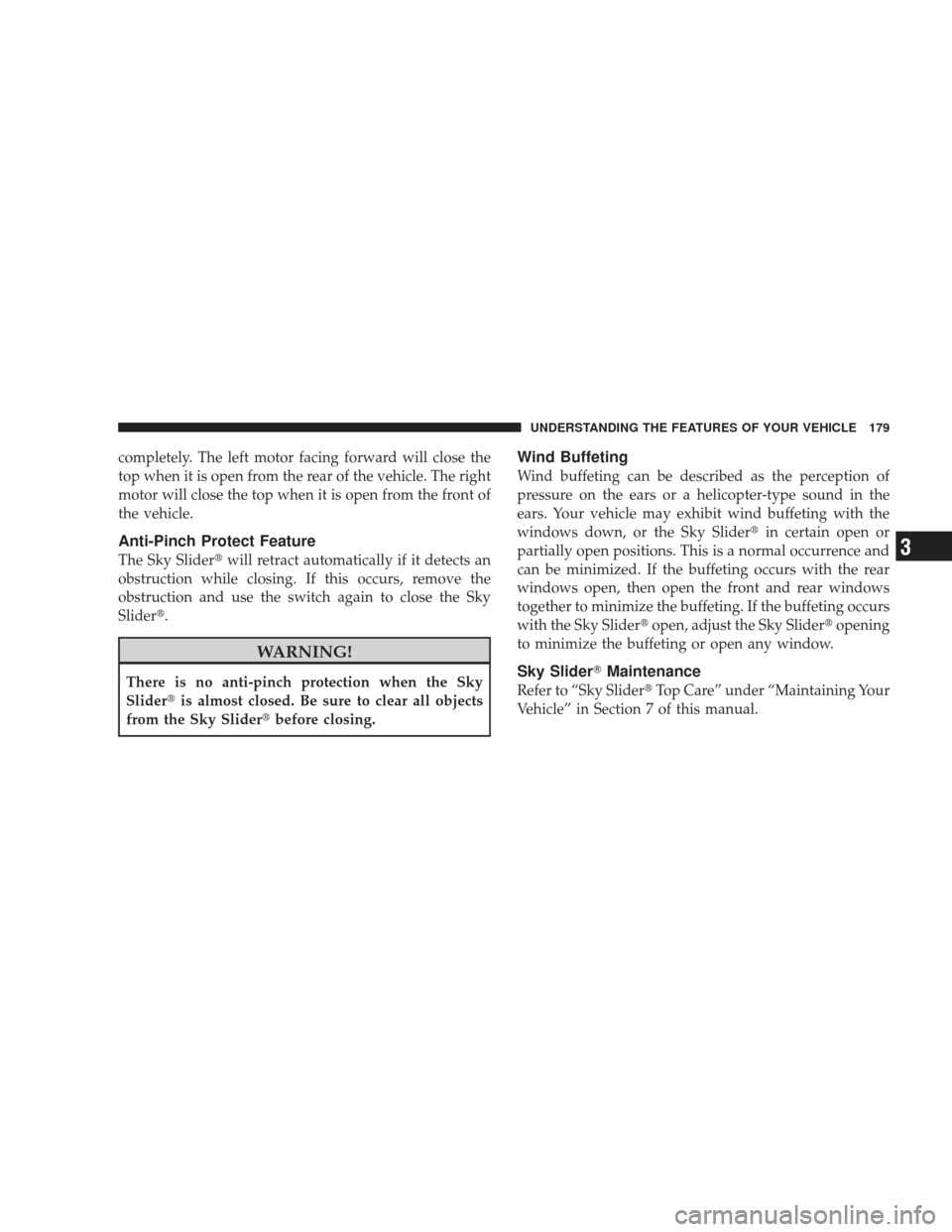

completely. The left motor facing forward will close the
top when it is open from the rear of the vehicle. The right
motor will close the top when it is open from the front of
the vehicle.
Anti-Pinch Protect Feature
The Sky Sliderwill retract automatically if it detects an
obstruction while closing. If this occurs, remove the
obstruction and use the switch again to close the Sky
Slider.
WARNING!
There is no anti-pinch protection when the Sky
Slider is almost closed. Be sure to clear all objects
from the Sky Slider before closing.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the Sky Slider in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the Sky Slider open, adjust the Sky Slider opening
to minimize the buffeting or open any window.
Sky Slider Maintenance
Refer to “Sky Slider Top Care” under “Maintaining Your
Vehicle” in Section 7 of this manual.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3

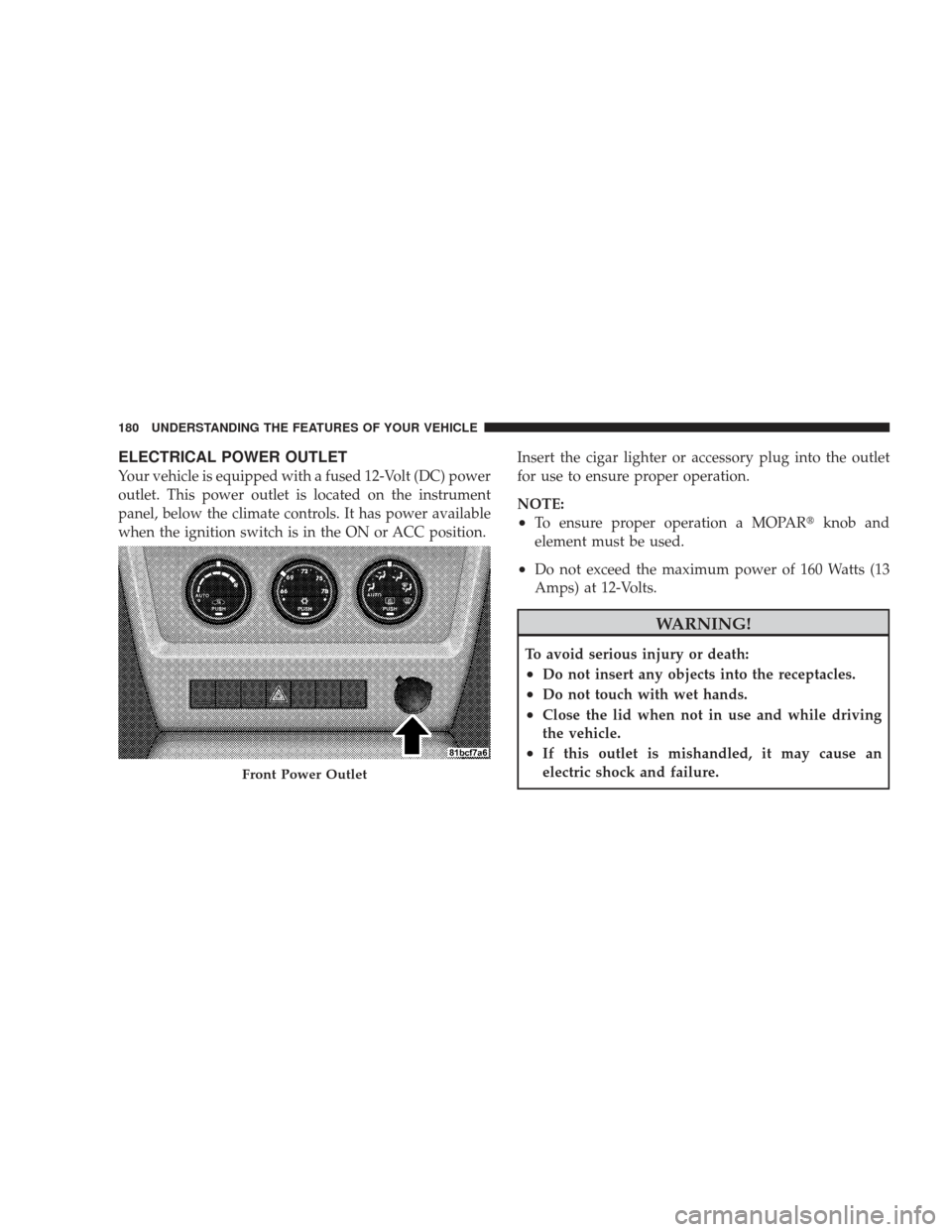

ELECTRICAL POWER OUTLET
Your vehicle is equipped with a fused 12-Volt (DC) power
outlet. This power outlet is located on the instrument
panel, below the climate controls. It has power available
when the ignition switch is in the ON or ACC position.Insert the cigar lighter or accessory plug into the outlet
for use to ensure proper operation.
NOTE:
•To ensure proper operation a MOPAR
knob and
element must be used.
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12-Volts.
WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
Front Power Outlet
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

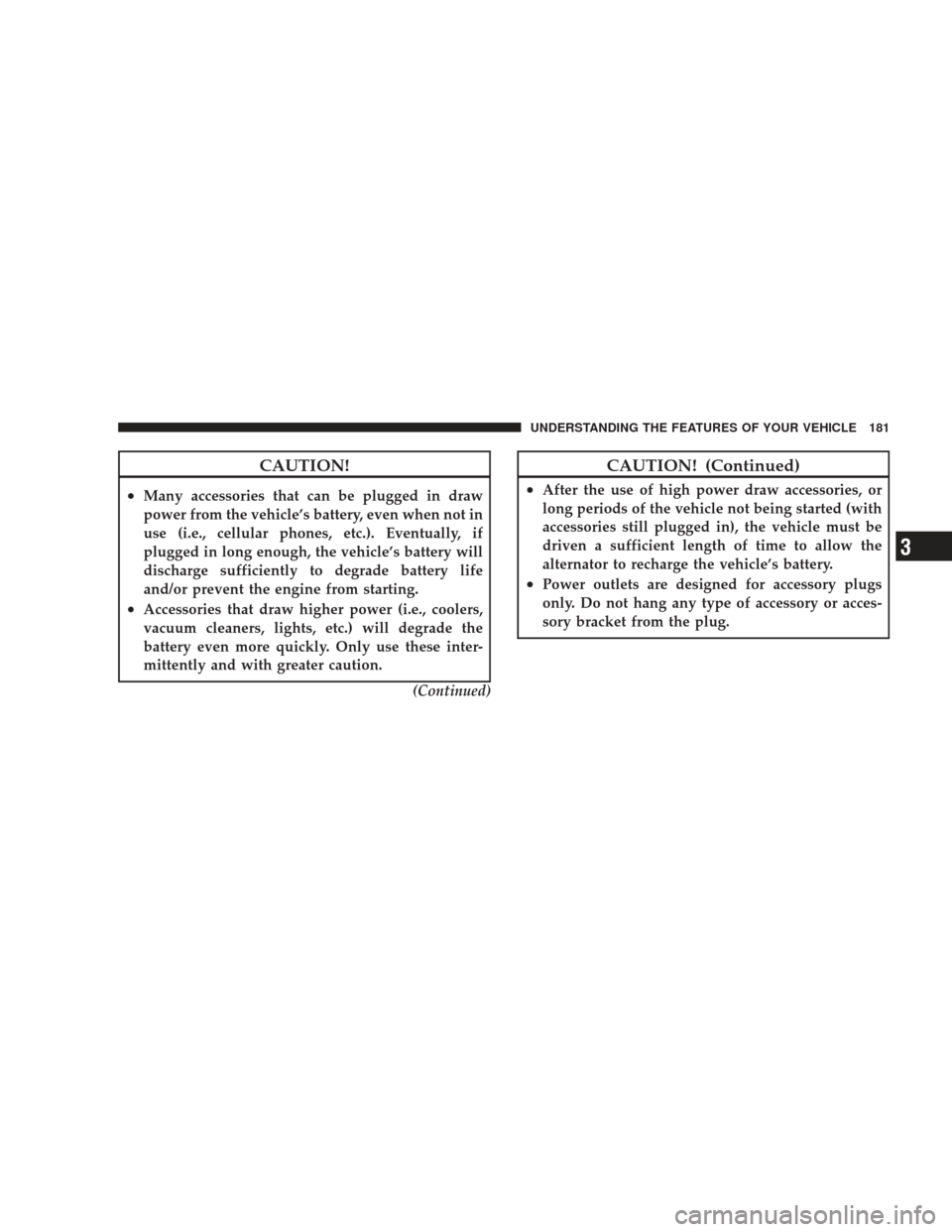

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.(Continued)
CAUTION! (Continued)
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.
•Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or acces-
sory bracket from the plug.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

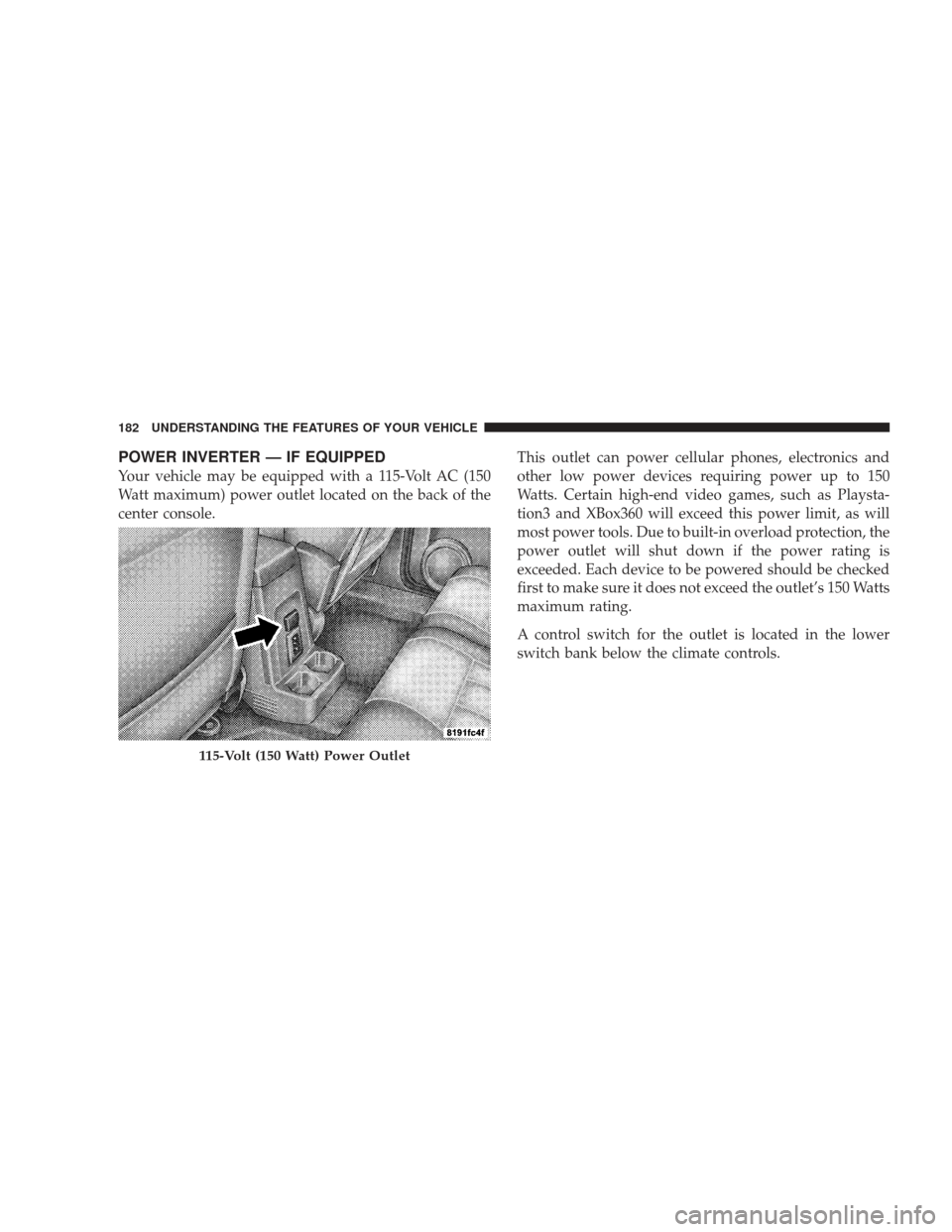

POWER INVERTER — IF EQUIPPED
Your vehicle may be equipped with a 115-Volt AC (150
Watt maximum) power outlet located on the back of the
center console.This outlet can power cellular phones, electronics and
other low power devices requiring power up to 150
Watts. Certain high-end video games, such as Playsta-
tion3 and XBox360 will exceed this power limit, as will
most power tools. Due to built-in overload protection, the
power outlet will shut down if the power rating is
exceeded. Each device to be powered should be checked
first to make sure it does not exceed the outlet’s 150 Watts
maximum rating.
A control switch for the outlet is located in the lower
switch bank below the climate controls.
115-Volt (150 Watt) Power Outlet
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

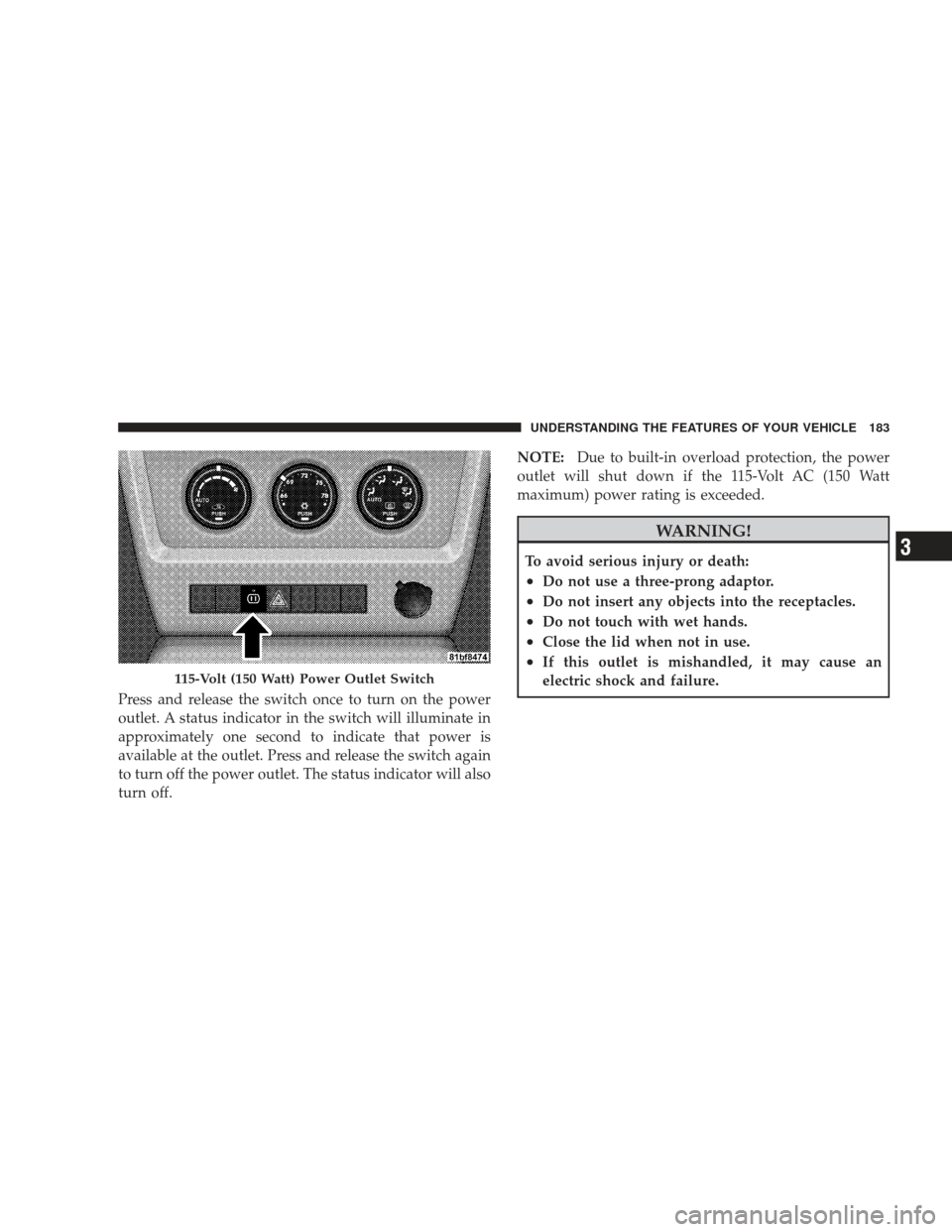

Press and release the switch once to turn on the power
outlet. A status indicator in the switch will illuminate in
approximately one second to indicate that power is
available at the outlet. Press and release the switch again
to turn off the power outlet. The status indicator will also
turn off.NOTE:
Due to built-in overload protection, the power
outlet will shut down if the 115-Volt AC (150 Watt
maximum) power rating is exceeded.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an
electric shock and failure.
115-Volt (150 Watt) Power Outlet Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183
3

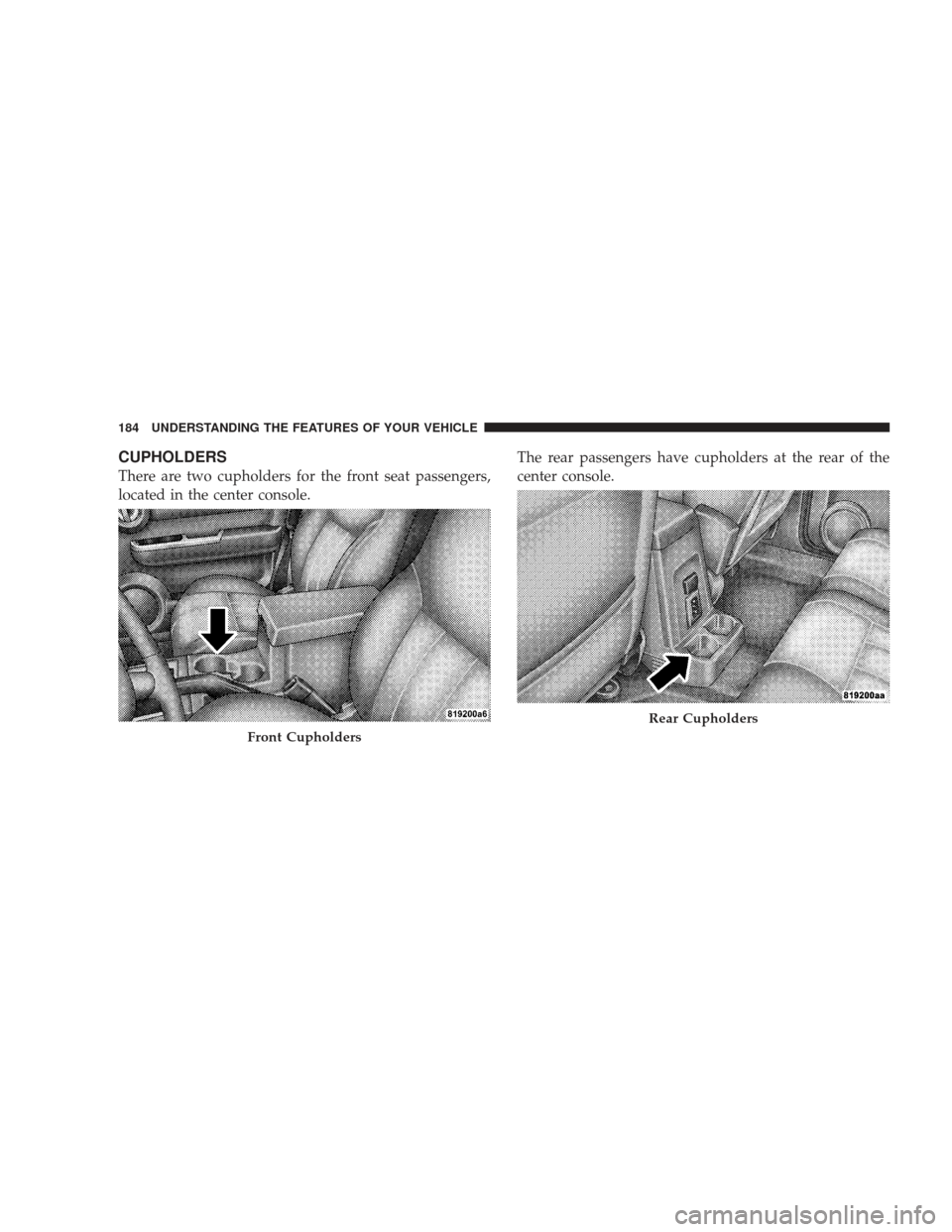

CUPHOLDERS
There are two cupholders for the front seat passengers,
located in the center console.The rear passengers have cupholders at the rear of the
center console.
Front Cupholders
Rear Cupholders
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

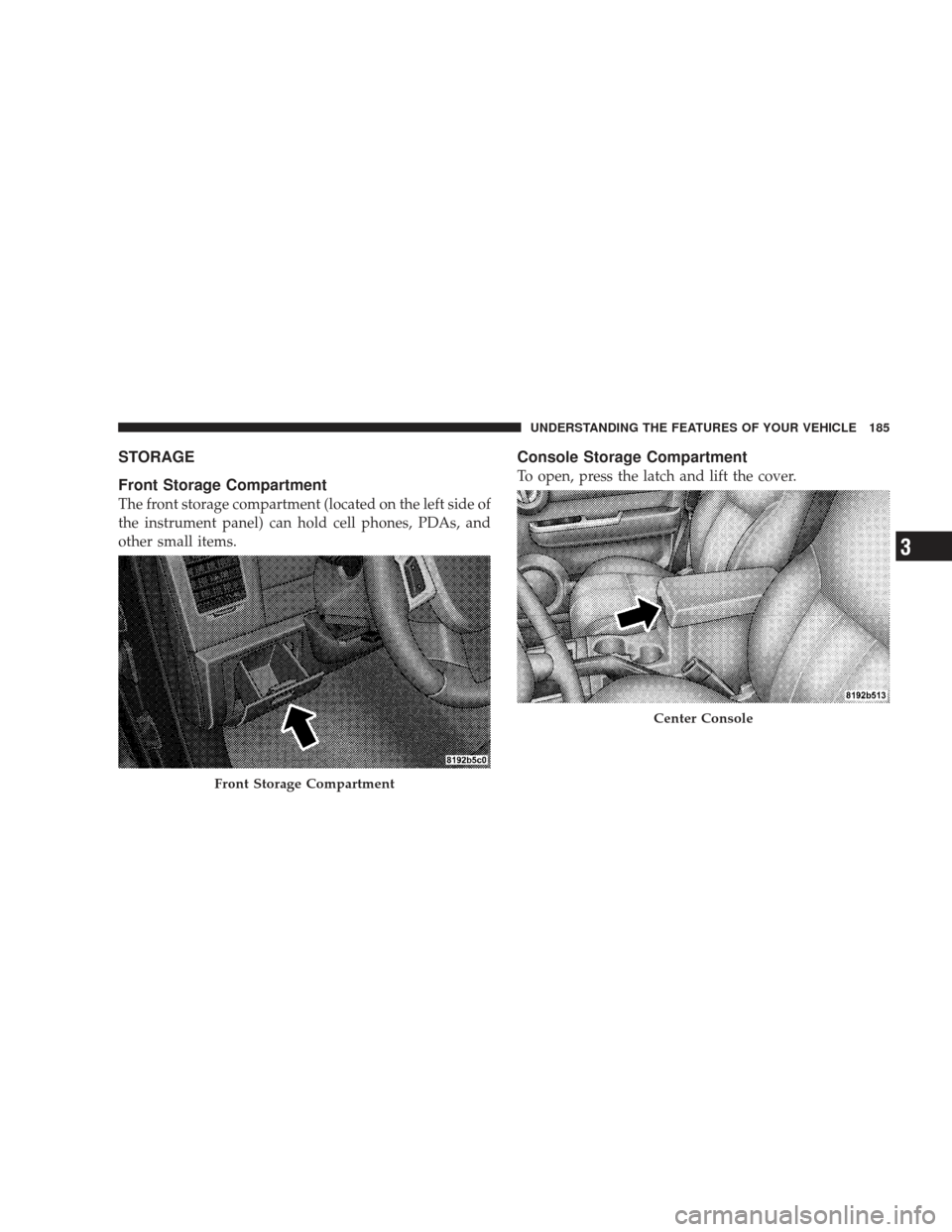

STORAGE
Front Storage Compartment
The front storage compartment (located on the left side of
the instrument panel) can hold cell phones, PDAs, and
other small items.
Console Storage Compartment
To open, press the latch and lift the cover.
Front Storage Compartment
Center Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185
3

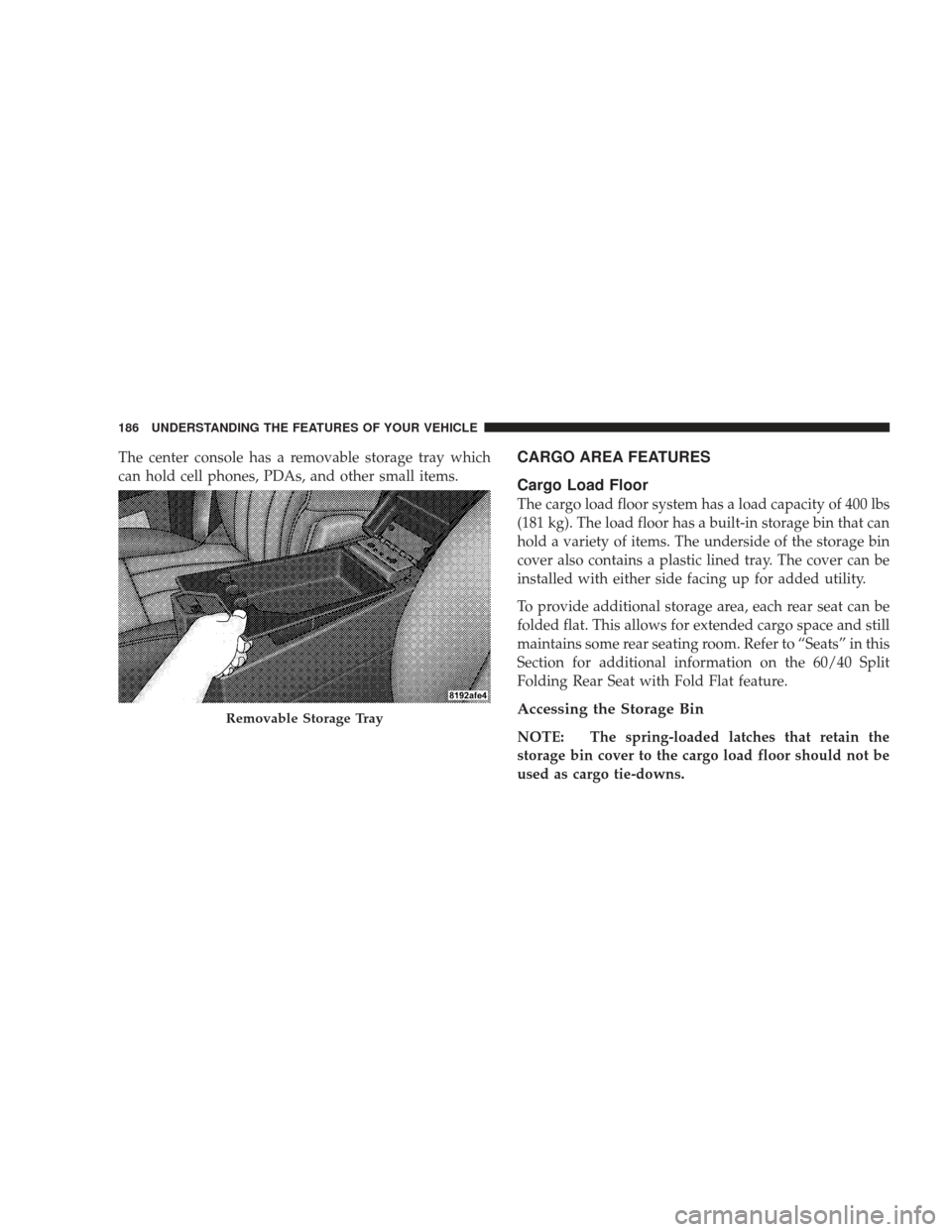

The center console has a removable storage tray which
can hold cell phones, PDAs, and other small items.CARGO AREA FEATURES
Cargo Load Floor
The cargo load floor system has a load capacity of 400 lbs
(181 kg). The load floor has a built-in storage bin that can
hold a variety of items. The underside of the storage bin
cover also contains a plastic lined tray. The cover can be
installed with either side facing up for added utility.
To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room. Refer to “Seats” in this
Section for additional information on the 60/40 Split
Folding Rear Seat with Fold Flat feature.
Accessing the Storage Bin
NOTE: The spring-loaded latches that retain the
storage bin cover to the cargo load floor should not be
used as cargo tie-downs.
Removable Storage Tray
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

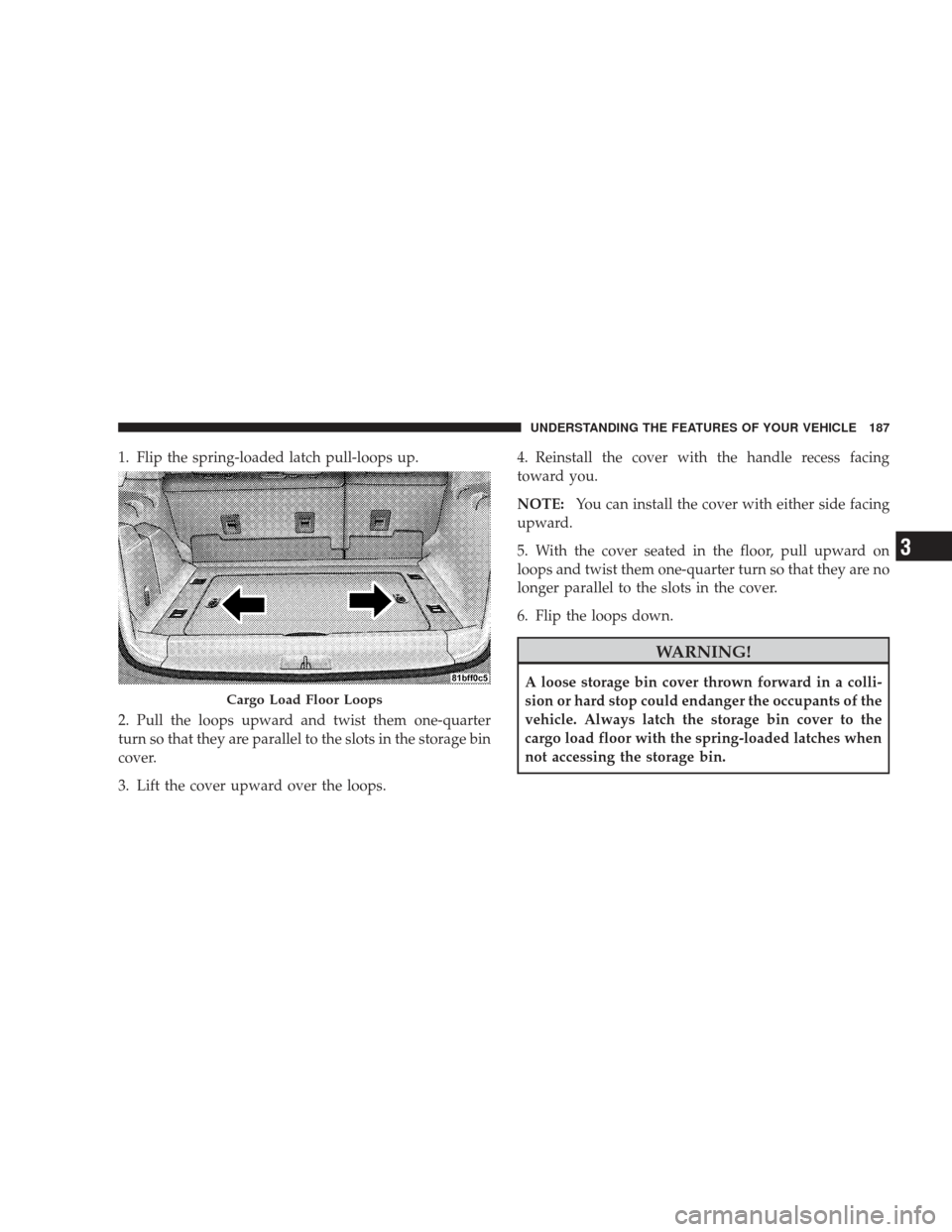

1. Flip the spring-loaded latch pull-loops up.
2. Pull the loops upward and twist them one-quarter
turn so that they are parallel to the slots in the storage bin
cover.
3. Lift the cover upward over the loops.4. Reinstall the cover with the handle recess facing
toward you.
NOTE:
You can install the cover with either side facing
upward.
5. With the cover seated in the floor, pull upward on
loops and twist them one-quarter turn so that they are no
longer parallel to the slots in the cover.
6. Flip the loops down.
WARNING!
A loose storage bin cover thrown forward in a colli-
sion or hard stop could endanger the occupants of the
vehicle. Always latch the storage bin cover to the
cargo load floor with the spring-loaded latches when
not accessing the storage bin.
Cargo Load Floor Loops
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

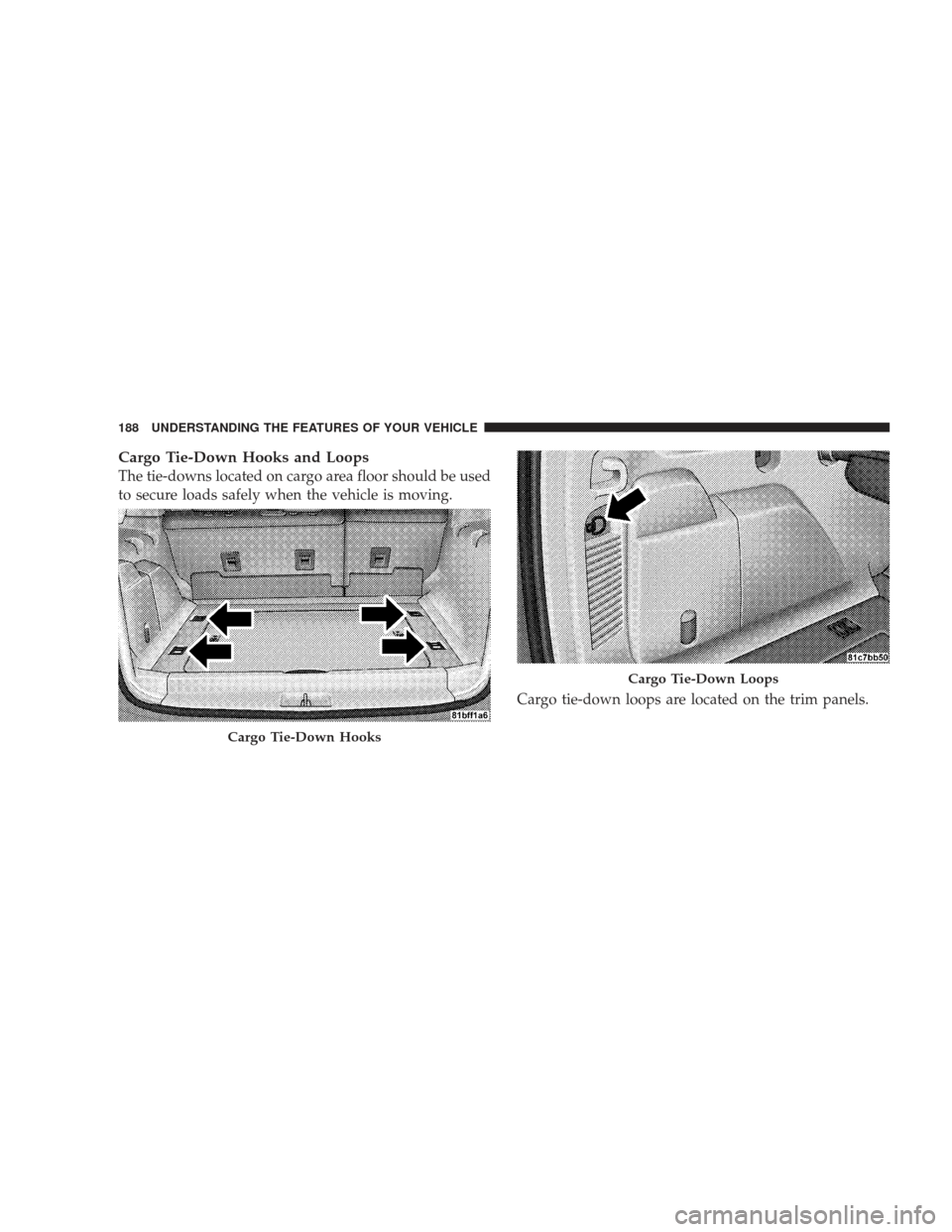

Cargo Tie-Down Hooks and Loops
The tie-downs located on cargo area floor should be used
to secure loads safely when the vehicle is moving.Cargo tie-down loops are located on the trim panels.
Cargo Tie-Down Hooks
Cargo Tie-Down Loops
