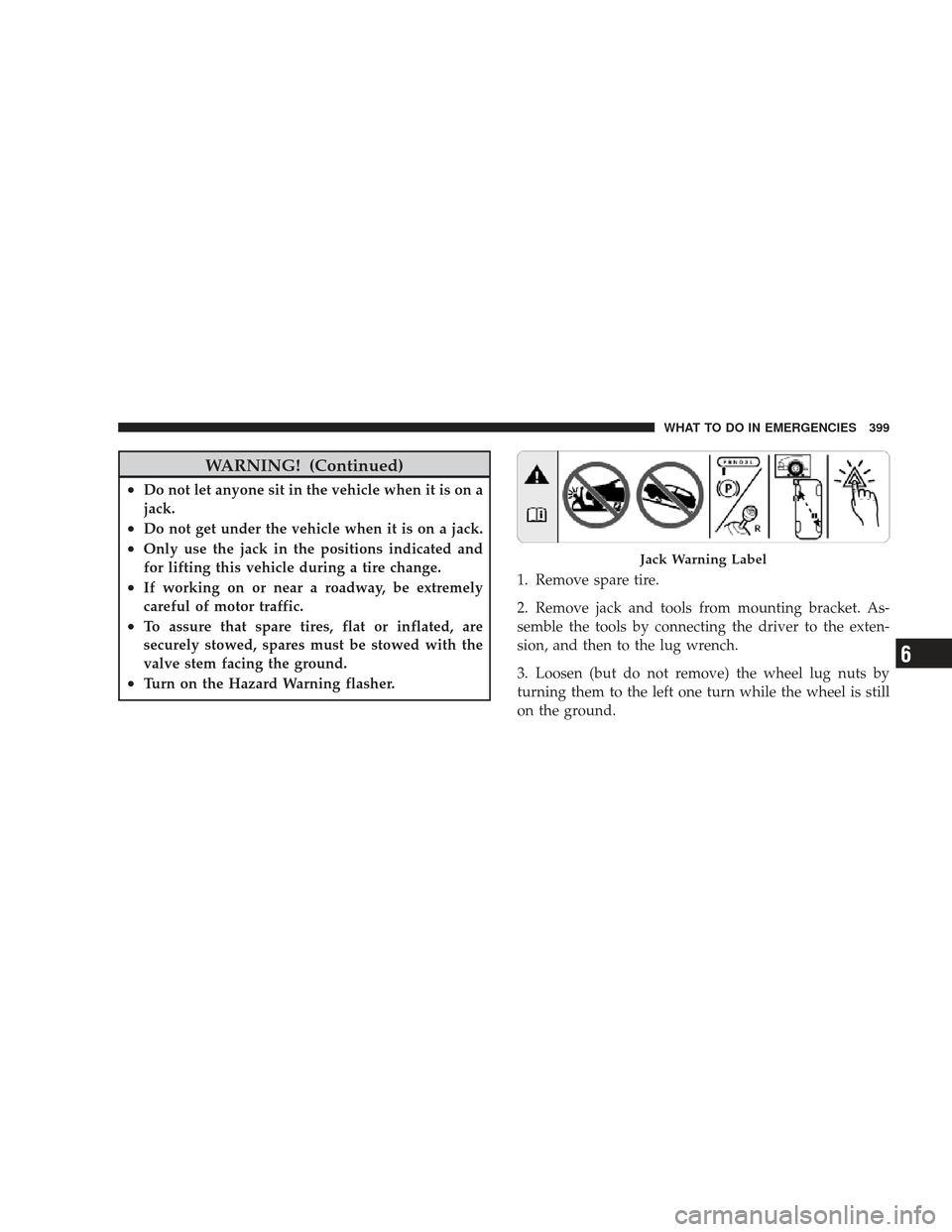

WARNING! (Continued)
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
•Turn on the Hazard Warning flasher.1. Remove spare tire.
2. Remove jack and tools from mounting bracket. As-
semble the tools by connecting the driver to the exten-
sion, and then to the lug wrench.
3. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.
Jack Warning Label
WHAT TO DO IN EMERGENCIES 399
6

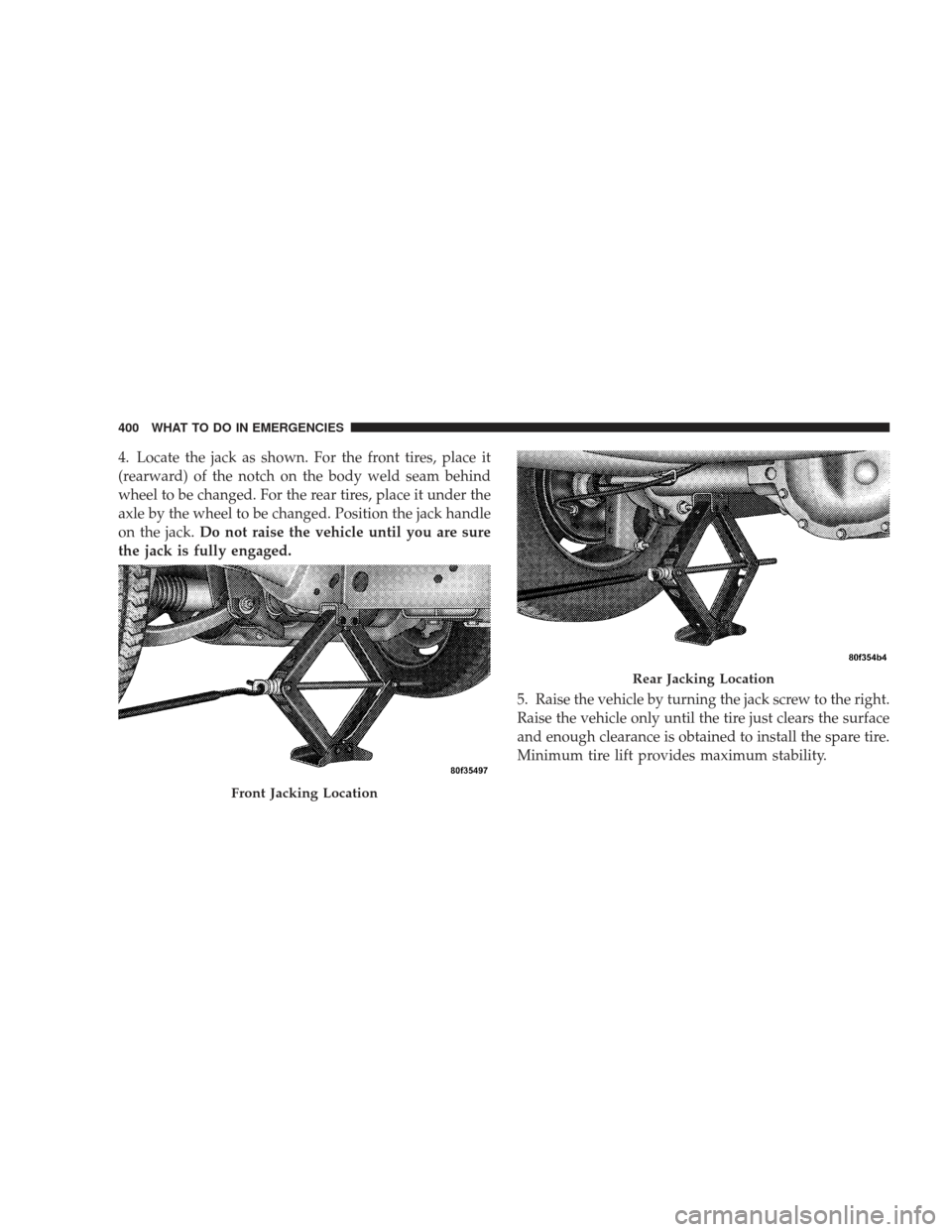

4. Locate the jack as shown. For the front tires, place it
(rearward) of the notch on the body weld seam behind
wheel to be changed. For the rear tires, place it under the
axle by the wheel to be changed. Position the jack handle
on the jack.Do not raise the vehicle until you are sure
the jack is fully engaged.
5. Raise the vehicle by turning the jack screw to the right.
Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
Front Jacking Location
Rear Jacking Location
400 WHAT TO DO IN EMERGENCIES

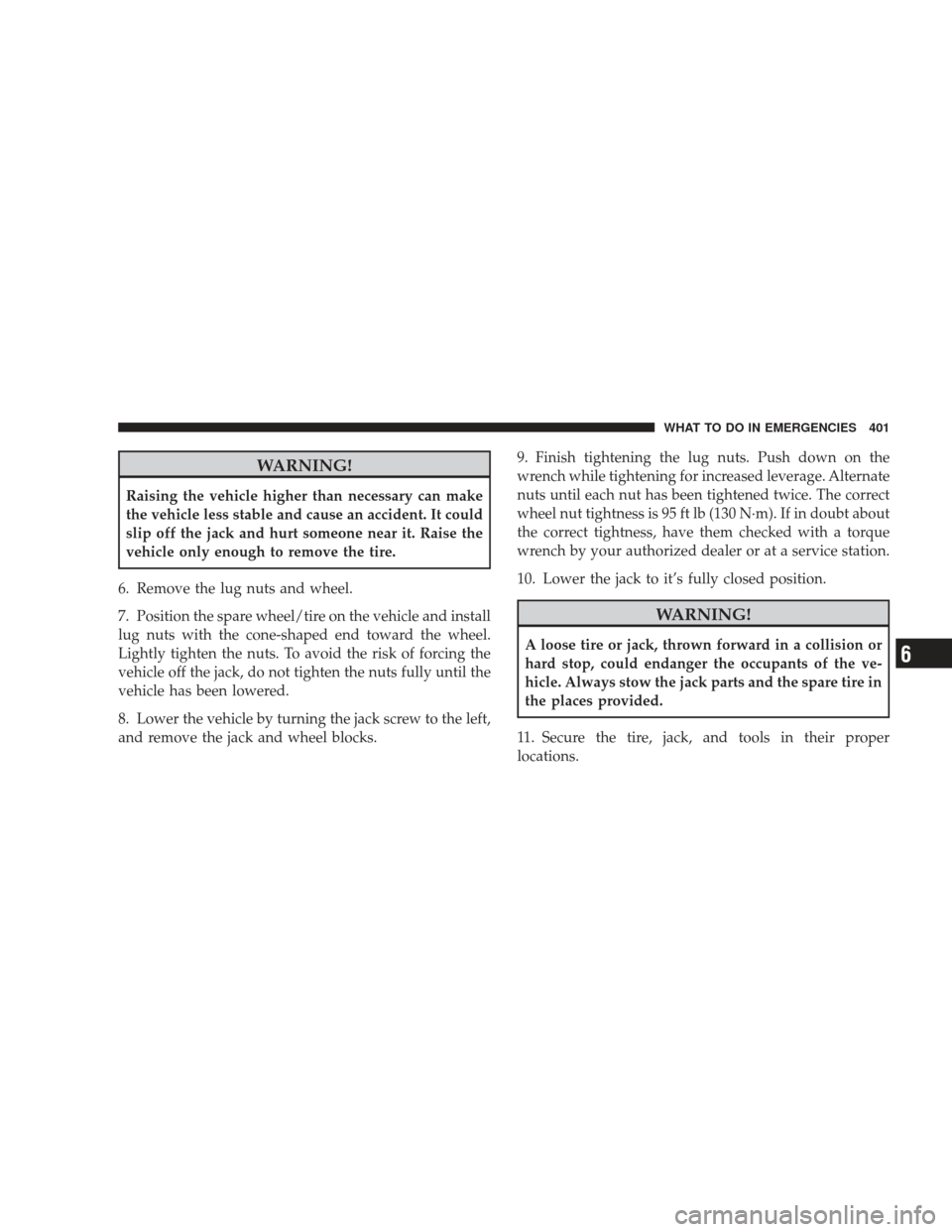

WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable and cause an accident. It could
slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
6. Remove the lug nuts and wheel.
7. Position the spare wheel/tire on the vehicle and install
lug nuts with the cone-shaped end toward the wheel.
Lightly tighten the nuts. To avoid the risk of forcing the
vehicle off the jack, do not tighten the nuts fully until the
vehicle has been lowered.
8. Lower the vehicle by turning the jack screw to the left,
and remove the jack and wheel blocks. 9. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
nuts until each nut has been tightened twice. The correct
wheel nut tightness is 95 ft lb (130 N·m). If in doubt about
the correct tightness, have them checked with a torque
wrench by your authorized dealer or at a service station.
10. Lower the jack to it’s fully closed position.
WARNING!
A loose tire or jack, thrown forward in a collision or
hard stop, could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided.
11. Secure the tire, jack, and tools in their proper
locations.
WHAT TO DO IN EMERGENCIES 401
6

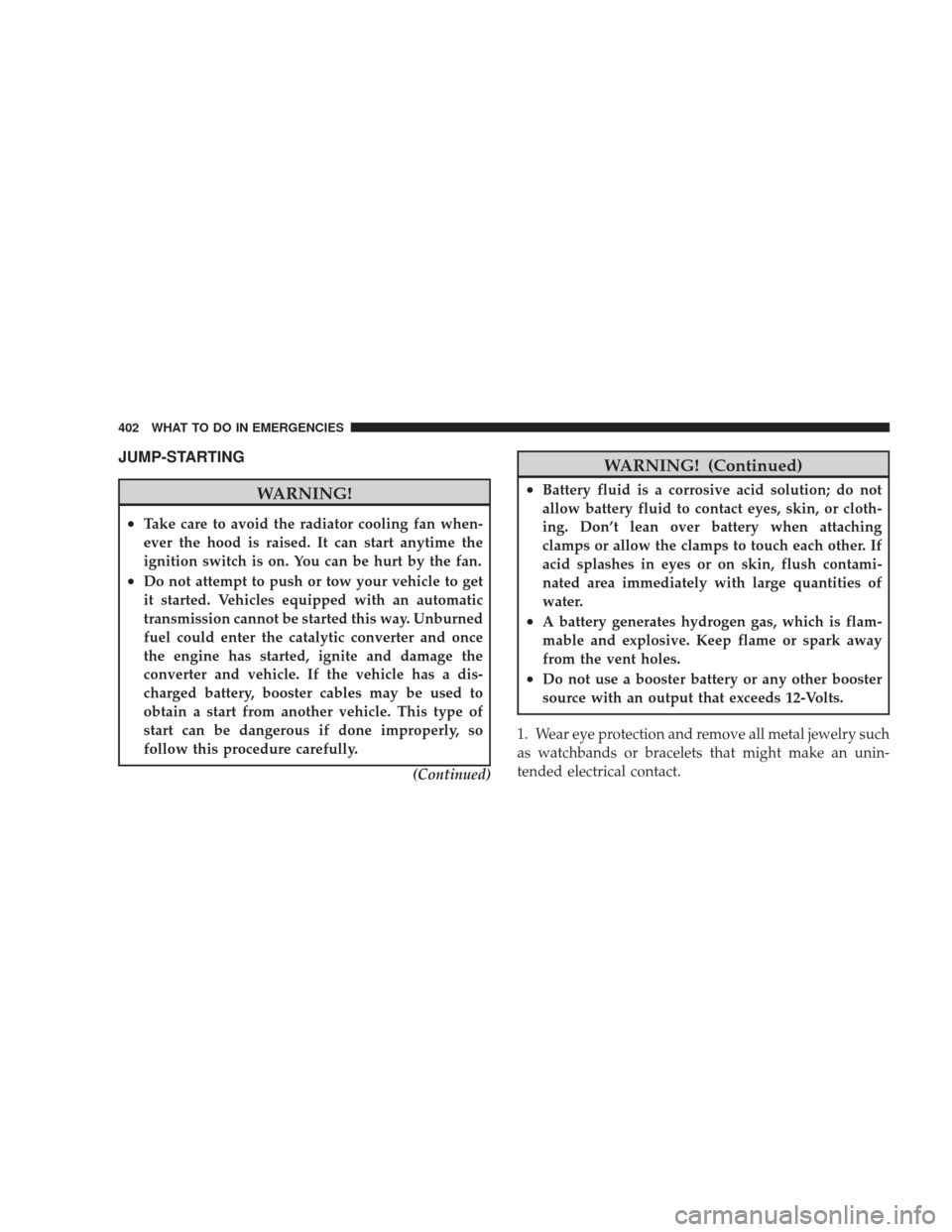

JUMP-STARTING
WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be hurt by the fan.
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from another vehicle. This type of
start can be dangerous if done improperly, so
follow this procedure carefully.(Continued)
WARNING! (Continued)
•Battery fluid is a corrosive acid solution; do not
allow battery fluid to contact eyes, skin, or cloth-
ing. Don’t lean over battery when attaching
clamps or allow the clamps to touch each other. If
acid splashes in eyes or on skin, flush contami-
nated area immediately with large quantities of
water.
•A battery generates hydrogen gas, which is flam-
mable and explosive. Keep flame or spark away
from the vent holes.
•Do not use a booster battery or any other booster
source with an output that exceeds 12-Volts.
1. Wear eye protection and remove all metal jewelry such
as watchbands or bracelets that might make an unin-
tended electrical contact.
402 WHAT TO DO IN EMERGENCIES

2. When boosting from a battery in another vehicle, park
that vehicle within booster cable reach, but without
allowing the vehicles to touch.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
3. Set the parking brake, place the automatic transmis-
sion in PARK (or NEUTRAL for manual transmission),
and turn the ignition OFF for both vehicles.
4. Turn off the heater, radio and all unnecessary electrical
loads.
5. Connect one end of the jumper cable to the positive
battery post. Connect the other end of the same cable to
the positive terminal of the booster battery. 6. Connect the other cable, first to the negative terminal
of the booster battery and then to the engine ground of
the vehicle with the discharged battery. Make sure you
have a good contact on the engine ground.WARNING!
•You should not try to start your vehicle by pushing
or towing.
•Do not connect the cable to the negative post of the
discharge battery. The resulting electrical spark
could cause the battery to explode.
•During cold weather when temperatures are be-
low the freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought up above the
freezing point before attempting jump-start.
WHAT TO DO IN EMERGENCIES 403
6

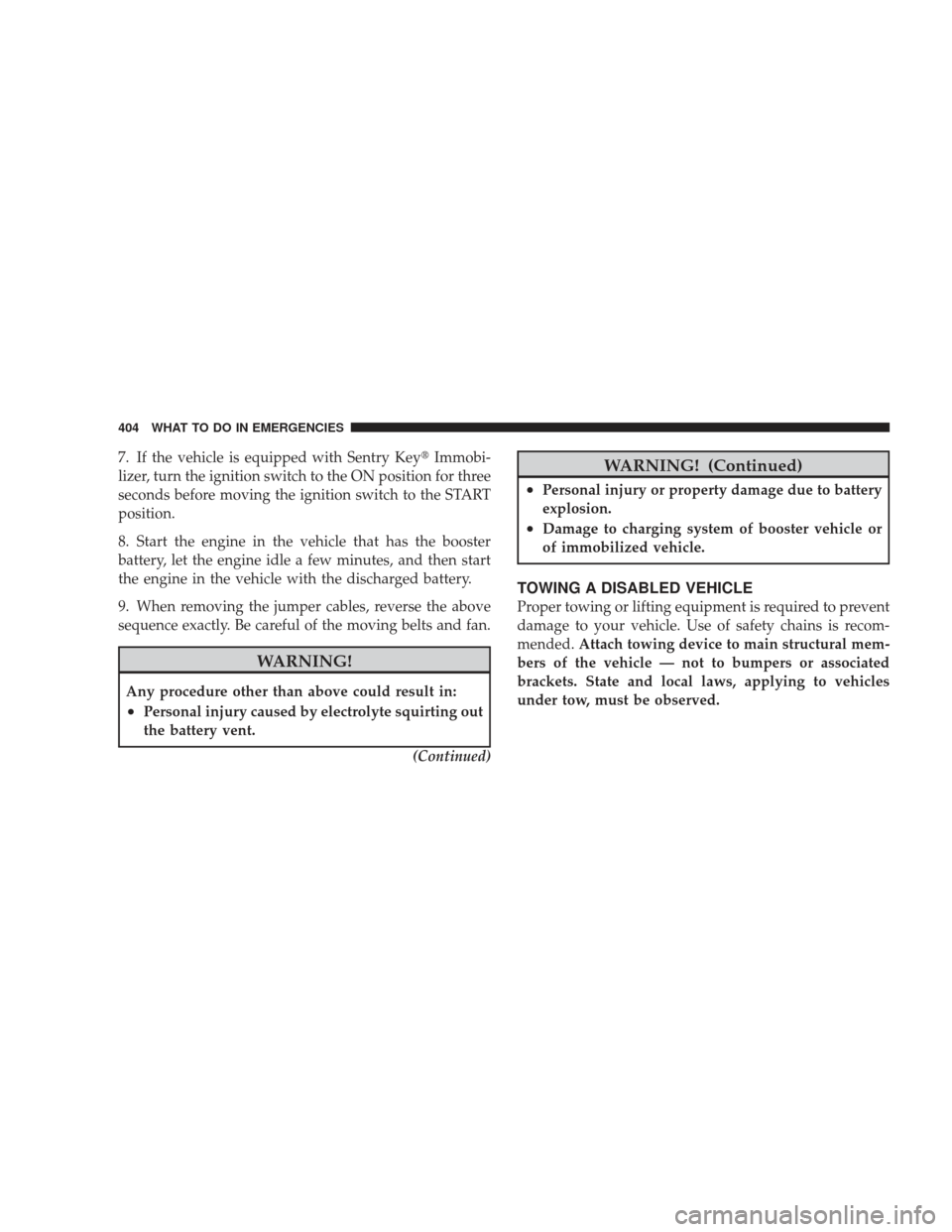

7. If the vehicle is equipped with Sentry KeyImmobi-
lizer, turn the ignition switch to the ON position for three
seconds before moving the ignition switch to the START
position.
8. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
9. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
WARNING!
Any procedure other than above could result in:
•Personal injury caused by electrolyte squirting out
the battery vent.
(Continued)
WARNING! (Continued)
•Personal injury or property damage due to battery
explosion.
•Damage to charging system of booster vehicle or
of immobilized vehicle.
TOWING A DISABLED VEHICLE
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use of safety chains is recom-
mended.Attach towing device to main structural mem-
bers of the vehicle — not to bumpers or associated
brackets. State and local laws, applying to vehicles
under tow, must be observed.
404 WHAT TO DO IN EMERGENCIES

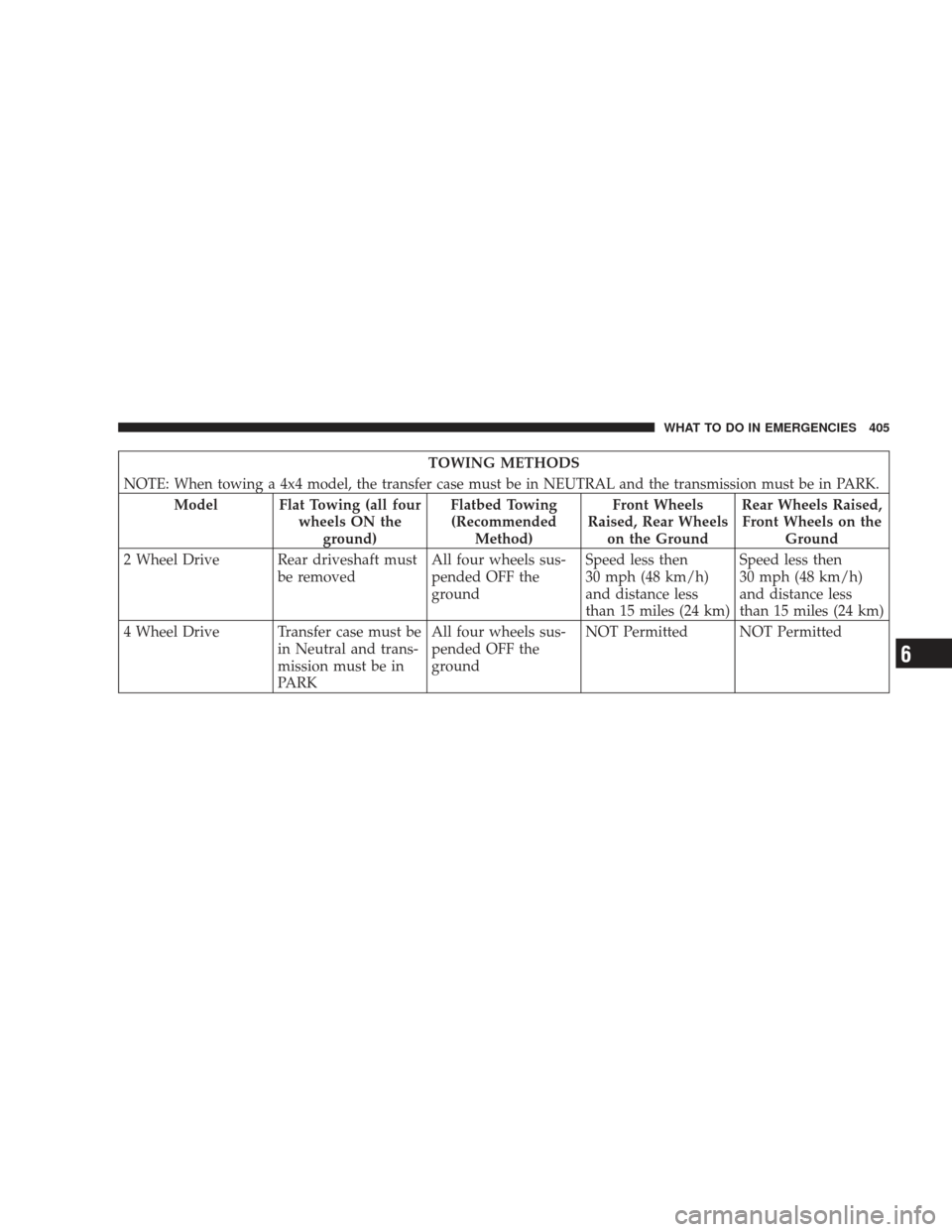

TOWING METHODS
NOTE:
When towing a 4x4 model, the transfer case must be in NEUTRAL and the transmission must be in PARK.
Model Flat Towing (all four wheels ON theground) Flatbed Towing
(Recommended Method) Front Wheels
Raised, Rear Wheels on the Ground Rear Wheels Raised,
Front Wheels on the Ground
2 Wheel Drive Rear driveshaft must be removedAll four wheels sus-
pended OFF the
groundSpeed less then
30 mph (48 km/h)
and distance less
than 15 miles (24 km)Speed less then
30 mph (48 km/h)
and distance less
than 15 miles (24 km)
4 Wheel Drive Transfer case must be in Neutral and trans-
mission must be in
PARKAll four wheels sus-
pended OFF the
ground
NOT Permitted NOT Permitted
WHAT TO DO IN EMERGENCIES 405
6

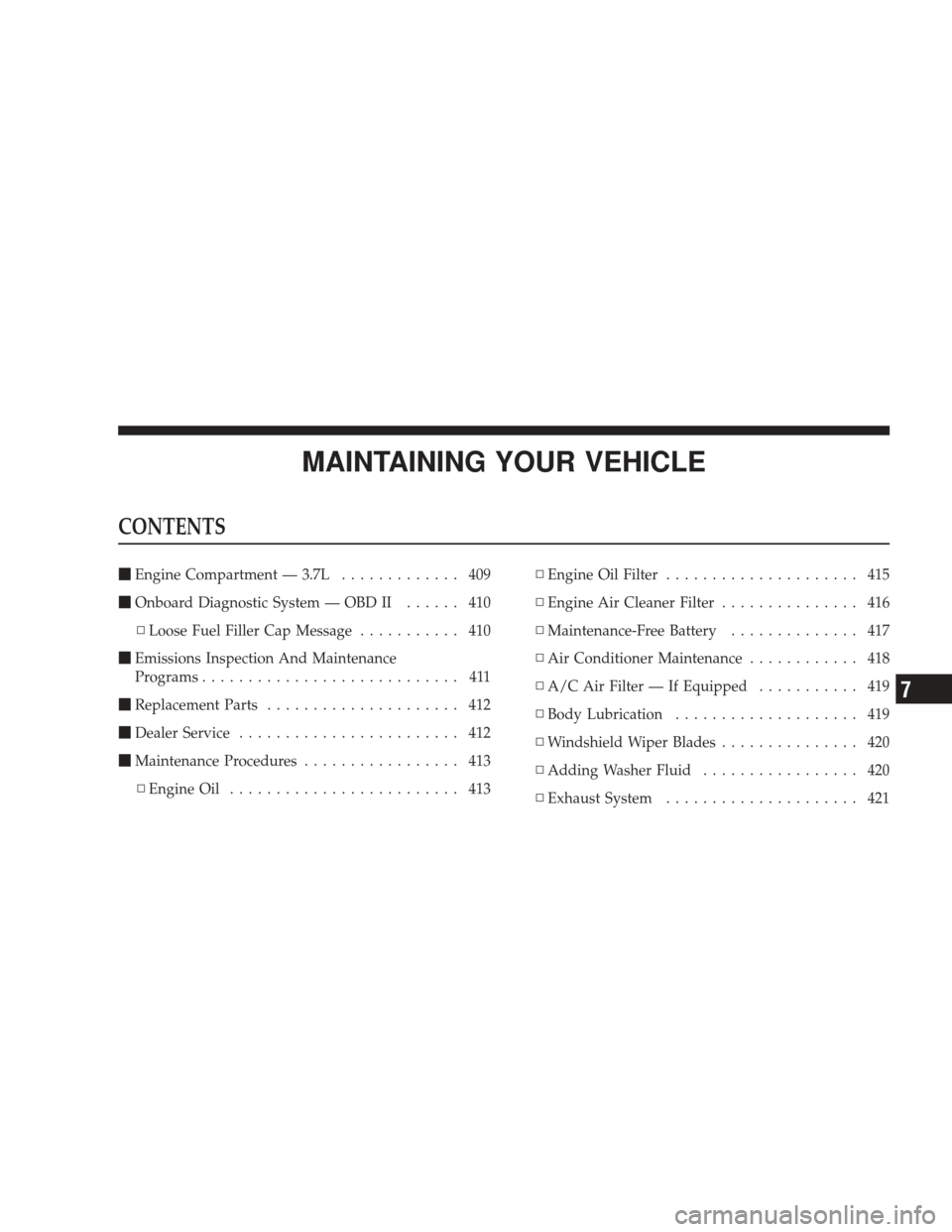

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.7L ............. 409
 Onboard Diagnostic System — OBD II ...... 410
▫ Loose Fuel Filler Cap Message ........... 410
 Emissions Inspection And Maintenance
Programs ............................ 411
 Replacement Parts ..................... 412
 Dealer Service ........................ 412
 Maintenance Procedures ................. 413
▫ Engine Oil ......................... 413 ▫
Engine Oil Filter ..................... 415
▫ Engine Air Cleaner Filter ............... 416
▫ Maintenance-Free Battery .............. 417
▫ Air Conditioner Maintenance ............ 418
▫ A/C Air Filter — If Equipped ........... 419
▫ Body Lubrication .................... 419
▫ Windshield Wiper Blades ............... 420
▫ Adding Washer Fluid ................. 420
▫ Exhaust System ..................... 421
7

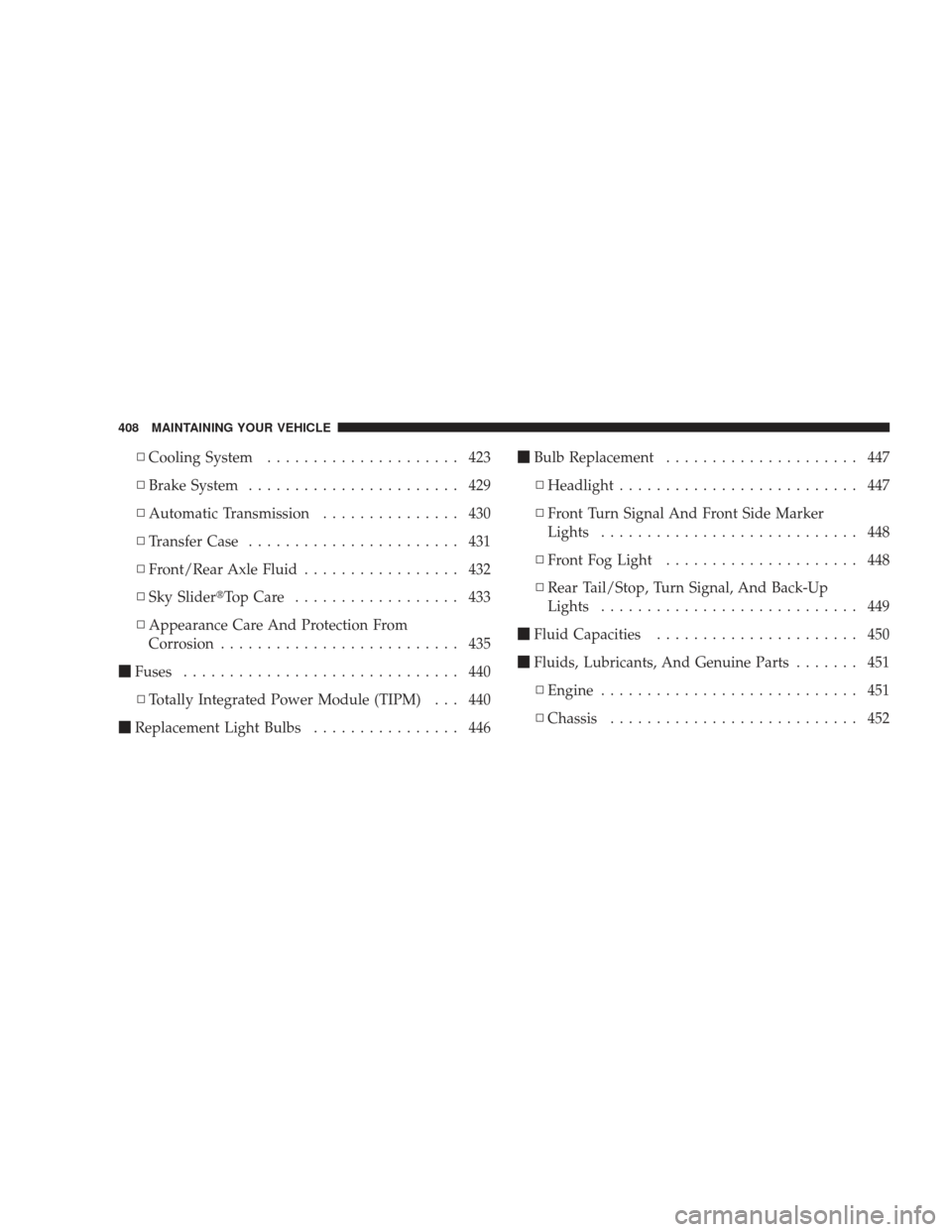

▫Cooling System ..................... 423
▫ Brake System ....................... 429
▫ Automatic Transmission ............... 430
▫ Transfer Case ....................... 431
▫ Front/Rear Axle Fluid ................. 432
▫ Sky SliderTopCare .................. 433
▫ Appearance Care And Protection From
Corrosion .......................... 435
 Fuses .............................. 440
▫ Totally Integrated Power Module (TIPM) . . . 440
 Replacement Light Bulbs ................ 446
Bulb Replacement ..................... 447
▫ Headlight .......................... 447
▫ Front Turn Signal And Front Side Marker
Lights ............................ 448
▫ Front Fog Light ..................... 448
▫ Rear Tail/Stop, Turn Signal, And Back-Up
Lights ............................ 449
 Fluid Capacities ...................... 450
 Fluids, Lubricants, And Genuine Parts ....... 451
▫ Engine ............................ 451
▫ Chassis ........................... 452
