hood open JEEP LIBERTY 2009 KK / 2.G Owners Manual

Voice Recognition (VR) System —
If Equipped .......................... 122
▫ Voice Recognition (VR) System Operation . . . 122
▫ Commands ........................ 124
▫ Voice Training ...................... 127
 Seats .............................. 127
▫ Manual Front Seat Adjustments .......... 127
▫ Recliner Adjustment .................. 128
▫ Lumbar Support — If Equipped .......... 129
▫ Fold-Flat Front Passenger Seat — If
Equipped .......................... 129
▫ Power Seat — If Equipped .............. 130
▫ Head Restraints ..................... 131
▫ Heated Seats — If Equipped ............ 132▫
60/40 Split Folding Rear Seat With Fold-Flat
Feature ........................... 133
 Driver Memory Seat — If Equipped ........ 136
▫ Programming The Memory Feature ....... 136
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory ........... 138
▫ Memory Position Recall ................ 138
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ................... 139
 To Open And Close The Hood ............ 140
 Lights ............................. 142
▫ Exterior And Interior Lighting Control ..... 142
▫ Headlights And Parking Lights .......... 143
▫ Automatic Headlights — If Equipped ...... 143
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•The Easy Entry/Easy Exit feature is disabled when the
driver’s seat position is less than 0.9 in (23 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit
or Easy Entry.
Each stored memory setting will have an associated Easy
Entry and Easy Exit position.
NOTE: The Easy Entry/Easy Exit feature can be turned
on or off through the programmable features in the EVIC.
For details, refer to “Automatically Move Seat Back on
Exit,” under “Personal Settings (Customer-
Programmable Features)” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4 of this manual.

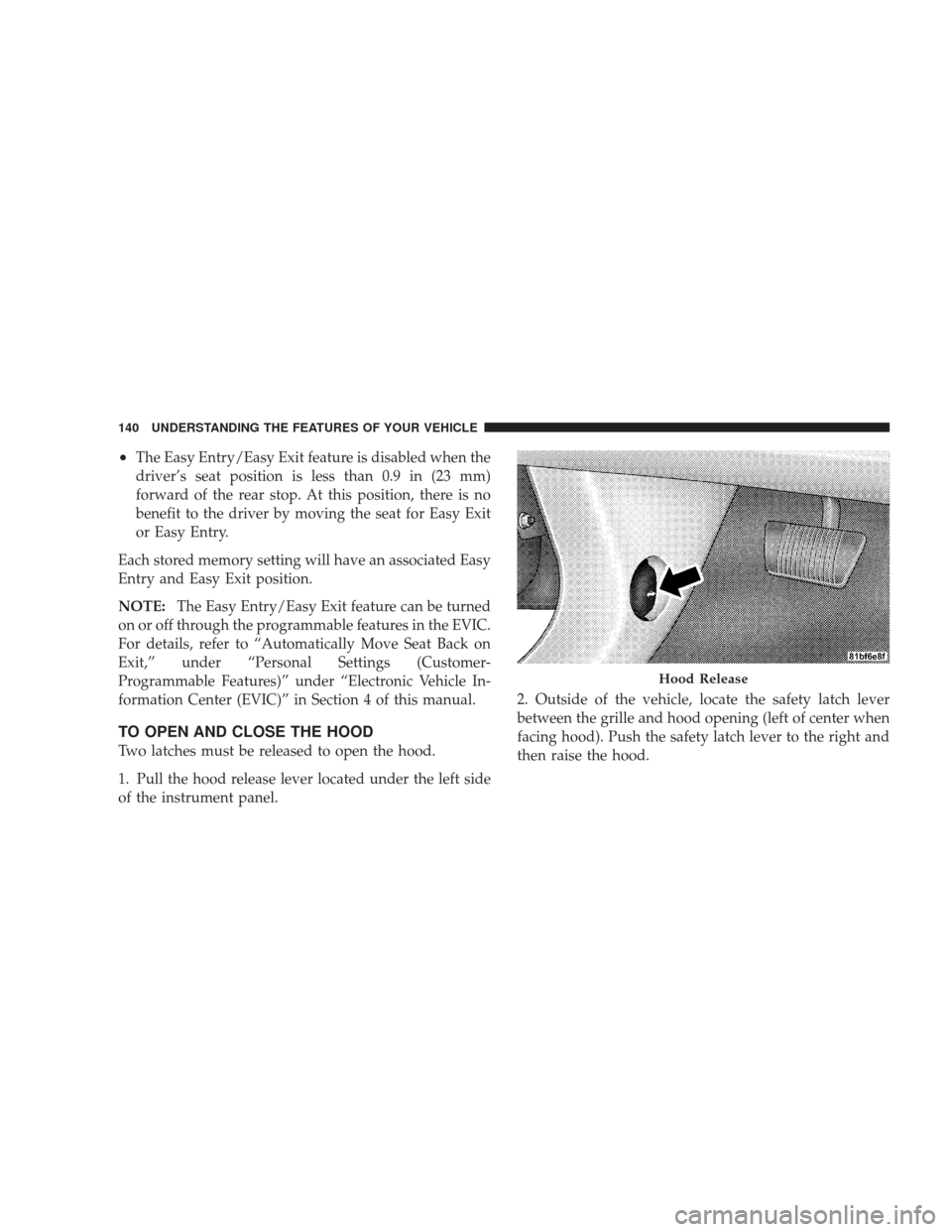

TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel. 2. Outside of the vehicle, locate the safety latch lever
between the grille and hood opening (left of center when
facing hood). Push the safety latch lever to the right and
then raise the hood.
Hood Release
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Use the hood prop rod to secure the hood in the open
position. Place the upper end of the prop rod in the hole
on the underside of the hood.
Underhood Safety LatchHood Prop Rod Hole Location
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

To minimize the possibility of catalytic converter dam-
age:
•Do not shut off the engine or interrupt the ignition
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle.
•Do not idle the engine with any ignition coil connec-
tors disconnected for prolonged periods.
•Do not idle the engine for prolonged periods during
very rough idle or malfunctioning operating condi-
tions.
•Do not allow vehicle to run out of fuel.
Cooling System
WARNING!
•You or others can be badly burned by hot coolant
or steam from your radiator. If you see or hear
steam coming from under the hood, do not open
the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap
when the radiator is hot.
Engine Coolant Checks
Check the engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where
applicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed, and refilled with fresh coolant. Check the front
of the A/C condenser (if equipped) or radiator for any
accumulation of bugs, leaves, etc. If dirty, clean by gently
MAINTAINING YOUR VEHICLE 423
7

BULB REPLACEMENT
Headlight
1. Open the hood.
2. Reach behind the headlight housing to access the
headlight bulb lock ring.
3. Firmly grasp the lock ring and rotate it counterclock-
wise to unlock it.
4. Remove the bulb and connector assembly from the
headlight housing.
5. Disconnect the bulb from the electrical connector and
then connect the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the
headlight housing and rotate the lock ring clockwise to
lock it in place.
7. Close the hood.
MAINTAINING YOUR VEHICLE 447
7

Front Turn Signal and Front Side Marker Lights
1. Turn the steering wheel all the way to the right to
access the left front turn signal or side marker. Turn the
steering wheel all the way to the left to access the right
front turn signal or side marker.
2. Remove three push-pins from the wheel-well liner.
3. Gently flex the wheel-well liner forward to access the
bulb.
4. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the housing.
5. Pull the bulb out of the socket and insert the replace-
ment bulb.
6. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
7. Reposition the wheel-well liner and install the
push-pins.
Front Fog Light
1. Open the hood.
2. Reach behind the headlight housing to access the bulb.
3. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the fog light housing.
4. Pull the bulb out of the socket and insert the replace-
ment bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Install the bulb and socket assembly into the into the
fog light housing, and rotate the connector clockwise to
lock it in place.
448 MAINTAINING YOUR VEHICLE

6. Close the hood.
Rear Tail/Stop, Turn Signal, and Back-Up Lights
1. Open the liftgate.
2. Remove the screws that fasten the taillight housing to
the vehicle.
3. Pull the taillight housing straight back to separate it
from the vehicle.
4. Disconnect the electrical connector.
5. Remove the two screws that fasten the back plate to
the taillight housing.6. Separate the back plate from the taillight housing.
7. Pull the appropriate bulb(s) out of the back plate and
insert the replacement bulb(s).
8. Install the back plate and screws into the taillight
housing.
9. Connect the electrical connector.
10. Install the taillight housing and screws.
11. Close the liftgate.
MAINTAINING YOUR VEHICLE 449
7

Automatic........................... 143
Bulb Replacement ...................... 447
Cleaning ............................ 439
Delay .............................. 144
High Beam/Low Beam Select Switch ........ 147
Lights On Reminder .................... 145
On With Wipers .................... 143,152
Passing ............................. 147
Replacing ........................... 447
Switch ........................... 142,143
Time Delay .......................... 144
Heated Mirrors .......................... 93
Heated Seats ........................... 132
Heater ............................... 274
Heater, Engine Block ..................... 293
High Beam Indicator ..................... 205
High Beam/Low Beam Select (Dimmer) Switch . . 147
Hill Descent Control ..................... 331
Hill Descent Control Indicator ............207,331Hill Start Assist
......................... 328
Hitches Trailer Towing ........................ 379
Holder, Coin ........................... 185
Holder, Cup ........................... 184
HomeLink (Garage Door Opener) Transmitter . . . 165
Hood Release .......................... 140
Ignition ............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint ........................ 71,72
Inflation Pressure Tires .................... 347
Information Center, Vehicle ................. 215
Inside Rearview Mirror .................... 90
Instrument Cluster .................... 201,202
Instrument Panel and Controls .............. 200
488 INDEX

Theft Alarm (Security Alarm)................ 18
Theft System (Security Alarm) ............... 18
Tie Down Hooks, Cargo ................... 188
Tilt Steering Column ..................... 154
Time Delay, Headlight .................... 144
Tip Start .............................. 291
Tire and Loading Information Placard ......... 342
Tire Identification Number (TIN) ............. 341
Tire Markings .......................... 337
Tire Safety Information .................... 337
Tires ............................ 83,346,476
Air Pressure .......................... 347
Chains .............................. 353
Changing ............................ 395
Compact Spare ........................ 350
General Information .................... 346
High Speed .......................... 349
Inflation Pressures ..................... 347
Jacking ............................. 395 Life of Tires
.......................... 352
Load Capacity ........................ 342
Pressure Monitor System (TPMS) ........... 356
Pressure Warning Light .................. 202
Quality Grading ....................... 476
Radial .............................. 349
Replacement ......................... 352
Rotation ............................ 355
Safety .............................. 337
Sizes ............................... 339
Spare Tire ........................... 396
Spinning ............................ 351
Tread Wear Indicators ................... 351
To Open Hood .......................... 140
Tongue Weight/Trailer Weight .............. 382
Torque Converter Clutch .................. 301
Tow/Haul Indicator Light ................. 207
Towing ............................... 374
24-Hour Towing Assistance ............... 108
498 INDEX

INTRODUCTION INTRODUCTION ROLLOVER WARNING HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD
ABOUT YOUR KEYS Ignition Key RemovalKey-In-Ignition ReminderSENTRY KEY Replacement KeysCustomer Key ProgrammingGeneral InformationVEHICLE SECURITY ALARM - IF EQUIPPED Rearming of the SystemTo Arm the SystemTo Disarm the System
ILLUMINATED ENTRY SYSTEM REMOTE KEYLESS ENTRY (RKE) To Unlock the Doors and LiftgateTo Lock the Doors and LiftgateTo Unlatch the Liftgate Flip-Up WindowExpress Down Window Feature - If EquippedUsing the PANIC AlarmProgramming Additional
TransmittersBattery ReplacementGeneral InformationREMOTE STARTING SYSTEM - IF EQUIPPED How To Use Remote StartDOOR LOCKS Manual Door LocksPower Door LocksChild-Protection Door Lock System (Rear Doors)WINDOWS Power WindowsWind Buffeting
LIFTGATE Liftgate Flipper GlassOCCUPANT RESTRAINTS Lap/Shoulder BeltsLap/Shoulder Belt Untwisting ProcedureSeat Belt Pretensioner - If EquippedEnhanced Seat Belt Use Reminder System (BeltAlert)Automatic Locking Mode - If EquippedEnergy Management
FeatureSeat Belts and Pregnant WomenSeat Belt ExtenderDriver and Front Passenger Supplemental Restraint System (SRS) - AirbagsChild RestraintENGINE BREAK-IN RECOMMENDATIONS SAFETY TIPS Transporting PassengersExhaust GasSafety Checks You Should
Make Inside the VehiclePeriodic Safety Checks You Should Make Outside the VehicleUNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night MirrorAutomatic Dimming Mirror - If EquippedOutside MirrorsPower MirrorsHeated Mirrors - If
EquippedIlluminated Vanity Mirrors - If EquippedSun Visor Slide-On Rod Feature - If Equippeduconnect phone - IF EQUIPPED OperationPhone Call Featuresuconnect phone FeaturesAdvanced Phone ConnectivityThings You Should Know About Your uconnect phoneGeneral
InformationVOICE RECOGNITION (VR) SYSTEM - IF EQUIPPED Voice Recognition (VR) System OperationCommandsVoice TrainingSEATS Manual Front Seat AdjustmentsRecliner AdjustmentLumbar Support - If EquippedFold-Flat Front Passenger Seat - If Equipped
Power Seat - If EquippedHead RestraintsHeated Seats - If Equipped60/40 Split Folding Rear Seat with Fold-Flat FeatureDRIVER MEMORY SEAT - IF EQUIPPED Programming the Memory FeatureLinking and Unlinking the Remote Keyless Entry Transmitter to Memory
Memory Position RecallEasy Entry/Exit Seat (Available with Memory Seat Only)TO OPEN AND CLOSE THE HOOD LIGHTS Exterior and Interior Lighting ControlHeadlights and Parking LightsAutomatic Headlights - If EquippedHeadlights with Wipers (Available with Auto
Headlights Only)Headlight Time Delay - If EquippedDaytime Running Lights (DRL) - If EquippedLights-On ReminderFog Lights - If EquippedTurn SignalsHigh Beam/Low Beam Select SwitchFlash-To-PassInterior LightsWINDSHIELD WIPERS AND WASHERS Intermittent
Wiper SystemMist FeatureHeadlights with Wipers (Available with Auto Headlights Only)Rain Sensing Wipers - If EquippedWindshield WashersTILT STEERING COLUMN ELECTRONIC SPEED CONTROL - IF EQUIPPED To ActivateTo Set a Desired SpeedTo Deactivate
To Resume SpeedTo Vary the Speed SettingTo Accelerate for PassingREAR PARK ASSIST SYSTEM - IF EQUIPPED System Usage PrecautionsEnabling and Disabling the SystemSystem OperationGARAGE DOOR OPENER - IF EQUIPPED Programming HomeLinkGate
Operator/Canadian ProgrammingUsing HomeLinkReprogramming A Single HomeLink ButtonSecurityTroubleshooting TipsGeneral InformationPOWER SUNROOF - IF EQUIPPED Opening Sunroof - ExpressOpening Sunroof - Manual ModeClosing Sunroof - ExpressClosing
Sunroof - Manual ModePinch Protect FeaturePinch Protect OverrideVenting Sunroof - ExpressSunshade OperationWind BuffetingSunroof MaintenanceIgnition Off OperationSKY SLIDER FULL LENGTH OPEN ROOF Sky Slider Usage PrecautionsSky Slider ControlOpening
the Sky SliderClosing the Sky SliderAnti-Pinch Protect FeatureWind BuffetingSky Slider MaintenanceELECTRICAL POWER OUTLET POWER INVERTER - IF EQUIPPED CUPHOLDERS STORAGE Front Storage CompartmentConsole Storage CompartmentCARGO AREA
FEATURES Cargo Load FloorREAR WINDOW FEATURES Rear Window Wiper/Washer - If EquippedRear Window DefrosterROOF LUGGAGE RACK - IF EQUIPPED UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES INSTRUMENT
CLUSTER INSTRUMENT CLUSTER DESCRIPTIONS ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) - IF EQUIPPED Electronic Vehicle Information Center (EVIC) DisplaysOil Change RequiredTrip FunctionsCompass DisplayPersonal Settings
(Customer-Programmable Features)SALES CODE REQ - AM/FM STEREO RADIO AND 6-DISC CD/DVD CHANGER
(MP3/WMA AUX JACK) Operating Instructions - Radio ModeOperation Instructions - (DISC MODE for CD and MP3/WMA Audio Play, DVD-VIDEO)Notes On Playing MP3/WMA FilesLIST Button (DISC Mode for MP3/WMA Play)INFO Button (DISC Mode for MP3/WMA Play)
AM/FM/CD/DVD RADIO (RER/REN) - IF EQUIPPED Operating Instructions - Voice Recognition System (VR) - If EquippedOperating Instructions - uconnect phone - If EquippedClock Setting ProcedureSALES CODE RES - AM/FM STEREO RADIO WITH CD PLAYER (MP3
AUX JACK) Operating Instructions - Radio ModeOperation Instructions - CD MODE For CD And MP3 Audio PlayNotes on Playing MP3 FilesOperation Instructions - Auxiliary ModeSALES CODE RES/RSC - AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK)
AND SIRIUS RADIO Operating Instructions - Radio ModeOperation Instructions - CD MODE for CD and MP3 Audio PlayNotes On Playing MP3 FilesLIST Button (CD Mode for MP3 Play)INFO Button (CD Mode for MP3 Play)uconnect studios (SATELLITE RADIO) - IF
EQUIPPED (REN/REQ/RER/RES/REU RADIOS ONLY) System ActivationElectronic Serial Number/Sirius Identification Number (ESN/SID)Selecting uconnect studios (Satellite) ModeSatellite AntennaReception QualityOperating Instructions - uconnect studios (Satellite)
ModeOperating Instructions - uconnect phone (If Equipped)Operating Instructions - Video Entertainment System (VES) (If Equipped)REMOTE SOUND SYSTEM CONTROLS - IF EQUIPPED Right-Hand Switch FunctionsLeft-Hand Switch Functions for Radio Operation
Left-Hand Switch Functions for Media (i.e., CD) OperationCD/DVD MAINTENANCE CLIMATE CONTROLS Manual Air Conditioning and Heating System Automatic Temperature Control (ATC) - If Equipped Operating TipsSTARTING AND OPERATING STARTING
PROCEDURES Normal StartingExtreme Cold Weather (below -20 degrees F or -29 degrees C)If Engine Fails to StartAfter StartingENGINE BLOCK HEATER - IF EQUIPPED AUTOMATIC TRANSMISSION Brake/Transmission Shift Interlock SystemBrake/Transmission
Interlock Manual Override4-Speed Automatic TransmissionFOUR-WHEEL DRIVE OPERATION MP1522 Command-Trac Transfer Case - If EquippedMP3022 Selec-Trac II Transfer Case - If EquippedON-ROAD DRIVING TIPS OFF-ROAD DRIVING TIPS When To Use 4WD
LOW RangeDriving Through WaterDriving In Snow, Mud and SandHill ClimbingTraction DownhillAfter Driving Off-RoadPOWER STEERING Power Steering Fluid CheckPARKING BRAKE ANTI-LOCK BRAKE SYSTEM ELECTRONIC BRAKE CONTROL SYSTEM Anti-Lock
Brake System (ABS)Traction Control System (TCS)Brake Assist System (BAS)Electronic Roll Mitigation (ERM)Trailer Sway Control (TSC) - If EquippedHill Start Assist (HSA)Hill Descent Control (HDC) - If EquippedElectronic Stability Program (ESP)ESP/BAS Warning Light
and ESP/TCS Indicator LightTIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation PressuresTire Pressures For High Speed OperationRadial-Ply Tires
Compact Spare Tire - If EquippedTire SpinningTread Wear IndicatorsLife Of TireReplacement TiresTIRE CHAINS TIRE ROTATION RECOMMENDATIONS TIRE PRESSURE MONITOR SYSTEM (TPMS) Base SystemPremium System - If EquippedGeneral InformationFUEL
REQUIREMENTS Reformulated GasolineGasoline/Oxygenate BlendsE-85 Usage In Non-Flex Fuel VehiclesMMT In GasolineMaterials Added To FuelFuel System CautionsCarbon Monoxide WarningsADDING FUEL Fuel Filler Cap (Gas Cap)Loose Fuel Filler Cap Message
VEHICLE LOADING Certification LabelTRAILER TOWING Common Towing DefinitionsTrailer Hitch ClassificationTrailer Towing Weights (Maximum Trailer Weight Ratings)Trailer and Tongue WeightTowing RequirementsTowing TipsRECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) Towing - Two-Wheel Drive ModelsTowing - Four-Wheel Drive ModelsWHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER IF YOUR ENGINE OVERHEATS JACKING AND TIRE CHANGING Jack LocationSpare Tire StowageSpare Tire
RemovalPreparations For JackingJacking InstructionsJUMP-STARTING TOWING A DISABLED VEHICLE MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 3.7L ONBOARD DIAGNOSTIC SYSTEM - OBD II Loose Fuel Filler Cap MessageEMISSIONS
INSPECTION AND MAINTENANCE PROGRAMS REPLACEMENT PARTS DEALER SERVICE MAINTENANCE PROCEDURES Engine OilEngine Oil FilterEngine Air Cleaner FilterMaintenance-Free BatteryAir Conditioner MaintenanceA/C Air Filter - If EquippedBody
LubricationWindshield Wiper BladesAdding Washer FluidExhaust SystemCooling SystemBrake SystemAutomatic TransmissionTransfer CaseFront/Rear Axle FluidSky SliderTop CareAppearance Care and Protection from CorrosionFUSES Totally Integrated Power Module
(TIPM)REPLACEMENT LIGHT BULBS BULB REPLACEMENT HeadlightFront Turn Signal and Front Side Marker LightsFront Fog LightRear Tail/Stop, Turn Signal, and Back-Up LightsFLUID CAPACITIES FLUIDS, LUBRICANTS, AND GENUINE PARTS EngineChassis
MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE MAINTENANCE SCHEDULE Required Maintenance IntervalsIF YOU NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare For
The AppointmentPrepare A ListBe Reasonable With RequestsIF YOU NEED ASSISTANCE Chrysler LLC Customer CenterChrysler Canada Inc. Customer CenterIn Mexico contactCustomer Assistance For The Hearing Or Speech Impaired (TDD/TTY)Service Contract
WARRANTY INFORMATION (U.S. Vehicles Only) MOPAR PARTS REPORTING SAFETY DEFECTS In The 50 United States And Washington, D.CIn CanadaPUBLICATION ORDER FORMS DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES
TreadwearTraction GradesTemperature GradesINDEX
