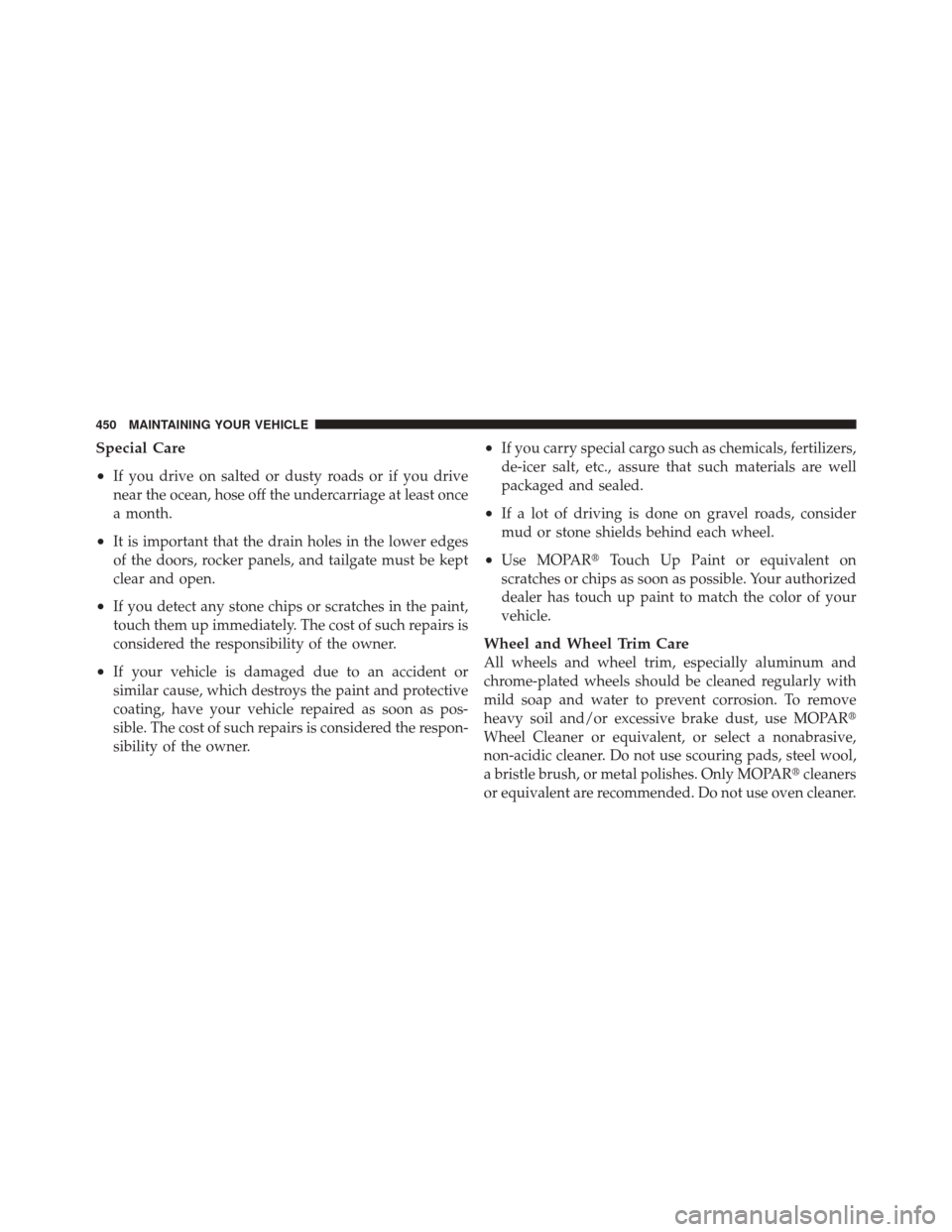

Special Care
•
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•It is important that the drain holes in the lower edges
of the doors, rocker panels, and tailgate must be kept
clear and open.
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to an accident or
similar cause, which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., assure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MOPARTouch Up Paint or equivalent on
scratches or chips as soon as possible. Your authorized
dealer has touch up paint to match the color of your
vehicle.
Wheel and Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels should be cleaned regularly with
mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR
Wheel Cleaner or equivalent, or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPAR cleaners
or equivalent are recommended. Do not use oven cleaner.
450 MAINTAINING YOUR VEHICLE

Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
Stain Repel Fabric Cleaning Procedure — If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:
•Remove as much of the stain as possible by blotting
with a clean, dry towel.
•Blot any remaining stain with a clean, damp towel.
•For tough stains, apply MOPARTotal Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.
•For grease stains, apply MOPAR Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
Interior Care
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
7
MAINTAINING YOUR VEHICLE 451

Cleaning Interior Trim
Clean interior trim with a damp cloth and MOPARTotal
Clean or equivalent, and if necessary, follow with MO-
PAR Spot & Stain Remover or equivalent. Do not use
harsh cleaners or Armor All. Use MOPAR Total Clean
or equivalent to clean vinyl upholstery.
Cleaning Leather Upholstery
MOPAR Total Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean or equivalent. Care should be
taken to avoid soaking leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean leather upholstery. Application of a leather conditioner is
not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
452 MAINTAINING YOUR VEHICLE

Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic. 1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Dry with a soft cloth. Do not remove the
seat belts from the car to wash them.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
7
MAINTAINING YOUR VEHICLE 453

FUSES

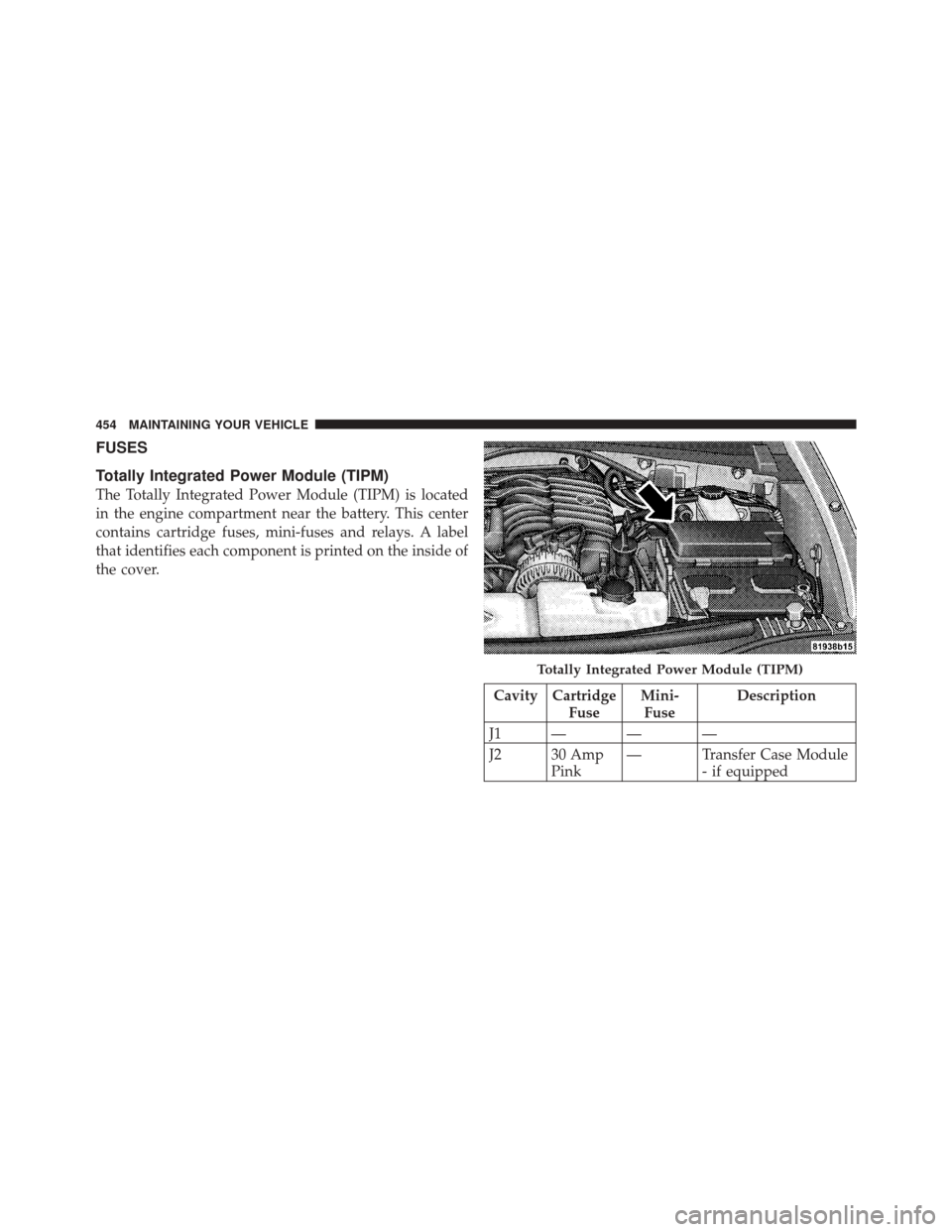

Totally Integrated Power Module (TIPM)
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini-fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity CartridgeFuseMini-
Fuse Description
J1 — — —
J2 30 Amp Pink — Transfer Case Module
- if equipped
Totally Integrated Power Module (TIPM)
454 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
J3 30 Amp Pink — Rear Door Modules
J4 25 Amp White — Driver Door Node
J5 25 Amp White — Passenger Door Node
J6 40 Amp Green — Anti-Lock Brake Sys-
tem (ABS) Pump/ESP
- if equipped
J7 30 Amp Pink — Anti-Lock Brake Sys-
tem (ABS) Valve/ESP
- if equipped
J8 40 Amp Green — Power Seats - if
equipped
J9 40 Amp Green — PZEV/Flex Fuel - if
equippedCavity CartridgeFuseMini-
Fuse Description
J10 30 Amp Pink — Headlamp Wash Re-
lay - if equipped/
Man Tuning Valve - if
equipped
J11 30 Amp Pink — Sway Bar - if
equipped/Thatchm
Lk-Ulk - if equiped/
Pwr Sld Dr Mod - if
equipped
J13 60 Amp Yellow — Ignition Off Draw
(IOD)
J14 40 Amp Green — EBL (Rear Window
Defogger) - if
equipped
J15 30 Amp Pink — Rear Blower - if
equipped
7
MAINTAINING YOUR VEHICLE 455

Cavity CartridgeFuseMini-
Fuse Description
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
Module (PCM) Trans-
mission Relay
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper
J21 20 Amp Blue — Front Washer/Rear
Washer - if equipped
J22 25 Amp White — Sunroof Module - if
equipped
M1 — 15 Amp BlueStop Light Switch
Feed — Center High
Mounted Stop Light
(CHMSL)Cavity Cartridge
FuseMini-
Fuse Description
M2 — 20 Amp YellowTrailer Lighting - if
equipped
M3 — 20 Amp YellowFrt/Rr Axle Lockers -
if equipped
M4 — 10 Amp RedTrailer Tow - if
equipped
M5 — 25 Amp NaturalPower Inverter – if
equipped
M6 — 20 Amp YellowPower Outlet #1 (ci-
gar lighter)/Rain Sen-
sor - if equipped/
Trailer Tow - if
equipped
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC SELECT)
M8 — 20 Amp YellowFront Heated Seats -
if equipped
456 MAINTAINING YOUR VEHICLE

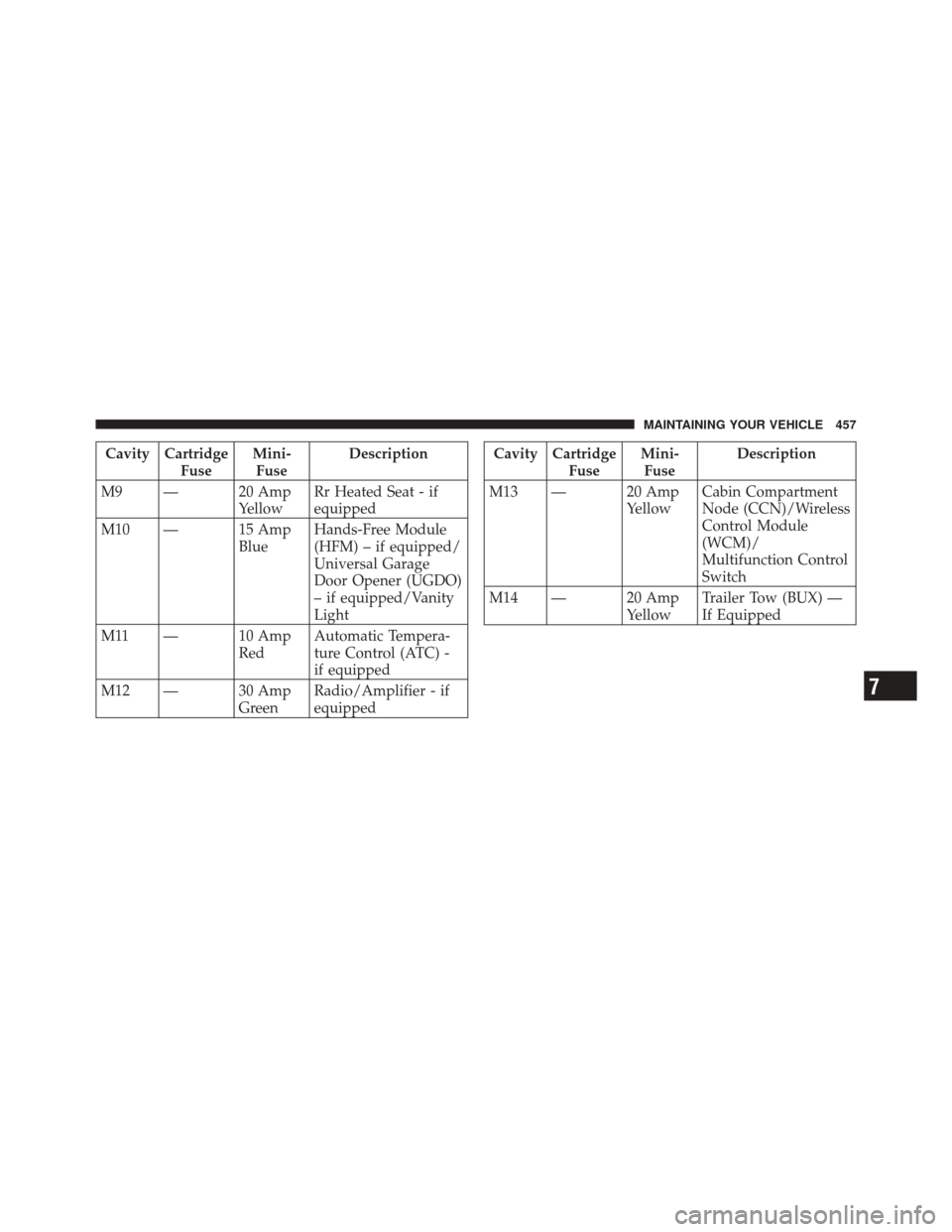

Cavity CartridgeFuseMini-
Fuse Description
M9 — 20 Amp YellowRr Heated Seat - if
equipped
M10 — 15 Amp BlueHands-Free Module
(HFM) – if equipped/
Universal Garage
Door Opener (UGDO)
– if equipped/Vanity
Light
M11 — 10 Amp RedAutomatic Tempera-
ture Control (ATC) -
if equipped
M12 — 30 Amp GreenRadio/Amplifier - if
equippedCavity Cartridge
FuseMini-
Fuse Description
M13 — 20 Amp YellowCabin Compartment
Node (CCN)/Wireless
Control Module
(WCM)/
Multifunction Control
Switch
M14 — 20 Amp YellowTrailer Tow (BUX) —
If Equipped
7
MAINTAINING YOUR VEHICLE 457

Cavity CartridgeFuseMini-
Fuse Description
M15 — 20 Amp YellowMultifunction Control
Switch/Cabin Com-
partment Node
(CCN)/Steering Col-
umn Control Module
(SCM)/Rear View
Mirror/Tire Pressure
Monitor (TPM) - if
equipped/IR Sensor -
if equipped/Transfer
Case Module - if
equipped
M16 — 10 Amp RedOccupant Restraint
Controller (ORC)Cavity Cartridge
FuseMini-
Fuse Description
M17 — 15 Amp BlueExterior Lighting —
Left Front Park and
Side Marker, Left Tail
and Running, License
Lights
M18 — 15 Amp BlueExterior Lighting —
Right Front Park and
Side Marker, Right
Tail and Running
Lights
M19 — 25 Amp NaturalAuto Shut Down
(ASD) #1 and #2
458 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
M20 — 15 Amp BlueInterior Lighting/
Steering Wheel
Switches - if
equipped/Switch
Bank/Electronic Ve-
hicle Information
Center (EVIC) - if
equipped
M21 — 20 Amp YellowAuto Shut Down
(ASD) #3
M22 — 10 Amp RedRight Horn (Hi/Low)
M23 — 10 Amp RedLeft Horn (Hi/Low)
M24 — 25 Amp NaturalRear Wiper - if
equippedCavity Cartridge
FuseMini-
Fuse Description
M25 — 20 Amp YellowFuel Pump
M26 — 10 Amp RedPower Mirror Switch/
Driver Window
Switch
M27 — 10 Amp RedIgnition Switch/
Wireless Control
Module (WCM)/
Steering Column Lock
- if equipped
M28 — 10 Amp RedPowertrain Control
Module (PCM)
M29 — 10 Amp RedOccupant Classifica-
tion Module (OCM)
M30 — 15 Amp BlueRear Wiper Module -
if equipped/
Diagnostic Link
7
