JEEP LIBERTY 2011 KK / 2.G Owners Manual

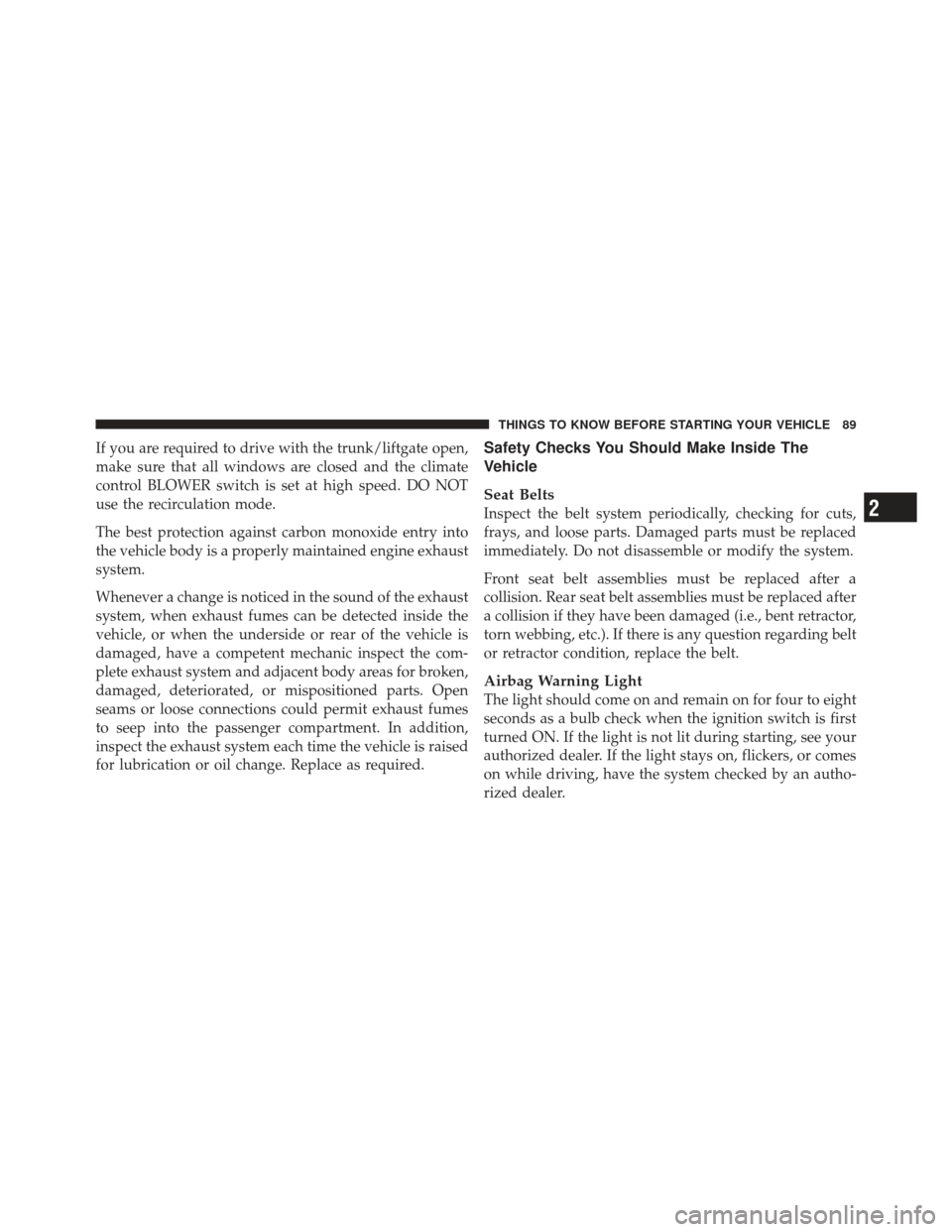

If you are required to drive with the trunk/liftgate open,
make sure that all windows are closed and the climate
control BLOWER switch is set at high speed. DO NOT
use the recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Airbag Warning Light
The light should come on and remain on for four to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89

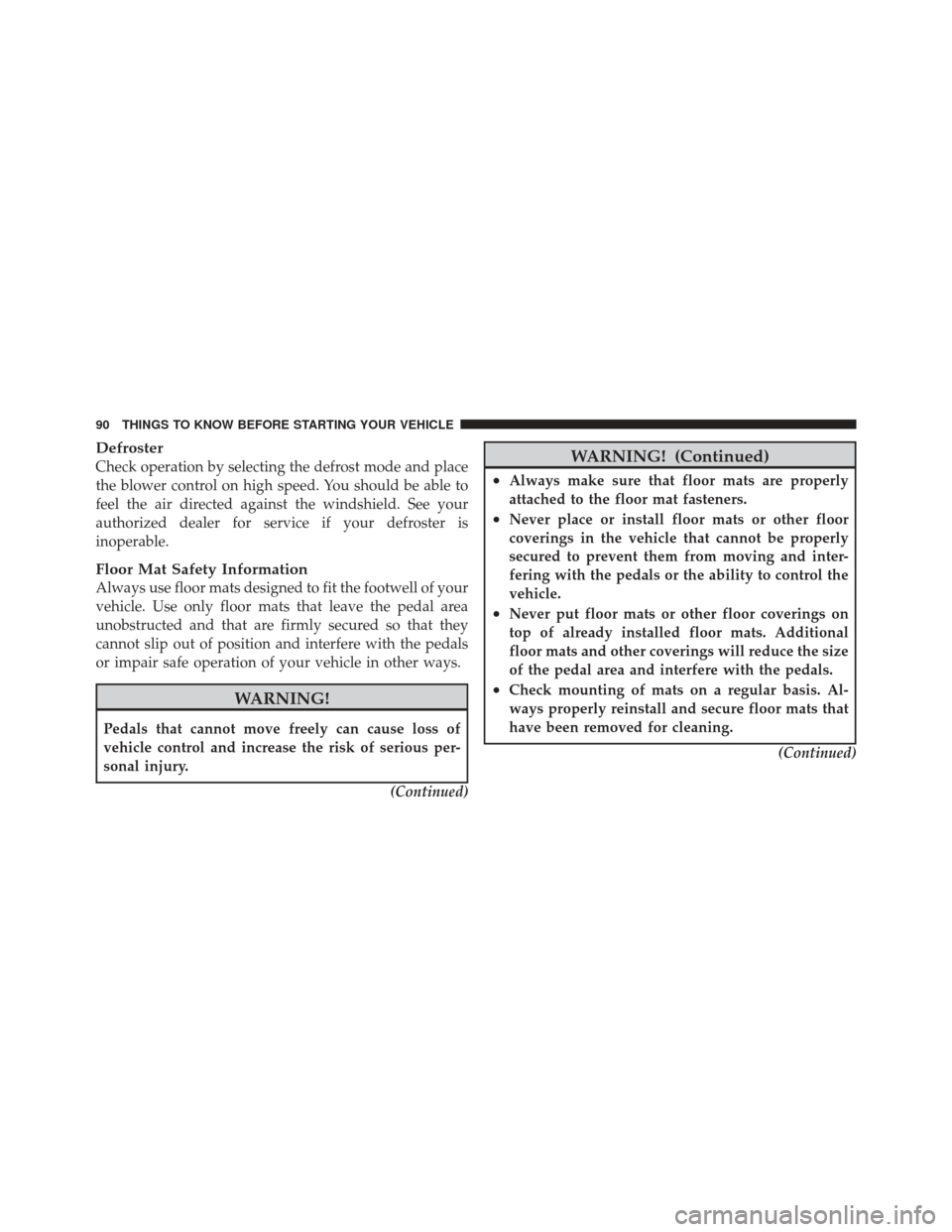

Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.(Continued)
WARNING! (Continued)
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and inter-
fering with the pedals or the ability to control the
vehicle.
•Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.
•Check mounting of mats on a regular basis. Al-
ways properly reinstall and secure floor mats that
have been removed for cleaning.(Continued)
90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

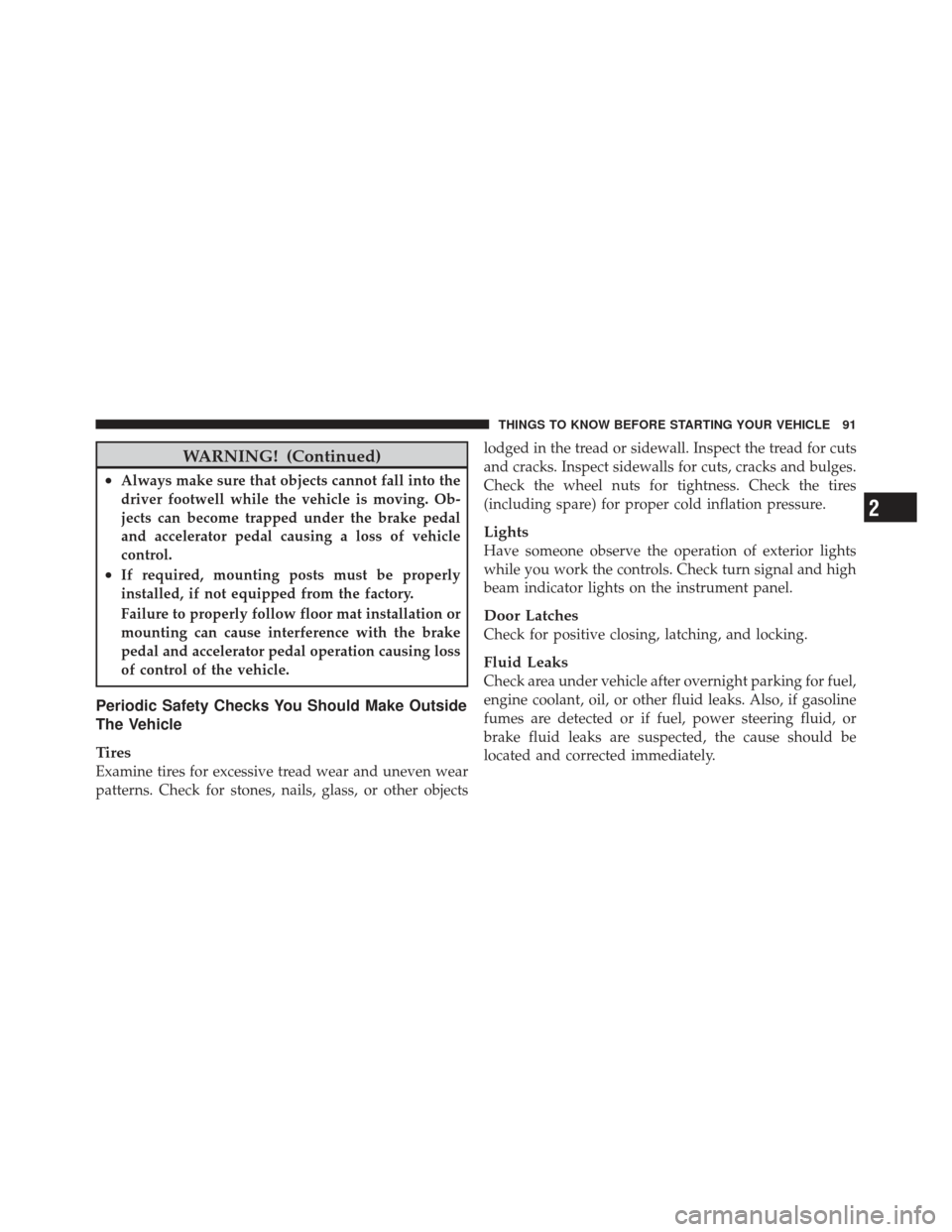

WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91

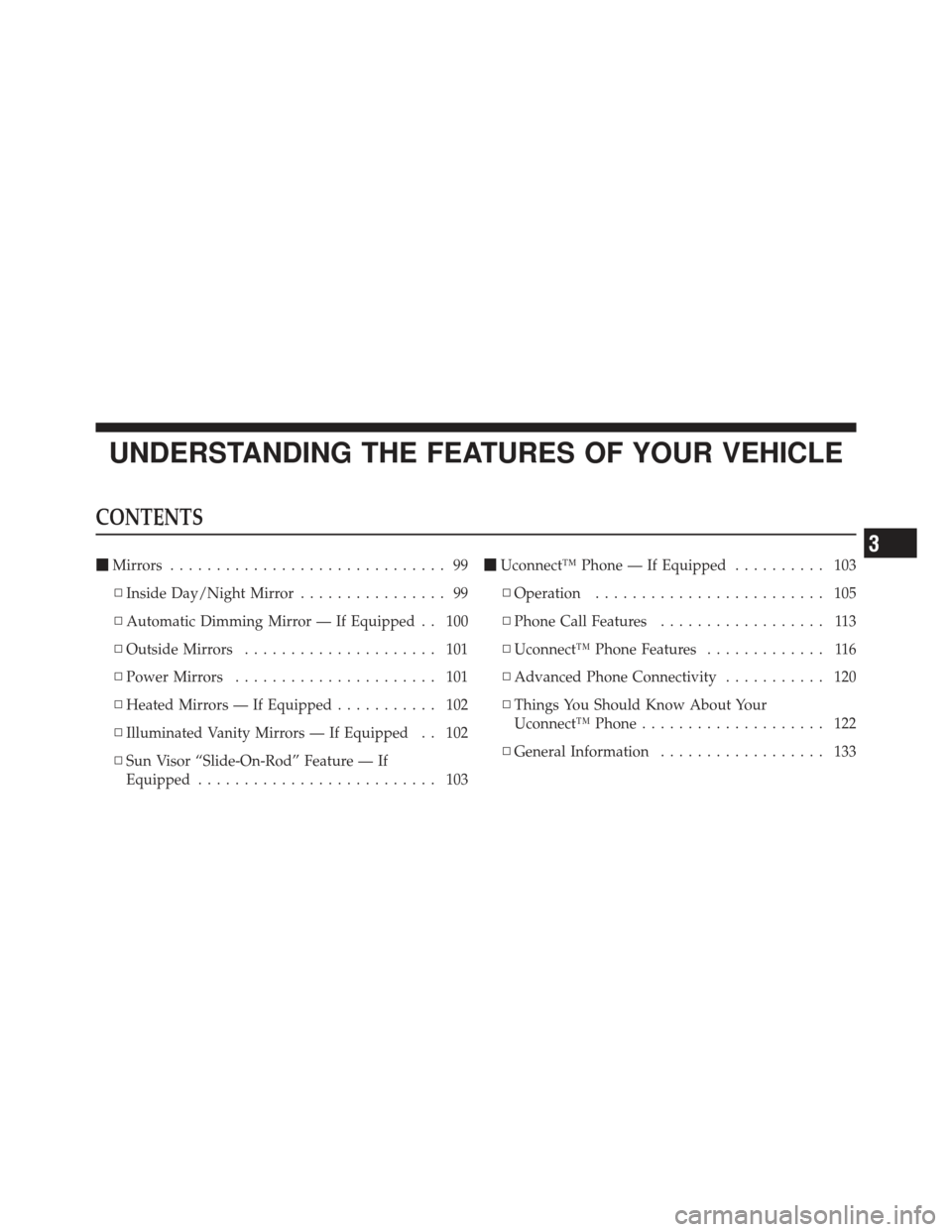

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 99
▫ Inside Day/Night Mirror ................ 99
▫ Automatic Dimming Mirror — If Equipped . . 100
▫ Outside Mirrors ..................... 101
▫ Power Mirrors ...................... 101
▫ Heated Mirrors — If Equipped ........... 102
▫ Illuminated Vanity Mirrors — If Equipped . . 102
▫ Sun Visor “Slide-On-Rod” Feature — If
Equipped .......................... 103
Uconnect™ Phone — If Equipped .......... 103
▫ Operation ......................... 105
▫ Phone Call Features .................. 113
▫ Uconnect™ Phone Features ............. 116
▫ Advanced Phone Connectivity ........... 120
▫ Things You Should Know About Your
Uconnect™ Phone .................... 122
▫ General Information .................. 133
3

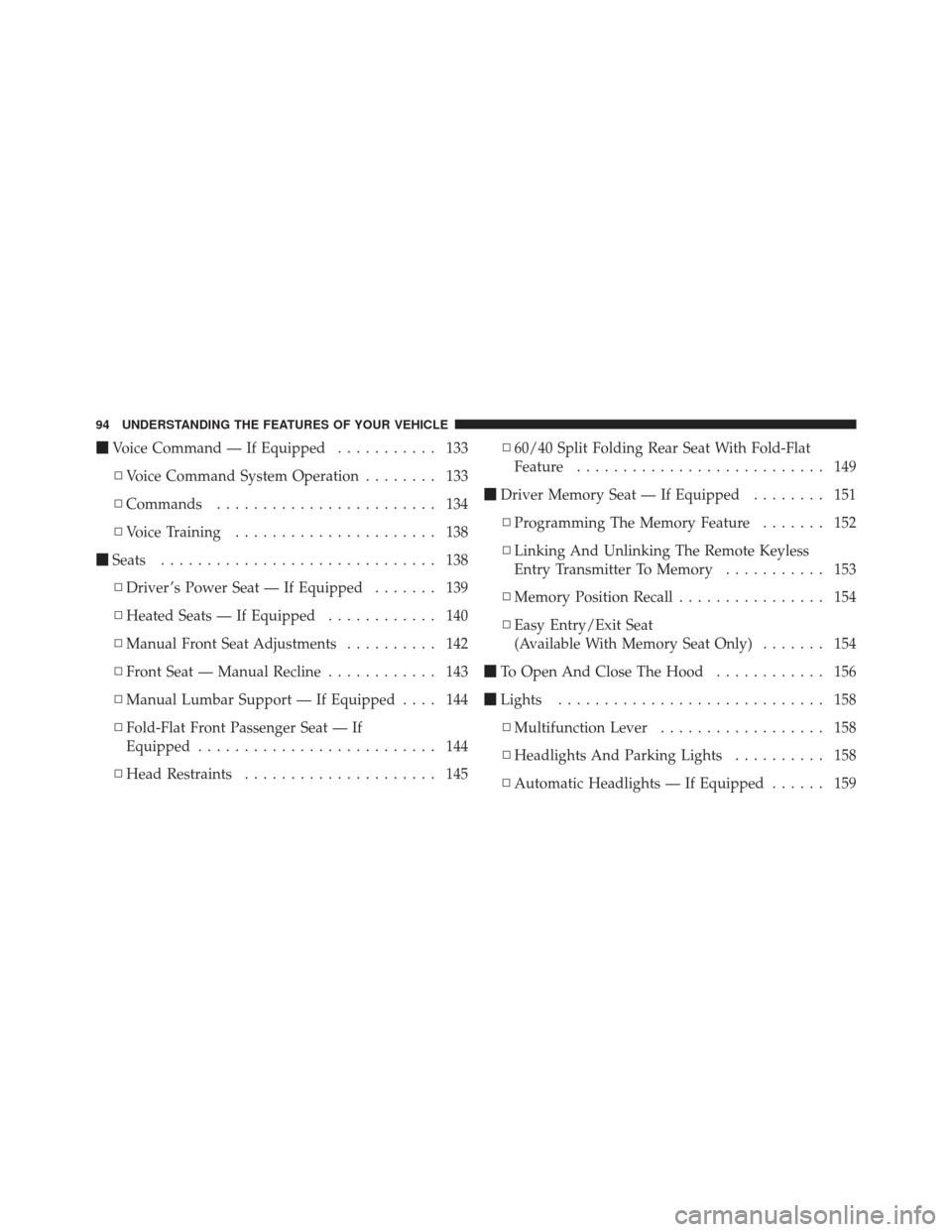

Voice Command — If Equipped ........... 133
▫ Voice Command System Operation ........ 133
▫ Commands ........................ 134
▫ Voice Training ...................... 138
 Seats .............................. 138
▫ Driver ’s Power Seat — If Equipped ....... 139
▫ Heated Seats — If Equipped ............ 140
▫ Manual Front Seat Adjustments .......... 142
▫ Front Seat — Manual Recline ............ 143
▫ Manual Lumbar Support — If Equipped .... 144
▫ Fold-Flat Front Passenger Seat — If
Equipped .......................... 144
▫ Head Restraints ..................... 145 ▫
60/40 Split Folding Rear Seat With Fold-Flat
Feature ........................... 149
 Driver Memory Seat — If Equipped ........ 151
▫ Programming The Memory Feature ....... 152
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory ........... 153
▫ Memory Position Recall ................ 154
▫ Easy Entry/Exit Seat
(Available With Memory Seat Only) ....... 154
 To Open And Close The Hood ............ 156
 Lights ............................. 158
▫ Multifunction Lever .................. 158
▫ Headlights And Parking Lights .......... 158
▫ Automatic Headlights — If Equipped ...... 159
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

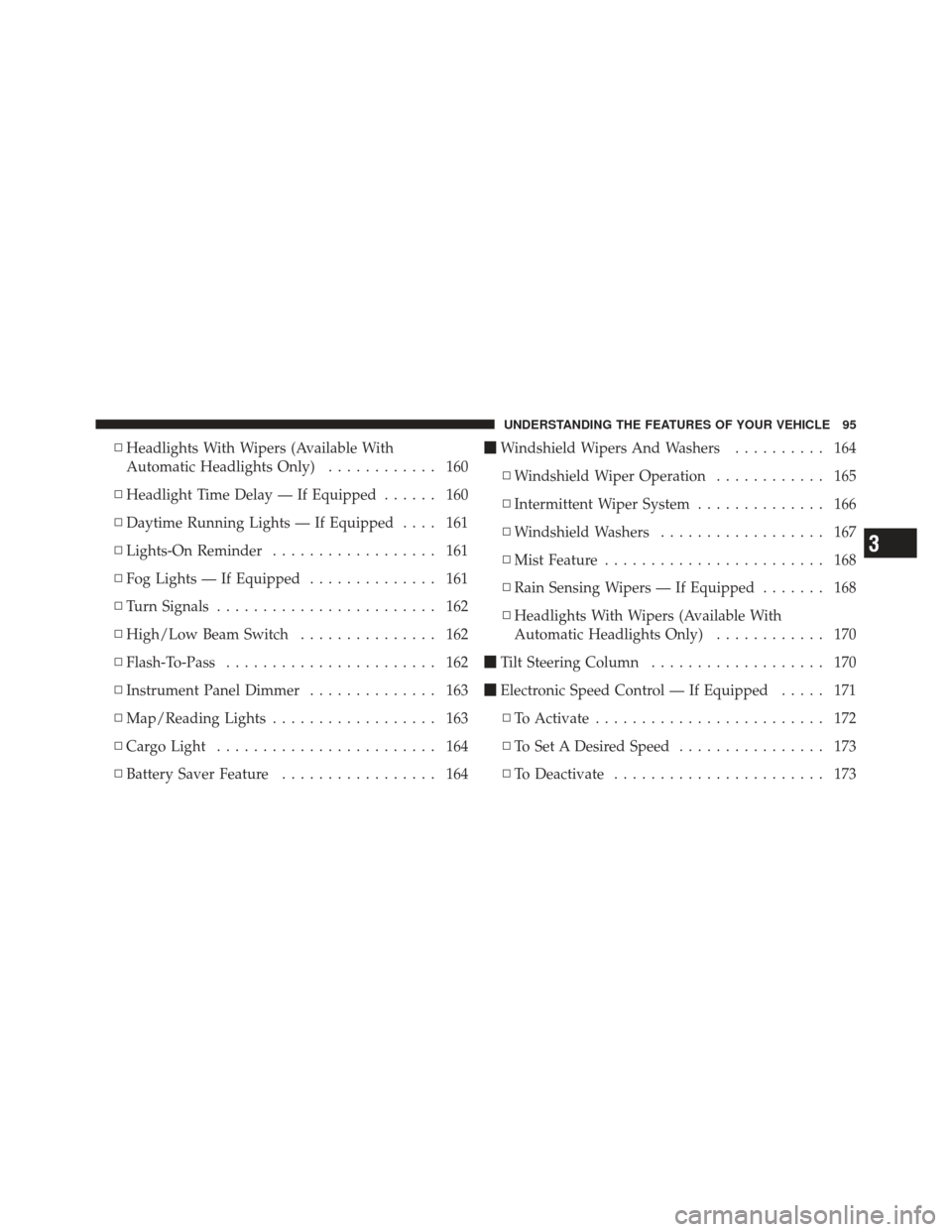

▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 160
▫ Headlight Time Delay — If Equipped ...... 160
▫ Daytime Running Lights — If Equipped .... 161
▫ Lights-On Reminder .................. 161
▫ Fog Lights — If Equipped .............. 161
▫ Turn Signals ........................ 162
▫ High/Low Beam Switch ............... 162
▫ Flash-To-Pass ....................... 162
▫ Instrument Panel Dimmer .............. 163
▫ Map/Reading Lights .................. 163
▫ Cargo Light ........................ 164
▫ Battery Saver Feature ................. 164
Windshield Wipers And Washers .......... 164
▫ Windshield Wiper Operation ............ 165
▫ Intermittent Wiper System .............. 166
▫ Windshield Washers .................. 167
▫ Mist Feature ........................ 168
▫ Rain Sensing Wipers — If Equipped ....... 168
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 170
 Tilt Steering Column ................... 170
 Electronic Speed Control — If Equipped ..... 171
▫ To Activate ......................... 172
▫ To Set A Desired Speed ................ 173
▫ To Deactivate ....................... 173
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

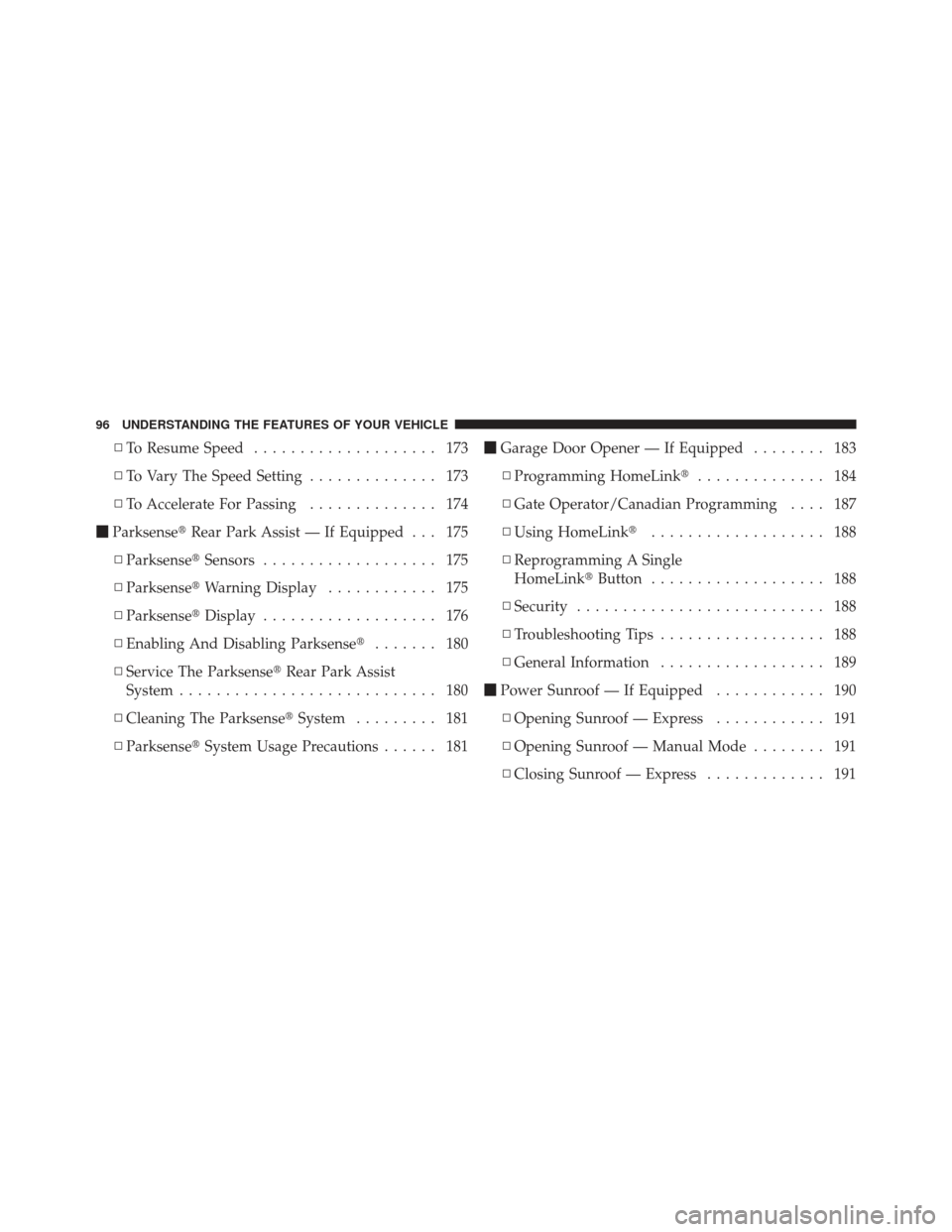

▫To Resume Speed .................... 173
▫ To Vary The Speed Setting .............. 173
▫ To Accelerate For Passing .............. 174
 Parksense Rear Park Assist — If Equipped . . . 175
▫ Parksense Sensors................... 175
▫ Parksense Warning Display ............ 175
▫ Parksense Display................... 176
▫ Enabling And Disabling Parksense ....... 180
▫ Service The Parksense Rear Park Assist
System ............................ 180
▫ Cleaning The Parksense System......... 181
▫ Parksense System Usage Precautions ...... 181
Garage Door Opener — If Equipped ........ 183
▫ Programming HomeLink .............. 184
▫ Gate Operator/Canadian Programming .... 187
▫ Using HomeLink ................... 188
▫ Reprogramming A Single
HomeLink Button................... 188
▫ Security ........................... 188
▫ Troubleshooting Tips .................. 188
▫ General Information .................. 189
 Power Sunroof — If Equipped ............ 190
▫ Opening Sunroof — Express ............ 191
▫ Opening Sunroof — Manual Mode ........ 191
▫ Closing Sunroof — Express ............. 191
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Closing Sunroof — Manual Mode ........ 191
▫ Pinch Protect Feature ................. 191
▫ Pinch Protect Override ................ 192
▫ Venting Sunroof — Express ............. 192
▫ Sunshade Operation .................. 192
▫ Wind Buffeting ...................... 192
▫ Sunroof Maintenance ................. 192
▫ Ignition Off Operation ................. 193
 Sky Slider™ Full Length Open Roof —
If Equipped .......................... 193
▫ Sky Slider™ Usage Precautions .......... 193
▫ Sky Slider™ Control .................. 195 ▫
Opening The Sky Slider™ .............. 196
▫ Closing The Sky Slider™ ............... 196
▫ Anti-Pinch Protect Feature .............. 197
▫ Wind Buffeting ...................... 197
▫ Sky Slider™ Maintenance .............. 198
 Electrical Power Outlet ................. 198
 Cupholders .......................... 201
 Storage ............................. 202
▫ Glove Box Storage Compartment ......... 202
▫ Front Storage Compartment ............. 202
▫ Console Storage Compartment ........... 203
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

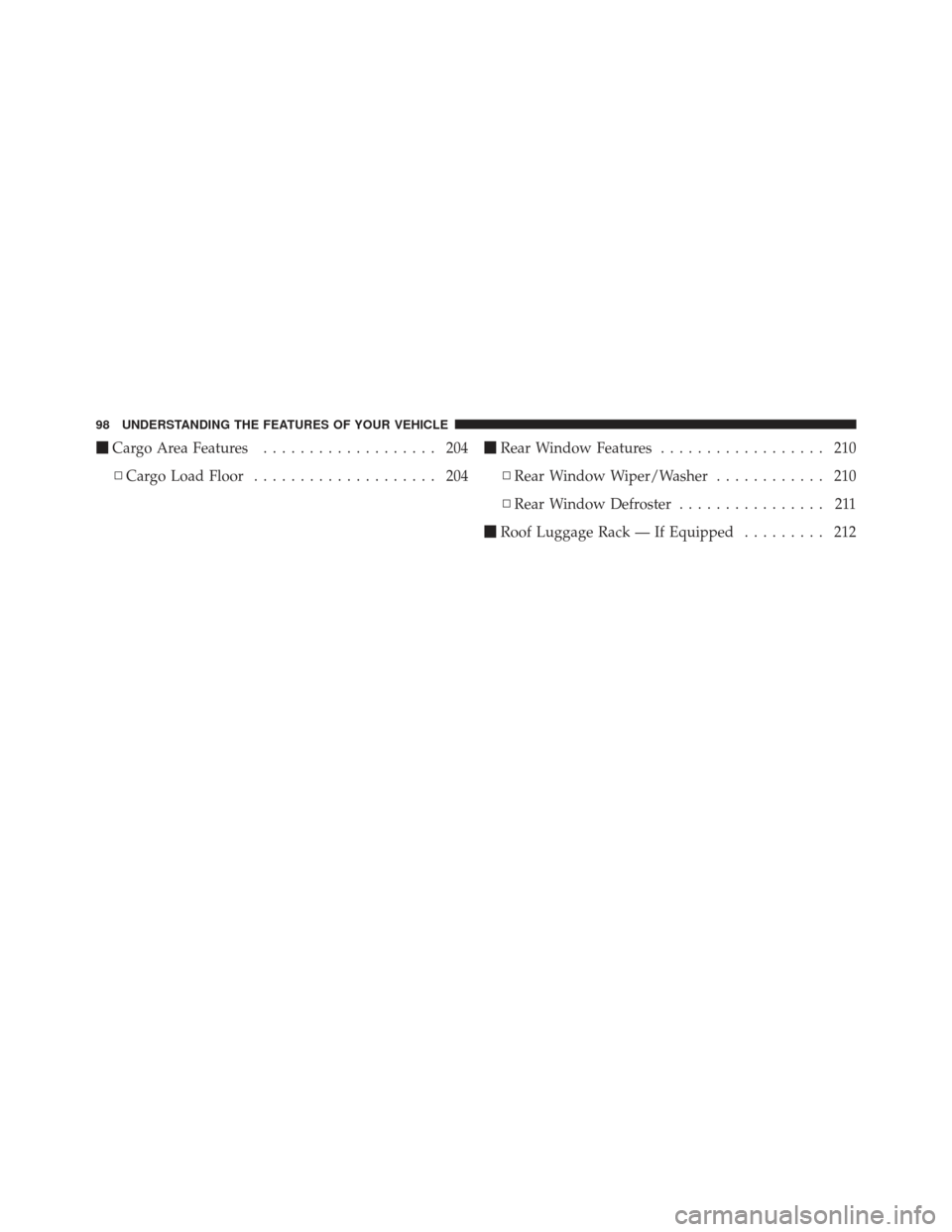

Cargo Area Features ................... 204
▫ Cargo Load Floor .................... 204
Rear Window Features .................. 210
▫ Rear Window Wiper/Washer ............ 210
▫ Rear Window Defroster ................ 211
 Roof Luggage Rack — If Equipped ......... 212
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
